LUCCI Air AIRFUSION BALI LD-BALI-52 User manual

v1.0-EU (11/2020)
LUCCI
AIRFUSION BALI
DC CEILING FAN
⚫INSTALLATION
⚫OPERATION
⚫MAINTENANCE
⚫WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

AIRFUSION BALI Installation Instructions
1 | P a g e
CONTENTS
GB
Installation instruction manual .......................................................................................... 2
D
Installationsanleitung ........................................................................................................ 17
F
Guide d’installation............................................................................................................ 33
E
Manual de instrucciones de instalación............................................................................. 49
I
Manuale delle istruzioni di installazione............................................................................. 65
NL
Installatiehandleiding.......................................................................................................... 80
EL
Εγχειρίδιο οδηγιών εγκατάστασης ..................................................................................... 96
Contact:
Beacon International Ltd
Hong Kong HeadOffice: Room 05, 18/F, Kimberland Center, 55 Wing Hong Street, Cheung Sha Wan Kowloon, Hong Kong
Tel [phone] Fax [phone]
China showroom / Office: 11/Fl, Guzhen Lighting Building B, Mid Zhongxing Road, Guzhen, Zhongshan, GuangDong, China.
Tel: [phone] Fax: [phone]
[e-mail]
www.beaconinternational.com
Beacon Lighting Europe GmbH
Campus Fichtenhain 42, 47807 Krefeld, Germany
TEL [phone] FAX [phone]
[e-mail]
www.beaconlighting.eu

AIRFUSION BALI Installation Instructions
2 | P a g e
THANK YOU FOR PURCHASING
Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power
which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and
silent operation.
Energy saving - The DC motor is the latest technology in fan design. Its highly efficient motor saves up to
65% more energy than ceiling fans with traditional AC motors.
Silent operation – This DC fan motor is programmed with a stabilised current which efficiently reduces motor
noise.
Low operating temperature – The DC power is managed effectively which brings down the motor operating
temperature to less than 50℃. This results in a much cooler motor than a standard AC fan and increases the
longevity of the motor.
6 speed remote control - Regular AC ceiling fans usually come with only 3 speeds, this DC fan comes
complete with a 6 speed remote, which gives a greater choice of comfort levels.
SAFETY PRECAUTIONS
1. This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Cleaning and maintenance shall not be undertaken by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local wiring
rules.
4. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact your local government for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water
and get into the food chain, damaging your health and well-being.
5. The structure to which the fan is to be mounted must be capable of supporting a weight of 45 kg.
6. The fan should be mounted so that the blades are at least 2.3m above the floor.
7. This fan is suitable for indoor and alfresco areas where the fan is fully undercover with a minimum of 2
walls. This fan is not waterproof. When installed in an alfresco area, the ceiling fan must be positioned in
a location protected from water, wind, dust and salt. Exposure to these elements will void the warranty.
Mounting the fan in a situation where it is subject to water or moisture is dangerous and may increase the
risk of damage, injury or electrical shock.

AIRFUSION BALI Installation Instructions
3 | P a g e
8. Must be assembled and installed by a licensed electrician.
9. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the ceiling
fan and contact the manufacturer, its service agent or suitably qualified persons.
10. The replacement of parts of the safety suspension system device shall be performed by the manufacturer,
its service agent or suitably qualified persons.
11. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the suspension
system shall be performed by the manufacturer, its service agent or suitably qualified persons.

AIRFUSION BALI Installation Instructions
4 | P a g e
PARTS LIST
•Unpack your ceiling fan carefully. Remove all parts and hardware.
•Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
•Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.

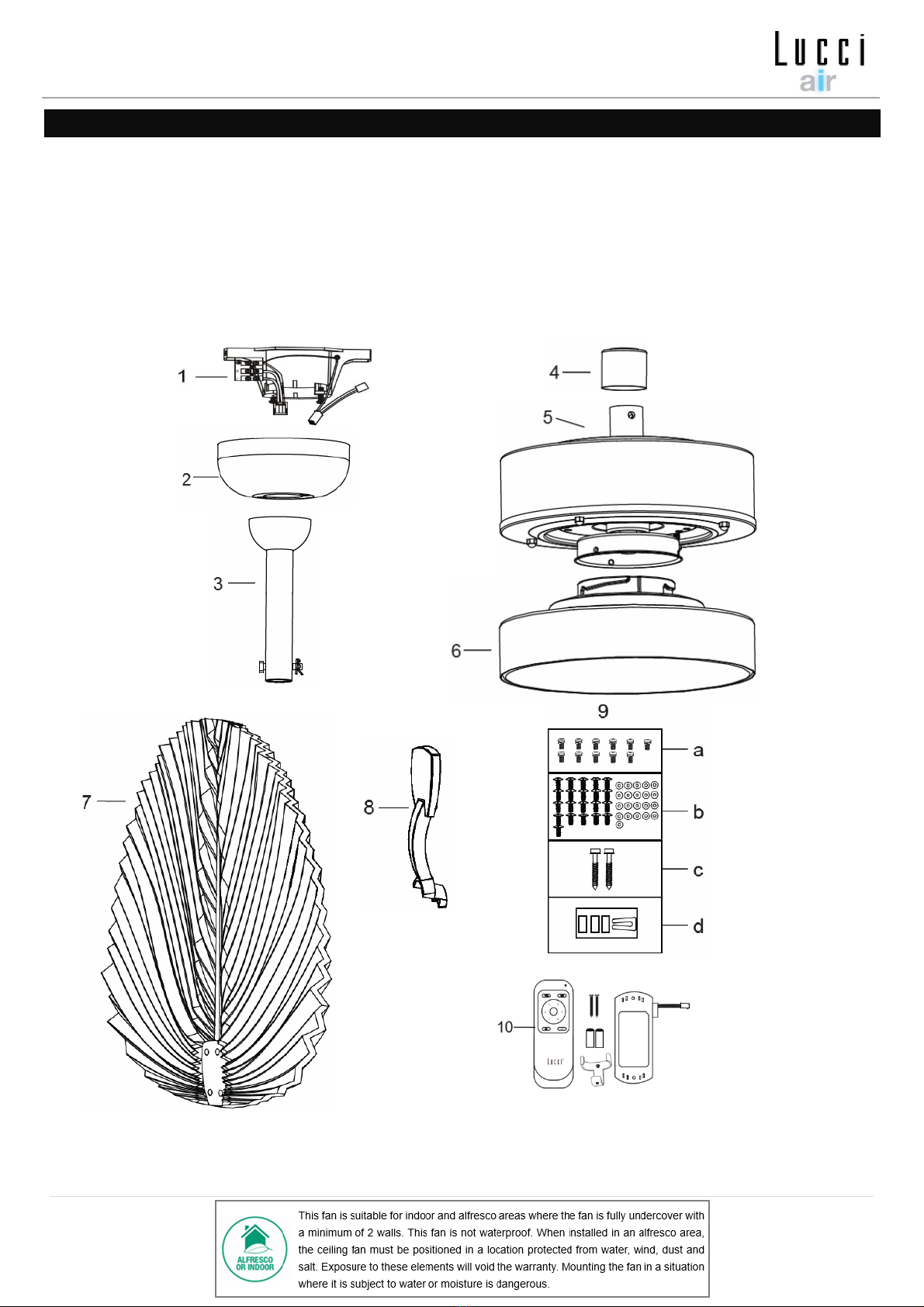

•Examine all parts, you should have the following:
Fig. 1

AIRFUSION BALI Installation Instructions
5 | P a g e
INSTALLING THE FAN
TOOLS REQUIRED:
- Phillips / flat head screwdriver
- Pair of pliers
- Adjustable spanner
- Step ladder
- Wire cutter
- Wiring, supply cable as required by local provincial and national wiring codes and regulations
INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the
blade to the nearest objects or walls.
•Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 45
kg, with two long screws provided. Ensure at least 30mm of the screw is threaded into the support. (Fig.
2)
NOTE: The bracket screws provided are for use with wooden structures only. For structures other
than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable for the
mounting surface and the surrounding environment.
1
Mounting bracket x1
7
Fan Blades x5
2
Canopy Cover x1
8
Fan blade bracket x5
3
Down rod and ball joint x1
9a
Blade mounting screw x10 (1 spare)
4
Down rod coupling housing
cover x 1
9b
Blade and bracket assembly screw
and washer x 20 sets (1 Spare set)
5
Fan motor assembly x1
9c
Mounting bracket Screw x2
6
Light kit x1 (18W GX53 lamp is
pre-installed in the light kit)
9d
Blade balancing kit x1 set
10
Remote receiver and Remote controller, battery, holder x 1 set
Fig. 2
45 KG

AIRFUSION BALI Installation Instructions
6 | P a g e
ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum 10 degree angled ceiling installation. (Fig. 3)
INSTALLING THE DOWN ROD (Fig. 4)
Fig. 3
10°

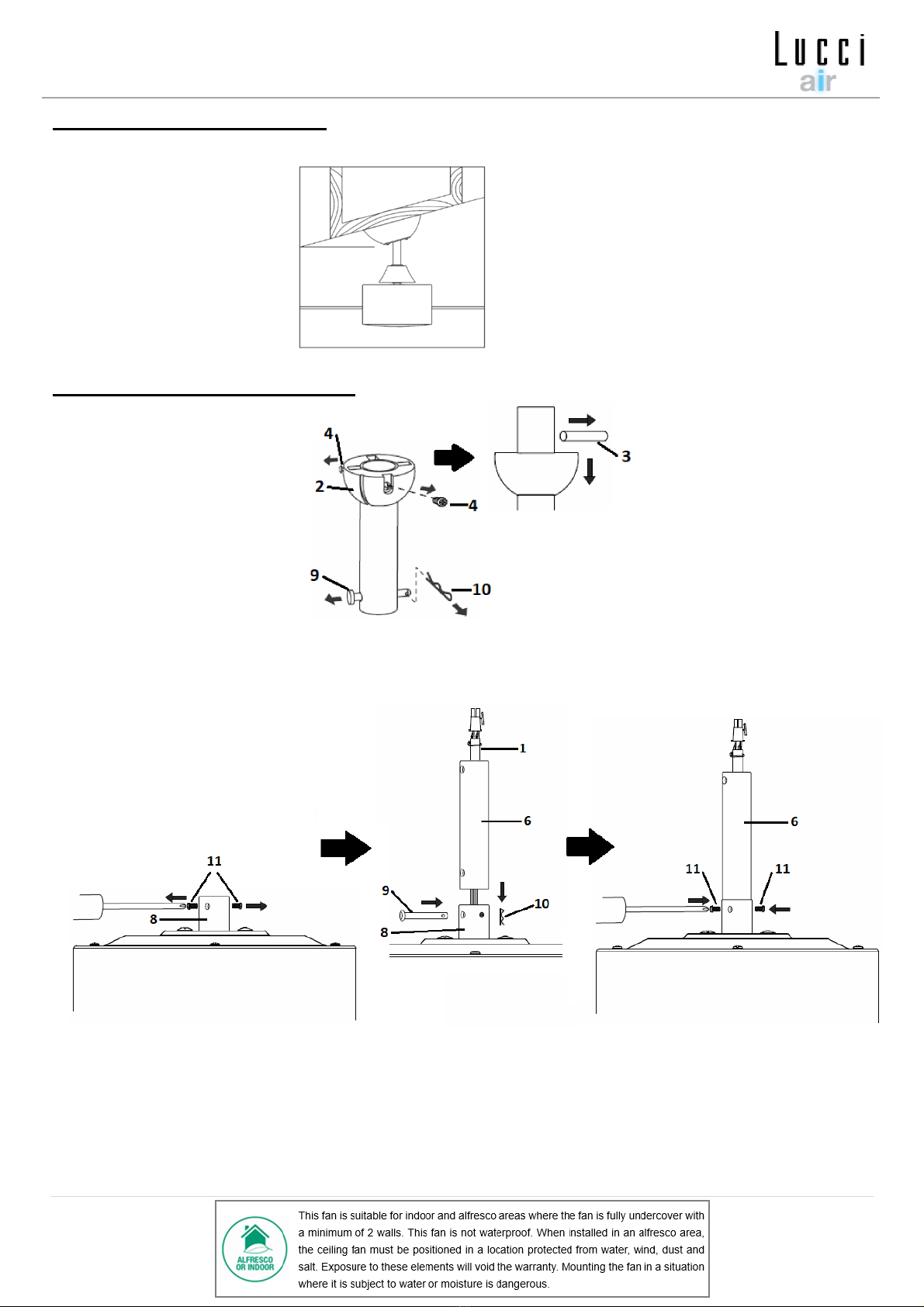

1. Remove the ball joint (2) and dowel pin (3) by loosening the set screws (4) from the down rod (6). Remove
the hitch pin (9) by removing the lock clip (10). NOTE: Do not discard keep these parts, they are required
to reassemble later. (Fig. 4.1)
2. Loosen the set screws (11) on the down rod coupling housing (8). (Fig. 4.2)
3. Carefully feed the fan wires (1) up through the down rod (6). (fig. 4.3)
4. Assemble the down rod (6) into the down rod coupling housing (8), by inserting and line up the down rod
coupling housing holes with the down rod holes and insert the hitch pin (9) and secure with the lock clip (10).
(Fig. 4.3)
5. Secure the down rod (6) by tightening the set screws (11). (Fig. 4.4)
Fig. 4.1
Fig. 4.2
Fig. 4.3
Fig. 4.4

AIRFUSION BALI Installation Instructions
7 | P a g e
INSTALLATION OF BLADE (Fig. 5)
1. Assemble the fan blades to the fan blade bracket by tightening the 4 blade screws and washers. Take
note the correct side of the blades with the marking “THIS SIDE UP” is on the screw head side. (Fig. 5.1).
2. Install the fan blade assembly to the fan assembly by the 2 screws and spring washer set. (Fig. 5.2)
3. Repeat the same process for the other blades.
Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing. Take care not to over
tighten the screws, as this can damage the blades.

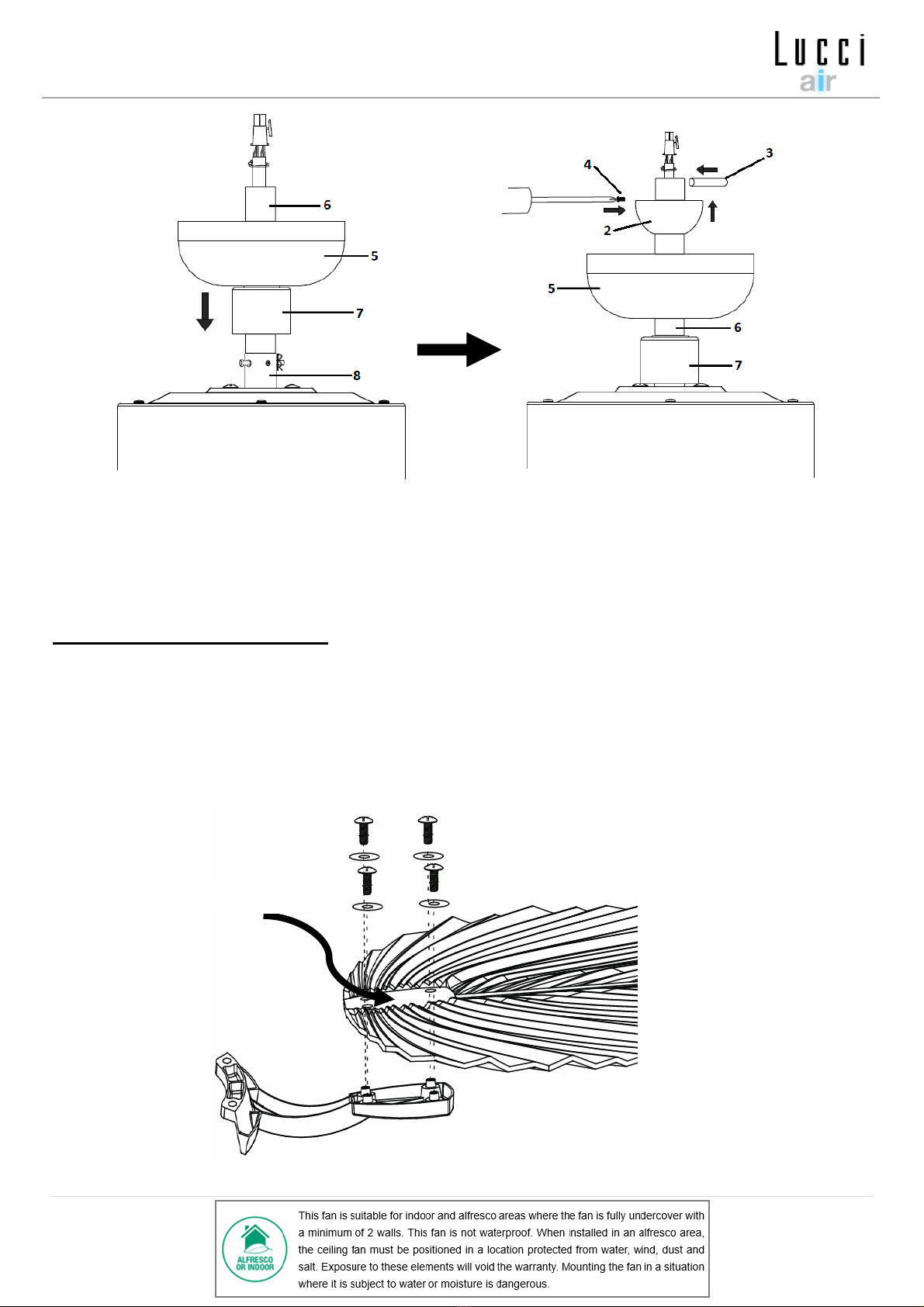

6. Insert the decorative cover (7) onto the down rod (6) to cover the down rod coupling housing (8).(Fig. 4.5)
7. Insert the canopy (5) over the down rod (6) and install the ball joint (2) and dowel pin (3) back onto the
down rod (6) and secure by tightening the set screws (4). (Fig. 4.5 and Fig. 4.6)
Fig. 4.5
Fig. 4.6
THIS SIDE UP
Fig. 5.1

AIRFUSION BALI Installation Instructions
8 | P a g e
INSTALLATION OF LIGHT KIT (Fig. 6)
NOTE: The light kit must be installed by a licensed electrician.

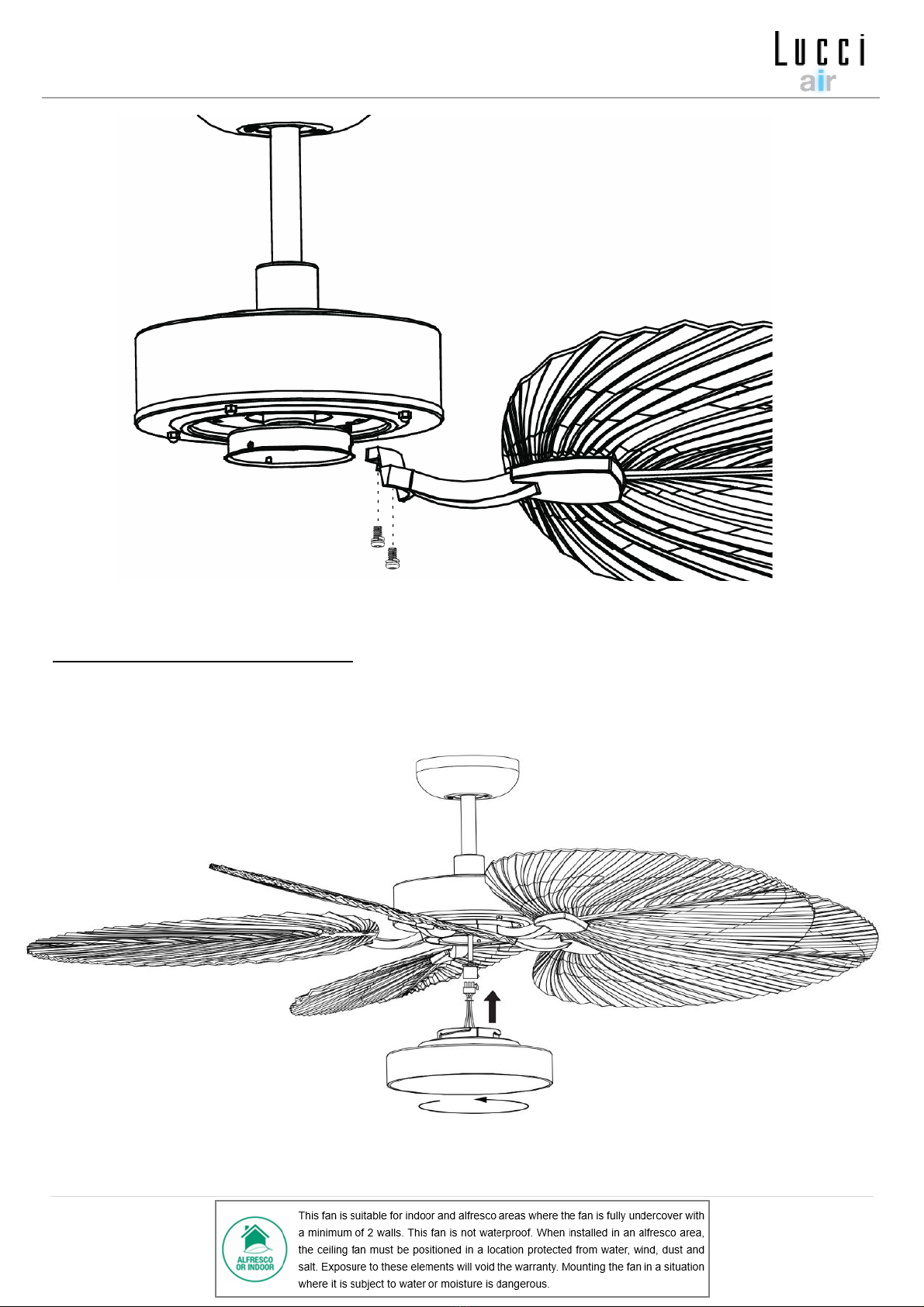

•Connect the wires of light kit to the fan assembly via the quick connector.
•Install the light kit on the fan assembly then secure it by turning clockwise.
Fig. 6
Fig. 5.2

AIRFUSION BALI Installation Instructions
9 | P a g e
INSTALLATION OF LAMP (Fig. 7)
•NOTE: The GX53 lamp is pre-installed in the light kit. Follow the below if it is required to replace the lamp.
•Remove the lamp shade from the light kit.
•Replace the GX53 lamp with a new one. Do not exceed the maximum power rating.
•Install the lamp shade back onto the light kit.

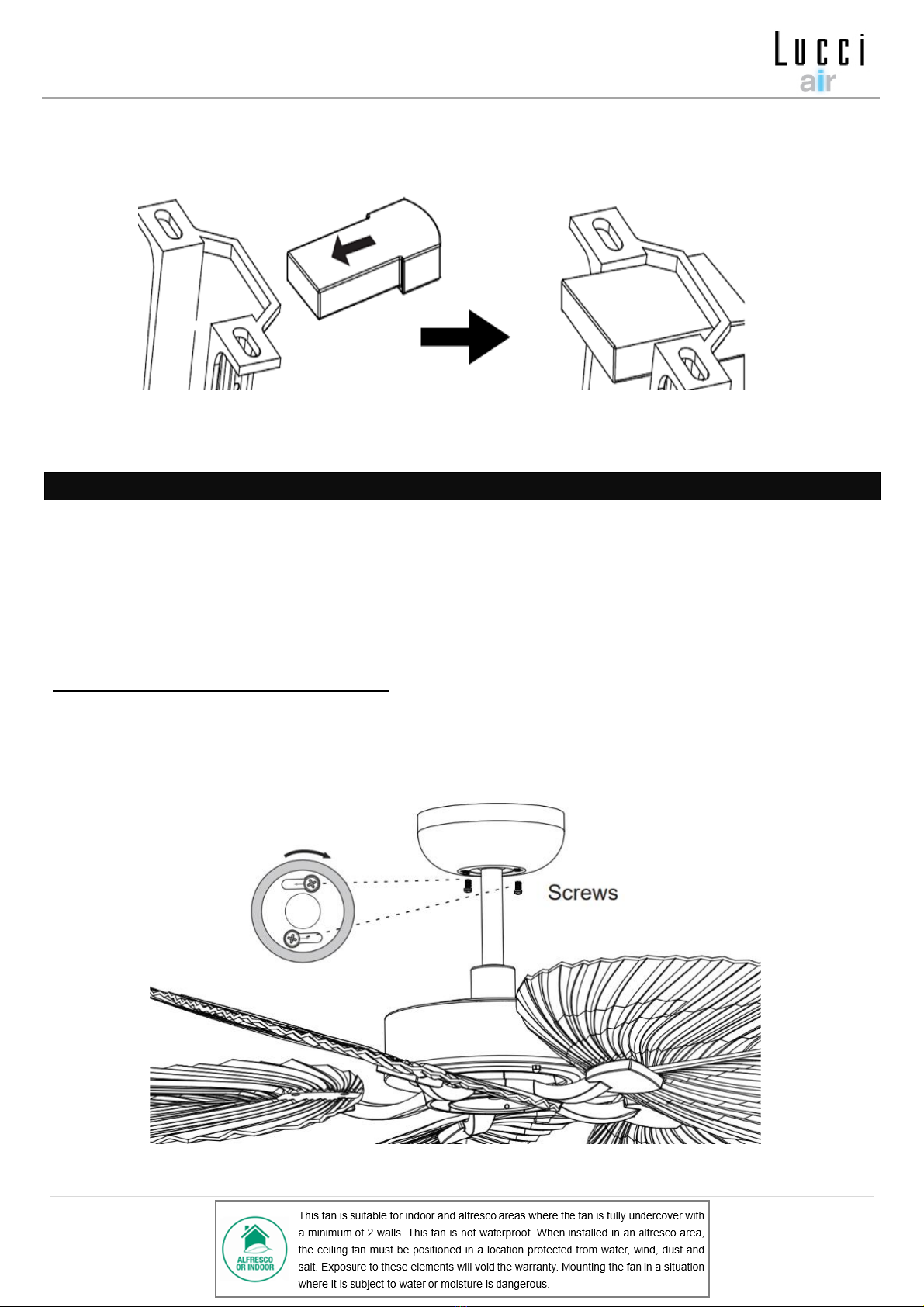

HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on
the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig. 8)
Fig. 8
Fig. 7
