LUCCI Air POLIS 216162 Owner's manual

v1.0-AU (05/2023)
LUCCI AIR
POLIS
IP55 DC CEILING FAN
⚫INSTALLATION
⚫OPERATION
⚫MAINTENANCE
⚫WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

POLIS IP55 DC Fan Installation Instructions
1 | P a g e
THANK YOU FOR PURCHASING
Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power
which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and
silent operation.
Energy saving - The DC motor is the latest technology in fan design. Its highly efficient motor saves up to
65% more energy than ceiling fans with traditional AC motors.
Silent operation – This DC fan motor is programmed with a stabilised current which efficiently reduces motor
noise.
Low operating temperature – The DC power is managed effectively which brings down the motor operating
temperature to less than 50℃. This results in a much cooler motor than a standard AC fan and increases the
longevity of the motor.
6 speed remote control - Regular AC ceiling fans usually come with only 3 speeds, this DC fan comes
complete with a 6 speed remote, which gives a greater choice of comfort levels.
SAFETY PRECAUTIONS
1. The appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local wiring
rules.
WARNING:
FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION
MUST BE INCORPORATED INTO THE FIXED WIRING IN
ACCORDANCE WITH THE WIRING RULES.
As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the minimum
electrical safety of this standard.
Please note warranty will be void if installation is without a means for an
all-pole disconnection incorporated in the fixed wiring in accordance with

POLIS IP55 DC Fan Installation Instructions
2 | P a g e
the wiring rules.
Example: If a fan is connected to a circuit that can be isolated via an all-
pole safety switch at the switchboard, then this is considered to be an
all-pole disconnection to the ceiling fan electrical circuit, meeting the
requirements of clause 7.12.2 of AS/NZS 60335.1.
A single-pole switch on the active of the receiver input of remote
control must also be included in the wiring, and located the same
room as the ceiling fan.
4. Do not dispose of electrical appliances, remote or batteries as unsorted municipal waste, use
separate collection facilities. Contact your local government for information regarding the collection
systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances
can leak into the ground water and get into the food chain, damaging your health and well-being. Please
contact your local council or regional authority for more information on collection, reuse, and recycling
programmes.
5. The structure to which the fan is to be mounted must be capable of supporting a weight of 17 kg.
6. The fan should be mounted so that the blades are more than 2.1 m above the floor.
7. This fan is suitable for indoor, alfresco, and coastal areas. This product is IP55 rated and can be exposed
to jets of water from any direction. This rating should be maintained during installation.
8. Must be assembled and installed by a licensed electrician.
9. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the ceiling
fan and contact the manufacturer, its service agent or suitably qualified persons.
10. The replacement of parts of the safety suspension system device shall be performed by the manufacturer,
its service agent or suitably qualified persons.
11. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the suspension
system shall be performed by the manufacturer, its service agent or suitably qualified persons.
12. This remote contains battery that is non-replaceable.
13. The remote control can only be powered at a safe extra low voltage (DC 5 V).

POLIS IP55 DC Fan Installation Instructions
3 | P a g e

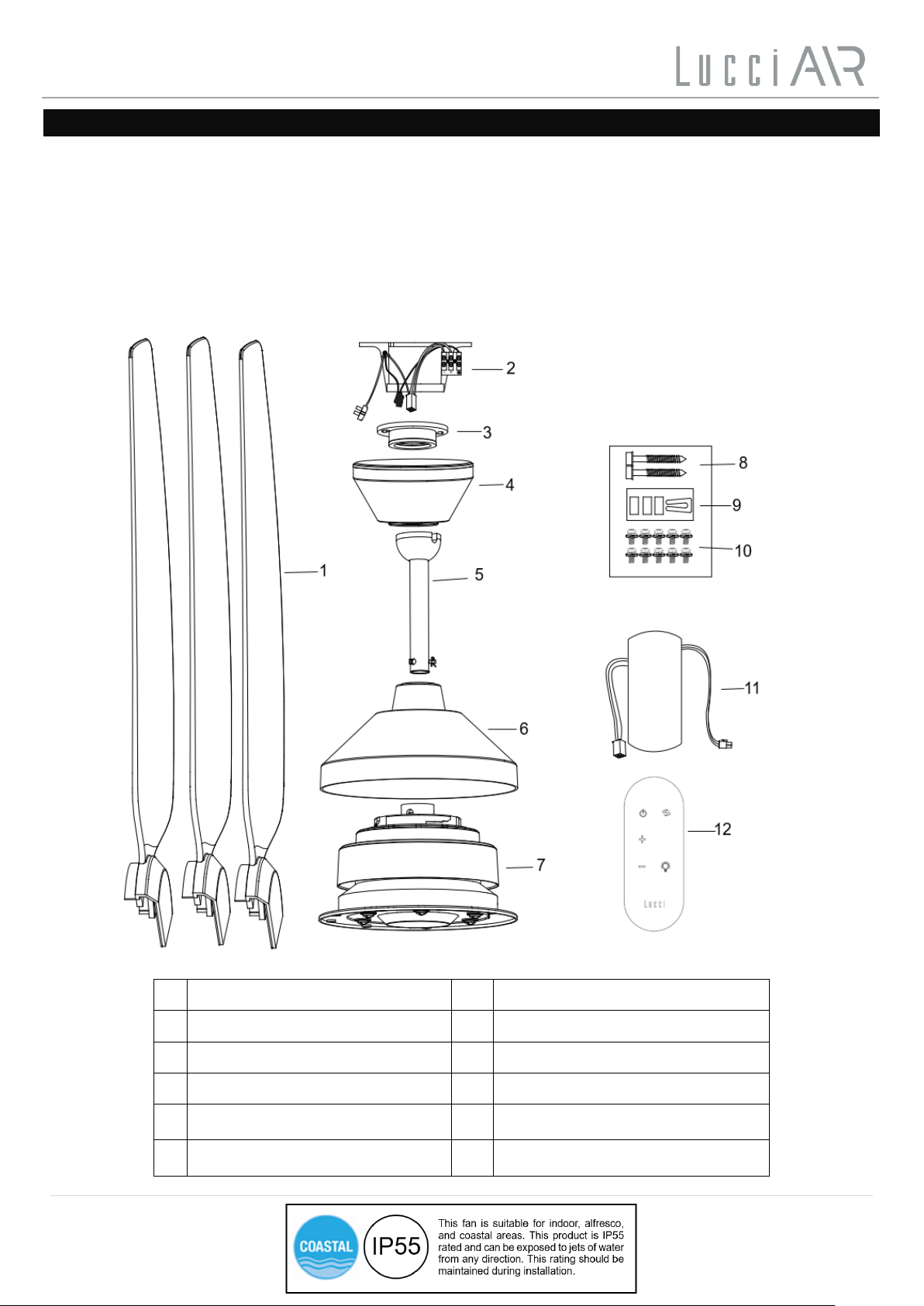

PARTS LIST
•Unpack your ceiling fan carefully. Remove all parts and hardware.
•Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
•Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.
•Examine all parts, you should have the following:
1
Blades x 3
7
Fan assembly x 1
2
Mounting bracket x 1
8
Mounting screws x 2
3
Canopy bracket x 1
9
Balancing kit x 1
4
Canopy cover & Canopy x 1 set
10
Blade screws x 10
5
Downrod and Ball Joint x 1
11
Receiver x 1
6
decorative cover x 1
12
Remote x1
Fig. 1

POLIS IP55 DC Fan Installation Instructions
4 | P a g e
INSTALLING THE FAN
TOOLS REQUIRED:
- Phillips / flat head screwdriver
- Pair of pliers
- Adjustable spanner
- Step ladder
- Wire cutter
- Wiring, supply cable as required by local provincial and national wiring codes and regulations
INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the
blade to the nearest objects or walls.
•Remove the canopy cover from the canopy by anticlockwise. (Fig. 2)
•Attach the mounting bracket to the canopy cover.
•Secure the mounting bracket with the canopy cover to the ceiling joist or structure that is capable of
carrying a load of at least 17kg, with two long screws provided. Ensure at least 30mm of the screw is
threaded into the support. (Fig. 3)
NOTE: The bracket screws provided are for use with wooden structures only. For structures other
than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable for the
mounting surface and the surrounding environment.
Fig. 2
Fig. 3

POLIS IP55 DC Fan Installation Instructions
5 | P a g e
ANGLED CEILING INSTALLATION
The hanging system of this fan is ONLY suitable for flat ceiling installation.
DO NOT install the fan on an angled ceiling.
INSTALLATION OF BLADE (Fig. 4)
1. Mount the fan blade onto the fan assembly using three blade screws with lockwashers (supplied in fan
parts bag) (Fig.4).
Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing.
Take care not to over tighten the screws, as this can damage the blades
Take note the correct side of the blades with the marking “THIS SIDE UP” faces the ceiling.
2. Repeat for the remaining two fan blades.
To secure the three fan blades to the fan assembly, tighten all screws with lockwashers.
INSTALLING THE DOWN ROD (Fig. 5)
1. Remove the ball joint (4) and dowel pin (3) by loosening the set screws (5) from the down rod (6).
Remove the hitch pin (2) by removing the lock clip (1) (Fig. 5.1). NOTE: Do not discard keep these
parts, they are required to reassemble later.
Fig. 5.1
Fig. 4

POLIS IP55 DC Fan Installation Instructions
6 | P a g e

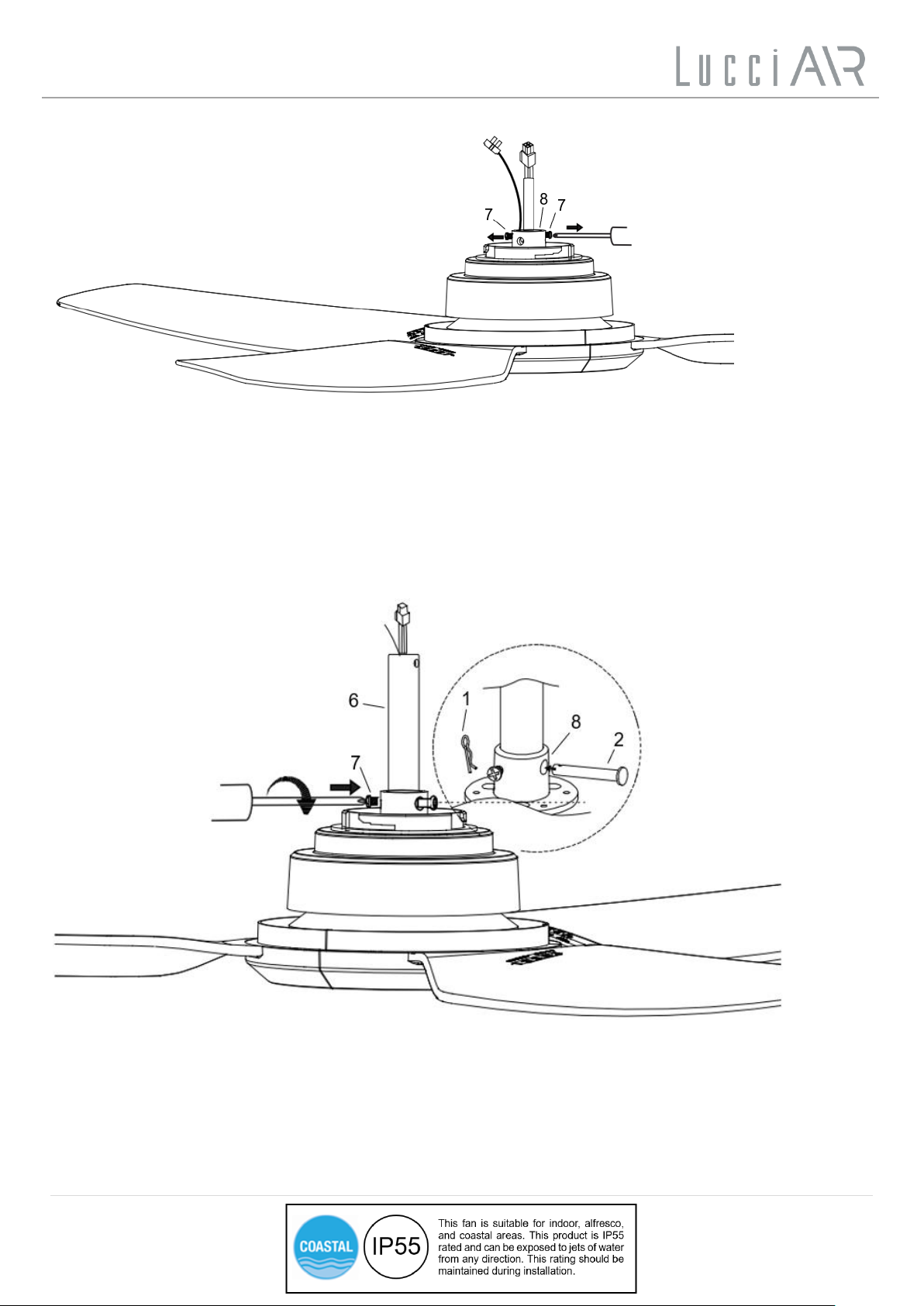

2.Loosen the set screws (7) on the down rod coupling housing (8). (Fig. 5.2)
3. Carefully feed the fan wires up through the down rod (6). (fig. 5.3)
4. Assemble the down rod (6) into the down rod coupling housing (8), by inserting and line up the down rod
coupling housing holes with the down rod holes and insert the hitch pin (2) and secure with the lock clip (1).
(Fig. 5.3)
5. Secure the down rod (6) by tightening the set screws (7). (Fig. 5.3)
Fig. 5.2
Fig. 5.3

POLIS IP55 DC Fan Installation Instructions
7 | P a g e

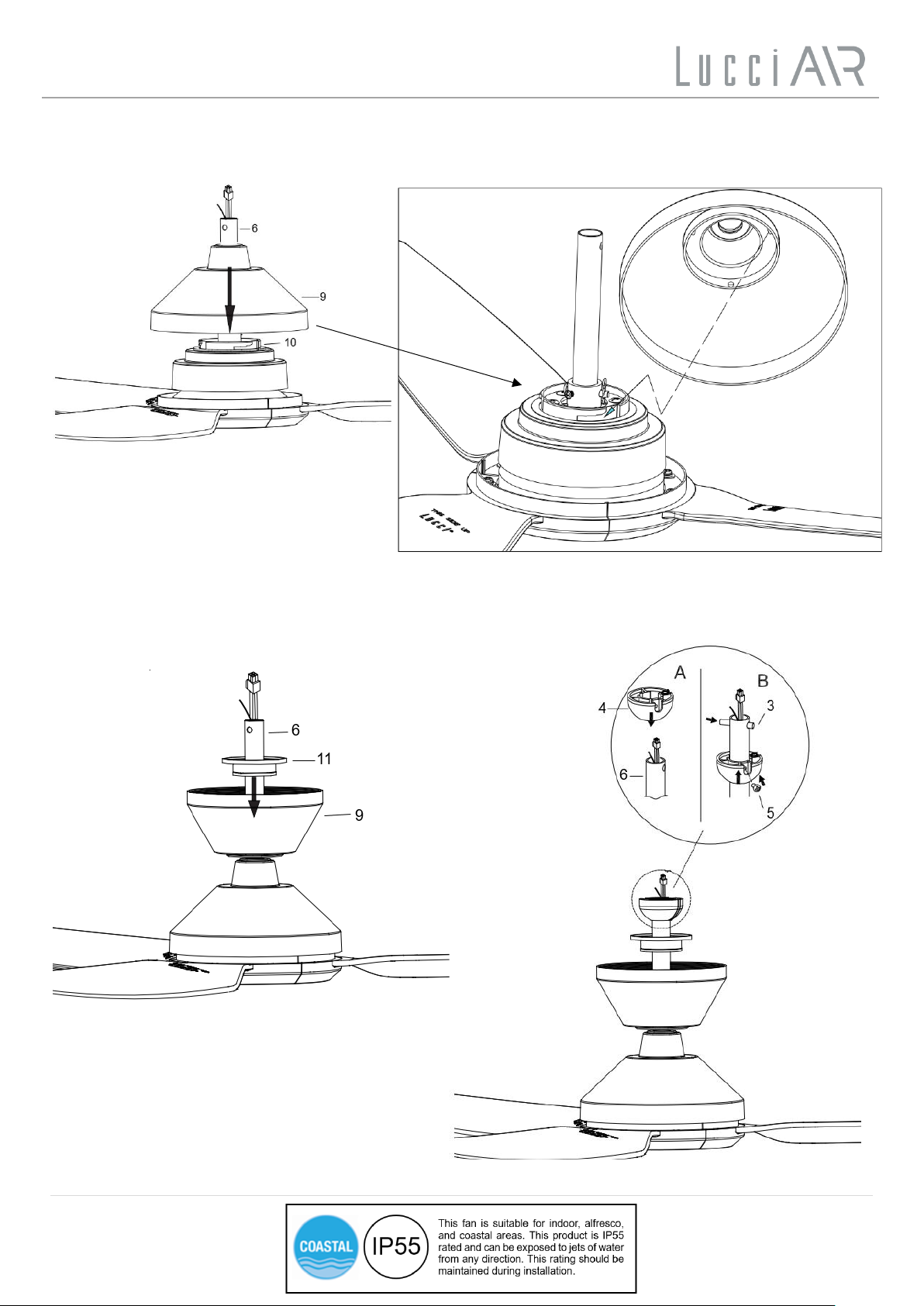

6. Insert the decorative cover (9) onto the down rod (6) to cover the down rod coupling housing (8).(Fig. 5.4)
Finally attach the decorative cover (9) to the fan assembly (10), secure it by pushing the stuck-point of
decorative cover onto the slot of fan assembly, and turn it clockwise. .(Fig. 5.4)
7.Insert the canopy (5) & canopy bracket (11) over the down rod (6) and install the ball joint (4) and dowel pin
(3) back onto the down rod (6) and secure by tightening the set screws (5). (Fig. 5.5& Fig.5.6)
Fig. 5.4
Fig. 5.5
Fig. 5.6

POLIS IP55 DC Fan Installation Instructions
8 | P a g e
HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on
the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig. 6)
ELECTRICAL WIRING DIAGRAM THE FAN
PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 6)
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED
WIRING.
NOTE: IF THERE ARE TWO OR MORE DC CEILING FANS INSTALLED IN THE ONE LOCATION, AN
ISOLATION SWITCH IS REQUIRED FOR EACH CEILING FAN. THIS IS REQUIRED WHEN
PROGRAMMING THE REMOTE AND RECEIVER TO PAIR TOGETHER.
NOTE: Ensure the motor earth wire is connected to the single earthing terminal block “1” in the
diagram below (Fig. 6).
From mains supply to mounting bracket terminal block: (Fig. 6)
1. Connect the live supply wire to the “L” terminal of the terminal block on the mounting bracket.
2. Connect the neutral supply wire to “N” terminal of the terminal block on the mounting bracket.
3. Connect earth wire to the earth terminal of the terminal block on the mounting bracket.
From mounting bracket to receiver and motor: (Fig. 6)
4. Connect the supply wiring from the mounting bracket to the input of the DC motor receiver.
5. Connect the output wires of DC motor receiver to the input wires of the fan motor.
6. Connect the earth wire of fan motor to the single earthing terminal block “1” from mounting bracket in the
diagram below.
Fig. 6

POLIS IP55 DC Fan Installation Instructions
9 | P a g e
Fig. 6

POLIS IP55 DC Fan Installation Instructions
10 | P a g e
Carefully insert the receiver above the hanger ball in the remainder spacing in the mounting bracket. Take
care not to damage or loosen any of the wiring. (Fig. 7).
FINISHING THE INSTALLATION
NOTE: Ensure the earth wiring is secure and correct, by performing an earthing continuity
test from the fan’s accessible metal body back to the earth terminal at the terminal
block on the mounting bracket.
INSTALLATION OF THE CANOPY (Fig. 8 & Fig.9)
1. Loosen the 2 screws at the bottom of the mouthing bracket.
2. Slide the canopy bracket up to the mounting bracket and align the key holes on the canopy bracket with
the screws on the mounting bracket. Turn the canopy bracket until it locks into place with the narrow section
of the key holes and secure it by tightening the two screws. Avoid damaging the electrical wiring prepared
previously.
Fig. 7
Fig. 8

POLIS IP55 DC Fan Installation Instructions
11 | P a g e

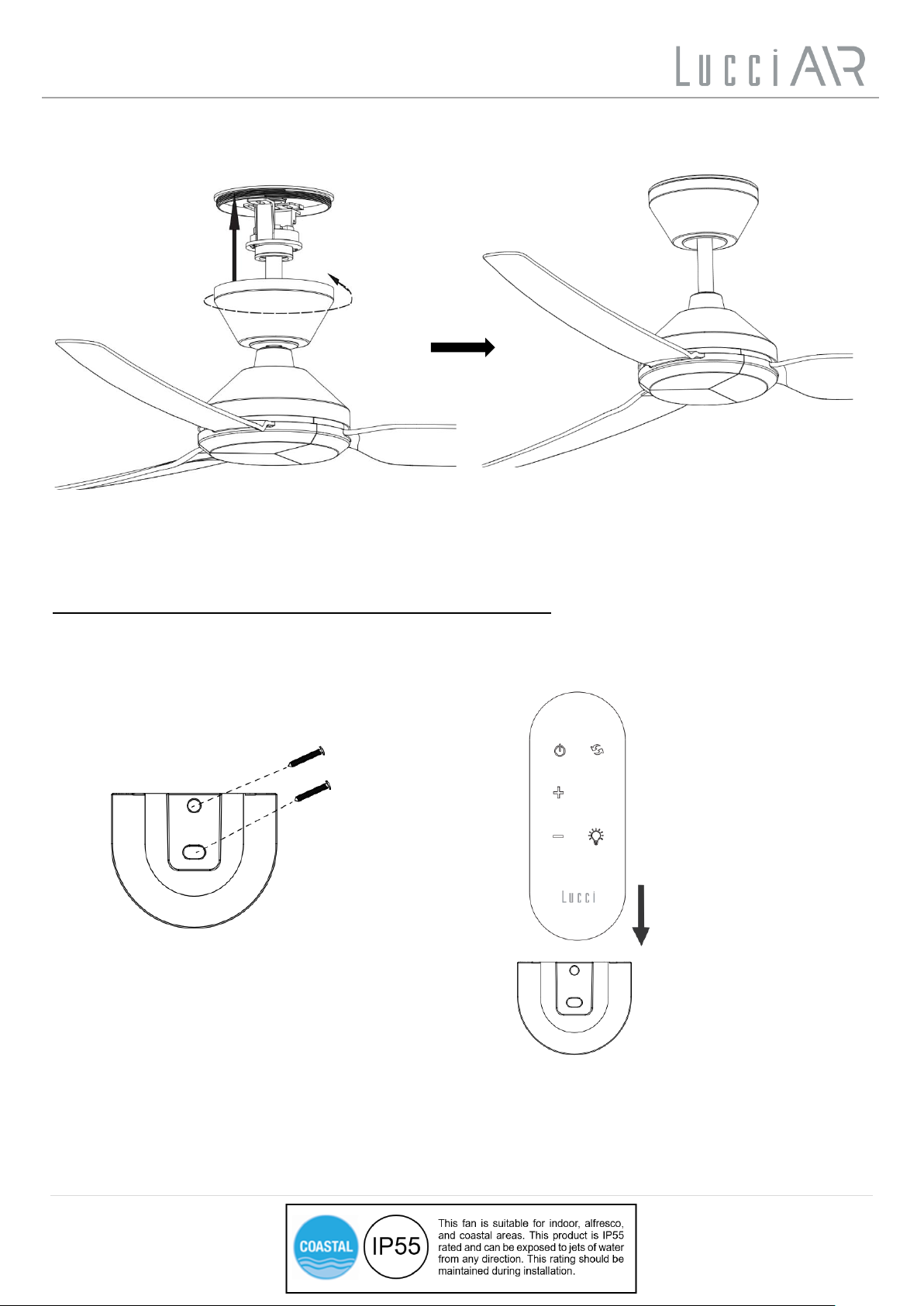

3. Slide the canopy up to the canopy cover by turn clockwise.
NSTALLATION OF THE REMOTE CONTROL HOLDER (Fig. 10)
Fig. 9
1. Locate a suitable wall to fix the remote control holder with the 2 screws. (Fig.10a).
2. Slide the remote into the holder to rest the remote. (Fig. 10b)
Fig. 10a
Fig. 10b

POLIS IP55 DC Fan Installation Instructions
12 | P a g e
USING YOUR CEILING FAN
REMOTE CONTROL
1. Test the remote by touch any button. the LED indication light ring (Cool White) will be lit up at the edge of
the remote to indicate that there is power to the remote and it is ready for use to control the fan.
2. Follow the guide below to operate the fan and learn the functions.
: Fan Off Button
Touch the button to turn the fan off
: Reverse Function Button
Touch the button to activate the reverse running function.
The fan must be operating to activate the reverse function.
: Light On /Off Button
Touch the button to turn on /off the light (Remark: this POLIS fan is without light)
: Fan Increase Speed Button
Touch the button to increase the fan speed, the fan has total 6 speeds.
: Fan Decrease Speed Button
Touch the button to decrease the fan speed, the fan has total 6 speeds.
fan speed will be displayed through 6 steps of brightness –LED indication light ring on remote edge
(Highest speed: Full brightness/ Lowest speed: Minimum brightness)
USB-C charging port: When charging, the LED red indication light ring on remote edge will always on
to indication the battery is charging until the battery is full.
If the battery is low, when touching the buttons, the LED red indication light ring will flash one time.
NOTE: This remote is not supporting PD charging.

POLIS IP55 DC Fan Installation Instructions
13 | P a g e
The remote has memory function. If the fan is turned off by the isolating switch over 7 seconds, the next time
to turn on the fan will be on last setting
THE FAN RECEIVER & REMOTE PAIRING
NOTE: This remote is supplied with default coding, can use the fan without further pairing,
When the ceiling fan is installed, pairing the fan receiver and remote is NOT required.
If required to operate the multiple fans with multiple remote control individually, then the remote /receiver need
be paired. or if the remote and receiver lose control after installation or during use, the pairing of the remote
and the receiver must be repaired.
When operating this pairing function, please stand within 3 meters distance to the fan.
PAIRING REMOTE & RECEIVER – WHEN 1 DC CEILING FAN IS INSTALLED IN ONE LOCATION
NOTE: Ensure that you have installed a single pole disconnection switch in the fixed wiring for the fan.
NOTE: Ensure power to the receiver is ON prior to pairing the remote with the receiver.
•Turn OFF the mains supply to the fan by on/off wall switch for 30 seconds.
•Turn ON the power to the receiver.
•Press the button on the remote for 5 seconds within 30 seconds of switching the power ON to the
receiver of the ceiling fan.
the LED white indication light ring on the remote edge will flash for twice with full brightness to
indicate the paring process is successful.
•Turn ON the fan and change the speed of the ceiling fan via the remote to check the operation and
successful paring.
•If pairing has been unsuccessful, repeat these set of steps again.
PAIRING REMOTE AND RECEIVER – WHEN 2 OR MORE DC CEILING FANS ARE INSTALLED IN ONE
LOCATION
NOTE: Ensure that you have installed a single pole disconnection switch in the fixed wiring for each fan.
⚫If you want to control 2 or more ceiling fans with one remote, do as explained in the normal pairing
process, but make sure all ceiling fans wall switches are turned ON.
⚫If you want to control them with individual remotes, do as explained in the normal pairing process, but
make sure the other ceiling fans wall switches are turned OFF. After the first fan is paired turn the wall
switch OFF and continue the normal pairing process with the next fan.

POLIS IP55 DC Fan Installation Instructions
14 | P a g e
RESET TO DEFAULT FOR THE REMOTE CONTROL:
Press the button on the remote for 15 seconds within 30 seconds of switching the power ON to the
receiver of the ceiling fan. When it exceeds 5 seconds, the LED white indication light ring on the remote edge
will flash for twice with full brightness for pairing, keep press the button until exceeds 15 seconds, the LED
white indication light ring on the remote edge will flash again, receiver will return to the default factory setting.
After resetting, the fan receivers will back to default mode and can be controlled by all remotes.
Note: when operating this reset function, please stand within 3 meters distance to the fan.
RESET OF WIFI MODULE :
Press the “ ” button & the “ ” button on the remote simultaneously for 10 seconds, the LED white
indication light ring on the remote edge will flash for twice with full brightness.
Note: when operating this reset function, please stand within 3 meters distance to the fan.
REPAIRING THE FAN RECEIVER & REMOTE PAIRING
Should the remote and receiver lose control after installation or during use, the pairing of the remote and the
receiver must be repaired. Below are the operating symptoms and method to repair the pairing of the DC
ceiling fan remote and receiver.
Symptoms:
•Loss of control - Fan is only running at high speed after installation
•Loss of control - No reverse function after installation
•Loss of control - Remote cannot communicate with the receiver
Repairing Steps:
•Switch OFF the main power to the ceiling fan for 30 seconds.
•Switch ON the main power of the ceiling fan. Follow the same process as described in the ‘Paring remote
& receiver’ section to repair the pairing.
•Turn on and select the different speed of the ceiling fan to check the operation of the fan.
AFTER INSTALLATION
NOTE: Ceiling fans tend to move during operation due to the factthat they are mounted on a rubber grommet.
If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres
is quite acceptable and DOES NOT suggest any problem.
TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod
are secure.
BALANCING KIT: A balancing kit is provided to balance the ceiling fan on initial installation. Please refer to
the instruction on how to use the balancing kit. The balancing kit can be used to assist re-balancing should
the ceiling fan become un-balanced again. Store your balancing kit away after installation for future use if
required.

POLIS IP55 DC Fan Installation Instructions
15 | P a g e
NOISE:
When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and
frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan
motor noise. This is normal. Please allow a 24-hour “settling-in” period, most noises associated with a new
fan disappear during this time.
The manufacturer’s warranty covers actual faults that may develop and NOT minor complaints suchas hearing
the motor run –All electric motors are audible to some extent.
CARE & CLEANING
NOTE: Always turn OFF the power at the mains switch before performing any maintenance or
attempting to clean your fan.
•Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush
or lint free cloth to avoid scratching the paint finish. Please turn off electricity power when you do so.
•Do not soak or immerse your ceiling fan in the water or other liquids. It could damage the motor or the
blades and create the possibility of an electrical shock.
•Ensure that the fan does not come in contact with any organic solvents or cleaners.
•To clean the fan blade, wipe with only a damp clean cloth with NO organic solvents or cleaners.
•The motor has a permanently lubricated ball bearing so there is no need to oil.
•This remote contains a rechargeable Li-ion battery that is non-replaceable.
TECHNICAL INFORMATION
Fan
52” POLIS DC fan
Fan Models
SKU# 216162 / SKU#216163
Rated Voltage
220-240V~ 50Hz
Rated Wattage (Motor)
30W
Rated wattage (Lamp)
N/A
Battery for remote
Rechargeable Li-ion battery (Non-replaceable, USB-C charging)
IP Rating
IP55
Weight
4.2kg
Canopy Dimensions
H:70mm Dia:153mm

POLIS IP55 DC Fan Installation Instructions
16 | P a g e
LUCCI CEILING FAN WARRANTY DETAIL
LUCCI FAN WARRANTY CONTACT INFORMATION:
Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims
Email: [e-mail]
Lucci Fan Warranty Hotline: (Free Call) 1800 602 243
THIS WARRANTY IS VALID IN AUSTRALIA ONLY
In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm
(EST) Monday to Friday. Please make sure you have all the ceiling fan details filled out at the end of the manual before
making the call.
Every Lucci ceiling fan is thoroughly inspected and tested before being released for sale. In addition to any warranty
rights or conditions under statutory regulations, Lucci warrants all its ceiling fans against defective workmanship and
faulty materials for two (2) years from the date of purchase. Following this, an additional seven (7) years motor
replacement warranty applies. Lucci undertakes, at its option, to repair or replace, free of charge, each product or part
thereof on condition that;
1. The fan or relevant part has not been subjected to misuse, neglect, or been involved in an accident.
2. The repairs are not required as a result of normal wear and tear.
3. The product was installed by a licensed electrical contractor.
4. A copy of the original receipt of purchase is presented.
5. 12 month warranty applies when used in any non-domestic applications.
6. This warranty does not cover stains, scratch and scuff marks, or dents if the product is purchased through a
factory outlet or to refurbished items.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.
Lucci Design cannot be held responsible for any repair other than those carried out by it or one of its Authorised
Service Agents. Please keep this warranty information in a safe place. This information must be produced in the
event of service being required.
Distributed by:
Beacon Lighting
140 Fulton Drive
Derrimut, Victoria, 3026, Australia
Ph [phone]
Email: [e-mail]

POLIS IP55 DC Fan Installation Instructions
17 | P a g e
CEILING FAN WARRANTY INFORMATION
LUCCI FAN WARRANTY CONTACT INFORMATION:
Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims
Email: [e-mail]
Lucci Fan Warranty Hotline: (Free Call) 1800 602 243
Complete and retain this form for your personal records and warranty purposes.
NAME……………………………………………………………………………………………………..…
ADDRESS……………………………………………………………………………………………..……
……………………………………………………POSTCODE……………………………………………
MODEL NUMBER………………………………………………………………………………………..…
(PO# + DATECODE Sticker here)
PO NUMBER or DATECODE …………………………………………………………………………….
DATE OF PURCHASE………………………………………………………………………………….…
INSTALLING LICENSED ELECTRICIAN……………………………………………………………..…
………………………………………………………………………………………………………….……
LICENCE No………………………………………………………………………………….……………
ATTACH PROOF OF PURCHASE HERE
THIS COMPLETED DETAIL PAGE SHOULD BE PRODUCED AND SENT TO THE
WHOLESALER OR THEIR AUTHORISED AGENTS BEFORE OBTAINING
WARRANTY SERVICE
