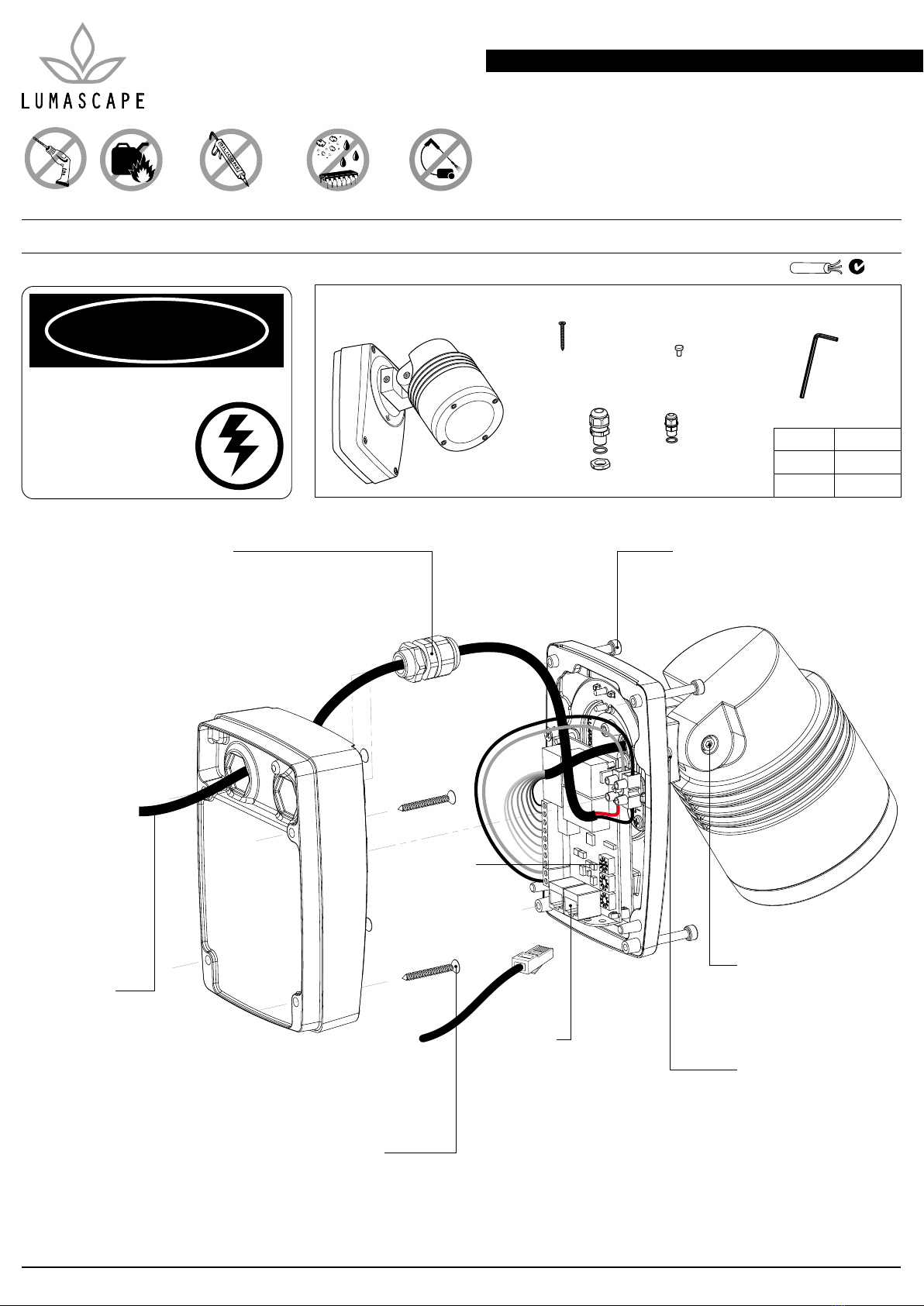

Lumascape LS421LED Centria User manual

Supply Cable
Connect to a suitable
power source and run
to luminaire. Feed cable
through gland and screw
into terminal block.
Cable Gland
Drill out a hole and install gland.
Feed supply cable through gland.
A single round cable with a
diameter of 5-10 mm is required
to ensure a water tight seal.
Lid Screw
Use to scrw luminaire lid to base.
Make sure the seal between lid
and base is correctly in place.
Mounting Screws
Use the four mounting screws
to attach the luminaire base to
the mounting surface.
RJ45 Jacks
If the luminaire is RGB or
single colour dimmable these
ports can be used for DMX
control. Depending on the
setup additional CAT5 data
cables will have to be fed into
the luminaire. For details on
CAT5 data connection refer to
diagram in back.
Dip Switches
These are used to run
pre-set functions on the
luminaire. See table over
for details.
DMX Data
Tilt Screw
Loosen this screw to adjust
luminaire tilt, tighten to lock
luminaire tilt into place.
Rotation Screw
Loosen this screw to adjust
luminaire rotation, tighten
to lock luminaire rotation
into place.
COMPONENTS
DANGER
ISOLATE LUMINAIRE FROM POWER
Failure to isolate power
supply before installation or
maintenance may result in
fire, serious injury, electric
shock, death and may
damage the luminaire.
SPOTLIGHT & FLOODLIGHT
LS421LED Centria
Warranty void if not installed as per installation instructions t 90 ºC N653
MODEL LS421LED
INSTALLATION TYPE Spot & Floodlight
IP RATING IP66 / IP67
SUPPLY VOLTAGE 24 V DC
INSTRUCTIONS COVER Single Colour
Single Colour Dimming
RGB
NO POWER
TOOLS
KEEP AWAY FROM
FLAMMABLE MATERIAL
DO NOT USE SILICONE
ON OUTSIDE SURFACE
KEEP ELECTRONICS FREE
FROM DIRT AND MOISTURE
DO NOT HOSE OR
PREASSURE CLEAN
bung
x2
x4
screw
x2
x2
glands
RM362
RM2167
Allen key
x1
Gland Cable dia
RM362 5-10 mm
RM2167 4-6 mm
INSTALLATION INSTRUCTIONS
Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F07 3286 6599
E[email protected]
Wwww.lumascape.com.au

WARNING - To reduce the risk of FIRE or INJURY:
1. Luminaires and transformers to be installed by licensed electrical contractors.
2. Luminaires to be used for intended purpose only.
3. Do not operate the luminaires with a missing or damaged parts.
4. Use only genuine Lumascape parts to replace damaged or missing components.
5. Refer to instructions for installation and operating requirements.
6. Ensure installation complies with local regulations
Voltage insulation test (megger) will permanently damage product and will void warranty.
SAVE THESE INSTRUCTIONS.
SAFETY INSTRUCTIONS
IN0052 - 24 August 2016
Wiring Diagrams & Dip Switch Settings (Applicable to RGB & Single Colour Dimming with 24 V DC only)
RJ45 DMX WIRING
Wire# Wire Colour DMX512 Function
1 white/green data 1+
2 green data 1-
3 white/orange Not Assigned
4 blue Not Assigned
5 white/blue Not Assigned
6 orange Not Assigned
7 white/brown GND
8 brown Not Assigned
Drain
DMX IN
DMX OUT CH1 CH2
CH3
X100 X10 X1
Copyright ©2016 Lumascape Lighting Industries Pty. Ltd. ABN 21 010 572 773
www.lumascape.com.au
SWITCH SETTINGS
X100 X10 X1 Function
0 0 0 RDM address
001
DMX address / RDM capable
but no writes (responds to
rotary address)
5 1 0 Last address
9 9 0 0 output no DMX response
9 9 1 Ch1 100%
9 9 2 Ch2 100%
9 9 3 Ch3 100%
9 9 4 Ch1,2,3 0%
9 9 5 Ch1,2,3 100%
9 9 6 Ch1,2 100%
9 9 7 Ch2,3 100%
9 9 8 Ch1,3 100%
9 9 9 rainbow
