Lumatek ATS200W User manual

ENGLISH - FRENCH - ITALIAN - SPANISH - GERMAN - CZECH
ATS200W
MANUAL

LUMATEK ATS200W
LED MANUAL
ENGLISH
1. Introduction
3.1 General product information
3.2 Technical Specifications
3.4 Spectrum Graph
3.5 Light distribution curve
3.6 Environment
3.7 Legal
6.1 Fixture assembly & installation
6.2 Connecting the LED fixture to the mains
6.3 Adjusting light intensity (dimming)
2. Product Description
3. Product information and specifications
4. Safety recommendations and warnings
5. Contents
7. Inspection, maintenance and repair
8. Storage and disposal
9. Warranty
6. Instalation
TABLE OF CONTENTS
3.3 Fixture Dimensions

1. INTRODUCTION
Thank you for purchasing the Lumatek ATS200W LED fixture. This manual describes how to install and use the
ATS LED fixture; please read this manual thoroughly before attempting to install or operate any Lumatek ATS
Series system. If you are not comfortable with the installation of high performance lighting systems, you should
seek the services of a qualified installation professional.
The Lumatek ATS200W LED is an electronic horticultural LED fixture using a compact design with dimmable
driver. The ATS200W fixture is a high performance full-cycle top lighting solution for commercial horticulture
cultivation, with the power and flexibility to scale from propagation and cloning through vegetative growth to
higher light intensities in bloom.
In this manual the Lumatek ATS200W LED will be referred to as: “the LED fixture”.
2. PRODUCT DESCRIPTION
3. PRODUCT INFORMATION AND SPECIFICATIONS
3.1 General Product Information
PRODUCT NAME
PRODUCT CODE
PRODUCER
Lumatek ATS200W LED
LUMLED200
Lumatek EU
5060560030843
UK/EU
EAN
PLUG TYPE
3.2 Technical Specifications
LIFE SPAN
INPUT POWER
INPUT CURRENT 230V , 100% o/p
PPF
WORKING TEMPERATURE
WORKING HUMIDITY
INPUT VOLTAGE
POWER FACTOR
SPECTRUM
EFFICACY
LIGHT SOURCE
DIMENSIONS (LxWxH)
WEIGHT
BEAM ANGLE
MANUAL DIM/EXTERNAL
LIGHTING CONTROLLER
WATERPROOF
200W
220 -240V 50/60Hz
Fullspectrum+
460 μmol/s
2.3 μmol/J
>0.95
0.9A max
LUMLED (W/R/FR)
508 x 508 x 86mm
3.9Kg
>50000H
-20º -- +40ºC
20% - 90%
IP20
110º
0-10V analog protocol

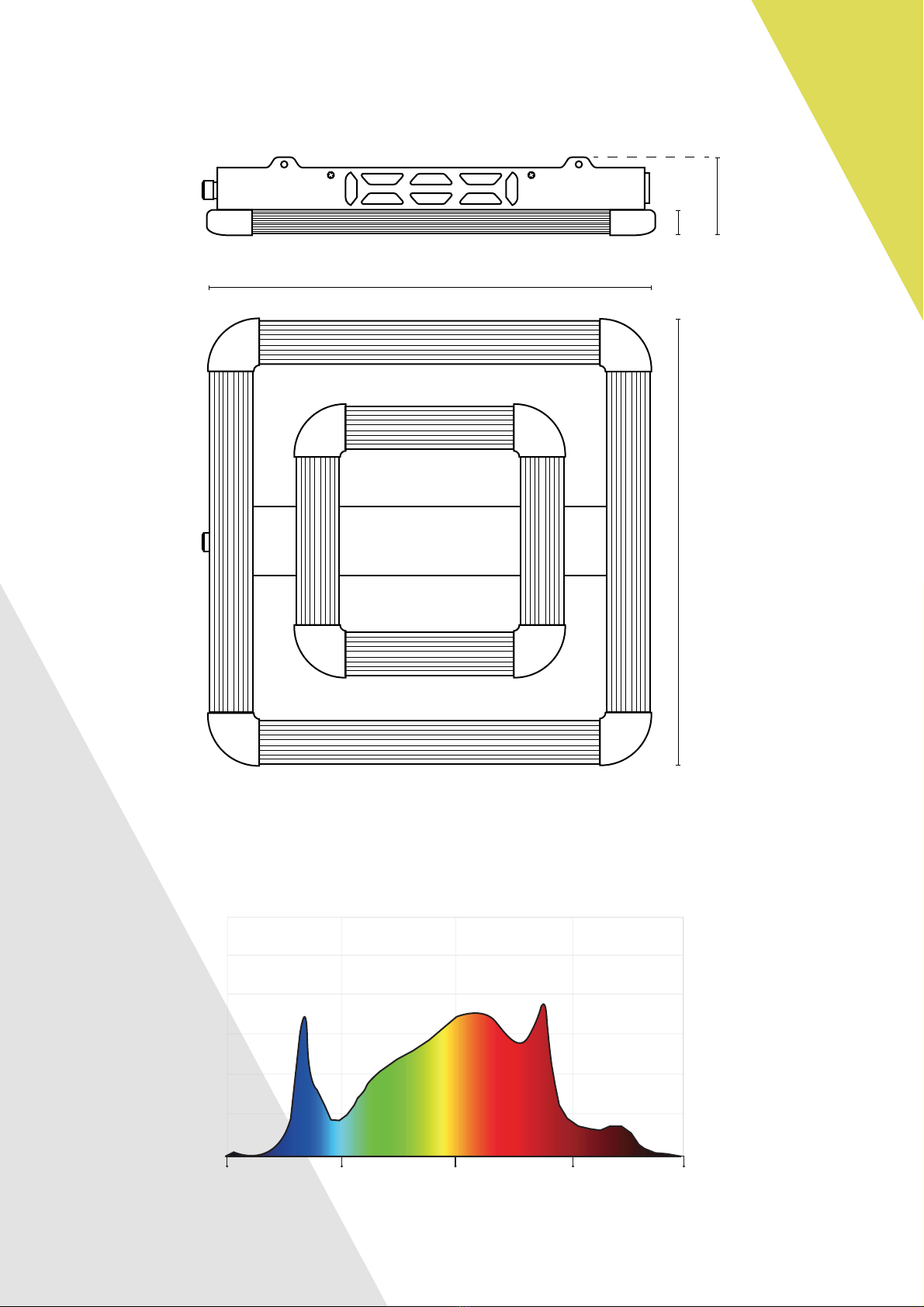

3.3 Fixture Dimensions
3.4 Spectrum Graph
wavelength (nm)
The ATS series use highly efficient top bin white, red and far red LEDs from LUMLED to create a
balanced full spectrum ideal for photosynthesis.
380 480 580 680 780
508mm
508mm
240mm
800mm

Unit: cd
C0/180 , 114.3
C30/210 , 114.5
C60/240 , 114.3
C90/270 , 114.2
3.5 Light distribution curve
3.6 Environment
The LED fixture is intended to be used in climate-controlled grow rooms, indoor farms and greenhouses. The
product may be used in damp environments but may not be used in wet environments or outdoors.
The product will operate in ambient temperatures from -20ºC to 40ºC but will function at optimal level
between 20ºC to 30ºC.
The product will operate in 20% – 85% humidity, non-condensing.
3.7 Legal
This product is CE certified compliant with LVD and EMC directive test standards.
LVD;
EN 60598-1:2015+A1:2018
EN 60598-2-1:1989
EN 62031:2008+1:2013+A2:2015
EN 62493:2015
EN62471:2008
EMC;
EN 55015:2013+A1:2015
EN 61547:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
Warning! Carefully read the warnings below before using or working with the product!
• Always adhere to the local rules and regulations when installing or using the LED fixture.
• Do not open or disassemble the LED fixture as it contains no serviceable parts inside. Opening or modifying
the LED fixture can be dangerous and will void the warranty.
• Do not use the LED fixture when either the LED fixture or its power cable are damaged. Replace the power
cable with correctly rated cable only.
• Modifications to the cables can lead to unwanted electromagnetic effects which may make the product
not comply with legal requirements.
• Do not expose the LED fixture to:
Condensing humidity, heavy mist or direct spray;
Ambient temperatures outside the specified range;
Dust and contamination;
Direct sunlight during use or HID light that may heat up the driver.
4. SAFETY RECOMMENDATIONS AND WARNINGS

• Always disconnect the LED fixture from mains before performing any maintenance.
• Always allow for a cool down period of at least 20-30 minutes before touching the LED light bars.
Touching the LED bars when the fixture is lit or immediately after may result in burns!
• Natural convection removes heat away from the heatsink. In order for the system too properly cool itself,
allow at least 5cm of space is required between the fixture and the roof of your grow area.
• Do not use abrasive materials or aggressive cleaning agents to clean the LED fixture as this may damage
the secondary optics. Instead use a clean dry fabric/cloth.
• Do not use the LED fixture near flammable, explosive or reactive substances. The LED fixture can reach
temperatures of 40ºC.
• Do not use sulphur vaporizers or water misters.
• The installation and use of the LED fixture is the responsibility of the end user. Incorrect use or installation can
lead to failure and damage to the LED fixture. Damage to the LED fixture and electronic circuitry as a result
of incorrect installation and use revokes the warranty.
Warning! Mounting and installing the LED fixture must be in accordance with the applicable local laws and
regulations.
Warning! The installer is responsible for correct and safe installation.
Warning! Ensure the local cabling can support the voltage and current requirements of the LED fixture.
Warning! Avoid coiled cables and keep mains leads separated to help prevent electromagnetic interference.
Warning! Do not connect or disconnect the LED fixture under load.
5. CONTENTS
6. INSTALLATION
1x ATS200W
LED FIXTURE
Includes driver
with dimmer control
1x MANUAL
1x ATS200W POWER
SUPPLY CABLE
2x METAL CABLE HANGERS

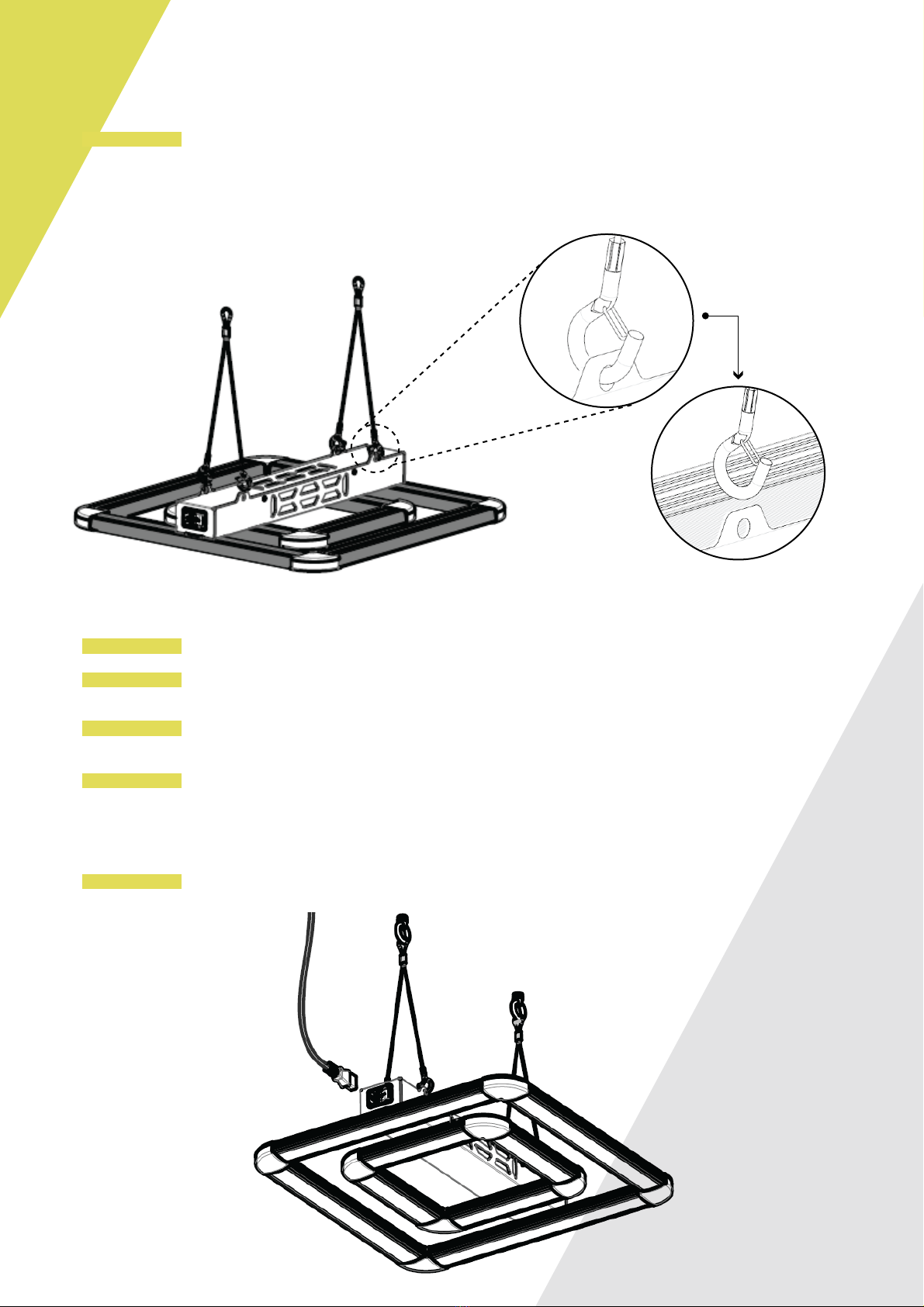

6.1 Fixture assembly & installation
Warning! Mount the system to something that can hold the weight of the LED fixture.
Attach the metal cable hangers to the mounting hooks on top of fixture. Hang the fixture in required position
and height. For optimal performance; position fixture 40cm – 60cm above plant canopy. Ensure the fixture is
hung horizontally.
Attach metal
cable hangers to
mounting hooks
Connect power
supply to fixture.
6.2 Connecting the LED fixture to the mains
Warning! Make sure mains power is switched off.
Warning! Ensure the power supply cable is not coiled and does not touch any hot surfaces.
Warning! Connect the cables according to local rules, safety regulations and electrical code.
Warning! Ensure external switching gear can cope with the inrush current of the LED fixture. Always use a
double pole contactor suitable for switching a capacitive load. Never use household timers to switch the LED
fixture! Insert power supply cable IEC into power supply IEC socket on driver. Connect to switching gear/
power supply. Switch on mains power.
Warning! Do not connect or disconnect the LED fixture under load.

6.3 Adjusting light intensity (dimming)
The LED fixture has a manual dimming control on the driver allowing light intensity (PPF level) to be adjusted
between 20% - 100% light output.
The LED fixture’s light intensity can be adjusted without changing spectral power distribution or losing efficiency.
This means that PPF can be adjusted to the correct level for propagation, cloning, vegetative and flowering
growth cycles without having to raise or lower fixture.
Warning! Disconnect the LED fixture from mains before performing any maintenance or repairs.
Warning! Do not connect or disconnect the LED fixture under load.
Warning! Do not open or disassemble the LED fixture, it contains no serviceable parts inside. Opening the LED
fixture can be dangerous and will void the warranty.
Warning! Always wait 20 – 30 minutes for the LED light bars to cool down.
Caution! Do not clean the LED fixture with detergents, abrasives or other aggressive substances.
Regularly check the LED fixture for dust or dirt build up. Clean if necessary. Contamination may cause
overheating and decreased performance.
Clean the outside of the LED fixture using a dry or damp cloth.
Regularly check the cables of the LED fixture to ensure it is undamaged.
8. STORAGE AND DISPOSAL
7. INSPECTION, MAINTENANCE AND REPAIR
Store the LED fixture in a dry and clean environment, with an ambient temperature of -25ºC to 55ºC.
The product must not be discarded as unsorted municipal waste but must be collected separately for the
purpose of treatment, recovery and environmentally sound disposal.
9. WARRANTY
Lumatek Ltd warrants the mechanical and electronic components of their product to be free of defects in
material and workmanship if used under normal operating conditions for a period of three (3) years from the
original date of purchase. If the product shows any defects within this period and that defect is not due to user
error or improper use Lumatek Ltd shall, at its discretion, either replace or repair the product using suitable new
or reconditioned products or parts. In case Lumatek Ltd decides to replace the entire product, this limited
warranty shall apply to the replacement product for the remaining initial warranty period, i.e. three (3) years
from the date of purchase of the original product. For service; return the product to your shop with the original
sales receipt.
For more information on Lumatek products
visit www.lumatek-lighting.com

MANUAL ATS200W
LED DE LUMATEK
ESPANÕL
1. Introducción
3.1 Información general del producto
3.2 Technical Specifications
3.3 Dimensiones del accesorio
3.4 Especificaciones técnicas
3.5 Curva de distribución de luz
3.6 Medio Ambiente
3.7 Legal
6.1 Montaje e instalación de accesorios
6.2 Conexión de la luminaria LED a la red eléctrica
6.3 Ajuste de la intensidad de la luz (atenuación)
2. Descripción del producto
3. Información del producto y especificaciones
4. Recomendaciones de seguridad y advertencias
5. Contenido
7. Inspección, mantenimiento y reparación
8. Almacenamiento y eliminación
9. Garantía
6. Instalación
TABLA DE CONTENIDO

1. INTRODUCCIÓN
Muchas gracias por comprar la luminaria LED ATS200W de Lumatek. El presente manual describe cómo
instalar y usar la luminaria ATS LED; por favor lea este manual detenidamente antes de operar cualquier
sistema de la serie ATS de Lumatek. Si usted no se siente cómodo con la instalación de sistemas de iluminación
de alto rendimiento, por favor busque los servicios de un profesional de instalación calificado.
El ATS200W LED de Lumatek es un dispositivo LED electrónico para horticultura que utiliza un diseño con un
controlador regulable. La luminaria ATS200W es una solución de iluminación superior de ciclo completo de
muy alto rendimiento para el cultivo de horticultura comercial, con el poder y la flexibilidad de escalar desde
el crecimiento vegetativo hasta intensidades de luz más altas en floración. En este manual, el ATS200W LED de
Lumatek se denominará como: "la luminaria LED".
2. DESCRIPCIÓN DEL PRODUCTO
3. INFORMACIÓN Y ESPECIFICACIONES DEL PRODUCTO
3.1 Información general del producto
NOMBRE DEL PRODUCTO
NÚMERO DE PARTE
FABRICANTE
EAN
TIPO DE ENCHUFE
3.2 Especificaciones técnicas
ESPERANZA DE VIDA
POTENCIA DE ENTRADA
CORRIENTE DE ENTRADA 230V , 100% o/p
PPF
TEMPERATURA DE FUNCIONAMIENTO
HUMEDAD DE TRABAJO
VOLTAJE DE ENTRADA
FACTOR DE POTENCIA
SPECTRO
EFICACIA
FUENTE DE LUZ
DIMENSIONES (LxWxH)
PESO
ÁNGULO DE HAZ
ATENUADOR MANUAL /
CONTROLADOR DE ILUMINACIÓN EXTERNA
IMPERMEABLE / A PRUEBA DE POLVO
Espectrocompleto
Protocolo analógico 0-10V
Lumatek ATS200W LED
LUMLED200
Lumatek EU
5060560030843
UK/EU
200W
220 -240V 50/60Hz
460 μmol/s
2.3 μmol/J
>0.95
0.9A max
LUMLED (W/R/FR)
508 x 508 x 86mm
3.9Kg
>50000H
-20º -- +40ºC
20% - 90%
IP20
110º
