Installation Instructions
Original Bar Grille
Important Safety Information
CAUTION
PRECAUCIÓN
ATTENTION
!
Illustrations may vary upon application
Sometimes the billet products get bent in the shipping process. You may need to hand bend
them to attain the desired shape.
To avoid risk of personal injury or property damage:
• Wear safety glasses and gloves while installing billet inserts.
• Use caution when working with any power tools.
• Check clearance on vehicle.
• Make sure that the billet inserts are secured in place and clears
all moving parts of the vehicle.
• Routinely check security of hardware.
• Do not use automatic “brush-style” car washes.

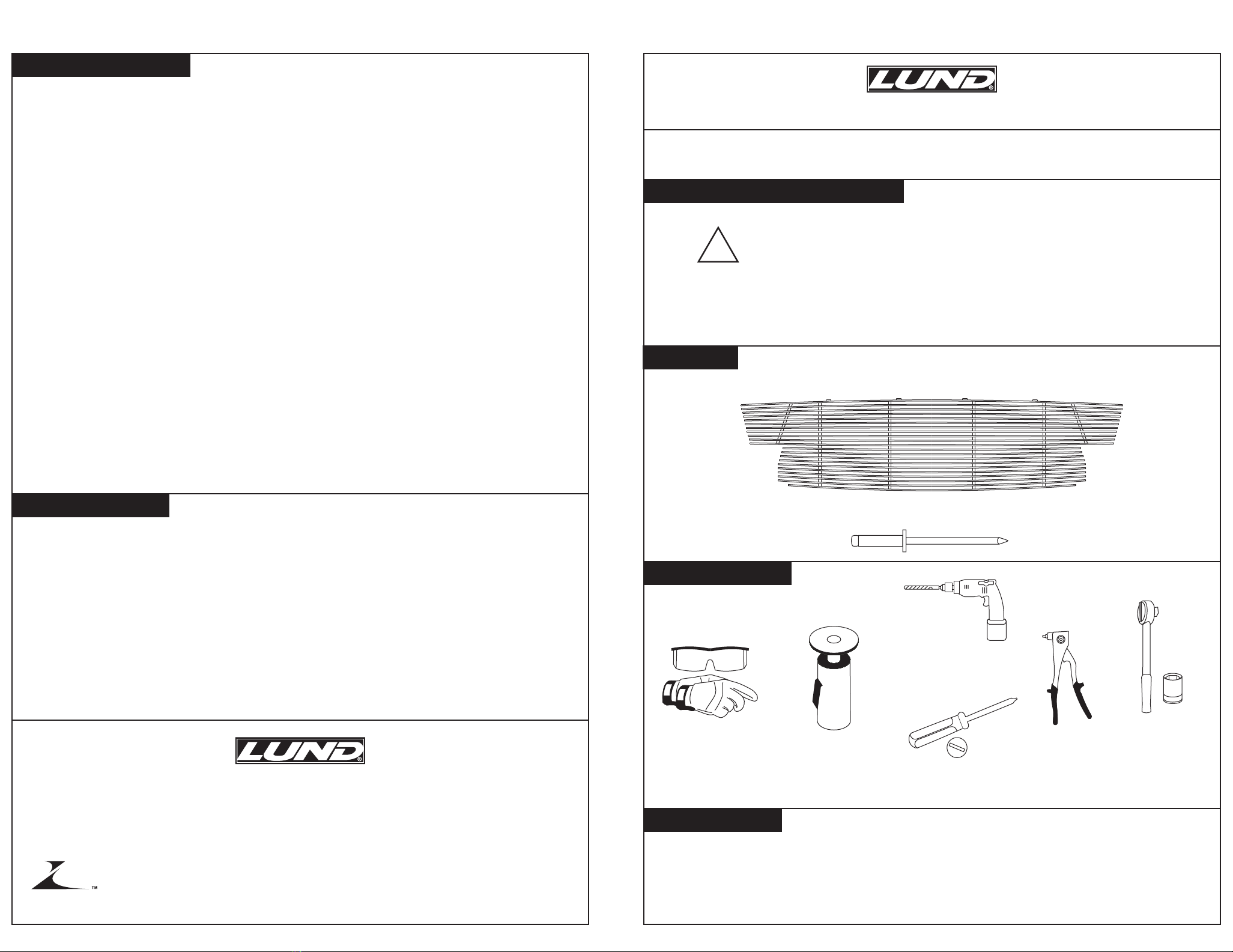

Contents
Tools Required
Shipping Note
Care and Cleaning
Congratulations!
Page 4 of 4
Rivet Gun
Flat Head
Screwdriver
Die Grinder
Safety Glasses
and Gloves
Drill with
1/8” Drill Bit
Ratchet with
10mm Socket
I-sheet Rev. A2
For proper installation and best possible fit, please read all instructions BEFORE you begin.
For technical assistance or to obtain missing parts, please call Customer Relations at 1-800-328-5863.
Lund International, Lund Accessories Division
775 Tipton Industrial Drive, Building 2, Suite F
Lawrenceville, GA 30045
Phone [phone] • Fax [phone] • Visit us at lundinternational.com
© 2005 Lund International, Inc. All rights reserved.
Lund® and the Lund® logo are trademarks of Lund International, Inc.
You have purchased one of many quality Lund® branded products offered by Lund
International, Inc. We take the utmost pride in our products and want you to enjoy
years of satisfaction from your investment. We have made every effort to ensure that
your product is top quality in terms of fit, durability, finish and ease of installation.
To keep your billet grille looking their best, we recommend using only mild soap and
water and a soft cotton cloth to wash and dry it. Use of rough cleaning agents or
cloths may scratch or dull your billet grille.
Should your billet grille become scratched or dull, we recommend TRENZ® Metal
Polish to bring back the mirror finish. There are three grades of TRENZ® Metal Polish
(Coarse, Medium and Fine) that will help you keep your billet grille looking brand new.
Select the TRENZ® Metal Polishes best for your needs:
1. Course (Red) Polish – For severe scratches and pitted problems.
2. Medium (Green) Polish – For light scratches and dulling problems.
3. Fine (White) Polish – To bring back the mirror finish.
TRENZ® Metal Polish can be used on all metal products, including aluminum, stain-
less steel, brass and copper. If you have additional questions or concerns on the
maintenance of your Lund® billet grille, please call us at 800-328-5863. You may also
use high quality commercially available polish recommended for aluminum accesso-
ries.
Part Number 84117
8 - 1/8 x 1/2” (R2) Pop Rivets
Billet Grille

Page 3 of 4Page 2 of 4
Installation Steps
Cut away all vertical and horizontal mesh. Note: Leave the inner black ring! Next,
carefully cut the black mesh from the “tear drop” sides and the molding connected to
the inner black ring.
2
Remove the bolts that hold the stock grille shell to the truck. Pull the grille shell
upward.
1
3 6
5
4
Measure 7/16” inward from the edge of the black
ring next to the chrome/paint. Use a die grinder
to notch out the sides of the inner ring from
where the top begins to curve, down the side,
and to the bottom where the inner ring flattens
out.
Insert the billet grille from the back of the grille shell. Drill and rivet into place.
Replace grille shell back into the truck. Reinstall radiator cover and plastic rivets that
were removed in Step 1. Make sure everything is secure and close the hood.
Pop open the hood and remove the plastic rivets from the radiator cover by popping up
the center of the rivet with a flat head screwdriver.
7/16”
7/16”
Tear Drop Sides
Side Molding
Inner black ring
