Luxli Taiko User manual

USER MANUAL

2
Conduct an orchestra of lights.
Precautions
The Luxli Orchestra series can produce a dazzling symphony of light.Synchronize LED light units of
all sizes,choose from millions of possible colors, apply lighting effect from four selectable modes,
and control them instantly with the powerful Composer mobile app.
The Taiko is a true 2 × 1 multicolor LED light that features a highly accurate and versatile RGBAW
LED panel.It offers CCT,Filter, RGB,and Special Effects operating modes that provide remarkable
control over each variable with an easy-to-use interface.The light is equipped with Bluetooth
4.2 LE that pairs with your tablet or smartphone the moment you open Luxli’s Composer mobile
app. DMX 512 support features master/slave mode that allow you to attach up to 512 Taikos
and other compatible Orchestra-series lights,and control all the operation modes from a single
unit.Whether controlled via the app, the intuitive interface on the unit itself, or DMX, the Taiko will
illuminate your creative vision with endless possibilities.
For the latest version of the Composer mobile app,rmware updates,as well as videos and ideas
for creative uses for the Taiko, visit luxlilight.com.
• Keep this product away from water and ammable gases or liquids.
• Use only the correct, recommended voltage.
• Do not attempt to disassemble or repair this product.
• Clean this product with only a soft, dry cloth.
• To avoid damage to this product, be careful not to overtighten or improperly thread any of
the threaded ttings.
• All images are for illustrative purposes only.

3
Troubleshooting
• If you encounter any problems, rst try turning the device off and then on.
• If the problem persists, remove the batteries or power supply for 15 seconds, and then restart.
• Go to luxlilight.com to make sure you have the most recent rmware update. If a new rmware
version is available, follow the instructions on how to download it to your light.

4
Overview
Back:
1. V-Mount battery plate
2. Tilt control screw
3. Power input
4. Micro-USB port for firmware updates
(visit luxlilight.com for details)
5. 5/8 in. receiver
Also included:
• ORC-TAIKO-D90 Diffusion panel
• Power supply with power cord
6. Locking handle
7. Outer mounting screw
8. Center mounting screw
9. 5-pin DMX in/out
10.Tilt lock handle
11.Adjust height hex screws
• Photometric calibration results data sheet
• QuickStart guide
3 5 6 7 84
1
9
11
2
10

5
Control Panel:
12.Brightness dial
13.Power button
14.Mode selector
Top:
18.Diffuser ap
19.Thumb tab
15.LCD screen
16.Function buttons
17.Adjustment dial
20.Barndoor slot
21.Diffuser slot
MODE
32%
3900K
+/- GREEN
0%
CCT
32% 14.4V 14.4V
32%
3900K
CCT
32% 14.4V 14.4V
+/- GREEN
0%
12 13 14 15 1716
1918 2120

6
Setting up the Taiko

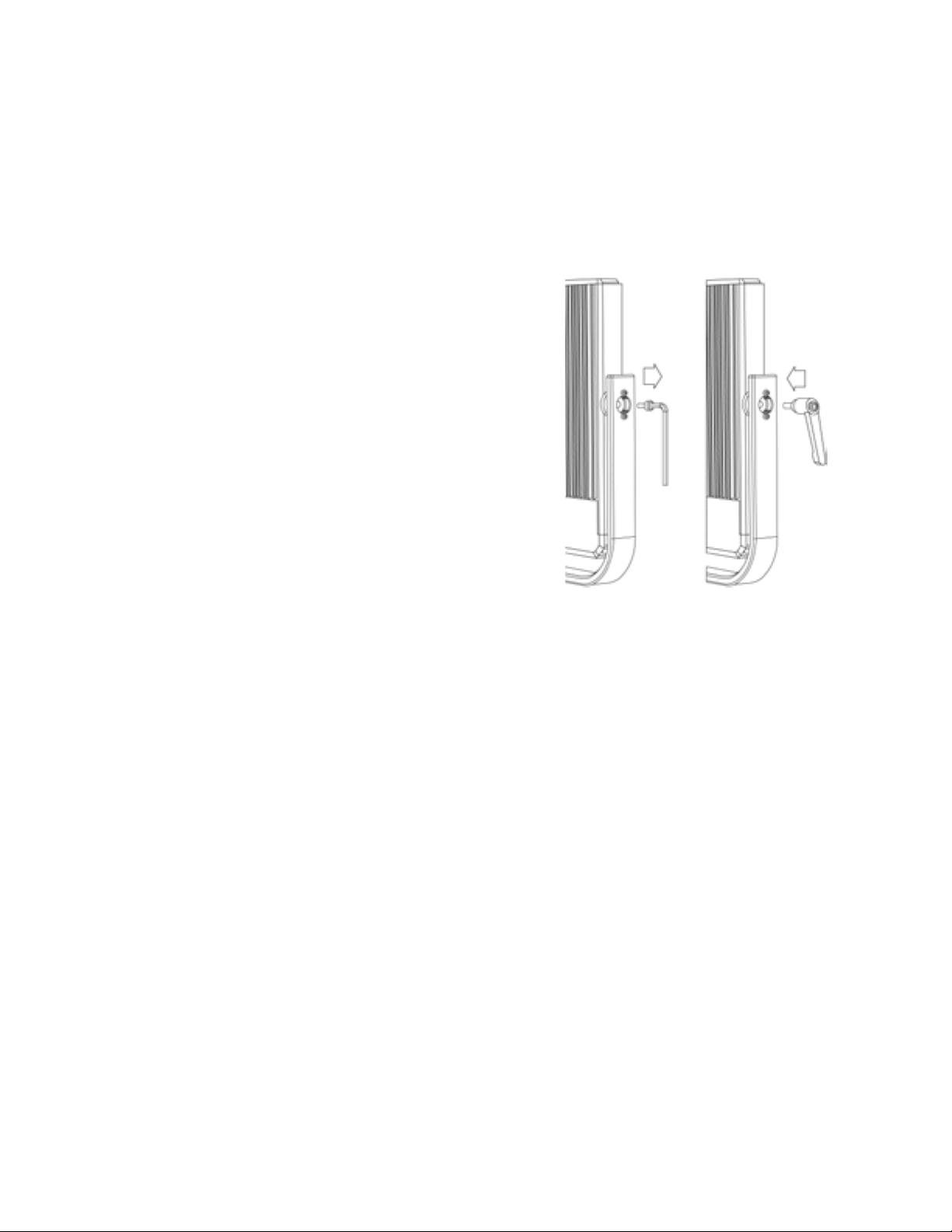

Attaching the Tilt Lock Handle
The tilt lock handle can be attached to either side of the Taiko.To attach the handle, follow these
steps:
1. Place the Taiko and yoke down on a at surface.
2. Use the included hex key to remove one of
the tilt control screws, and replace it with the
tilt lock handle. Screw in the handle so the
threads are engaged, but don’t tighten it.
3. Use the hex key to tighten the control screw
on the other side of the yoke. Tighten it
enough until there is some resistance while
tilting the Taiko in the yoke.
4. Tighten the handle until the yoke is locked
and secure.
Note: If the yoke seems too lose when the tilt lock handle is disengaged,use the hex key to slightly
tighten the control screw opposite the handle.
Mounting the Taiko to a Light Stand
Loosen the mounting lock and place the receiver over the light stand’s 5/8” pin.Tighten the
handle until secure.
Note: If you’re unable to turn the tilt lock handle 360°, pull the handle out, reposition it, and push
it back in until it reengages.

7
Reversing the Receiver’s Locking Handle
For mounting and handling convenience, you can change the side the locking handle is on:
1. Remove the Taiko from the light stand and
place it down on a at surface.
2. Use a hex key to unscrew the center and
outer mounting screws.
3. Turn the receiver so the handle is on the
opposite side.
4. Replace the center and outer mounting
screws. Make sure the mounting screw is in
the center of the receiver, and the stabilizer
screw is on the side.Tighten until rm.
Install/Remove the Diffuser
The Taiko includes a medium-density diffuser. Light- and heavy-density diffusers are also available
separately.
1. Press the thumb tabs,and lift up the diffuser
ap.
2. Slide the diffuser in or out of the diffuser slot.
3. Close the diffuser ap so it’s held in place by
the thumb tabs.

8
User Interface
Power Button
Press to power on or off.
The Taiko powers on to the last screen that was used.
The Taiko recalls the last settings in CCT, RGB, Filter, and Special Effects mode.
To use the factory presets, see Main Menu/Presets Menu below.
Mode Selector
Press the mode selector to cycle through the four operating modes: CCT, RGB,Filter,and Special
Effects.
Brightness Dial
In all operation modes,the Brightness dial adjusts the brightness from 100% to 0% in 1% increments.
In all operation modes, press the Brightness dial to toggle between the set brightness and 0%.
Function Buttons
The function buttons implement the action or access the menu indicated on the LCD screen
next to the button.
In each mode, the Adjustment and Brightness dials can change settings.
Adjustment Dial
In all operation modes, the Adjustment dial changes the value of the highlighted function.
For example, in CCT mode, press the Adjustment dial to toggle between 3200 and 5600 K color
temperatures.
Voltage Display
Batteries with SMBUS data communication
The Taiko displays a battery indicator at the top of the screen.
Batteries without SMBUS data communication
The Taiko displays the actual voltage of the power source.This allows you to gauge the remaining
battery power.

9
CCT Mode
Corrolated color temperature (CCT) mode allows you to adjust the color temperature from 2800
to 10,000 K and set the green/magenta tint level.
CCT Screen
Use the Adjustment dial to adjust the color
temperature between 2800 and 10,000 K in
50 K increments.
Press the Adjustment dial to toggle between
3200 and 5600 K color temperatures.
Tint (+/− Green) Screen
The +/− Green function lets you match the
Taiko’s color to an existing light source by
adjusting the green/magenta saturation
level.This is a particularly useful feature when
shooting under uorescent lights.
Tap the Function button next to“+/− Green” to
access the Tint adjustment screen.
Use the Adjustment dial to set the green/
magenta color shift between +100% (full
plus green) to −100% (full minus green) in 1%
increments.
Press the CCT button to exit the +/− Green
submenu and return to CCT adjustment
screen.
32%
3900K
CCT
32% 14.4V 14.4V
+/- GREEN
0%
17%
CCT
+/- GREEN
3900K
32% 14.4V 14.4V

10
RGB Mode
RGB mode lets you dial in any color by scrolling through the entire color wheel.This mode controls
hue and saturation levels and has an adjustable base white point for complete control over
color selection.
Hue Adjustment
Use the Adjustment dial to set the hue from 0°
to 360° on the color wheel.The crosshair icon
moves horizontally to represent the location of
the hue on the color wheel.
The icon conveniently loops from 360° to 0°
when scrolling through the color wheel.
Saturation Adjustment
Tap the function button next to“SAT” to adjust
saturation levels.
Use the Adjustment dial to set the saturation
of the hue from 100% to 0% in 1% increments.
The crosshair icon moves vertically to represent
the level of saturation.
Press the Hue button to return to the hue
adjustment screen.
Note:The dimmer function remains active,and you can independently adjust the Taiko’s brightness
while in Saturation mode.
HUE
100
SAT
6000K
WHITE P.
169
32% 14.4V 14.4V
HUE
100
SAT
6000K
WHITE P.
169
32% 14.4V 14.4V

11
White Point
Adjusts the base white point of RGB mode
in order to add a tint to a custom color
temperature. The Taiko will calculate the
resulting color as the saturation level and hue
is adjusted.
Tap the function button next to “White P.” and
use the adjustment dial to set the base color
temperature from 3000 K to 10,000 K in 50 K
increments.
Press the Hue or Saturation buttons to resume operating in RGB mode.
Note: RGB mode at 0% saturation is not designed as an alternative to CCT mode.When illuminating
a subject in a light with 0% saturation, CCT mode is recommended.
HUE
100
SAT
6000K
WHITE P.
169
32% 14.4V 14.4V

12
Filter Mode
The Taiko is loaded with 150 digital gel lters. Filter mode allows you to apply colored gels to any
CCT setting.
Filter Screen
When Filter mode is selected, the Taiko defaults
to the gel selection screen.The LCD displays
the lter number and name along with the
color of the gel.
Use the Adjustment dial to scroll through the
150 digital gel lters.
Important! The selected lter is active only in Filter mode. Leaving lter mode returns the Taiko to
its previous CCT setting.
CCT Adjustment
Adjusts the base color temperature without
leaving Filter mode. The LCD continues to
display the current lter number.
When the white-balance temperature is
changed in this mode, the temperature in
CCT mode is also changed to this temperature
setting. If the temperature setting is changed
in CCT mode,the Taiko will set the same white-
balance temperature here.
Tap the CCT function button to adjust the base color temperature using the Adjustment dial.
Press the Gel function button to change the active lter.
Important! The selected lter is visible only in lter mode.The lter is removed when you exit lter
mode.
Press the GEL function button to return to the lter selection screen.
Medium Purple
Mauve
Bright Pink
FolliesPink
Rose Pink
Smokey Pink
Scarlet
S. Rose Pink
Bright Rose
54
CCT
54
GEL
3900
32% 14.4V 14.4V
54
CCT
54
GEL
3900
32%
Medium Purple
Mauve
Bright Pink
FolliesPink
Rose Pink
Smokey Pink
Scarlet
S. Rose Pink
Bright Rose
14.4V 14.4V

13
Special Effect Mode
The Taiko is loaded with 10 animated special effects. Each effect has multiple settings that can
be adjusted in the Edit menu.
Special Effect Screen
Use the Adjustment dial to select one of the
ten preprogrammed effects by scrolling down
the list and pressing the Play button .Pressing
the Stop button stops the effect.
Edit Menu
Each effect has several programmable
settings.Pressing the Edit button opens the
Edit menu,where the different programmable
settings of each effect can be modied.
1. Scroll to the setting you want to edit, and press Select.
2. A new screen will open where you can modify that setting.
3. Tap the Conrm button to apply the new setting.The setting’s screen will close, and the Edit
menu will reappear.
To return to the Edit menu and the previous setting without saving the changes, press the Back
button.
Press the Back button again to return to the Special Effect screen.
The Taiko displays the changes in real time as you modify them,so you can experiment with the
settings while running the effect.
32%
CCT chase
Color chase
Explosion
Fire
Fireworks
Lightning
14.4V 14.4V
Fire type
Candle
Campfire
Bonfire
CONFIRM
BACK

14
Split Panel Mode
Split-panel mode is accessible only when operating the Taiko from the Composer app. It splits
select Taiko animated effects between the two panels and add depth and realism to the effect.
Description of the Special Effects
CCT Chase
A continuous loop that changes between two preset color temperatures. Good for simulating
a sunrise, sunset, or a change from cloudy to sunny weather in real time. Since the sequence
loops, you can shoot multiple takes without reprogramming the light.
CCT Start: Selects the color temperature at the beginning of the sequence (2400 to 10,000 K).
CCT Stop: Selects the nal color temperature of the sequence (2400 to 10,000 K).
+/− Green: Sets the green/magenta (tint) saturation level in 1% increments from +100% (green)
to -100% (magenta).
Time Unit: Select between seconds and minutes for the time loop.
Time/Loop: Select how many seconds or minutes the loop will last (1 to 160).
Color Chase
A continuous loop that moves through the color wheel between two selected colors. Since the
sequence loops, you can shoot multiple takes without reprogramming the light.
Hue Start: Selects the color at the beginning of the sequence (0° to 360°).
Hue Stop: Selects the nal color of the sequence (0° to 360°).
Saturation: Determines the color intensity from 100% (full color) to 0% (white light).
Time Unit: Select between seconds and minutes for the time loop.
Time/Loop: Select the duration in seconds or minutes for each loop (1 to 160).

15
Explosion
Simulates the light from explosions.The Taiko generates random-length pulses and strobes within
a range of programmed hues.
Hue Min. (0-360): Set the bottom limit on the color wheel of usable hues.
Hue Max. (0-360): Set the top limit on the color wheel of usable hues.
Explosions/Minute: Sets how many separate explosions occur each minute (1 to 360).
Duration (%): Set the percentage of time the light is illuminated for each pulse or strobe
(5% to 95%).
Fire
Simulates the light of a candle, campre, or bonre in various wind conditions.
Fire Type: Changes the color temperature to simulate a candle, campre, or bonre.
Wind Type: Changes the intensity and speed of icker to simulate the light with no wind, or in a
breeze, wind, or storm.
Fireworks
Uses random burst of colors to simulate reworks. Colors and timing of each ash are random.
Explosions/Minute: Sets how many ashes will occur per minute (1 to 50).
Duration (%): Determines the percentage of time the light is illuminated in each cycle. Select
from a range of 5% (shortest duration) to 95% (longest duration).
Lightning
Simulates lightning by creating random short and long bursts.
CCT: Selects the color temperature of the lightning ashes (3000 to 10,000 K) in 50 K increments.
Interval(s): Sets the interval of seconds between lightning ashes (1 to 60).

16
Paparazzi
Simulates the random ring of multiple camera ashes. Split panel mode is available for this
effect via the Composer app.
Intensity: Higher intensity increases the number of random ashes per second (0 to 100).
Bulb Type: Determines the length of each ash.Slow is the longest duration.Modern is the shortest
duration. Choose from Slow, Medium, Fast, and Modern.
CCT: Sets the color temperature of the ashes from 2800 to 10,000 K.
+/− Green: Sets the green/magenta (tint) saturation level in 1% increments from +100% (green)
to -100% (magenta).
Pulse
Creates a steady pulse at a programmable rate. This effect is similar to the Strobe special
effect (below), but the light fades on and off. Split panel mode is available for this effect via the
Composer app.
Hue: Selects the light color (0 to 360).
Saturation: Determines the color intensity from 100% (full color) to 0% (white light).
Pulses/Minute: Sets how many times the light will pulse each minute (1 to 200).

17
Siren
Simulates emergency lights,like a police car or ambulance.Split panel mode is available for this
effect via the Composer app.
Colors: Select the color combination of ashing lights. Choose red, blue, and white; red and
blue; red and white; blue and white; blue; red; or SAE Amber.
Flash/Cycle: Set the number of times each individual color will ash within the cycle. Choose
from 1 to 4 times per cycle.
Cycles/Minute: Determines how many repetitions of the cycle will occur each minute. Choose
from 10 to 360.
Duration (%): Determines the percentage of time the light is illuminated in each cycle. Select
from a range of 10% (shortest duration) to 90% (longest duration).
Strobe
Creates a steady ashing light at a programmable rate. Split panel mode is available for this
effect via the Composer app.
Hue: Selects the light color (0 to 360).
Saturation: Determines the color intensity from 100% (full color) to 0% (white light).
Frequency: Changes the number of ashes per second (1 to 25).
Duration (%): Determines the percentage of time the light is illuminated in each cycle. Select
from range of 10% (shortest duration) to 90% (longest duration).

18
Main Menu
Use the Main menu to program presets,
congure DMX settings,and turn Bluetooth on
or off.The Main menu also displays the unit’s
serial number and current rmware version.
Press the function button for the Main
menu.The Main menu can be accessed in
all operating modes.
Use the Adjustment dial to choose Presets, DMX, Bluetooth,or About, and press Select to access
the menu.
The Presets Menu
Your CCT, RGB,Filter, and Special Effects mode
settings can be saved as presets, and these
settings can be recalled from the Presets menu.
The Taiko allows you to save four presets per
mode.
To save settings to a preset, do the following:
1. Adjust the settings in CCT, RGB, Filter, and
Special Effects modes.
2. Press the function button to access the Main menu.
3. In the Main menu, use the Adjustment dial to select the Presets menu, and press Select.
4. Use the Adjustment dial to select a preset group (A to D), and press Save.
5. At the prompt, press Conrm.
6. Use the Back button to scroll back to the operating modes.
Presets
DMX
Bluetooth
About SELECT
BACK
Main menu
Save
Preset A
Preset B
Preset C
Preset D
Factory default
Load
BACK
Presets

19
To recall a preset:
1. In the Main menu, scroll to Presets and press Select.
2. In the Presets menu, select the preset with the Adjustment dial, and press Load.
3. At the prompt, press Conrm.The Taiko will load the saved settings.
Press Back to return to the Main menu.
Press Back again to return to the most recent operation mode.
Important! The Taiko will not display the preset setting until you access the appropriate operation
mode.
Bluetooth Menu
To control the Taiko via the Composer mobile
app, Bluetooth must be turned on.
To turn Bluetooth on and off:
1. Scroll to Bluetooth, and press Select. The
Bluetooth Settings menu will open and
indicate the Bluetooth status.
2. Press Select,and use the Adjustment dial to
select Off or On, and then press Conrm.
Press Back to return to the Main menu.
Press Back again to return to the most recent
operation mode.
Bluetooth
SELECT
BACK
Bluetooth Settings
On
Off
On
CONFIRM
BACK
Bluetooth state

20
The About Menu
Select About to display the Taiko’s serial number
and the rmware version number.
Press Back to return to the Main menu.
Press Back again to return to the most recent
operation mode.
Serial number
Firmware version
BACK
About
12FFB0006
1.0.0
