Clone Owners Manual
V1.00
Copyright Mac Developments Pty. Ltd. 2009
All rights reserved
No part of this document may be copied or reproduced in any form or by any means without the
prior written consent of Mac Developments Pty. Ltd.
Notice is hereby given that this manual is part of the article owned in whole by Mac Developments
Pty. Ltd., known as indicated in this manual and drawings. All rights of manufacture and reproduc-
tion of such articles or any part thereof are reserved by Mac Developments Pty Ltd. Neither said
article nor any part thereof may be manufactured or reproduced without the written authorization
from Mac Developments Pty. Ltd. All proprietary rights and information are the sole property of
Mac Developments Pty. Ltd.
MacDev, Clone, Conquest, Gladiator, MatchStick, Cyborg, Shift and Drone are all trademarks of
Mac Developments Pty Ltd.
Statement of Liability
Mac Developments Pty. Ltd. makes no warranties with respect to this documentation and dis-
claims any implied warranties of merchantability or tness for a particular purpose. The informa-
tion in this document is subject to change without notice. Mac Developments Pty. Ltd. assumes
no responsibility for its resale or safe handling. Mac Developments Pty. Ltd. assumes no respon-
sibility for physical injury or property damage resulting from its use.
Warranty
Your marker is covered by the MacDev 12 month warranty against manu-
facturing defects. Your Marker is guaranteed free of manufacturing defects
for a period of twelve (12) consecutive months beginning immediately after
purchase from a registered retailer. The solenoid is warranted for a period
of thirty (30) days after the date of purchase. If a manufacturing defect is
detected, the defective part will be either repaired or replaced at no cost
to the owner. Your warranty is not transferable in the event of 2nd hand
sales - the warranty may only be claimed by the original retail purchaser.
Your warranty does not cover damage due to theft, misadventure or operator error/abuse.
To make a successful warranty claim, the owner must produce their warranty card and proof of
purchase.
Caution!
This is not a toy. Misuse may cause serious injury or death. Eye protection designed
specically for paintball must be worn by user and persons within range. Recommend
18 years or older to purchase. Persons under 18 must have adult supervision.
READ OWNER’S MANUAL BEFORE USING. 2
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting

CONTENTS
Know your Clone (Page 5)
All users should read this section to learn the parts of your Clone and their names.
Quick Setup (page 7)
Learn how to set your Clone up for use the rst time.
Switching your Clone on and off
Firing your Clone
Understanding the beam sensor
Disabling the beam sensor
Installing a preset air system
Turning the air on and off
Using a loader with your Clone
Installing a loader onto your Clone
Removing your loader
Using your Clone (Page 10)
Essential reading on how to use your Clone marker.
Adjusting the velocity
Adjusting the trigger
Replacing the battery
Advanced Setup (Page 11)
A section for those who are comfortable with making ne adjustments to the Clone marker.
About the tourney lock
Programming the software
Debounce
Cycle mode
Cycle speed
Cycle speed fine
Ramp start
Ramp degree
Mechanical debounce
Anti bolt stick (ABS)
Cycle filter
Ball settle delay
Solenoid on time (dwell)
Eye function
Auto power off
Game timer
Brightness
User profiles
Reset to default
Using an RF transmitter
Using the USB connector
Maintenance (Page 18)
Maintaining your purchase is essential to long term product satisfaction.
Basic cleaning
Maintaining the drivetrain
Maintaining the inline regulator
Parts List (Page 19-21)

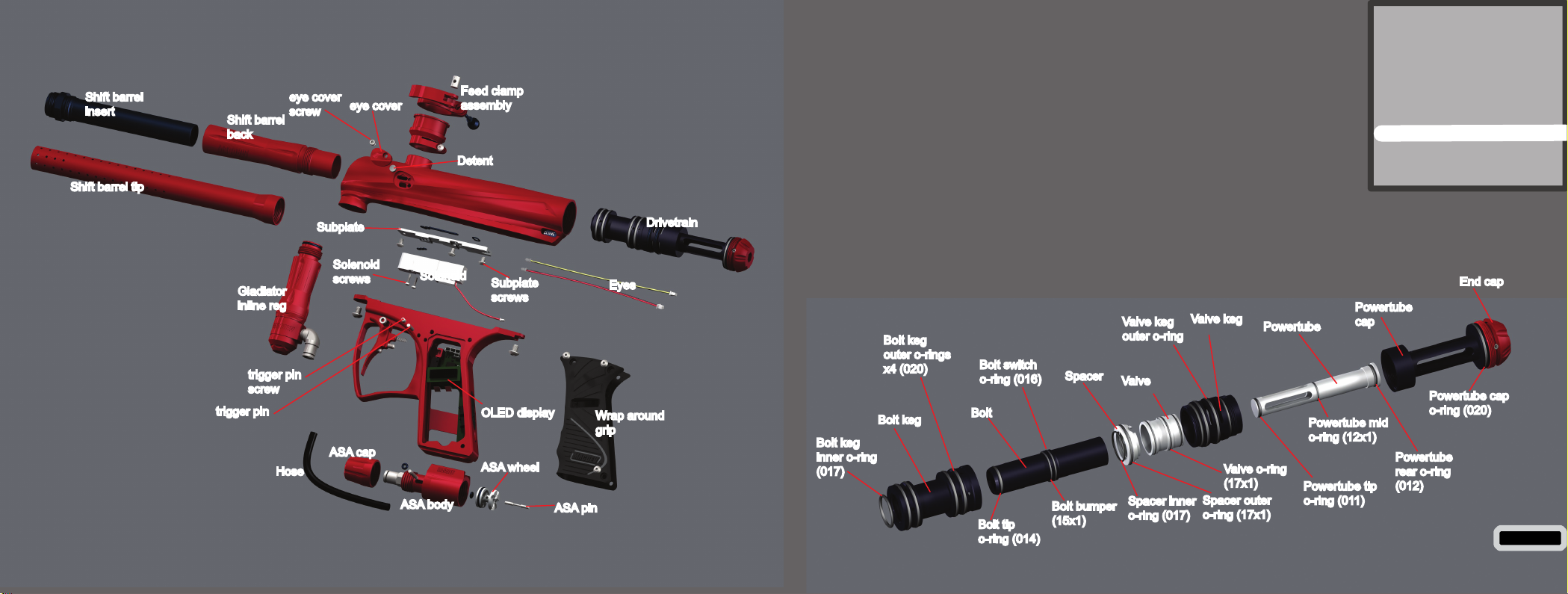

An exploded view of your Clone with parts labelled.
Troubleshooting (Page 23)
Solving common difculties.
Common problems and solutions
Technical assistance
Clone RX Specifications (Page 26)
4
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting

KNOW YOUR CLONE
2
1
3
4
5
7
8
10
6
12
11
9
13
Your Clone marker represents the pinnacle of premium grade paintball markers
available today.
Please take the time to learn the parts of your Clone, it will help you when
reading this manual.
Numbered basic parts as shown in the gure on the left:
1. Shift 3 piece barrel
2. Feed clamp lever (used to afx your loader)
3. Feed clamp adjuster screw
4. Drivetrain, unscrew to remove (note: marker must be degassed rst)
5. Eye covers and screws
6. Gladiator RX2 Inline (High Pressure Regulator)
7. Velocity adjustment screw (anti clockwise to increase velocity)
8. Trigger with screw adjustments
9. OLED display used to view gun status/settings
10. Membrane pad with power and programming buttons
11. Air hose
12. Venting ASA, screw your air system in here
13. Venting ASA on/off cap (used to turn the air on or off)
6
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting

QUICK SETUP

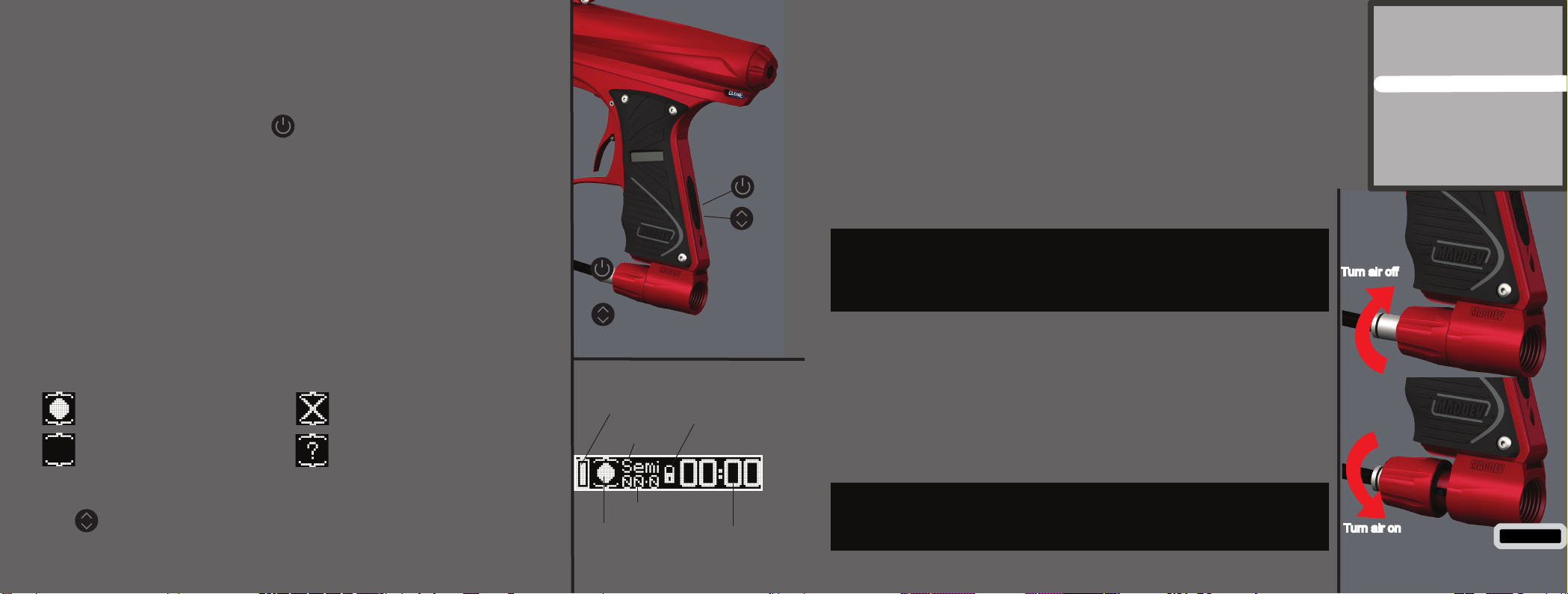

Switching your marker on and off
The on/off button is located on a membrane pad on the rear of the frame. Push
the button with the power symbol ( ), when done correctly, your OLED will
display the MacDev logo and the marker will be set with the beam sensor sys-
tem on and ready to re. Turn your marker off by holding the power button down
until the OLED system goes blank.
Firing your marker
If a paintball is loaded in your marker, and the power is switched on, you may
re the marker by pulling the trigger. If a paintball is not loaded, then you need
to either load one, or read the section below on disabling the beam sensor.
Understanding the beam sensor
Your Clone is equipped with a visible light sensor to determine if a paintball is
correctly loaded. This system is used to prevent accidental ball breakage due to
misloaded paintballs. The OLED indicator on the side of your grip will show you
the status of the beam sensor:
Disabling the beam sensor
To disable the sensor (for dry ring), hold the scroll button on the membrane
pad ( )until the beam sensor disabled icon appears on the OLED display. You
can re-enable the beam sensor the same way.
Ball loaded Sensor disabled
No ball loaded Sensor fault
Power button
(for power on/off)
Scroll button
(for eyes on/off and pro-
gramming)
OLED Display
Membrane Pad
Battery meter
Sensor status
Cycle mode
Cycle speed (max)
Lock status
Game timer/
ROF meter
Installing a preset air system
Your Clone comes equipped with a high quality venting ASA (Air System Adap-
tor) that is designed for use with commercially available air/nitrogen systems.
The venting ASA included with your Clone uses a screw cap to turn the air from
your preset system on or off. Before installing your preset air system, you must
unscrew the ASA cap by approximately 3 turns (do not unscrew it further, as the
cap can come off completely).
Once this is done, carefully screw your air system into the ASA until it stops.
Turning the air on and off
To pressurise your marker, screw the ASA cap down until it stops. This will
depress the pin on the end of your air system and pressurise the marker
(provided you have sufcient air in your air system).
To depressurise your Clone, unscrew the ASA cap until you hear the air
being vented from the cap. Your air system is now turned off and safe to
remove.
WHEN SCREWING YOUR AIR SYSTEM INTO THE ASA, THE
THREADS SHOULD BE LOOSE. IF AT ANY POINT THEY BECOME
TIGHT, DO NOT FORCE THE THREADS, THIS MAY CAUSE DAMAGE
TO YOUR AIR SYSTEM OR YOUR MARKER!
NOTE: WHEN YOU UNSCREW THE ASA CAP, YOUR MARKER MAY
STORE ONE SHOT. POINT THE MARKER IN A SAFE DIRECTION AND
FIRE OFF THAT SHOT BEFORE ENTERING A SAFE AREA. 8
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting
Turn air on
Turn air off

Using a loader with your Clone
Your Clone marker can operate using any commercially available loader.
The software and beam sensor will compensate for the speed of the hopper,
ensuring that the marker res as quickly as the loader allows.
All Clone markers are equipped with a cam lever clamping feed tube. This
system allows the easy installation and removal of your loader. You will need
to adjust the feed tube to suit the loader that you have.
Installing a loader onto your Clone
Open the cam lever as shown. This should allow your loader neck to t into
the feed tube as shown. If your loader does not t into the feed tube, then
you may have to loosen the adjustment screw slightly. Once your loader is
pushed all the way down into the feed tube, close the cam lever. If your loader
is loose, you may now tighten the adjustment screw (by turning clockwise) to
tighten the loader in place.
Removing your loader
Open the clamp by swinging the lever on its hinge. This will loosen the loader and allow you to remove it
easily. If it does not remove easily, then it means that you have the clamp adjustment screw overtightened.
DO NOT OVER TIGHTEN YOUR FEED CLAMP! OVERTIGHTENING
MAY RESULT IN DAMAGE TO YOUR LOADER OR CLAMP.
Open clamp and
push loader in
Close clamp
rmly
USING YOUR CLONE
To get the most out of your marker, make sure that you follow the instructions
in this section to ensure that the marker is adjusted correctly.
Adjusting the velocity
The velocity of the Clone is adjusted via an adjustment screw on the bot-
tom your inline regulator. To increase velocity, use a 1/8” allen key to turn the
adjustment screw anti clockwise. Always adjust your velocity gently and use a
chronograph.
Adjusting the trigger
Your trigger has three adjustment screws, they are located in the front face of
the trigger in the following order from top to bottom:
- Pull tension
- Switch actuation point
- Pull length
You may easily adjust these three screws to personalise the feel of your trigger.
DO NOT ADJUST YOUR VELOCITY ABOVE 300FPS, AND ALWAYS
OBEY LOCAL LAWS AND REQUIREMENTS.
CAUTION! WHEN ADJUSTING THE SWITCH ACTUATION SCREW,
MAKE CERTAIN THAT YOU DO NOT ADJUST THE SCREW IN TOO
FAR, AS THIS MAY RESULT IN DAMAGE TO YOUR MICROSWITCH.
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting
Tension
Actuation
Length
10
Increase
Velocity

Replacing the battery

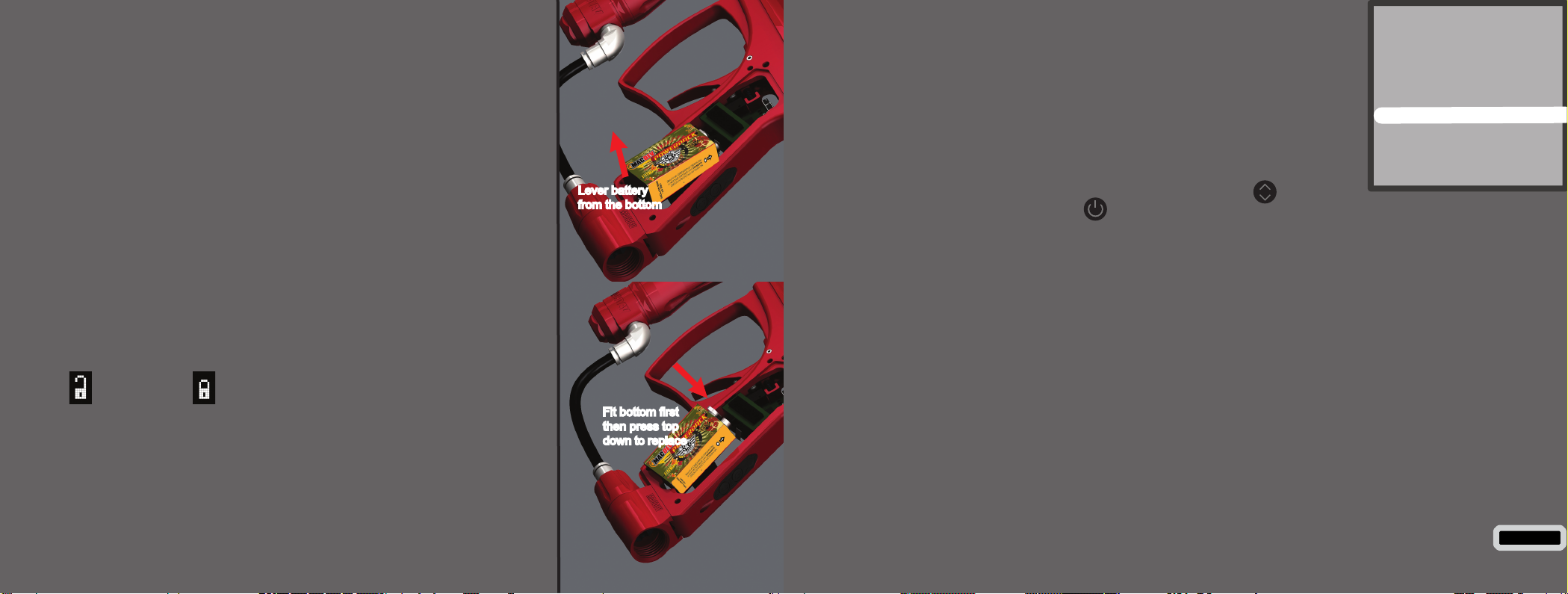

Remove the three screws holding the wrap around grip onto the left hand side
of your grip frame. Gently lever the battery out of the frame from the bottom.
Take care that the terminals are not caught on the battery.
Place the replacement battery into the marker, NOTE: make sure you put the
bottom of the battery in rst then push it onto the terminals. Only use high
quality alkaline 9V batteries, the best possible choice is to use a MacDev
Militia PowerPack (type 6LR61).
ADVANCED SETUP
About the tourney lock
The Clone board is equipped with a tourney lock system. When the tourney
lock system is activated, the gun cannot be reprogrammed on the eld -
making it tournament legal.
Your marker has a tourney lock status indicator:
When in unlocked mode, settings on the board my be changed, when in the
locked mode settings cannot be changed.
The lock status can be changed by opening the right hand side of the marker
wrap around grip to gain access to the back of your circuit board. The tourna-
ment lock is a black button. Hold the button until you see the tournament lock
status change.
unlocked locked
Fit bottom rst
then press top
down to replace
Programming the Clone software
To program the board, rst ensure that the tournament lock is off, then turn the
marker off. Hold down the trigger whilst turning the marker on. When done cor-
rectly, you will see a message on your display screen indicating that program-
ming mode is loading.
When in the programming mode, settings will be displayed ready to be adjusted.
If you would like to adjust the setting displayed, hold the trigger until the word
“Set” appears before the setting value. Press the scroll button ( ) to increase
the set value, and the power button ( ) if you would like to decrease the set
value. When you are satised with the new setting, hold the trigger until the word “Set” is removed.
If you would like to advance to the next setting, press the scroll button. If you would like to go backwards,
press the power button.
When you are nished with the program mode, hold the power button until the display goes blank (marker
is powered down).
Each setting is described in detail below:
Debounce
The debounce setting of your marker is used to control the amount of ”bounce” in your trigger. A very
low debounce setting will result in a lot of bounce. In some tournaments or elds, it will be necessary to
reduce the amount of bounce by increasing the debounce setting. Always increase the debounce slowly,
because settings higher than 15 may result in your marker feeling unresponsive.
12
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting
Lever battery
from the bottom

Cycle mode
Your Clone is equipped with 10 different cycle modes. These cycle
modes will allow you to use your Clone in many different situations -
tournament play, recreational and scenario. Always follow the rules and
local regulations when selecting your cycle mode.
Semi-auto unlimited - one pull, one shot as fast as your loader can feed.
Semi-auto adj - one pull, one shot as fast as the cycle speed setting.
PSP ramping - ramping mode legal in the PSP league limited by the cycle speed setting.
PSP burst - more aggressive ramping mode legal in the PSP league limited by the cycle speed setting.
NXL full auto - full auto mode legal in the NXL league limited by the cycle speed setting.
Millennium - ramping mode legal in the Millennium league limited by the cycle speed setting.
Ramping - standard ramping mode limited by the cycle speed setting.
Response - res both when the trigger is pulled and released limited by the cycle speed setting.
Burst - a burst is red for each individual trigger pull, limited by the cycle speed setting.
Full auto - marker is cycled continuously when trigger is held, limited by the cycle speed setting.
Cycle speed
This setting is measured in Balls Per Second (BPS). If you are using a cycle mode that is limited by the
cycle speed setting, then your marker will not cycle faster than this setting (plus the ne adjustment in the
next setting).
Cycle speed fine
The ne adjustment allows the addition of 0.1bps increments for the very precise adjustment of your
cycle speed.
Ramp start
In ramping modes, the software requires you to achieve a given cycle speed before ramping shots are
NOTE: SOME VERSIONS MAY
HAVE SOME MODES REMOVED
TO COMPLY WITH LOCAL LAWS.
FOR EXAMPLE, ALL MARKERS
SOLD IN AUSTRALIA OFFER
ONLY SEMI AUTO MODES.
added. This may be adjusted in this ramp start setting. This parameter is mea-
sured in trigger pulls per second (PPS). A low PPS setting will begin ramping
more easily than a high PPS setting.
Ramp degree
Once ramping is achieved (by exceeding the PPS setting above), the software
will add shots. The ramp degree setting allows you to set the amount of shots
added and is specied as a multiple of the actual trigger pulls. For example a
setting of 2.0 will add double the actual trigger pulls - if the trigger pulls are 5
pulls per second, it will add 2X5=10, giving you a total speed of 5+10=15bps.
Mechanical debounce
Most difculties experienced with bounce in your marker can be rectied by increasing the debounce
setting at the start of your settings list. However, the mechanical debounce system is an alternative
method for electronically removing bounce, and its setting can be increased to help remove bounce if
the standard debounce setting is ineffective.
Anti bolt stick (ABS)
When your marker is idle for long periods, friction and settling effects can cause your bolt or other mov-
ing parts to be sticky. The ABS system is used to overcome this on the rst shot by temporarily increas-
ing the dwell setting. The ABS is adjustable in increments of 1ms.
Cycle filter
Your software allows the buffering of a single shot in case you pull the trigger during a cycle. This lter
can be used to reduce the time allowed to buffer this shot. Adjustable from off (0%)-100%. Higher
settings will reduce the amount of mechanical bounce in the marker, whilst low settings will make the
marker feel aggressive and responsive.
14
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting

Ball settle delay
Most paintball loaders will bounce the paintball in the breech. The ball settle delay allows some time
(measured in milliseconds) for the ball to settle in place before ring. If you experience excessive paint
chopping, you should try increasing your ball settle delay.
Solenoid on time (dwell)
When your marker is cycled, the solenoid valve is held open for the solenoid on time. If this setting is too
low, the marker cannot cycle. If this setting is too high, the marker will use too much air. The correct set-
ting for a Clone is 8-10ms.
Eye function
Your Clone can utilise the beam sensor (eye) in different ways. This setting can be used to select which
way you would like to have the sensor used. The system can use a delayed mode, where if a ball is not
detected in the breech, a shot will be red after a half second delay. This mode is useful if you are using
a sound activated loader, or if you would like your gun to indicate to you when you are out of paintballs.
Another option is the forced mode. In this mode, the marker will only re if a ball is detected. However,
the user can force a shot to be red by holding the trigger until the marker res.
Auto power off
Your display system and other software uses power when switched on. To conserve power, the system
can power off after a given period of time, this may be adjusted here.
Game timer
Your display system can display either a rate of re indicator or a game timer. If the game timer is
switched off, the rate of re indicator will be displayed. The game timer will be started when the user
presses and releases (not hold) the power button ( ).
Brightness
Your OLED display system has an adjustable brightness setting. Lower bright-
ness settings conserve battery power.
User profiles
Users who make changes to the default settings can save these settings as
proles so that they can be reloaded at a later time. There are three different
prole slots available.
To save a prole, enter the save prole setting by holding the trigger. Once in-
side the setting, you can use the scroll button to select the prole slot number you would like to save to.
Once the desired slot is displayed, hold the trigger again, and the software will ask you to conrm (with
the power button) or cancel (with the scroll button).
To load a prole, follow the same steps after entering the load prole setting. Please note that when
loading a prole, the current settings will be replaced by the loaded prole.
Reset to default
The default settings on your software are preset by the factory to give good all round performance from
your Clone. If you have made changes to your software, and would like to return your software to factory
default settings, you can use this reset feature.
To reset your software, enter the reset setting by holding the trigger. Once inside the setting, you can
use the scroll button to select the word “yes”, hold the trigger again, and the software will ask you to
conrm (with the power button) or cancel (with the scroll button).
16
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting

Using an RF transmitter
Your stock board has provision for an RF transmitter attachment. To use the RF transmitter function, you
must plug a compatible RF transmitter module into the RF transmitter plug (directly under the eye plugs on
your board), and it will be activated automatically.
Using the USB connector
Your stock board has a mini USB connector on the bottom of the board to the right of the 9V battery. The
USB connectivity may be used to update your software via a standard USB/mini USB cable.
Never operate the USB connection while the board is powered on. Never update your board with soft-
ware unless it has been downloaded directly from the MacDev website (www.macdev.net), the use of
non genuine software on your stock board will immediately void your entire marker warranty.
MAINTENANCE
If you take 10 minutes after every day of play to maintain your marker, you will
be rewarded with consistent reliable performance.
You should perform basic cleaning after every day of play, and you should
perform drivetrain and inline regulator maintenance after at least every 2 days
of play. You can clean and maintain your Clone more often, it is up to you.
When maintaining your Clone, use only MacDev accessories. Your Clone is
packaged with an allen key set and a small tub of MacDev Militia Lube, only use Militia Lube to lubricate
your Clone.
Basic cleaning
After using your Clone, always clean old paint from the outside. Always clean your barrel using a barrel
swab to remove traces of dirt and paint. Use your barrel swab to clean the breech and feed tube in a
similar way.
Your Clone internal parts are quite well protected and sealed. However, when not in use, dirt can get
into the marker and cause problems - so storage of your marker is just as important as cleaning. When
storing your marker, ensure that it is stored in the Clone bag that is free of dirt, otherwise dirt may get
into the venting ASA or breech.
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting
18

Maintaining the drivetrain
Your drivetrain should be maintained after every 10,000 shots or so. You may
maintain your drivetrain more frequently if you wish.
Before working on your drivetrain, ensure that your marker is degassed, then
unscrew the back cap, and pull the drivetrain out of your marker. Set aside your
marker so that you can focus on the drivetrain.
The disassembled drivetrain is shown below. To maintain your drivetrain, clean
and relubricate the following o-rings; bolt switch, keg inner, valve, spacer inner,
powertube tip and mid. Also clean and relubricate the bolt keg bore, valve keg bore, as well as the bolt
and valve themselves.
After working on your drivetrain, reassemble it, then slide it back into your marker.
20
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting
Bolt keg Bolt
Spacer Valve
Valve keg Powertube
Powertube
cap
End cap
Bolt keg
inner o-ring
(017)
Bolt keg
outer o-rings
x4 (020)
Bolt tip
o-ring (014)
Bolt bumper
(15x1)
Bolt switch
o-ring (016)
Spacer inner
o-ring (017)
Spacer outer
o-ring (17x1)
Valve o-ring
(17x1)
Valve keg
outer o-ring
Powertube tip
o-ring (011)
Powertube mid
o-ring (12x1)
Powertube
rear o-ring
(012)
Powertube cap
o-ring (020)
Shift barrel
insert
Shift barrel tip
Shift barrel
back
eye cover
screw eye cover
Gladiator
inline reg
Drivetrain
Hose
ASA pin
ASA wheel
ASA body
ASA cap
Eyes
Wrap around
grip
OLED display
Solenoid
Detent
Solenoid
screws
Subplate
trigger pin
screw
Subplate
screws
trigger pin
Feed clamp
assembly
20

22
Contents
Know your Clone
Quick Setup
Using your Clone
Advanced Setup
Maintenance
Parts List
Troubleshooting
Maintaining the inline regulator
Your inline regulator (otherwise know as Gladiator reg), regulates the pres-
sure from your air system down to the pressure used to re your Clone. It is
very important that your inline regulator is working well, if not, you may experi-
ence problems with velocity uctuation or shootdown.
Before working on your Gladiator reg, make certain that the air supply is
turned off (via the venting ASA), and safely re any gas out of the gun to en-
sure it does not have any residual pressure.
Remove the hose from the tting in the bottom of the Gladiator reg - you do this by pushing the collar
in, whilst pulling the hose out. Once the hose is removed, you can unscrew the Gladiator reg from your
Clone. Put your Clone aside so that you can concentrate on your Gladiator reg.

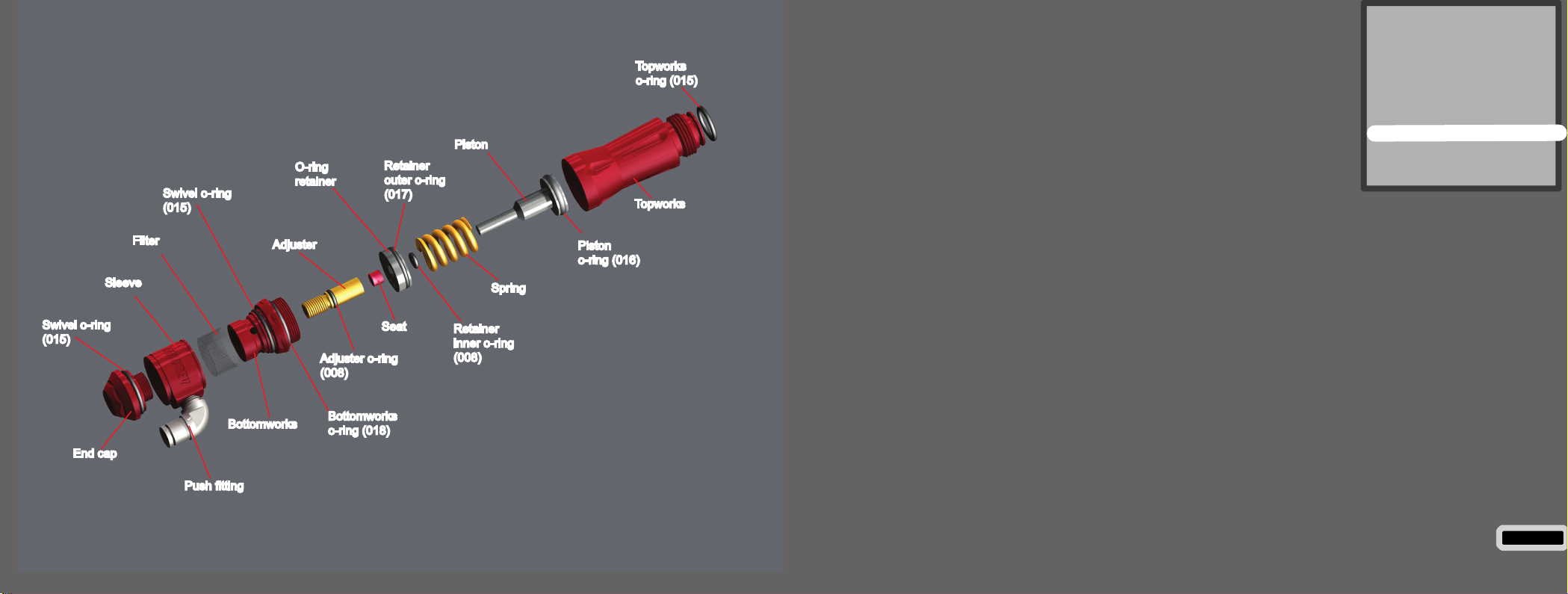

A picture of the parts inside your Gladiator reg are shown on the adjacent page, disassemble the regula-
tor and lean and relubricate the piston and retainer inner o-rings. Also, clean and relubricate the bore
inside the topworks where the piston slides. Please note that to complete this simple maintenance, you
do not need to completely disassemble the regulator as shown, all the parts are shown to help you if
you need it for troubleshooting.
Re-assemble your regulator and re-assemble your Clone by attaching the Gladiator inline reg and hose.
Push the hose in rmly until it stops. Re-chronograph your Clone before use on the eld.
End cap
Sleeve
Filter
Bottomworks
Adjuster
Seat
O-ring
retainer
Spring
Piston
Topworks
Topworks
o-ring (015)
Piston
o-ring (016)
Retainer
inner o-ring
(008)
Retainer
outer o-ring
(017)
Adjuster o-ring
(008)
Swivel o-ring
(015)
Swivel o-ring
(015)
Bottomworks
o-ring (018)
Push tting

TROUBLESHOOTING
If you are experiencing difculties with your marker, please check this table rst to see if there is an easy
solution listed. If at any time you are unsure about how to work on your marker, please contact a certied
MacDev technician or service centre.
Symptom Possible Cause Solution
Although a fresh battery
has been tted, your
Clone will not turn on
The battery has not been tted
correctly
Ensure that the battery is rmly con-
nected to both terminals. Ensure that the
positive (+) terminal is connected to the
positive terminal on your battery.
Your Clone leaks from
the solenoid
Leaking bolt switch o-ring Clean and relubricate the drivetrain with
particular attention to the bolt switch o-
ring. Replace if necessary.
Leaking manifold o-rings Check that the 3 manifold o-rings are in
place between the solenoid and subplate.
If they are damaged or missing, then
replace them.
Your Clone uses
excessive air
Valve is leaking Check that the valve o-rings are clean
and well lubricated, replace if worn.
General leak Make certain that there are no leaks from
your ttings or air system wasting your air
supply.
Symptom Possible Cause Solution
Your Clone is
chopping paintballs
Beam sensor is turned off Always play with the beam sensor
enabled.
Beam sensor is dirty or blocked Clean the breach, bolt and sensor.
Loader is set on a force setting
too high for your paintballs
Some force fed loaders can apply enough
force to break a fragile paintball. If this is
the case, consult your loader manual to
reduce the force setting.
Detents are missing or incorrectly
installed
Replace or re-install your detents.
Ball settle delay too low Increase the ball settle delay (pg 15)
Your Clone will not re The trigger is set up incorrectly Ensure that the trigger actuates the mi-
croswitch by adjusting the actuator screw.
The beam sensor is on, and there
are no paintballs loaded
Load some paintballs.
The solenoid is not plugged in Plug the solenoid into the board.
Your Clone res high on
the rst shot or
inconsistently.
Creeping inline regulator Clean and lubricate the inline regulator,
ensure that the seat and piston are in
good condition.
Your Clone res low on
the rst shot
Sticking drivetrain Clean and relubricate the drivetrain. If you
continue to have problems:
-increase the dwell by 1-2 ms.
-increase the ABS parameter on your
board.
24

Symptom Possible Cause Solution
The beam sensor is not
reading correctly
Eyes are connected incorrectly Red/black wire eye is the left hand plug
Yellow/black wire eye is the centre plug.
Eyes are faulty Replace the eye pair.
28
MACDEV TECHNICAL ASSISTANCE
If you require technical assistance, please contact your local MacDev service centre. You can also nd as-
sistance on the MacDev main website www.macdev.net, simply follow the prompts to the support page.
Alternatively, you can contact MacDev directly.
MacDev Australia
(Sydney, Australia)
Ph: [phone]
Fax: [phone]
Visit: www.macdev.net
Mail: [e-mail]
CLONE RX SPECIFICATIONS
Physical
Length 216mm (524mm with barrel)
Width 35mm
Height 205mm
Weight 880g with barrel and battery
Barrel Threads Autococker
Performance
Operating pressure 100psi
Rate of Fire 30 BPS
Electronics
Software Militia Soft Version 1.0
Hardware Militia Version 1.0 (Lead Free)
Display OLED high visibility low power usage 96x16px
Power 9V standard battery 6LR61
Fire modes Semi, NXL, PSP, Response, Burst, Full Auto
Connectivity Mini USB
Solenoid 5V 1W
26

(c) Copyright 2008-2009 Mac Developments Pty Ltd (MacDev).
MacDev - Proudly Australian
The Clone paintball marker is covered by the following granted patents as well as international pending
patents: U.S. Patent Nos. 5,228,427; 5,755,213; 5,957,119; 6,260,821; 6,349,711; 6,494,195; 6,644,295;
6,644,296; 6,823,857; 6,694,963; 6,810,871; 7,017,497; 7,044,119.
Clone, MacDev, Shift, MacDev Militia, Drone and Gladiator are all Trademarks of MacDev.
