Mackworth M400 User manual

Doc No. 999568 Revision of document: B
Revision Date: 10.06.2021
M400 Mobile Hoist
User Manual
This document includes Fixed and Folding variants

999568 – Revision B Page | 2 of 40
CONTENTS
Safety Instructions and Warnings...........................................................................................................4
1.1 Introduction.........................................................................................................................................4
1.2 Manufacture........................................................................................................................................4
1.1 European Authorised Representative.................................................................................................4
1.2 Symbols Used ......................................................................................................................................5
1.3 Contraindications / Limitations...........................................................................................................6
1.4 Intended Use ......................................................................................................................................6
1.5 Warning Notes ....................................................................................................................................7
1.6 Operating Environment.......................................................................................................................7
Components / Key Parts .........................................................................................................................8
Assembly instructions.............................................................................................................................9
3.1 Unpacking............................................................................................................................................9
3.2 Unboxing Hoist....................................................................................................................................9

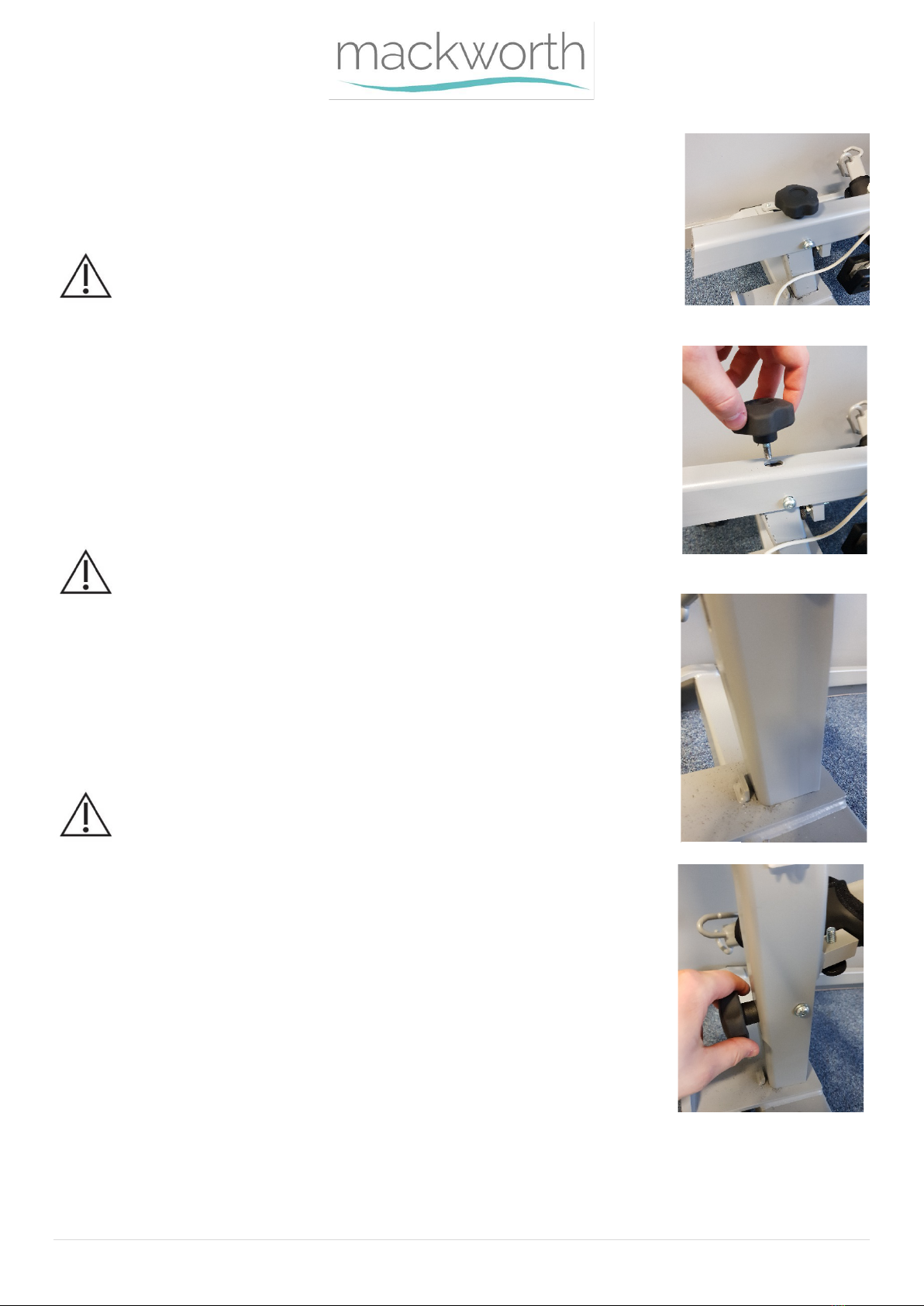

3.3 Hoist Assembly ..................................................................................................................................10
3.3.1 Fixed Mast M400 Assembly .......................................................................................................10
3.3.2 Folding Mast M400 Assembly....................................................................................................11
3.4 Electrical connections.......................................................................................................................12
Final Inspection .....................................................................................................................................12
Operating instructions ..........................................................................................................................13
5.1 Manoeuvring the Hoist .....................................................................................................................13
5.2 Raising and Lowering ........................................................................................................................13

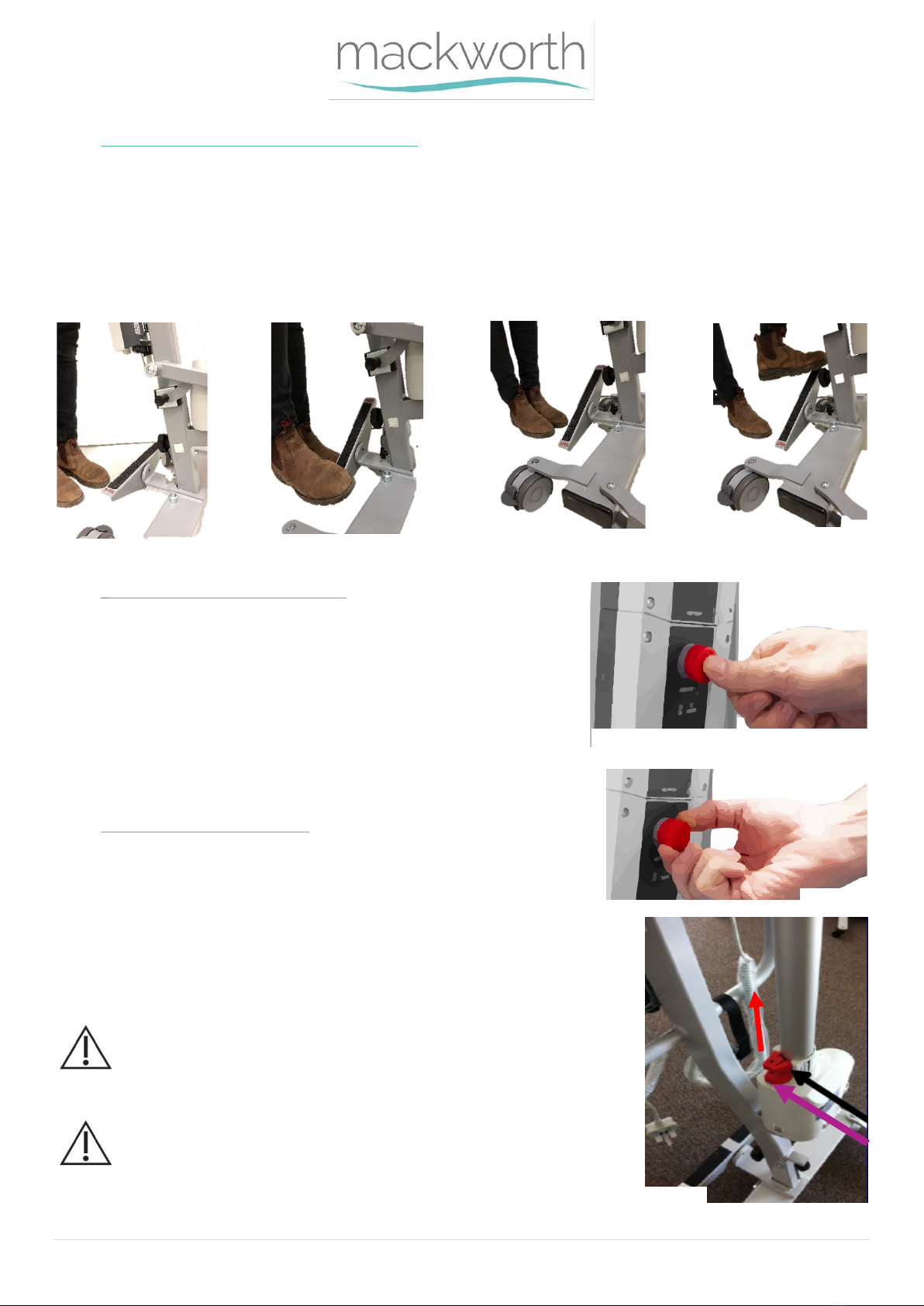

5.3 Open / Close Mobile Hoist Legs ........................................................................................................14
5.4 Emergency stop button....................................................................................................................14
5.5 Emergency Lowering.........................................................................................................................14
5.5.1 Manual Emergency Lowering ....................................................................................................14
5.5.2 Electrical Emergency Lowering ..............................................................................................15
5.6 Handset Operations .........................................................................................................................15
5.6.1 Battery Status.............................................................................................................................15
5.7 Battery...............................................................................................................................................15
5.7.1 Charging the battery pack..........................................................................................................15
5.8Slings..................................................................................................................................................16
5.8.1 Sling Attachment/Detachment..................................................................................................16
5.8.2 Compatible Slings...................................................................................................................16

999568 – Revision B Page | 3 of 40
Detachable Parts...................................................................................................................................23
6.1 Attaching/detaching QRS (Quick Release System) Carry Bar ...........................................................23
6.2 Attaching/detaching the Battery ......................................................................................................24
Folding the Hoist ...................................................................................................................................24
Technical Specification..........................................................................................................................25
8.1 Mackworth M400 Dimensions..........................................................................................................25
8.2 Specifications.....................................................................................................................................26
8.3 Electrical specifications .....................................................................................................................26
8.4 Standards Applied .............................................................................................................................26
Environmental - Storage and Operating Conditions.............................................................................27
9.1 Normal operating conditions ............................................................................................................27
9.2 Shipping and storage conditions.......................................................................................................27
Disposal .................................................................................................................................................27
Fault Finding..........................................................................................................................................28
General Inspection, Maintanance and Cleaning...................................................................................29
12.1 Service............................................................................................................................................29
12.2 Inspection ......................................................................................................................................30
12.3 Cleaning .........................................................................................................................................31
12.3.1 General cleaning ........................................................................................................................31
12.3.2 Disinfecting (if necessary) ..........................................................................................................31
Warranty ...............................................................................................................................................33
Service Record History..........................................................................................................................34

999568 – Revision B Page | 4 of 40
Safety Instructions and Warnings
1.1 Introduction
Please read and understand this manual in its entirety before using your Mackworth M400 Mobile Hoist.
The information in this manual is important for the safety of anyone near the Mackworth M400 Hoist and must be read and
understood to help prevent injuries. It is also crucial to the proper operation and maintenance of the Mobile Hoist.
The Hoist is designed to be used in conjunction with slings and accessories. Please refer to any user guides supplied with these
components while reviewing this manual.
Should any questions arise from reviewing this manual, contact your local authorised representative.
Failure to comply with warnings in this manual may result in; injury to the operator and/or client and/or damage to the Mobile
Hoist or related components.
If, during the use of this device or as a result of its use a serious incident has occurred, please report it to the manufacturer and
to your national authority.
Store this manual with the documents included with the Mobile Hoist and sling(s). Contents of this manual are subject to change
without prior written notice. Ensure you are aware of the sling manufacturer’s fitting instructions.
Do not attempt to use this equipment without first understanding the contents of this manual.
Unauthorised modifications on any Mackworth product may affect its safety. The manufacturer will not be held
responsible for any accident, incident or deficiencies of performance that occur as
a result of any unauthorised modification to its products.
Do not use a clip fit sling on a lifting arm designed specifically for loop fitting slings.
1.2 Manufacture
The Mobile Hoist is manufactured at the address below:
Prism Medical UK
Unit 1, Tir Llwyd Industrial Estate, St Asaph Avenue, Kinmel Bay, Conwy, LL18 5JZ
Telephone number: 01924 840 100
1.1 European Authorised Representative
The address of the European Authorised Representative for this product:
European Healthcare & Device Solutions (Ireland) Ltd.
Stratton House, Bishopstown Road,
Cork, Ireland.
T12 Y9TC.
Telephone number: [phone]
Figure 1

999568 – Revision B Page | 5 of 40
1.2 Symbols Used
The Table below includes all Symbols from BS EN ISO 15223-1:2016 that can be found in this Manual and on the Product and
what they represent. Refer back to this Table when you are unsure of what a symbol represents.
Consult instructions before use Caution – see instructions for use
Manufacturer
Safe Working Load represents the
maximum load rated for safe
operation
Packaging indicator – This way up Date of manufacture
Serial number Packaging indicator – Keep dry
Please observe local laws on recycling For internal use only
Temperature range
Degree of protection provided by
enclosure.
N1: Ingress of particles
N2: Ingress of water
Humidity range Medical Device
Catalogue number European Authorised Representative
Table 1

999568 – Revision B Page | 6 of 40
1.3 Contraindications / Limitations
There are no known “contraindications” associated with the usage of the Mackworth M400, provided they are used as per
manufacturer’s recommendations and guidelines. However, it is recommended that a client specific assessment is completed by
a trained and knowledgeable healthcare professional to determine the method of transfer.
Mackworth does not recommend a required number of care givers for the use of our products. This information and
recommendation can only be provided after a thorough personalised, case specific assessment, as there are many factors that
can influence these decisions.
1.4 Intended Use
For internal use only.
The Mobile Hoist is a lifting aid used by trained personnel. The Mobile Hoist makes it possible to transfer/lift mobility impaired
clients with minimal strain or risk to the caregiver, while providing complete safety, dignity and comfort to the client.
The Mobile Hoist is one of two components that makes this possible. The other component, the sling, is a specially designed
fabric accessory that attaches to the Hoist by means of a carry bar and straps, and holds the client during the lift/transfer.
Please refer to the user guides supplied with the sling and reference them while reviewing this manual.
The functions of raising and lowering the boom, are accomplished by pressing buttons on the hand control. The opening and
closing of the legs on the Mobile Hoist are of manual operation.
The device is used under instruction, and the operation of the aid is undertaken by a trained carer.
A risk assessment must be performed before using any other manufactured slings or Mobile Hoist, to ensure safe
use can be established.
•The Mackworth M400 Mobile Hoist is intended to be installed on a flat and levelled surface prior to use.
•The Hoist must be installed only by persons authorised by Mackworth or who have the rights to install and commission
the Hoist safe for use.
•Under no circumstance should the Mackworth M400 Mobile Hoist or entire system be put in control of a person who
has not been properly trained in the use and care of this equipment. Failure to adhere to this warning may result in
serious injury to the operator and/or the individual being transferred.
•In facilities where more than one operator will be responsible for using the Mobile Hoist and sling(s) it is imperative
that all such members be trained to use the Mackworth M400 Mobile Hoist. A training program should be established
by the facility to acquaint new operators with this equipment.
•The Mackworth M400, and associated slings are not toys. Do not use it for unsafe practices. Do not allow children to
play with the Hoist or any of its components.
•Your guarantee is void if persons unauthorized by Mackworth perform work on the Mobile Hoist.
•To maintain optimum function, the Mackworth M400 Mobile Hoist should be inspected and maintained on a regular
basis. See section ‘General Inspection, Maintenance and Cleaning’ within this user manual.
•Any accessories used with this Mobile Hoist including belt(s), should be checked to ensure that they are in good
working order. Check for signs of wear to each component prior to use. Report any unusual wear, or damage
immediately to your local authorized dealer.

999568 – Revision B Page | 7 of 40
•The Mackworth M400 Mobile Hoist and Slings(s) are intended only for transferring of a person. Mackworth will not be
responsible for any damage caused by the misuse, neglect or purposeful destruction of the Unit, and/or its associated
components.
•The Mobile Hoist and its associated parts are certified to a maximum load of 180kg (400 lb). Do not exceed the
maximum rated load of any of the components.
•Ensure that a clear space is maintained around the Mobile Hoist. Before performing a transfer, check for and move all
obstacles out of the way.
•Your Product is for aiding and transferring a patient. Do not use it, or allow it to be used, for any other purpose.
•Protecting the people present, visually monitor the sling(s) loops connection points during transfer stages, so the belt
remains firmly attached to the clipped carry bar.
•In areas where children are prone to be present be vigilant when carrying out a transfer.
•To reduce the risk of unintended use, when the Hoist is not in use, remove the sling(s) from the product to prevent
entrapment or strangulation should the device be tampered with.
•Between Hoist, Spreader Bar and Body-Support Unit, the lowest maximum load shall always be used.
You may need to seek specialist advice on how to assist some people with specific moving and handling needs.
Sources of advice include, but is not limited to, professional bodies and organisations, occupational therapist,
physiotherapists, manual handling advisers and ergonomist with experience in health and social care.
1.5 Warning Notes
Your Mackworth M400 Mobile Hoist has been manufactured and tested to exceed BS EN 10535:2006. This does not
mean that it can be used without care. ALL OPERATORS should have read the operating instructions and appreciate
this warning section.
1. ALL Mobile Hoists are less stable on sloping surfaces. A 5-degree slope is the maximum permitted and then only with
great care.
2. ALL Mobile Hoists are dangerous to the person being transferred when used recklessly or pushed at speed.
1.6 Operating Environment
The Mackworth M400 Mobile Hoist is intended for use within the professional health care facility environment as well as the
home health care environment. The Hoist is not suitable for any other environment or special environments.
The Mobile Hoist is not intended to be used in environments where there are rapid changes in the environmental temperature
and humidity during intended use.

999568 – Revision B Page | 8 of 40

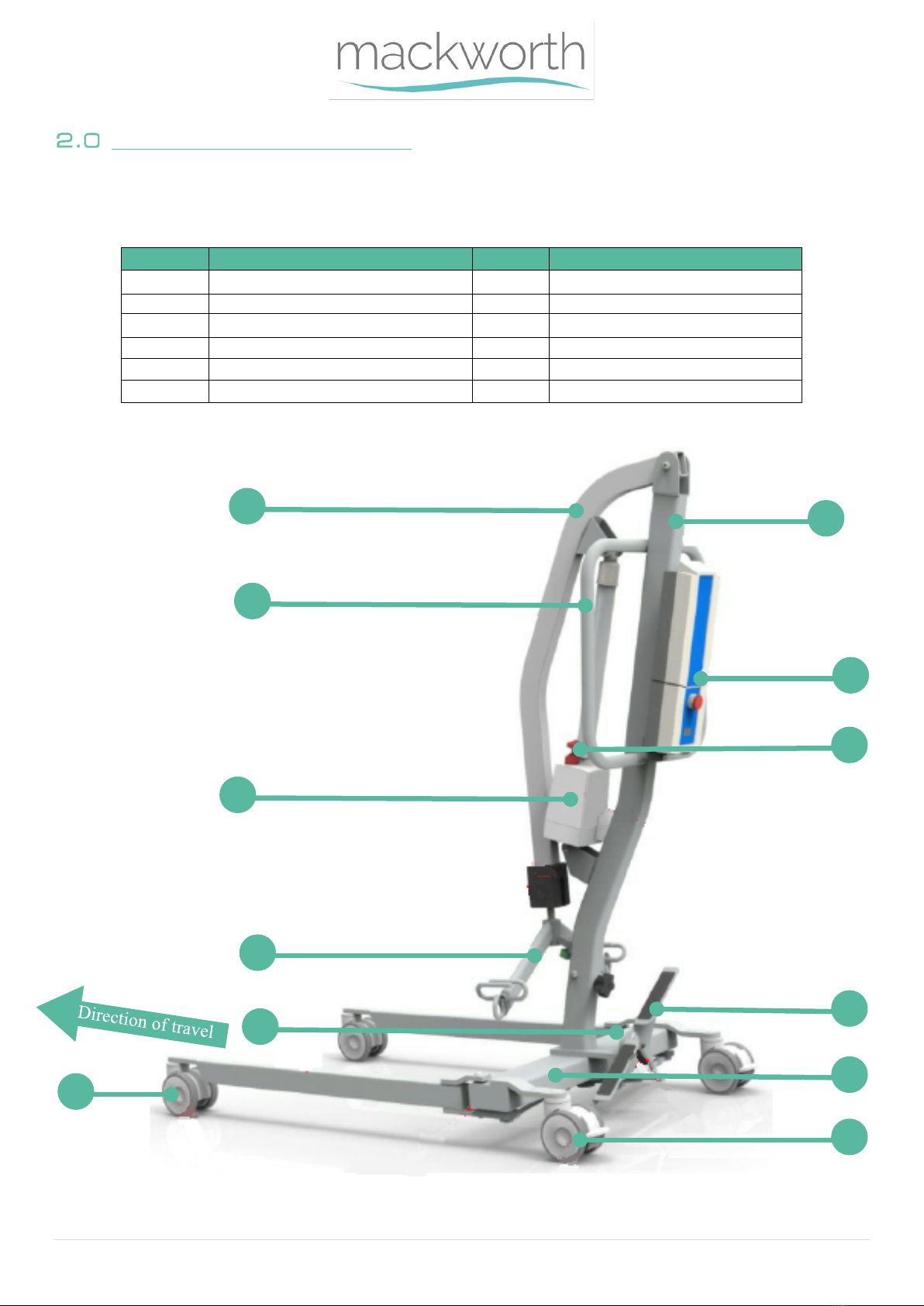

Components / Key Parts
Please see below to familiarise yourself with the components of the Mackworth M400 Mobile Hoist. The image below show the
contents of the Hoist. If you have not received all the components contact Mackworth dealer immediately – contact details are
provided on the last page of this manual.
Item
Description
Item
Description
1
Boom
6
Handle
2
Mast
7
Front Castors
3
Control Box & Battery
8
Manual Leg Lever Plate
4
Manual Emergency lower
9
Base
5
Carry Bar
10
Rear Castors
11
Serial Number/ Product Information
12
Lift Actuator
Figure 2
Table 2
1
2
3
4
5
6
7
8
9
10
11
12

999568 – Revision B Page | 9 of 40
Assembly Instructions
3.1 Unpacking
Some of the parts are heavy and will need to be lifted with care. Items weighing over 20kg (44 lb) will require a two
person lift. Please refer to (8.0) technical specifications for components weights.
The Hoist will arrive to you in a robust box, please be careful when removing the components from the box. Please
read the user guide in full before operating.
This user manual should be kept safe for future reference.
The Hoist has been specifically designed to be installed in both the professional and home health care environments.
No matter the environment, health and safety factors should be considered to ensure the safety and essential performance of
the Hoist and to avoid unnecessary damage or injuries to people within the area of the Mobile Hoist.
The environment in which the Mobile Hoist is situated in, whilst carrying out a transfer, is required to be on a flat surface with
no steep inclines.
3.2 Unboxing Hoist
When using a sharp knife, be careful not to damage the product.
This section will summarize the layout of the Hoist Packaging and what is included in the Box. It is recommended a knife is used
for smoother unpacking of the Hoist. The Hoist is packed into a single box 47x32x32 (Inches), weighing approximately 99 lb.
Using a knife to open the box around the perimeter, the box should open to a similar view to Figure 3. It will include all the
following components. It is recommended that the components are removed in the numerical order below.
1. Mast and Boom Assembly
2. Base
3. Fixings (Star Handles)
4. Handset
5. Charger
6. User Manual
(Folding Version – The Mast and Base will come as one, only in its folded state.
Figure 3

999568 – Revision B Page | 10 of 40
3.3 Hoist Assembly
This section will show you the correct way to safely assembly your Mobile Hoist, for fixed mast M400 Mobile Hoist, see section
3.3.1. For the Folding Mast M400 Mobile Hoist, see section 3.3.2.
3.3.1 Fixed Mast M400 Assembly
A. Carefully open the box and remove all loose parts and excess packaging from the box.
2 person lift recommended for the following points.
B. Carefully holding onto the handle and boom, lift the Hoist components out of the box.
Place carefully onto the floor.
C. With one person lifting up from the front castors and one person lifting up from the rear
castors, raise the base from the box and place the Hoist base on a flat surface and ensure
the rear braked castors are locked.
D. Remove the Star handle from the base and the tensioner star handle from the mast.
E. Ensure all cables are clear from entrapment while fitting the base and mast together.
Please ensure both hands are on the handles when lifting the mast into position,
possible risk of finger trap.
F. When the mast if fully engaged with the base, fit and fully tighten the Tensioner Star
Handle into the lowest fixing point. (As shown in Fig.5).
G. When the mast if fully engaged with the base, fit and fully tighten the Large Star Handle.
(As shown in Fig. 6).
Ensure the mast is fully seated into the base and the Star Handles are in position and
tight before using the Hoist.
NOTE: To disassemble the Hoist into the two main sections (Mast/boom and Base) simply follow the pervious steps in reverse.
Figure 4
Figure 6
Figure 5
Figure 8

999568 – Revision B Page | 11 of 40
3.3.2 Folding Mast M400 Assembly
A. Carefully open the box and remove all loose parts and excess packaging from the box.
2 person lift recommended for the following points.
B. With one person lifting up from the front castors and one person lifting up from the rear
castors, raise the whole product from the box and place the Hoist on a flat surface and
ensure the rear braked castors are locked.
C. Remove the Star handle from the base to release the mast.
D. Ensure all cables are clear from entrapment, lifting the upper assembly up with two
hands on the top half of the handle, pivot the mast around until it is located into the
base.(As shown in Fig. 9).
Please ensure both hands are on the handles when lifting the mast into position,
possible risk of finger trap.
E. When the mast if fully engaged with the base, fit and fully tighten the Star Handle. (As
shown in Fig. 10).
Ensure the mast is fully seated into the base and the Star Handle is in position and
tight before using the Hoist.
NOTE: To disassemble the Hoist into the two main sections (Mast/boom and Base) simply follow
the pervious steps in reverse.
Figure 7
Figure 8
Figure 9
Figure 10

999568 – Revision B Page | 12 of 40
3.4 Electrical connections
Connect all the cables to the control box as shown in the pictures
opposite.
A. Connect the lift actuator cable connector to the second port (marked No. 1)
from the left side of the control box (as shown in Fig. 11).
B. Connect the handset connector to the large port on the left side of the
control box. A locator pin on the plug ensures correct orientation of the
connector (as shown in Fig. 12).
C. Connect the mains cable/power cord to the control box (as shown in Fig. 13).
Ensure that all cables are located and secure before operating the Mobile
Hoist.
Final Inspection
Before first operation of the Hoist:
•Confirm all cables are located and secure.
•Ensure the red emergency stop button on the control box is deactivated. (Rotate clockwise to release if required- Refer
to section 5.4 for guidance).
•Press the up button on the handset and confirm the actuator raises the boom.
•Press the down button on the handset and confirm the actuator lowers the boom.
•Ensure that when you operate ‘OPEN’ on the manual leg spread lever, the legs operate accordingly.
•Ensure that when you operate ‘CLOSE’ on the manual leg spread lever, the legs operate accordingly.
•Press the red emergency stop button on the control box and check that actuators do not operate until the button is
reset. (See section 5.4 for guidance).
•Check the manual emergency lowering function works properly. (See section 5.5 for guidance)
•Check the rear castors brakes function properly.
•Check the battery pack is fully charged.
Your Mobile Hoist is now ready to use.
Figure 11
Figure 13
Figure 12

999568 – Revision B Page | 13 of 40

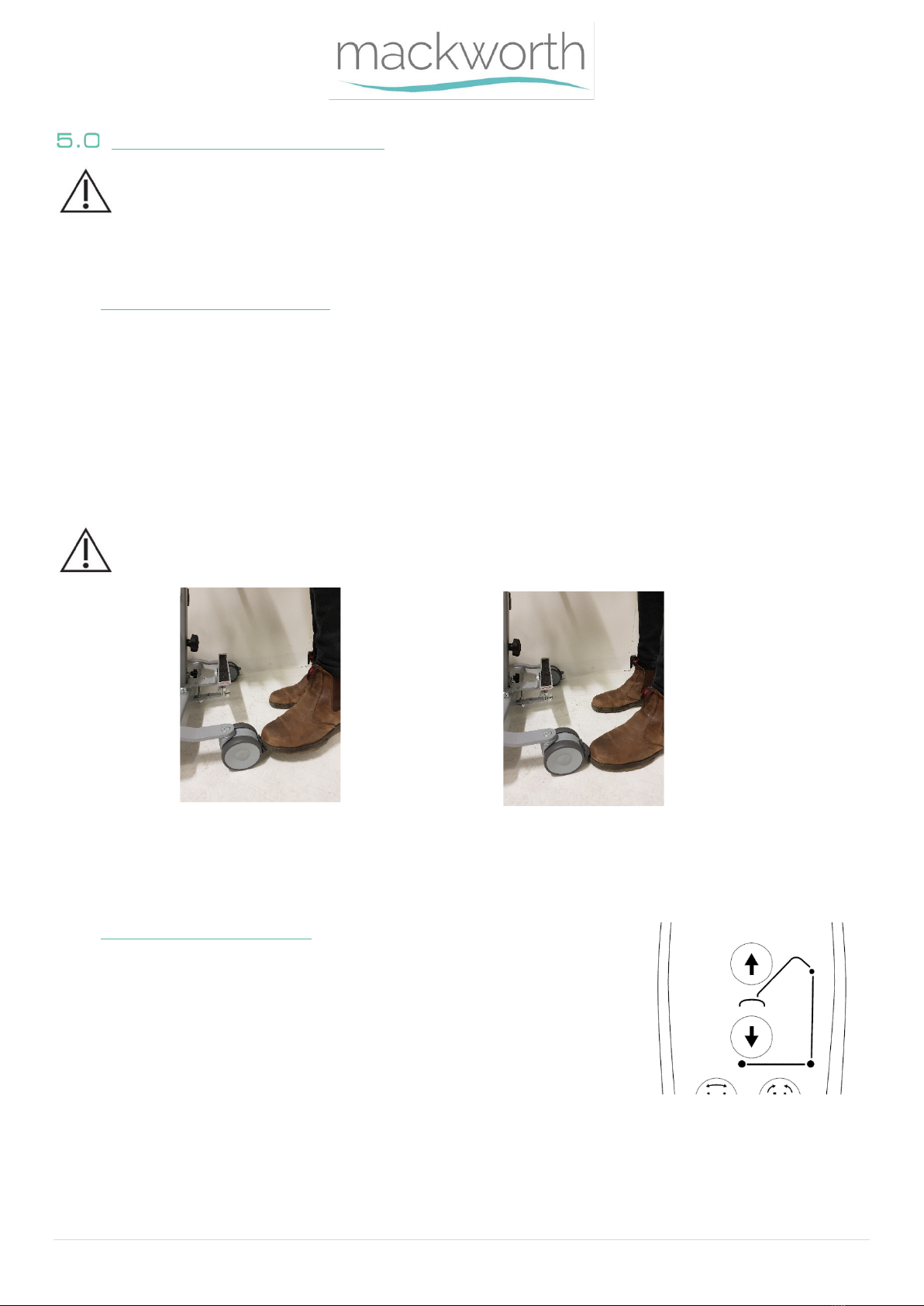

Operating Instructions
The Hoist may be heavy for users and will need to be lifted with care, please operate the device with the use of the
castors wherever possible to prevent any injury.
Appropriate training in lifting and handling procedures should be undergone by any person operating the Mobile Hoist, for their
own and the client’s safety and comfort. These instructions are designed to cover the method of using the Mobile Hoist.
5.1 Manoeuvring the Hoist
A. To move the Hoist forward, hold onto the handle bar and push forward.
B. When turning the Hoist, use both hands on the handle. Alternatively, it is possible to rotate the Hoist by applying the
brake to a single rear castor and rotating the Hoist about the braked castor. This movement should be performed with
a smooth, slow action to avoid swinging the patient unnecessarily.
C. The Mackworth M400 Mobile Hoist has two rear castors with brakes.
D. The rear castors can be braked for rotation (by applying a single brake), lateral movement, and parking. To apply the
brake, press the brake pedal down with your foot (as shown in Fig. 14). To release the brake, press the raised pedal
towards the wheel (as shown in Fig. 15).
E. During lifting, the rear castors should remain locked to ensure that the Hoist will not move.
The castors should be locked if there is a risk of the Hoist driving into the patient. For example, when lifting the
patient from the floor.
5.2 Raising and Lowering
The up and down movement of the boom on the Mackworth M400 Mobile Hoist is achieved
by an electric actuator which is controlled by hand control. The hand control has two
buttons with directional arrows up and down. The actuator stops automatically at the limit
of travel in both directions.
Figure 16
Figure 14
Figure 15

999568 – Revision B Page | 14 of 40
5.3 Open / Close Mobile Hoist Legs
The legs of Mackworth M400 Mobile Hoist are manually opened using the leg lever plate. The legs can be opened to enable
access around arm chairs or wheel chairs. When relocating the Hoist, manoeuvring through narrow doorways and/or passages,
the Hoist legs should be in the closed position.
The legs on the base unit of the Mobile Hoist are operated by adjusting the leg lever plate, as shown in the photos below. To
open the legs, press on “open” (Figure 18) and then to close the legs, press on “close” (Figure 20).
5.4 Emergency stop button
The Mackworth M400 Mobile Hoist is fitted with an Emergency Stop button.
Push the Emergency Stop button (as shown in Fig. 21) to cut all power to the
Mobile Hoist.
To resume power, release the emergency stop button by turning in a clockwise
direction (indicated by arrows on the Emergency Stop button) as shown in Fig. 22.
5.5 Emergency Lowering
5.5.1 Manual Emergency Lowering
In the case of power failure, it is possible to mechanically lower a patient suspended by the
Mackworth M400 Mobile Hoist.
Using the Red tag shown in Figure 23, using your hand lift the mechanism up vertically to
lower the boom until the boom reaches a safe position.
The manual emergency lowering system should be used only if the lowering
procedures described in the previous section of the manual do not work.
Should you have any concerns or questions contact your local authorised
Mackworth Representative.
Do not use the Hoist after the manual lowering mechanism has been used. The
lift must be reset by a qualified technician after use. Contact your local
authorised Mackworth Service Provider.
Figure 23
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22

999568 – Revision B Page | 15 of 40
Figure 26
5.5.2 Electrical Emergency Lowering
The Mobile Hoist lifting arm can be lowered by pushing the emergency lowering button on
the control box with a suitable object, such as a pen nib or pencil (as shown in Fig.24).
5.6 Handset Operations
The Hand Controls has 2 functions: Up and Down. This will raise and lower the Mobile Hoist lifting arm.
Press down on each symbol to operate the desired function. It is not possible to use two functions at the same
time. Once the Mobile Hoist has reached the extent of its travel in a given direction, the actuator will
automatically stop, allowing you to then choose the opposite direction.
The handset is attached to the control box via a flexible, coiled cable that is secured in place with a friction-fit
plug. The coiled cable is designed to give the greatest number of options for carer positioning without having a
trailing cable around the patient. The handset also incorporates a hook which gives the carer flexibility whist
moving/positioning the patient. Clear and easy to understand labelling of the buttons enable ease of use for
the care giver.
The handset also displays battery level by the use of LED lights.
5.6.1 Battery Status
A single LED is used to indicate Low Battery, the LED will light up orange when battery power is low.
This means the battery needs charging. At this stage some of the functionality of the lift is lost. At this
battery stage, it is not possible to drive the lifting arm up or down. Furthermore, an audio signal will
sound when a control button is activated (17V or lower).
5.7 Battery
The battery pack should never be stored for long periods of time without a regular charge.
The battery pack is protected in an encased unit located on top of the control box, on the rear of the product. The control box,
below the battery, will inform the user when the battery is flat and requires charging, by an illuminated LED. An LED illuminate
when the battery needs recharging. Complete the lift and place the battery on charge.
5.7.1 Charging the battery pack
The battery pack can be recharged via mains lead (terminated with a figure of eight
plug)
A. Fit the mains lead figure of eight plug into charger link cable (see Fig. 27).
B. Plug the 2-pin mains plug into a suitable mains outlet and switch the
mains supply on.
C. Charging is automatic and will normally take eight to twelve hours to fully
charge (from completely discharged state). You cannot overcharge the
battery pack if left for longer periods of time.
D. To return the Hoist to use, switch off the mains supply. Remove the plug
from the socket and clip onto the Mast.
E. The Hoist is now ready for use.
Figure 27
Figure 25
Figure 24

999568 – Revision B Page | 16 of 40
5.8 Slings
The Mackworth M400 is designed to be used in combination with a Sling to perform its intended use. The sections below include
the correct and safe manor of attaching/detaching the Slings as well as a list of approved slings for use.
5.8.1 Sling Attachment/Detachment
Sling loops should be attached as follows:
1. Put the required sling loop onto your finger and thumb and then using the same finger or thumb, pull back the spring
locking mechanism on the correct hook on the correct side of the carry bar (Figure 28).
2. Slide the sling loop from your finger and thumb over the edge of the hook (Figure 29).
3. After positioning the loop below the locking mechanism (Figure 30) release the spring locking mechanism to secure the
sling loop (Figure 31).
To remove the sling, simply reverse the process – pull back on the spring locking mechanism, lift the loop out of the hook and
release the locking mechanism.
The same process of attaching and detaching the Sling is relevant for the QRS (Quick Release System) Carry Bar.
5.8.2 Compatible Slings
Below is a list of slings that are recommended and have been approved by Mackworth for use in combination with the product.
We recommend the use of the Mackworth Healthcare or Care-Ability manufactured sling range (type ‘BF’ applied part) to be
utilised with the Mackworth M400 Mobile Hoist. It is at the user’s discretion to use alternative supplied product. In utilising
another manufacturer’s sling, checks must first be made to ensure the sling is safe to use and meets the requirements of BS EN
ISO 10535 before its use.
The slings with a safe working load of 180kg (400 lb) that can be used with the Mackworth M400 Mobile Hoist are shown in the
Tables below complete with product codes. For all components, the lowest maximum safe working load must always be adhered
to.
Figure 31
Figure 32
Figure 33
Figure 34
Figure 28
Figure 29
Figure 30

999568 – Revision B Page | 17 of 40
Size
Mackworth Sling Range - Product Material and Code
Polyester Solid
Polyester Mesh
Parasilk
Quilted
Supersoft Spacer
Mackworth Oak
Small
1201OK7500
1201OK8500
1201OK3500
1201OK5500
1201OK4500
Medium
1201OK7400
1201OK8400
1201OK3400
1201OK5400
1201OK4400
Large
1201OK7300
1201OK8300
1201OK3300
1201OK5300
1201OK4300
XL
1201OK7200
1201OK8200
1201OK3200
1201OK5200
1201OK4200
XXL
1201OK7100
1201OK8100
1201OK3100
1201OK5100
1201OK4100
XXXL
1201OK7000
1201OK8000
1201OK3000
1201OK5000
1201OK4000
Mackworth Oak with head support
Small
1201OK7520
1201OK8520
1201OK3520
1201OK5520
1201OK4520
Medium
1201OK7420
1201OK8420
1201OK3420
1201OK5420
1201OK4420
Large
1201OK7320
1201OK8320
1201OK3320
1201OK5320
1201OK4320
XL
1201OK7220
1201OK8220
1201OK3220
1201OK5220
1201OK4220
XXL
1201OK7120
1201OK8120
1201OK3120
1201OK5120
1201OK4120
XXXL
1201OK7020
1201OK8020
1201OK3020
1201OK5020
1201OK4020
Mackworth Yew
Small
1201YW7500
1201YW8500
1201YW3500
n/a
1201YW4500
Medium
1201YW7400
1201YW8400
1201YW3400
n/a
1201YW4400
Large
1201YW7300
1201YW8300
1201YW3300
n/a
1201YW4300
XL
1201YW7200
1201YW8200
1201YW3200
n/a
1201YW4200
XXL
1201YW7100
1201YW8100
1201YW3100
n/a
1201YW4100
XXXL
1201YW7000
1201YW8000
1201YW3000
n/a
1201YW4000
Mackworth Yew with head support
Small
1201YW7520
1201YW8520
1201YW3520
n/a
1201YW4520
Medium
1201YW7420
1201YW8420
1201YW3420
n/a
1201YW4420
Large
1201YW7320
1201YW8320
1201YW3320
n/a
1201YW4320
XL
1201YW7220
1201YW8220
1201YW3220
n/a
1201YW4220
XXL
1201YW7120
1201YW8120
1201YW3120
n/a
1201YW4120
XXXL
1201YW7020
1201YW8020
1201YW3020
n/a
1201YW4020
Mackworth Hazel
Small
1201HZ7500
1201HZ8500
1201HZ3500
1201HZ5500
1201HZ4500
Medium
1201HZ7400
1201HZ8500
1201HZ3400
1201HZ5400
1201HZ4400
Large
1201HZ7300
1201HZ8300
1201HZ3300
1201HZ5300
1201HZ4300
XL
1201HZ7200
1201HZ8200
1201HZ3200
1201HZ5200
1201HZ4200
XXL
1201HZ7100
1201HZ8100
1201HZ3100
1201HZ5100
1201HZ4100
XXXL
1201HZ7000
1201HZ8000
1201HZ3000
1201HZ5000
1201HZ4000
Mackworth Hazel with head support
Small
1201HZ7520
1201HZ8520
1201HZ3520
1201HZ5520
1201HZ4520
Medium
1201HZ7420
1201HZ8520
1201HZ3420
1201HZ5420
1201HZ4420
Large
1201HZ7320
1201HZ8320
1201HZ3320
1201HZ5320
1201HZ4320
XL
1201HZ7220
1201HZ8220
1201HZ3220
1201HZ5220
1201HZ4220
XXL
1201HZ7120
1201HZ8120
1201HZ3120
1201HZ5120
1201HZ4120
XXXL
1201HZ7020
1201HZ8020
1201HZ3020
1201HZ5020
1201HZ4020
Mackworth Willow
Small
1201WL7500
This sling is made up of a single quilted material backed with solid
polyester material.
Medium
1201WL7400
Large
1201WL7300

999568 – Revision B Page | 18 of 40
XL
1201WL7200
XXL
1201WL7100
XXXL
1201WL7000
Mackworth Willow with head support
Small
1201WL7520
This sling is made up of a single quilted material backed with solid
polyester material.
Medium
1201WL7420
Large
1201WL7320
XL
1201WL7220
XXL
1201WL7120
XXXL
1201WL7020
Mackworth Beech
Small
1201BC7500
1201BC8500
1201BC3500
1201BC5500
1201BC4500
Medium
1201BC7400
1201BC8400
1201BC3400
1201BC5400
1201BC4400
Large
1201BC7300
1201BC8300
1201BC3300
1201BC5300
1201BC4300
XL
1201BC7200
1201BC8200
1201BC3200
1201BC5200
1201BC4200
XXL
1201BC7100
1201BC8100
1201BC3100
1201BC5100
1201BC4100
XXXL
1201BC7000
1201BC8000
1201BC3000
1201BC5000
1201BC4000
Mackworth Beech with head support
Small
1201BC7520
1201BC8520
1201BC3520
1201BC5520
1201BC4520
Medium
1201BC7420
1201BC8420
1201BC3420
1201BC5420
1201BC4420
Large
1201BC7320
1201BC8320
1201BC3320
1201BC5320
1201BC4320
XL
1201BC7220
1201BC8220
1201BC3220
1201BC5220
1201BC4220
XXL
1201BC7120
1201BC8120
1201BC3120
1201BC5120
1201BC4120
XXXL
1201BC7020
1201BC8020
1201BC3020
1201BC5020
1201BC4020
Mackworth Pine
Small
1201PN7500
1201PN8500
1201PN3500
1201PN5500
1201PN4500
Medium
1201PN7400
1201PN8400
1201PN3400
1201PN5400
1201PN4400
Large
1201PN7300
1201PN8300
1201PN3300
1201PN5300
1201PN4300
XL
1201PN7200
1201PN8200
1201PN3200
1201PN5200
1201PN4200
XXL
1201PN7100
1201PN8100
1201PN3100
1201PN5100
1201PN4100
XXXL
1201PN7000
1201PN8000
1201PN3000
1201PN5000
1201PN4000
Mackworth Pine with head support
Small
1201PN7520
1201PN8520
1201PN3520
1201PN5520
1201PN4520
Medium
1201PN7420
1201PN8420
1201PN3420
1201PN5420
1201PN4420
Large
1201PN7320
1201PN8320
1201PN3320
1201PN5320
1201PN4320
XL
1201PN7220
1201PN8220
1201PN3220
1201PN5220
1201PN4220
XXL
1201PN7120
1201PN8120
1201PN3120
1201PN5120
1201PN4120
XXXL
1201PN7020
1201PN8020
1201PN3020
1201PN5020
1201PN4020
Size
Care-Ability Sling Range - Product Material and Code
Polyester
Mesh
Spacer
Parachute
CA300 Universal
P1
CA300PP1
CA300MP1
CA300SP1
CA300PAP1
P2
CA300PP2
CA300MP2
CA300SP2
CA300PAP2
P3
CA300PP3
CA300MP3
CA300SP3
CA300PAP3
P4
CA300PP4
CA300MP4
CA300SP4
CA300PAP4
P5
CA300PP5
CA300MP5
CA300SP5
CA300PAP5
Table 3

999568 – Revision B Page | 19 of 40
X Small
CA300PXS
CA300MXS
CA300SXS
CA300PXS
Small
CA300PS
CA300MS
CA300SS
CA300PAS
Small/Medium
CA300PSM
CA300MSM
CA300SSM
CA300PASM
Medium
CA300PM
CA300MM
CA300SM
CA300PAM
Medium/Large
CA300PML
CA300MML
CA300SML
CA300PAML
Large
CA300PL
CA300ML
CA300SL
CA300PAL
X Large
CA300PXL
CA300MXL
CA300SXL
CA300PAXL
CA400 Universal Deluxe
P1
CA400PP1
CA400MP1
CA400SP1
CA400PAP1
P2
CA400PP2
CA400MP2
CA400SP2
CA400PAP2
P3
CA400PP3
CA400MP3
CA400SP3
CA400PAP3
P4
CA400PP4
CA400MP4
CA400SP4
CA400PAP4
P5
CA400PP5
CA400MP5
CA400SP5
CA400PAP5
X Small
CA400PXS
CA400MXS
CA400SXS
CA400PAXS
Small
CA400PS
CA400MS
CA400SS
CA400PAS
Small/Medium
CA400PSM
CA400MSM
CA400SSM
CA400PASM
Medium
CA400PM
CA400MM
CA400SM
CA400PAM
Medium/Large
CA400PML
CA400MML
CA400SML
CA400PAML
Large
CA400PL
CA400ML
CA400SL
CA400PAL
X Large
CA400PXL
CA400MXL
CA400SXL
CA400PAXL
CA500 Toilet Access
P1
CA500PP1
CA500MP1
CA500SP1
CA500PAP1
P2
CA500PP2
CA500MP2
CA500SP2
CA500PAP2
P3
CA500PP3
CA500MP3
CA500SP3
CA500PAP3
P4
CA500PP4
CA500MP4
CA500SP4
CA500PAP4
P5
CA500PP5
CA500MP5
CA500SP5
CA500PAP5
X Small
CA500PXS
CA500MXS
CA500SXS
CA500PAXS
Small
CA500PS
CA500MS
CA500SS
CA500PAS
Small/Medium
CA500PSM
CA500MSM
CA500SSM
CA500PASM
Medium
CA500PM
CA500MM
CA500SM
CA500PAM
Medium/Large
CA500PML
CA500MML
CA500SML
CA500PAML
Large
CA500PL
CA500ML
CA500SL
CA500PAL
X Large
CA500PXL
CA500MXL
CA500SXL
CA500PAXL
CA501 Toilet Access with crossover straps
P1
CA501PP1
CA501MP1
CA501SP1
CA501PAP1
P2
CA501PP2
CA501MP2
CA501SP2
CA501PAP2
P3
CA501PP3
CA501MP3
CA501SP3
CA501PAP3
P4
CA501PP4
CA501MP4
CA501SP4
CA501PAP4
P5
CA501PP5
CA501MP5
CA501SP5
CA501PAP5
X Small
CA501PXS
CA501MXS
CA501SXS
CA501PAXS
Small
CA501PS
CA501MS
CA501SS
CA501PAS
Small/Medium
CA501PSM
CA501MSM
CA501SSM
CA501PASM
Medium
CA501PM
CA501MM
CA501SM
CA501PAM

999568 – Revision B Page | 20 of 40
Medium/Large
CA501PML
CA501MML
CA501SML
CA501PAML
Large
CA501PL
CA501ML
CA501SL
CA501PAL
X Large
CA501PXL
CA501MXL
CA501SXL
CA501PAXL
CA502 Toilet Access with head support
P1
CA502PP1
CA502MP1
CA502SP1
CA502PAP1
P2
CA502PP2
CA502MP2
CA502SP2
CA502PAP2
P3
CA502PP3
CA502MP3
CA502SP3
CA502PAP3
P4
CA502PP4
CA502MP4
CA502SP4
CA502PAP4
P5
CA502PP5
CA502MP5
CA502SP5
CA502PAP5
X Small
CA502PXS
CA502MXS
CA502SXS
CA502PAXS
Small
CA502PS
CA502MS
CA502SS
CA502PAS
Small/Medium
CA502PSM
CA502MSM
CA502SSM
CA502PASM
Medium
CA502PM
CA502MM
CA502SM
CA502PAM
Medium/Large
CA502PML
CA502MML
CA502SML
CA502PAML
Large
CA502PL
CA502ML
CA502SL
CA502PAL
X Large
CA502PXL
CA502MXL
CA502SXL
CA502PAXL
CA503 Toilet Access with high back
P1
CA503PP1
CA503MP1
CA503SP1
CA503PAP1
P2
CA503PP2
CA503MP2
CA503SP2
CA503PAP2
P3
CA503PP3
CA503MP3
CA503SP3
CA503PAP3
P4
CA503PP4
CA503MP4
CA503SP4
CA503PAP4
P5
CA503PP5
CA503MP5
CA503SP5
CA503PAP5
X Small
CA503PXS
CA503MXS
CA503SXS
CA503PAXS
Small
CA503PS
CA503MS
CA503SS
CA503PAS
Small/Medium
CA503PSM
CA503MSM
CA503SSM
CA503PASM
Medium
CA503PM
CA503MM
CA503SM
CA503PAM
Medium/Large
CA503PML
CA503MML
CA503SML
CA503PAML
Large
CA503PL
CA503ML
CA503SL
CA503PAL
X Large
CA503PXL
CA503MXL
CA503SXL
CA503PAXL
CA503E Toilet Access with high back extensor
X Small
CA503EPXS
n/a
n/a
n/a
Small
CA503EPS
n/a
n/a
n/a
Medium
CA503EPM
n/a
n/a
n/a
Large
CA503EPL
n/a
n/a
n/a
X Large
CA503EPXL
n/a
n/a
n/a
CA600 Hammock
P1
CA600PP1
CA600MP1
CA600SP1
CA600PAP1
P2
CA600PP2
CA600MP2
CA600SP2
CA600PAP2
P3
CA600PP3
CA600MP3
CA600SP3
CA600PAP3
P4
CA600PP4
CA600MP4
CA600SP4
CA600PAP4
P5
CA600PP5
CA600MP5
CA600SP5
CA600PAP5
X Small
CA600PXS
CA600MXS
CA600SXS
CA600PAXS
Small
CA600PS
CA600MS
CA600SS
CA600PAS
