Mackworth SA180 User manual

Doc No. 999065 Revision of document: A
Revision Date: 19.04.21

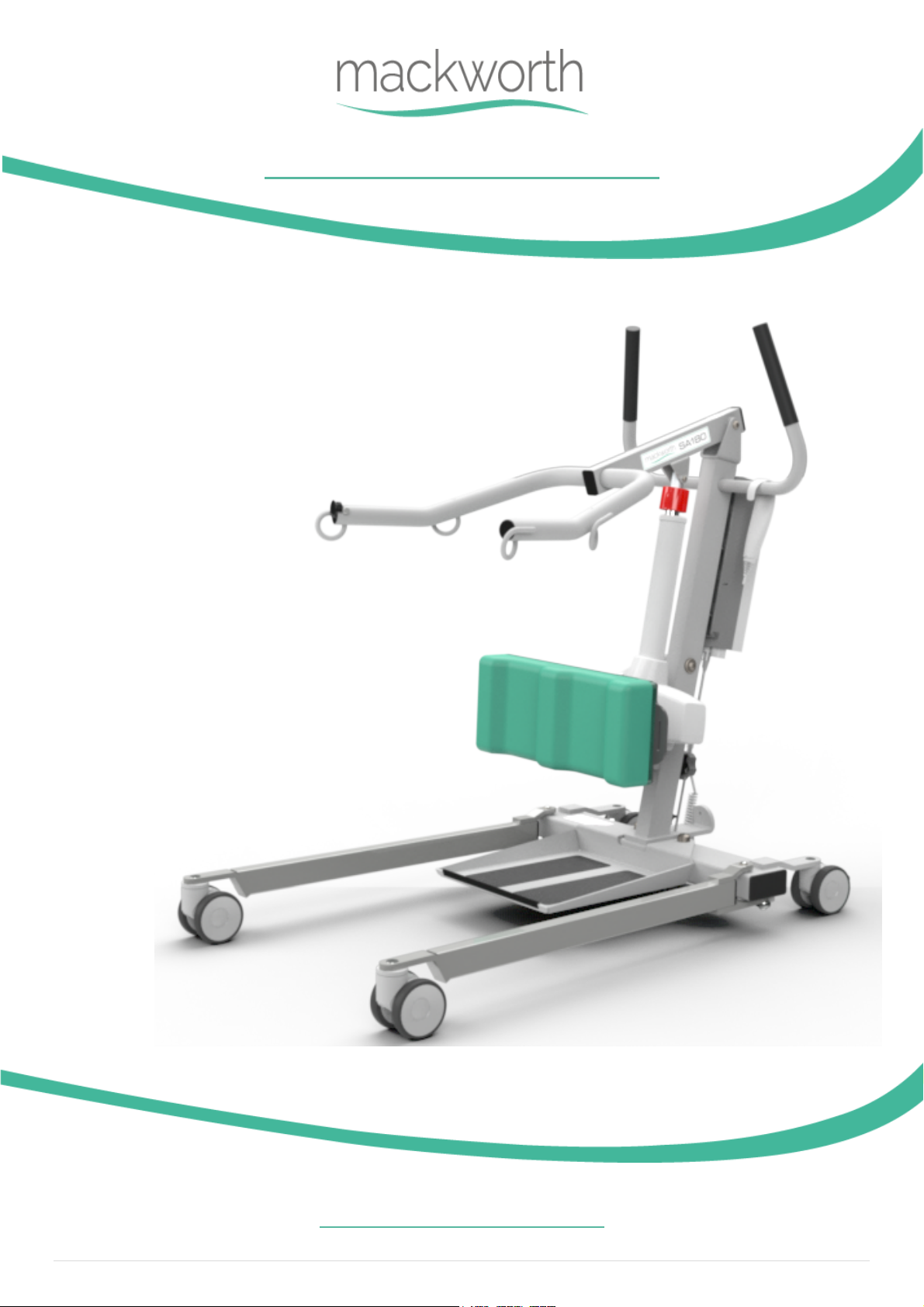

SA180 Stand Aid
User Manual

999065 – Revision A Page | 2 of 32
CONTENTS
Safety Instructions and Warnings.......................................................................................................4
Introduction ...................................................................................................................................4
Manufacture...................................................................................................................................4
European Authorised Representative .............................................................................................4
Symbols Used .................................................................................................................................5
Contraindications / Limitations.......................................................................................................6
Intended Use .................................................................................................................................6
Warning Notes................................................................................................................................7
Operating Environment ..................................................................................................................7
Components / Key Parts.....................................................................................................................8
Assembly Instructions ........................................................................................................................9
Unpacking ......................................................................................................................................9
Unboxing Stand Aid ........................................................................................................................9
Stand Aid Assembly ......................................................................................................................10

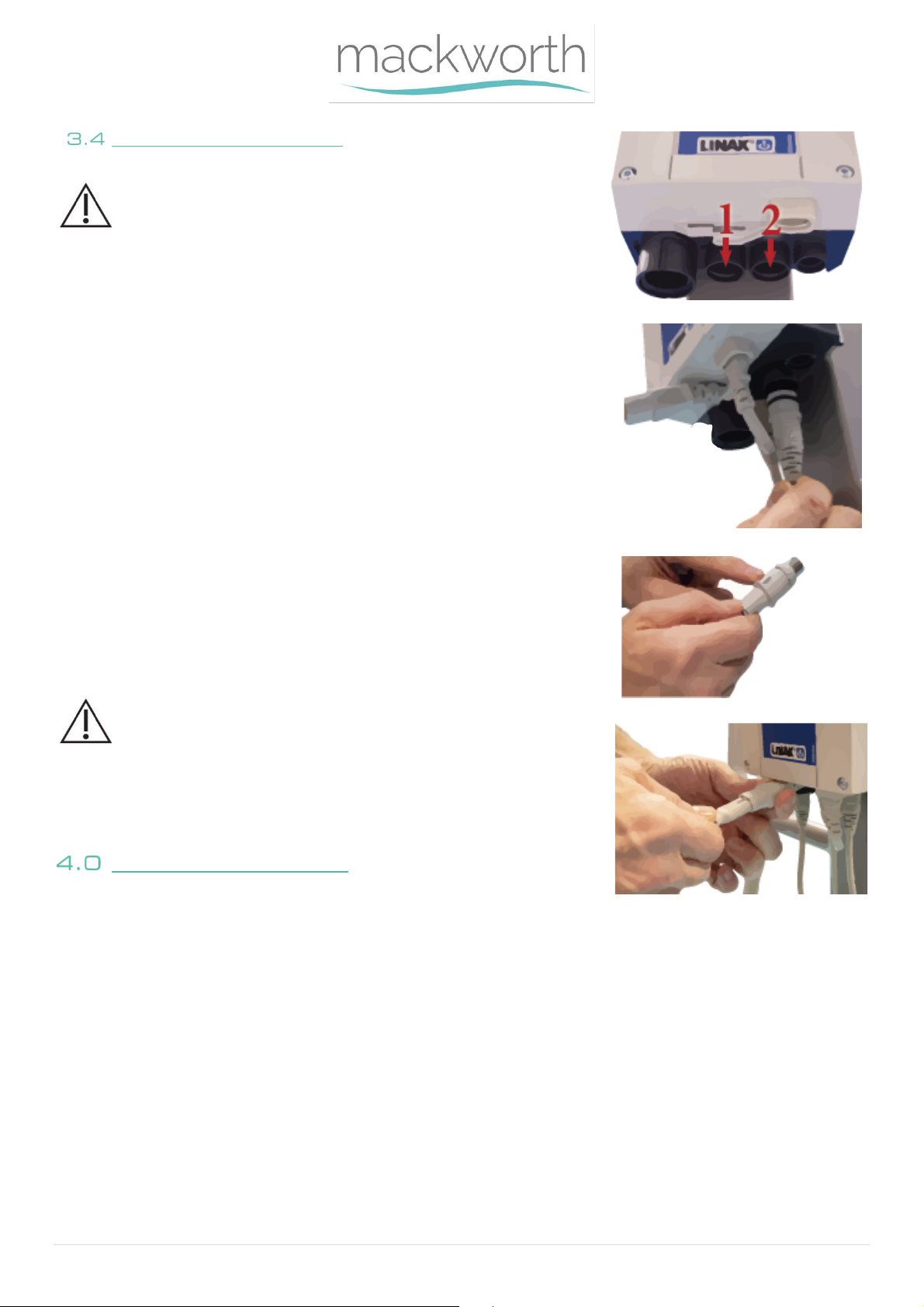

Electrical Connections..................................................................................................................11
Final Inspection................................................................................................................................11

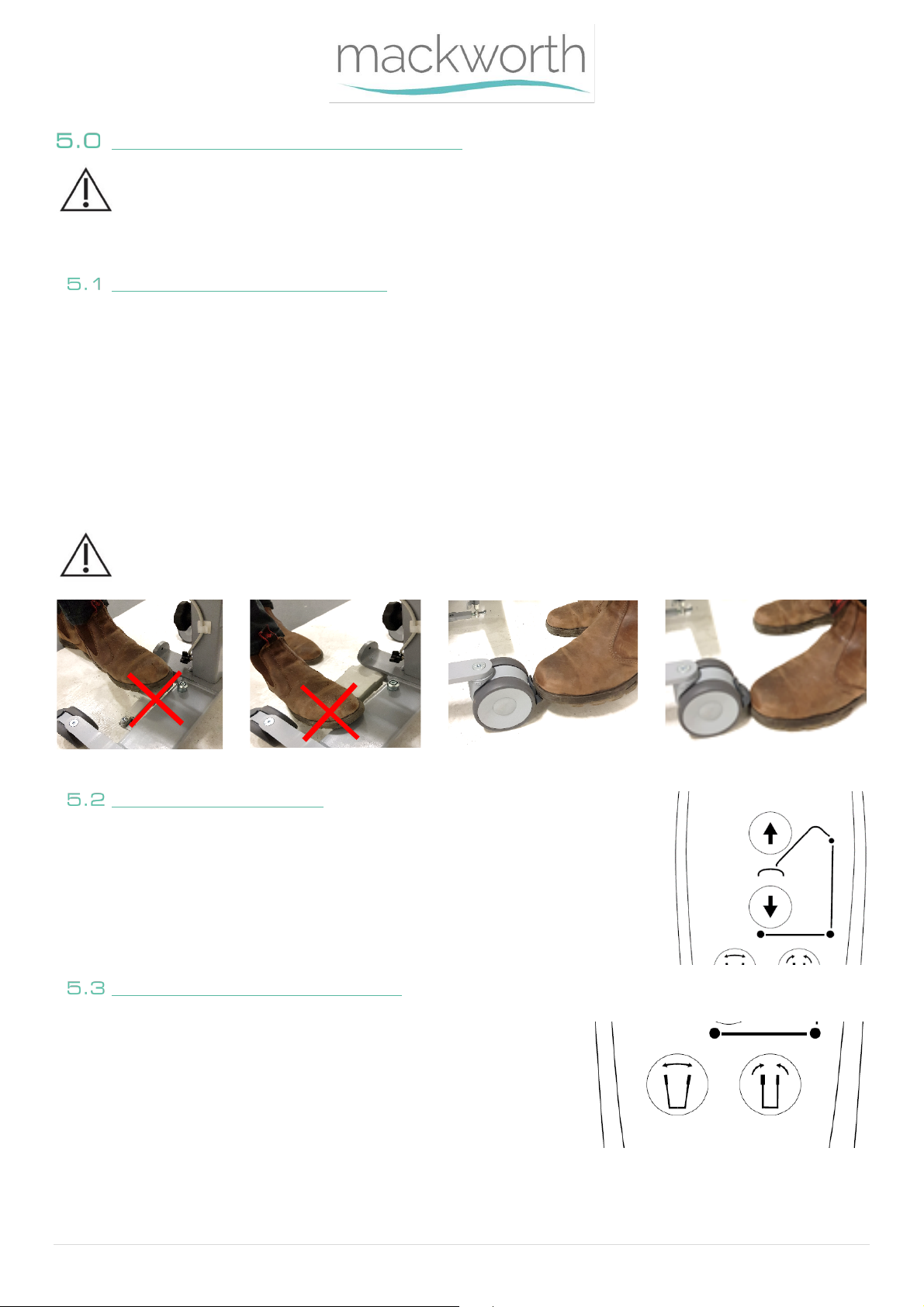

Operating Instructions .....................................................................................................................12
Manoeuvring the Stand Aid ..........................................................................................................12
Raising and Lowering ....................................................................................................................12
Open / Close Stand Aid Legs .........................................................................................................12
Emergency Stop Button ................................................................................................................13
Emergency Lowering ....................................................................................................................13
5.5.1 Manual Emergency Lowering .............................................................................................13
5.5.2 Electrical Emergency Lowering...........................................................................................13
Handset Operations......................................................................................................................13
5.6.1 Battery Status ....................................................................................................................14

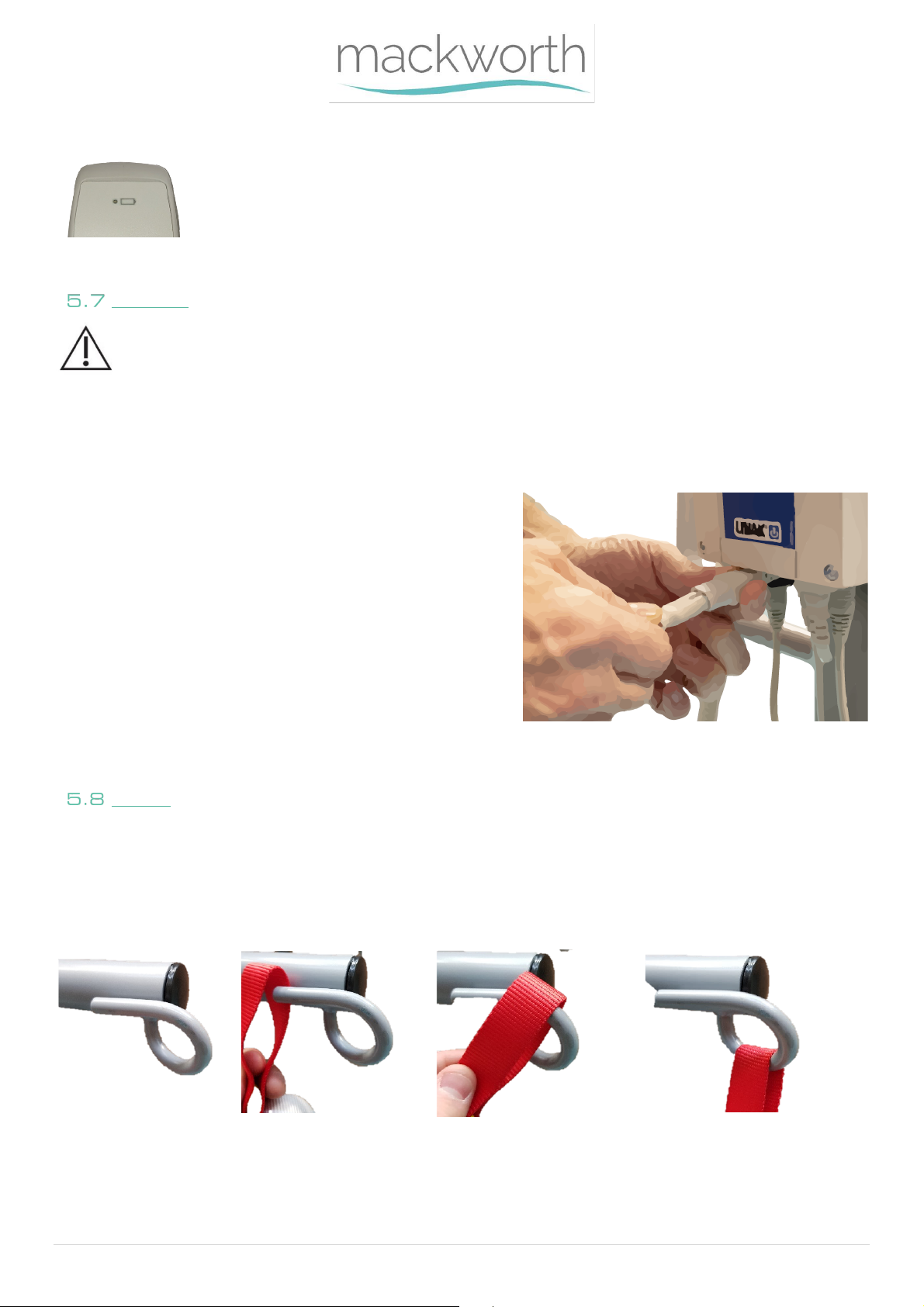

Battery .........................................................................................................................................14
5.7.1 Charging the Battery Pack ..................................................................................................14
Slings ............................................................................................................................................14
Technical Specification .....................................................................................................................17
Mackworth SA180 Dimensions .....................................................................................................17
Specifications ...............................................................................................................................18
Electrical Specifications ................................................................................................................18

999065 – Revision A Page | 3 of 32
Standards Applied ........................................................................................................................18
Environmental - Storage and Operating Conditions..........................................................................19
Normal Operating Conditions .......................................................................................................19
Shipping and Storage Conditions ..................................................................................................19
Disposal ...........................................................................................................................................19
Fault Finding ....................................................................................................................................20
General Inspection, Maintenance and Cleaning ...............................................................................21
Service ......................................................................................................................................21
Inspection .................................................................................................................................21
Cleaning ....................................................................................................................................22
10.3.1 General Cleaning................................................................................................................22
10.3.2 Disinfecting (if necessary) ..................................................................................................22
Warranty..........................................................................................................................................24
Service Record History .....................................................................................................................25

999065 – Revision A Page | 4 of 32
SAFETY INSTRUCTIONS AND WARNINGS
Introduction
Please read and understand this manual in its entirety before using your Mackworth SA180 Stand Aid.
The information in this manual is important for the safety of anyone near the Mackworth SA180 Stand Aid and must be read and
understood to help prevent injuries. It is also crucial to the proper operation and maintenance of the Stand Aid.
The Stand Aid is designed to be used in conjunction with slings and accessories. Please refer to any user guides supplied with
these components while reviewing this manual.
Should any questions arise from reviewing this manual, contact your local authorised representative.
Failure to comply with warnings in this manual may result in; injury to the operator and/or client and/or damage to the Stand
Aid or related components.
If, during the use of this device or as a result of its use a serious incident has occurred, please report it to the manufacturer and
to your national authority.
Store this manual with the documents included with the Stand Aid and sling(s). Contents of this manual are subject to change
without prior written notice. Ensure you are aware of the sling manufacturer’s fitting instructions.
Do not attempt to use this equipment without first understanding the contents of this manual.
Unauthorised modifications on any Prism Medical UK product may affect its safety. The manufacturer will not be
held responsible for any accident, incident or deficiencies of performance that occur as a result of any unauthorised
modification to its products.
Do not use a clip fit sling on a lifting arm designed specifically for loop fitting slings.
Manufacture
The Stand Aid is manufactured at the address below:
Prism Medical UK
Unit 1, Tir Llwyd Industrial Estate, St Asaph Avenue, Kinmel Bay, Conwy, LL18 5JZ
Telephone number: 01924 840 100
European Authorised Representative
The address of the European Authorised Representative for this product:
European Healthcare & Device Solutions (Ireland) Ltd.
Stratton House, Bishopstown Road,
Cork, Ireland.
T12 Y9TC.
Telephone number: [phone]

999065 – Revision A Page | 5 of 32
Symbols Used
The Table below includes all Symbols from BS EN ISO 15223-1:2016 that can be found in this Manual and on the Product and
what they represent. Refer back to this Table when you are unsure of what a symbol represents.
Consult instructions before use Caution – see instructions for use
Manufacturer
Safe Working Load represents the
maximum load rated for safe
operation
Packaging indicator – This way up Date of manufacture
Serial number Packaging indicator – Keep dry
Please observe local laws on recycling For internal use only
Temperature range
Degree of protection provided by
enclosure.
N1: Ingress of particles
N2: Ingress of water
Humidity range Medical Device
Catalogue number European Authorised Representative
Table 1

999065 – Revision A Page | 6 of 32
Contraindications / Limitations
There are no known “contraindications” associated with the usage of the Mackworth SA180, provided they are used as per
manufacturer’s recommendations and guidelines. However, it is recommended that a client specific assessment is completed by
a trained and knowledgeable health care professional to determine the method of transfer.
Prism Medical UK does not recommend a required number of care givers for the use of our products. This information and
recommendation can only be provided after a thorough personalized, case specific assessment, as there are many factors that
can influence these decisions.
Intended Use
For internal use only.
The Mackworth SA180 is a Standing Aid to be used by trained personnel. The Stand Aid is a medical device which
carries out safe lifting and transfers of an individual from one resting surface to another (such as a shower chair to a bed). Prism
Medical UK recommends that the transfer of a patient is fully risk assessed and conducted safely over a short distance only.
Carrying out each transfer correctly for minimal strain or risk to the caregiver, while providing complete safety, dignity and
comfort to the client. The Mackworth SA180 is suitable for patients in the SITTING position only, who have a degree of weight-
bearing ability but require assistance to stand. By removing the foot tray, The Stand Aid can be used as a walking aid if
competent and trained person completes an adequate risk assessment of the surroundings, and the patient is observed during
use. The Mackworth SA180 is designed to support and promote safe patient handling and transfer for both the patient and
carer.
The Stand Aid is one of two components that makes this possible. The other component, the sling, is a specially designed fabric
accessory that attaches to the Stand Aid by means of the boom Loop attachment and straps, and holds the patient during
operation.
Please refer to the user guides supplied with the sling and reference them while reviewing this manual.
The functions of raising and lowering the boom, and opening/closing the legs are accomplished by pressing buttons on the hand
control.
The device is used under instruction and the operation of the aid is undertaken by a trained carer.
A risk assessment must be performed before using any other manufactured slings or Stand Aid is ensure safe use can
be established.
•The Mackworth SA180 is intended to be installed on a flat and levelled surface prior to use.
•The Stand Aid must be installed only by persons authorised by Prism Medical UK or who have the rights to install and
commission the Stand Aid safe for use.
•Under no circumstance should the Mackworth SA180 or the entire system be put in control of a person who has not
been properly trained in the use and care of this equipment. Failure to adhere to this warning may result in serious
injury to the operator and/or the individual being transferred.
•In facilities where more than one operator will be responsible for using the Stand Aid and sling(s) it is imperative that all
such members be trained in the Mackworth SA180 proper use. A training program should be established by the facility
to acquaint new operators with this equipment.
•The Mackworth SA180, and associated slings are not toys. Do not use it for unsafe practices. Do not allow children to
play with the Stand Aid or any of its components.

999065 – Revision A Page | 7 of 32
•Your guarantee is void if persons unauthorized by Prism Medical UK perform work on the Stand Aid.
•To maintain optimum function, the Mackworth SA180 should be inspected and maintained on a regular basis. See
section ‘General Inspection, Maintenance and Cleaning’ within this user manual.
•Any accessories used with this Stand Aid including belt(s), should be checked to ensure that they are in good working
order. Check for signs of wear to each component prior to use. Report any unusual wear, or damage immediately to
your local authorised dealer.
•The Mackworth SA180 and Slings(s) are intended only for transferring of a person. Prism Medical UK will not be
responsible for any damage caused by the misuse, neglect or purposeful destruction of the Unit, and/or its associated
components.
•The Stand Aid and its associated parts are certified to a maximum load of 180kg. Do not exceed the maximum rated
load of any of the components.
•Ensure that a clear space is maintained around the Stand Aid. Before performing a transfer check for and move all
obstacles out of the way.
•Your Product is for Aiding a human to transfer. Do not use it, or allow it to be used, for any other purpose.
•Protecting the people present, visually monitor the sling(s) loops connection points during transfer stages, so the belt
remains firmly attached to the Stand Aid
•In areas where children are prone to be present be vigilant when carrying out a transfer.
•To reduce the risk of unintended use, when the Stand Aid is not in use remove the sling(s) from the product to prevent
entrapment or strangulation should the device be tampered with.
•Between Stand Aid and Body-Support Unit, the lowest maximum load shall always be used.
You may need to seek specialist advice on how to assist some people with specific moving and handling needs.
Sources of advice include, but is not limited to, professional bodies and organisations, occupational therapist,
physiotherapists, manual handling advisers and ergonomist with experience in health and social care.
Warning Notes
Your Mackworth SA180 has been manufactured and tested to exceed BS EN 10535:2006. This does not mean that it
can be used without care. ALL OPERATORS should have read the operating instructions and appreciate this warning
section.
1. ALL Stand Aids are less stable on sloping surfaces. A 5-degree slope is the maximum permitted and then only with great
care.
2. ALL Stand Aids are dangerous to the person being transferred when used recklessly or pushed at speed.
Operating Environment
The Mackworth SA180 is suitable for use within the professional health care facility environment as well as the home health care
environment. The Stand Aid is not suitable for any special environments.
The Stand Aid is not intended to be used in environments where there are rapid changes in the environmental temperature and
humidity during intended use.

999065 – Revision A Page | 8 of 32
COMPONENTS / KEY PARTS
Please see below to familiarise yourself with the components of the Mackworth SA180 Stand Aid. The images below show the
contents of the Stand Aid. If you have not received all the components contact Prism Medical UK dealer immediately – contact
details are provided on the last page of this manual.
Item
Description
Item
Description
1
Handle
11
Knee Pad Length Adjustment
2
Mast
12
Knee Pad Angle Adjustment
3
Lifting Arm
13
Star Handle Mast Fixture
4
Looped Sling Attachment
14
Front Castors
5
Handset
15
Slack Adjustment Star Handle
6
Manual E-lower
16
Foot Tray
7
Battery
17
Product Serial Number Label
8
Lift Actuator
18
Electric Leg Actuator
9
Control Box
19
Rear Braked Castors
10
Knee Pad
Table 2
Figure 1
1
3
4
6
8
10
11
12
14
16
17
19
2
5
7
9
13
15
18

999065 – Revision A Page | 9 of 32
ASSEMBLY INSTRUCTIONS
Unpacking
Some of the parts are heavy and will need to be lifted with care. Items weighing over 20kg will require a two person
lift. Please refer to (6.0) technical specifications for components weights.
The Stand Aid will arrive to you in a robust box, please be careful when removing the components from the box.
Please read the user guide in full before operating.
This user manual should be kept safe for future reference.
The Stand Aid has been specifically designed to be installed in both the professional and home health care environments.
No matter the environment, health and safety factors should be considered to ensure the safety and essential performance of
the Stand Aid and to avoid unnecessary damage or injuries to people within the area of the Stand Aid.
The environment in which the Stand Aid is situated in, whilst carrying out a transfer, is required to be on a flat surface with no
steep inclines.
Unboxing Stand Aid
When using a sharp knife, be careful not to damage the product.
This section will summarise the layout of the Stand Aid Packaging and what is included in the Box. It is recommended a knife is
used for smoother unpacking of the Stand Aid. The Stand Aid is packed into a single box (1200x800x1200), weighing
approximately 50kg.
Using a knife to open the box around the perimeter, the box should open, and the internal packaging must be removed to access
the product. It will include all the following components. It is recommended that the components are removed in the numerical
order below.
1. Mast
2. Base
3. Fixings
4. Hand Control
5. Charging Lead
6. User Manual

999065 – Revision A Page | 10 of 32
Stand Aid Assembly
A. Carefully open the box and remove all loose parts and excess packaging from the
box.
2 person lift recommended for the following points.
B. Carefully holding onto the handle and boom, lift the Stand Aid components out of
the box. Place carefully onto the floor.
C. With one person lifting up from the front castors and one person lifting up from
the rear castors, raise the base from the box and place the Stand Aid base on a
flat surface and ensure the rear braked castors are locked.
D. Remove Star handle from the top of the base and slot the mast and boom
assembly onto the base. (As shown in Fig. 2 and 3).
E. Ensure all cables are clear from entrapment while fitting the base and mast
together.
Please ensure both hands are on the handle when lifting the mast into position,
as there is a risk of finger trap.
F. When the mast if fully engaged with the base, fit and fully tighten the mast
star handles is the following order (as shown in Fig. 4 and 5).
Ensure the mast is fully seated into the base and the mast locking wheel
is in position and tight before using the Stand Aid.
NOTE: To disassemble the Stand Aid into the two main sections (Mast/boom and Base)
simply follow the pervious steps in reverse.
Figure 2
Figure 4
Figure 5
Figure 3
