Maeda CC1908S-1 User guide

520E-QG2006-00
QUICK OPERATION GUIDE
CRAWLER CRANE
Serial No. 9003 and up
WARNING
・This operation guide explains basic operation of the machine. Before starting work, always conduct
checks written in OPERATION MANUAL.
For safety cautions and detailed operation of the machine not explained in this book, please read
and understand the separate “OPERATION MANUAL” before operating this machine.
・This quick operation guide does not replace the operation manual. This is just a short helpful
information paper to assist the trained crane operator with the basic operation of the crane. For
complete and detailed information we refer to the operation manual of the crane.

M A E D A Crawler Crane CONTENTS
6/2020 CC1908S-1 Quick operation guide 1
1. SAFETY
1.1 SAFETY INFORMATION....................................................................2
2. PART NAMES
2.1 MACHINE PART NAMES...................................................................3
2.2 CAB INTERIOR UNIT NAMES ...........................................................4
2.3 SWITCHES.........................................................................................5
2.4 MONITOR：HOME SCREEN ............................................................6
2.5 MONITOR：USER SETTINGS SCREEN ..........................................7
3. MOMENT LIMITER
3.1 MOMENT LIMITER CONFIGURATION..............................................8
3.2 MONITOR：MOMENT LIMITER DISPLAY ........................................9
4. OPERATION
4.1 STARTING AND STOPPING ENGINE.............................................10
4.2 MACHINE TRAVELLING..................................................................12
4.3 CRANE OPERATION .......................................................................15
5. RTL AND WORKING RADIUS/LIFTING HEIGHT
5.1 RATED TOTAL LOAD CHART FOR 6-FALL HOOK ........................19
5.2 WORKING RADIUS/LIFTING HEIGHT DIAGRAM...........................20
CONTENTS

SAFETY M A E D A Crawler Crane
2 6/2020 CC1908S-1 Quick operation guide
1. SAFETY
Safety cautions and detailed operation of the machine not explained in this book, please read and
understand the separate “OPERATION MANUAL” before operating this machine.
1.1 SAFETY INFORMATION
This manual classifies hazards as follows to
ensure this manual and the safety labels attached
to this machine are easy to understand:
DANGER
This indicates imminent
hazards that can cause
serious injury or death.
It also provides
information on how to
avoid such hazards.
WARNING
This indicates hazards
that can cause serious
injury or death.
It also provides
information on how to
avoid such hazards.
CAUTION
This indicates potential
hazards that may cause
minor or moderate injury
or serious damage to the
machine.
It also provides
information on how to
avoid such hazards.
This manual also uses the following indications
for precautions that must be adhered to and for
other useful information:
IMPORTANT
This denotes that failure
to properly handle the
machine may damage it
or shorten its service life.
This denotes useful
information.
The operating procedures, inspection and
maintenance procedures, and safety precautions
described in this manual apply only when the
machine is used for the specified tasks.
The precautions given in this manual and on this
machine do not necessarily cover every safety
issue.
When carrying out machine operations or
inspection and maintenance procedures that are
not described in this manual, you are responsible
for taking the necessary safety precautions.
Regardless of the above, never attempt to
perform work or operations that are prohibited in
this manual.

M A E D A Crawler Crane PARTS AND CONTROLS
6/2020 CC1908S-1 Quick operation guide 3
2. PART NAMES

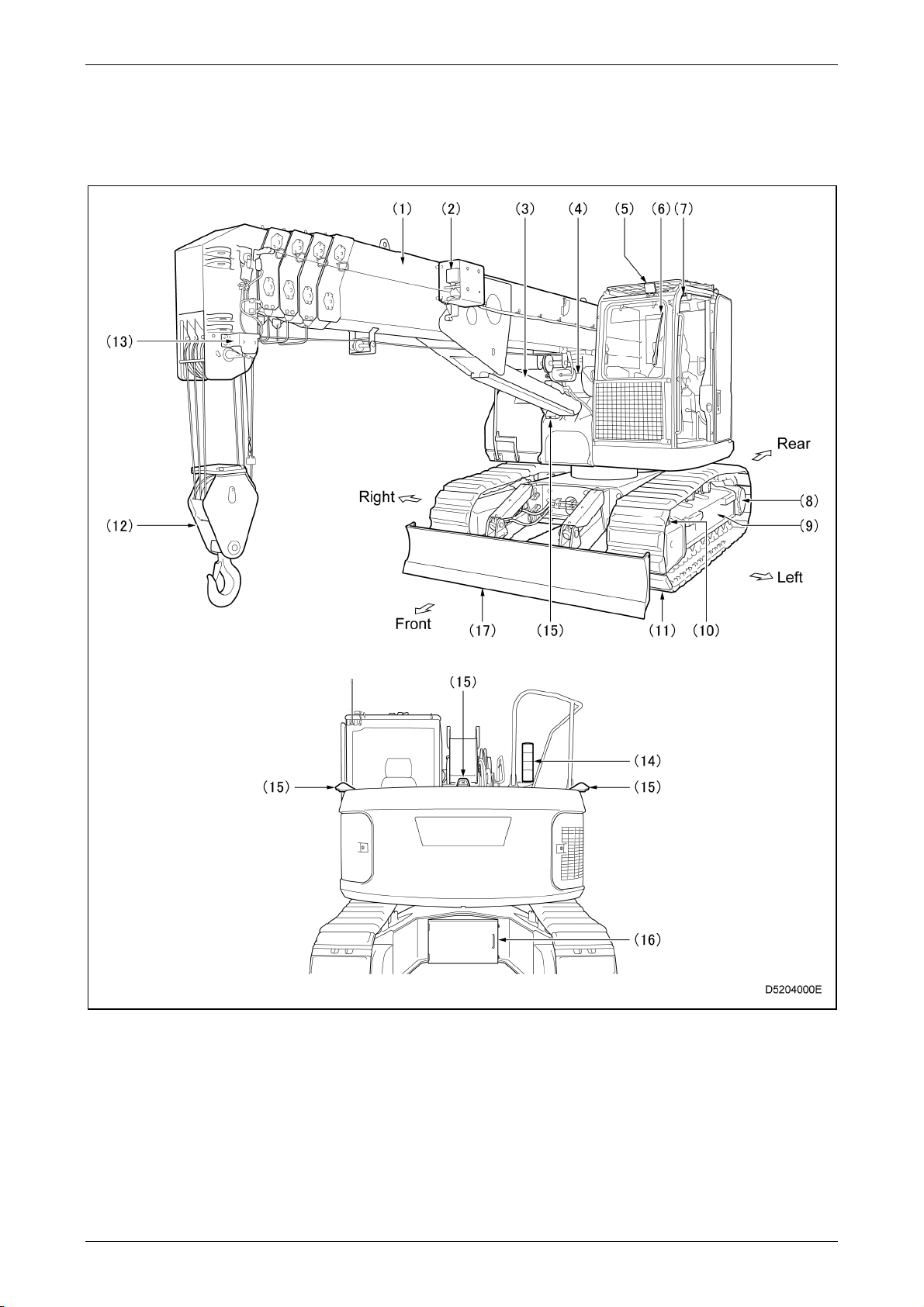

2.1 MACHINE PART NAMES
(1) Boom
(2) Boom working light
(3) Boom derricking cylinder
(4) Winch
(5) Head light
(6) Wiper (Front window)
(7) Wiper (Roof window)
(8) Sprocket, travel motor
(9) Track frame
(10) Idler
(11) Crawler
(12) Hook block
(13) Overwinding detector
(14) Working status lamp
(15) Multi-assist view camera
(16) Toolbox (Option)
(17) Blade (Option)

PARTS AND CONTROLS M A E D A Crawler Crane
4 6/2020 CC1908S-1 Quick operation guide

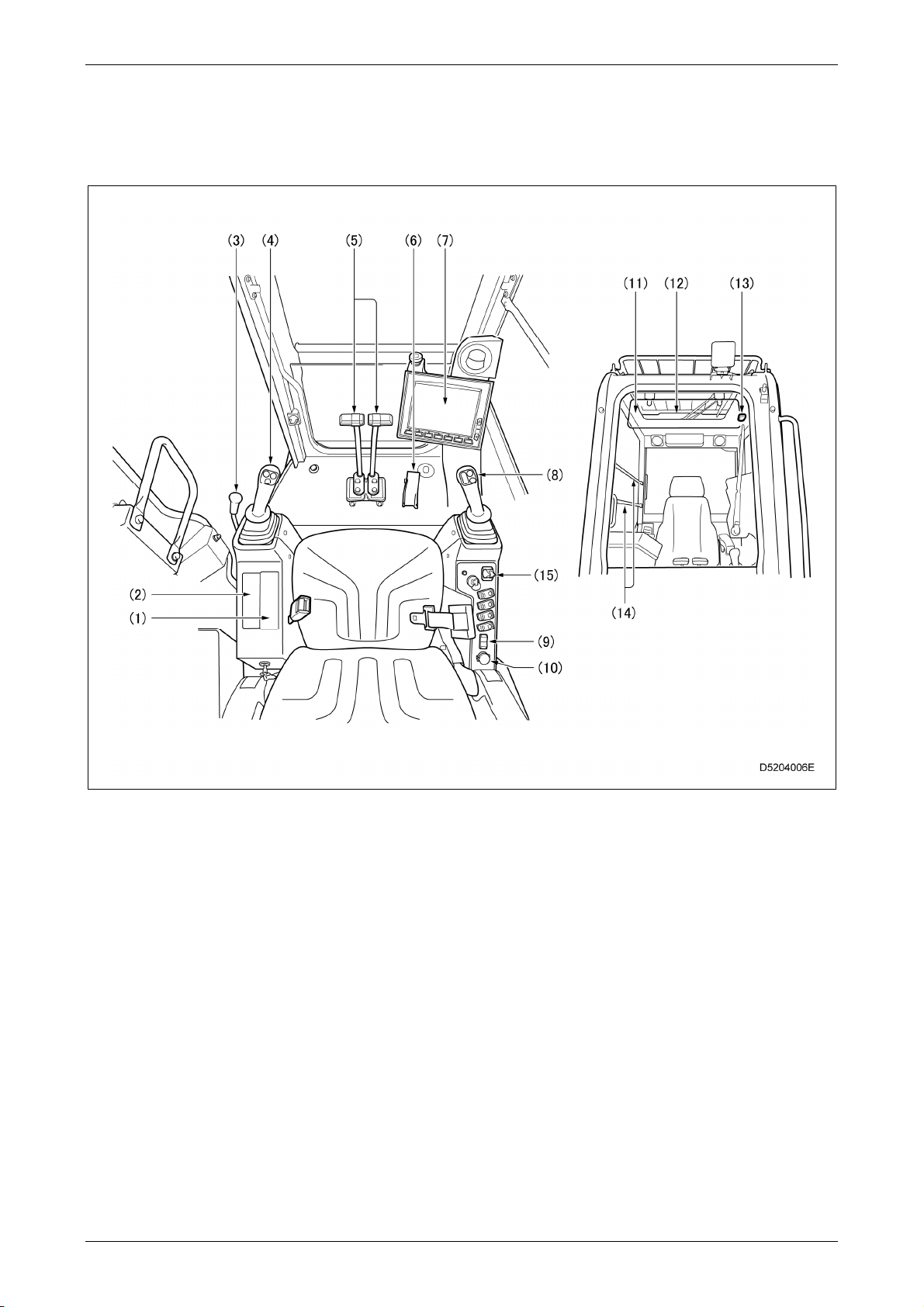

2.2 CAB INTERIOR UNIT NAMES
(1) Air conditioner operation unit
(2) Cab radio
(3) Safety lock lever
(4) Left-hand control lever
(5) Travel levers
(6) Accelerator pedal
(7) Monitor
(8) Right-hand control lever
(9) USB power supply port
(10) Accessory power supply
(11) Sun visor
(12) Sun shade
(13) Interior lamp
(14) Option bar (Option)
(15) Blade control lever (Option)

M A E D A Crawler Crane PARTS AND CONTROLS
6/2020 CC1908S-1 Quick operation guide 5
2.3 SWITCHES
(1) Emergency stop switch
(2) Horn switch
(3) Boom/fly jib selector switch
(4) Hook stowage lever
(5) Starter switch
(6) Light switch
(7) Front window wiper switch
(8) Roof window wiper switch
(9) Buzzer cancelling switch
(10) Winch 1st speed/2nd speed selector switch
(11) Travel mode selector switch
(12) Camera selector switch
(13) Maintenance switch
(14) Interior lamp switch
(15) Disconnecting switch

PARTS AND CONTROLS M A E D A Crawler Crane
6 6/2020 CC1908S-1 Quick operation guide

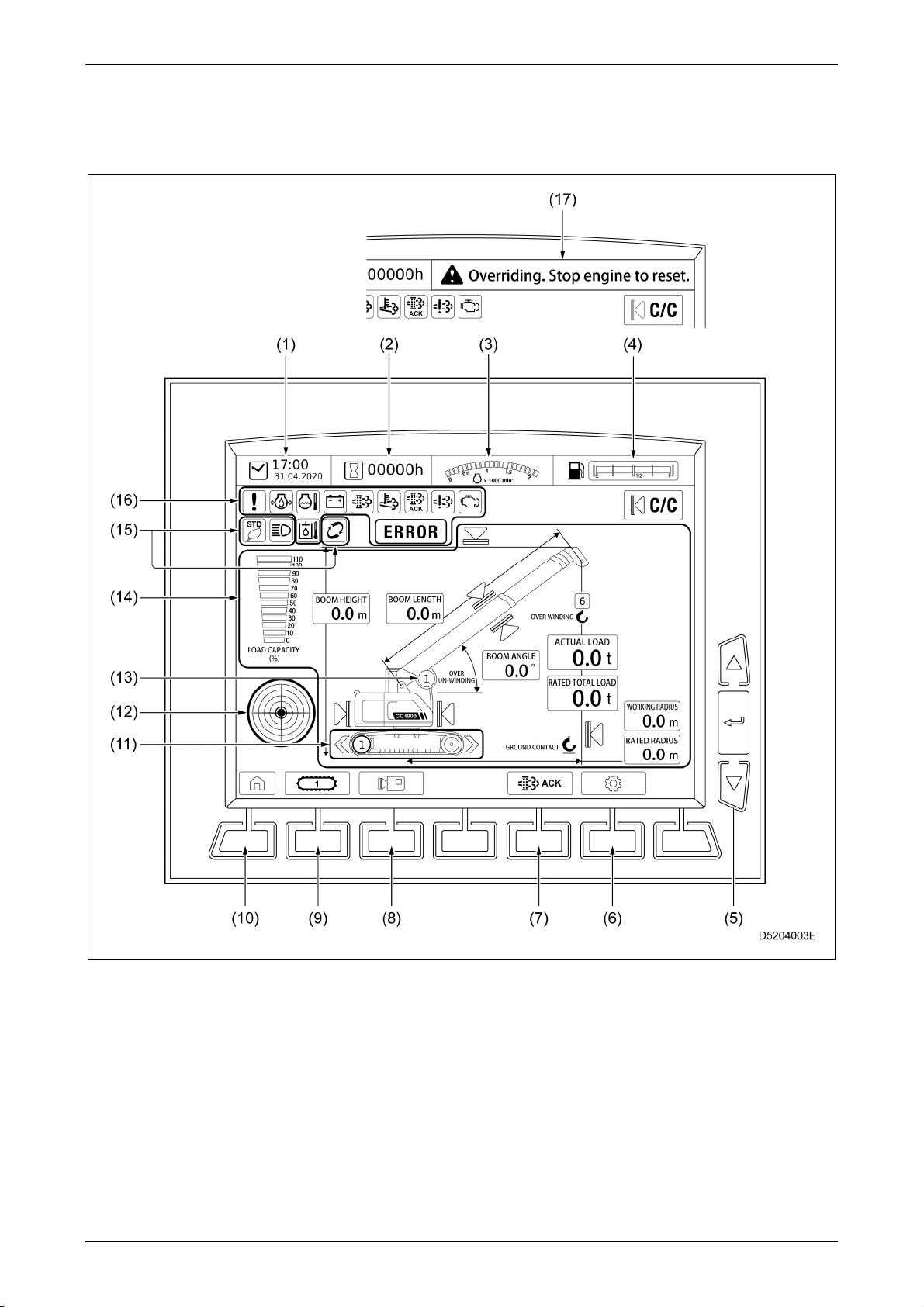

2.4 MONITOR：HOME SCREEN
(1) Clock/date display
(2) Hour meter
(3) Engine speed
(4) Fuel gauge
(5) Pop-up selector switches (Home screen)
(6) User setting switch
(7) DPF stationary regeneration switch
(8) Camera selector switch
(9) Travel 1st speed/2nd speed selector switch
(10) Home switch
(11) Travel status
(12) Level gauge
(13) Winch 1st speed/2nd speed display
(14) Moment limiter display
(15) Status display
(16) Warning display
(17) Message display

M A E D A Crawler Crane PARTS AND CONTROLS
6/2020 CC1908S-1 Quick operation guide 7

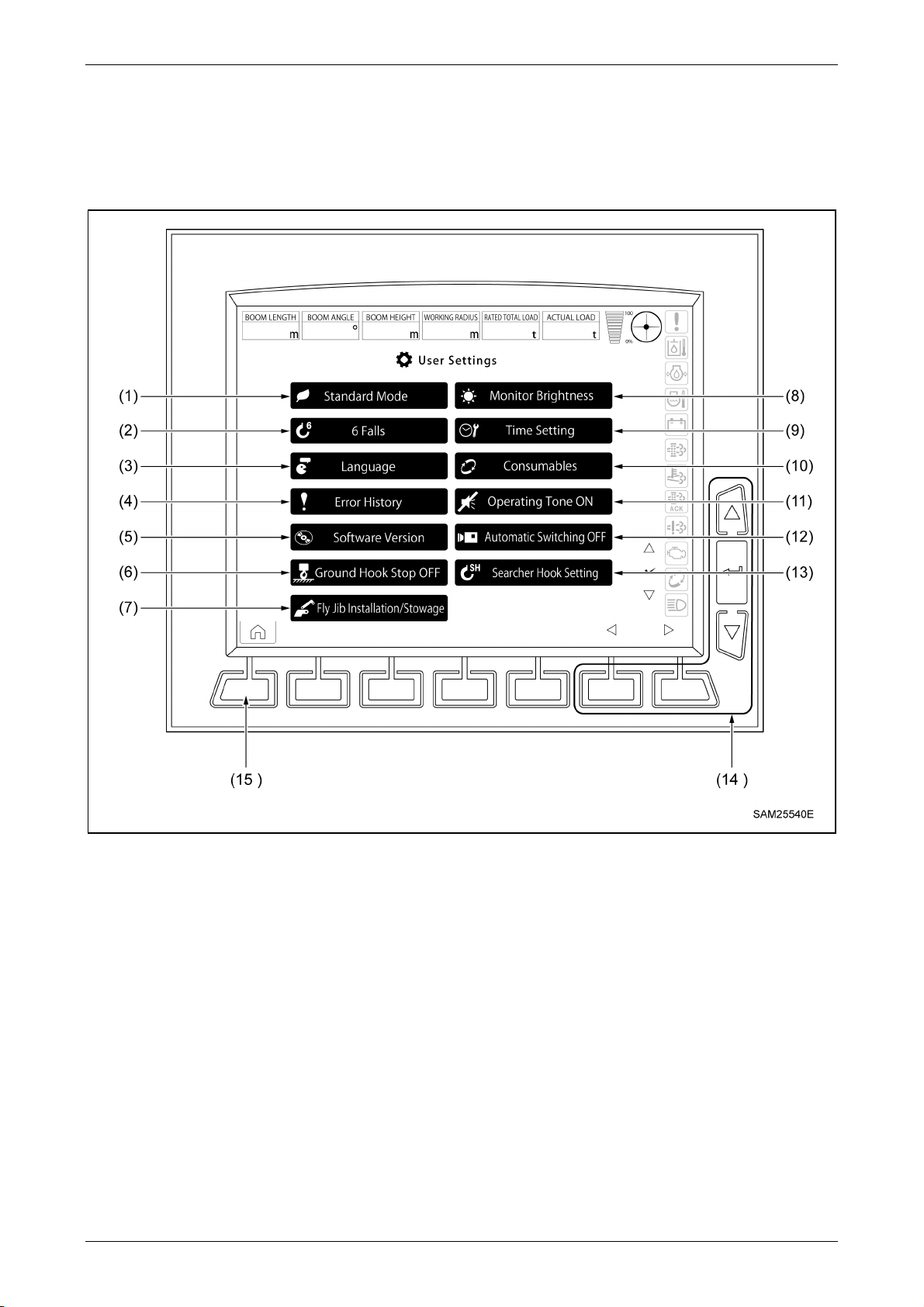

2.5 MONITOR：USER SETTINGS SCREEN
The User Settings screen is displayed by pressing the user setting switch on the home screen.
(1) ECO setting selection
(2) Number of falls selection
(3) Language selection
(4) Error history display
(5) Software version
(6) Hook grounding stop on/off selection
(7) Fly jib installation/stowage
(Only with fly jib mounted)
(8) Monitor brightness adjustment
(9) Time setting
(10) Consumables display
(11) Switch operation tone on/off selection
(12) Multi-assist view automatic switching on/off
(13) Searcher Hook Setting
(Only when searcher hook is mounted)
(14) Pop-up selector switches
(User Settings screen)
(15) Home switch

MOMENT LIMITER M A E D A Crawler Crane
8 6/2020 CC1908S-1 Quick operation guide
3. MOMENT LIMITER
3.1 MOMENT LIMITER CONFIGURATION
(1) Boom length meter (left side of boom)
(2) Boom angle indicator (left side of boom)
(3) Pressure sensor (derricking cylinder) (2 units)
(4) Over un-winding prevention device (winch)
(5) Overwinding detector (side of boom tip)
(6) Working status lamp
(A) Rotating red lamp (warning lamp when
load factor is 100 % or more)
(B) Rotating yellow lamp (advance warning
lamp when load factor is 90 % to less than
100 %)
(C) Rotating green lamp (operation lamp
when load factor is less than 90 %)
(7) Monitor (moment limiter display) (inside cab)
(8) Maintenance switch (inside cab)
(9) Override switch

M A E D A Crawler Crane MOMENT LIMITER
6/2020 CC1908S-1 Quick operation guide 9
3.2 MONITOR：MOMENT LIMITER DISPLAY
(1) Actual load display
(2) Rated total load display
(3) Actual working radius display
(4) Rated working radius display
(5) Hook ground contact indicator
(6) Boom angle display
(7) Boom length display
(8) Boom height display
(9) Load factor display
(10) Over un-winding display
(11) Overwinding display

OPERATION M A E D A Crawler Crane
10 6/2020 CC1908S-1 Quick operation guide
4. OPERATION
4.1 STARTING AND STOPPING ENGINE
[STARTING ENGINE]
DANGER
Never refuel while the engine is running.
Always stop the engine before refuelling.
WARNING
Exhaust gas is toxic. When starting the
engine in narrow, enclosed locations, pay due
attention to ventilation.
IMPORTANT
・Do not start the engine while depressing
the accelerator pedal. This may damage the
engine.
・Do not keep the starter turned on for more
than 15 seconds. Doing so will accelerate
the battery discharge.
・If the engine fails to start, wait for more
than 30 seconds before retrying.
・If the fuel has temporarily run out, wait for
fuel to be fed in by the feed pump before
starting.
1. Check that the lock lever (1) is in the lock
position (L).The engine will not start if the
lock lever (1) is in the free position (F).
2. Insert the key into the starter switch, turn the
key to the "ON" position, and check that the
AUTO GLOW lamp turns on.
When preheating is completed, the AUTO
GLOW lamp goes out.
3. When the AUTO GLOW lamp goes out, turn
the starter switch key to the "START"
position. The engine will start.
4. Once the engine has started, release your
hand from the key.
The key automatically returns to the "ON"
position.

M A E D A Crawler Crane OPERATION
6/2020 CC1908S-1 Quick operation guide 11
[STOPPING ENGINE]
IMPORTANT
・Stopping the engine before it has
sufficiently cooled down may shorten the
service life of the engine components. Do
not stop the engine suddenly except in an
emergency.
・If the engine has overheated, do not stop
the engine suddenly. Reduce the engine
speed to gradually cool it down before
stopping.
1. Release your foot from the pedal to reduce
the speed to idle, and continue operating with
no load for approximately five minutes.
2. Turn the starter switch key to the "OFF"
position.
The engine stops.
3. Remove the starter switch key.

OPERATION M A E D A Crawler Crane
12 6/2020 CC1908S-1 Quick operation guide

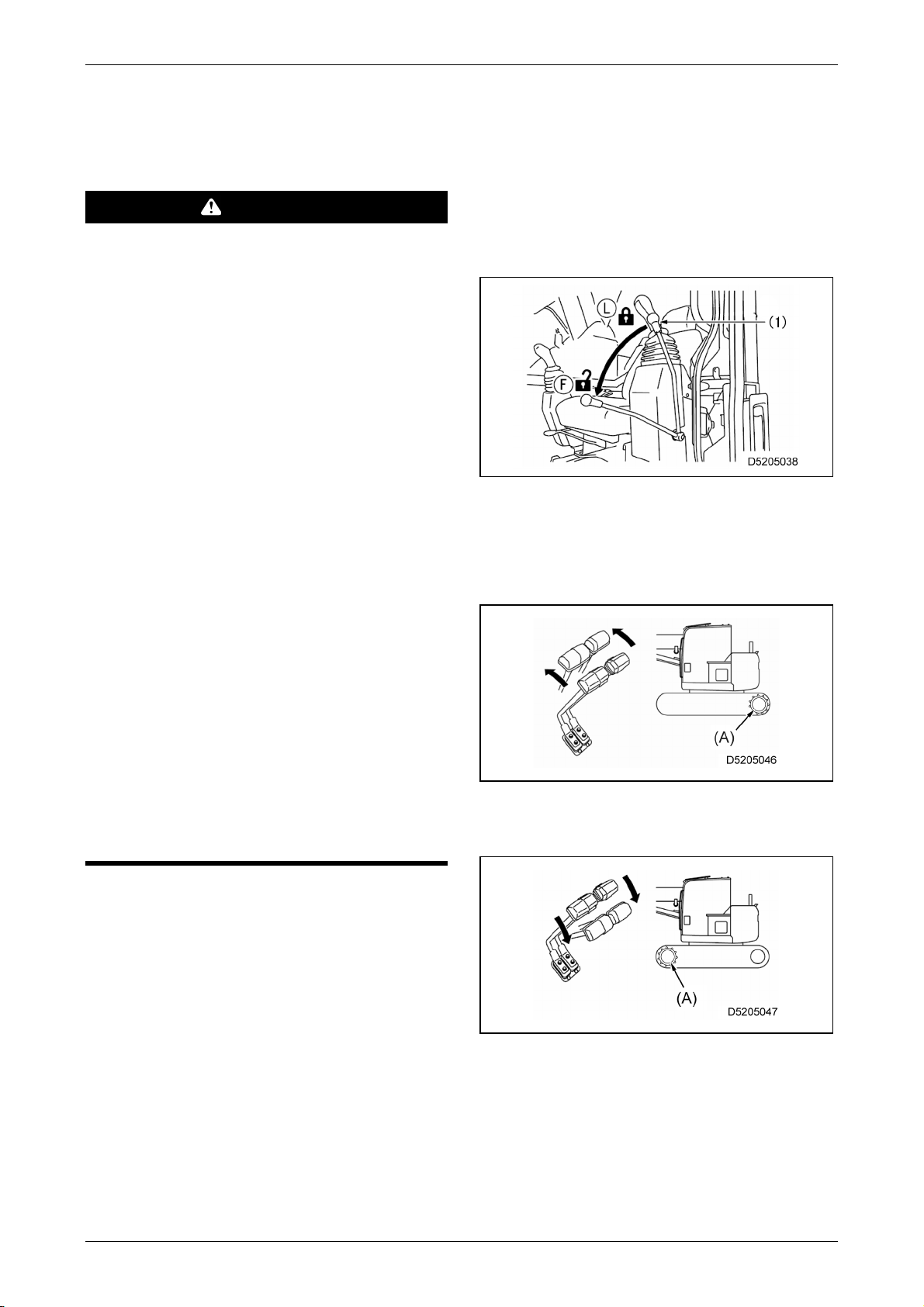

4.2 MACHINE TRAVELLING
WARNING
・Check the direction of the track frame
before operating the travel levers.
When the track frame faces backward (i.e.,
when the sprocket is at the front), the
direction of the travel lever operation will
be opposite to the direction of the machine
movement.
・Do not allow anyone near the machine.
・Clear the route of any obstructions.
・Check for safety in the vicinity of the
machine, and sound the horn before
starting to move the machine.
・The rear of the machine body is a blind
spot. Be sure to check your surroundings
visually before reversing. The camera
should be used to complement visual
checking.
・Depressing the accelerator pedal while
travelling is dangerous as it will cause the
machine to move suddenly. Be sure to
operate the pedal cautiously.
・When travelling, check that the travelling
alarm operates normally.
・All crane operations are disabled while the
crane is travelling. Stop the machine before
performing crane operations such as
slewing.
If the machine does not travel at the proper
speed in low temperatures, allow it to warm
up sufficiently. If the machine does not travel
at the proper speed due to sand or mud on
the undercarriage, remove the sand and
mud.
When the hook block is in the simple
stowage position, it may be loosened by
vibration during travelling. If this occurs,
simply stow the hook block in the simple
stowage position again.

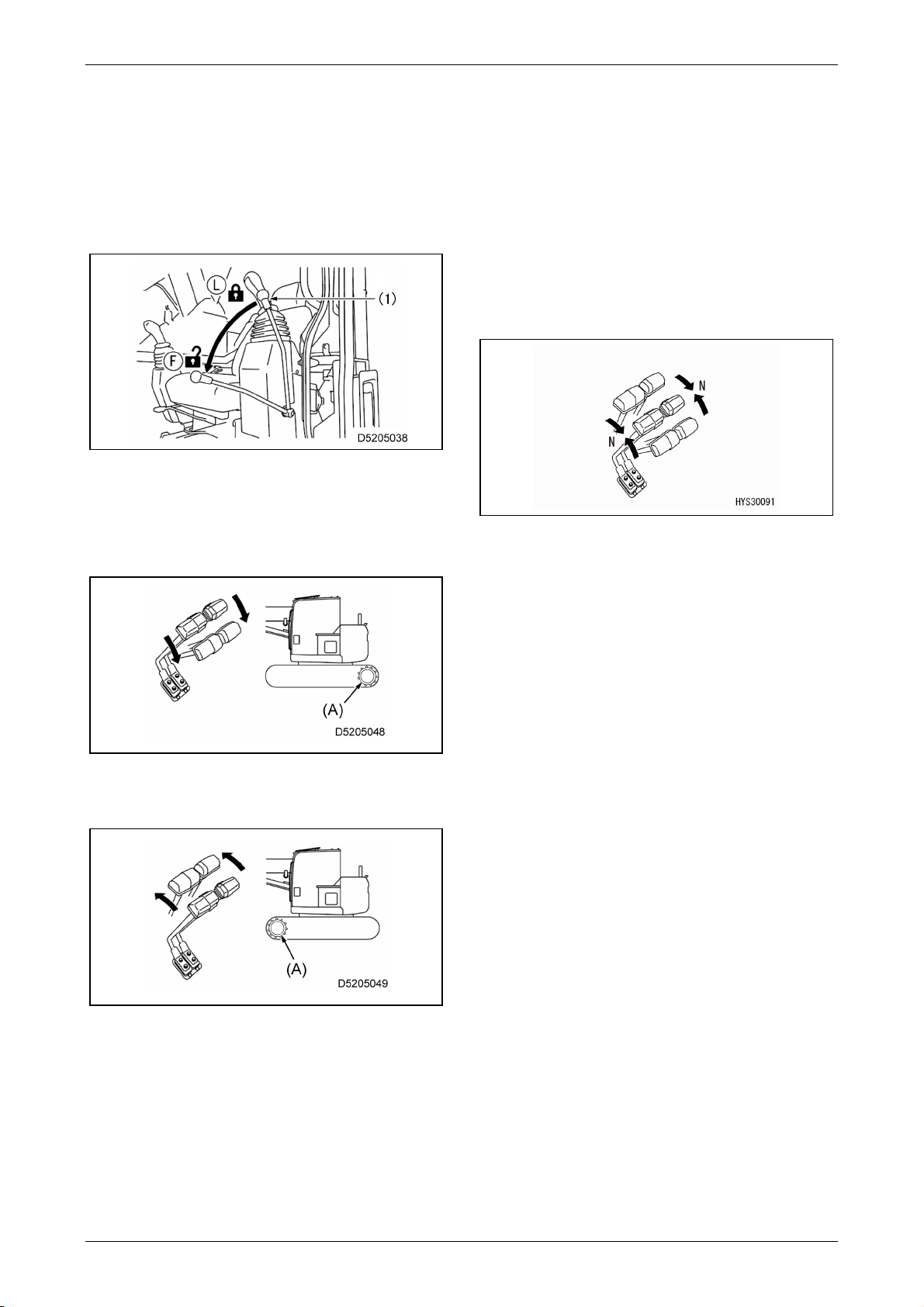

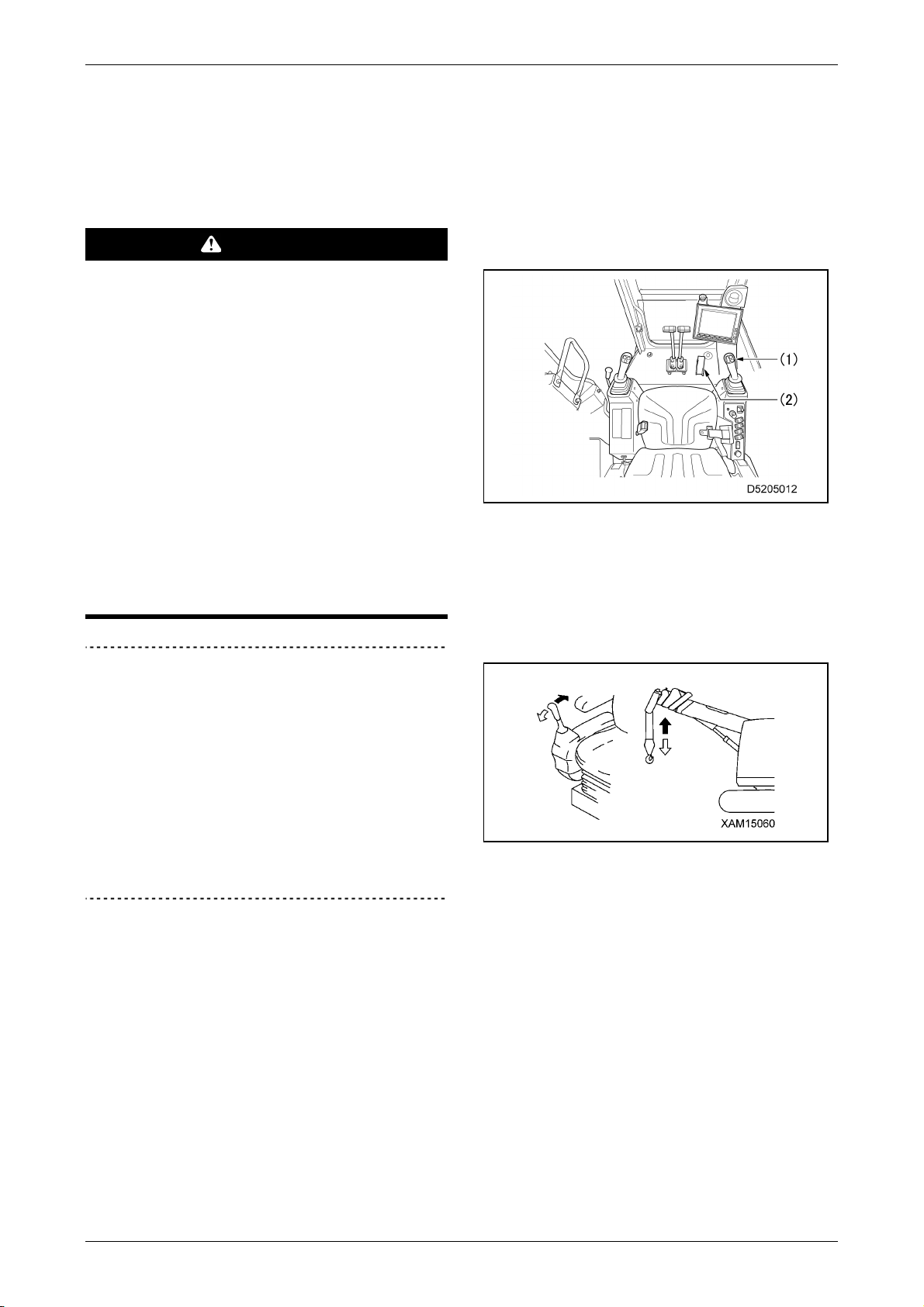

[MOVING FORWARD]
1. Place the lock lever (1) in the free position
(F).
2. Operate the right and left travel levers as
follows:
・If the sprocket (A) is at the rear of the
machine, push the travel levers slowly
forward to start moving.
・If the sprocket (A) is at the front of the
machine, pull the travel levers slowly
toward you to start moving.

M A E D A Crawler Crane OPERATION
6/2020 CC1908S-1 Quick operation guide 13
[REVERSING]
1. Place the lock lever (1) in the "Free" position.
2. Operate the right and left travel levers as
follows:
・If the sprocket (A) is at the rear of the
machine, pull the travel levers slowly
toward you to start moving.
・If the sprocket (A) is at the front of the
machine, push the travel levers slowly
forward to start moving.
[STOPPING]
Avoid sudden stops and try to stop with a safety
margin where possible.
・Place the right and left travel levers in the
neutral position (N).
The machine stops.

OPERATION M A E D A Crawler Crane
14 6/2020 CC1908S-1 Quick operation guide
[STEERING THE MACHINE]
Operate the travel levers to change the direction.
Avoid sudden direction changes whenever
possible.
In particular, stop the machine before making a
pivot turn (spin turn).
Operate with two travel levers in the following
manner:
・CHANGING MACHINE DIRECTION
WHEN STOPPED
To turn to the left, push the right travel lever
forward to turn to the left in the forward
direction. Pulling the lever toward you turns the
machine to the left in the reverse direction.
(A): Left turn in forward direction
(B): Left turn in reverse direction
To turn to the right, push the left travel lever
forward to turn to the right in the forward
direction. Pulling the lever toward you turns
the machine to the right in the reverse
direction.
・CHANGING DIRECTION TO THE
RIGHT OR LEFT WHILE MOVING
FORWARD
To turn to the left, return the left travel lever to
the neutral position (N).
(A): Left turn in forward direction
(B): Left turn in reverse direction
To turn to the right, return the right travel
lever to the neutral position (N).
・TURNING (SPIN TURN) ON THE SPOT
To turn on the spot to the left, pull the left travel
lever toward you and push the right travel lever
forward.
To turn on the spot to the right, pull the right
travel lever toward you and push the left
travel lever forward.

M A E D A Crawler Crane OPERATION
6/2020 CC1908S-1 Quick operation guide 15
4.3 CRANE OPERATION
[HOISTING AND LOWERING]
WARNING
・When hoisting a load, the load will shift
forward slightly due to boom deflection.
Notify slinging operators and other workers
in the vicinity.
・If the hook block is over-hoisted, the
overwinding prevention device detects
overwinding and the warning buzzer
sounds intermittently. When the buzzer
sounds, immediately place the right-hand
control lever in the neutral position to stop
the hoisting operation.
・When lowering the hook a long distance
such as for underground work, be sure to
leave at least three turns of wire rope on
the winch drum.
IMPORTANT
・Take care not to lower the hook block
excessively in order to prevent it from
coming into contact with the ground. Doing
so results in irregular winding on the winch
drum.
・When stopping the winch operation, do not
suddenly return the lever to its neutral
position. Doing so may loosen the wire
rope, resulting in irregular winding on the
winch drum.
Operate the right-hand control lever (1) as
follows:
・Lowering: Push the lever forward.
・Neutral: Release your hand from the lever.
The lever will return to the neutral
position and the hoisting/lowering
of the hook block stops.
・Hoisting: Pull the lever toward you.
Adjust the winch hoisting and lowering
speed by varying the stroke of the right-hand
control lever (1) and the depression of the
accelerator pedal (2).

OPERATION M A E D A Crawler Crane
16 6/2020 CC1908S-1 Quick operation guide
[BOOM DERRICKING]
WARNING
・Operate the right-hand control lever as
slowly as possible.
Especially avoid sudden lever operations
when a load is hoisted, which may cause
the load to sway and hit the machine,
damaging the crane or causing the machine
to topple.
・Drawing in a load or standing it upright by
derricking is prohibited. Be sure to use
hook hoisting to lift loads.
・Lowering the boom increases the working
radius and reduces the rated total load that
can be hoisted. When derricking the boom,
pay extra attention so that the weight of the
load at the lowermost boom position does
not cause overloading.
Operate the right-hand control lever (1) as
follows:
・Lowering: Push the lever outside (right side).
・Neutral: Release your hand from the lever.
The lever returns to the neutral
position and boom derricking stops.
・Raising: Pull the lever inside (left side).
Adjust the boom derricking speed by varying
the stroke of the right-hand control lever (1)
and the depression of the accelerator pedal
(2).
When the boom length display on the
moment limiter display is "6.0 m" or longer,
lowering stops automatically to prevent the
boom angle falling below a horizontal
position.

M A E D A Crawler Crane OPERATION
6/2020 CC1908S-1 Quick operation guide 17

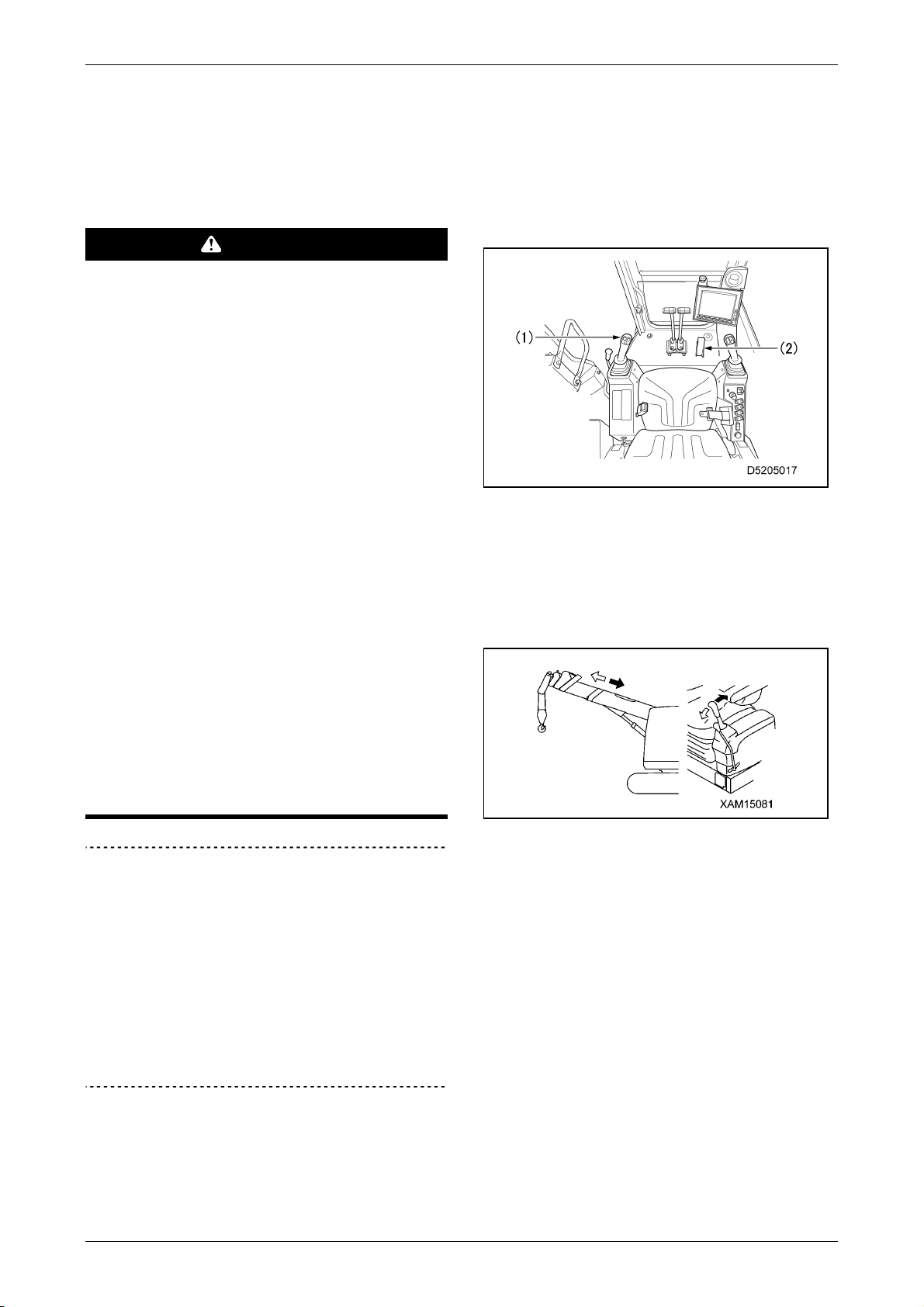

[BOOM TELESCOPING]
WARNING
・Operate the left-hand control lever as
slowly as possible.
Especially avoid sudden lever operations
when a load is hoisted, which may cause
the load to sway and hit the machine,
damaging the crane or causing the machine
to topple.
・Pulling a load laterally or drawing it in by
extending or retracting the boom is
prohibited. Be sure to use hook hoisting to
lift loads.
・Extending the boom increases the working
radius and reduces the rated total load that
can be hoisted. When extending or
retracting the boom, pay extra attention so
that the weight of the load with the boom
fully extended does not cause overloading.
・The hook block will be raised while the
boom is being extended.
If the warning buzzer of the overwinding
detector sounds while extending the boom,
return the boom telescoping lever
immediately to the neutral position and
stop extending the boom.
IMPORTANT
・The hook block will be raised or lowered
while the boom is being extended or
retracted. Always use the winch operation
simultaneously to adjust the hook block
height.
・When the boom is extended for a long time,
the boom retracts slightly due to the
temperature change in the hydraulic oil. If
this occurs, extend the boom as necessary.
Operate the left-hand control lever (1) as follows:
・Extending: Push the lever forward.
・Neutral: Release your hand from the lever.
The lever returns to the neutral
position and the boom telescoping
stops.
・Retracting: Pull the lever toward you.
Adjust the boom extending/retracting speed
by varying the stroke of the left-hand control
lever (1) and the depression of the
accelerator pedal (2).
When the boom extends, the second stage
extends first, then the third stage and finally
the fourth and fifth stages extend
simultaneously.
When the boom retracts, it retracts in the
reverse order of extension.

OPERATION M A E D A Crawler Crane
18 6/2020 CC1908S-1 Quick operation guide
[SLEWING OPERATION]
WARNING
・The rear end of the machine protrudes
beyond the crawler width. Check for safety
in the vicinity visually and using the multi-
assist view before slewing.
・Check for safety around the machine and
sound the horn before slewing.
・Perform the slewing operation as slowly as
possible. Be sure to start smoothly, slew at
low speed, and stop gently. Especially
avoid sudden lever operations when a load
is hoisted, which may cause the load to
sway and cause the machine to lose
balance, damaging the crane or tip the
machine.
・Pulling a load laterally, drawing it in, or
standing it upright by slewing is prohibited.
Be sure to use hook hoisting to lift loads.
IMPORTANT
The rated total load is the same in all
directions regardless of the slewing stop
position.
Operate the left-hand control lever (1) as follows:
・Left slewing: Push the lever outside
(left side).
・Neutral: Release your hand from the
lever.
The lever returns to the neutral
position and the slewing stops.
・Right slewing: Pull the lever inside
(right side).
Adjust the crane slewing speed by varying
the stroke of the left-hand control lever (1)
and the depression of the accelerator pedal
(2).
There is a horn switch at the centre of the
knob on the right-hand control lever (3). Use
the switch to signal when slewing.
