Maeda CC1485S-1 User guide

585E-QG1612-00
QUICK OPERATION GUIDE
CRAWLER CRANE
Serial No. 7048 and up
CC1485S -1
・This operation guide explains basic operation of the machine. Before starting work, always
conduct checks written in “OPERATION 3.1 PRE-OPERATION INSPECTION” in the separate
“OPERATION MANUAL”.
For safety cautions and detailed operation of the machine not explained in this book, please
read and understand the separate “OPERATION MANUAL” before operating this machine.
・This operation guide does not replace the operation manual. This is just a short helpful
information paper to assist the trained crane operator with the basic operation of the crane. For
complete and detailed information we refer to the operation manual of the crane.

- 1 -
CONTENTS
ITEM Page
1. STARTING ENGINE & STOPPING ENGINE 2
1.1 STARTING ENGINE 2
1.2 STOPPING ENGINE 4
2. OPERATION LEVERS 5
3. SWITCHES 8
4. MACHINE MONITOR 9
4.1 MONITOR DISPLAY 9
4.2 MONITOR DISPLAY OF MOMENT LIMITER 10
5. WORKING RADIUS / LIFTING HEIGHT 11
6. RATED TOTAL LOAD CHART 12
FOR SAFE USE OF THE MACHINE
This manual classifies the risks into the following three categories for easy understanding of the safety
information.
This denotes that there is an imminent hazard which will cause serious injury or
death.
It also provides information on how to avoid such hazard.
This denotes that there is a hazard which can cause serious injury or death.
It also provides information on how to avoid such hazard.
This denotes that there is a potential hazard which may cause minor or moderate
injury or serious damage to the machine.
It also provides information on how to avoid such hazard.
This manual also uses the following indications to provide other precautions for handling the machine and
helpful information.
This denotes that failure to properly handle the machine may damage it or shorten
its life.
This denotes helpful information.
CAUTION
NOTES

- 2 -
1. STARTING ENGINE & STOPPING ENGINE
1.1 STARTING ENGINE
• Start the engine only when the operator is sitting on the operator's seat.
• Do not start the engine by short-circuiting the starter circuit. Doing so may cause
serious physical injury or fire.
• Before starting the engine, make sure no personnel or impediments are close to the
machine and honk the horn.
• Exhaust gas is toxic. When starting the engine in a narrow, enclosed place, pay due
attention to ventilation.
CAUTION
• If it is difficult to start the engine because the
temperature is low, perform the cold climate engine
starting operation.
• Do not start the engine by turning the fuel adjustment
dial to near the full rotation position (MAX). Engine
parts may be damaged.
• Do not keep the starter turned for more than 20
seconds. Doing so will accelerate the battery
discharge.
If the engine fails to start, wait for 2 minute before
retrying.
1. Confirm that the disconnect switch in the battery box is
turned to ON position.
If it is turned OFF, engine does not start.
2. Check that the lock lever (1) is in the lock position (L).The
engine does not start if the lock lever (1) is in the free
position (F).
NORMAL ENGINE START
1. Turn the fuel adjustment dial (2) to the low idling position
(MIN).

- 3 -
2. Insert the key into the starter switch (3) and turn the key to
the "START" position. The engine starts.
3. When the engine has started, release your hand from the
key.
The key automatically returns to the "ON" position.
4. Continue the idling operation for 15 seconds immediately
after engine start. Do not operate the operation levers and
fuel adjustment dial during this period.
ENGINE START IN COLD CLIMATE
1. Check, before starting the engine that the fuel adjustment
dial (2) is in the low idling position (MIN).
2. Turn the fuel adjustment dial (2) to position between the
low idling position (MIN) and full rotation position (MAX).
3. Insert the key into the starter switch (3), turn the key to
the "ON" position and check that the auto glow lamp turns
on.
When preheating is completed, the auto glow lamp goes
on.
4. When the auto glow lamp goes out, turn the starter switch
key to the "START" position. The engine starts.
5. When the engine has started, release your hand from the
key.
The key automatically returns to the "ON" position.
6. Continue the idling operation for 15 seconds immediately
after engine start. Do not operate the operation levers
and fuel adjustment dial during this period.

- 4 -

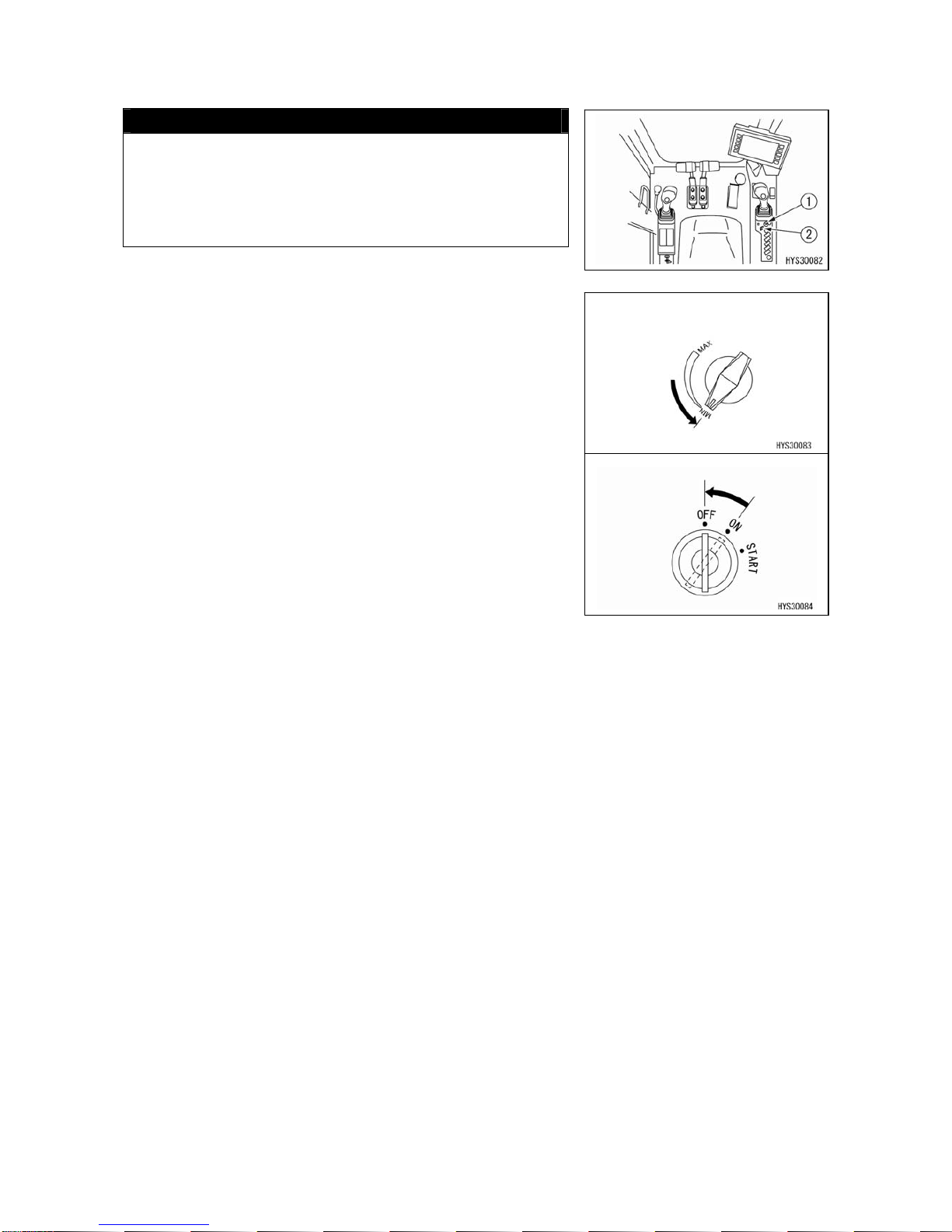

1.2 STOPPING ENGINE
CAUTION
• Stopping the engine before it sufficiently cools down
may shorten the life of engine units. Do not stop the
engine suddenly except for an emergency.
• When the engine is overheated, do not stop the
engine suddenly. Change the engine speed to low,
and gradually cool down the engine before stopping.
1. Turn the fuel adjustment dial (2) to the low idling position
(MIN) and continue operation under no load for
approximately 5 minutes.
2. Turn the starter switch key (1) to the “OFF” position.
The engine stops.
3. Remove the starter switch key (1).

- 5 -

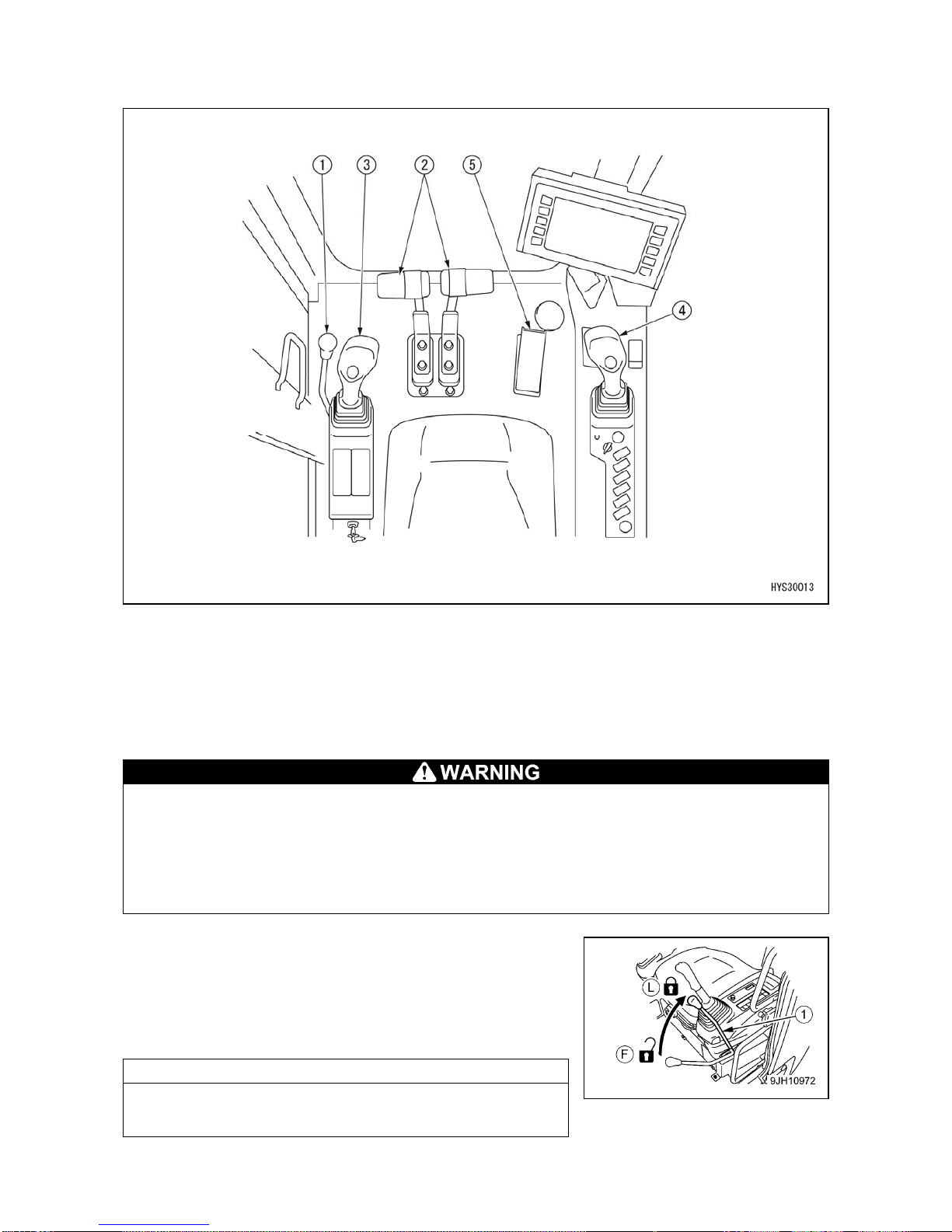

2. OPERATION LEVERS
(1) Lock lever
(2) Travel lever (with auto deceleration mechanism)
(3) Left work equipment operation lever
(with auto deceleration mechanism)
(4) Right work equipment operation lever
(with auto deceleration mechanism)
(5) Accelerator pedal
[1] LOCK LEVER
•When standing up from the driver seat, place the lock lever securely in the lock position (L). If the
lock lever is in the free position (F) and contacts the operation levers and operation pedals
carelessly, serious physical injury may be caused.
•When you leave the driver seat or work is suspended, check that the lock lever is securely in the lock
position (L).
•When pulling up or pushing down the lock lever, be careful not to allow it to contact the operation
lever of work equipment.
Use this lever to lock crane operation, slewing and travel operation.
•(L) Lock: Pull up the lever. The machine does not move even if each
operation lever is operated.
•(F) Free: Push down the lever. The machine moves if each operation
lever is operated. NOTES
Because the machine is hydraulically locked by the lock lever,
operation levers move even if the lever is placed in the lock position.
However, the machine does not move.

- 6 -
[2] TRAVEL LEVER
•When the sprocket (A) side is in the rear, the track frame faces
forward. When the track frame faces rearward, the direction
of travel lever operation is opposite to the direction of
machine movement (forward and rearward movement, right
and left movement direction).
When operating the travel lever, be sure to check if the track
frame faces forward or rearward.
Use this lever to move the machine forward/rearward, stop, change
the direction, and adjust the travelling speed.
•(a) Forward movement: Push the lever forward.
•(b) Rearward movement: Pull the lever toward you.
•(N) Neutral: Release your hand from the lever.
NOTES
When the travel lever is operated to the forward or rearward direction
from neutral, the alarm sounds and notifies the surrounding area that
the machine will start moving.
[3] LEFT WORK EQUIPMENT OPERATION LEVER
Use this lever to perform slewing operation of the revolving super
structure and extension and retraction operation of the boom.
Slewing operation
•(a) Right slewing: Pull the lever in the right direction.
•(b) Left slewing: Push the lever in the left direction.
Extension and retraction operation of boom
•(c) Retraction of boom: Pull the lever rearward.
•(d) Extension of boom: Push the lever forward.
(N) Neutral: Release your hand from the lever.
The revolving upper structure and boom length retain their positions as they stop.
[4] RIGHT WORK EQUIPMENT OPERATION LEVER
Use this lever to perform winch operation and boom derricking
operation.
Winch operation
•(e) Hoisting: Pull the lever rearward.
•(f) Lowering: Push the lever forward.
Boom derricking operation
•(g) Lowering of boom: Push the lever in the right direction.
•(h) Raising of boom: Pull the lever in the left direction.
(N) Neutral: Release your hand from the lever.
The hook block and boom angle retain their positions as they stop.

- 7 -
[5] ACCELERATOR PEDAL
Use the accelerator pedal only when the machine stops and you operate the crane.
Never use this pedal during travel operation. An operation mistake may be made, resulting in serious
physical injury.
Use the fuel adjustment dial to adjust engine speed during travel operation.
Use this lever to adjust the engine speed or output during crane
operation.
•(a) Low idling: Release your foot from the pedal.
•(b) Full revolution: Depress the pedal fully.
NOTES
As a priority is given to the engine speed of the fuel adjustment dial,
the engine speed does not fall below the set speed of the fuel
adjustment dial even if you release your fool from the accelerator
pedal.
When performing work using the accelerator pedal, operate the fuel
adjustment dial in advance to set the necessary minimum engine
speed.

- 8 -
3. SWITCHES
(1) Starter switch
(2) Fuel adjustment dial
(3) Lamp switch
(4) Front window wiper switch
(5) Roof window wiper switch
(6) Buzzer canceling switch
(7) Accessory power supply
(8) Horn switch
(9) Room lamp switch
(10) Emergency accelerator driving switch (with
guard)
(11) Slewing parking brake emergency canceling
switch (with guard)
(12) Emergency stop switch
(13) Maintenance switch
(14) Levelling instrument
(15) Winch 2 speed selector switch
(16) Disconnect switch
(17) Override switch

- 9 -

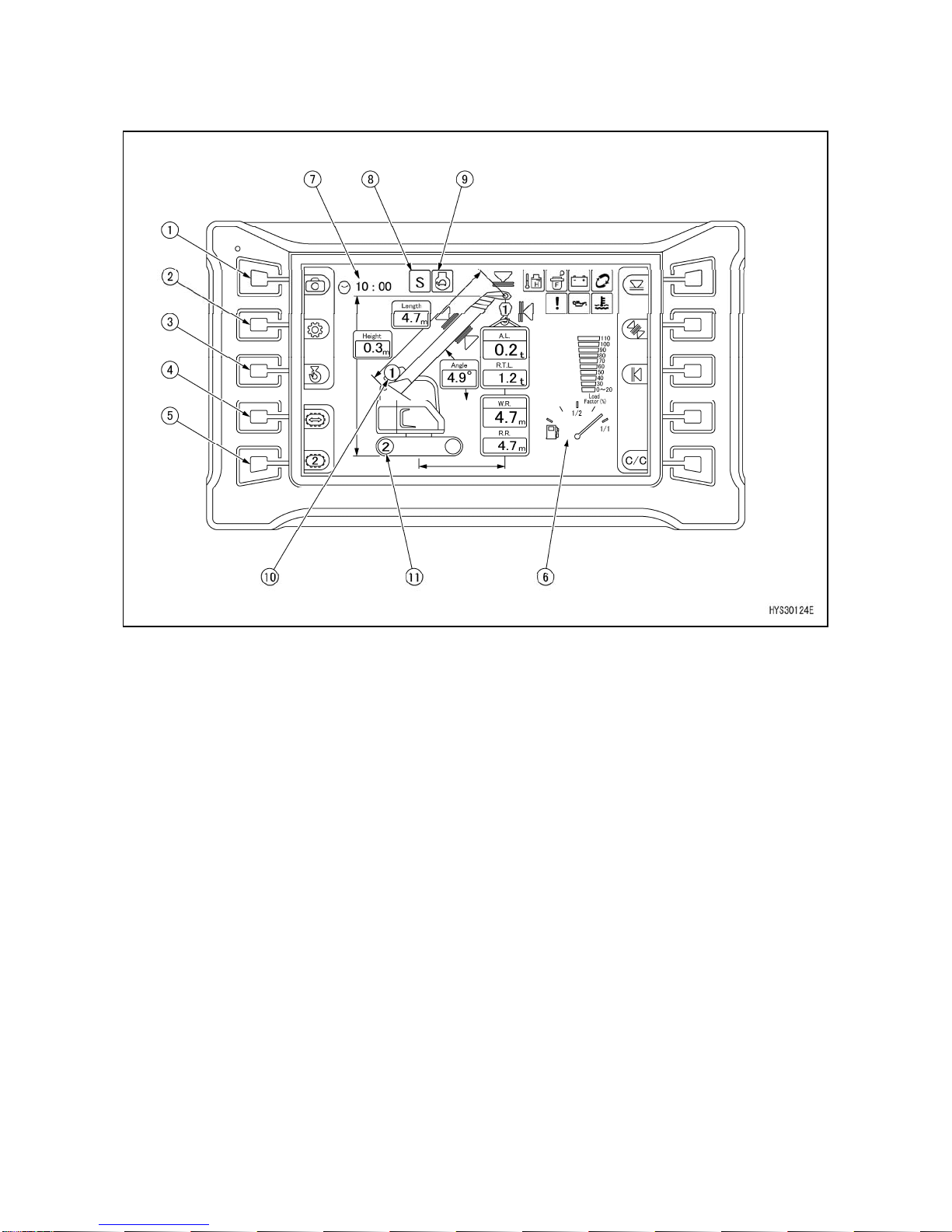

4. MACHINE MONITOR
4.1 MONITOR DISPLAY
(1) Rear view camera selector switch
(2) User mode switch
(3) Hook storage switch
(4) Travel mode selector switch
(5) Travel 1st speed/2nd speed selector
switch
(6) Fuel gauge
(7) Hour meter/clock
(8) Working mode display
(9) Auto deceleration display
(10) Winch 1st speed/2nd speed display
(11) Travel 1st speed/2nd speed display
See " 4.2 MONITOR DISPLAY OF MOMENT LIMITER " for the name of the moment limiter parts.

- 10 -

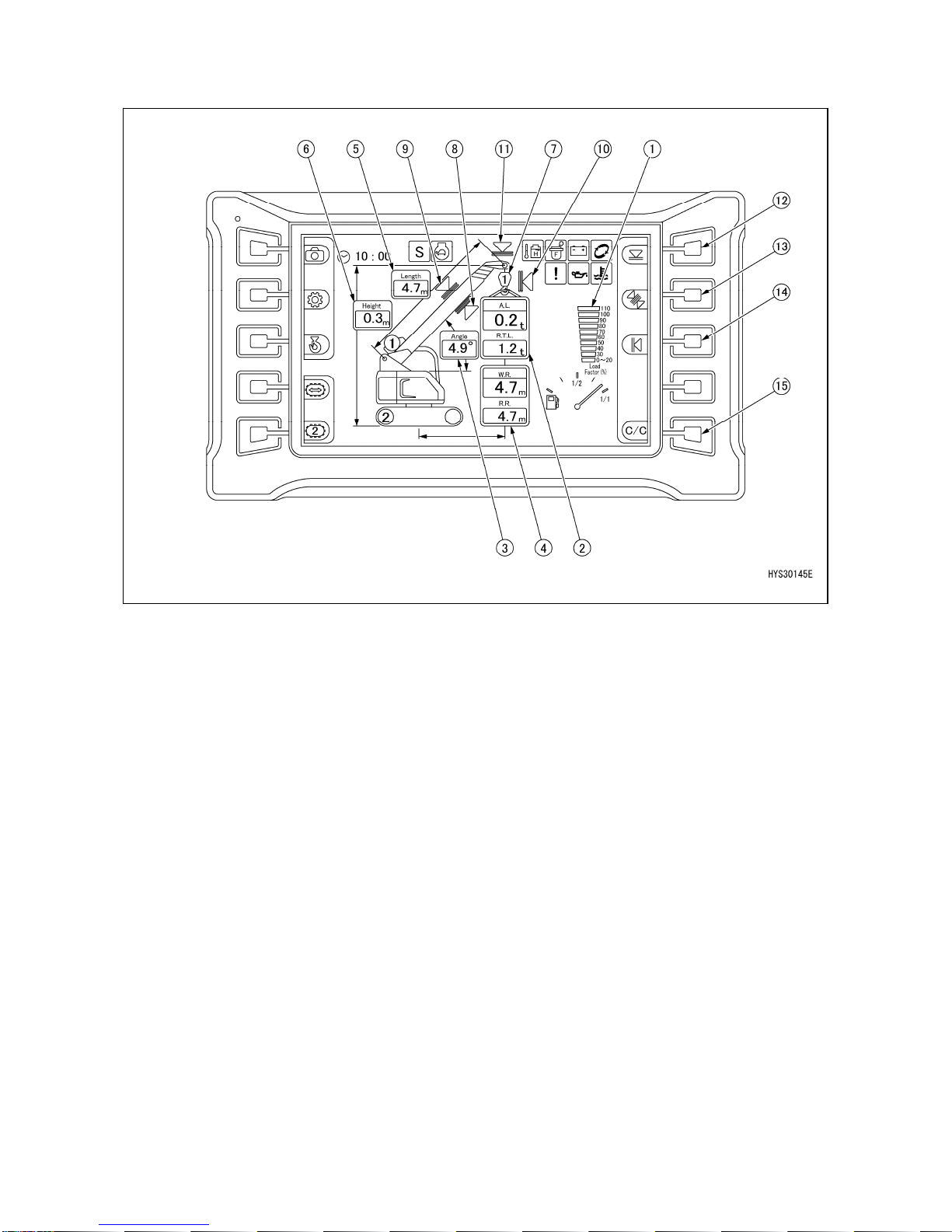

4.2 MONITOR DISPLAY OF MOMENT LIMITER
(1) Load factor display
(2) Actual load display/Rated total load
display
(3) Boom angle display
(4) Actual work radius display/rated work
radius display
(5) Boom length display
(6) Lifting height display
(7) Number of wire falls display
(8) Boom angle lower limit display
(9) Boom angle upper limit display
(10) Working radius upper limit display
(11) Lifting height upper limit display
(12) Lifting height upper limit switch
(13) Boom angle upper limit/lower limit
switch
(14) Working radius upper limit switch
(15) Setting check/canceling switch

- 11 -
5. WORKING RADIUS / LIFTING HEIGHT

- 12 -
6. RATED TOTAL LOAD CHART 《FOR 4-FALL WIRE ROPE 》
Unit: kg
Working
radius (m)
4.745m Boom 7.625m Boom 10.505m Boom 13.385m
Boom
16.265m
Boom
Stationary Pick &
Carry Stationary Pick & Carry Stationary Pick & Carry Stationary Stationary
2.00 6000 2000 6000 2000 3000 1500
2.50 6000 2000 6000 2000 3000 1500 3000
2.60 6000 2000 6000 2000 3000 1500 3000
3.00 5250 2000 5260 2000 3000 1500 3000 2600
3.20 4910 2000 4920 2000 3000 1500 3000 2600
3.50 4450 2000 4460 2000 3000 1500 3000 2600
3.85 4000 2000 4000 2000 3000 1500 3000 2600
4.00 3830 1915 3820 1910 3000 1500 3000 2600
4.50 3320 1660 3310 1655 3000 1500 3000 2600
4.58 3250 1625 3240 1620 3000 1500 2940 2600
4.60 3220 1610 3000 1500 2920 2600
5.00 2880 1440 2710 1355 2640 2600
5.50 2520 1260 2400 1200 2340 2320
6.00 2210 1105 2140 1070 2100 2080
6.50 1950 975 1920 960 1890 1880
7.00 1720 860 1720 860 1710 1710
7.46 1530 765 1570 785 1570 1580
7.50 1550 775 1560 1560
8.00 1400 700 1430 1430
8.50 1270 635 1310 1320
9.00 1150 575 1200 1210
10.00 940 470 1020 1040
10.34 880 440 970 980
11.00 880 890
12.00 750 770
13.00 650 670
13.22 630 650
14.00 580
15.00 500
16.00 440
16.10 430
Boom
angle
range (deg)
0～64.3 0～74.4 0～78.8 0～80.0 0～80.0
Hook mass: 90kg
Boom length:
4.745m boom →Boom retracted minimum
7.625m boom →Boom length more than 4.745m less than 7.625m
10.505m boom →Boom length more than 7.625m less than 10.505m
13.385m boom →Boom length more than 10.505m less than 13.385m
16.265m boom →Boom length 13.385m or more
The Rated total load Chart is based on the actual working radius including boom deflection.
The weight of hook block must be included as part of the load shown in the Rated total load Chart.

QUICK OPERATION GUIDE for MAEDA CRAWLER CRANE CC1485S-1
Document Number 585E-QG1612-00
First edition December 9, 2016
Issued by MAEDASEISAKUSHO CO., LTD.
1095, Onbegawa, Shinonoi, Nagano City,
Nagano Prefecture, 388-8522 Japan
Any reproduction or reprinting without permission is prohibited.
