MPL 3.5
Scissors Lift
Original Operating Instructions
BA082701-en
Pos:1 /-----Format-----/MANUELLER UMBRUCHSeitenumbruch@ 0\mod_1134403577687_ 0.docx @ 1277 @ @ 1

2
BA082701-en
Pos:2 /-----Format-----/Inhaltsverzeichnis @ 5\ mod_1168867441046_75. docx @ 72920 @ @ 1
Contents
1Safety.......................................................................................................................3
1.1Introduction ........................................................................................................................................... 3
1.2Symbols ................................................................................................................................................ 3
1.3Intended Use ........................................................................................................................................ 3
1.4Safety Instructions for Commissioning ................................................................................................. 3
1.5Safety Instructions for Operation .......................................................................................................... 4
1.6Safety Instructions for Servicing ........................................................................................................... 4
2Specifications..........................................................................................................5
3Operation.................................................................................................................6
3.1What to Do in the Event of Defects or Malfunctions............................................................................. 6
3.2Main Switch .......................................................................................................................................... 6
3.3Controls ................................................................................................................................................ 7
3.4Raising and Lowering ........................................................................................................................... 8
3.5Protection against Unauthorized Usage............................................................................................... 8
3.6Bleeding the Hydraulic System............................................................................................................. 9
3.7Manual Lowering .................................................................................................................................. 9
3.8Transverse Beam ............................................................................................................................... 10
4Maintenance ..........................................................................................................12
4.1Maintenance Schedule ....................................................................................................................... 12
4.2Annual Inspection ............................................................................................................................... 12
4.3Refilling with Hydraulic Fluid............................................................................................................... 13
4.4Cleaning.............................................................................................................................................. 13
5Troubleshooting....................................................................................................14
6Company Information...........................................................................................15
Pos:3 /-----Format-----/MANUELLER UMBRUCHSeitenumbruch@ 0\mod_1134403577687_ 0.docx @ 1277 @ @ 1

3
BA082701-en
Pos: 4 /Technische Doku mentation/Alle Ger äte/01/Überschr iften/Überschri ften 1/S/Überschrif t 1: Sicherheit @ 6\mod_11744 82399906_75.doc x@ 76962 @ 1 @ 1
1 Safety
Pos: 5 /Technische Doku mentation/Alle Ger äte/01/Überschr iften/Überschri ften 1.1/E/Überschri ft 1.1: Einführung @ 6\mod_1174482219062_75.doc x@ 76793@ 2 @ 1
1.1 Introduction
Pos: 6 /Technische Doku mentation/Alle Geräte/ 01/Inhalte/Sic herheit/Inhalt: Ei nführung Sicherhei t@ 6\mod_1175609639562_75.doc x @ 87528 @ @ 1
Thoroughly read this manual before operating the equipment and comply with the instructions.
Always display the manual in a conspicuous location.
Personal injury and property damage incurred due to non-compliance with these safety
instructions are not covered by the product liability regulations.
Pos: 7 /Technische Doku mentation/Alle Ger äte/01/Überschr iften/Überschri ften 1.1/S/Überschri ft 1.1: Symbole @ 6\mod_1174482 270875_75.docx @ 76865 @ 2@ 1
1.2 Symbols
Pos: 8 /Technische Doku mentation/Alle Geräte/ 01/Inhalte/Sic herheit/Inhalt: Sy mbole Sicherheit @ 14\ mod_1239866667866_75. docx @ 361518 @ @ 1
Important safety instructions. Failure to comply with instructions could result in personal injury or
property damage.
Important information.
Pos: 9 /Technische Doku mentation/Alle Ger äte/01/Überschr iften/Überschri ften 1.1/B/Überschri ft 1.1: Bestimmungsgem äßer Gebrauch @ 6\mod_117 6734022203_75.doc x@ 88746 @ 2 @ 1
1.3 Intended Use
Pos: 10 /Technisc he Dokumen tation/Hebetechni k/00 HBZ Al le/01/Inhalte/ Inhalt: Bes timmungsgemäßer Gebrauch HBZ @ 18\mod_1 258013896259_75. docx @ 5214 84 @ @ 1
This lift shall be used exclusively for the safe lifting of motor vehicles. Observe the rated load
capacity.
The lift shall not be modified without the express written consent of the manufacturer. In case
of non-compliance the declaration of conformity becomes void.
Pos: 11 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/S/Überschri ft 1.1: Sicherheits vorschriften für di e Inbetriebnahme @ 6\mod_1174 482269156_75.doc x@ 768 38 @ 2 @ 1
1.4 Safety Instructions for Commissioning
Pos: 12 /Technische Dok umentation/Papier korb/Hebetechnik/I nhalt: Sicher heitsvorschriften fü r die Inbetriebnahme HB Z(2013- 06-24 13:12:08) @ 6\ mod_1177414876562_75.doc x @ 90054 @ @ 1
The lift shall be installed and commissioned by authorized service personnel only.
The control desk shall not be installed in the danger zone of the lift.
The standard lift version shall not be installed and commissioned in hazardous locations,
outdoors or in moist rooms (e.g. car wash).
Pos:13 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ @ 1

4
BA082701-en
Pos: 14 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/S/Überschri ft 1.1: Sicherheits vorschriften für den Betr ieb @ 6\mod_11744822689 53_75.docx @ 76826 @ 2 @ 1
1.5 Safety Instructions for Operation
Pos: 15 /Technische Dok umentation/Papier korb/Hebetechnik/I nhalt: Sicher heitsvorschriften fü r den Betrieb (2011-03-01 09: 04:20) @ 6\mod_11805970465 93_75.docx @ 94462 @ @ 1
Read the detailed operating manual.
Lift operation by trained personnel over 18 years only.
Drive on the lift only when it is in bottom position.
Ensure an unobstructed movement of lift and vehicle.
After raising the vehicle briefly, stop and check the lift supports for secure contact.
Make sure the vehicle doors are closed during raising and lowering cycles.
Closely watch lift and vehicle during raising and lowering cycles.
Do not allow anyone to stay in lift area during raising and lowering cycles.
Do not allow anyone to climb up the lift or the raised vehicle.
Comply with the applicable accident prevention regulations.
Do not exceed the rated load capacity as indicated on the lift nameplate.
Only use the vehicle manufacturer's recommended lift points.
Do not use the lift for transporting persons.
After positioning the vehicle on the lift secure it against roll-off.
Keep lift and vehicle free of tools and parts.
Keep the lift and lift area clean.
The main switch serves as emergency switch. In case of emergency turn it to position "0".
Protect all parts of the electrical equipment from humidity.
Protect the lift against unauthorized usage by padlocking the main switch.
Use caution with operating vehicle engines. Danger of poisoning!
Pos: 16 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/S/Überschri ft 1.1: Sicherheits vorschriften für Ser vicearbeiten @ 6\mod_1174 482270640_75.doc x@ 768 50 @ 2 @ 1
1.6 Safety Instructions for Servicing
Pos: 17 /Technische Dok umentation/Papier korb/Hebetechnik/I nhalt: Sicher heitsvorschriften fü r Servicearbeiten HBZ (2011- 03-01 09:53:00) @7\ mod_1196176812580_75.doc x@ 133 711@ @ 1
Service work may be done by authorized service technicians only.
Turn off and padlock the main switch before doing any repair, maintenance or setup work.
Work on pulse generators or proximity switches may be done by authorized service
technicians only.
Work on the electrical equipment may be done by service technicians or certified electricians
only.
Ensure that ecologically harmful substances are disposed of only in accordance with the
appropriate regulations.
Do not use high pressure or steam jet cleaners. Do not use caustic cleaning agents.
The lift's safety devices must be set by authorized service technicians.
Do not replace or override the safety devices.
Pos:18 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ @ 1

5
BA082701-en
Pos: 19 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1/T/Überschrif t 1: Technische Daten @ 6\mod_117 4482473078_75.doc x @ 76986 @ 1 @ 1

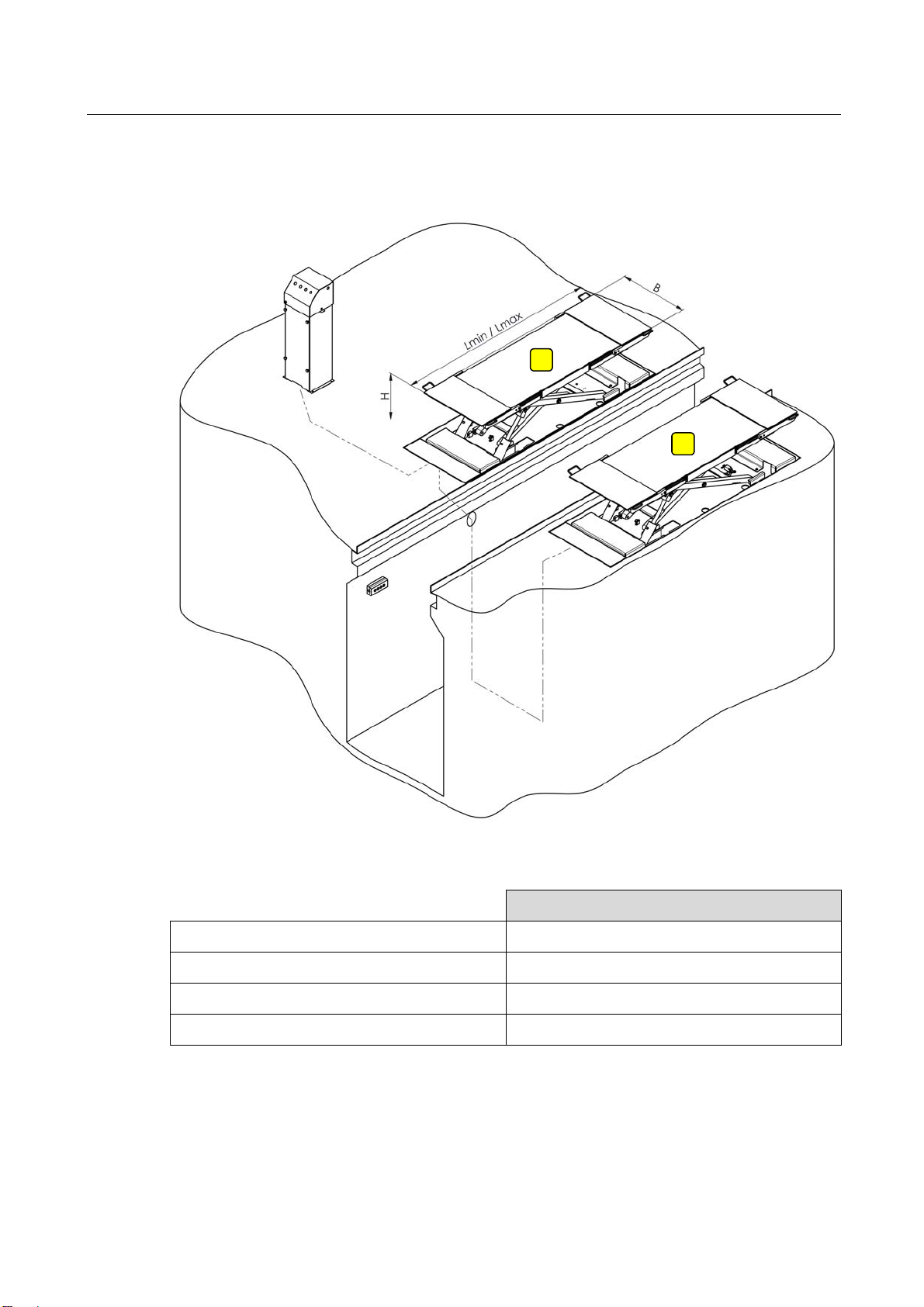

2 Specifications
Pos: 20 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Techni sche Daten (Bild) @ 12\ mod_1232981279958_0.d ocx @ 323241 @ @ 1
Pos: 21 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Techni sche Daten (Tabel le) @ 15\mod_1244190423627_ 75.docx @ 386396 @ @ 1
GMaster side NSlave side
MPL 3.5
Load capacity 3500 kg
Lifting height H 450 mm
Width of support plate B 683 mm
Overall length Lmin...Lmax 1500…2008 mm
Pos:22 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ @ 1
N
G

6
BA082701-en
Pos: 23 /Technische Dok umentation/Alle Gerät e/01/Überschri ften/Überschri ften 1/B/Überschrif t 1: Bedienung @ 6\mod_117448227 1218_75.docx @ 76877 @ 1@ 1
3 Operation
Pos: 24 /Technische Dok umentation/Hebetec hnik/00 HBZ Alle/01/I nhalte/War nung!/Inhalt: Warnung - Sicherheitshinweise für di e Bedienung @ 6\mod_118060077 9281_75.docx @ 94475 @ @ 1
Lift operation by trained personnel over 18 years only.
Do not exceed the rated load capacity as indicated on the lift nameplate.
Do not allow anyone to stay in lift area during raising and lowering cycles.
Closely watch lift and vehicle during raising and lowering cycles.
Make sure the vehicle doors are closed during raising and lowering cycles.
The lift area which cannot be seen by the operator during raising and lowering cycles must
be observed by a second person.
After raising the vehicle briefly, stop and check the lift supports for secure contact with the
vehicle.
Do not allow anyone to climb up the lift or the raised vehicle.
Pos: 25 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/V/Überschri ft 1.1: Verhalten im Störf all @ 6\mod_1178097008375 _75.docx @ 90829 @ 2 @ 1
3.1 What to Do in the Event of Defects or Malfunctions
Pos: 26 /Technische Dok umentation/Hebetec hnik/00 HBZ Alle/01/I nhalte/War nung!/Inhalt: Warnung - Verhalteni mS törfall @ 6\mod_1178097 081984_75.doc x@ 90843 @ @ 1
In case of defects or malfunctions such as uncontrolled lift movement or deformation of the
superstructure, support or lower the lift immediately.
Turn off the main switch and secure it against unauthorized usage. Contact service.
Pos: 27 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/H/Überschri ft 1.1: Hauptschalter @ 6\ mod_1177592858312_ 75.docx @ 90635 @ 2 @ 1

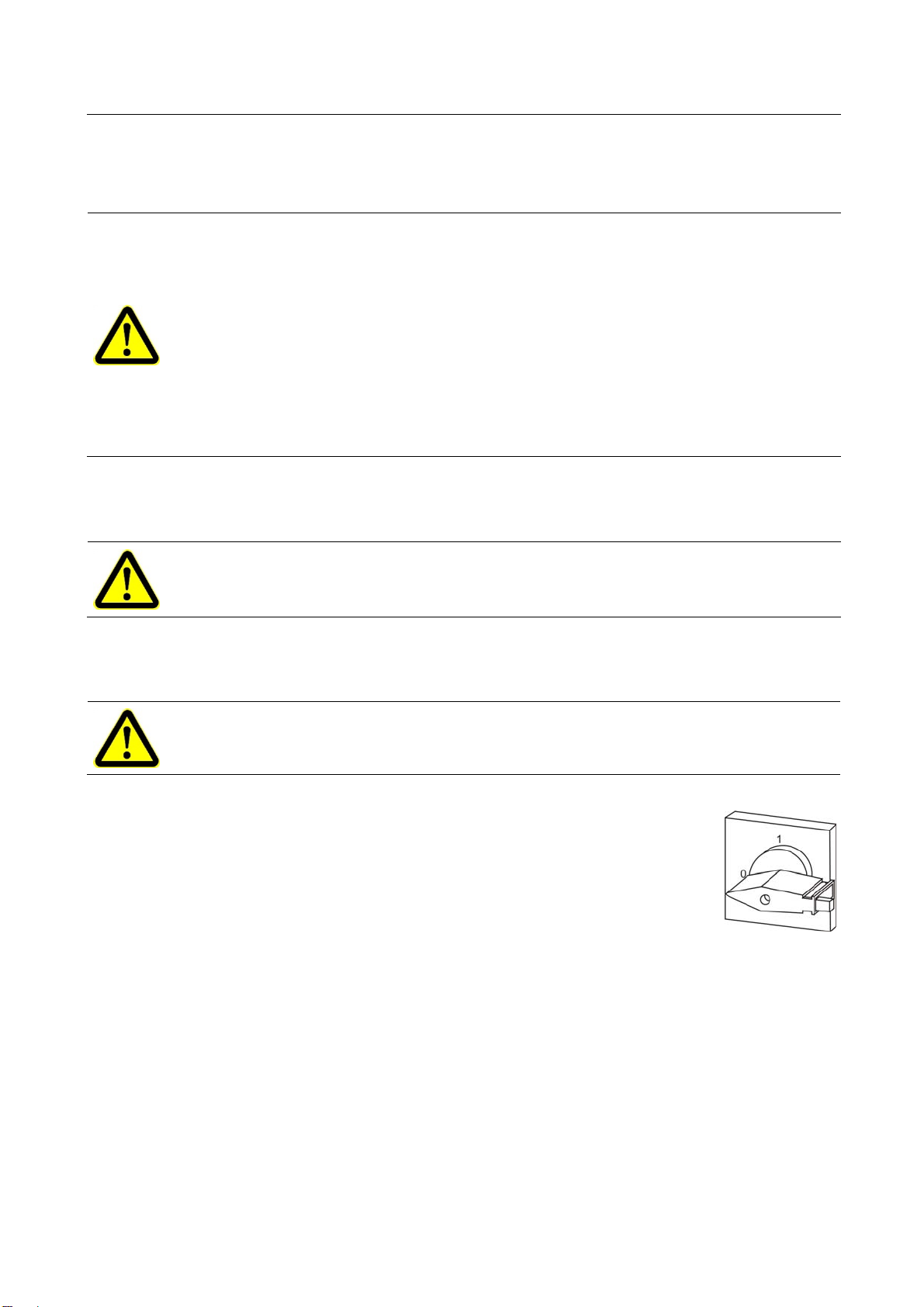

3.2 Main Switch
Pos: 28 /Technisc he Dokumen tation/Hebetechni k/00 HBZ Al le/01/Inhalte/ Inhalt: Haup tschalter mit NOT-AUS-Funktion HBZ ( 2011-01-24 14: 07:56) @ 6\mod_1180959351171 _75.docx @ 95046 @ @ 1
The main switch is used as emergency switch. In case of emergency turn it to position 0.
Main switch in position 0: Power supply is interrupted
Main switch in position 1: Lift is ready for operation
Pos:29 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ @ 1

7
BA082701-en
Pos: 30 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/Versionier t/Überschrift 1. 1: Bedienelemente1 @ 6\mod _1180608333156_75.doc x@ 945 15 @ 2 @ 1

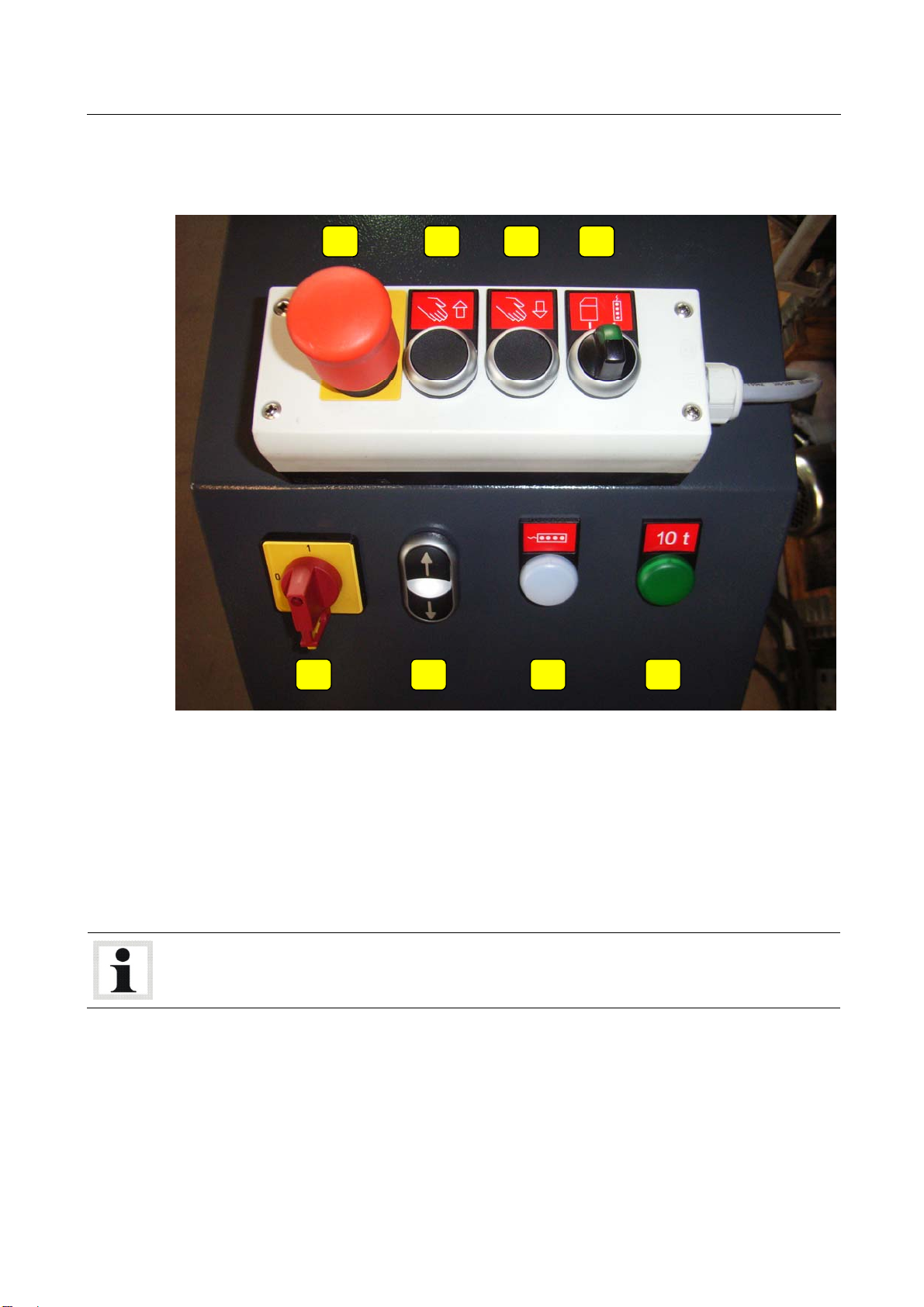

3.3 Controls
Pos: 31 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Bedie nelemente (Bild) @ 14\mod_ 1240490485134_0.doc x@ 366 990 @ @1
Pos: 32 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Bedie nelemente (Text) @ 12\ mod_1232970579535_75.doc x @ 322847 @ @1
Control desk Remote control
AMain switch E Emergency Off Key
BDouble button RAISE / LOWER FButton RAISE
CIndicator lamp "Remote control active" GButton LOWER
DIndicator lamp "10 t axle load, traversable" HSelector switch Control desk/Remote control
Pos: 33 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Inf o - Bedienelemente @ 12\mod_12 33044237646_75.doc x@ 3233 28 @ @1
When the remote control is enabled (indicator lamp Clighting up), double button Bis
disabled.
Main switch and emergency stop button are permanently enabled.
Pos:34 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ @ 1
A B C D
F G HE

8
BA082701-en
Pos: 35 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/H/Überschri ft 1.1: Heben und Senken @ 6\mod _1178521944593_75.doc x @ 91237 @ 2 @ 1

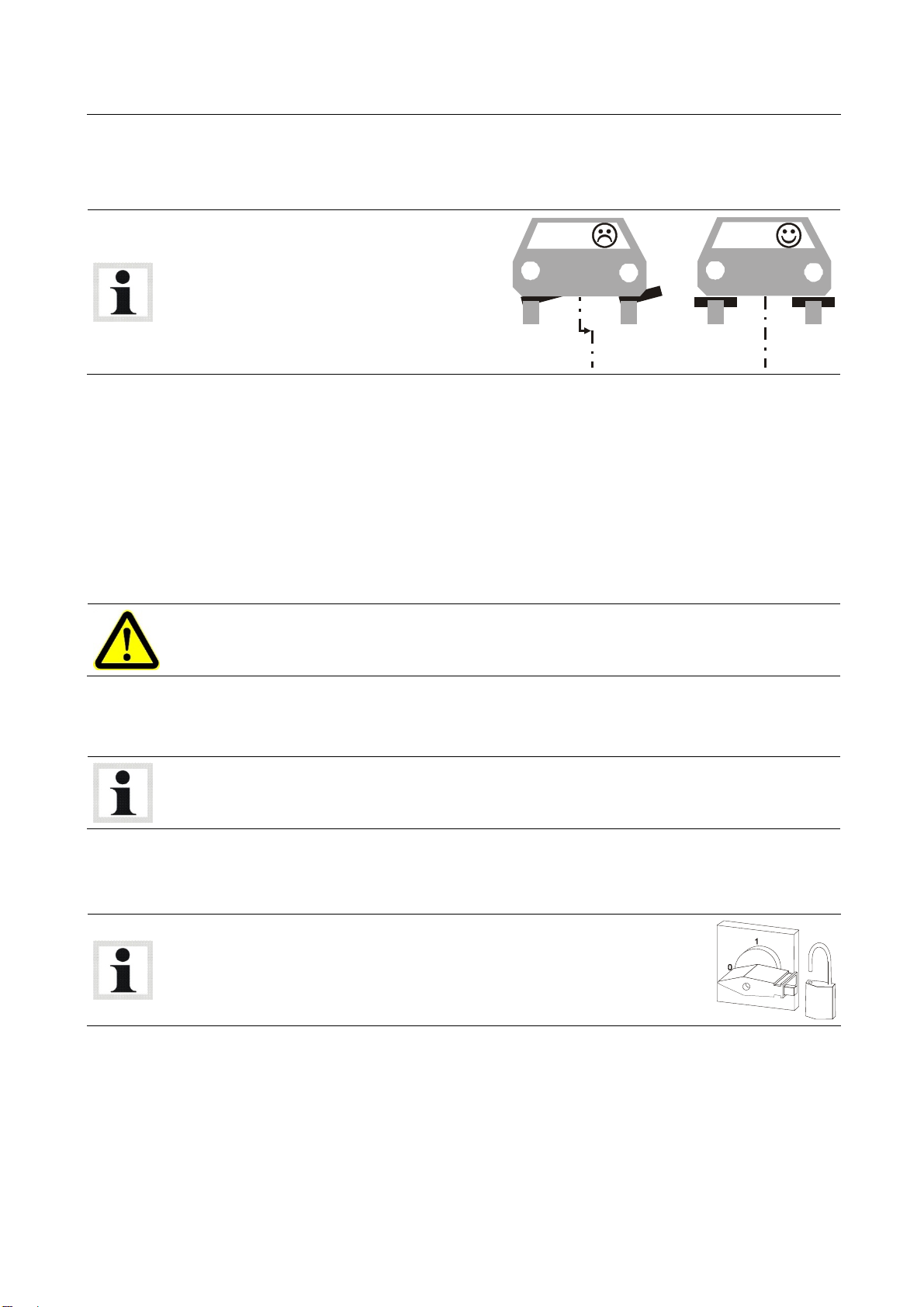

3.4 Raising and Lowering
Pos: 36 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Inf o - FZG symmetrisch aufneh men@ 16\mod_1246368095891_75.d ocx @ 399570 @ @ 1
Make sure the vehicle is lifted symmetrically!
Pos: 37 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Heben und S enken @ 12\mod_12329714 23414_75.docx @ 322870 @ @ 1
1 Turn the main switch to position 1.
Lift is ready for operation.
2 Choose the operating unit (control desk or remote control) using the selector switch. The
white indicator lamp lights up when the remote control is enabled.
3 Push and hold RAISE button until lift reaches desired height.
Lift stops once button is released or upper limit stop is reached.
4 Push and hold LOWER button until lift reaches desired height.
Lift stops once button is released or CE safety stop is reached.
Risk of injury!
Before lowering the lift to bottom position, verify that there are no persons or obstructions in the
danger area.
4 To lower the lift completely, release the LOWER button and press it again.
Lift motion to the lower limit stop is accompanied by an audible signal.
Once the support plates are in bottom position, the lift is traversable with an axle load of 10 t.
This status is confirmed by the green indicator lamp.
Pos: 38 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/S/Überschri ft 1.1: Sicherung gegen un befugte Benutzung @ 6\ mod_1178113526515_75. docx @ 90882 @ 2 @ 1
3.5 Protection against Unauthorized Usage
Pos: 39 /Technische Dok umentation/Hebetec hnik/00 HBZ Alle/01/I nhalte/Info! /Inhalt: Info - Hauptscha lter/Sicher ung gegen unbefugte Benutzung @ 8\ mod_1203338782758_75.doc x@ 147 325 @ @1
When in position 0, the main switch can be protected against tampering
by means of a padlock.
Pos:40 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ @ 1

9
BA082701-en
Pos: 41 /Technische Dok umentation/Alle Geräte/01/Überschrif ten/Überschrif ten1. 1/H/Überschrif t 1.1: Hydrauliksystem e ntlüften @ 6\mod_11805314 44046_75.docx @ 94390 @ 2 @ 1
3.6 Bleeding the Hydraulic System
Pos: 42 /Technische Dok umentation/Hebetec hnik/00 HBZ Alle/01/I nhalte/Info! /Inhalt: Info - Entlüftung dur ch Service @ 14\ mod_1239951513310_75.doc x @ 361778 @ @1
Bleeding of hydraulic system is done by authorized service technicians.
Pos: 43 /Technische Dok umentation/Alle Geräte/01/Überschrif ten/Überschrif ten1. 1/M/Überschrif t 1.1: Manuelles Absenken @ 6\ mod_1178113285703_75.d ocx @ 90869 @ 2 @ 1

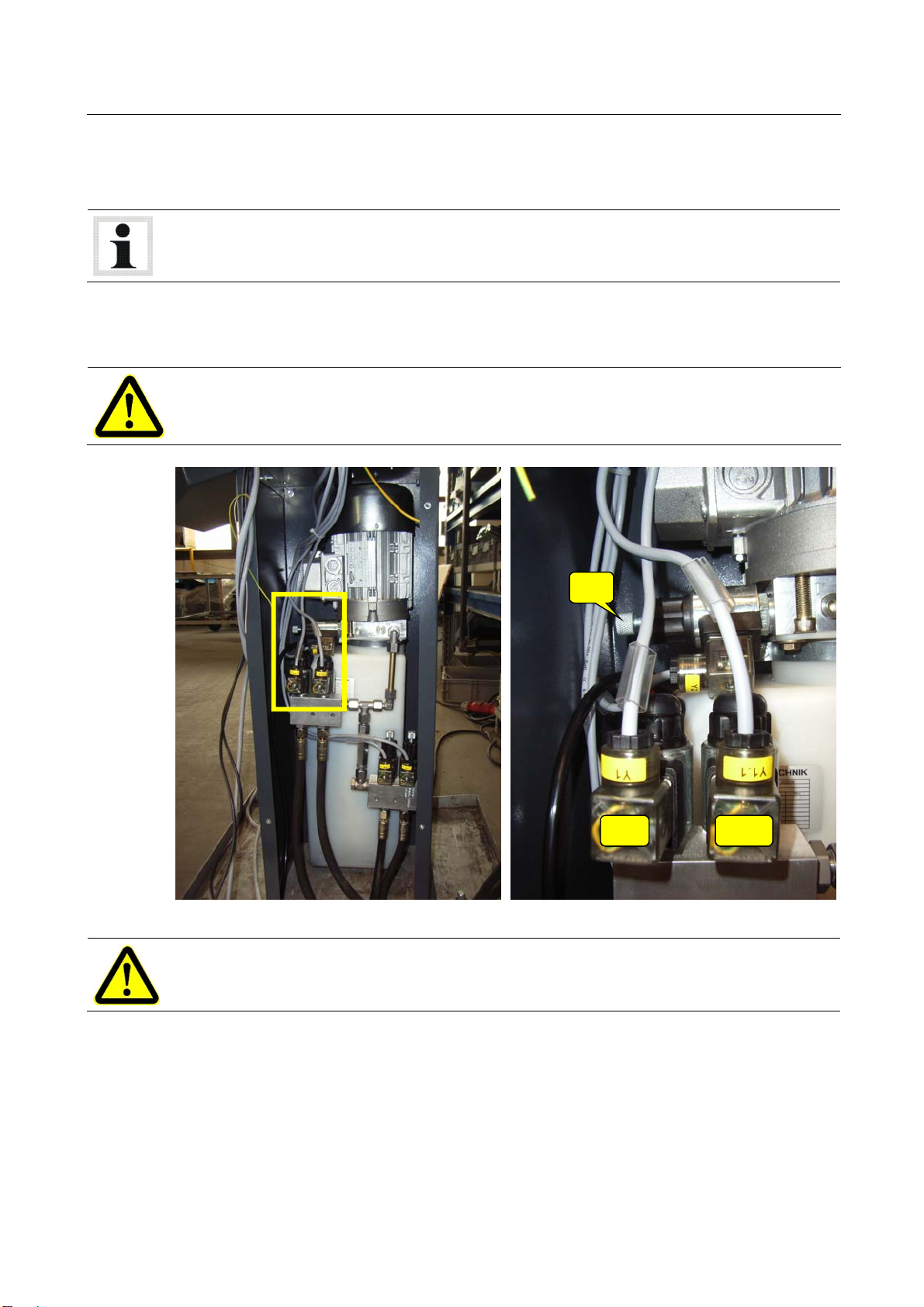

3.7 Manual Lowering
Pos: 44 /Technische Dok umentation/Hebetec hnik/00 HBZ Alle/01/I nhalte/War nung!/Inhalt: Warnung - Manuelles Absenken nur durch gesc hultes Personal @ 6\mod_ 1180962217687_75.doc x@ 952 17 @ @ 1
Authorized personnel only! Do not restart the lift before the error has been remedied.
Pos: 45 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Man uelles Absenken (Bi lder) @ 14\mod_1240491382058_ 0.docx @ 367017 @ @ 1
Pos: 46 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Man uelles Absenken (Text) @ 12\ mod_1232702342162_75. docx @ 320960 @ @ 1
If the lift lowers although valves Y1 / Y1.1 are not being actuated, or if the support plates raise
and lower unevenly, open the knurled screw at valve Y2 immediately, shut down the lift and
contact the service department.
1 Remove the front cover of the control desk.
2 Close knurled screw at valve Y2 .
3 Press valves Y1 und Y1.1 simultaneously until the lift lowers.
4 While lowering, check that both support plates are at the same level.
5 As soon as the lift is in bottom position, release valves Y1 und Y1.1 and open the knurled
screw at valve Y2.
Pos:47 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ @ 1
Y
Y
1.
Y
1

10
BA082701-en
Pos: 48 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/Q/Überschri ft 1.1: Quertraverse @ 17\ mod_1251387833213_75. docx @ 431340 @ 2 @ 1
3.8 Transverse Beam
Pos: 49 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Quer traverse, Option ( Text) @ 17\mod_1251384841108_ 75.docx @ 431284 @ @ 1
Intended Use
The transverse beam is optionally available. It is designed for lifting vehicles whose support
points are outside the support range of the lifting unit.
Scope of Delivery
Transverse beam (2 pcs.), aluminium, powder coated.
Accessories
Support blocks (required):
340 x 132 x 47 mm (VZ 975069) or 340 x 150 x 95 mm (VZ 970045)
Important Operating Instructions
Make sure the transverse beam (A) is positioned symmetrically on the surface of the wheel-
free jack (check using yellow marking!).
Position the support blocks (B) on the antiskid coating.
Note the colour marking:
Yellow (C) = This section must be positioned fully on the support plate of the lifting unit.
Black (D) = Antiskid coating. Engage the vehicle only in this section.
Red (E) = Do not engage the vehicle in this section.

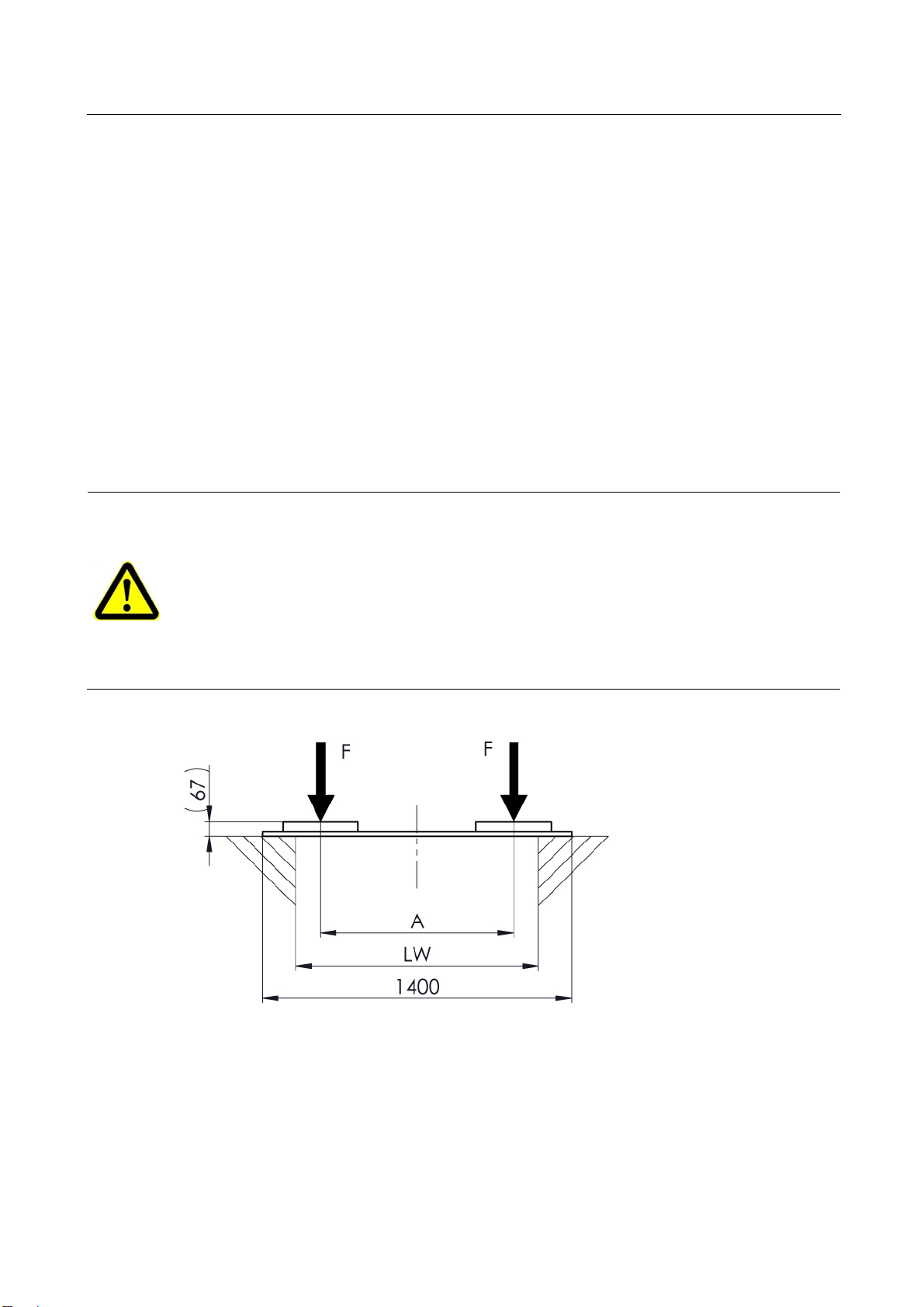

Do not exceed rated distances and load capacity (see illustration).
Pos: 50 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Quer traverse, Option (Bi lder 1) @ 17\mod_1251704499368_ 0.docx @ 431773 @ @ 1
Amin = 875 mm
LWmax = 1100 mm
Fmax = 750 kg • g
Pos:51 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ @ 1

11
BA082701-en
Pos: 52 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Quer traverse, Option (Bi lder 2) @ 17\mod_1251386631900_ 0.docx @ 431311 @ @ 1
Pos:53 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ @ 1
A
B
C
C
E
D
D

12
BA082701-en
Pos: 54 /Technische Dok umentation/Papier korb/Überschri ften/Überschrif t 1: Instandhaltung @ 11\mod_123 1318736629_75.doc x @ 289550 @ 1 @ 1
4 Maintenance
Pos: 55 /Technische Dok umentation/Alle Ger äte/01/Inhalte/ Warnung!/Inhalt: W arnung - Hauptschalter aus bei Instandhaltung @ 14\mod_1 240239070975_75.doc x @ 362949 @ @ 1
Danger! Electric shock hazard!
Before doing any maintenance work, turn off the main switch and protect it against tampering.
Pos:56 /TechnischeDokumentation/Alle Geräte/01/Überschriften/Überschriften1.1/I/Überschrift1.1: Instandhaltungsplan @ 11\mod_1231 318919401_75.doc x@ 2896 22 @ 2 @ 1
4.1 Maintenance Schedule
Pos: 57 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Ins tandhaltungsplan @ 12\ mod_1233057563744_75. docx @ 324058 @ 2 @ 1
Interval Maintenance items Procedure
3 months Hydraulic system
Check fluid level, refill if necessary.
Check hydraulic system for tightness.
Check sealing cups for damage, replace if
necessary.
Check power unit for unusual noise during
operation, check fastening screws for tight fit.
6 months Hydraulic fluid Check fluid for soiling and aging, replace if
necessary.
12 months General inspection Check all components for damage.
Pos: 58 /Technische Dok umentation/Papier korb/Überschri ften/Überschrif t 1.1: Jährliche Überprüf ung @ 6\mod_1174482245718_ 75.docx @ 76817 @ 2 @ 1
4.2 Annual Inspection
Pos: 59 /Technische Dok umentation/Alle Gerät e/01/Inhalte/ Info!/Inhalt: Inf o - Jährliche Überprüfung @ 14\ mod_1242051457491_75. docx @ 373548 @ 2 @ 1
The maintenance interval prescribed by the manufacturer is 12 (twelve) months.
This maintenance interval refers to normal workshop usage. If the equipment is used more
frequently or under severe operating conditions (e.g. outdoors), the interval must be reduced
accordingly.
Maintenance work shall be done only by authorized and trained service technicians provided
by the manufacturer, licensed dealers or service partners.
In case of non-compliance the manufacturer's warranty becomes void.
Pos: 60 /Technische Dok umentation/Hebetec hnik/00 HBZ Alle/01/I nhalte/Info! /Inhalt: Info - BGR 500 / BGG 945 Jähr liche Überprüfung @ 7\ mod_1196177427630_75.d ocx @ 133733 @ @ 1
Pos:61 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ 2 @ 1

13
BA082701-en
Pos: 62 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/H/Überschri ft 1.1: Hydrauliköl nac hfüllen @ 6\mod_11806149980 15_75.docx @ 94590 @ 2 @ 1
4.3 Refilling with Hydraulic Fluid
Pos: 63 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Hydr auliköl nachfüllen ( Bild) @ 12\mod_1233052 464874_0.docx @ 323614 @ @ 1
Pos: 64 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Ölst and prüfen (Text) @ 12\mod_12 32976039115_75.doc x@ 3231 86 @ @1
1 Check hydraulic fluid level every 3 months with a completely lowered lift.
2 Add missing fluid via the filler inlet. Make sure hydraulic fluid meets HLPD 32 specification.
Pos: 65 /Technische Dok umentation/Hebetec hnik/00 HBZ Alle/01/I nhalte/Info! /Inhalt: Info - Tausch vonÖl und Druc kschläuchen @ 14\mod_123 9952209207_75.doc x @ 361832 @ 2 @ 1
Replace the hydraulic fluid periodically, depending on aging, soiling and water absorption.
When topping up, use fluid with the same specification only.
If the lift is operated permanently at an ambient temperature of < 15 °C, use hydraulic fluid
with a lower viscosity.
The pressure hoses should be replaced as required, but after six years at the latest.
Pos: 66 /Technische Dok umentation/Alle Ger äte/01/Überschri ften/Überschri ften 1.1/R/Überschri ft 1.1: Reinigung @ 6\mod_11 78617677265_75.doc x @ 91586 @ 2 @ 1
4.4 Cleaning
Pos: 67 /Technische Dok umentation/Papier korb/alt/Inhal t: Reinigung HBZ @ 7\mod_119728 9850229_75.doc x@ 13742 6 @ @ 1
Periodically wash off aggressive substances and treat the lift with oil or wax spray.
Pos: 68 /Technische Dok umentation/Alle Ger äte/01/Inhalte/ Warnung!/Inhalt: W arnung - Beschädigungsgef ahr/Reinigung @ 14\ mod_1239952020489_75. docx @ 361805 @ @ 1
Risk of damage!
Do not use high pressure or steam jet cleaners. Do not use caustic cleaning agents.
Pos:69 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ 1 @ 1

14
BA082701-en
Pos: 70 /Technische Dok umentation/Alle Gerät e/01/Überschri ften/Überschri ften 1/F/Überschrif t1: Fehlerbehebung @ 6\mod_1177501 739937_75.docx @ 90397 @ 1 @ 1
5 Troubleshooting
Pos: 71 /Technische Dok umentation/Hebetec hnik/08 Scher en-Hebebühnen/2701 MPL 3.5/BA/Inhalt: 0827 Fehl erbehebung @ 16\mod_124635 7193762_75.doc x@ 39925 0 @ @1
Error Diagnosis Remedy
Lift does not run.
Main switch turned off. Turn on main switch.
Power failure. Check for cause of p. failure.
Power cord interrupted. Replace defective cord.
Fuses defective. Replace fuses.
Selector switch in wrong position. Turn switch to correct position.
Lift does not raise.
Reverse motor rotation. Interchange two phases at
main switch.
Low fluid level. Top up fluid reservoir.
RAISE button defective. Check button and line, replace
if necessary.
Pump intake filter dirty. Check and clean filter.
Valve Y2 disabled after manual
lowering.
Enable valve Y2 by opening
the knurled screw.
Lift capacity insufficient. Pressure valves maladjusted. Contact service.
Pump defective.
Lift does not lower.
LOWER solenoid valve
defective. Contact service.
LOWER button defective.
Support plates lower without
control button being pressed.
LOWER solenoid valve does
not close completely. Contact service.
Leakage in at least two
hydraulic lines.
Check connections for tight fit
and hoses for damage,
replace if necessary.
Lift shows jerky movements. Air in hydraulic system. Contact service.
Support plates tilted – in
same direction. Vehicle lifted asymmetrically. Lift vehicle symmetrically.
Support plates tilted –
towards outside or inside. Incorrect cylinder connection. Contact service to have
cylinder connection corrected.
Pos:72 /-----Format-----/MANUELLERUMBRUCHSeitenumbruch@ 0\mod_1134403577687 _0.docx @ 1277 @ 1 @ 1

15
BA082701-en
Pos: 73 /Technische Dok umentation/Alle Gerät e/01/Überschri ften/Überschri ften 1/F/Überschrif t1: Firmen-Information @ 7\mod_1 187338625828_75.doc x @ 104047 @ 1 @ 1
6 Company Information
Pos: 74 /Technische Dok umentation/Alle Gerät e/01/Inhalte/I nhalt: Firmen-Infor mation MAHA (2013-05-24 11: 04:40) @ 24\mod_13068322 55635_75.docx @ 1015141 @ @ 1
© MAHA Maschinenbau Haldenwang GmbH & Co. KG
Legal notice based on ISO 16016:
The reproduction, distribution and utilization of this document as well as the communication of
its contents to others without explicit authorization is prohibited. Offenders will be held liable for
the payment of damages. All rights reserved in the event of the grant of a patent, utility model or
design.
The contents of this edition have been checked with great care. However, errors cannot be fully
excluded. Subject to technical change without notice.
Document
Document №: BA082701-en
Approval Date: 25.11.2009
Manufacturer
MAHA Maschinenbau Haldenwang GmbH & Co. KG
Hoyen 20
87490 Haldenwang
Germany
Phone: [phone]
Fax: [phone]
Fax Parts: [phone]
Internet: http://www.maha.de
E-Mail: [email protected]
Hotline: [phone] for Brake Testers and Test Lanes
[phone] for Automotive Lifts
[phone] for Dynamometers and Emission Testers
Service
AutomoTec GmbH
Maybachstraße 8
87437 Kempten
Germany
Phone: [phone]
Fax: [phone]
Internet: http://www.automo-tec.com
E-Mail: [e-mail]
=== Ende der Liste für Textmarke Inhalt ===
