Maha Rge uc User manual

Fehler! Verwenden Sie die Registerkarte 'Start', um Name dem Text zuzuweisen, der hier angezeigt werden soll.Fehler! Verwenden Sie

die Registerkarte 'Start', um Name dem Text zuzuweisen, der hier angezeigt werden soll.Fehler! Verwenden Sie die Registerkarte

'Start', um Name dem Text zuzuweisen, der hier angezeigt werden soll.

RGE UC

Mobile Column Lift

Original Operating Instructions

BA492301-en

Pos: 1/ Produktfamilien/Hebetechnik/COLUMNLIFT/492301 RGEUC/BA/Inhalt: 4923 Titelbild @ 55\mod_1539767752124_0. docx @ 3092442 @ @ 1

Pos: 2/-----F ormat -----/MANUELLER UMBRUCH Seitenumbruch @ 0\mod_ 1134403577687_0.do cx @ 1277 @ @ 1

BA492301-en

Pos: 3 /Produktfamilien/Alle Geräte/Inhalte/Inhalt: Firmen-Information MAHA @ 53\mod_ 1529400378770_75. docx @ 3037518 @ @ 1

Legal notice based on ISO 16016:

The reproduction, distribution and utilization of this document as well as the communication of its

contents to others without explicit authorization is prohibited. Offenders will be held liable for the

sign.

The contents of this edition have been checked with great care. However, errors cannot be fully

excluded. Subject to technical change without notice.

Document

Document No.: BA492301-en

Approval Date: 2019-05-08

Manufacturer

MAHA Maschinenbau Haldenwang GmbH & Co. KG

Hoyen 20

87490 Haldenwang

Germany

Phone: +49 8374 585 0

Fax: +49 8374 585 590

Mail: maha@maha.de

Web: http://www.maha.de

Service

MAHA SERVICE CENTER

AutomoTec GmbH

Maybachstraße 8

87437 Kempten

Germany

Phone: +49 8374 585 100

Fax: +49 8374 585 491

Mail: service@automo-tec.com

Web: www.automo-tec.com

Pos: 4/-----F ormat -----/MANUELLER UMBRUCH Seitenumbruch @ 0\mod_ 1134403577687_0.docx @ 1277 @ @ 1

BA492301-en

Pos: 5/-----F ormat -----/Inhaltsverzeichnis - 3 Ebenen @ 5\mod_116886744 1046_75.doc x @ 72920 @ @ 1

Contents

Safety ....................................................................................................................5

1.1 Introduction..............................................................................................................5

1.2 Symbols and Signal Words ......................................................................................5

1.2.1 Personal Injury..........................................................................................................5

1.2.2 Property Damage.....................................................................................................5

1.2.3 Information...............................................................................................................5

1.3 Intended Use ...........................................................................................................6

1.4 Inappropriate Use.....................................................................................................6

1.5 Requirements on Operating and Service Personnel ..................................................6

1.6 Safety Instructions for Installation and Initial Operation..............................................6

1.7 Safety Instructions for Operation...............................................................................7

1.8Safety Instructions for Servicing................................................................................7

1.9 What to Do in the Event of Defects or Malfunctions ..................................................8

1.10 What to Do in the Event of an Accident ....................................................................8

1.11 Safety Features ........................................................................................................9

1.11.1 Locking Device.........................................................................................................9

1.11.2 Braking Motor ..........................................................................................................9

1.11.3 Phase Sequence Relay ............................................................................................9

1.11.4 Thermal Overload Protection ....................................................................................9

1.11.5 Safety Shutdown after Motor Overload.....................................................................9

1.11.6 Warning and Information Labels ...............................................................................9

Description ..........................................................................................................10

2.1 General Information................................................................................................10

2.2 Specifications.........................................................................................................10

2.3 Sample Nameplate.................................................................................................12

Operation.............................................................................................................13

3.1 Handling / Moving the Columns..............................................................................13

3.2 Commissioning ......................................................................................................14

3.3 Controls and Indicators ..........................................................................................16

3.4 Main Switch ...........................................................................................................17

3.5 Emergency Stop ....................................................................................................18

3.6 Operating Modes ...................................................................................................18

3.6.1 Automatic Mode.....................................................................................................18

3.6.2 Single Mode...........................................................................................................19

3.6.3 Group Mode ..........................................................................................................20

BA492301-en

3.6.4 Cable Remote Control............................................................................................20

3.7 Manual Lowering....................................................................................................21

3.8 Adjustment of Support Forks..................................................................................22

3.9 Operation with more than 6 Columns .....................................................................23

Maintenance ........................................................................................................24

4.1 Annual Inspection...................................................................................................24

4.2 Care Instructions....................................................................................................24

4.3 Spare Parts............................................................................................................25

4.4 Maintenance by the Operator .................................................................................25

4.4.1 Lubricants..............................................................................................................25

4.4.2 Recirculating Ball Nut .............................................................................................25

4.4.3 Moving Gear ..........................................................................................................26

4.4.4 Options..................................................................................................................27

4.4.5 Thrust Washers......................................................................................................28

4.5 Setting the Hydraulic Jack......................................................................................31

4.6 Display Codes........................................................................................................32

Service Lifetime....................................................................................................34

Dismantling..........................................................................................................34

Disposal...............................................................................................................34

Contents of the Declaration of Conformity.............................................................34

Pos: 6 /-----F orma t-----/MANUELLER UMBRUCH Seitenumbruch @ 0\mod_ 1134403577687_0.docx @ 1277 @ @1

BA492301-en

Pos: 7 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1/S/Überschrift 1: Sic herheit @ 6\mod_117448239 9906_75.docx @ 76962 @ 1@ 1

Safety

Pos: 8 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1/E/Überschrift 1.1: Einführung @ 6\mod_ 1174482219062_75. docx @ 76793 @ 2@ 1

1.1

Introduction

Pos: 9 /Produktfamilien/Alle Geräte/Inhalte/Sicherheit/Inhalt: Einführung Sicherheit_12pt @ 25\mod_ 1324455248318_75.docx @ 1138886 @ @ 1

Thoroughly read this manual before operating the equipment and comply with the

instructions. Always display the manual in a conspicuous location.

Personal injury and property damage incurred due to non-compliance with these

safety instructions are not covered by the product liability regulations.

Pos: 10.1 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1/S/Überschrift 1.1: Symbole und Signalwörter @ 50\mod_15033146128 25_75.docx @ 2923200 @ 2 @1

1.2

Symbols and Signal Words

Pos: 10.2/Produktfamilien/AlleGeräte/Überschriften/Überschriften1.1.1/P/Überschrift1.1.1: Personenschäden@ 50\mod_1503389040316_ 75.docx @ 2923708 @ 3@ 1

1.2.1

Personal Injury

Pos: 10.3 /Produktfamilien/Alle Geräte/Inhalte/Sicherheit/Inhalt: Sy mbole u nd Signa lwörte r - Personenschäden@ 50\mod_1503389427470_75. docx @ 2923852 @ @ 1

DANGER

indicates an immediate hazard which, if not avoided, will result in death or severe

personal injury.

WARNING

indicates a potential hazard which, if not avoided, could result in death or severe

personal injury.

CAUTION

indicates a potential hazard which, if not avoided, could result in moderate or mi-

nor personal injury.

Pos: 10.4 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1.1/P/Überschrift 1.1.1: Produkt-, Maschinen-, Anlagenschäden@ 50\mod_1503389109661_75. docx @ 2923756 @ 3 @ 1

1.2.2

Property Damage

Pos: 10.5 /Produktfamilien/Alle Geräte/Inhalte/Sicherheit/Inhalt: Symbole und Signalwörter - Produktschäden @ 50\mod_ 1503389546628_75.docx @ 2923899 @ @ 1

NOTICE

indicates a potentially harmful situation which, if not avoided, could result in dam-

age to the equipment or surrounding objects.

Pos: 10.6 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1.1/I/Überschrift 1.1.1: I nformationen@ 50\mod_ 1503389229939_75.docx @ 2923804 @ 3 @ 1

1.2.3

Information

Pos: 10.7 /Produktfamilien/Alle Geräte/Inhalte/Sicherheit/Inhalt: Symbole und Signalwörter - Informationen @ 50\mod_1503389 660901_75.docx @2923946 @ @ 1

indicates important information notes.

Pos: 11 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 12 /Produktfamilien/Alle Geräte/Überschriften/Überschriften1.1/B/Überschrift1.1: Bestimmungsgemäßer Gebrauch@ 6\mod_ 1176734022203_75.docx @ 88746 @ 2 @ 1

1.3

Intended Use

Pos: 13 /Produktfamilien/Hebetechnik/- Arch iv -/49 Radgreifer-Hebebühnen/0001 Radgreifer-HebebühnenAlle/Inhalte/Inhalt: Bestimmungsgemäßer Gebrauch RG-HBZ_12p t @ 26\mod_1325512374516_ 75.docx @ 1143563 @ @ 1

•This lift is to be used exclusively for the safe lifting of commercial and agricultur-

al vehicles such as trucks, buses, tractors etc. Observe the rated load capacity.

•The lift may not be modified without the express written consent of the manu-

facturer. In case of non-compliance the declaration of conformity becomes

void.

Pos: 14 /Produktfamilien/AlleGeräte/Überschriften/Überschriften 1.1/B/Überschrift 1.1: BestimmungswidrigerGebrauch @ 18\mod_1255530265027_ 75.docx @ 471571 @ 2@ 1

1.4

Inappropriate Use

Pos: 15 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Inhalt: WARNUNG - Bestimmungswidriger Gebrauch HBZ_12pt @ 53\mod_15276854602 71_75.doc x @ 3036085 @ @ 1

WARNING

Any use other than described is inappropriate, for example:

•Climbing on the lift supports

•Transporting persons on the lift supports

•Usage as mobile work platform or for other lifting operations

Pos: 16/Produktfamilien/AlleGeräte/Überschriften/Überschriften1.1/A/Überschrift1.1: Anforderungenan dasBedienungs- und Servicepersonal@ 34\mod_ 1380637497630_75.do cx @ 1835413 @ 2 @ 1

1.5

Requirements on Operating and Service Personnel

Pos: 17 /Produktfamilien/Alle Ge räte/Inhalte/Sicherheit/Inhalt:Anfo rderungen an das Bedienungs- und Servicepersonal_12pt @ 52\mod_1516807277486_ 75.docx @ 3001475 @ @ 1

WARNING

All persons employed in the operation, maintenance, installation, removal and dis-

posal of the device must

•be at least 18 years old,

•be mentally and physically suited for these activities,

•be demonstrably trained and instructed in writing,

•have read and understood the operating instructions, especially the instructions

what to do in the event of defects or malfunctions,

•be on record as having been instructed in safety guidelines,

•have practical experience in working with vehicle lifts and the hazards inherent

in such equipment.

Pos: 18 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1/S/Überschrift 1.1: Sicherheitsvorschriften für I nstallation und Erstinbetriebnahme @24\mod_1310565059 431_75.docx @ 1023543 @ 2 @ 1

1.6

Safety Instructions for Installation and Initial Operation

Pos: 19 /Produktfamilien/Hebetechnik/- Arch iv -/49 Radgreifer-Hebebühnen/0001 Radgreifer-HebebühnenAlle/Inhalte/Inhalt: Sicherheitsvorschriften für Installation und ErstinbetriebnahmeRG-HBZ_ 12pt @ 26\mod_132551312034 0_75.docx @ 1143627 @ @ 1

WARNING

•Use the lift on a hard, level surface only.

•The standard lift version must not be installed and commissioned in the vicinity

of explosives or flammable liquids.

Pos: 20 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_11344035 77687_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 21 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1/S/Überschrift 1.1: Sicherheitsvorschriften für d en Betrieb @ 6 \mod_1174482268953_ 75.docx @ 76826@ 2 @ 1

1.7

Safety Instructions for Operation

Pos: 22 /Produktfamilien/Hebetechnik/- Arch iv -/49 Radgreifer-Hebebühnen/0001 Radgreifer-HebebühnenAlle/Inhalte/Inhalt: Sicherheitsvorschriften für den BetriebRG -HBZ_12pt @ 56\mod_15568758088 85_75.docx @ 3138630 @ @ 1

WARNING

•Read the detailed operating manual.

•Use personal protective equipment.

•The lift owner/operator must provide a tidy and clean workplace.

•Carry out a visual and functional check of the equipment every day before start-

ing work.

•Do not exceed the rated load capacity per column as indicated on the lift

nameplate.

•Ensure an unobstructed movement of lift and vehicle.

•The vehicle doors must be closed during lift operation.

•After raising the vehicle briefly, stop and check the lift supports for secure con-

tact with the vehicle.

•Closely watch lift and vehicle during raising and lowering cycles.

•The working area which cannot be overviewed by the operator should be moni-

tored by a second person.

•When operating the lift in single or group mode, make sure the vehicle is not

tilted.

•Do not allow anyone to stay in lift area during raising and lowering cycles.

•Do not allow anyone to climb on lift or inside raised vehicle.

•Keep lift and vehicle free of tools and parts.

•When using the lift outdoors, lower the vehicle and stop operation when the

wind velocity exceeds 6 m/s.

•Push the support forks completely under the wheels or lift points of the vehicle

to be raised.

•Do not drive over or pinch electrical cables.

Pos: 23 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1/S/Überschrift1.1: SicherheitsvorschriftenfürServicearbeiten@ 6\mod_ 1174482270640_75.docx @ 76850 @ 2 @ 1

1.8

Safety Instructions for Servicing

Pos: 24 /Produktfamilien/Hebetechnik/- Arch iv -/49 Radgreifer-Hebebühnen/0001 Radgreifer-HebebühnenAlle/Inhalte/Inhalt: Sicherheitsvorschriften für Servicearbeiten RG-HBZ_12pt @ 26\mod_ 1325513609250_75.docx @ 1143691 @ @ 1

•Service work may be done by authorized service technicians only.

•Turn off and padlock the main switch before doing any repair, maintenance or

setup work.

•Disconnect the mains plug before opening the control box.

•Work on the electrical equipment may be done by service technicians or certi-

fied electricians only.

•Ensure that ecologically harmful substances are disposed of only in accordance

with the appropriate regulations.

BA492301-en

•Do not use high pressure or steam jet cleaners or caustic cleaning agents for

cleaning the lift,

•Do not replace or override the lift safety devices.

Pos: 25 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1/V/Überschrift 1.1: Verhalten im Störfall @ 6\mod_ 1178097008375_75.doc x @ 90829 @ 2 @ 1

1.9

What to Do in the Event of Defects or Malfunctions

Pos: 26 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Inhalt: WARNUNG - Verhalten im Störfal l HBZ_12pt @ 54\mod_1534921928842_75.docx @ 3081581 @ @ 1

WARNING

•In case of defects or malfunctions such as uncontrolled lift movement or defor-

mation of the superstructure, support or lower the lift immediately.

•Turn off the main switch and secure it against unauthorized usage. Contact

service.

Pos: 27 /Produktfamilien/AlleG eräte/Überschriften/Überschriften1.1/V/Überschrift 1.1: Verhalten bei Unfällen @ 19\mod_1267177245337_75. docx @ 794600 @ 2@ 1

1.10

What to Do in the Event of an Accident

Pos: 28 /Produktfamilien/Alle Geräte/Inhalte/Sicherheit/Inhalt: Verhalten bei Unfällen_12pt @ 34\mod _1381128863435_75.doc x@ 1837175 @ @ 1

•The injured person is to be removed from the danger area. Find out where

dressing and bandages are kept. Seek first-aid.

•Provide first-aid (stop bleeding, immobilise injured limbs), report the accident

and seal off the accident site.

•Immediately report any accident to your supervisor. Make sure a record is kept

of every occasion first-aid is provided, e.g. in an accident book.

•Remain calm and answer any questions that may arise.

Pos: 29 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 30 /Produktfamilien/AlleGeräte/Überschriften/Überschriften 1.1/S/Überschrift 1.1: Sicherheitseinrichtungen @ 6\mod_1174483324765_75.docx @ 77103 @ 2 @ 1

1.11

Safety Features

Pos: 31 /Produktfamilien/Hebetechnik/- Arch iv -/49 Radgreifer-Hebebühnen/0001 Radgreifer-HebebühnenAlle/Inhalte/Inhalt: Sicherheitseinrichtungen RG-HBZ_12pt @ 26\mod_1325513760548_75.docx @ 1143755 @ 333333 @ 1

1.11.1

Locking Device

The locking device serves to prevent inadvertent lowering motions

caused by gear, load nut or lifting screw failure. The carriage is

blocked by safety wedge (1) and counterwedge (2).

1.11.2

Braking Motor

The motors are equipped with AC spring pressure brakes. Once

the motors are switched off, the brakes prevent any further

movements.

1.11.3

Phase Sequence Relay

The phase sequence relay in the power supply unit ensures safe

and independent operation.

1.11.4

Thermal Overload Protection

Overload protection via electronically monitored thermoswitches.

1.11.5

Safety Shutdown after Motor Overload

The motor load is permanently monitored by the control PCB. If an overload of

≥15 %

occurs, the system will switch off automatically. In this case the lift cannot

be raised any more, but it can be normally lowered to bottom position.

1.11.6

Warning and Information Labels

Do not change or remove the warning and information labels. Order replacement

for defective labels.

Pos: 32 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 33 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1/B/Überschrift1: Beschreibung @ 6\mod_1174482271453_ 75.docx @ 76889 @1 @ 1

Description

Pos: 34 /Produktfamilien/AlleGeräte/Überschriften/Überschriften 1.1/A/Überschrift 1.1: Allgemeines @6\mod_ 1182865005781_75.do cx @ 97736 @ 2 @ 1

2.1

General Information

Pos: 35 /Produktfamilien/Hebetechnik/COLUMNLIFT/492301 RGE UC/BA/Inhalt: 4923 BeschreibungA llgemeines@ 55\mod_ 1539845643052_75.docx @ 3093077 @ @ 1

The mobile column lifts of this series consist of 2 or 4 columns and can be

expanded to 6 columns in the standard version. The lift can be expanded up to 12

columns when using a special power supply unit.

All components are easily accessible under the lifted vehicle due to a generous

maximum lifting height of 1750 mm.

The lift is a mobile unit whereby the columns can be substituted with stands when

vehicles are to be worked on for a longer period of time. The lifting columns are

free to be used on other vehicles.

Pos: 36 /Produktfamilien/AlleGeräte/Überschriften/Überschriften1.1/T/Überschrift 1.1: TechnischeDaten @ 7\mod_118407552634 3_75.doc x @ 99711 @ 2@ 1

2.2

Specifications

Pos: 37 /Produktfamilien/Hebetechnik/COLUMNLIFT/492301 RGE UC/BA/Inhalt: 4923 TechnischeDate n (Tabelle)@ 55\mod_ 1539844767305_75.do cx@ 3093040 @ @ 1

Load capacity per column 7500 kg

Full travel 1750 mm

Raising / Lowering time 113 s

Raising speed 920 mm/min

Tyre diameters 550…1500 mm

Motor power 1.5 kW

Protection class IP 54

Supply voltage 3~ 400 V; 50 Hz

Net weight per column 450 kg

Surface load 0.5 N/mm2

Noise emission < 70 dB(A)

Pos: 38 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 39 /Produktfamilien/Hebetechnik/COLUMNLIFT/492301 RGE UC/BA/Inhalt: 4923 TechnischeDate n (Bild)@ 54\mod_ 1529502849700_0.docx @ 3037835 @ @ 1

Pos: 40 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 41 /Produktfamilien/AlleGeräte/Überschriften/Überschriften 1.1/T/Überschrift 1.1: Typenschild-Muster @ 11\mod_ 1227622206096_75.docx @ 275574 @ 2 @ 1

2.3

Sample Nameplate

Pos: 42 /Produktfamilien/Hebetechnik/- Arch iv -/49 Radgreifer-Hebebühnen/0001 Radgreifer-HebebühnenAlle/Inhalte/Inhalt: 4900 Typenschild-Position RG-HBZ_12pt @ 26\mod_ 1325515642544_75.docx @ 1144043 @ @ 1

Lifts of this model series have one nameplate at the lifting carriage of each column

and also on the supply unit (if present).

In the event of customer complaints, hotline requests or spare parts orders, serial

number and YoM of the lift should always be indicated.

Pos: 43 /Produktfamilien/Hebetechnik/- Arch iv -/49 Radgreifer-Hebebühnen/0001 Radgreifer-HebebühnenAlle/Inhalte/Inhalt: 4900 Typenschild-Muste r RG-HBZ MAHA @ 55\mod_1539847355918_ 75.docx @ 3093114 @ @ 1

MOBILE COLUMN LIFT

Ser. No./ Date of Production: ***

Project: ***

Type: ***

Charging Voltage ***

Operating Voltage ***

Net weight per column ***

Load capacity per column ***

System of Protection ***

WEEE Reg. No. ***

Pos: 44 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 45 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1/B/Überschrift1: Bedienung @ 6\mod_1174482271218_75. docx @ 76877 @ 1@ 1

Operation

Pos: 46 /Produktfamilien/AlleGeräte/Überschriften/Überschriften 1.1/T/Überschrift 1.1: Transport / Verschiebenvon Hubsäulen @ 12\mod_12314863580 29_75.docx @ 300405 @ 2 @ 1

3.1

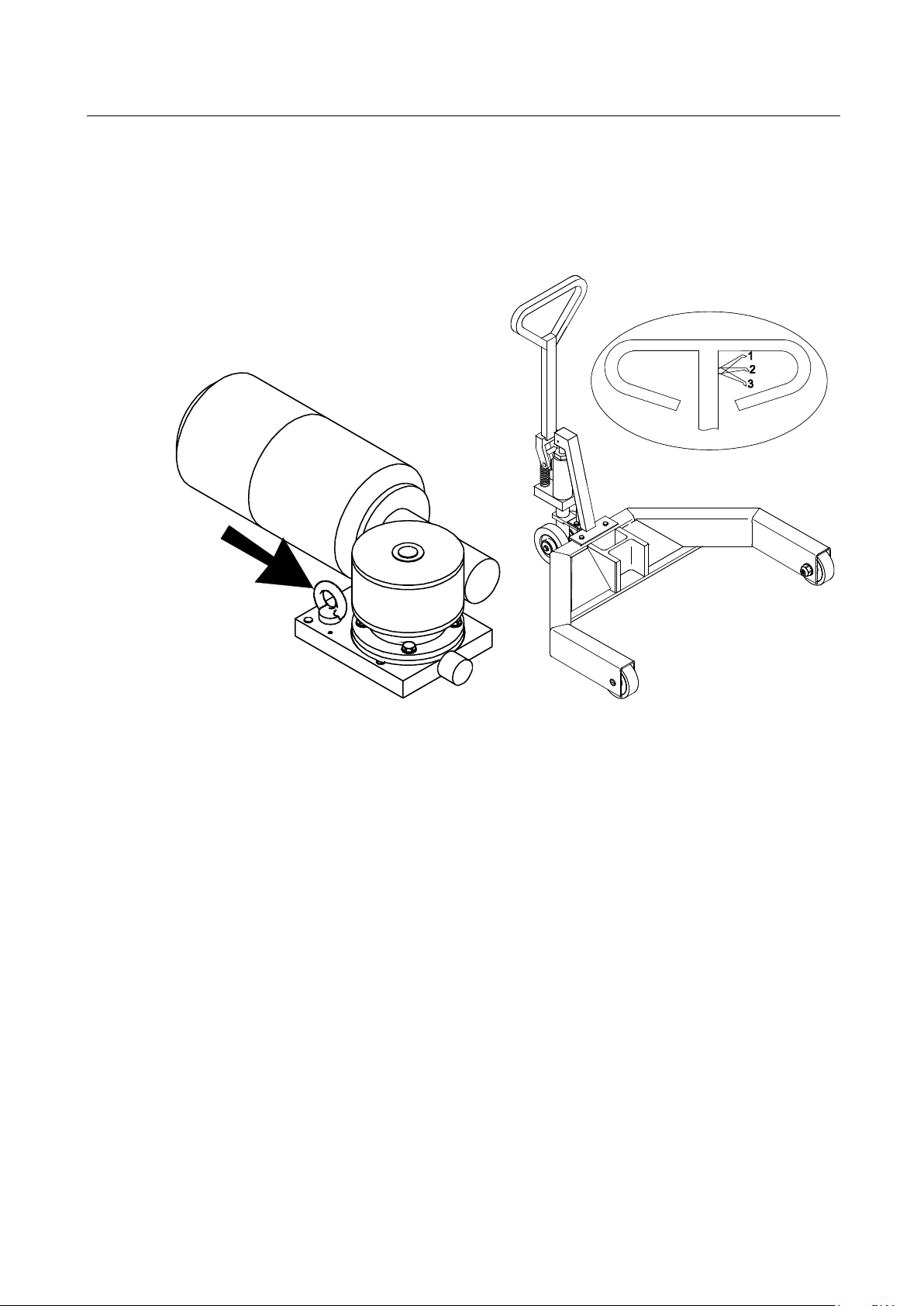

Handling / Moving the Columns

Pos: 47 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Transport/Verschieben (Bilder)@ 12\mod_1231486938020_ 0.docx @ 300505 @ @ 1

Pos: 48 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhal t: 4908 Transpo rt/Verschieben (Text)@ 26\mod_ 1325515805357_75. docx @ 1144075 @ @ 1

Screw a lifting-eye bolt M16 into the tap hole on the motor plate of the column.

Insert a chain or strap through the ring and lift the column using a hoist or forklift.

Close hydraulic valve by putting valve lever in position 3.

Pump with handle to raise the moving gear. Move column to desired position.

To lower the moving gear, open the hydraulic valve by putting the valve lever in

position 1. The column is ready for operation.

Position 2 is the neutral position.

Pos: 49 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 50 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1/I/Überschrift 1.1: Inbetriebnahme @ 14\mod_1241594596219_75. docx@ 371065 @ 2 @ 1

3.2

Commissioning

Pos: 51 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Versorgungseinheit (Bild) @12\mo d_1231747186755_0.docx @ 300870 @ @ 1

Pos: 52 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Versorgungseinheit (Text) @26\mod_ 1325516001427_75.do cx@ 1144139 @ @ 1

Attach the power supply unit (V) to the left-hand sidewall of the control unit (B), as

seen from the controls, to ensure easy accessibility of the main switch.

Pos: 53 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Aufstellend er Hebebühne(Teil 1)@ 26\mod_1325516071625_ 75.docx @ 1144171 @ @ 1

•Use the lift on a hard, level surface only, preferably concrete.

•Apply the parking brake after positioning the vehicle.

•Push the support forks completely under the wheels/lift points of the vehicle.

•Attach the power supply unit (V) to the control unit (B) of the column closest to

the mains socket.

•Interconnect the columns using connecting cables (1) between input terminals

(E) and output terminals (A). Connect a dummy plug or the remote control (2) to

the output terminal of the last column.

Pos: 54 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Aufstellend er Hebebühne(Teil 2)@ 26\mod_1325516127065_ 75.docx @ 1144203 @ @ 1

•Connect the mains plug (3) of the master column with the 400 V mains socket.

Recheck the electrical connections.

•Once the main switch is turned on, the lift is ready for operation.

Pos: 55 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Inhalt: HINWEIS - Auf Kabel achten + St eckkodieriung@ 55\mod_1539864371558_ 75.docx @ 3093510 @ @ 1

NOTICE

•Do not drive over or pinch electrical cables.

•The cable connectors are secured by swivel brackets at the sockets. In order t

avoid any mix-ups, the connectors and sockets have been coded.

Pos: 56 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Anschlussschema(Bilder) @ 12\mod_ 1231748798771_ 0.docx @ 301120 @ @ 1

BA492301-en

Pos: 57 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Anschlussschema(Text) @ 26\mod_ 1325516592255_75.do cx @ 1144299 @ @1

Connection Diagram

Control Unit

Connecting Cable

Power Supply Unit

Dummy Plug

Input Terminal

Mains Plug

Output Terminal

BA492301-en

Pos: 58 /Produktfamilien/AlleGeräte/Überschriften/Überschriften 1.1/B/Überschrift 1.1: Bedien- und Anzeigeelemente @ 23\mod_1296220301443_75. docx @ 968107 @ 2 @ 1

3.3

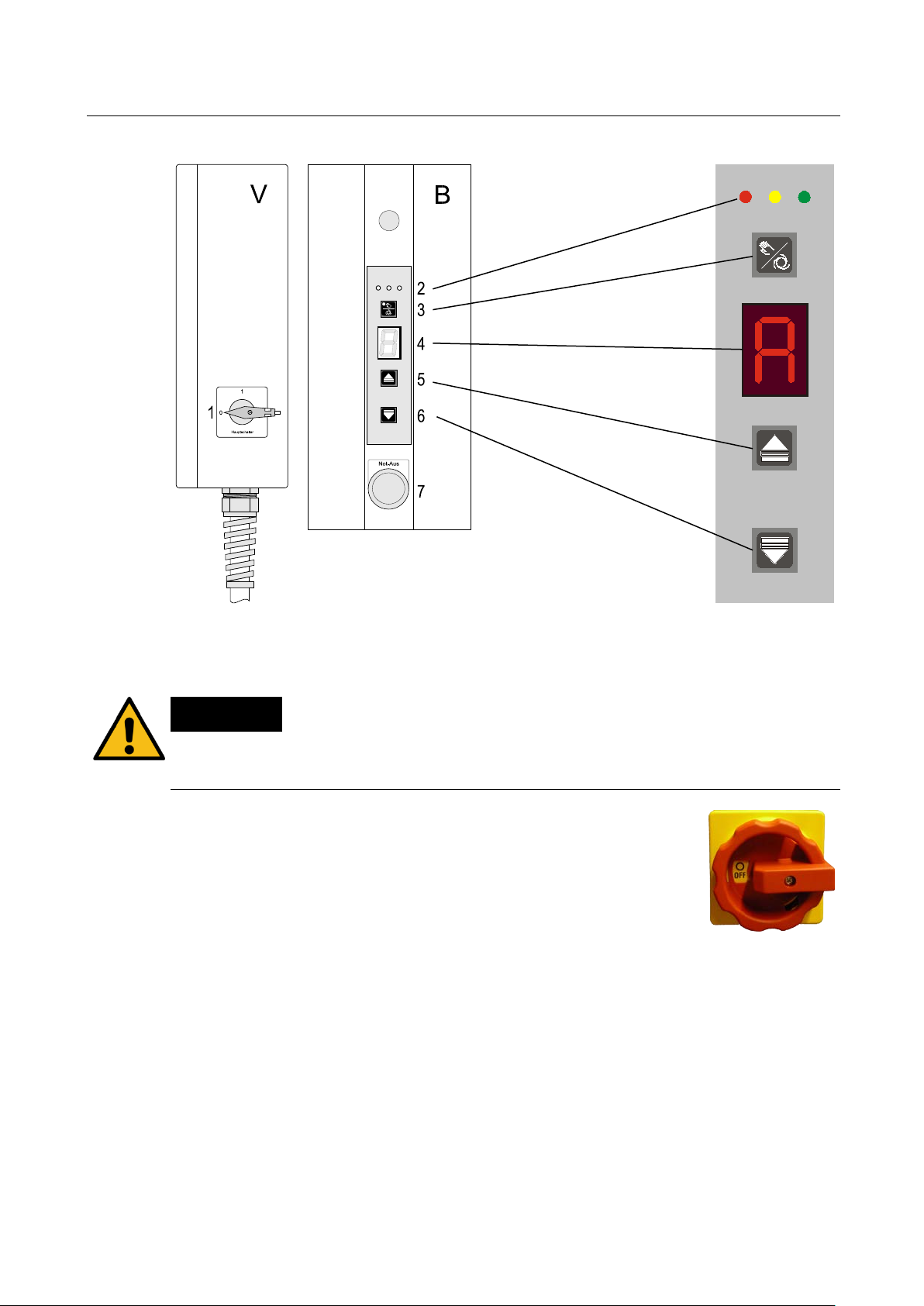

Controls and Indicators

Pos: 59 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Bedienelemente (Text)@ 26\mod_1325515888986_75.docx @ 1144107 @ @1

Power Supply Unit

Control Unit

Main Switch

LED Display

Indicates operating and error states.

Selector Button (on Control Unit)

Use this button to select between: Automatic / Single / Group mode

Seven-Segment Display (on Control Unit)

Indicates operating and error codes.

RAISE Button (on Control Unit)

Press and hold this button to raise the lift. Lift stops once button is released or

upward travel stop is reached.

LOWER Button (on Control Unit)

Press and hold this button to lower the lift. Lift stops once button is released or

downward travel stop is reached.

Emergency Stop Button (on Control Unit)

In case of emergency press this button to disconnect the lift from the mains

supply.

Pull out the button to make the lift ready for operation.

Pos: 60 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.docx @ 1277@ @ 1

BA492301-en

Pos: 61 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Bedienelemente (Bilder)@ 25\mod_1319463749099_0.docx @ 1065861 @ @1

Pos: 62 /Produktfamilien/Alle Geräte/Überschriften/Überschriften1.1/H/Überschrift1.1: Hauptschalter@ 6\mod_ 1177592858312_75.do cx @ 90635 @2 @ 1

3.4

Main Switch

Pos: 63 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Inhalt: GEFAHR - Hauptschalter mit Not-Aus-Funktio n HBZ_12pt @ 54\mod_1534922618384_75. docx @ 3081665@ @ 1

DANGER

The main switch is used as emergency switch. In case of emergency immediately

turn it to position 0!

Main switch in position 0

Lift is disconnected from power supply

Main switch in position 1

Lift is ready for operation

Pos: 64 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 65 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1/N/Überschrift 1.1: Not-Ha lt-Schalter@ 12\mod_1231762685415_75. docx @ 302085 @ 2@ 1

3.5

Emergency Stop

Pos: 66 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Not-Halt @ 2 6\mod_1325575683590_75. docx @ 1144365 @ @ 1

In case of emergency push the emergency stop button to stop the lift movement

immediately.

Pos: 67 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Info!/Inhalt: Info -Not-Hal t_12pt @ 26\mod_132557578 5219_75.docx @ 1144397 @ @ 1

To make the lift ready for operation, unlock the emergency stop button and switch

off the lift briefly using the main switch.

Pos: 68/Produktfamilien/AlleGeräte/Überschriften/Überschriften1.1/B/Überschrift1.1: Betriebsarten@ 14\mod_1242282663093_75.d ocx@ 375477 @ 2 @ 1

3.6

Operating Modes

Pos: 69 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1.1/A/Überschrift 1.1.1: Automatik-Betrieb@ 12\mod_1231753 241005_75.docx @ 301580 @ 3 @ 1

3.6.1

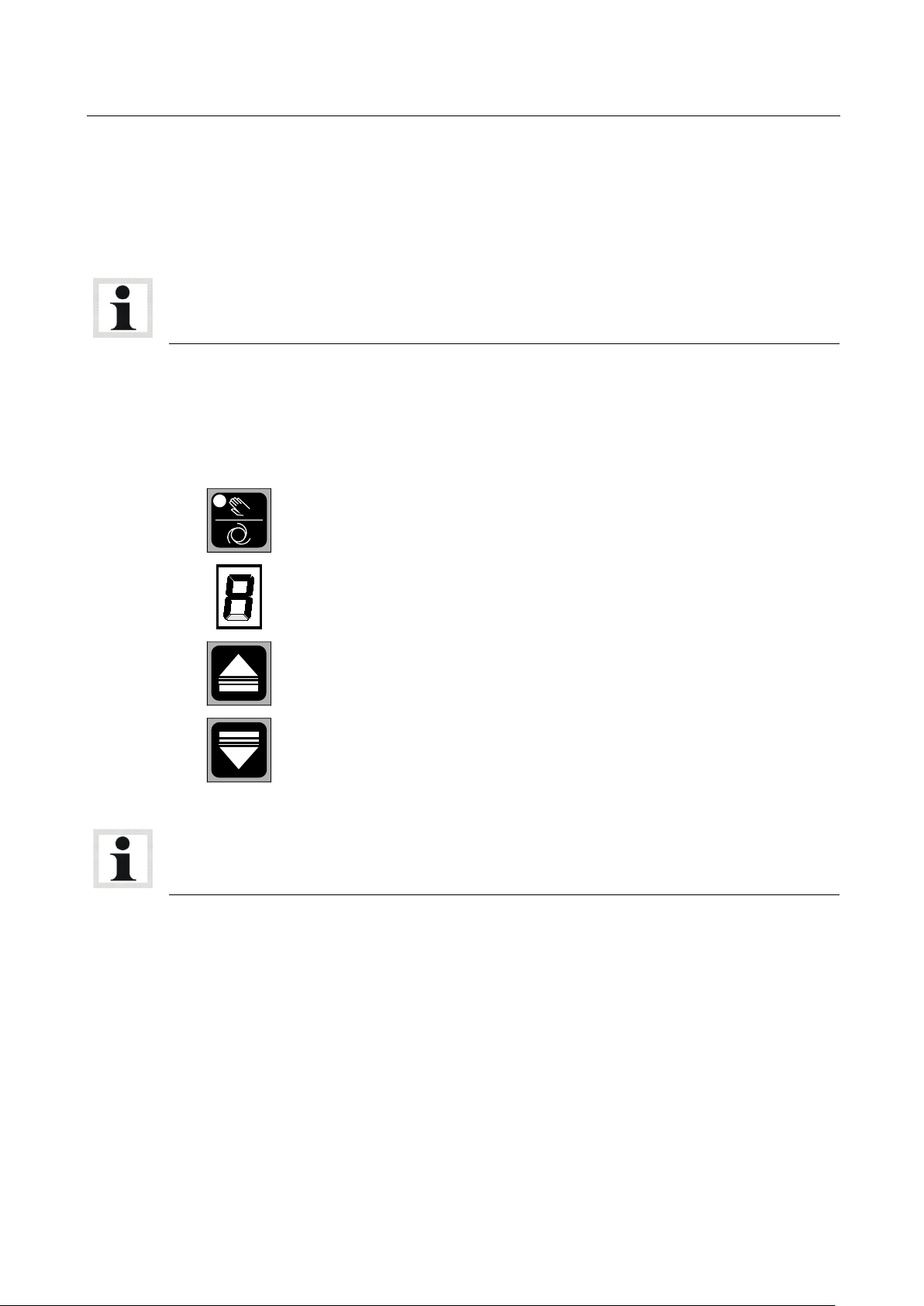

Automatic Mode

Pos: 70 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Auto matik-Betrie b @ 26\mod_1325576096141_ 75.docx @ 1144429 @ @ 1

Select "Automatic mode" by pressing this button on each col-

umn.

Activation of this operating mode is indicated by the letter A on

the seven-segment display.

Use these buttons on the control unit to raise or lower the lift.

Pos: 71 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Info!/Inhalt: INFO - A utomatikbetriebRGE_12pt @ 26\mod_1325576229052_75.docx @ 1144461 @ @1

After switch-on the lift is in automatic mode.

Pos: 72 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 73 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1.1/S/Überschrift 1.1.1: Single-Betrieb@ 12\mod_1231750 604943_75.docx @ 301400 @ 3 @ 1

3.6.2

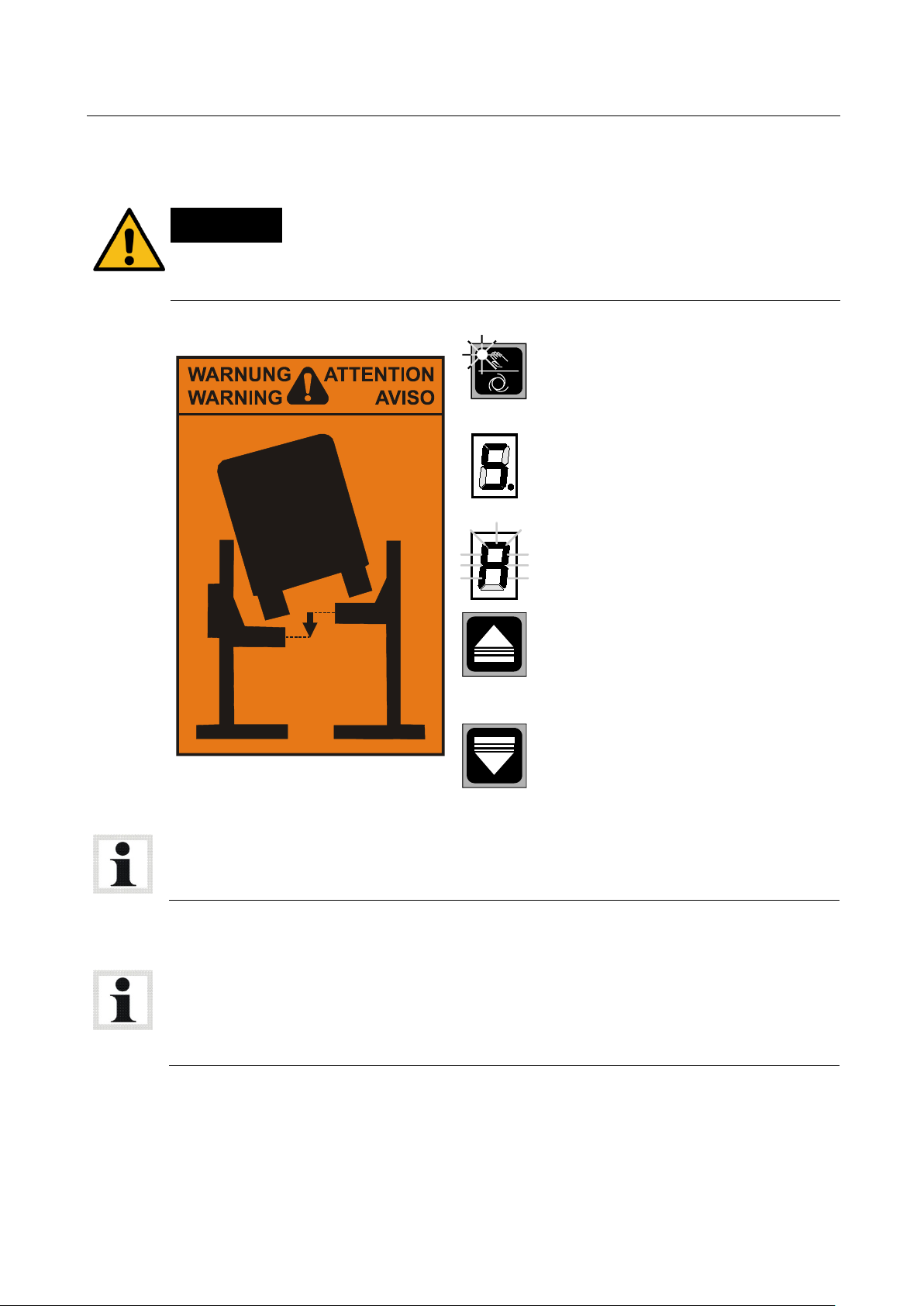

Single Mode

Pos: 74 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Inhalt: WARNUNG - Einzelbetrieb Radgreifer-HBZ @ 2 6\mod_1325576623142_75. docx @ 1144493 @ @ 1

WARNING

When operating the lift in Single mode, make sure the vehicle is not tilted. Other-

wise the vehicle may fall off the lift!

Pos: 75 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Single-Betrieb (mit Warnaufkleber) @ 26\mod_1325576735271_75.d ocx @ 1144525 @ @ 1

Select "Single mode" by pressing

this button on the desired column.

Activation of this operating mode is

indicated by the lit LED on the se-

lector button and the letter S on the

seven-segment display.

The columns not in Single mode are

temporarily inoperative. This is indi-

cated by the letter A flashing on the

seven-segment display.

Use these buttons to raise or lower

the lift.

Pos: 76 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Info!/Inhalt: INFO - Verschiedene Hubsäule n RGE_12pt @ 26\mod_ 1325576923309_75.docx @ 1144557 @ @ 1

The single mode can also be used for several columns simultaneously.

Pos: 77 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Info!/Inhalt: INFO - S ingle-BetriebRGE_12pt @ 26\mod_1325577705655_75.doc x@ 1144589 @ @ 1

Height offsets between individual columns will be maintained after switch-over to

automatic mode. The offset can be removed either

– by equalizing the carriages in single mode or

– by lowering all carriages to bottom position in automatic mode.

•Lift switches off once first carriage reaches upward travel stop.

Pos: 78 /-----Fo rmat-----/ MANUELLER UMBRUCH Seitenumbruch @ 0\mod_113440357768 7_0.doc x @ 1277 @ @ 1

BA492301-en

Pos: 79 /Produktfamilien/Alle Geräte/Überschriften/Überschriften1.1.1/G/Überschrift1.1.1: Gruppen-Betrieb @ 12\mo d_1231756478332_75.doc x@ 301760 @ 3 @ 1

3.6.3

Group Mode

Pos: 80 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Warnung!/Inhalt: WARNUNG - Gruppenbetrie b RG_12pt @ 26\mod_ 1325578069074_75.do cx @ 1144691 @ @1

WARNING

When operating the lift in Group mode, make sure the vehicle is not tilted. Other-

wise the vehicle may fall off the lift!

Pos: 81 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhal t: 4908 Grup pen-Betrieb (mit Warnung) @ 26\mod_132557814 3833_75.docx @ 1144753 @ @ 1

2 sec

Select "Group mode" by pressing

and holding this button for approx.

two seconds.

Activation of this operating mode is

indicated by the lit LED on the se-

lector button and the letter G on the

seven-segment display.

The columns not in Group mode are

temporarily inoperative. This is indi-

cated by the letter A flashing on the

seven-segment display.

Use these buttons to raise or lower

the lift.

Pos: 82 /Produktfamilien/Alle Geräte/Überschriften/Überschriften 1.1.1/K/Überschrift 1.1.1:Kabelfernbedienung @ 12\mod_12317577 25696_75.do cx @ 301860 @ 3 @ 1

3.6.4

Cable Remote Control

Pos: 83 /Produktfamilien/Hebetechnik/COLUMNLIFT/490801 RGE/BA/Inhalt: 4908 Kabelfernbedienung@ 26\mod_ 1325578616443_75.do cx@ 1144785 @ @ 1

A remote control (model TCNA 10-2) is optionally available.

The RAISE, LOWER and Emergency Stop buttons have the same functions as the

corresponding buttons on the column control units.

Pos: 84 /Produktfamilien/Hebetechnik/- Arch iv -/00 Hebetechnik- Alle/Inhalte/Info!/Inhalt: Info -Kabelfernbedienung RGE_12pt @ 26\mod_1325578682086_ 75.docx @ 1144817 @ @ 1
