Makita BHR261 Manual

Max. Output(W)
Battery
Voltage: V
Cell and Capacity
Capacity
: mm ( " )
Charging Time: min.
500
0 - 1,200
BHR261 BHR261T
0 - 4,800
36
Li-ion 2.6 Ah
Yes
Yes
Yes
13 (1/2)
32 (1-1/4)
26 (1)
4.3 (9.5) 4.5 (9.9)
4.5 (9.9)
22 with DC36RA
Models No.
Description
CONCEPT AND MAIN APPLICATIONS
Specification Standard equipment
Optional accessories
Note: The standard equipment for the tool shown
above may differ by country.
BHR261, BHR261T
Cordless Combination Hammer
Dimensions: mm (")
Width (W)
Height (H)
Length (L) 387 (15-1/4)
104 (4-1/8)
235 (9-1/4)
363 (14-1/4)
W
H
L
Bit Shank SDS-plus
Steel
Wood
Concrete
Variable switch
Reverse switch
Clutch (Torque Limiter)
Net Weight : kg (lbs)
* Grip assembly ................................... 1
* Depth gauge (Stopper pole) .............. 1
* Cloth .................................................. 1
* SDS-Plus bits
* Taper shank T.C.T bits
* Taper shank adapter
* Cotter
* Drill chuck assembly
* Chuck adapter
* Drill chuck S13
* Chuck key S13
* Keyless drill chuck
* Grip assembly
* Bull points
* Cold chisels
* Grooving chisels
This new product is available in the following variations.
-T- models are equipped with quick change chuck.
This model is cordless combination hammer powered by 36V Li-ion battery BL3626.
Tool holder section transplanted from AC tool is durable,
and allows higher efficiency than competitors’ models.
Other features are as follows:
*Vibration absorbing handle and soft grips
*Good tool-balance due to the center of gravity closer to handle
*Battery adapter (option) for clipping a battery BL3626 to waist belt
BHR261RDE
BHR261TRDE
DC36RA
DC36RA
Model No. Type Quantity Charger Offered to
Canada, Mexico, Panama, USA
All countries other than
the four listed above
Battery
adapter
Plastic
carrying case
Battery
cover
Yes
Yes
BL3626 DC36RA Yes
2
2
Battery
BHR261DP1
BL3626 DC36RA YesBHR261
BL3626
BL3626
DC36RA
2
2
1
1
2 1
1
1 Yes
No
BHR261RD DC36RA Yes1
BL3626 1 No
BHR261TRD DC36RA Yes1BL3626 1 No
BHR261TDP1 DC36RA Yes2BL3626 1 No
Yes
Yes
No
NoBHR261T
No load speed : (min = rpm)
-1
Impacts per min, :(ipm=min )
-1
BHR261 BHR261T
R= Rotation only
H= Hammering only
H+R= Hammering with Rotation
3 modes
(R/ H+R/ H)
Operation mode
P 1/ 21
Weight according to
EPTA-Procedure 01/2003: kg (lbs) 4.8 (10.6)
* Scaling chisels
* Dust cup
* Grease vessel 30g
* Blow out bulb
* Safety goggles
* Plastic carrying case
* Dust extractor attachment
* Joint 25
* Battery BL3626
* Battery charger DC36RA
* Battery adapter BAP36
* Grip base set
* Hammer service kit
BL3626
All models also include the accessories listed below in "Standard equipment".
PRODUCT
TECHNICAL INFORMATION

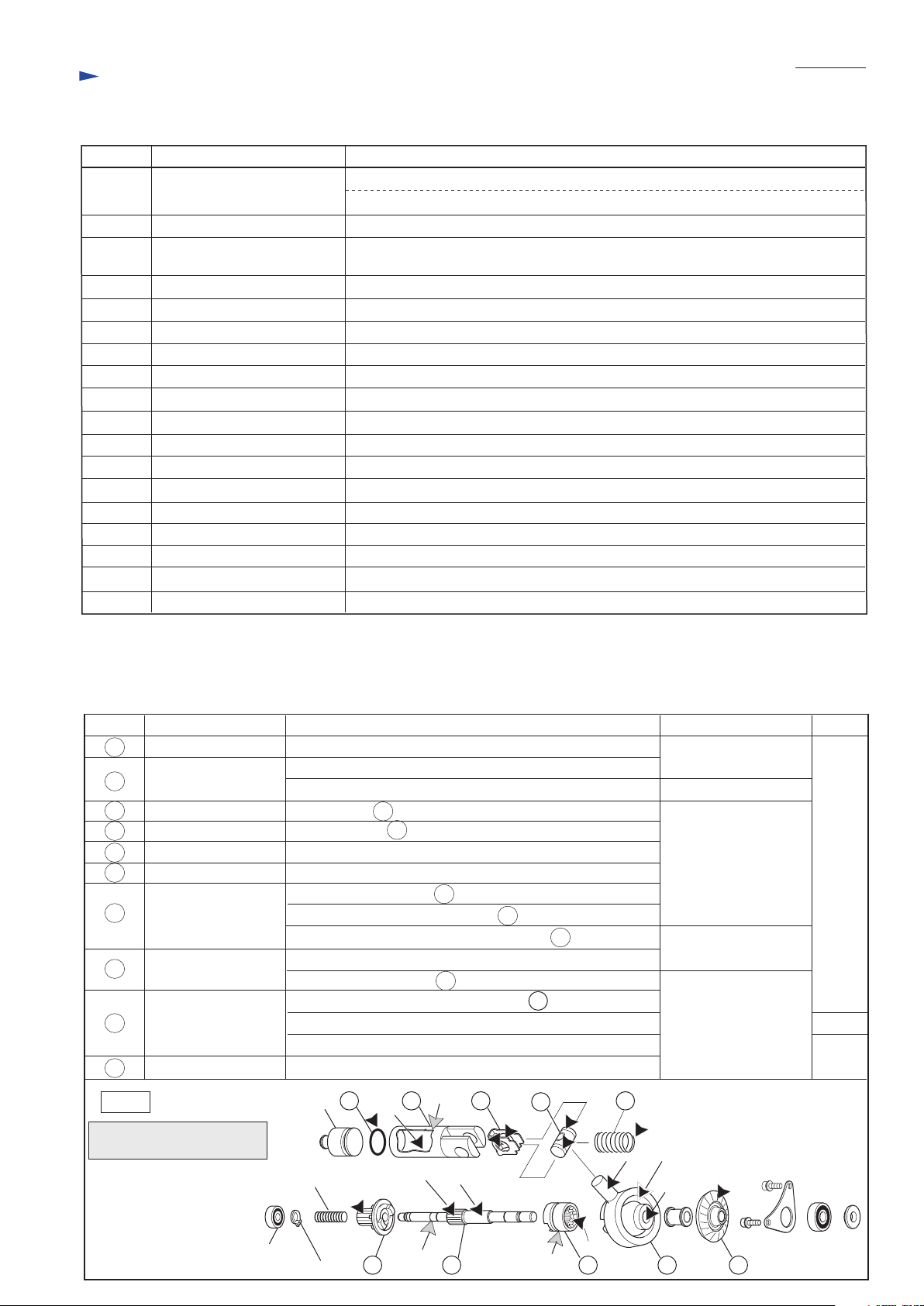

[2] LUBRICATION
[1] NECESSARY REPAIRING TOOLS
Repair
DescriptionCode No. Use for
Retaining ring S pliers ST-2N1R003 Removing Ring spring 19 from Tool holder complete/ Tool holder guide complete
Retaining ring S pliers ST-2
Bearing Plate (for arbor press)
1R004 Removing Ring spring 29
1R022 or
1R356 Removing Ring spring 29
Bearing setting plate 8.21R032 Assembling Spiral bevel gear 26
Assembling Spiral bevel gear 26Bearing setting plate 10.21R033
Ring spring setting tool A1R164 Assembling Oil seal 25 from Gear housing complete
Ring spring setting tool B1R165 Assembling Needle bearing complete from Gear housing complete
Tip for Retaining ring pliers1R212 Attachment of 1R003
T-type hex wrench 3-1271R170 Removing two M4x25 hex socket head bolts on Inner support complete
Drill chuck extractor1R139 Removing Spiral bevel gear 26
Pipe 301R232 Assembling Oil seal 25 to Gear housing complete
Round bar for arbor 24-1001R249 Removing Ring spring 28
Round bar for arbor 30-1001R252 Removing Oil seal 25 from Gear housing complete
Bearing extractor1R269 Removing Ball bearing 608ZZ from Inner support complete
Round bar for arbor 7-501R281 Removing Ring 8
1R291 Removing Retaining Ring S-7
Ring spring removing jig1R306 Removing Ring spring 29 from Tool holder complete/ Tool holder guide complete
Piston cylinder318132-2 Assembling Ring spring 28 to Tool holder complete/ Tool holder guide complete
Retaining ring S and R pliers
Apply the following grease to protect parts and product from unusual abrasion.
* Makita grease R No.00 to the portions marked with black triangle
* Molybdenum disulfide lubricant to the portions marked with gray triangle
P 2/ 21
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
Removing Retaining ring WR-12 from Armature shaft
Fig. 1
Item No. Description Portion to lubricate Lubricant
Makita grease R No.00
Makita grease R No.00
Makita grease R No.00
4g
Amount
a little
a little
Striker
Compression spring 4 End which is fixed to emboss in Inner housing complete
Ball bearing 606ZZ
Compression spring 7
Retaining ring S-7 (f)(e)
(h) (i)
(j)
42
44
Piston joint Grooves where 42 Guide plate contacts43
50
51
40
41
Clutch cam
Swash bearing 10
O ring 16
Piston cylinder
Guide plate Inside where 43 Piston joint contacts
48 Spur gear 10 Gear portion where Spur gear 51 engages
Whole portion
(h) Pole portion which is inserted into 43 Piston joint
(j) Inside of hole
53 Spiral bevel gear 26
Around Swash bearing 10
for BHR261 and BHR261T
Gear portion where Aramture shaft gear engages
(a) Inside where Striker moves
(b) Outside where Tool holder (guide) complete contacts
49 Cam shaft
(e) Constricted part which is inserted into 48 Spur gear 10
(f) Groove for hooking Change plate
(i) Ball bearing portion (Re: Fig. 3)
(c) Gear portion where 50 Clutch cam engages
(d) Portion which is inserted into 51 Swash bearing 10
(g) Gear portion where 49 Cam shaft engages
40 41
5048 51 5349
42 43 44
(a)
(c) (d)
(b)
(g)
Molybdenum disulfide
Molybdenum disulfide

Gear section: 17g
Crank section: 5g
Swash bearing section: 4g
(Refer to Fig. 1.)
Emboss for
fixing Compression
spring 14
Inside view of Inner housing
[2] LUBRICATION (cont.)
Apply Makita grease R. No.00 to the following portions designated with the black triangle to protect parts and product from
unusual abrasion.
Fig. 2
Fig. 3
BHR261 BHR261T
Item No. Description Portion to lubricate
BHR261
BHR261
BHR261T
Cross section
Cap 35
O ring 17
1
16
Change lever
13
Gear housing complete
Spur gear 51
17
28
Steel ball 7
(a)
(b)
29
Tool holder complete
Tool holder guide complete
30
Lip portion where Bit is inserted
Whole portion
Pins portions
(b) Inside where Swash bearing section rotates (Re: Fig. 3)
(c) Gear portion
(a) Oil seal 25 on the inside of Gear housing complete
Whole portion
Inside where Piston cylinder reciprocates
Repair
P 3/ 21
37
34
Impact bolt
For BHR261
Impact bolt
for BHR261T
Cushion ring 13
32
16
13
23
28
29
30
1
Lock plate23 Pins portions
Needle bearing complete
19 Needle bearing portion in Cup washer (Re: Fig. 37)
17
111
114
115
30
Ring 21
Stopper
4Inner periphery
Inner periphery
Sleeve 932 Inside where Impact bolt reciprocates
Ring 10
34 Portion where Cushion ring 13 contacts
Whole portion
O ring 9
37
19
(d) Surface where Clutch portion of 30 Tool holder (guide) complete contacts
4
(d)
BHR261T
(c)
111
114
115
120 124
120 Steel Ball 6 (2pcs.) Whole portion
124 Steel Ball 5 Whole portion
30

[3] DISASSEMBLY/ASSEMBLY
[3] -1. Bit holder section for BHR261/ Holder section for Drill chuck of BHR261T
DISASSEMBLING for BHR261
DISASSEMBLING for BHR261T
Ring 21
Ring 21
Guide washer
Conical compression
spring 21-29
Cap 35
Steel ball 7.0
Chuck cover
Ring spring 19
Flat portion
Chuck cover
1R003
Remove Cap 35 with slotted screwdriver
and then remove Ring spring 19 with
1R003.
Ring 21
Remove Chuck cover.
Then remove Steel ball 7.0
while pressing down Ring 21.
Bit holder section can be
disassembled as illustrated above.
ASSEMBLING for BHR261
Take the disassembling step in reverse.
Note: Be sure to place the flat portion of Ring spring 19 on Steel ball 7.0. (Fig. 4)
Fig. 4
Fig. 5
Cap 35
1R003
Ring spring 19
Tool holder guide
Tool holder
Tool holder set
Separate Tool holder set from
Tool holder guide complete.
Remove Cap 35 and then remove
Ring spring 19 with 1R003.
Remove Chuck cover and then
remove Steel ball 7.0 while
pressing down Stopper.
Chuck cover
Steel ball 7.0
Stopper
Stopper
Change ring
Change cover
Ring spring 21
Torsion spring 31
Torsion spring 31
Guide washer
Flat washer 21
Flat washer 24
Leaf spring
Steel ball 5
Steel ball 6 (2 pcs.)
Conical compression
spring 21-29
Stopper, Guide washer, Conical
compression spring 21-29, Flat
washer 21 can be removed.
Remove Ring spring 21 with
1R004 From Tool holder
guide side.
Flat washer 24, Leaf spring
and Steel ball 5 can be
removed.
Remove Tool holder
together with Change
ring from Change cover.
And separate Change
ring from Tool holder.
After removing Torsion
spring 31, Steel ball 6
can be separated from
Tool holder.
Tool holder
Repair
P 4/ 21

[3] DISASSEMBLY/ASSEMBLY
[3] -1. Bit holder section for BHR261/ Holder section for Drill chuck of BHR261T (cont.)
ASSEMBLING for BHR261T
a
Note: Face the taper shaped hole
upward.
Aligning the hole of Change ring with
that of Change cover, assemble Change
ring to Change cover.
a'
Section a - a'
1) Assemble Change ring to Change cover. (Fig. 6)
2) Assemble Torsion spring 31 to Tool holder. (Fig. 7)
3) Assemble Tool holder to Change cover. (Fig. 8)
4) Attach Steel ball 5.0 between the ends of Leaf spring, and mount them to the groove between Change lever and Tool
holder. (Fig. 9)
5) Mount Flat washer 24 on Leaf spring, and secure them with Ring spring 21. (Fig. 9)
6) As for the assembling of Cap 35 side, do the reverse of disassembling steps. Refer to Fig. 4.
Fig. 6
Fig. 7
Fig. 8
Change ring
Change cover
Mount Steel balls 6 to Tool holder.
Steel ball 6 (2pcs.)
Insert the short leg of Torsion spring 31
into the hole of Tool holder.
Tool holder
Change
cover
Change ring
Turn Tool holder approx.
75 dgrees clockwise.
Tool holder can be assembled
to Change cover.
Tool
holder Tool holder
75 degrees
The long leg
of Torsion spring 31
The long leg of
Torsion spring 31
Insert the long leg of
Torsion spring 31 to
the hole of Change cover
through the hole of
Change ring.
Repair
P 5/ 21
Note: Apply Makita Grease R No.00 to Steel balls 6 to avoid falling them off.
Ring spring 21
Flat washer 24
Leaf spring
Steel ball 5.0
Fig. 9
Tool holder

[3] DISASSEMBLY/ ASSEMBLY
[3] -2. Drill chuck assembly for BHR261T
DISASSEMBLING
Fig. 10 Fig. 11
Fig. 14Fig. 13Fig. 12
Steel ball 5.0
Leaf spring
Flat washer 24
Drill chuck assembly can be disassembled as illustrated in Figs. 10 to 14.
After Removing Ring spring 21, strike Drill chuck assembly against
workbench which is covered with cloth as a cushion.
Flat washer 24, Leaf spring and Steel ball 5.0 can be removed.
Change cover
Change ring
Pull off Change cover.
Change ring and Torsion spring 31
can be removed.
Torsion spring 31
Chuck holder
Spacer
Chuck
holder
Chuck
holder
Chuck
holder
Spacer
Remove Spacer and
Steel balls 6.
Holding Chuck holder's Flat portion in
vise, remove M6x22 Flat head screw
by turning clockwise using Impact
driver.
Holding Chuck holder's flat portion
with vise, separate Drill chuck from
chuck holder by turning counterclock-
wise using Hex wrench 10.
Steel
Ball 6 (2pcs.)
M6x22 Flat
head screw
Hex wrench 10
Ring
spring 21
1R003
1R212
Repair
P 6/ 21

Change
cover
Change ring
[3] DISASSEMBLY/ ASSEMBLY
[3] -2. Drill chuck assembly for BHR261T (cont.)
ASSEMBLING
Chuck
holder
Chuck holder
Short leg of
Torsion spring 31
Long leg of
Torsion
spring 31
Hole for accepting
Torsion Spring 31
1) Holding Chuck holder's Flat portion in vise. Assemble Drill chuck to Chuck holder by turning clockwise using Hex
wrench 10.
2) Secure Drill chuck with M6x22 Flat head screw by turning counterclockwise using Impact driver.
3) Assemble Drill chuck to Spacer. (Fig. 15) And mount two Steel balls 6. (Fig. 16)
4) Mount Torsion spring 31. And assemble the Drill chuck to Change cover. (Fig. 17)
5) Mount Steel ball 5, Leaf spring and Flat washer 24 to Chuck holder. And secure them with Ring spring 21. (Fig. 18)
Spacer
Spacer
Spacer
Insert the short leg of Torsion spring 31
into hole of Chuck holder using pliers.
Fitting Chuck holder's flat portions
to Spacer, mount Drill chuck to
Spacer.
Fig. 15 Fig. 16
Chuck holder
Steel ball 6 (2pcs.)
Note: Apply Makita grease R No.00 to Steel
balls 6 to avoid falling them off.
Fig. 18
Fig. 17
Turn Drill chuck approx. 75degrees
clockwise. Drill chuck can be
assembled to Change cover.
Drill
chuck
75 degrees
Ring spring 21
Steel ball 5
Flat washer 24
Leaf spring
Change
cover
Torsion
spring 31
Insert the long leg of Torsion spring 31
into hole of Change cover through hole
of Change ring.
Assemble Change ring to Change cover.
Refer to Fig. 6.
Repair
P 7/ 21

P 8/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-3. Change lever
While pushing Lock button into Change lever,
turn Change lever to Drill mode.
While pushing Lock button into Change lever,
fit Change lever completely to Gear housing complete.
Note: Be sure to check Change lever works properly
after assembling.
Insert Slotted screwdriver between Change lever and
Gear housing complete, then lever up Change lever.
Change lever Slotted screwdriver
Lock button
Drill mode
Drill mode
Lock button Change lever
DISASSEMBLING
Fig. 19
Fig. 20
(thick pin of
Change lever)
Hammer mode
thin pin of
Change lever
ASSEMBLING
Fig. 21
Change plate comes into sight through
Change lever insertion hole of
Gear housing complete.
While hooking the thin pin of Change lever to
Change plate from Hammer mode side,
turn Change lever to Drill mode side.
Note: Change lever is incompletely fit to Gear
housing complete in the above step.
Drill mode
Change plate
Viewed from the upper side

P 9/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-4. Motor section, Switch
Remove two Pins 6 and two 4x18 Tapping screws
then separate Handle set (R) from Handle set (L).
Switch can be replaced. Refer to Figs. D-1, D-2.
Remove two Pins 6 and
Handle set from
Housing set (L) to
disassemble Motor section.
Remove four 4x35 Tapping screws on Gear housing
complete and nine 4x18 Tapping screws on Housing set (R).
Housing set (R) can be removed.
Loop portion
of Side grip
DISASSEMBLING
Gear housing
complete
Note: Motor section and Switch can be replaced without removing Carbon brushes.
Fig. 22
Fig. 23
4x35 Tapping
screw (4pcs.)
Tips: (1) Leave two 4x35 Tapping screws for Housing set (L) and Gear housing complete
when repairing the replacement except Motor section. The way is easy to repair.
(Refer to Fig. 23.)
(2) Leave two 4x18 Tapping screws on Handle set (R) when repairing Motor section.
It is easy to remove Handle set without separating (L) and (R). (Refer to Fig. 25.)
If it is necessary to remove four 4x35 Tapping screws on Gear housing
complete and nine 4x18 Tapping screws on Housing set (R), put loop portion of
Side grip between worktable and Housing set (L) to prevent the machine from
getting loose as illustrated below.
(Non-auxiliary causes Gear housing complete to tend to remove from Housing (L)
and the machine to getting loose.)
Fig. 24 Fig. 25
Housing set (R)Handle set (R)
Pin 6 (2pcs.)
Pin 6 (2pcs.)
Handle set (R)
Handle set (L)
4x18 Tapping
screw (2pcs.)
Compression
spring 10 (2pcs.)
Handle set
4x18 Tapping screw
(9pcs.) on Housing
set (R)
4x18 Tapping screws
(2pcs.)on Handle set (R)

P 10/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-4. Motor section, Switch (cont.)
Remove two 4x18 Tapping screws and Brush holder on the front side.
Remove an assembled part of Motor section and Gear section.
Brush holder
(on front side)
4x18 Tapping screw
(2pcs.)
Motor section
Gear section
DISASSEMBLING
Fig. 26
Fig. 28
Remove two M4x12 Hex socket head bolts with 1R170.
Remove Bearing retainer.
Pull out Armature from Inner housing complete.
Fig. 27
M4x12 Hex socket
head bolt (2pcs.)
1R170
Bearing retainer
When removing Ball bearing 6001DDW, separate Retaining ring WR12 first from Armature shaft.
Then remove Ball bearing 6001DDW together with Sleeve 12 at a time using 1R269.
See illustrated below.
Note: Retaining ring WR12 fits into a groove on Armature shaft. The groove is too small to have enough room to insert
tips of common retaining ring pliers.
Therefore, move the clearance of WR12 to outside of the groove using 1R004 or 1R291, then remove Retaining
ring WR12 using common retaining ring pliers or 1R003 with 1R212.
Armature
Inner housing complete
Groove on
Armature shaft
Retaining ring WR12 1R004 or 1R291
Ball bearing
6001DDW
Sleeve 12
1R003 with
1R212

P 11/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-4. Motor section, Switch (cont.)
When inserting Armature to Inner housing complete,
do not fail to pass Armature through Yoke unit in advance.
Note: Yoke unit can be independent from the directional of
front end and rear end.
Ball bearing 6001DDW on Armature gear shaft side may be incompletely
fit into the bearing room in Inner housing complete without full attention.
Therefore, turn Armature by hand to engage the gear shaft with Spiral
bevel gear 26 in Inner housing complete and fit Ball bearing 6001DDW
completely into the bearing room in Inner housing complete. After that,
fix Ball bearing 6001DDW with Bearing retainer and two M4x12 Hex
socket head bolts.
Note: Be sure to apply adhesive (ThreeBond 1321B/1342 or Loctite 242)
to the threads when fastening the reused M4x12 Hex socket head bolts
because their bolts are threadlocker type.
Make sure that the following parts are set in place before assembly of Housing R to Housing L.
ASSEMBLING
Fig. 29
Fig. 30
M4x12 Hex socket head bolt (2pcs.)
with adhesive
ArmatureBearing retainer
Compression
spring 10 (2pcs.)
Light circuit
Vibration isolator plate
Support plate
Pin 6 (2pcs.)

P 12/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-5. Tool holder section (BHR261)/ Tool holder guide section (BHR261T)
DISASSEMBLING
Inner housing
complete
Flat washer 28
Piston cylinder
Swash bearing section
Take the disassembling step in reverse.
Fig. 31 Fig. 32
Fig. 33
Note: Tool holder (guide) section can be removed without disassembling Housing set.
(1) Remove Chuck section as illustrated in Fig. 4.
(2) Remove Change lever as illustrated in Fig. 19.
(3) Remove four 4x35 Tapping screws as illustrated in Fig. 10.
(4) Take steps illustrated in Figs. 31 and 32.
Note: Grease falls from Gear housing complete.
Receive the grease with cloths.
Note: Do not lose Flat washer 28 between Tool holder ass’y
and Inner housing complete.
Washer 31
Compression
spring 32
Spur gear 51
ASSEMBLING
Pull out Tool holder ass’y from Inner housing complete.Strike the top of Tool holder ass’y with plastic hammer.
Gear housing complete can be removed.
Assemble 1R022 (2pcs.) to 1R306 and hold them
to the ram of arbor press. Put Tool holder (guide)
section on the table of arbor press.
While compressing Compression spring 32
by pressing down Washer 31 using
arbor press, remove Ring spring 29 using
1R004.
Washer 31
Clearance
to expand
Ring spring 29
Washer 31
Ring
spring 29
Compression
spring 32
Ring
spring
29
1R004
Table of
arbor press
1R022
(2pcs.)
1R036
Note: Be sure to leave a little clearance to expand
Ring spring 29 between 1R022 and Tool holder
ass’y.
Ram of
arbor press
Spur gear 51
Spur gear 51 can be
removed.
Tool holder (guide) section

P 13/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-6. Needle bearing complete and Oil seal 25
DISASSEMBLING
Fig. 34
Fig. 37
ASSEMBLING
1) Assemble Oil seal 25 to Gear housing complete as illustrated in Figs. 35 and 36.
2) Assemble Needle bearing complete as illustrated in Fig. 37.
1R164
Outer diameter: 30mm
Outer diameter: 30mm
1R165
Outer Diameter: 34mm
1R232
Oil seal 25
With 1R232 and arbor press, insert Oil seal 25 until it stops.
In this step, Oil seal 25 is not yet inserted completely
because the outer diameter of 1R232 is bigger than that of
Oil seal setting hole.
The original position of Oil seal 25
The diameter of Oil seal 25 setting
hole is less than 36mm.
Outer diameter: 36mm
Press Needle bearing complete with arbor press and
the outer diameter 40mm end surface of 1R165 until
Needle bearing complete stops.
Fig. 35 Fig. 36
Press Oil seal 25 until it stops with arbor press and
the outer diameter 34mm end surface of 1R164.
Oil seal 25 can be moved to the original position.
Keep Gear housing complete almost upright on Arbor press table, and Press down
Oil seal 25 using 1R252.
Oil seal 25 and Needle bearing complete can be removed from Gear housing complete
with gentle pressure because of their low press fit.
1R252
Oil seal 25
Gear housing
complete
Needle bearing
complete
Needle bearing
portion of Needle
bearing complete
Cup washer portion of
Needle bearing complete
Note: Press down Oil seal 25 carefully to prevent Gear housing complete from falling.
(Contact areas of Gear housing complete to Arbor press table is very small.)
Face the flat portion of Needle bearing complete
to the belly side of Gear housing complete.
Belly side of
Gear housing complete
Needle bearing
complete
Note:
1) Do not use 1R164 in this step.
2) Do not press Needle bearing
portion directly.
3) Much pressure makes Needle
bearing complete deform.
Do not press hard.
4) Be sure to press Cup washer
portion with gentle pressure.

P 14/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-7. Impact bolt in Tool holder complete (BHR261)/ Tool holder guide complete (BHR261T)
DISASSEMBLING
(1) When Striker is left in Tool holder (guide) complete, push Striker out of Tool holder (guide) complete by inserting 1R281
from the top end and striking the 1R281 with plastic hammer.
(2) Remove Tool holder (guide) section as mentioned in the clause of [3]-5.
(3) Remove Ring spring 28 from Tool holder (guide) complete and disassemble Impact bolt section. (Figs. 39 to 42)
[Cap 35 side]
[Inner housing complete side]
Ring spring 28
Ring spring 28 can be pulled off from Tool
holder (guide) complete when completely
remove from the groove.
Disassemble Impact bolt
section by striking Tool
holder (guide) complete
against workbench.
Note: Be sure to replace Ring spring 28
when assembling Tool holder (guide)
section.
Fig. 41 Fig. 42
Tool holder
(guide) complete
Sleeve 9
Impact bolt
Ring 10
Cushion ring 13
O ring case with
O ring 9 fit inside
Impact bolt section
Fig. 40
Fig. 39
clearance of Ring spring 28 Ring spring 28
Note: When the clearance of Ring spring 28
is in the hole, slide the clearance to
the blind side using a slotted screwdriver.
Ring spring 28
1R038
Vise
Tap Ring spring 28 from the two holes alternately to push
downward.
Tool holder complete
Tool holder (guide) complete

P 15/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-7. Impact bolt in Tool holder complete (BHR261)/ Tool holder guide complete (BHR261T)(cont.)
ASSEMBLING
Fig. 43
Cushion ring 13Ring 10
O ring case with
O ring 9 fit inside
Impact bolt
1)Assemble Impact bolt section to Tool holder (guide) complete as illustrated in Fig. 43.
Tool holder (guide) complete
Sleeve 9
Bit (chuck)
installation
side
Inner housing
complete side
long short
Fig. 44
Note: 1) Use an extra Piston cylinder as a jig. Never use Piston cylinder that is to be assembled to the machine.
2) Do not align the clearance of Ring spring 28 with two holes of Tool holder (guide) complete illustrated below.
2) Push Ring spring 28 into the inner groove of Tool holder (guide) complete as illustrated in Fig. 44.
Piston cylinder
as a jig Piston cylinder as a jig
Tool holder
(guide)complete
Ring spring 28 clearance
hole
Inner groove of
Tool holder (guide)
complete
Ring spring 28 O ring case
Note: The components are directional. Pay attention to the directions.
hole

P 16/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-8. Swash bearing 10, Gear portions
DISASSEMBLING Fig. 45
Note: The subject step can be done without removing Motor section.
1) Remove Gear housing complete as mentioned in the clause of [3]-5.
2) Remove Inner support complete by loosening two M4x25 Hex
socket head bolts using 1R170. (Fig. 45)
3) Remove two M4x12 Hex socket head bolts that is seated on Bearing
retainer B on Inner support complete. (Fig. 46)
4) Swash bearing 10 portion and Piston cylinder portion from Inner
housing complete. (Fig. 47)
5) When Ball bearing 606ZZ is left in Gear housing complete after
removing Swash bearing section, insert Cam shaft to a hole of Ball
bearing 606ZZ and tilt Cam shaft back and forth (Fig. 48), then tap
Gear housing complete with plastic hammer as illustrated in Fig. 49.
Ball bearing 606ZZ can be removed.
6) Put Spiral bevel gear 26 on a U groove of 1R139 and pass Swash bearing portion through the groove, then press down
Cam shaft using 1R281 to lose the press fit to Spiral bevel gear 26, Ball bearing 608ZZ and Ring 8 at a time. (Fig. 50)
They can be removed. Also Clutch cam, Swash bearing 10, Sleeve 9 and Bearing retainer B can be removed from Cam
shaft. (Fig. 51)
7) Remove Retaining ring S-7 from Cam shaft using 1R291. Compression spring 7 and Spur gear 10 can be removed. (Fig. 51)
Fig. 46 Fig. 47
Fig. 48
Fig. 51
Fig. 49 Fig. 50
M4x25 Hex
socket head bolt
Inner support complete
Inner housing complete
1R170
Bearing retainer B
Ball bearing 606ZZ in
Gear housing complete
Swash bearing portion
Spiral bevel
gear 26
Spiral bevel gear 26
Swash bearing portion
Inner housing complete
Cam shaft
M4x12 Hex socket head bolt (2pcs.): threadlocker type M4x12 Hex socket head
bolt (2pcs.): threadlocker type
M4x12 Hex socket head
bolt (2pcs.): threadlocker type
Piston cylinder portion
1
2
1R139
1R281
Cam shaft
Compression spring 7
Retaining ring S-7 Spur gear 10 Ring 8Bearing retainer B
Ball bearing 606ZZ
Ball bearing 608ZZ
Cam shaft Clutch cam Sleeve 9
Swash bearing 10

P 17/ 21
Repair
[3] DISASSEMBLY/ASSEMBLY
[3]-8. Swash bering 10, Gear portions
DISASSEMBLING
Fig. 52 Fig. 53
Guide plate
Note: Be sure to apply Makita grease RB No.00 and Molybdenum disulfide lubricant to the specific portions shown in
Fig. 1, 2 and 3.
1) Assemble Guide plate and Piston joint to Piston cylinder. (Fig. 52)
2) Insert a emboss of Inner housing complete to Compression spring 14 to keep Compression spring 14 upright.
(Figs. 3 and 53)
3) Pass pole of Swash spring 10 throgh hole of Piston joint, then mount Swash bearing portion into Inner housing complete.
Secure Swash bearing portion by fixing Bearing retainer B to Inner housing complete with two M4x12 Hex socket head
bolts. (Fig. 54)
Note: Be sure to apply adheisves to the threads of the two M4x12 Hex socket head bolts.
4) Insert Change plate into groove of Clutch cam then secure Inner support complete with two M4x25 Hex socket head bolts.
(Fig. 55)
Fig. 55
Fig. 56
Piston jointPiston cylinder
Bearing retainer B
Inner housing complete
Groove of Clutch cam
Change plate
M4x12 Hex socket head
bolts (2pcs.)
Threadlocker type
Inner support
complete
Compression spring 14
Swash bearing
portion
Piston cylinder
portion
Inner
housing
complete
Clutch cam

Repair
P 18/ 21
[4] Maintenance program
Replacing the following parts at the same time is recommended when replacing Carbon brushes is required. See Fig. 56.
Note: Be sure to put Makita grease R No. 00 and Molybdenum disulfide lubricant to the specific portions. Refer to Figs. 1,
Fig. 2 and Fig. 3.
Fig. 56
BHR261
BHR261T
1 Cap 35
(286263-4)
29 Steel ball 7.0
(216022-2)
115. Steel ball 7.0
(216022-2)
35 Cushion ring 13
(421955-0)
37 O ring 9
(213073-6)
38 Ring spring 28
(233917-4)
40 O ring 16
(213227-5)
111. Cap 35
(286263-4)
40. O ring 16
(213227-5)
35. Cushion ring 13
(421955-0)
37. O ring 9
(213073-6)
38. Ring spring 28
(233917-4)

Circuit diagram
P 19/ 21
Color index of lead wires' sheath
Black
Terminail
LED
Brush holder
complete
Switch
White
Red
Fig. D-1

Wiring diagram
P 20/ 21
Fig. D-2
To Brush holder
complete
Connector
Connector
Ribs
Diode
Switch
Route Lead wires between
Rib and Inner wall of Housing.
Route Lead wires between Ribs.
Do not Lead wires to the
near side of Dioade along
Rib.
Lead wire holders
FET
Lead wires must not hang loose in
the area designated by gray color.
Fix lead wires with Lead wire
holders designated by circles.
Inner wall
of Housing
