Rip fence set (optional accessory)
CAUTION:
• Always be sure that the tool is switched off and
unplugged before installing or removing
accessories.
1. Straight cuts

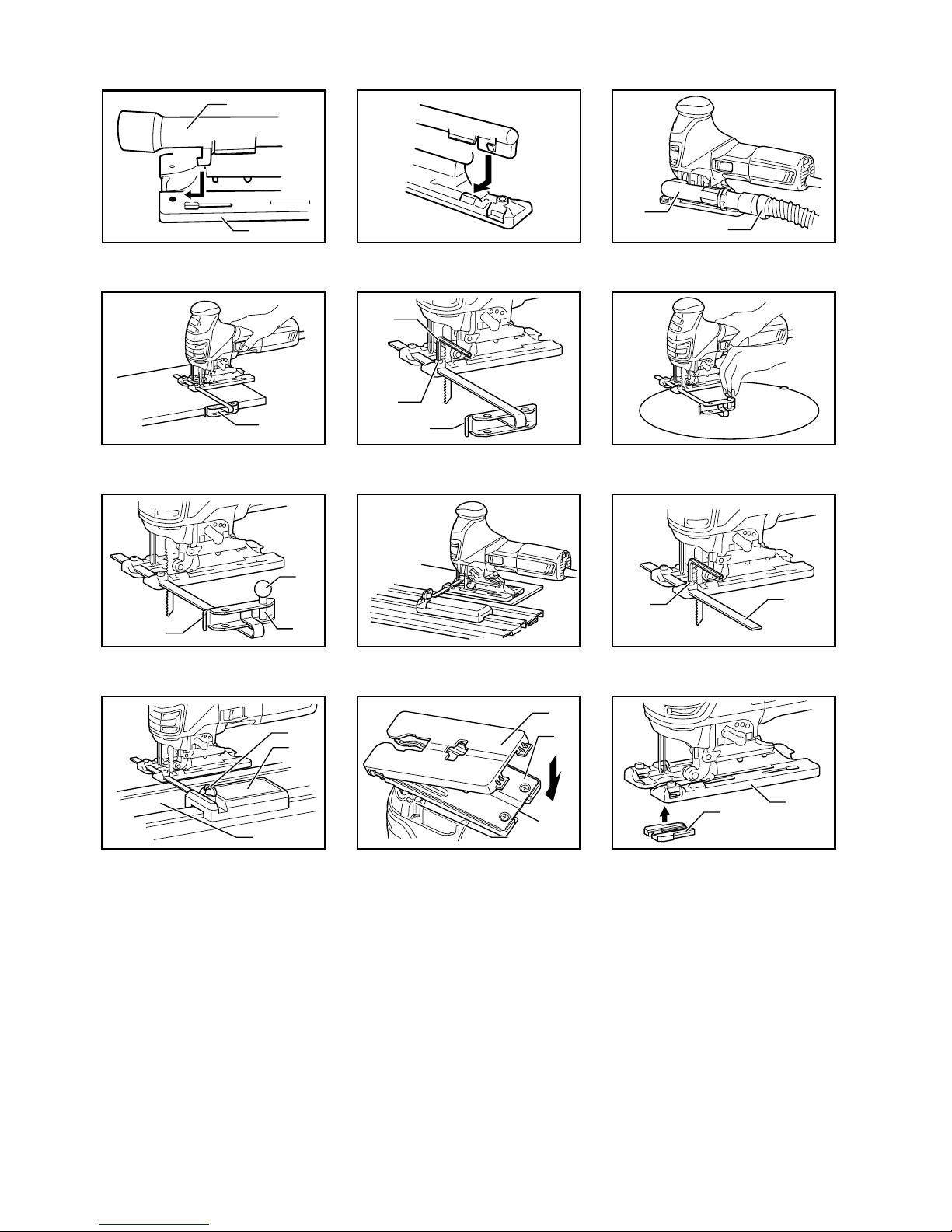

Fig.19
Fig.20
When repeatedly cutting widths of 160 mm or less, use
of the rip fence will assure fast, clean, straight cuts. To
install, insert the rip fence into the rectangular hole on
the side of the tool base with the fence guide facing
down. Slide the rip fence to the desired cutting width
position, then tighten the bolt to secure it.
2. Circular cuts
Fig.21
Fig.22
When cutting circles or arcs of 170 mm or less in
radius, install the rip fence as follows.
Insert the rip fence into the rectangular hole on the
side of the base with the fence guide facing up.
Insert the circular guide pin through either of the
two holes on the fence guide. Screw the threaded
knob onto the pin to secure the pin.
Now slide the rip fence to the desired cutting
radius, and tighten the bolt to secure it in place.
Then move the base all the way forward.
NOTE:
• Always use blades No. B-17, B-18, B-26 or B-27
when cutting circles or arcs.
Guide rail adapter set (accessory)
Fig.23
When cutting parallel and uniform width or cutting
straight, the use of the guide rail and the guide rail
adapter will assure the production of fast and clean cuts.
To install the guide rail adapter, insert the rule bar into
the square hole of the base as far as it goes. Secure the
bolt with the hex wrench securely.
Fig.24
Install the guide rail adapter on the rail of the guide rail.
Insert the rule bar into the square hole of the guide rail
adapter. Put the base to the side of the guide rail, and
secure the bolt securely.
Fig.25
CAUTION:
• Always use blades No. B-8, B-13, B-16, B-17 or
58 when using the guide rail and the guide rail
adapter.
Cover plate
Fig.26
Use the cover plate when cutting decorative veneers,
plastics, etc. It protects sensitive or delicate surfaces
from damage. Fit it on the back of the tool base.
Anti-splintering device
Fig.27
For splinter-free cuts, the anti-splintering device can be
used. To install the anti-splintering device, move the tool
base all the way forward and fit it from the back of tool
base. When you use the cover plate, install the anti-
splintering device onto the cover plate.
CAUTION:
• The anti-splintering device cannot be used when
making bevel cuts.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
•
Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may result.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Jig saw blades
• Hex wrench 4
• Rip fence (guide rule) set
• Guide rail adapter set
• Guide rail set
• Anti-splintering device
• Dust nozzle
• Cover plate
• Hose (For vacuum cleaner)
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.
