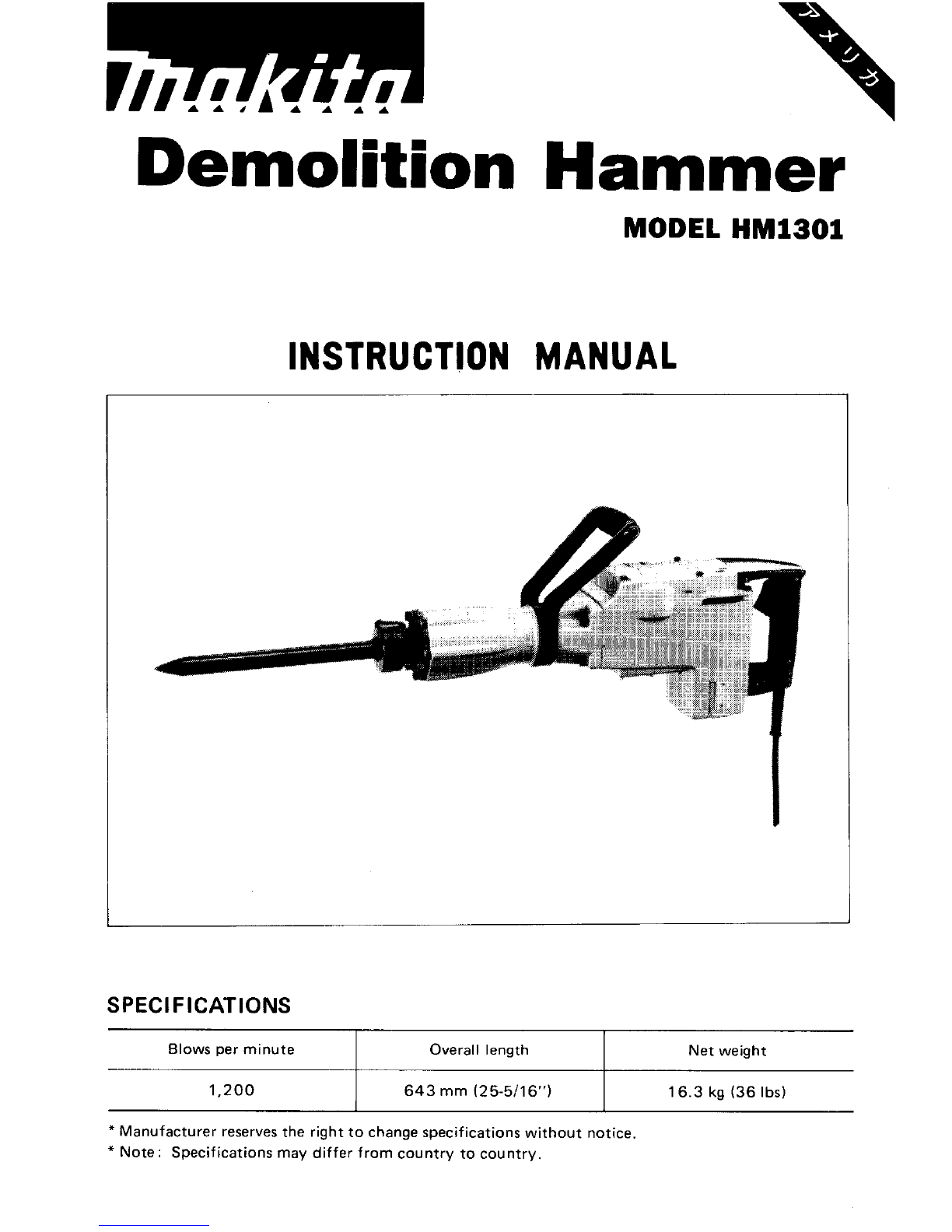

Makita HM1301 User manual

Demolition Hammer
1,200
MODEL HM1301
643 mm (25-5/16") 16.3 kg (36 Ibs)
INSTRUCTION MANUAL
SPEC1 F ICATIONS
Blows per minute Overall length
I
Netweight

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT.Don't use power tools
in damp
or wet locations. Keepwork area well
lit. Don't exposepower toolstorain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLE TOOLS. When not
in use, tools should be stored in dry, and
high or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will dothejob betterandsafer attheratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of
a heavyiduty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothingor jewelry.They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
whenworking outdoors. Wear protective haircovering tocontainlonghair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation
is dusty.
DON'T ABUSE CORD. Never carrytoolby cordor yank
it todisconnectfrom
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Followinstructionsfor lubricating and changing acces-
sories. Inspect tool cords periodically and if damaged, have repaired by
authorizedservicefacility. Inspectextension cords periodically and replace
if damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. Whennot
in use, beforeservicing, andwhen chang-
ing accessories, such as blades, bits, cutters.

14.
15.
16.
17.
18.
19.
20.
21.
REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removed from tool before turn-
ing
it on,
AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool
with finger
on switch. Be sure switch is OFF when plugging
in.
OUTDOOR USE EXTENSIONCORDS. Whentoolisusedoutdoors, useonly
extension cords intended for use outdoors and
so marked.
STAY ALERT. Watch what you are doing, use common sense. Don't oper-
ate tool when
you are tired.
CHECK DAMAGEDPARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked todetermine that
it will
operate properly and perform its intended function. Check for alignment
of movingparts, bindingof movingparts, breakageof parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
servicecenter unlessotherwise indicatedelsewhereinthis instructionmanu-
al. Have defective switches replaced by authorized service center. Don't
use tool
if switch does not turn it on and off.
GUARD AGAINST ELECTRIC SHOCK. Preventbodycontact withgrounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
PROPER GROUNDING. This tool should be grounded while in use to pro-
tect the operator from electric shock.
EXTENSION
CORDS: Useonly three-wire extension cords which havethree-
prong grounding-type plugs and three-pole receptacles which accept the
tool's plug. Replace or repair damaged or worn cord immediately.
VOLTAGE WARNING: Before connectingthe tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof the tool. A power source withvoltage greater than that specified
for the tool can result inSERIOUS INJURY to the user
- as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

For all grounded tools with American typeplug.
GROUNDING INSTRUCTIONS: Thistoolshould be groundedwhile inuse to protect the operator
from electric shock. The tool
is equipped with athreetonductor cordandthree-pronggrounding-
type plug
to fit the proper grounding-type receptacle. The green (or greenand yellow) conductor
in
the cord is the grounding wire. Never connect the green (or green and yellow) wire to a live
terminal. Your unit is for use on 115 volts and has a plugthat lookslike Fig. "A.
An adapter Fig. "B' and "C" is available for connecting Fig. "A" type plugstotwo-prongrecep-
tacles. The green-colored rigid ear, lug, etc., extending from the adapter must
be connectedto a
permanentground, such as a properly groundedoutlet box.
Grounding Blade Cover of GroundedOutlet
Box
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
ADDITIONAL SAFETY RULES
Wear a hard hat (safety helmet) and an ear protector if necessary.
Be sure the bit is secured
in place before operation.
Under normal operation, the tool is designed to produce vibration. The
screws can come loose easily, causing a breakdown or accident. Check
tightness of screws carefully before operation.
In coldweather or when the tool has not been usedfor a longtime, letthe
tool warm up for several minutes by operating
it under no load. This will
loosen up the lubrication. Without proper warm-up hammering operation
is difficult.
Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
Hold the tool firmly with both hands. Always use the side grip.
Keep hands away from moving parts.
Do not leave the tool running. Operate the tool only when hand-held.
Do not point the tool at any one in the area when operating. The bitcould
fly out and injure someone seriously.
When chipping into walls, floors or wherever "live" electricalwires may
be encountered,
DO NOT TOUCH ANY METAL PARTS OF THE TOOL!
Holdthe tool only by the plastic handle or the side grip to prevent electric
shock
if you chip into a "live" wire.
Do not touch the bit or parts close tothe bit immediately after operation;
they may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4
I

0 Installing or removing'hullpointor other bits (coldchisel, etc.)
CAUTION
:
Always be sure that the tool is switchedoff and unplugged before installingor remov-
ingthe bit.
Pull out and turnthetool retainer
so that
the boss on the tool retainer faces in the
direction of the arrow. Insertthe bitinto
the tool holder
as far as it will go. Then
turn the tool retainer
180 degrees to
secure the bit.
To remove the bit, follow the installation
procedure inreverse.
0 Swivel handle
The easy-grip handle swivels
a full 360".
This makes the demolition hammer ex-
tremely handy for
all kindsof operation.
Fig. 1
Fig. :
I
Fig. 3
5

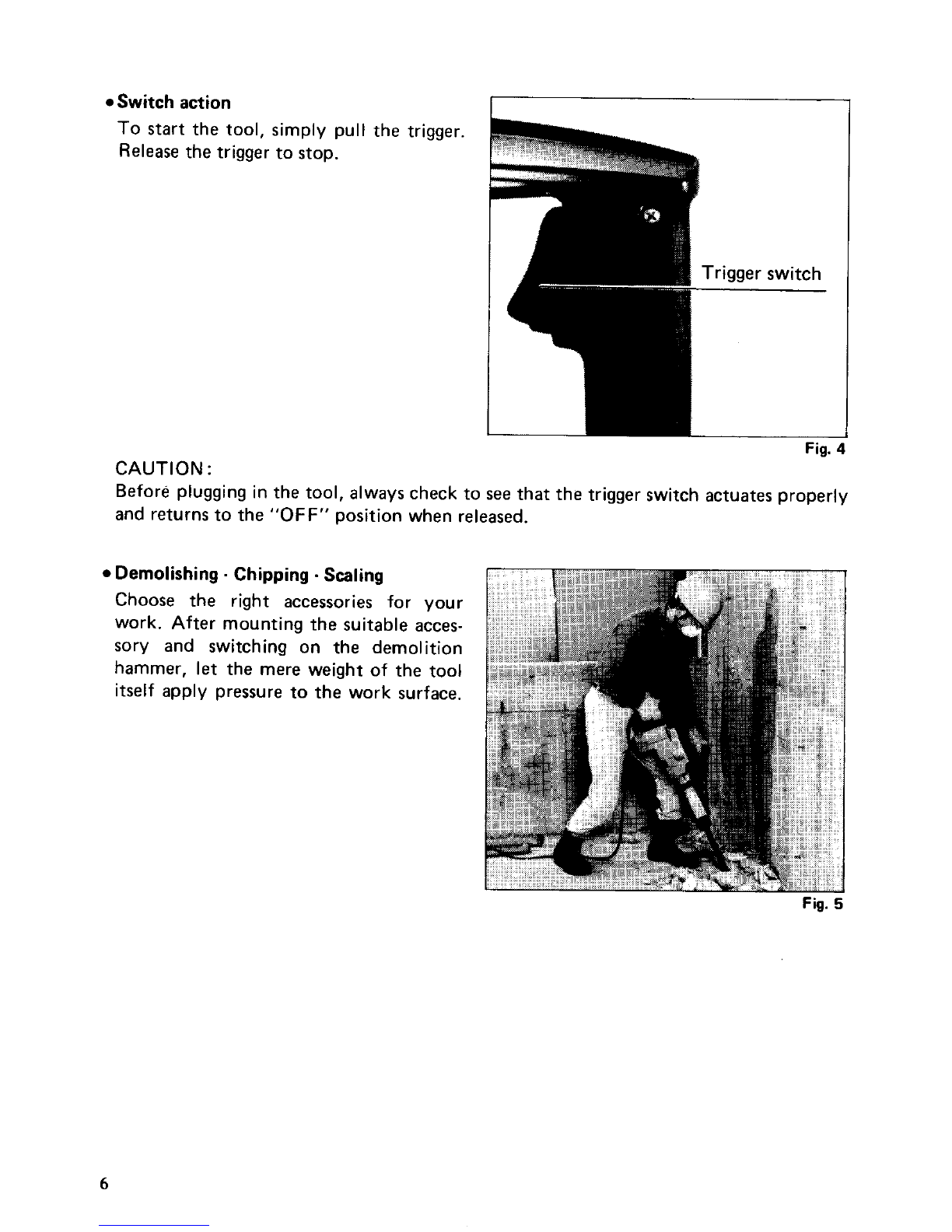

Switch action
To start the tool, simply pull the trigger.
Release the trigger to stop.
Triggerswitch
Fig. 1
CAUTION :
Before plugging inthe tool, always check to see that the trigger switch actuatesproperly
and returnsto the
“OFF” position when released.
Demolishing .Chipping - Scaling
Choose the right accessories for your
work. After mounting the suitable acces-
sory and switching on the demolition
hammer,
let the mere weight of the tool
itself apply pressure to the work surface.
Fig. 5
6

MAINTENANCE
CAUTION :
ALWAYS be sure that the tool is switched off and unplugged before attempting to per-
form inspectionand maintenance.

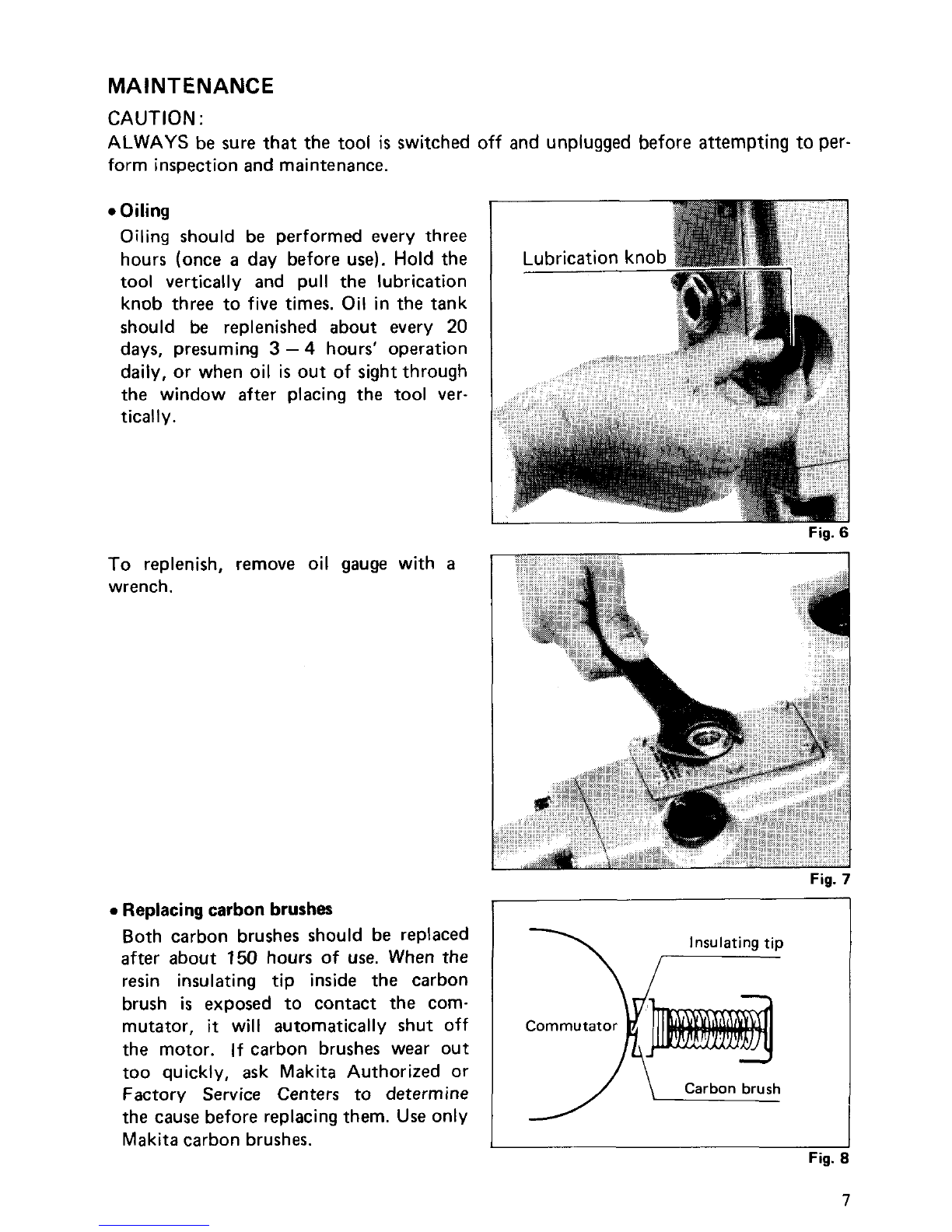

e Oiling
Oiling should be performed every three
hours (once
a day before use). Hold the
tool vertically and pull the lubrication
knob three to five times. Oil inthe tank
should be replenished about every
20
days, presuming 3 - 4 hours’ operation
daily, or when oil
is out of sightthrough
the window after placing the tool ver-
tically.
To replenish,
wrench. remove oil gauge with
a
0 Replacingcarbonbrushes
Both carbon brushes should be replaced
after about
150 hours of use. When the
resin insulating tip inside the carbon
brush
is exposed to contact the com-
mutator,
it will automatically shut off
the motor. If carbon brushes wear out
too quickly, ask Makita Authorized or
Factory Service Centers to determine
the cause beforereplacingthem. Use only
Makitacarbonbrushes.
Fig. 6
Insulating tip
>f--
Fig. 8
7

Use the screwdriver to remove the screw
holding the holder cap plate
as shown in
the figure.
Fig. 9
Use the screwdriver to remove the brush
holdercap
as shown inthe figure.
Take out the worn brush, insertthe new
one and secure the brush holder cap.
Fig. 1
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance and
adjustment should be performed
by Makita Authorized or Factory Service Centers,
always usingMakita replacementparts.
8

ACCESSORIES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool-specified in this
manual. The use of any other accessoriesor attachments mightpresent a risk of injury topersons.The
accessoriesor attachments should be used only
in the proper and intendedmanner.
Bull point
410 mm (16-118”)
Part
No. 751407-0
Cold chisel
36 mm (1-318”) x 410 mm (16-118“)
Part
No. 751207-8
Scaling chisel Clay spade
100
mm (4“) x 310 mm (12-114”)
Part No. 751211-7 120
mm (4-314“) x 500 mm (19.518”)
Part
No. 751604-8
Rammer
200 mm (8”)
Par? No. 751702-8
Wrench 23
Part No. 781012-9
Oil supply (1 00 cc)
Part No. 181118-7
Hex wrench 5
Part No. 783203-8
Hex wrench 6
Part No. 783204-6
Steel carrying case
Part No. 181805-8
9

July-16-'84 US

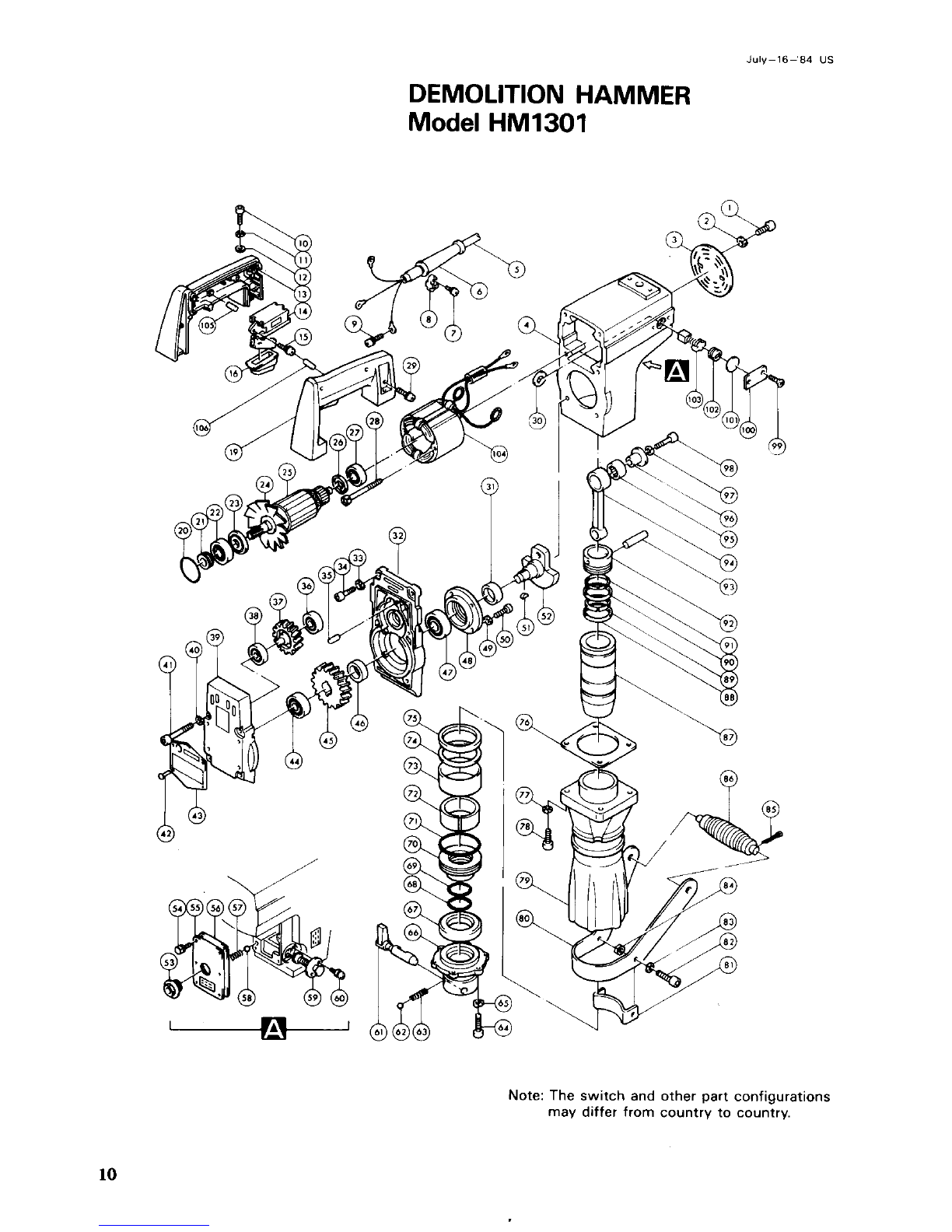

DEMOLITION HAMMER
Model HM1301
Note: The switch and other part configurations
may differ from country
to country.
10

MODEL HM1301
""0" SD DESCRIPTION
Nov-09-'84 US
At, DESCRIPTION
MACHINE
~
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
19
20
21
22
23
24
25
26
27
28
29
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
30
2
2
I
1
1
1
1
1
1
4
4
4
1
1
1
1
1
1
1
1
1
1
1
1
1
2
3
2
1
1
2
2
1
1
1
1
1
4
4
4
1
1
I
1
1
1
4
4
2
1
1
-
Hex Socket Head Bolt M6x16
Spring Washer
6
Rear Cover
Motor Housing
CORD ASSEMBLY
IAssembledCord
Plug & Item 61
Cord Guard
Pan Head Screw M4~18(WithWasher1
Strain Relief
Pan Head Screw M4x8 (With Washerl
Hex Socket Head Bolt M6x30
Spring Washer
6
Flat Washer 6
Handle Set (With Item 191
Switch
Pan Head Screw M4x16 IWith Washerl
D",t Cover
Handle
Set IWith Item 131
0 Ring 35
Screw Sea1
Ball Bearing 6202LLB
Dust
Seal 15
Fan 92
ARMATURE ASSEMBLY
(Wrth
Item 22 - 271
Dust Seal 10
Ball Bearing 620oL18
Hex Bolt M5x15 IWith Washer1
Pan Head Screw M5x25 IWith Washerl
Insul8tmn Washer
011 Seal 30
Gear Housing
Spring Washer
6
Hex Socket Head Bolt M6x25
Pin 6
Ball Bearing 6201118
Helical Gear 43
Gear
Housing Cover
Spring Washer
6
Hex Socket Head Bolt M6x60
Rivet 0-5
Name
Plate
Ball Bearing 6302LLB
Helical Gear 68
Ring 25
Ball Bearing 6205110
Spring Washer
6
Hex Socket Head Bolt M6x18
Woodruff key 4
Crank Shaft
011 Gauae
B~II Bearing 6201~~8
Bearing BOX
MACHINE
~
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
02
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
IO0
101
102
103
I04
105
I06
__
6
1
1
1
1
1
2
1
1
1
6
6
1
1
1
I
1
1
1
1
1
1
1
4
4
1
1
1
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
4
2
2
2
2
1
1
1
-
Hex 0011M5x14 (With Washer)
011 Tank Cover
081 Tank Packing
Compression Spring 4
Steel Ball 4 8
Pan Head Screw M4x14 IWith Washer)
Tool
Retainer
Steel Ball 7 9
Compression Spring
5
Hex Socket Head Boll Max30
Spring Washer
8
Tool Holder
Urethane
Ring 44
0 Ring 24
0 Ring 24
Seal Holder
0 Ring 65
Idler
Rubber
Ring 68
Flat Washer 60
Nylon Rmg 60
Cylinder Packing
Spring Washer 8
Hex Socket Head Bolt Max35
Cylinder
Side Handle
Plafe
Her Socket Head Bolt Max25
Spring Washer 8
Hex U Nul Max13
Split Pin 4 - 25
Grip 30
Hammer
Piston Ring 46
Inner Ring 42
Piston Ring 46
Inner Ring 42
P1StO"
Pl" 10
Connecting Rod
Needle
Bearing 1716
Crank
Sleeve
Spring Washer 10
Hex Socket Head Bolt M10x35
Countersunk Head Screw M4x10 (With Washerl
Holder Cap
Plate
Cap Rubber
Holder Cap
Carbon Brush
FIELD ASSEMBLY
Rubber
Pin 4
Rubber
Pin 4
Plunger
Note The switch and other part Specifications may differ from Country Io country
11

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free
of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterationshave been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM
OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTII:S, INCLUDING IMPLIED
WARRANTIFS
01 “MERCHANTABILITY” AND ‘WTNESS FOR A SPFClFlC PURPOSE,”
AFTER THE ONE-YEARTERM OFTHIS WARRANTY.
This Warranty gives you specific legal rights, and
you may also have other rights which vary from
state to state. Some states do not allow the exclusion or Limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883445A067 PRINTED
IN JAPAN
1991 - 11 - N
