INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES
Jig Saw
Scie Sauteuse
Sierra Caladora
JV0600
IMPORTANT: Read Before Using.
IMPORTANT : Lire avant usage.
IMPORTANTE: Lea antes de usar.
DOUBLE INSULATION
DOUBLE ISOLATION
DOBLE AISLAMIENTO

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model JV0600
Length of stroke 23 mm (7/8")
Max. cutting capacities Wood 90 mm (3-1/2")
Mild steel 10 mm (3/8")
Strokes per minute 500 - 3,100/min
Overall length 236 mm (9-1/4")
Net weight 2.4 kg (5.3 lbs)
• Due to our continuing program of research and development, the specications herein are subject to change without notice.
• Specications may di󰀨er from country to country.
• Weight according to EPTA-Procedure 01/2014
General Power Tool Safety Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and instruc-
tions may result in electric shock, re and/or serious
injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit inter-
rupter (GFCI) protected supply. Use of an GFCI
reduces the risk of electric shock.
Personal safety
10. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
11. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
12. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
13.
Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
14. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
15. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
16. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power tool use and care
17. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
18. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.

3ENGLISH
19. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting
the power tool accidentally.
20. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
21. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may a󰀨ect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
22. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
23.
Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations di󰀨erent
from those intended could result in a hazardous situation.
Service
24.
Have your power tool serviced by a qualied repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
25. Follow instruction for lubricating and chang-
ing accessories.
26.
Keep handles dry, clean and free from oil and grease.
USE PROPER EXTENSION CORD. Make sure your exten-
sion cord is in good condition. When using an extension cord,
be sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating. Table 1
shows the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier
gage. The smaller the gage number, the heavier the cord.
Table 1: Minimum gage for cord
Ampere Rating
Volts Total length of cord in feet
More Than Not More Than
120V 25 ft. 50 ft. 100 ft. 150 ft.
AWG
06
6
10
12
10
12
16
18
18
16
14
16 16 14
1416
16
12
14
12
12
Not Recommended
220V - 240V 50 ft. 100 ft. 200 ft. 300 ft.
JIG SAW SAFETY WARNINGS
1. Hold power tool by insulated gripping sur-
faces, when performing an operation where
the cutting accessory may contact hidden wir-
ing or its own cord. Cutting accessory contacting
a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an
electric shock.
2. Use clamps or another practical way to secure
and support the workpiece to a stable plat-
form. Holding the work by hand or against your
body leaves it unstable and may lead to loss of
control.
3. Always use safety glasses or goggles.
Ordinary eye or sun glasses are NOT safety
glasses.
4. Avoid cutting nails. Inspect workpiece for any
nails and remove them before operation.
5. Do not cut oversize workpiece.
6. Check for the proper clearance beyond the
workpiece before cutting so that the blade will
not strike the oor, workbench, etc.
7. Hold the tool rmly.
8. Make sure the blade is not contacting the
workpiece before the switch is turned on.
9. Keep hands away from moving parts.
10. Do not leave the tool running. Operate the tool
only when hand-held.
11. Always switch o󰀨 and wait for the blade to
come to a complete stop before removing the
blade from the workpiece.
12. Do not touch the blade or the workpiece imme-
diately after operation; they may be extremely
hot and could burn your skin.
13. Do not operate the tool at no-load
unnecessarily.
14. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
15. Always use the correct dust mask/respirator
for the material and application you are work-
ing with.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or famil-
iarity with product (gained from repeated
use) replace strict adherence to safety
rules for the subject product. MISUSE or
failure to follow the safety rules stated in
this instruction manual may cause serious
personal injury.

4ENGLISH

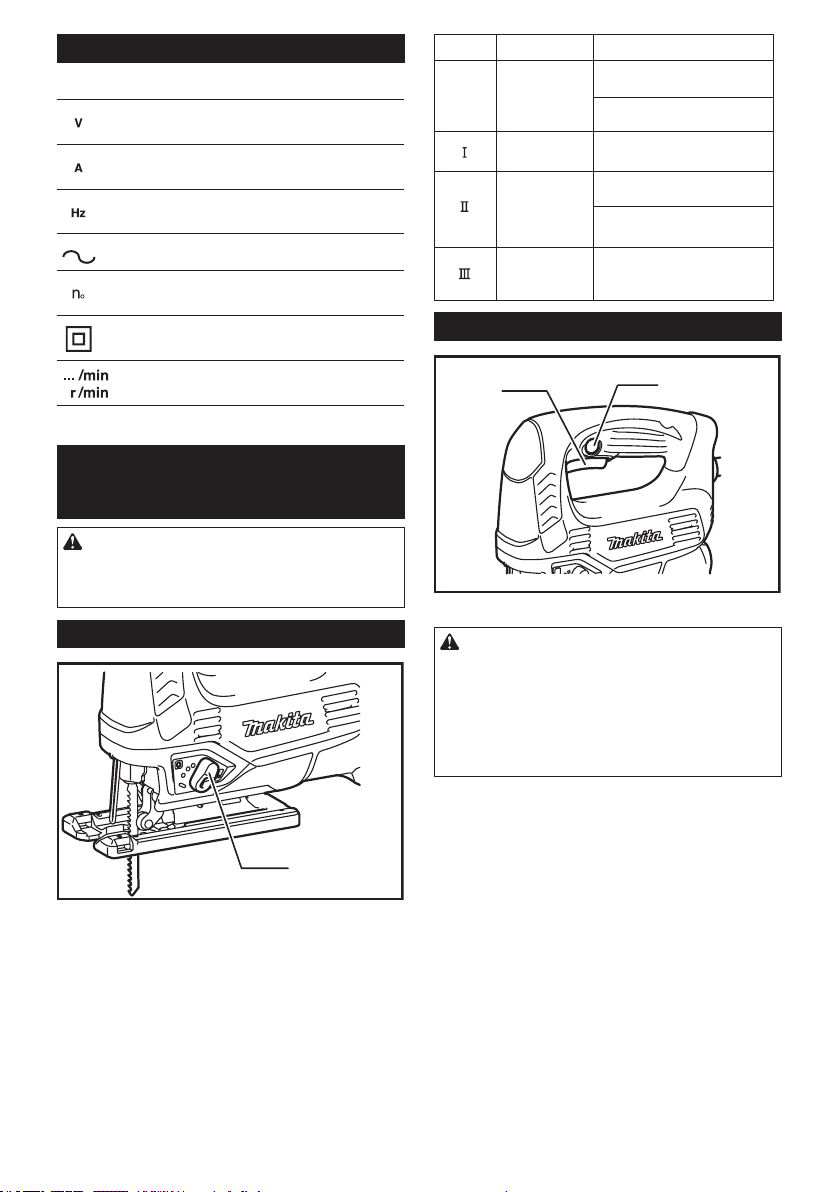

Symbols
The followings show the symbols used for tool.
volts
amperes
hertz
alternating current
no load speed
Class II Construction
revolutions or reciprocation per minute
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched o󰀨 and
unplugged before adjusting or checking function
on the tool.
Selecting the cutting action
1
► 1. Cutting action changing lever
This tool can be operated with an orbital or a straight
line (up and down) cutting action. The orbital cutting
action thrusts the blade forward on the cutting stroke
and greatly increases cutting speed.
To change the cutting action, just turn the cutting action
changing lever to the desired cutting action position.
Refer to the table to select the appropriate cutting
action.
Position Cutting action Applications
For cutting mild steel,
stainless steel and plastics.
For clean cuts in wood
and plywood.
Small orbit
cutting action
For cutting mild steel,
aluminum and hard wood.
For cutting wood and
plywood.
For fast cutting in aluminum
and mild steel.
Large orbit
cutting action
For fast cutting in wood
and plywood.
0Straight line
cutting action
Medium orbit
cutting action
Switch action
12
► 1. Switch trigger 2. Lock button
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
• Switch can be locked in "ON" position for ease
of operator comfort during extended use. Apply
caution when locking tool in "ON" position and
maintain rm grasp on tool.
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
For continuous operation, pull the switch trigger and
then push in the lock button.
To stop the tool from the locked position, pull the switch
trigger fully, then release it.

5ENGLISH
Speed adjusting dial
1
► 1. Speed adjusting dial
The tool speed can be innitely adjusted by turning the speed
adjusting dial. Higher speed is obtained when the speed adjust-
ing dial is turned in the direction of number 5; lower speed is
obtained when it is turned in the direction of number 1.
Refer to the table to select the proper speed for the
workpiece to be cut. However, the appropriate speed
may di󰀨er with the type or thickness of the workpiece. In
general, higher speeds will allow you to cut workpieces
faster but the service life of the blade will be reduced.
Number on adjusting dial
4 - 5
Mild steel 3 - 5
Stainless steel 3 - 4
Aluminum 3 - 5
Plastics 1 - 4
Workpiece to be cut
Wood
CAUTION:
•
The speed adjusting dial can be turned only as far
as 5 and back to 1. Do not force it past 5 or 1, or
the speed adjusting function may no longer work.
ASSEMBLY
CAUTION:
•
Always be sure that the tool is switched o󰀨 and
unplugged before carrying out any work on the tool.

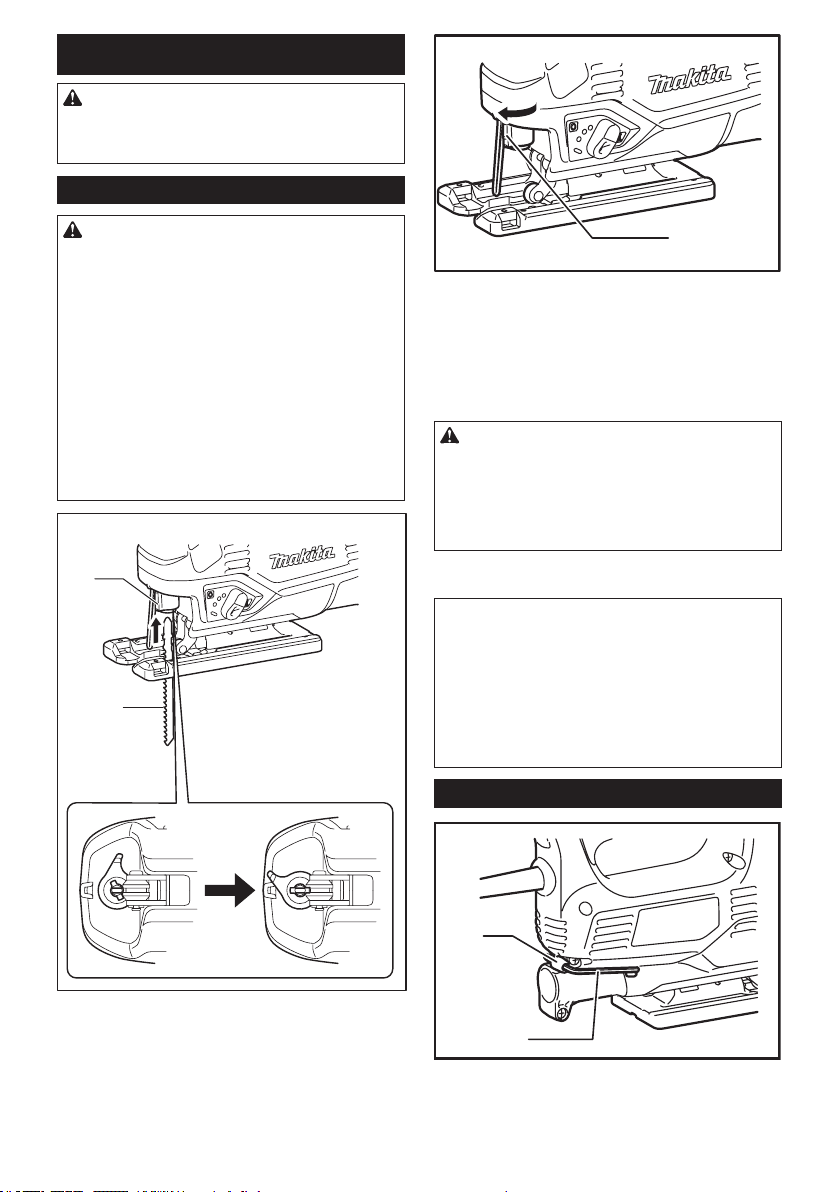

Installing or removing saw blade
CAUTION:
•
Always clean out all chips or foreign matter
adhering to the blade and/or blade holder. Failure
to do so may cause insu󰀩cient tightening of the
blade, resulting in a serious personal injury.
• Do not touch the blade or the workpiece imme-
diately after operation; they may be extremely
hot and could burn your skin.
• Use only B type blades. Using blades other than
B type blades causes insu󰀩cient tightening of
the blade, resulting in a serious personal injury.
•
When you remove the saw blade, be careful not to hurt your
ngers with the top of the blade or the tips of workpiece.
1
2
34
► 1. Blade holder 2. Blade 3. Fixed position
4. Released position
1
► 1. Blade clamp lever
Before installing the blade, make sure that the blade
clamp lever is in the released position.
To install the blade, insert the blade (teeth facing for-
ward) into the blade holder until it latches. The lever
moves to the xed position by itself and the blade is
locked. Pull the blade lightly to make sure that the blade
does not fall o󰀨 during operation.
CAUTION:
• If the lever does not move to the xed position
by itself, the blade is not installed completely.
Do not press the lever by hand to the xed
position. It may damage the tool. Make sure that
the back edge of the blade ts into the roller.
To remove the blade, push the lever forward as far as it
will go. This allows the blade to be released.

6ENGLISH
NOTE:
In case that it is di󰀩cult to remove the jig saw blade:
Turn the cutting action changing lever to the position
"III" and move the jig saw blade holder to the bottom
before pushing the blade clamp lever to the released
position. To move the jig saw blade holder to the bot-
tom, return the blade clamp lever fully to the xed posi-
tion once and slightly switch on the tool several times.

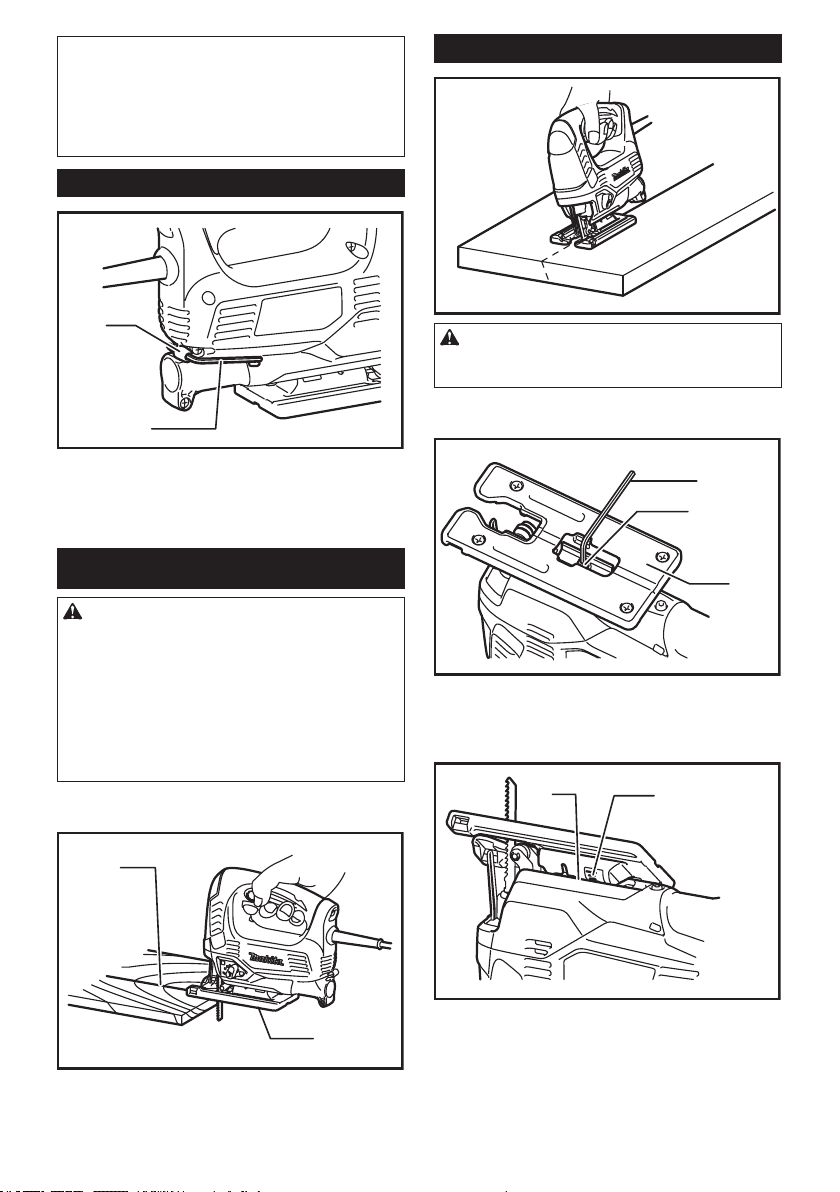

Hex wrench storage
1
2
► 1. Wrench holder 2. Hex wrench
When not in use, store the hex wrench as shown in the
gure to keep it from being lost.

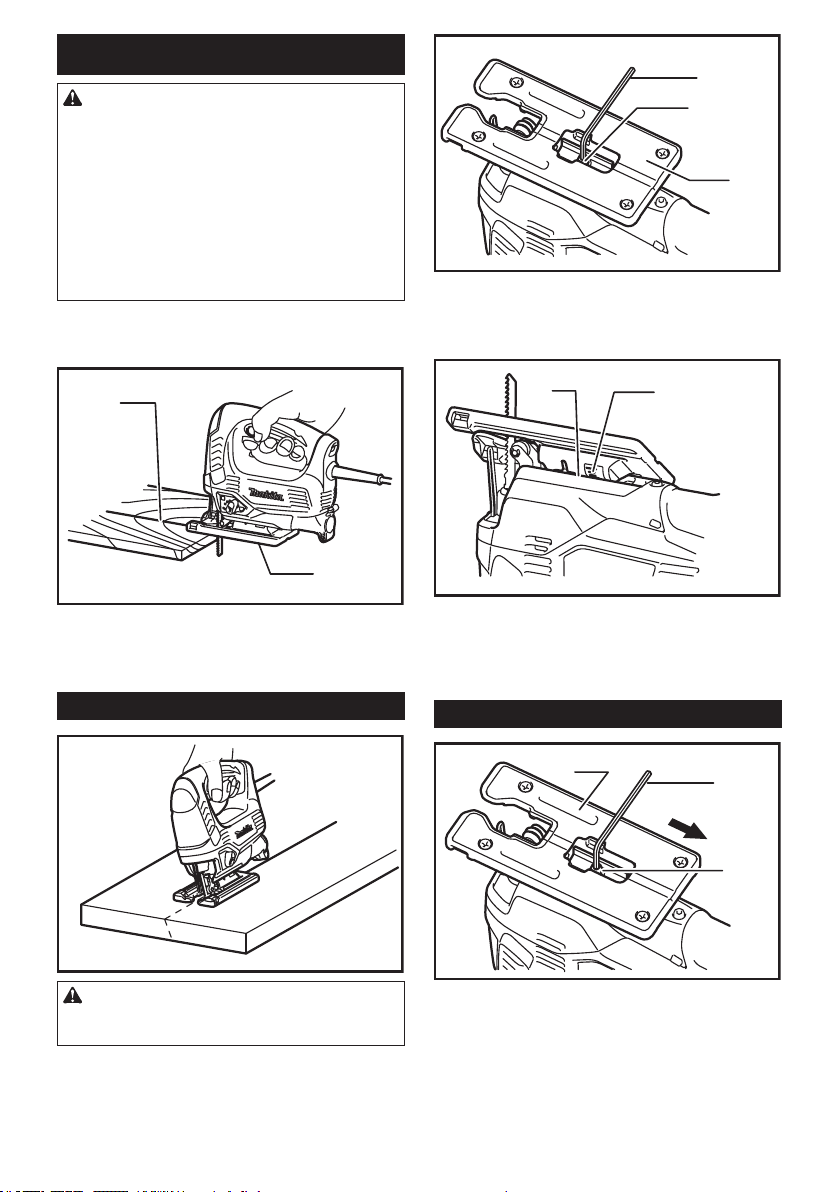

OPERATION
CAUTION:
• Always hold the base ush with the workpiece.
Failure to do so may cause blade breakage,
resulting in a serious injury.
• Advance the tool very slowly when cutting
curves or scrolling. Forcing the tool may cause a
slanted cutting surface and blade breakage.
•
Hold the tool rmly with one hand on the main han-
dle when performing the tool. If necessary, the front
part of the tool may be supported by the other hand.
Turn the tool on without the blade making any contact
and wait until the blade attains full speed.
1
2
► 1. Cutting line 2. Base
Then rest the base at on the workpiece and gently move
the tool forward along the previously marked cutting line.
Bevel cutting
CAUTION:
• Always be sure that the tool is switched o󰀨 and
unplugged before tilting the base.
With the base tilted, you can make bevel cuts at any
angle between 0° and 45° (left or right).
1
2
3
► 1. Hex wrench 2. Bolt 3. Base
Loosen the bolt on the back of the base with the hex
wrench. Move the base so that the bolt is positioned in
the center of the cross-shaped slot in the base.
12
► 1. Edge 2. Graduation
Tilt the base until the desired bevel angle is obtained.
The edge of the housing indicates the bevel angle by
graduations. Then tighten the bolt to secure the base.

7ENGLISH
Front ush cuts
12
3
► 1. Base 2. Hex wrench 3. Bolt
Loosen the bolt on the back of the base with the hex
wrench and slide the base all the way back. Then
tighten the bolt to secure the base.

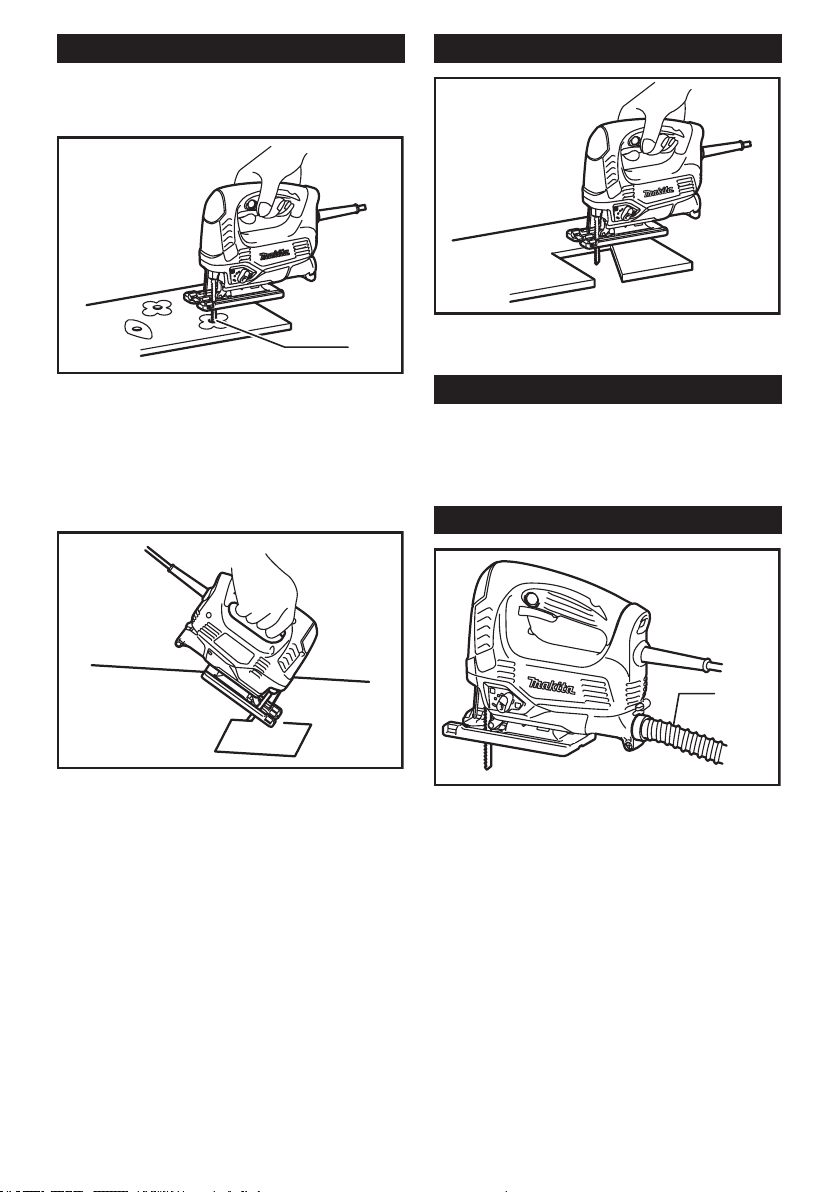

Cutouts
Cutouts can be made with either of two methods A or B.
A) Boring a starting hole
1
► 1. Starting hole
For internal cutouts without a lead-in cut from an
edge, pre-drill a starting hole 12 mm (1/2") or more
in diameter. Insert the blade into this hole to start
your cut.
B) Plunge cutting
You need not bore a starting hole or make a
lead-in cut if you carefully do as follows.
(1) Tilt the tool up on the front edge of the base
with the blade point positioned just above the
workpiece surface.
(2) Apply pressure to the tool so that the front
edge of the base will not move when you
switch on the tool and gently lower the back
end of the tool slowly.
(3) As the blade pierces the workpiece, slowly
lower the base of the tool down onto the
workpiece surface.
(4) Complete the cut in the normal manner.
Finishing edges
To trim edges or make dimensional adjustments, run the
blade lightly along the cut edges.
Metal cutting
Always use a suitable coolant (cutting oil) when cutting
metal. Failure to do so will cause signicant blade wear.
The underside of the workpiece can be greased instead
of using a coolant.

8ENGLISH
Dust extraction
1
► 1. Hose
Clean cutting operations can be performed by con-
necting this tool to a Makita vacuum cleaner. Insert the
hose of the vacuum cleaner into the hole at the rear of
the tool.
Rip fence (optional accessory)
CAUTION:
• Always be sure that the tool is switched o󰀨
and unplugged before installing or removing
accessories.
1. Straight cuts
1
► 1. Rip fence (Guide rule)
When repeatedly cutting widths of 160 mm or less,
use of the rip fence will assure, clean, straight
cuts.
1
23
4
► 1. Bolt 2. Fence guide 3. Hex wrench 4. Rip fence (Guide rule)
To install, insert the rip fence into the rectangular
hole on the side of the base with the fence guide
facing down. Slide the rip fence to the desired cut-
ting width position, then tighten the bolt to secure it.
2. Circular cuts
When cutting circles or arcs of 170 mm (6-11/16")
or less in radius, install the rip fence as follows.
1
2
3
4
► 1. Threaded knob 2. Pin 3. Rip fence (Guide rule)
4. Fence guide
Insert the rip fence into the rectangular hole on the
side of the base with the fence guide facing up.
Insert the circular guide pin through either of the
two holes on the fence guide. Screw the threaded
knob onto the pin to secure the pin.
1
► 1. Rip fence (Guide rule)
Now slide the rip fence to the desired cutting
radius, and tighten the bolt to secure it in place.
Then move the base all the way forward.

9ENGLISH
NOTE:
• Always use blades No. B-17, B-18, B-26 or B-27
when cutting circles or arcs.

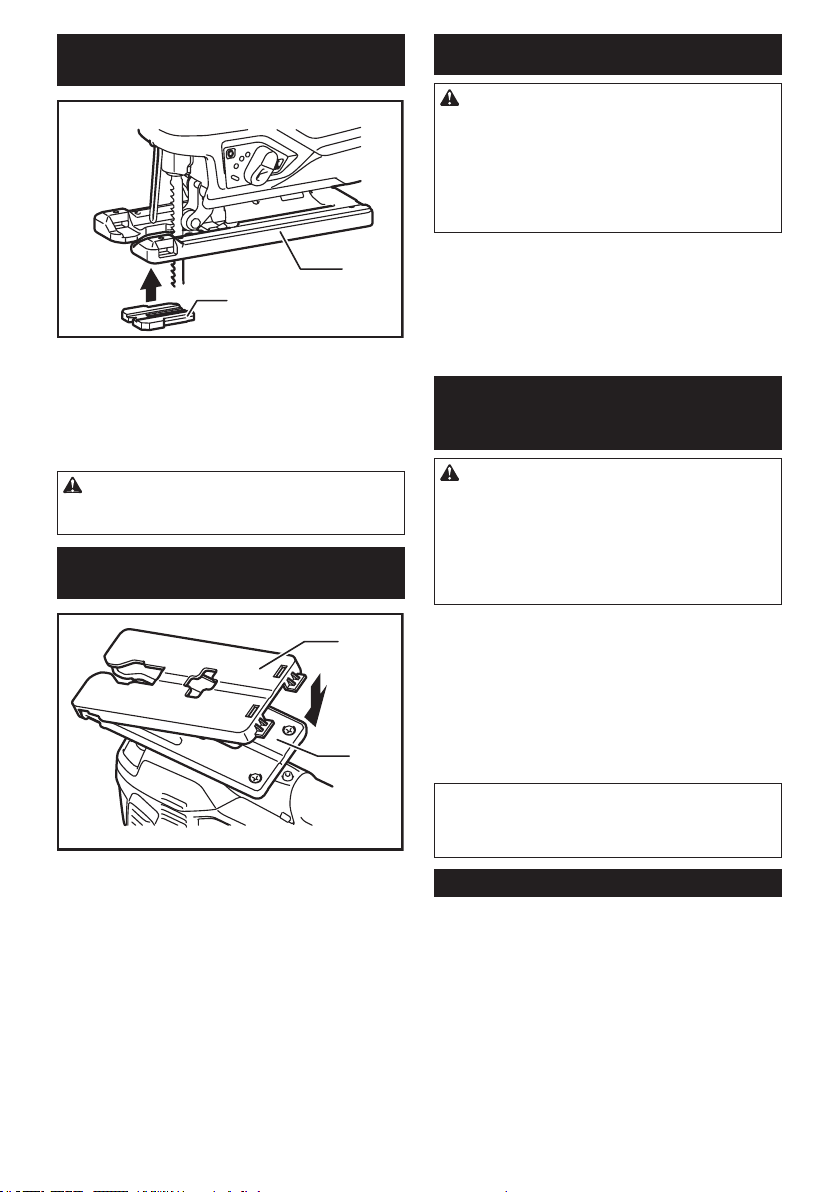

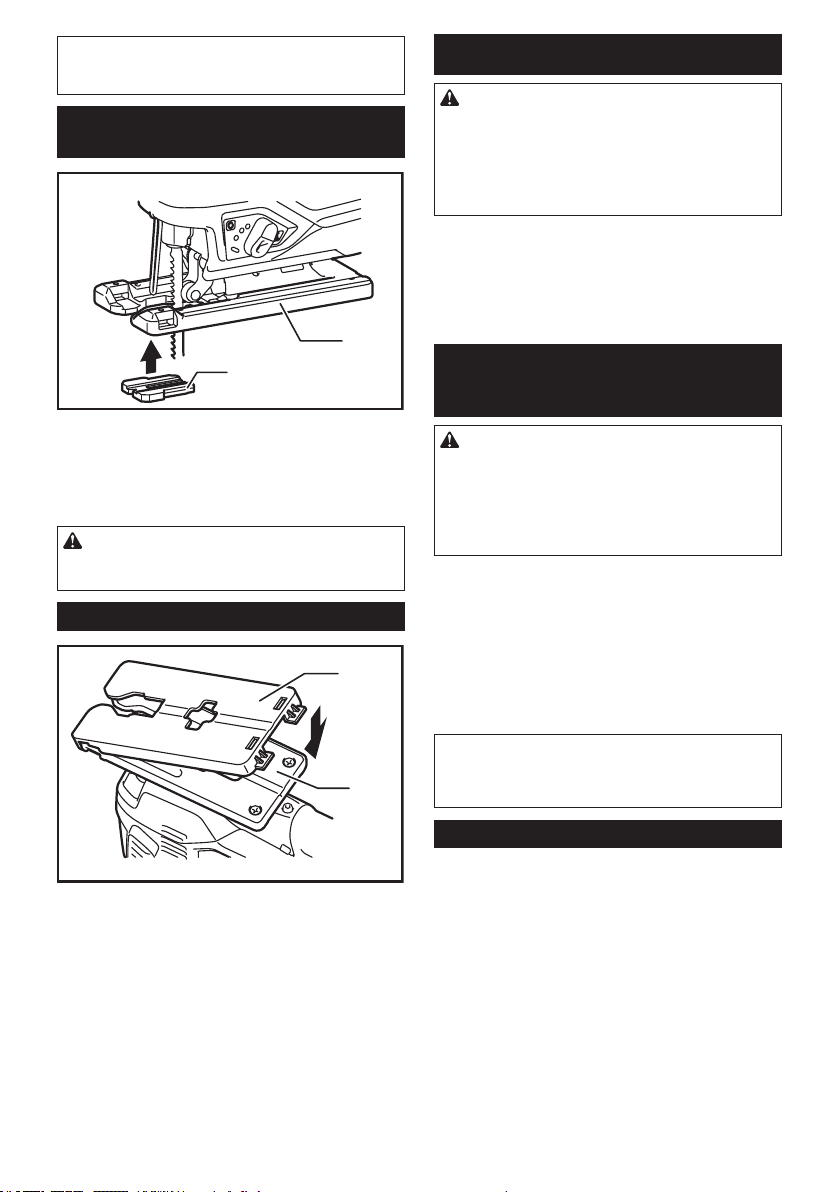

Anti-splintering device (optional
accessory)
1
2
► 1. Anti-splintering device 2. Tool base
For splinter-free cuts, the anti-splintering device can
be used. To install the anti-splintering device, move the
tool base all the way forward and t it from the back
of tool base. When you use the cover plate, install the
anti-splintering device onto the cover plate.
CAUTION:
• The anti-splintering device cannot be used when
making bevel cuts.
Cover plate (optional accessory)
1
2
► 1. Cover plate 2. Tool base
Use the cover plate when cutting decorative veneers,
plastics, etc. It protects sensitive or delicate surfaces
from damage. Fit it on the back of the tool base.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched o󰀨 and
unplugged before attempting to perform inspec-
tion or maintenance.
• Never use gasoline, benzine, thinner, alcohol
or the like. Discoloration, deformation or cracks
may result.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized or Factory Service Centers, always
using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION:
• These accessories or attachments are recom-
mended for use with your Makita tool specied
in this manual. The use of any other accessories
or attachments might present a risk of injury to
persons. Only use accessory or attachment for
its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Jig saw blades
• Hex wrench 3
• Rip fence (guide rule) set
• Anti-splintering device
• Hose (For vacuum cleaner)
• Cover plate
NOTE:
• Some items in the list may be included in the
tool package as standard accessories. They
may di󰀨er from country to country.
MAKITA LIMITED WARRANTY
Please refer to the annexed warranty sheet for the
most current warranty terms applicable to this product.
If annexed warranty sheet is not available, refer to the
warranty details set forth at below website for your
respective country.
United States of America: www.makitatools.com
Canada: www.makita.ca
Other countries: www.makita.com

10 FRANÇAIS
FRANÇAIS (Mode d’emploi original)
SPÉCIFICATIONS
Modèle JV0600
Longueur de frappe 23 mm (7/8")
Capacités de coupe max. Bois 90 mm (3-1/2")
Acier doux 10 mm (3/8")
Nombre d'impacts par minutes 500 - 3 100 /min
Longueur totale 236 mm (9-1/4")
Poids net 2,4 kg (5,3 lbs)
• Étant donné l’évolution constante de notre programme de recherche et de développement, les spécications
contenues dans ce manuel sont sujettes à modication sans préavis.
• Les spécications peuvent varier suivant les pays.
• Poids selon la procédure EPTA 01/2014
Consignes de sécurité générales
pour outils électriques
MISE EN GARDE Veuillez lire toutes les mises en
garde de sécurité et toutes les instructions. L'ignorance
des mises en garde et des instructions comporte un risque
de choc électrique, d'incendie et/ou de blessure grave.
Conservez toutes les mises en
garde et instructions pour réfé-
rence future.
Le terme « outil électrique » qui gure dans les avertis-
sements fait référence à un outil électrique branché sur
une prise de courant (par un cordon d'alimentation) ou
alimenté par batterie (sans l).
Sécurité de la zone de travail
1. Maintenez la zone de travail propre et bien
éclairée. Les zones de travail encombrées ou
sombres ouvrent grande la porte aux accidents.
2. N'utilisez pas les outils électriques dans les
atmosphères explosives, par exemple en pré-
sence de liquides, gaz ou poussières inam-
mables. Les outils électriques produisent des
étincelles au contact desquelles la poussière ou
les vapeurs peuvent s'enammer.
3. Assurez-vous qu'aucun enfant ou curieux ne
s'approche pendant que vous utilisez un outil
électrique. Vous risquez de perdre la maîtrise de
l'outil si votre attention est détournée.
Sécurité en matière d'électricité
4.
Les ches d'outil électrique sont conçues pour
s'adapter parfaitement aux prises de courant. Ne
modiez jamais la che de quelque façon que ce
soit. N'utilisez aucun adaptateur de che sur les
outils électriques avec mise à la terre. En ne modi-
ant pas les ches et en les insérant dans des prises
de courant pour lesquelles elles ont été conçues vous
réduirez les risques de choc électrique.
5. Évitez tout contact corporel avec les surfaces
mises à la terre, telles que les tuyaux, radia-
teurs, cuisinières et réfrigérateurs. Le risque
de choc électrique est plus élevé si votre corps se
trouve mis à la terre.
6. N'exposez pas les outils électriques à la pluie
ou à l'eau. La présence d'eau dans un outil élec-
trique augmente le risque de choc électrique.
7. Ne maltraitez pas le cordon. N'utilisez jamais
le cordon pour transporter, tirer ou débrancher
l'outil électrique. Maintenez le cordon à l'écart
des sources de chaleur, de l'huile, des objets à
bords tranchants et des pièces en mouvement.
Le risque de choc électrique est plus élevé lorsque
les cordons sont endommagés ou enchevêtrés.
8. Lorsque vous utilisez un outil électrique à l'ex-
térieur, utilisez un cordon prolongateur prévu
à cette n. Les risques de choc électrique sont
moindres lorsqu'un cordon conçu pour l'extérieur
est utilisé.
9. Si vous devez utiliser un outil électrique dans
un endroit humide, utilisez une source d'ali-
mentation protégée par un disjoncteur de fuite
à la terre. L'utilisation d'un disjoncteur de fuite à la
terre réduit le risque de choc électrique.
Sécurité personnelle
10. Restez alerte, attentif à vos mouvements et
faites preuve de bon sens lorsque vous utili-
sez un outil électrique. Évitez d'utiliser un outil
électrique si vous êtes fatigué ou si vous avez
pris une drogue, de l'alcool ou un médicament.
Un moment d'inattention pendant l'utilisation d'un
outil électrique peut entraîner une grave blessure.
11. Portez des dispositifs de protection person-
nelle. Portez toujours un protecteur pour la
vue. Les risques de blessure seront moins élevés
si vous utilisez des dispositifs de protection tels
qu'un masque antipoussières, des chaussures à
semelle antidérapante, une coi󰀨ure résistante ou
une protection d'oreilles.
12. Évitez les démarrages accidentels. Assurez-
vous que l’interrupteur soit en position d'arrêt
avant de brancher l'outil à la prise électrique
et/ou au bloc-piles, avant de prendre ou de
transporter l’outil. Vous ouvrez la porte aux
accidents si vous transportez les outils électriques
avec le doigt sur l’interrupteur ou si vous les bran-
chez alors que l’interrupteur est en position de
marche.
