ENGLISH (Original instructions)
Job Site Radio
DMR110
INSTRUCTION MANUAL
IMPORTANT: Read Before Using.

2
ENGLISH (Original instructions)
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
.................... Read instruction manual.
................... Only for EU countries
Do not dispose of electric equipment
or battery pack together with
household waste material!
In observance of the European
Directives, on Waste Electric and
Electronic Equipment and Batteries
and Accumulators and Waste
Batteries and Accumulators and their
implementation in accordance with
national laws, electric equipment and
batteries and battery pack(s) that
have reached the end of their life
must be collected separately and
returned to an environmentally
compatible recycling facility.
DAB: The name “DAB” in this manual indicates “Digital
Radio”.
WARNING:
When using electric tools, basic safety precautions should
always be followed to reduce the risk of fire, electric
shock, and personal injury, including the following:
1. Read this instruction manual and the charger
instruction manual carefully before use.
2. Clean only with dry cloth.
3. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
4. Only use attachments/accessories specified by the
manufacturer.
5. Unplug this apparatus during lighting storms or when
unused for long periods of time.
6. A battery operated radio with integral batteries or a
separate battery pack must be recharged only with the
specified charger for the battery. A charger that may
be suitable for one type of battery may create a risk of
fire when used with another battery.
7. Use battery operated radio only with specifically
designated battery packs. Use of any other batteries
may create a risk of fire.
8. When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause sparks, burns,
or a fire.
9. Avoid body contact with grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an
increased risk of electric shock if your body is
grounded.
10. Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
11. The MAINS plug is used as the disconnect device,
and it shall remain readily operable.
SAVE THESE INSTRUCTIONS
1. Before using battery cartridge, read all instructions
and cautionary markings on (1) battery charger, (2)
battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop
operating immediately. It may result in a risk of
overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with
clear water and seek medical attention right away. It
may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any conductive
material.
(2) Avoid storing battery cartridge in a container with
other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.
A battery short can cause a large current flow,
overheating, possible burns and even a breakdown.
6. Do not store the tool and battery cartridge in locations
where the temperature may reach or exceed 50°C
(122°F).
7. Do not incinerate the battery cartridge even if it is
severely damaged or is completely worn out. The
battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion-batteries are subject to the
Dangerous Goods Legislation requirements. For
commercial transports e.g. by third parties, forwarding
agents, special requirement on packaging and
labeling must be observed.
For preparation of the item being shipped, consulting
an expert for hazardous material is required. Please
also observe possibly more detailed national
regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move around in
the packaging.
11. Follow your local regulations relating to disposal of
battery.
SYMBOLS
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
FOR BATTERY CARTRIDGE

3
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries. Use of
non-genuine Makita batteries, or batteries that have been
altered, may result in the battery bursting causing fires,
personal injury and damage. It will also void the Makita
warranty for the Makita tool and charger.
Tips for maintaining maximum battery life
1. Charge the battery cartridge before completely
discharged.
Always stop tool operation and charge the battery
cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at
10°C - 40°C (50°F - 104°F). Let a hot battery cartridge
cool down before charging it.
4. Charge the battery cartridge if you do not use it for a
long period (more than six months).

4

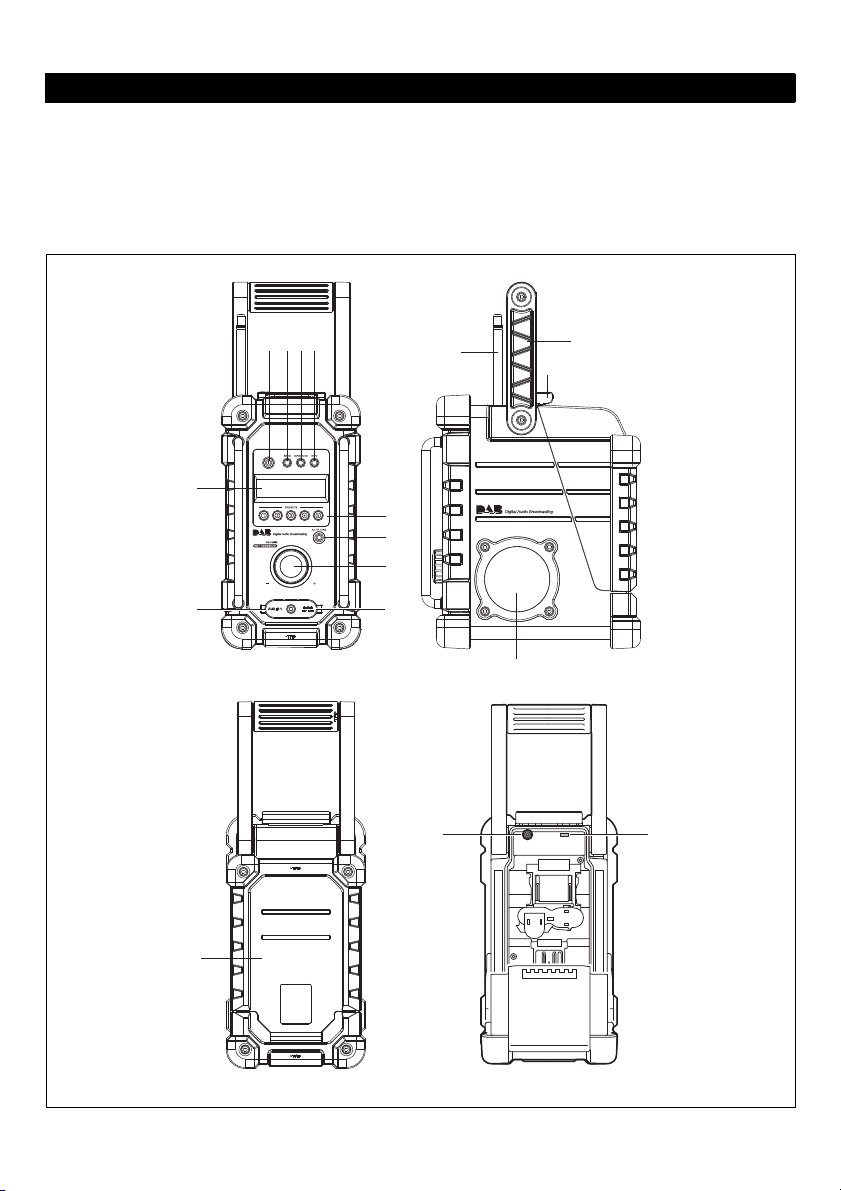

EXPLANATION OF GENERAL VIEW
1. Power button
2. Band button
3. Advanced setting button
4. Info button
5. Preset button
6. Auto tune button
7. Volume/Tuning Control/Select knob
8. DC IN socket
9. AUX IN 1
10. LCD display
11. Soft bended rod antenna
12. Handle
13. Battery compartment cover
(covering battery cartridge)
14. Speaker
15. Battery compartment locker
16. Input terminal (AUX IN 2)
17. Micro USB port for software
upgrade
1 2 3 4
5
11 12
15
10
9
13
6
7
8
14
16 17

5
• FM/DAB or DAB+
• Large LCD display with illumination
• Manual/Preset/Scan tuning
• Rotary tuning and volume control
• 5 preset stations for each band
• Micro USB port for software upgrade
• Stereo speaker for rich sound performance
• Ultra rugged design
• Water resistant to IP64
• Powered by both Makita battery pack and supplied
power adaptor
The following tables indicate the operating time with a full charged battery.
: Cluster battery : Slide battery
* The operating time is based on the operation in DAB/DAB+ on a single charge.
* Operating time may differ depending on battery type, charging status, and usage condition.
Installing or removing Slide battery
cartridge
CAUTION: Always switch off the radio before
removing the battery cartridge.

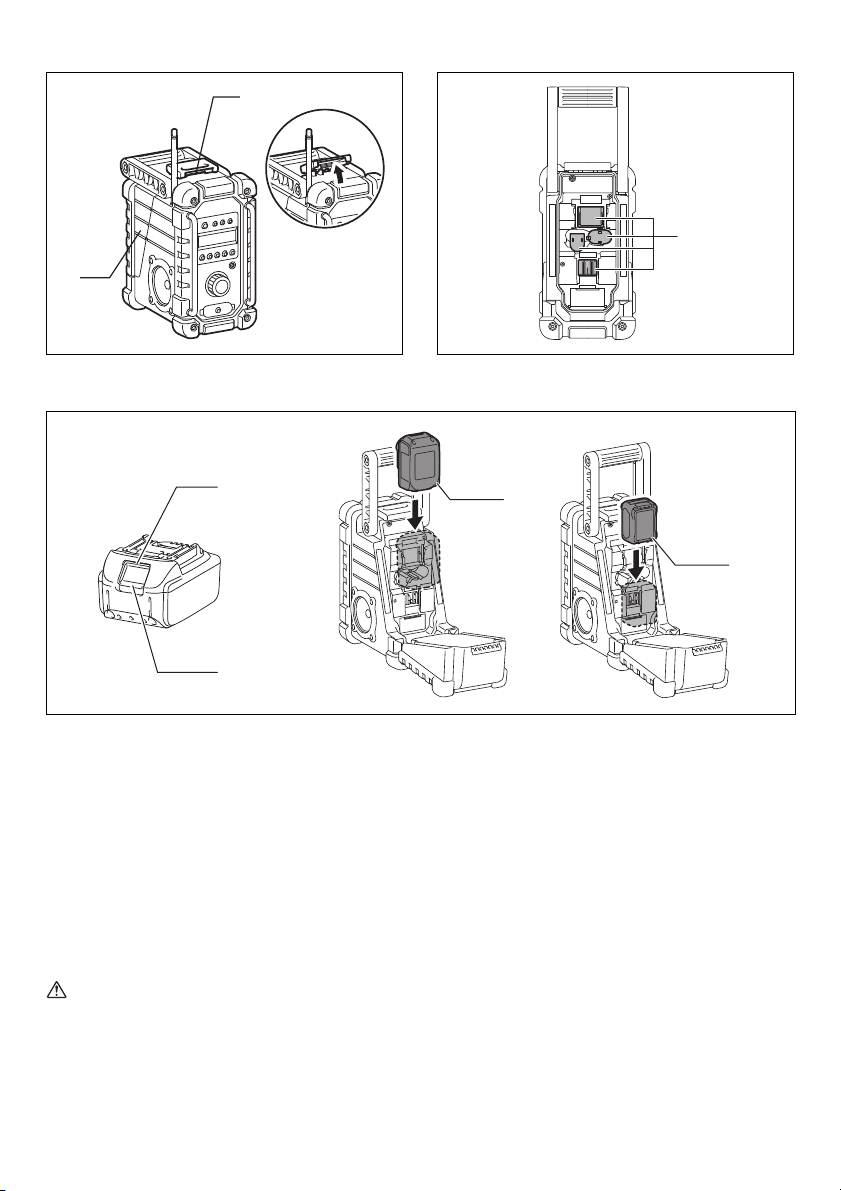

• To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Always insert it all the way until it locks in
place with a little click.
• If you can see the red indicator on the upper side of the
button, it is not locked completely. Install it fully until the
red indicator cannot be seen. If not, it may accidentally
fall out of the radio, causing injury to you or someone
around you.
• Do not use force when installing the battery cartridge. If
the cartridge does not slide in easily, it is not being
inserted correctly.
• To remove the battery cartridge, slide it from the radio
while sliding the button on the front of the cartridge or
pressing the buttons on both sides of the cartridge.
FEATURES
OPERATING TIME
Battery
capacity
Battery cartridge voltage At speaker output
= 50 mW + 50 mW
Unit: Hour (Approximately)
7.2 V 10.8 V,
10.8 V-12 V max 14.4 V 18 V
1.0 Ah BL7010 4.5 hour
1.3 Ah
BL1013 5.5 hour
BL1415 5.0 hour
BL1815 6.0 hour
1.5 Ah
BL0715 6.5 hour
BL1016 8.0 hour
BL1415N 7.0 hour
BL1815N 7.5 hour
2.0 Ah BL1021B BL1820
BL1820B 10 hour
3.0 Ah
BL1430
BL1430B 11 hour
BL1830
BL1830B 14 hour
4.0 Ah BL1041B BL1840B 20 hour
BL1440 18 hour
5.0 Ah BL1450 22 hour
BL1850B 25 hour
6.0 Ah BL1460B 24 hour
BL1860B 31 hour
INSTALLATION

6
1. Battery compartment
2. Battery compartment locker
1. Battery compartment
1. Red indicator
2. Button
3. Battery cartridge
Return the battery compartment locker to the original
position.
Reduced power, distortion and a “stuttering sound” are
signs that the battery needs to be replaced.
Note:
The battery pack can’t be charged via the supplied AC
power adaptor.
Installing or removing Cluster battery
cartridge
CAUTION:
Always switch off the radio before removing the battery
cartridge.
• To insert the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place.
• To remove the battery cartridge, take the battery out of
the terminal while pressing the buttons on the side of
cartridge.
Return the battery compartment locker to the original
position.
Reduced power, distortion and a “stuttering sound” are
signs that the battery needs to be replaced.
Note:
The battery pack can’t be charged via the supplied AC
power adaptor.
1
2
1
3
3
1
2

7
1. Battery cartridge
Indicating the remaining battery capacity
Only for battery cartridges with “B” at the end of the model
number
Press the check button on the battery cartridge to indicate
the remaining battery capacity. The indicator lamps light
up for few seconds.
1. Indicator lamps
2. Check button
Note:
• Depending on the conditions of use and the ambient
temperature, the indication may differ slightly from the
actual capacity.
Installing the soft bended rod antenna
Install the soft bended rod antenna as shown in the figure.
1. Soft bended rod antenna
Note:
There is a click in the battery compartment designed to
store the removed antenna.
1
1
2
1
Indicator lamps
Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery may
have
malfunctioned.
1

8
1. Soft bended rod antenna
Using supplied AC power adaptor
Remove the rubber protector and insert the adaptor plug
into the DC socket on the front side of the radio. Plug the
adaptor into a standard mains socket outlet. Whenever
the adaptor is used, the battery pack is automatically
disconnected. The AC adaptor should be disconnected
from the main supply when not in use.
1. DC IN socket
2. AUX IN 1
This radio has three tuning methods- Scan tuning, Manual
tuning and Memory presets recall.
Selecting a station - DAB
1. Press the Power button to switch on your radio.
2. Select the DAB mode by pressing the Band button.
3. Press the Advanced setting button and rotate the
Volume/Tuning Control/Select knob until “Station List”
is flashing on the screen. Press the Volume/Tuning
Control/Select knob to enter the list of the stations.
4. Rotate the Volume/Tuning Control/Select knob to
scroll through the list of available stations. Press the
knob to select the station.
5. Adjust the desired volume by rotating the Volume/
Tuning Control/Select knob.
Display modes - DAB
Your radio has a range of display options in the DAB
mode:
Press the Info button to cycle through the various options
shown in the following letters (a. to g.).
a. Station name Indicates the station name being
listened to.
b. Program type Indicates the type of station being
listened to. E.g. Pop, Classics, News,
etc.
c. Multiplex name Indicates the name of the DAB
multiplex to which the current station
belongs.
d. Time & date Indicates the current time and date.
e. Frequency and channel
Indicates the frequency and channel
number for the currently tuned DAB
station.
f. Bit rate/Audio type
Indicates the digital audio bit rate and
audio type for the currently tuned
DAB station.
g. Signal strength Indicates the signal strength for the
currently tuned DAB station.
Finding new stations – DAB
From time to time, new DAB radio stations may become
available. Or you may have moved to a different part of
the country. In this case you may need to activate your
radio to scan for new stations.
To allow the radio to find the available stations, it is
recommended to carry out a full scan of the entire DAB
Band III frequencies.
1. Press the Auto tune button.
2. Your radio will perform a full scan of the DAB
frequencies. As new stations are found, the station
counter on the left side in the display will increase and
stations will be added to the list.
Manual tuning – DAB
Manual tuning allows you to tune your radio to a particular
DAB frequency in Band III. This function can also be used
to assist the positioning of the antenna or the radio so as
to optimize reception for a specific channel or frequency.
1. Press the Advanced setting button and rotate the
Volume/Tuning Control/Select knob until “Manual
Tune” shown on the display. Press the Volume/Tuning
Control/Select knob to enter the manual tuning mode.
2. Rotate the Volume/Tuning Control/Select knob to
select the desired DAB channel. Press Volume/Tuning
Control/Select knob to confirm the chosen frequency.
OPERATION
1
2
1

9
Station order setup – DAB
Your radio has 3 station order settings from which you can
choose. The station order settings are alphanumeric,
ensemble and valid station.
1. Press the Advanced setting button.
2. Rotate the Volume/Tuning Control/Select knob until
“Station order” appearing on the display, then press
the Volume/Tuning Control/Select knob to enter the
setting.
3. Rotate the Volume/Tuning Control/Select knob to
select the following options and press the knob to
confirm the setting.
Alphanumeric Sorts the station list alpha-numerically
0...9 A...Z
Ensemble Organizes the station list by DAB
multiplex
Valid Shows only those stations for which a
signal can be found
Dynamic Range Control (DRC) – DAB
DRC feature can make quieter sounds easier to hear
when your radio is used in a noisy environment by
reducing the dynamic range of the audio signal. There are
three levels of compression:
DRC 0 No compression applied.
DRC 1/2 Medium compression applied.
DRC 1 Maximum compression applied.
1. Press the Power button to switch on your radio.
2. Press the Band button to select the DAB band.
3. Press the Advanced setting button and rotate the
Volume/Tuning Control/Select knob until “DRC Value”
shown on the display. Then press the Volume/Tuning
Control/Select knob to enter the setting. The display
will show the current DRC value.
4. Rotate the Volume/Tuning Control/Select knob to
select desired DRC setting.
5. Press the Volume/Tuning Control/Select knob to
confirm the setting.
Scan Tuning – FM
1. Press the Power button to turn on the radio.
2. Select the desired waveband by pressing the Band
button. Make sure the soft bended rod antenna has
been well placed for best FM reception. Try to avoid
operating the radio next to a computer screen and
other equipment which will cause interference to the
radio.
3. Press the Auto tune button and the radio will search
and stop automatically when it finds a radio station.
The radio will continue searching for the next available
station unless the operator presses the Auto tune
button to stop the scanning.
4. Rotate the Volume/Tuning Control/Select knob to get
the desired sound level. The LCD display will show
sound level changes.
Note:
In order to use the Volume/Tuning Control/Select knob
to find your desired station, press and hold the
Volume/Tuning Control/Select knob to switch to the
tuning control mode.
5. To turn off the radio, press the Power button.
FM scan zone
When using FM mode, your radio can be set to scan
either local stations or to scan all stations including distant
radio stations.
Manual Tuning – FM
1. Press the Power button to turn on the radio.
2. Press the Band button to select desired waveband.
Adjust the antenna as described above.
3. Rotate the Volume/Tuning Control/Select knob will
change the frequency in the following increment:
FM: 50 or 100 kHz
Note:
In order to use the Volume/Tuning Control/Select knob
to find your desired station, press and hold the
Volume/Tuning Control/Select knob to switch to the
tuning control mode.
4. Keep rotating the Volume/Tuning Control/Select knob
until desired frequency is shown on the display.
5. Rotate the Volume/Tuning Control/Select knob to get
the desired sound level.
6. To turn off the radio, press the Power button.
Display modes – FM
Your radio has a range of display options for FM radio
mode:
Repeat pressing the Info button to cycle through the
different options.
a. Program station Indicates the name of the station
being listened to.
b. Radio text Indicates text message such as
new items, etc.
c. Program type Indicates the type of station being
listened to such as Pop, Classic,
News, etc.
d. Time & date Indicates the current time and date.
e. Frequency Indicates the frequency of the FM
signal.
Storing stations in preset memories (DAB
and FM)
There are 5 memory presets for each waveband.
1. Press the Power button to turn on the radio.
2. Tune to the desired station using one of the methods
previously described.
3. Press and hold the desired Preset button until the
preset number shown on the display, for example,
“P2 Saved”. The station is then stored in the selected
Preset button.
4. Repeat this procedure for the remaining presets.
5. Stations stored in the preset memories can be
overwritten by following the procedures described
above.
Recall stations from the preset memories
(DAB and FM)
1. Press the Power button to turn on the radio.
2. Press the Band button to select your desired
waveband.

10
3. Press the desired Preset button momentarily. The
preset number and station frequency will appear in the
display.
Language options
There are eight language options available in the radio:
English, German, Italian, French, Dutch, Danish,
Norwegian, and Polish.
1. Press Advanced setting button.
2. Rotate the Volume/Tuning Control/Select knob until
“Language” shown on the display. Press the Volume/
Tuning Control/Select knob to enter the setting.
3. Rotate the Volume/Tuning Control/Select knob to
choose your desired language. Press the Volume/
Tuning Control/Select knob to confirm your setting.
Brightness control
The backlight of the display can be adjusted.
1. Press the Advanced setting button.
2. Rotate the Volume/Tuning Control/Select knob until
“Backlight” shown on the display. Press the Volume/
Tuning Control/Select knob to enter the setting.
3. Rotate the Volume/Tuning Control/Select knob to
choose to enable or disable the backlight function,
then press the Volume/Tuning Control/Select knob to
confirm the setting.
System reset
If your radio fails to work correctly, or some digits on the
display are missing or incomplete, carry out the following
procedure.
1. Press the Advanced setting button.
2. Rotate the Volume/Tuning Control/Select knob until
“Factory Reset” shown on the display. Press the
Volume/Tuning Control/Select knob to enter the
setting.
3. Rotate the Volume/Tuning Control/Select knob to
choose “Yes”. Press the Volume/Tuning Control/
Select knob to confirm the setting and a full reset will
be performed.
Software version
1. Press the Advanced setting button.
2. Rotate the Volume/Tuning Control/Select knob until
“SW Version” shown on the display. Press the Volume/
Tuning Control/Select knob to view the software
version installed in the radio.
Micro USB port for software upgrade
Software updates for your radio may be available in the
future.
As software updates become available software and
information on how to update your radio can be found at
Makita website.
How to play other audios
CAUTION:
Unplug this apparatus before connecting other audios.
• There are 2 AUX IN sockets. AUX IN 1 is located on
the front panel, and AUX IN 2 is located in the battery
compartment.
• Connect a stereo or mono source (i.e. iPod, MP3, or
CD player) to either AUX IN 1 or AUX IN 2 by audio
cord.
• Repeatedly press and release the Band button until
“AU1” or “AU2” is displayed, then AUX function is
activated.
CAUTION:
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may result.
Power requirements
AC power adaptor DC 12 V 1A, center pin positive
Battery Cluster battery: 7.2 V - 10.8 V
Slide battery: 10.8 V - 18 V
Frequency coverage FM 87.50 - 108 MHz
DAB/DAB+ 174.928 -
239.200 MHz
DAB/DAB+ Channel block
DAB (Band III) 5A-13F
Compatible standard DAB/DAB+
Circuit feature
Loudspeaker 3 inches 8 ohm
Output power 7.2 V: 0.5 W X 2
10.8 V:1.2 W X 2
14.4 V: 2.2 W X 2
18 V: 3.5 W X 2
Input terminal 3.5 mm dia. (AUX IN1/AUX IN2)
Antenna system DAB/FM: soft bended rod antenna
Dimension (L x W x H) in mm
280 x 163 x 302
Weight 4.0 kg (without battery)
MAINTENANCE
SPECIFICATIONS

11

12
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
DMR110-ENAU-0216 www.makita.com
ALA
