INSTRUCTION MANUAL
Lockbolt Installation Tool
BV17-177
Lockbolt/Blind Rivet Installation
Tool
BV13-177
ENGLISH: Original instructions
IMPORTANT: Read Before Using.

2ENGLISH
SPECIFICATIONS
Model: BV17-177 BV13-177
Pulling force 75 kN 55 kN
Stroke 45.0 mm (1-3/4")
Overall length
with BL4050F
(without the pulling unit (nose assembly))
497 mm (19-1/2") 522 mm (20-1/2")
Rated voltage D.C. 36 V - 40 V max
Net weight
(without the pulling unit (nose assembly))
7.8 - 9.3 kg (17.2 - 20.5 lbs) 8.0 - 9.5 kg (17.6 - 20.9 lbs)
Applicable rivet Lockbolt (without breaking
off a mandrel)
Applicable
Blind rivet or lockbolt (with
breaking off a mandrel)
NOT applicable Applicable
NOTICE: Do not use BV17-177 for a blind rivet or lockbolt (with breaking off a mandrel). Otherwise the
broken off mandrel jams in the tool and malfunction result.
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL4020 / BL4025* / BL4040* / BL4050F*
* : Recommended battery
Charger DC40RA / DC40RB / DC40RC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
andchargersmaycauseinjuryand/orre.
EC Declaration of Conformity
For European countries only
Manufacturer: Howmet Fastening Systems Ltd. Units
C & D Stafford Park 7, Telford, Shropshire, TF3 3BQ,
United Kingdom. Description of Machinery: Model
Name “HUCK Rechargeable Battery Tool”, Model
No. “BV17-177” and “BV13-177”.
Relevant Provisions complied with: Council
Directive related to Machine (2006/42/EC), EN
62841-1:2015, Electric motor-operated hand-held
tools, transportable tools and lawn and garden machin-
ery – Safety – Part 1: General requirements. Council
Directive related to EMC (2014/30EU), EN55014-
1:2017+A11:2020, Electromagnetic compatibility –
Requirements for household appliances, electric tools
and similar apparatus – Part 1: Emission. EN 55014-
2:2015, Electromagnetic compatibility – Requirements
for household appliances, electric tools and similar
apparatus – Part 2 : Immunity – Product family stan-
dard. Council Directive related to RoHS (2011/65/
EU), EN IEC 63000:2018, Technical documentation for
the assessment of electrical and electronic products
with respect to the restriction of hazardous substances.
European Representative: Lutz Baumannt, Howmet
Fastening Systems Ltd.
Authorized Signature/Date: I, the undersigned, do
herebydeclarethattheequipmentspeciedabove
conforms to the above Directive(s) and standard(s).
Signature:
Full name: Lutz Baumannt
Position: Senior Systems Engineer, Central and
Eastern Europe, Location: Howmet Fastening Systems
- Industrial Fastener Division. Fairchild Fasteners
Europe-VSD GmbH Steven 3 31135 Hildesheim,
Germany. Date:1,5,2022

3ENGLISH
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit inter-
rupter (GFCI) protected supply. Use of a GFCI
reduces the risk of electric shock.
7. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewel-
lery or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action
can cause severe injury within a fraction of a
second.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA.
It is an employer's responsibility to enforce the
use of appropriate safety protective equipment
by the tool operators and by other persons in
the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that

4ENGLISH
may affect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
may exhibit unpredictable behaviour resulting in
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and changing
accessories.
4. Do not modify or attempt to repair the appli-
ance or the battery pack except as indicated in
the instructions for use and care.
Lockbolt/blind rivet installation tool
safety warnings
1. Hold the tool rmly.
2. Keep hands and face away from moving parts.
3. Always secure workpieces in a vise or similar
hold-down device.
4. Always be sure you have a rm footing. Be
sure no one is below when using the tool in
high locations.
5. Never place the tool on unstable surface. When
the tool drops from high locations, it may cause an
accident or injury.
6. When operating the tool, do not block or seal
the ventilation windows of the tool.
Symbols
The followings show the symbols used for tool.
volts
direct current
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge.Itmayresultinare,excessiveheat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if

5ENGLISH
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re,excessiveheat,orexplosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge.Itmaycauseheating,catchingre,
burst and malfunction of the tool or battery car-
tridge, resulting in burns or personal injury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near a high-voltage elec-
trical power lines. It may result in a malfunction
or breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery
cartridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipoffyourhands
and result in damage to the tool and battery cartridge
and a personal injury.
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
3
2
1
1
Fig.1
►1. Red indicator 2. Button 3. Battery cartridge
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as

6ENGLISH
showninthegure,itisnotlockedcompletely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Indicating the remaining battery
capacity

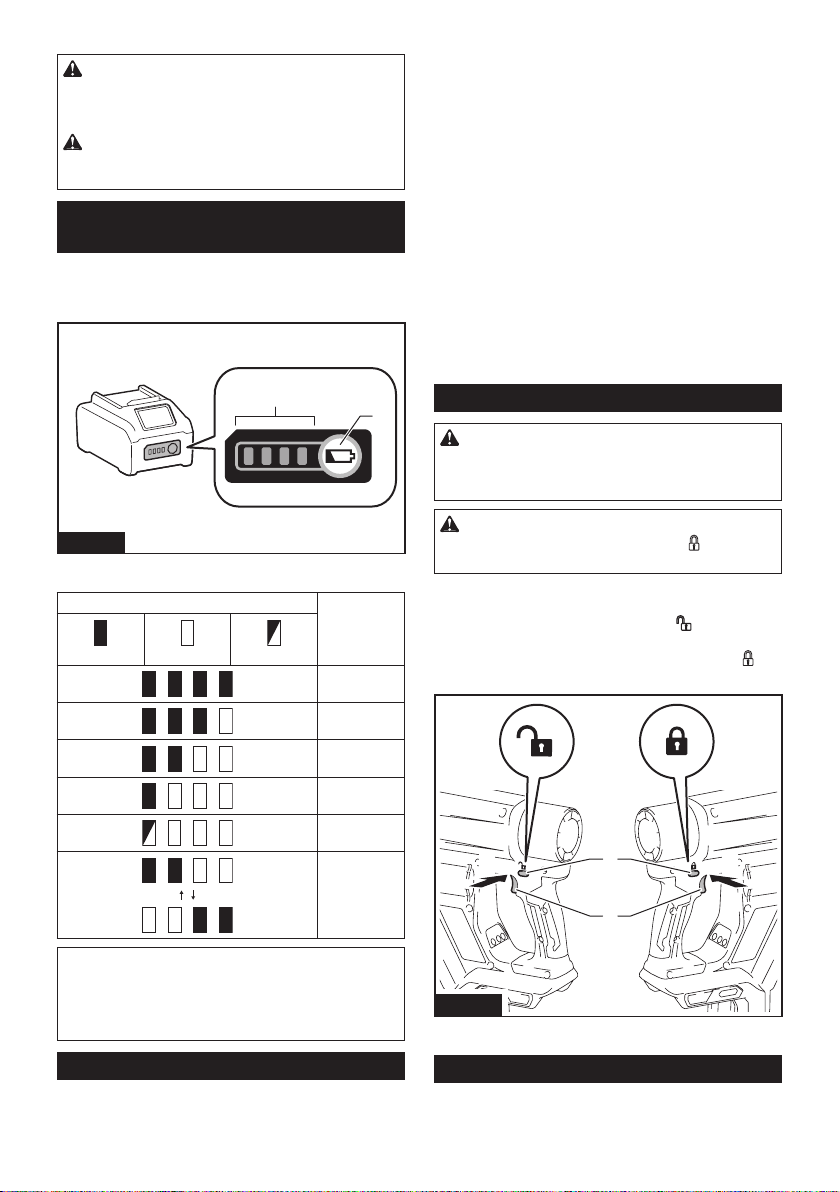

Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
1
2
Fig.2
►1. Indicator lamps 2. Check button
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
NOTE:Therst(farleft)indicatorlampwillblinkwhen
the battery protection system works.
Tool / battery protection system
The tool is equipped with a tool/battery protection
system. This system automatically cuts off power to
the motor to extend tool and battery life. The tool will
automatically stop during operation if the tool or battery
is placed under one of the following conditions:
Overload protection
When the battery is operated in a manner that causes
it to draw an abnormally high current, the tool automat-
ically stops without any indication. In this situation, turn
the tool off and stop the application that caused the tool
to become overloaded. Then turn the tool on to restart.
Overheat protection
When the tool or battery is overheated, the tool stops
automatically and the lamp blinks. In this case, let the
tool and battery cool before turning the tool on again.
Overdischarge protection
When the battery capacity is not enough, the tool stops
automatically and the lamp blinks. In this case, remove
the battery from the tool and charge the battery.
Switch action
WARNING: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
CAUTION: When not operating the tool,
depress the trigger-lock button from side to
lock the switch trigger in the OFF position.
To prevent the switch trigger from accidentally pulled,
the trigger-lock button is provided. To start the tool,
depress the trigger-lock button from A ( ) side and pull
the switch trigger. Release the switch trigger to stop.
After use, depress the trigger-lock button from B ( )
side.
1
2
A B
Fig.3
►1. Trigger-lock button 2. Switch trigger
Control panel
You can adjust the pulling force of the tool. You can also
lock the buttons on the control panel.

7ENGLISH
3
1 2
4
Fig.4
►1. Button A 2. Button B 3. Button C 4. Control panel
Pulling force adjustment
To change the pulling force, follow the steps below.
1. Press button A for a few seconds.
2. Enter the value for the pulling force.
To change the value, press button C. To change the
digit, press button B. To set the value, press button A
for a few seconds. The value can be set between "000"
and "999".
Locking the buttons
To lock the buttons on the control panel, press button A
and button C for a few seconds. To unlock the buttons,
press button A and button C for a few seconds again.
NOTE: When the buttons are locked, "hyphen (---)" is
displayed instead of digit.
Lighting up the front lamp
1
Fig.5
►1. Lamp
CAUTION: Do not look in the light or see the
source of light directly.
Pull the switch trigger to light up the lamp. The lamp
keeps on lighting while the switch trigger is being pulled.
The lamp goes out approximately 10 seconds after
releasing the switch trigger.
NOTE: When the remaining amount of the battery
becomes low, the lamp blinks a few times. In this
case, charge the battery or replace the battery with a
charged one.
NOTE: Use a dry cloth to wipe the dirt off the lens of
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
Electric brake
This tool is equipped with an electric brake. If the tool
consistently fails to quickly stop after the switch trigger
is released, have the tool serviced at a Makita service
center.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Installing or removing the pulling
unit (nose assembly)
CAUTION: Use appropriate tools and follow
the procedure in this instruction manual when
installing or removing the pulling unit (nose
assembly). Incorrect assembly of the pulling unit
(nose assembly) may cause an injury.
Thecomponentcongurationofthepullingunit(nose
assembly)isasshowninthegure.
5
4
321
Fig.6
►1. Anvil holder 2. Sleeve 3. Puller * 4. Lock nut
5. Nose adapter
* The number of parts that compose the puller vary
on your model.

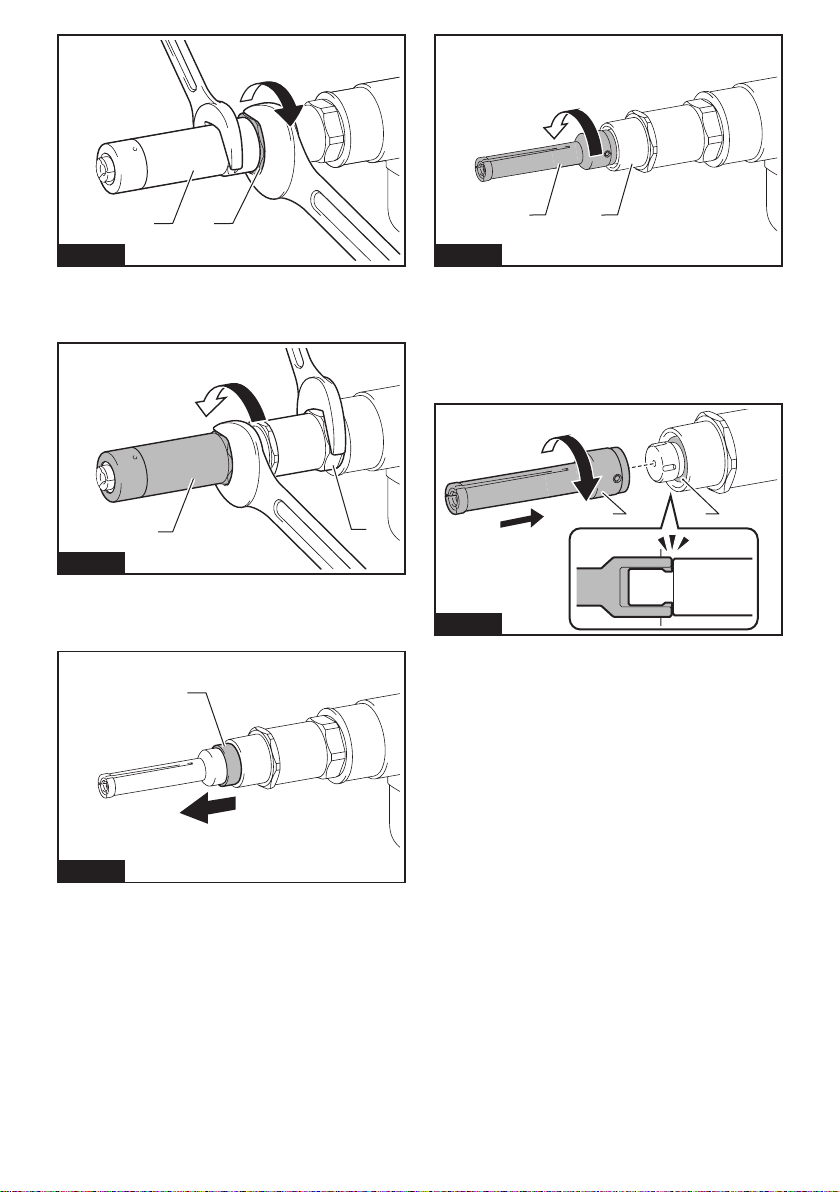

Removing the pulling unit (nose
assembly)
1. Loosen the lock nut with a wrench while holding
the anvil holder with another wrench.

8ENGLISH
12
Fig.7
►1. Lock nut 2. Anvil holder
2. Remove the anvil holder with a wrench while
holding the nose adapter with another wrench.
12
Fig.8
►1. Anvil holder 2. Nose adapter
3. Remove the sleeve by sliding it in the direction of
thearrowasshowninthegure.
1
Fig.9
►1. Sleeve
4. Loosen the puller while holding the nose adapter.
21
Fig.10
►1. Puller 2. Nose adapter
Installing the pulling unit (nose
assembly)
1. Once install the puller all the way until it contacts
the surface of the joint.
1 2
Fig.11
►1. Puller 2. Surface of the joint
2. Slightlyloosenthepullersothatthesteelballts
in one of the grooves on the joint.
If the steel ball is not seated correctly in the groove, the
sleeve cannot be installed in the correct position.

9ENGLISH
1
2 2
1
Fig.12
►1. Steel ball 2. Grooves on the joint
3. Install the sleeve.
4. Install the anvil holder with a wrench while hold-
ing the nose adapter with another wrench. Be sure to
tightentheanvilholderrmly.
5. Install the lock nut with a wrench while holding
the anvil holder with another wrench. Be sure to tighten
thelocknutrmly.
Installing side grip
CAUTION: After installing or adjusting the
side grip, make sure that the side grip is rmly
secured.
NOTICE: Do not install the side grip to any other
area than the designated mounting area.
1
Fig.13
►1. Mounting area
The side grip can be swung, allowing easy handling of
the tool in any position. Loosen the side grip by turning
it counterclockwise, swing it to the desired position and
then tighten it by turning clockwise.
1
Fig.14
►1. Side grip
Installing Eyebolts
Eyebolts can be attached on both side of the tool.
11
Fig.15
►1. Eyebolt

10 ENGLISH
CAUTION: Do not use the eyebolt for lanyard
(tether strap). Doing so may result in serious injury
because the mounting part of the eyebolt is not
intended for a safety device for fall prevention.
CAUTION: When installing the eyebolt,
— make sure that there is no damage to the
eyebolt;
— check if the size of the eyebolt is correct;
— do not use extremely long or thin eyebolt;
— and secure the eyebolt onto the tool rmly.
Otherwise a falling accident may occur.
CAUTION: Do not apply excessive force to
the suspended tool. Otherwise a falling accident
may occur.
CAUTION: Make sure that there is no one or
object around the tool when using the tool sus-
pended. Keep others out of the suspended area.
The tool may hit people or objects and cause injury.
CAUTION: When you attach the shoulder
belt to the eyebolt, be sure to attach the shoulder
belt securely. If the shoulder belt is attached incom-
pletely, the tool may come off and cause an injury.
OPERATION
CAUTION: Keep your hand and face away
from the front part of the tool. The rivet or broken
off mandrel may accidentally ejected, and you may
be injured.
CAUTION: Do not operate the tool without
workpiece. Otherwise the lockbolt or blind rivet may
come off the tool and cause injury.
CAUTION: Do not use damaged or deformed
mandrel container/rear cap. Damaged, broken, or
dropped parts may cause an injury.
CAUTION: Never point the tool towards any
other persons. Otherwise the lockbolt or blind rivet
may come off the tool and cause injury.
CAUTION: Keep adequate clearance around
the tool as shown in the gure. The tool moves
forwardduringoperation.Insufcientclearancemay
cause personal injury.
11 11
11
Fig.16
►1. Clearance
Installing a lockbolt (without
breaking off a mandrel)
For model BV17-177, BV13-177
1. Insert the pin into the hole. Attach the collar to the
pin.
2. Fit the hole of the puller on the pin, and then press
the tool against the collar. Pull and hold the switch
trigger until the tool stops tightening.
3. Afterthecollaristightenedwiththespecied
force, the tool stops tightening and the puller returns to
the original position automatically.
12
Fig.17
►1. Pin 2. Collar
NOTE: If you release the switch trigger during
operation, the puller returns the original position
automatically.

11 ENGLISH
NOTICE: If the operation stops halfway due to
the protection system, pull the switch trigger
again. The puller in the middle returns to the original
positionregardlessofthespeciedforce.Hold on
the switch trigger until the puller returns to the
original position, and then you can restart the
operation.
If the puller does not return even if you pull the
switch trigger again, the display of control panel
blinks for a few seconds. Ask your local Makita
Service Center for support.

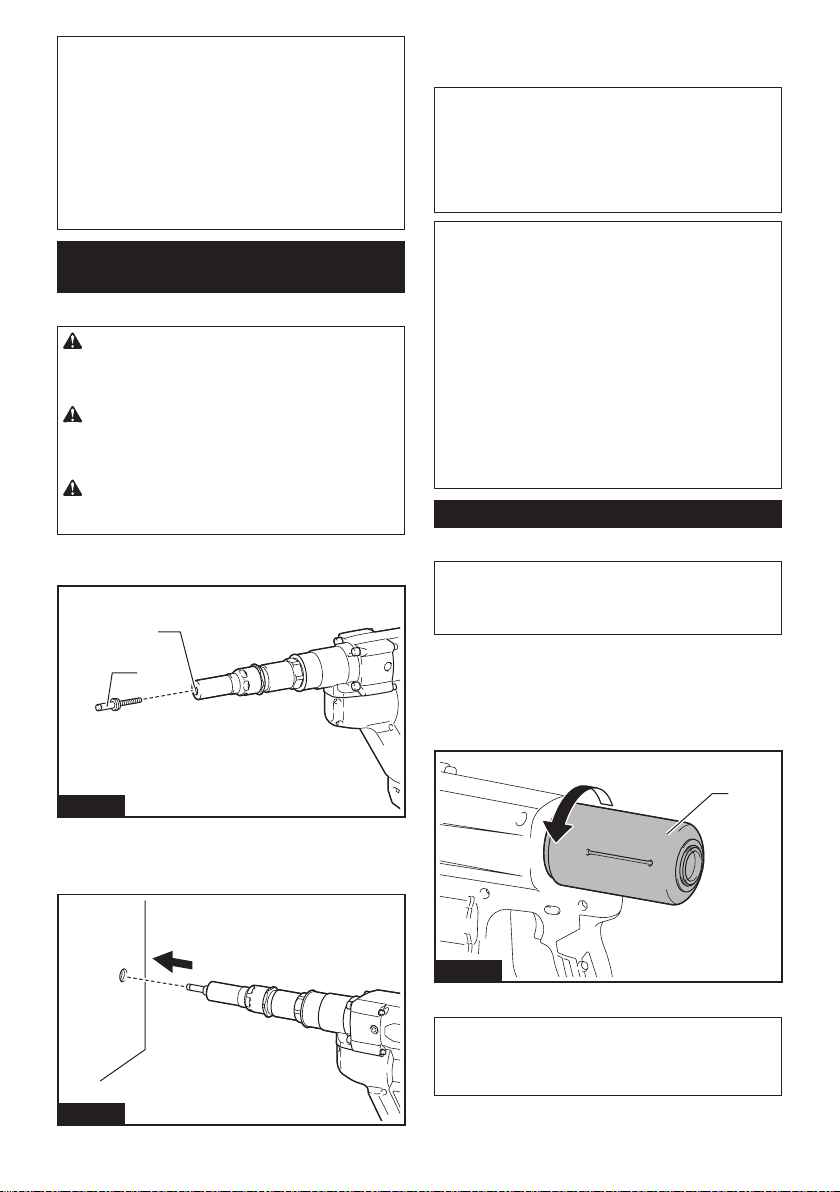

Installing a blind rivet or lockbolt
(with breaking off a mandrel)
For model BV13-177
CAUTION: Before the mandrel container
becomes full, empty it regularly by removing the
mandrel container. Otherwise, the tool may be dam-
aged, and the damaged parts may cause an injury.
CAUTION: When inserting a blind rivet or
lockbolt into the nose piece, be sure to switch
off the tool. Otherwise, you may be injured with the
tool tip.
CAUTION: Be careful not to drop the broken
off mandrel from high locations. Doing so may
cause an accident or injury.
1. Insert the blind rivet or lockbolt into the nose
piece.
1
2
Fig.18
►1. Blind rivet or lockbolt 2. Nose piece
2. Press the tool tip against the workpiece, and then
pull the switch trigger.
Fig.19
3. After the mandrel is broken off, release the switch
trigger. The nose piece returns to the original position
automatically.
NOTE: If you release the switch trigger during oper-
ation, the nose piece returns the original position
automatically.
NOTE:Ifthespeciedforceislessthanthebreaking
force, the tool stops before breaking off the mandrel,
then the nose piece returns the original position
automatically.
NOTICE: Tilt the tool back so that the broken
off mandrel falls into the mandrel container after
each operation. Otherwise, the broken off mandrels
may get stuck in the tool.
NOTICE: If the operation stops halfway due to
the protection system, pull the switch trigger
again. The nose piece in the middle returns to the
originalpositionregardlessofthespeciedforce.
Hold on the switch trigger until the nose piece
returns to the original position, and then you can
restart the operation.
If the nose piece does not return even if you pull
the switch trigger again, the display of control
panel blinks for a few seconds. Ask your local
Makita Service Center for support.
Emptying the mandrel container
For model BV13-177
NOTICE: Be sure to install the mandrel container
to the tool before operating the tool. If the mandrel
container is not installed to the tool, the tool will not
operate.
Remove the mandrel container from the tool when you
empty the mandrel container.
To remove the mandrel container, rotate it
counterclockwise.
To install the mandrel container, follow the removal
procedure in reverse.
1
Fig.20
►1. Mandrel container

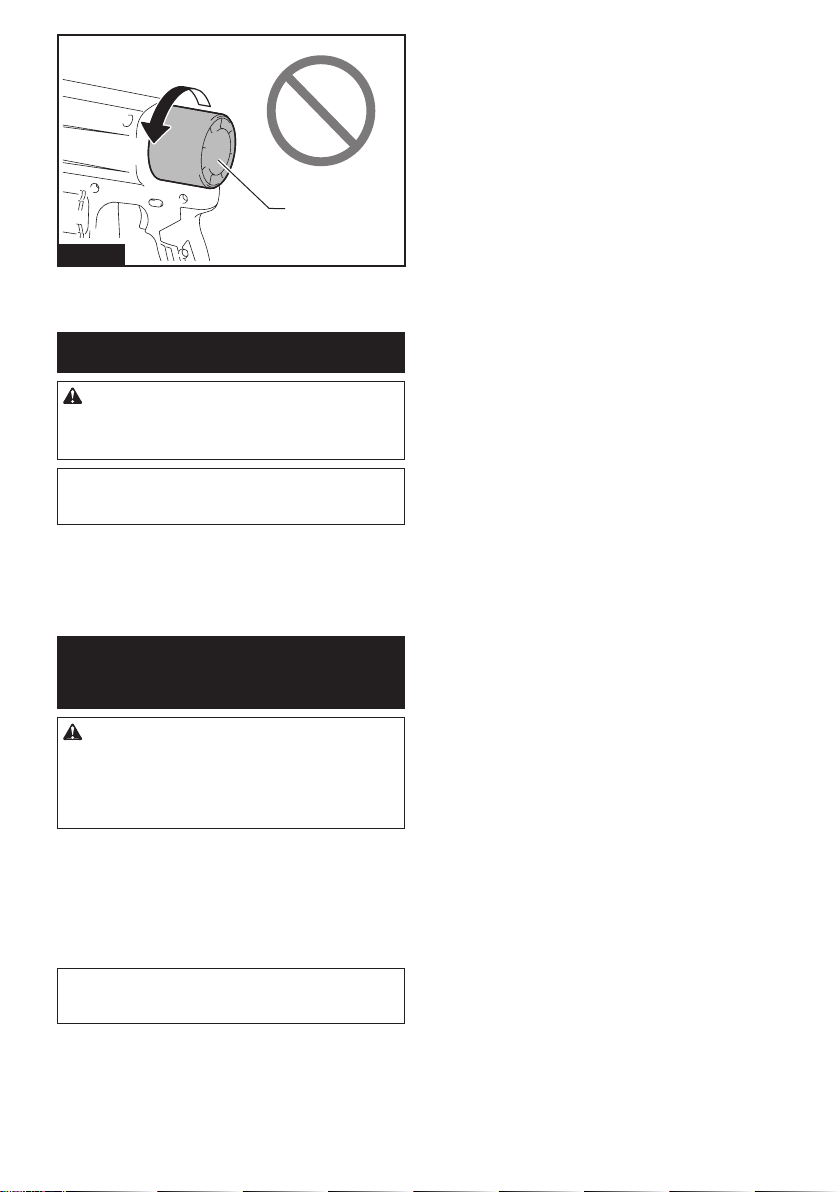

NOTICE: For model BV17-177
Do not remove the rear cap from the tool. No need
to remove the rear cap. If the rear cap is not installed
to the tool, the tool will not operate.

12 ENGLISH
1
Fig.21
►1. Rear cap
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Nose assembly
• Eye bolt
• Shoulder belt
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.

Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
WARNING
< USA only >
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
www.makita.com
885976-947
BV17-177-1
EN
20220331
This manual suits for next models
1
Table of contents
Other Makita Tools manuals

Makita
Makita HR002G User manual

Makita
Makita BHR261 User manual

Makita
Makita HR007G User manual

Makita
Makita DHR182 User manual

Makita
Makita HR008G User manual

Makita
Makita G6003 User manual

Makita
Makita HR2631FTJ User manual

Makita
Makita M8600 User manual

Makita
Makita DFL061F User manual

Makita
Makita DGP180 User manual

Makita
Makita AS001G User manual

Makita
Makita DTS131 User manual

Makita
Makita DGP180 User manual

Makita
Makita HR2652 User manual

Makita
Makita DHR202 User manual

Makita
Makita DHR165 User manual

Makita
Makita HR2650 User manual

Makita
Makita HR3011FC User manual

Makita
Makita JS8000 User manual

Makita
Makita HR2650 User manual
