Manfrotto MVG220 User manual

MVG220 & MVG220FF
INSTRUCTIONS

INDEX
GB P. 4 - 8
IP. 9 - 13
DP. 14 - 18
FP. 19 - 23
EP. 24 - 28
CN P. 29 - 33
KO P. 34 - 38
JP. 39 - 43
RU P. 44 - 48
P. 49 - 55
P. 56 - 58
DECLARATION OF CONFORMITY & CERTIFICATIONS
DISCLAIMER & INFORMATION FOR USERS

GB

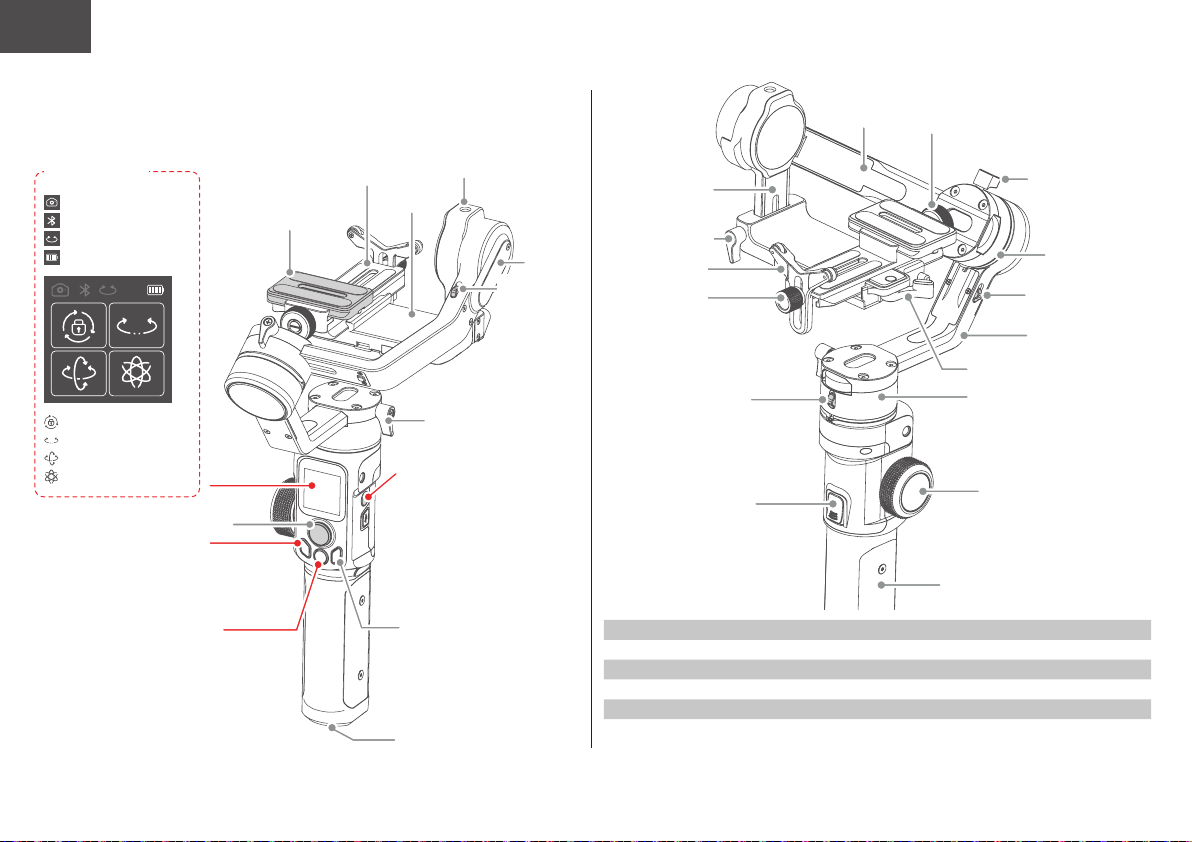

Camera Connection
All Lock Mode
Touch Screen Quick Release Plate
Arca Quick
Release Plate
Fixed Plate
1/4 inch Thread Hole
Tilt Axis
Tilt Axis
Position Lock
Safety Lock for Arca
Quick Release Plate
Joystick
Mode Button
Single tap: Switch between
pan mode & lock mode
Double tap: Follow mode
Triple tap: All Follow mode
Shutter Button
Press Halfway: Focus
Single tap:
Photo shooting/video recording
Long press for 5 seconds:
Auto-burst shot
(Press again to quit)
Vertical Arm Lock Screw
Power Button
󰴤Long press: Power on/off
󰴥Control the touch screen:
Single tap: Lock/unlock screen/
return to homepage
󰴦Double tap: Standby mode
Single tap at standby mode:
To wake up the gimbal
Function Button
Single tap: Switch between
Video/Photo mode
1/4 inch Thread Hole
3/8 inch Thread Hole
Pan Axis
Quick Release Plate Safety Lock
Lens Holder
Pan Axis Position Lock
Trigger Button
Press & hold: Follow mode
Double tap: Reset
Triple tap: Selfie mode
(Pan axis turn 180° to shoot)
Cross Arm
Handle (Built in Battery)
Multifunction Knob
Vertical Arm
Roll Axis
Roll Axis Position Lock
Cross Arm Lock
Screw
Thumb Screw
Sliding Arm
Sliding Arm
Lock Screw
* Please download the detailed manual for the specific compatible camera and lens.
This product does not include the camera.
Max. Tilting Range 230° Theoretical Battery Life 14h (well-balanced)
Max. Rolling Range 360° Weight About 1100g
Max. Panning Range 360° Payload Capability 2200g (well-balanced)
Tilt Follow Speed 2°/s ~ 75°/s Compatible Cameras* Canon, SONY, Panasonic and others.
Pan Follow Speed 3°/s ~ 150°/s
Specifications
Overview
Bluetooth
Multifunction Knob Control
Battery Level
Pan Mode
Follow Mode
All Follow Mode
GB
Professional 3-axis gimbal designed for DSLR and mirrorless cameras, designed with
function buttons and LCD touch screen.
4

GB
Standard kit accessories
Pro kit accessories
Professional kit (code MVG220FF) includes all the accessories provided within the standard kit detailed above, plus the additional items listed here:
5
USB 2.0 to Micro
x1
Anti-slip Metal Tripod
x1
Brushless Follow Focus (FF)
x1
USB 2.0 to Mini
x1
USB 2.0 to Type C
x1
Type C to Multi
x1
DC 2.5mm (Panasonic
Shutter Cable) x1
USB 3.0 to Micro 3.0
x1
Versatile Arm
x1

GB
Quick Start Guide
Balanced lock statusStored lock status
⚠
Please read the detailed manual
before you begin.
󱫀Charging
⚠
Please fully charge the battery before power on the gimbal for the first time.
Open the USB rubber cover. Connect the USB 2.0 to Type-C cable to charge. Quick
charge is available.
󱫂Position Lock
Each rotating axis has a position lock for convenient balancing and storage. Be sure to
unlock the position locks before using the gimbal.
1) Please mount the camera and balance it before Power ON.
2) When the battery is low, please charge the gimbal.
3) When not in use for a long time, power off the gimbal.
4) For quick start, utilising MVG220 basic features follow the steps below.
TIPS
Download Manfrotto gimbal app.
6
USB 2.0 to Type-C

GB
5
5
5
5
4.1 Balance Tilt Axis
⚠
Make sure the battery and memory
card are installed before camera
installation.
Step 2: Mount camera on ARCA
quick release plate 󰴧.
Step 1: Mount quick release plate 󰴤on
fixed plate 󰴥, lock it. Loosen the ARCA
quick release plate safety lock 󰴦, take
out ARCA quick release plate 󰴧.
Step 3: Insert ARCA quick release plate
directly into quick release plate 󰴤, tighten
the safety lock 󰴦for ARCA quick release
plate.
Step 4: Install lens holder 󰴨to
support lens, and tighten the thumb
screw.
󱫄Camera Installation 󱫆Gimbal Balancing
(1) a. Unlock the tilt axis position lock 󰴤, turn the camera lens upwards, and check the
gravity center of camera.
b. Loosen the sliding arm lock screw 󰴥, slide the sliding arm 󰴦to balance the camera.
c. Tighten the sliding arm lock screw 󰴥, when the camera lens keeps upwards that
means balanced.
1) Before balancing the gimbal, please lock the gimbal at the balanced lock status.
2) Lens cover should be removed from the camera and the memory card needs to
be inserted to the camera to complete all the connections to ensure that the camera
is ready for shooting.
3) When balancing the gimbal, make sure the camera and gimbal are all powered
off.
4) If it is needed to add accessories after the balance is completed, gimbal needs to
be re-balanced again.
TIPS
7

GB

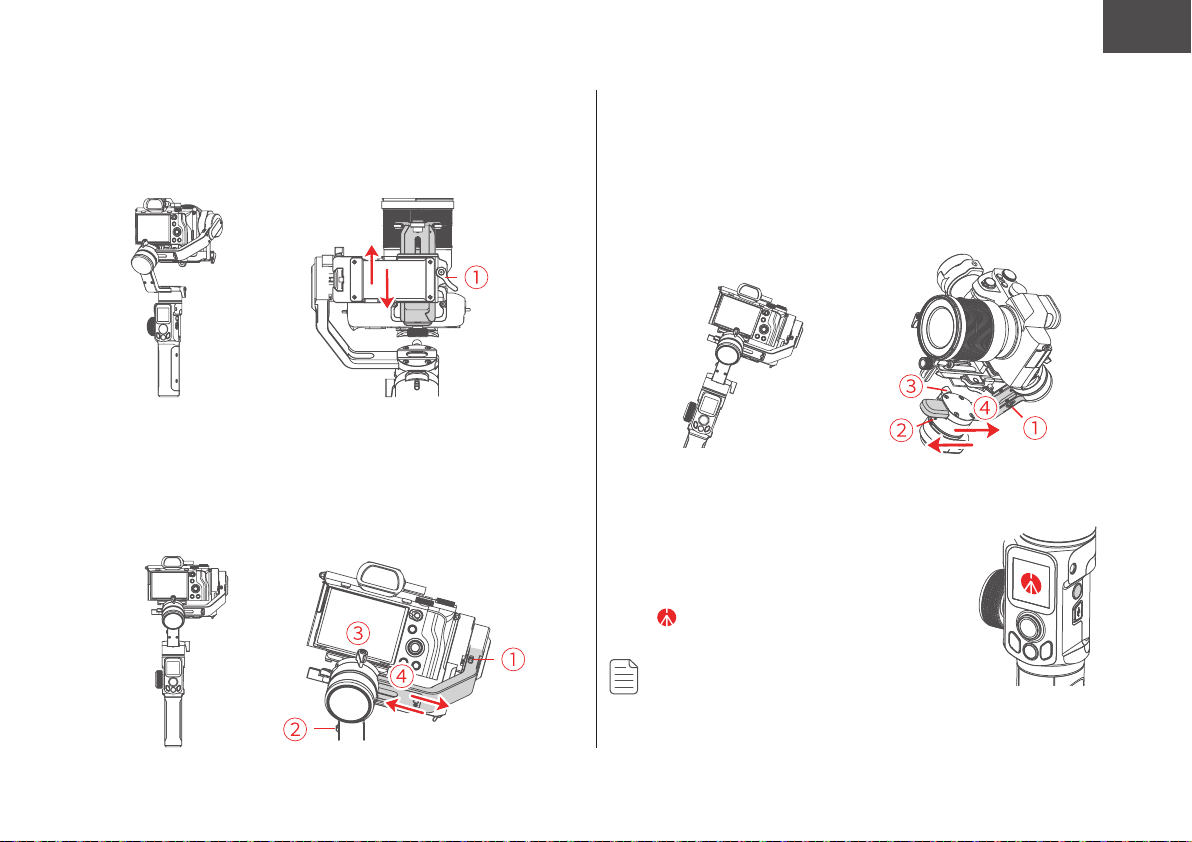

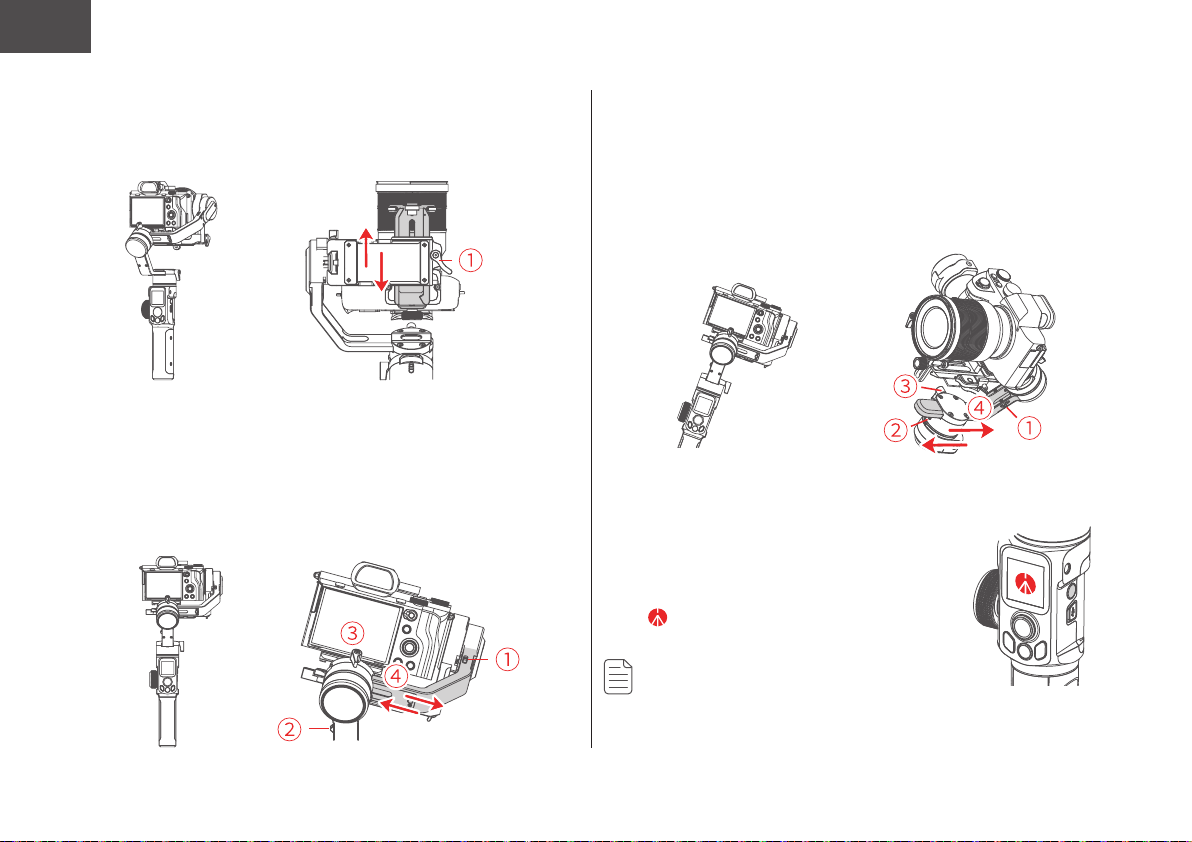

4.3 Balance Pan Axis
(2) a. Place the camera lens forwards, check the gravity center of camera.
b. Unlock the quick release plate safety lock 󰴤, adjust camera position until it can stay
stable at any angles.
c. Lock the safety lock 󰴤. Tilt the camera up or down, if it stays stable, it means
balanced.
4.2 Balance Roll Axis
a. Tighten the tilt axis position lock 󰴤, unlock the roll axis position lock 󰴥, check
gravity center of camera.
b. Loosen the cross arm lock screw 󰴦, slide cross arm 󰴧to balance the camera
position.
c. Tighten the cross arm lock screw 󰴦, and tilt the camera to the left or right, if it stays
stable, it means balanced.
a. Tighten the roll axis position lock 󰴤after balanced tilt axis and roll axis. Unlock pan
axis position lock 󰴥, loosen vertical arm lock screw 󰴦.
b. Hold the handle angled to 15°~ 20°, check the camera's movement (roll axis will
point down if not balanced).
c. Slide vertical arm 󰴧to balance it until the camera stays there at any angles, balance
succeeded.
d. Tighten the vertical arm lock screw 󰴦.
⚠
Be sure to unlock the position lock before using
the gimbal.
󱫈Power ON/OFF
Long press power button, release the button until it
shows on display.
Detailed Manual
Download the detailed user manual from official website manfrotto.com
8

I
Detailed Manual
Connessione camera
Bloccaggio di tutti gli assi
Schermo Touch Piastra a rilascio rapido
Arca
Piastra a rilascio rapido
Piastra fissa
Attacco femmina da 1/4"
Asse
movimento
Tilt
Asse
movimento Tilt
Bloccaggio
Blocco di sicurezza piastra Arca
Piastra a rilascio rapido
Joystick
Pulsante modalità
Singolo tocco: cambio
modalità Pan & bloccaggio
Doppio tocco: modalità Follow
Triplo tocco: modalità follow su tutti gli assi
Pulsante di scatto
Premere a metà: messa a fuoco
Singolo tocco:
scatto fotografico/registrazione video
Pressione per più di 5 secondi:
Scatto continuo
(premere nuovamente per interrompere)
Vite di bloccaggio del
braccio verticale
Pulsante accensione
󰴤Premere a lungo: accensione/
spegnimento
󰴥Controllo dello schermo touch:
Singolo tocco: bloccaggio/
sblocaggio schermo/ritorno alla
schermata principale
󰴦Doppio tocco: modalità Standby
Singolo tocco in modalità Standby:
Riattivare la Gimbal
Funzionalità del pulsante
Singolo tocco: cambio
modalità Video/Foto
Attacco femmina da 1/4"
Attacco femmina da 3/8"
Asse panoramico
Bloccaggio di sicurezza piastra
rilascio rapido
Supporto lente
Bloccaggio movimento
panoramico
Pulsante di accensione
Tenere premuto: modalità Follow
Doppio tocco: reset
Triplo tocco: modalità Selfie
(rotazione del movimento
panoramico di 180°)
Braccio
Impugnatura (batteria incorporata)
Manopola multifunzione
Braccio verticale
Asse Roll
Bloccaggio asse Roll
Leva di bloccaggio
del braccio
Nottolino di bloccaggio
Braccio scorrevole
Braccio scorrevole
Vite di bloccaggio
* Per favore scaricate il manuale dettagliato per la compatibilità delle camere e delle lenti
Questo prodotto non include la camera
Movimento Tilt 230° Durata della batteria 14 ore (ben bilanciata)
Campo di rotazione verticale 360° Peso Circa 1100g
Campo di rotazione panoramico 360° Portata massima 2200g (ben bilanciata)
Velocità Tilt Focus 2°/s ~ 75°/s Compatibilità camere* Canon, SONY, Panasonic ed altre
Velocità Pan Follow 3°/s ~ 150°/s
Specifiche tecniche
Panoramica
Bluetooth
Manopola di controllo multifunzione
Livello batteria
Modalità panoramica
Modalità Follow
Modalità Follow su tutti gli assi
Gimbal professionale a 3 assi per camere mirrorless e DSLR, con pulsanti di
comando e schermo LCD touch.
9

I
Accessori kit standard
Accessori kit professionale
Il kit professionale (modello MVG220FF) include tutti gli accessori del modello standard elencati sopra, con l'aggiunta di:
10
Cavo USB 2.0 - Micro
x1
Treppiede anti-scivolamento in metallo
x1
Follow Focus
x1
Cavo USB 2.0 - Mini
x1
Cavo USB - Tipo C
x1
Cavo Tipo C - multifunzione
x1
Cavo Panasonic per
scatto DC 2.5mm x1
Cavo USB 3.0 - Micro 3.0
x1
Braccio versatile
x1
