ME-709
RECUMBENT BIKE
USER MANUAL
Distributed By:
Pure-Tec Limited
www.puretecfitness.com

2
www.puretecfitness.com
CONTENTS
Important SafetyInformation
Weight LimitCapacities
Hardware Parts List
Pre Assembly Check List
Assembly Instructions
Computer Instructions
Exercise Instructions

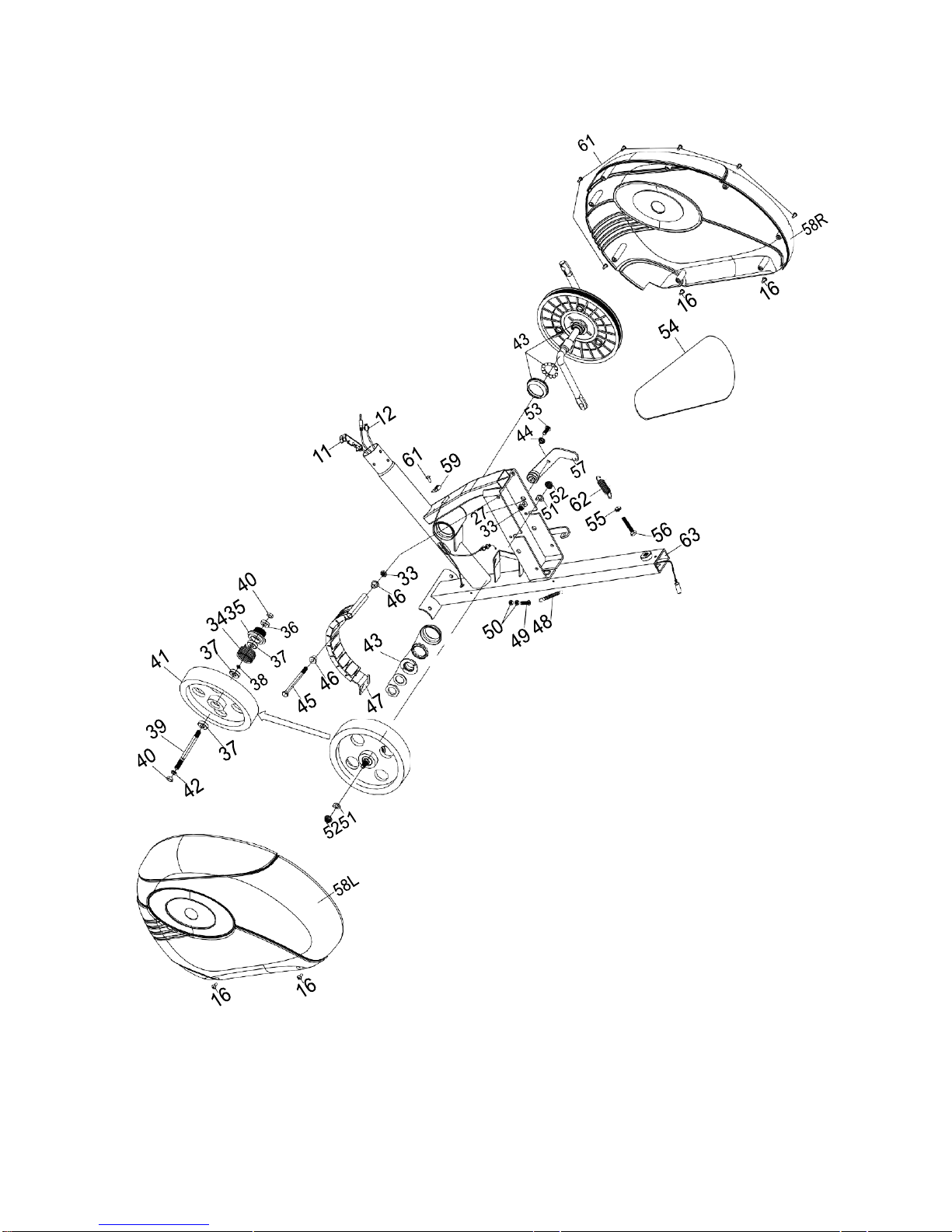

Exploded Diagram
Parts List
Additional Information
Warranty Information
3
4
5
6 - 9
10-11
12-13
14-15
16-17
18
19

3
www.puretecfitness.com
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
1. This Bike is intended for class H (H=Domestic) use only. It is not designed for
commercial use.
2. This machine has been tested to EN957.
3. Read the OWNER’S OPERATION MANUAL and all accompanying literature and follow it
carefully before using your Bike.
4. Keep children and pets away from the Bike at all times. Do not leave children unattended
in the same room with the Bike. The Bike is not a toy and therefore parents and
guardians should be aware of the natural tendency for children to play, leading to
situations and behaviour for which the Bike is notintended.
5. If children are allowed to use the Bike their physical/mental development and above all,
temperament should be taken into account. Constant supervision is thereforeneeded.
6. Position the Bike on a clear levelled surface which is clear of all obstacles as not to
restrict movement whilst exercising. DO NOT use the Bike near water oroutdoors.
7. Exercise equipment has moving parts. In the interest of safety, keep others, especially
children, at a safe distance whileexercising.
8. Never hold your breath while exercising. Breathing should remain at a normal rate in
conjunction with the level of exercise beingperformed.
9. Rest adequately between workouts. Muscle tone develops during these rest periods.
Beginners should work out twice a week and increase gradually to 4 to 5 times per
week.
10. Remove all jewellery, including rings, chains and pins before commencing exercise.
11. Always wear suitable clothing and footwear during exercise. Do not wear loose fitting
clothing that could become entangled with the moving parts of your exercise machine.
IMPORTANT!!! THE MAXIMUM RECOMMENDED WEIGHT CAPACITY FOR YOUR
BIKE IS 110KGS.
THIS OWNER’S MANUAL CONTAINS ASSEMBLY, OPERATION, MAINTENANCE AND
SAFETY INFORMATION. IN THE INTEREST OF SAFETY, PLEASE MAKE CERTAIN
THAT YOU READ AND UNDERSTAND ALL THE INFORMATION BELOW.

4
www.puretecfitness.com
HARDWARE PACKING LIST
No.
Description
Identifier
Q’ty
8
Allen screw M8*16
12
9
Curved washerΦ8*Φ20
8
13
Carriage bolt M8*16
4
19
Domed nut M8
4
20
Leveling pad
1
27
Flat washerΦ8*Φ17
12
31
Screw M8*70
4
33
Nylon nut M8
4
Box wrench
1
Allen key L6
1

5
www.puretecfitness.com
PRE-ASSEMBLY CHECK LIST
PART NO.
DESCRIPTION
Q’TY
1
Main frame
1
2
Computer
1
25
Seat support tube
1
26
Sliding frame
1
14
Front Stabilizer w/Transportation Wheel
1
30
Rear Stabilizer w/Leveling End Cap
1
4
Front post
1
17
Pedal
2
28
Back Cushion
1
32
Seat Cushion
1
22
Handlebar
1
