Mastercare Gen II Entree Bath User manual

Page 1of 12
Gen II Entree Bath
All Models
Operations Manual
Important Safety Instructions
Read & Follow All Instructions Thoroughly
08-29-13

Page 2of 12
Operation Instructions
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS THROUGHLY
The WARNING symbol identifies important safety messages. Failure to obey
a safety warning may result in injury to you or to others.
CAUTION: The caution heading identifies important maintenance and operation information. Failure to
obey a caution warning may result in damage to the Entree Bath and may void the warranty.
Risk Of Accidental Injury Or Drowning. Children And Impaired Individuals
Should Not Use Hydromassage Bathtub Without Trained Adult Supervision.
To Avoid Injury; Exercise Care When Entering Or Exiting The Hydromassage
Bathtub.
Risk Of Accidental Injury Or Drowning. Do Not Use Drugs Or Alcohol Before
Or During The Use Of A Hydromassage Bathtub To Avoid Unconsciousness
And Possible Drowning.
Risk Of Fetal Injury. Pregnant Or Possibly Pregnant Women Should Consult
A Physician Before Using A Hydromassage Bathtub.
Risk Of Hyperthermia And Possible Drowning. Do Not Use A Hydromassage
Bathtub Immediately Following Strenuous Exercise.
Risk Of Electrical Shock. Do Not Permit Electrical Appliances (Such As A
Hair Dryer, Lamp, Telephone, Radio Or Television) Within 1.5 M (5 Ft) Of The
Hydromassage Bathtub.
Proper electrical grounding must be performed by a licensed electrician
following local, state and federal codes. Test The Ground Fault Circuit
Interrupter Protecting This Appliance Periodically In Accordance With The
Manufacturer’s Instructions. (For Permanently Connected Units) A Green
Colored Terminal (Or A Wire Connector Marked “G”, “Gr” “Ground”, Or
“Grounding”) Is Provided Within The Terminal Compartment. To Reduce The
Risk Of Electric Shock, Connect The Terminal Or Connector To The
Grounding Terminal Of Your Electric Service Or Supply Panel With A
Conductor Equivalent In Size To The Circuit Conductors Supplying This
Equipment.
Risk Of Hyperthermia And/Or Possible Drowning. Water Temperature In
Excess Of 43 Degrees Celsius Or 110oDegrees Fahrenheit May Be Injurious
To Your Health. Check And Adjust Water Temperature Before Use.
Risk Of Hyperthermia. People Using Medications And/Or Having An Adverse
Medical History Should Consult A Physician Before Using A Hydromassage
Bathtub.
08-29-13

Page 3of 12
General:
Before operating the Entree Bath, familiarize yourself with
the key features of the tub highlighted in the drawings
supplied with these instructions (DVD provided).
Turn On The BathAire(SM):
Turn on BathAire(SM) by pushing in on the BathAire(SM)
On/Off Touch Pad located on the lower left side deck of
the tub. This will warm up the environment inside the
tub. You can increase or decrease the air flow by
pushing down on the plus (+) or minus (-) section of the
touch pad. If Aromatherapy is desired place selected
scent sachet in the Aromatherapy sachet holder and
securely close the access cap prior to turning on
BathAire. CAUTION: Do NOT remove beads from
sachet. Never place liquids in the Aromatherapy
sachet holder.
Place Individual into Entree Bath:
The Entree Bath operator must be trained by
qualified facility personnel. Recommended
manufacturers procedures must be utilized before
they can be allowed to operate the Entree Bath
system. Refer to provided DVD.
Push down on the open button until the door is fully
opened and stops on its own. Position the security belt
attached to the connecting knob on top of the tub deck,
out of the way. Position the comfort pad group as
follows; two rectangular pads parallel about three to
four inches apart centered in the individual seating
area, one rectangular pad horizontally on the seat back
at approximately the lumbar area of the individual, see
page 11. Transfer the individual onto the Entree Bath
seat using appropriate ergonomic transfer techniques
or with a modern lift/transfer device per facility protocol.
Make sure the individual's feet are positioned in the
center of the foot well.
The grab bar is intended for transferring NOT for load
bearing. Use the grab bar only for stabilizing NOT
standing. Make sure the individual's feet and hands
are clear of all areas where the door meets the
outside tub surface during the closing procedure
Secure the Individual:
Secure the security belt firmly around the individual's
chest by inserting the attachment knob located behind
the individual's back through the appropriate hole at

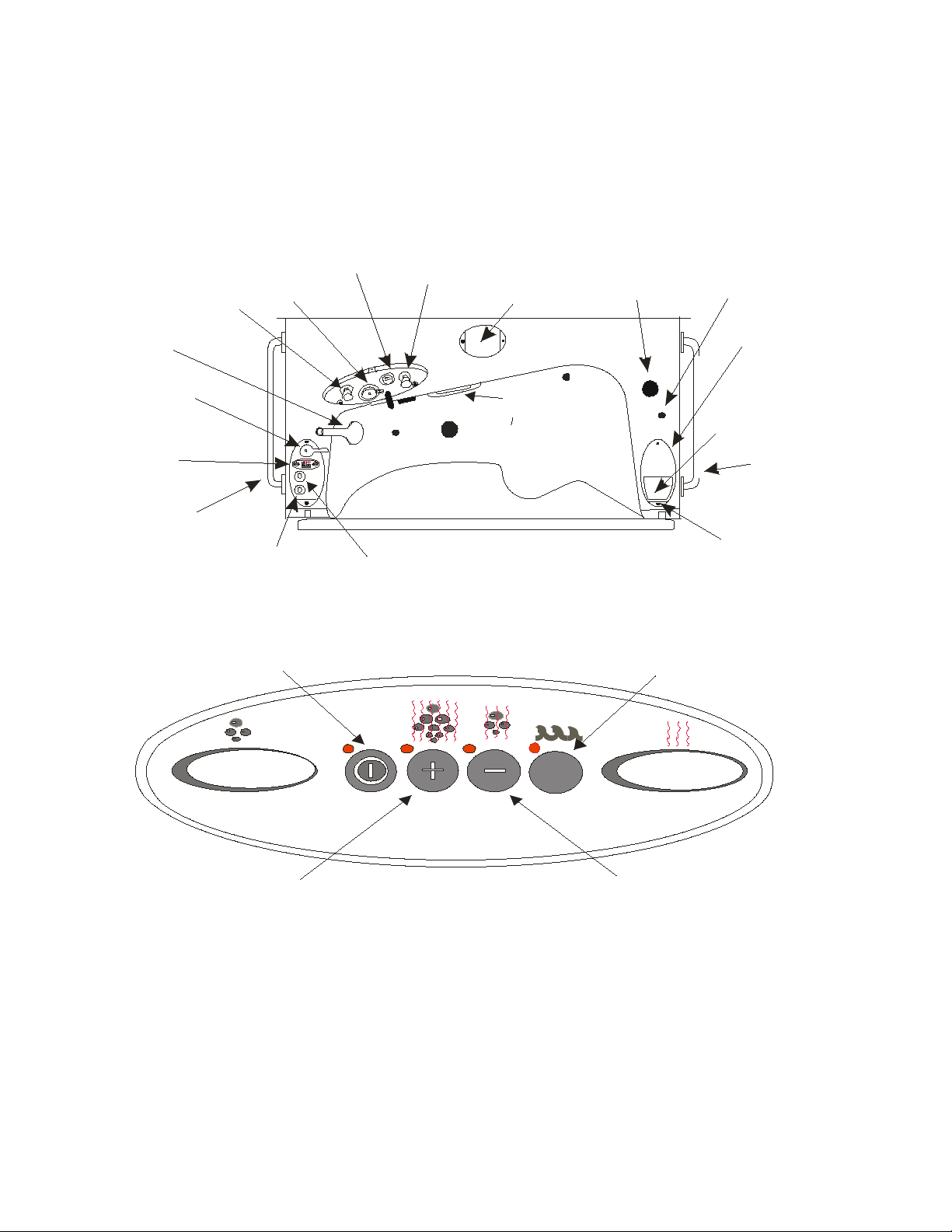

See Attached
Components Drawings
Page 7-10
Security Belt
Comfort
pads
BathAire
Variable
Speed Control
Aromatherapy
Access Cap
08-29-13

Page 4of 12

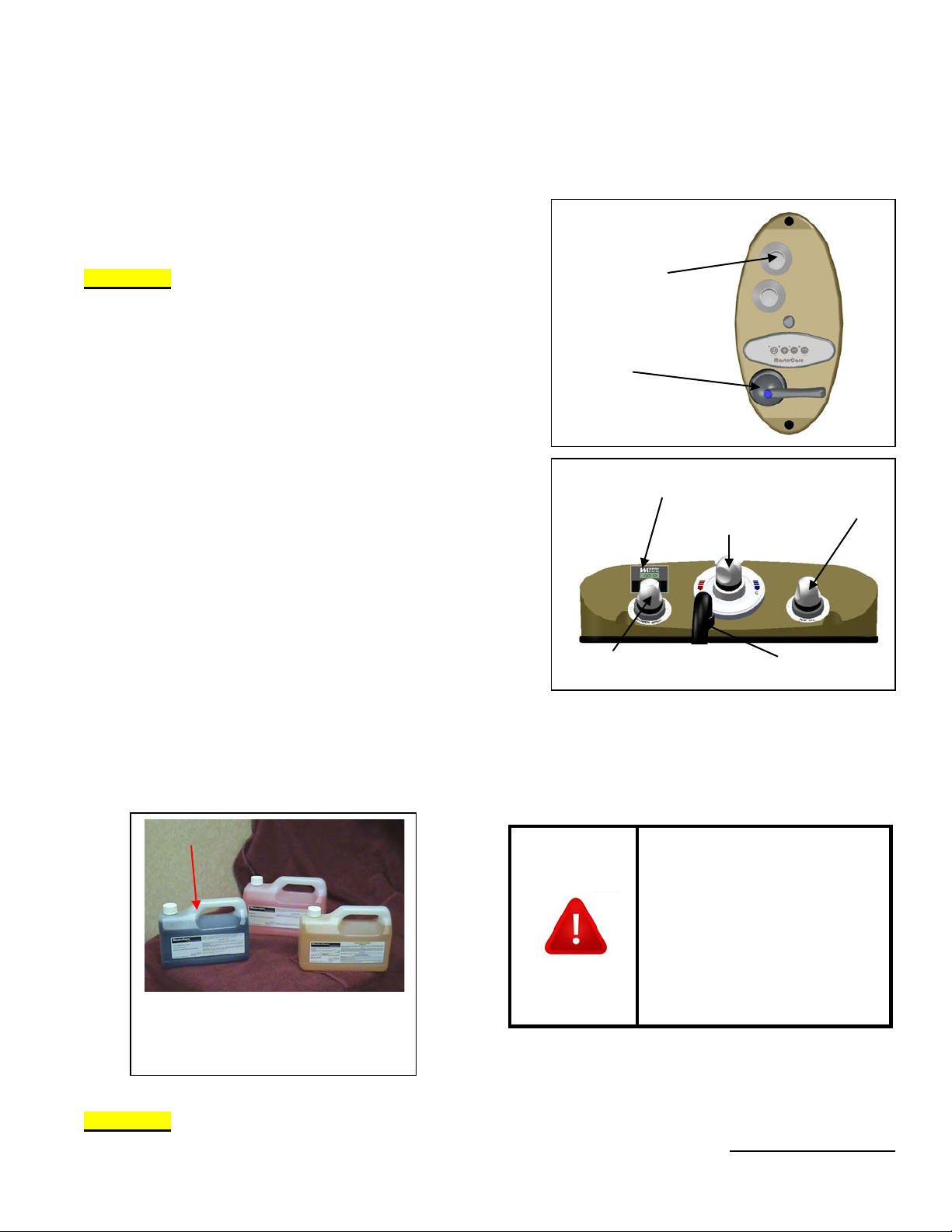

Solar Powered LCD Thermometer
Tub Fill Valve
Gen II Mixing Valve
each end of the belt. Adjust the belt and comfort pads
as necessary for the individual's security and comfort.
See page 11.
Tub Fill Procedures:
Push down on the Close button until the door is fully
closed and stops on its own. You will no longer hear
the motor and the seal will be compressed.
CAUTION:Prior to closing the door ensure NO
materials I.E. towels, band aids, etc. are trapped
between door and tub. Make sure the door
comes to a complete stop to properly seal the
tub. Failure to do so may result in leaks. First
bring the water temperature up to normal bath
temperature by placing the shower wand inside
the bath, turned toward the side wall, away from
the bather. Turn on the Shower Wand Control
Valve. Run the water until it reaches the desired
temperature; adjust the water temperature
between 96° to 105° by turning the Mixing Valve
toward the hot or cold side. Turn off the Shower
Wand Flow Control Valve and replace the Shower
Wand. Close the drain and slowly turn the Tub Fill
Valve knob to open and test the water temperature
again with your hand to make sure it is safe and
comfortable for the individual. Check the
temperature of the water with LCD Thermometer.
Adjust water temperature following the above
instructions if needed. Fill tub 2-4” below bottom
of overflow or 1” below door seal, this allows for
resident movement and BathAire action.Add a
minimum of ¼ oz of MasterCare’s Bath Oil to the
water from the Dispensing bottle.
CAUTION:When the drain is in the closed position the Door switch cannot be activated. This
will prevent accidental opening of the door when the tub is full of water. DO NOT under any
Door Close
Drain Open/Close
Lever
The temperature of the bath water
must never exceed 110o F. If you
are unable to adjust to the normal
level of 96oF to 105o F, remove
the individual and report the
problem to maintenance. DO
NOT use bath until the mixing
valve is serviced to correct the
problem. Failure to heed this
warning could result in a scalding
injury to the individual.
MasterCare Bath Oil & Skin Conditioner.
Item: 90201
Shower Spray Valve Fill Spigot
08-29-13

Page 5of 12
circumstance press the Open Door switch when there is water in the tub unless there is an
emergency.
Bathing Procedures:
During the normal bath cycle you can shampoo the
individual’s hair and wash their body with
MasterCare’s specially formulated Shampoo and
Body Wash. Bathe or assist the individual with
their hygiene needs. To rinse, lift the shower wand
from its holder, located on the tub deck, and then
direct the nozzle towards the open water in the tub.
Turn the shower wand on by turning the Shower
Wand Control Valve counter clockwise to full open.
Adjust the shower water temperature to the desired
individual comfort level using the Mixing Valve
control valve. Test the water temperature on your
wrist before showering the individual. Turn off
Shower Wand Control Valve when complete by
turning knob clockwise. Return Shower Wand to its
holder.
End of Bath Cycle:
At the end of the bath cycle, while leaving the
BathAire(SM) on, open the drain by pulling up on the
Drain Open/Close Lever. Allow the tub to drain
completely before opening the door.
CAUTION: Do not push down on the “Open”
button while there is water inside the tub.
Failure to heed this warning can result in water
draining directly onto the floor.
CAUTION: When opening the door CAM out the
door and stop for three (3) seconds. Continue
to open the door to prevent water on the floor.
After the water is completely drained, open the tub
door by pushing down on the Open button and
allow the door to rotate to a fully open position until
it stops. Press the On/Off button to turn off the
BathAire(SM) system. Dry as much of the individual
as you can before removing them from the tub by
leaning the individual forward and towel dry their
back side and inside of the tub area behind the
individual. Lift each leg and towel dry the
underside of the legs/top of the seat, under legs
and feet/foot well area under feet. It is suggested
that a bath mat or towel be placed on the floor area
under the seat area prior to this procedure.
Remove the chest belt from the individual.
Transfer the individual out the Entree Bath seat
using appropriate ergonomic transfer techniques
or with a modern lift/transfer device per facility
protocol.
MasterCare Shampoo &
Body Wash
Item: 90301
BathAire Variable Speed
Control
Door Open
Drain Open/Close
Lever
08-29-13

Page 6of 12
The Grab Bar is NOT designed to support an individual’s body weight.
The grab bar is only intended to assist in transfer.
After the individual is standing, towel dry their
posterior area as needed. After appropriate
procedures are used to dress or cover the
individual, complete the transfer of the individual
into the wheelchair if required, back to the
bedroom, etc.
If lift devices such as stand-up lifts or sling lifts
are used, follow recommended manufacturer
procedures.
Cleaning Procedures:
Turn on BathAire(SM).Push down on the Close
button until the door is fully closed and stops on
its own. Make sure the drain is open, use the
shower spray to rinse all inside surfaces and the
seal area of the tub to remove residual organic
materials left over from the previous bath. Close
the drain. Fill to the bottom of the jet in the foot
well with one (1) gallon of water. Using
MasterCare's specially formulated Disinfectant
cleaner dispense 2 oz (16 pumps) into the foot
well water. Using the special long handled tub
brush, scrub away any remaining organic
materials sticking to the inside tub surfaces and
seal area. Allow contact time as detailed on
disinfectant/cleaner. Open the drain. Rinse all the
inside surfaces and seal area clean with the
shower spray at full pressure. Turn off
BathAire(SM).Open the door all the way. Allow all
cleaned surfaces to dry naturally with the drain
open. The clean comfort pads can be placed in to
the bottom of the foot well to dry.
CAUTION: Failure to leave the door OPEN on
the tub when not in use will cause damage to
the seal and void the warranty for this item.
Seal Brush
Surface Brush
MasterCare BathAire
System Disinfectant
Item: 90101
08-29-13

Page 7of 12
A) Never leave individual unattended
during the entire bathing procedure. B)
All individuals must be assessed,
before using the system to determine if
they will require the assistance of two
staff members to transfer in
to and out
of the bath or if t
hey are suitable for
this procedure. Individuals identified as
needing the assistance of two staff
members must always be transferred
with two staff members.

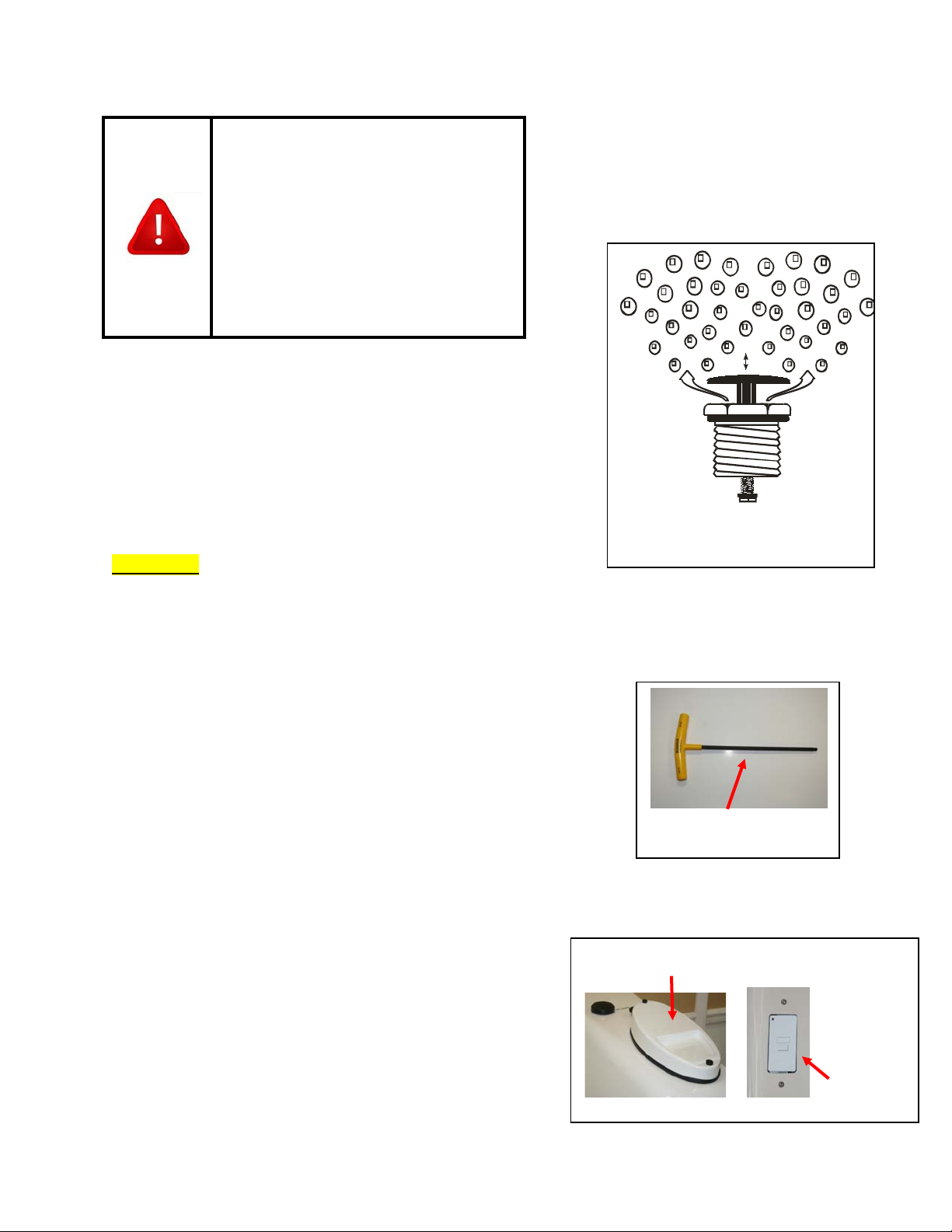

BathAire(SM) Purge Cycle:
BathAire(SM) will automatically turn on after the
bath has been idle for twenty (20) minutes and
run for one (1) minute. This allows the area
around the aerators to completely dry.
Other Considerations:
CAUTION: When not being used all Disinfectant
Cleaner, Bath Oil and Shampoo solutions used
during the bathing procedures must be stored in
a secure area not accessible by the individuals.
It is recommended that a two person bathing
team be established for each shift with trained
backups. Using the team approach, with one
member transferring the individuals to and from
the bathing area and the other operating the
bathing system increases the efficiency of the
bathing operations.
It is recommended that the operations wall chart
be posted on the wall next to the control end of
the tub for quick reference by the operator of the
Entree Bath system (In the tub starter kit).
Emergency Door Open:
In the event there is a power failure or a failure in
the door actuator system, the door can be
opened with the yellow handled 5/16” ball end
Allen wrench driver. See page 10.
First check to make sure the drain is all the way
open. If the drain is not all the way open, the
door will not open. Also check GFCI Reset button
per instructions on page 10
T-Handle Allen
Wrench
GFCI Reset
GFCI Access Panel
BathAire Aerator in open
position
08-29-13

Page 8of 12
.
Entree Bath Models MB-68-AV and MB-68-AV (XL)
Features and Operating Controls:
Tub Fill
Valve
Thermometer
Mixing
Valve
Drain Open
Close Lever
Shower
Wand
Assist
Bar
Emergency
Door
Open/Close
Access Panel
BathAire
Control
Panel
Door Close
Switch
Door Open
Switch
Towel Bar
Security
BeltKnob
Dead Front
GFCI Access
Panel
Bath Aids
Tray
Towel
Bar
Thumb
Screw
Aroma
Therapy
Access Cap
Shower
Wand
Valve
BathAire(SM) Variable Speed System Control Basic Operation:
On/Off
Button Wave
Button
MoreAir/Heat
Button LessAir/Heat
Button
ThermAire
MasterCare
BathAire
On/Off Wave
1. BathAire(SM) on/off button: The BathAire(SM) can be turned on or off by pressing the on/off button. Press
the button once and the BathAire (SM) will turn on. Press the button once again and the BathAire(SM) will
shut off.
2. BathAire(SM) More & Less Air/Heat Buttons: Once the BathAire(SM) is on, it is in an adjustment mode. The
BathAire(SM) starts on at 60% of full volume. To increase or decrease the air volume press the more or
less air/heat button and hold down until the desired level is achieved. The heat level is tied to the air
volume and adjusted the same way.
3. BathAire(SM) Wave Mode: To create a wave effect: Press the wave button once for the long cycle, a
second time for the short cycle and a third time to return to normal operation.
4. BathAire(SM) Purge Cycle: The purge cycle comes on automatically 20 minutes after the BathAire(SM)
system has been turned off to remove any residual water from around the aeration valve. It will then run
for a period of one minute.
5. It also is programmed to cycle every 24 hours, so do not be alarmed if it comes on in the middle of the
night.
6. BathAire(SM) Internal Timer: The BathAire(SM) system has an internal timer that shuts the BathAire(SM) off
automatically after it has run for twenty minutes. 08-29-13

Page 9of 12
Entree Bath Models MB-68-AV and MB-68-AV (XL)
Door, Drain, BathAire and Control Panel:
1. Drain Open/Close Handle: To Close drain
rotate drain handle counter clockwise to full
close. To Open rotate drain handle clockwise
to a full open position. CAUTION: Door will
not open unless the drain is fully open.
2. BathAire Control: See Basic Operation page
8.
3. Door Open/Close Transmitters: To open door
press and hold down the transmitter open
button until the door comes to a complete
stop. To close the door press and hold down
the transmitter close button until the door
comes to a complete stop.
CAUTION: Make sure the door comes to a
complete stop to properly seal the tub.
Failure to do so may result in leaks.
4. Thumb Screws: The thumb screws hold the
service panel in place and are to be removed
only by authorized service personnel for
service access.
Plumbing Controls:
1. Mixing Valve: Adjusts the temperature of the mixer water to the shower wand and tub fill spigot. Turn
counter clockwise for hotter and clockwise for colder mixed water (accuracy must be checked periodically
per facility protocol).
2. Tub Fill and Shower Wand Flow Control Valves: Turns ON/OFF and controls the flow of mixed water to
the tub fill spigot and shower wand.
3. Solar Powered Thermometer: Digital readout temperature of the mixed water to the shower wand and tub
fill spigot (Preset at factory: Field calibration maintenance, see maintenance manual).
4. Thumb Screws: The thumb screws hold the service panel in place and are to be removed only by
authorized service personnel for service access.
Fill Spigot
Solar Powered LCD
Thermometer
Gen II Mixing Valve
Tub Fill Flow
Control Valve
Shower Spray Flow
Control Valve
Open
Close
Close
Open
BathAire
Control
08-29-13

Page 10 of 12
Tub Deck Ball End of 5/16”
Allen Wrench
Thumb Screws
At Either End
of Access Panel
Socket Head
For 5/16” Allen
Wrench
Top of Actuator
Screw Shaft

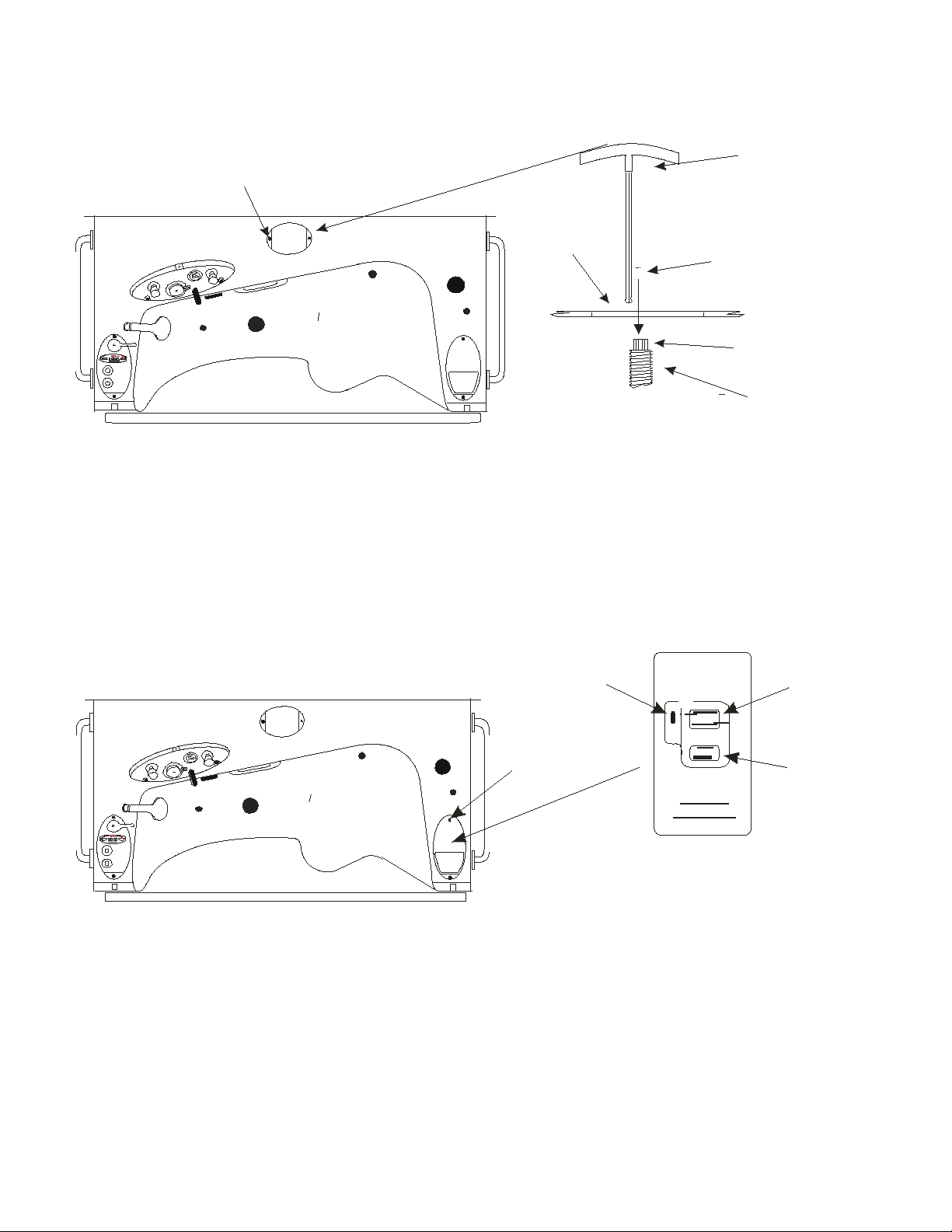

Emergency Door Open Close Procedures:
In the event of a power failure follow the steps below to open the door:
1. Remove the emergency door open/close access panel by removing the two thumb screws at either end
of the panel. Set the panel and thumb screws off to the side.
2. Locate the yellow handled 5/16” ball end allen wrench nested in a hole under the access panel.
3. Engage the ball end allen wrench through the open hole in the tub deck into the socket at the top of the
actuator screw shaft.
4. Turn the handle clockwise to lower the door. Replace the Allen wrench and access panel when the
power is restored.
Thumb Screws
At Either End
of Access Panel
GFCI Switch
Under
Dead Front
GFCI
Access Panel
Trip Indicator
Light Reset
Button
Test
Button
GFCI SWITCH
ON
OFF
GFCI reset procedures:
All MasterCare bathing systems are equipped with onboard GFCI’s making them easy to
access for your convenience. In the event a power surge trips the GFCI It can be accessed
and reset using the following procedures:
1. Remove the dead front GFCI access panel by removing the two thumb screws at either end of the panel.
Set the panel and thumb screws off to the side.
2. If the red trip indicator light is on you need to reset the reset button by pushing it in. Replace the access
panel after the GFCI is reset. Immediately report to the maintenance department to determine cause.
3. If the red trip indicator light is not on, the GFCI did not trip and you need to call maintenance to determine
what caused the failure.
08-29-13

Page 11 of 12
Comfort Pad
Pt.# 12210
Belt Pad
Pt.# 12101
Security Belt
Connecting Knob
Aroma Therapy
Access Cap
Suggested Pad
Configuration
Security Belt
Pt.# 11823
Entree Bath Models MB-68-AV and MB-68-AV (XL)
Aromatherapy, Comfort Pad and Belting Procedures:
1. Aroma Therapy:
a. Before activating the BathAire remove the Aromatherapy Access Cap and insert the sachet with the
selected scent you want to use for the bath. “DO NOT OPEN THE SACHET”, DO NOT place loose
beads or liquids in the sachet holder. Securely close the cap prior to turning on BathAire.
CAUTION: Running the BathAire without the sachet cap securely in place will cause the system to
lose too much air and the aerators (hydromassage action) will not function properly. If the sachet
will not easily fit into the sachet holder, slowly slide the zip tie up the sachet making the sachet
more elongated. DO NOT REMOVE THE ZIP TIE.
2. Comfort Pads:
a. To Attach Pads: Make sure the suction cups are clean. Wetting the suction cups before attachment will
make them adhere better.
b. Arrange the comfort pads as shown above with two pads parallel on the seat and one against the seat back
in the lumbar area. Press down firmly until all the air is out of all the suction cups.
c. To Remove Pads: Reach under the pad and grasp with both hands with fingers under the pad as far as
they go.
d. Pull gently up on one side until all the cups release. CAUTION: Do not pull up on pad by grasping it on
the outside and trying to pull up on all suction cups at the same time with a quick jerking or
yanking motion. This may damage the pad causing the foam pad to separate from suction cup
base.
3. Security Belt & Pad:
a. For those individual’s that need additional security as assessed and approved by the managing nursing
staff, thread the security belt through the belt slots on the belt pad until it is at the midpoint. Thread the belt
under each of the bathers arms with the belt pad centered on their chest. Connect the belts to the security
belt knob by looping one of the holes of each end of the belt over the knob so belt pad is snug against the
bather’s chest.
4. Pad Maintenance Tip:
a. Per manufacturer recommendations it is NOT advised to use conditioners on the pads and straps.
Disinfect the pads and straps with MasterCare Disinfectant according to the label and thoroughly rinse with
water. Rotating the pads on a daily basis will help prolong the life of the pads.
b. CAUTION: DO NOT use bleach to clean and/or disinfect the pads and straps. Also some shampoos, bath
oils/additives and Betadines have substances in them that can stain some surfaces.
Aromatherapy
Access Cap
08-29-13

Page 12 of 12
Entree Bath Training Check List:
After Reviewing The Operation And Safety Instructions In This Manual The Entree Bath Can Be
Operated And All Components Can Be Identified.
OPERATION:
YES
NO
Turn On BathAire Control
Move Individual In To The Entree Bath
Secure individual
Close Tub Door With Push Buttons
Close Drain With Open/Close Lever
Adjust Mixing Valve To Desired Temperature
Fill Tub with ON/OFF Valve
Use Liquids As Desired
Use Shower Wand With Shower Wand Control Valve
Open Drain With Open/Close Lever
After Water Is Drained Open Tub Door With Push Buttons
Move Individual Out Of The Entree Bath
Return Individual To Room Or Desired Location
Remove Comfort Pads And Place In Foot Well
Use Disinfectant To Clean Tub And Pads
Rinse Disinfectant From The Tub And Pads
LOCATE & IDENTIFY:
LCD Temperature Readout
GFCI reset
Aromatherapy Sachet Holder
Wall Chart
T-Handle Wrench
Training Date:
Staff:
Supervisor:
Please feel free to make copies of this training checklist for each staff member that will operate the Entree Bath.
08-29-13
