Mec Nano10-XD User manual

Part # 96250
January 2023
Serial Number Range
18000000 - Up
Operator’s Manual
Nano10™-XD
ART_5973

Page i Nano10™-XD - Operator’s Manual
January 2023
Revision History
Date Reason for Update
December 2022 New Release
1401 S. Madera Avenue, Kerman, CA93630 USA
Toll Free: 1-877-632-5438
Phone: [phone]
Fax: [phone]
[email protected]
www.MECawp.com
MEC Aerial Work Platforms

Page ii Nano10™-XD - Operator’s Manual
January 2023
Table of Contents
Section 1 - Introduction . . . . . . . . . . . . . . . . 1
Introduction � � � � � � � � � � � � � � � � � � � � � 1
Section 2 - Safety . . . . . . . . . . . . . . . . . 2
Safety � � � � � � � � � � � � � � � � � � � � � � � 2
Safety Alert Symbols & Fall Protection � � � � � � � � � � � � � � 3
Section 3 - Specications . . . . . . . . . . . . . . . 4
Specications � � � � � � � � � � � � � � � � � � � � � 4
Section 4 - Safety Rules and Hazards . . . . . . . . . . . . 5
Safety Rules � � � � � � � � � � � � � � � � � � � � � 5
Maintenance Safety � � � � � � � � � � � � � � � � � � � 6
Hazards � � � � � � � � � � � � � � � � � � � � � � 7
Section 5 - Xtra Deck Deployment and Stowing . . . . . . . . . 15
Xtra Deck Deployment and Stowing � � � � � � � � � � � � � � � 15
Section 6 - Components and Controls. . . . . . . . . . . . 17

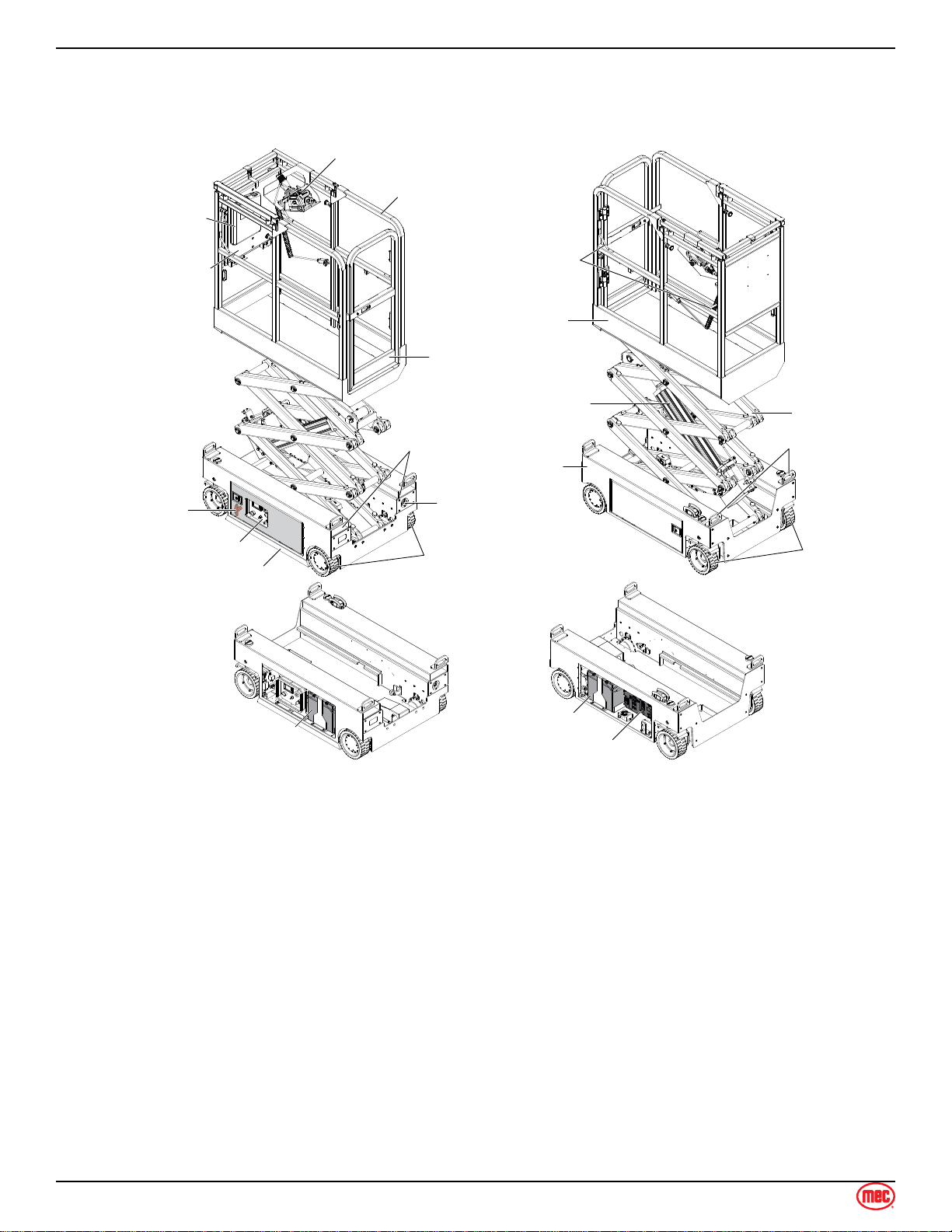

Component Locations � � � � � � � � � � � � � � � � � � � 17
Upper Controls� � � � � � � � � � � � � � � � � � � � � 18
Lower Controls� � � � � � � � � � � � � � � � � � � � � 19
Section 7 - Pre-Operation & Workplace Inspection . . . . . . . . 20
Pre-operation Inspection � � � � � � � � � � � � � � � � � � 20
Pre-operation Inspection Report � � � � � � � � � � � � � � � � 21
Workplace Inspection � � � � � � � � � � � � � � � � � � � 22
Section 8 - Maintenance Inspection Form . . . . . . . . . . . 23
Maintenance Inspection Report � � � � � � � � � � � � � � � � 23
Section 9 - Function Tests . . . . . . . . . . . . . . . 24
Function Tests � � � � � � � � � � � � � � � � � � � � � 24
Section 10 - Operating Instructions . . . . . . . . . . . . 29
Operating Instructions � � � � � � � � � � � � � � � � � � � 29
Section 11 - Battery and Charger Instructions . . . . . . . . . 32
Battery and Charger Instructions � � � � � � � � � � � � � � � � 32
Section 12 - Transport and Lifting Instructions . . . . . . . . . 33
Transport and Lifting � � � � � � � � � � � � � � � � � � � 33
Section 13 - Storage. . . . . . . . . . . . . . . . . 35
Storage � � � � � � � � � � � � � � � � � � � � � � 35
Section 14 - Decals . . . . . . . . . . . . . . . . . 36
Decals � � � � � � � � � � � � � � � � � � � � � � � 36
Serial Plate � � � � � � � � � � � � � � � � � � � � � 38

Page 1 Nano10™-XD - Operator’s Manual
January 2023
Introduction
This Operator’s Manual has been designed to provide you, the owner, user or operator, with the
instructions and operating procedures essential to properly and safely operate your MEC Aerial Work
Platform for positioning personnel, along with their necessary tools and materials, to overhead work
locations.
This Operator's Manual and other manuals provided by MEC on the
machine must be read and understood prior to operating your MEC Aerial
Work Platform. The operator should not accept operating responsibility
until he/she has read and understands the operator’s manual as well as
having operated the MEC Aerial Work Platform under supervision of an
authorized, trained and qualied operator.
It is essential that the operator of the aerial work platform is not alone at
the workplace during operation.
Modications of this machine from the original design and specications
without written permission from MEC are strictly forbidden. A
modication may compromise the safety of the machine, subjecting the
platform occupants and personal around the machine to serious injury or
death.
Your MECAerial Work Platform has been designed, built, and tested to provide safe, dependable
service. Only authorized, trained and qualied personnel shall be allowed to operate or service the
machine.
MEC, as manufacturer, has no direct control over machine application and operation. Proper safety
practices are the responsibility of the owner, user and operator.
If there is a question on application and/or operation contact:
1401 S. Madera Avenue, Kerman, CA93630 USA
Toll Free: 1-877-632-5438
Phone: [phone]
Fax: [phone]
[email protected]
www.MECawp.com
MEC Aerial Work Platforms
Section 1 - Introduction

Page 2 Nano10™-XD - Operator’s Manual
January 2023
Safety
DO NOT operate this machine until you have read and understood this manual, have
performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have
completed all the test operations detailed in the Operating Instructions section.
Failure to read, understand and follow all safety rules, warnings, and instructions could result in
serious injury or death. For your safety and the safety of those around you, you must operate your
machine as instructed in this manual.
MEC designs aerial work platforms to safely and reliably position personnel, along with their
necessary tools and materials, at overhead work locations. The owner/user/operator of the machine
should not accept responsibility for the operation of the machine unless properly trained.
ANSI and other applicable standards identify requirements of all parties who may be involved with
self-propelled elevating work platforms. The Manual of Responsibilities is considered a part of this
machine and can be found in the manual compartment, located at the platform control station. To
ensure safe use of machine, inspections and training specied in ANSI/SIA A92.22 & A92.24 must be
performed at designated intervals as prescribed.
This product can expose you to chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm. For more
information go to www.p65warnings.ca.gov.
Section 2 - Safety Safety

Page 3 Nano10™-XD - Operator’s Manual
January 2023Section 2 - Safety Safety Alert Symbols & Fall Protection
MEC manuals and decals use symbols, colors and signal words to help you recognize important
safety, operation and maintenance information.
RED and the word DANGER – Indicates an imminently hazardous
situation which, if not avoided, will result in death or serious injury.
ORANGE and the word WARNING – Indicates a potentially hazardous
situation which, if not avoided, could result in death or serious injury.
YELLOW with alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
YELLOW without alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in
property damage.
GREEN and the word NOTICE – Indicates operation or maintenance
information.
Fall Protection
ART_4713
Operators must comply with employer, job site and governmental rules
regarding the use of personal protective equipment.
If required by your employer or job site, use personal fall protection
equipment (PFPE) when operating this machine.
All PFPE must comply with applicable governmental regulations, and must be
inspected and used in accordance with the PFPE manufacturer’s instructions.
Fall restraint must be properly attached to a designated anchorage point
when driving or operating the machine. Attach only one fall restraint to each
anchorage point.

Page 4 Nano10™-XD - Operator’s Manual
January 2023Section 3 - Specications
Specications
Height, Working Maximum1Indoor 16.4 ft 5.0 m
Outdoor 13.5 ft 4.3 m
Height, Platform Maximum Indoor 9.8 ft 3.0 m
Outdoor 7.5 ft 2.3 m
Height, Stowed Maximum 5.3 ft 1.60 m
Maximum Personnel Indoor 1
Outdoor 1
Manual Force Indoor 45 lbs 200 N
Outdoor 45 lbs 200 N
Width 30.3 in 0.77 m
Length, Platform 45.7 in 1.16 m
Platform Dimensions (Length × Width) 44.1 × 23.6 in 1.16 × 0.6 m
Maximum Load Capacity 500 lbs 227 kg
Maximum Wind Speed 0 mph 0 m/s
Wheelbase 37.4 in 0.95 m
Max Wheel Load 520 lbs 235 Kg
Turning Radius Inside 17.7 in 0.45 m
Outside 47.2 in 1.20 m
Ground Clearance 2.4 in 6.0 cm
Ground Clearance (Pothole Guards Deployed) 0.6 in 1.6 cm
Weight51,235 lbs 560 Kg
Controls Proportional
AC Outlet In Platform Standard
System Voltage 24 V
Tire Size 7.9 × 3 in 200 × 80 mm
Airborne Noise Emissions2<70 dB (Vibration value does not exceed 2.5m/s2)
Maximum Slope Rating, Stowed Position325% (14°)
Maximum Side Slope Rating, Stowed Position325% (14°)
Maximum Working Slope X-1.5°, Y-3°
Chassis Inclination 1.5 Side 3.0 Inline
Max Wind Speed 28 mph 12.5 m/s
Drive Speeds
Stowed, Maximum 2.5 mph 4.0 km/h
Platform Raised, Maximum 0.25 mph 0.4 km/h
Floor Loading Information
Tire Load, Maximum 727 lbs 330 kg
Tire Contact Pressure 145 psi 10.2 kg/cm2(997.5 kPa)
Occupied Floor Pressure4194 psf 938.1 kg/m2(9.2 kPa)
Battery
Voltage 12.8V DC
Quantity 2
Battery Capacity, Maximum 63 AH
Meets requirements of ANSI A92.20-2020 and CSA B354.6-2019.
1Working Height adds 6 feet (2 m) to platform height.
2Maximum sound level at normal operating workstations (A-weighted)
3Slope rating is subject to ground conditions and adequate traction.
4 Floor loading information is approximate and does not incorporate di󰀨erent option congurations.
5Weight may increase with certain options.
This applies to machines from serial # 18000375
Specications

Page 5 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards Safety Rules
Failure to obey the instructions and safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
• You learn and practice the principles of safe machine operation contained in this operator’s
manual.
1. Avoid hazardous situations. Know and understand the safety rules before going on to
the next section.
2. Always perform a pre-operation inspection.
3. Always perform function tests prior to use.
4. Inspect the workplace.
5. Only use the machine as it was intended.
• You read, understand and obey the manufacturer’s instructions and safety rules — operator’s
manual and machine decals.
• You read, understand and obey employer’s safety rules and worksite regulations.
• You read, understand and obey all applicable governmental regulations.
• You are properly trained to safely operate the machine.
The relevant conditions of using the equipment
The surface of the worksite should be at and hard with no obstacles in air and the safety distance
between the equipment and high-tension line is adequate.
• The environment temperature should be within: -4°F(-20°C) - 104°F(40°C).
• The environment humidity ≤ 90%.
• Electrical power: AC 110~230V±10%, 50~60Hz.
Intended Use
This machine is intended to be used only to lift personnel, along with their tools and materials to an
aerial work site.
Safety Sign Maintenance
Replace any missing or damaged safety signs. Keep operator safety in mind at all times. Use mild
soap and water to clean safety signs. Do not use solvent-based cleaners because they may damage
the safety sign material.
Safety Rules

Page 6 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards
Maintenance Safety

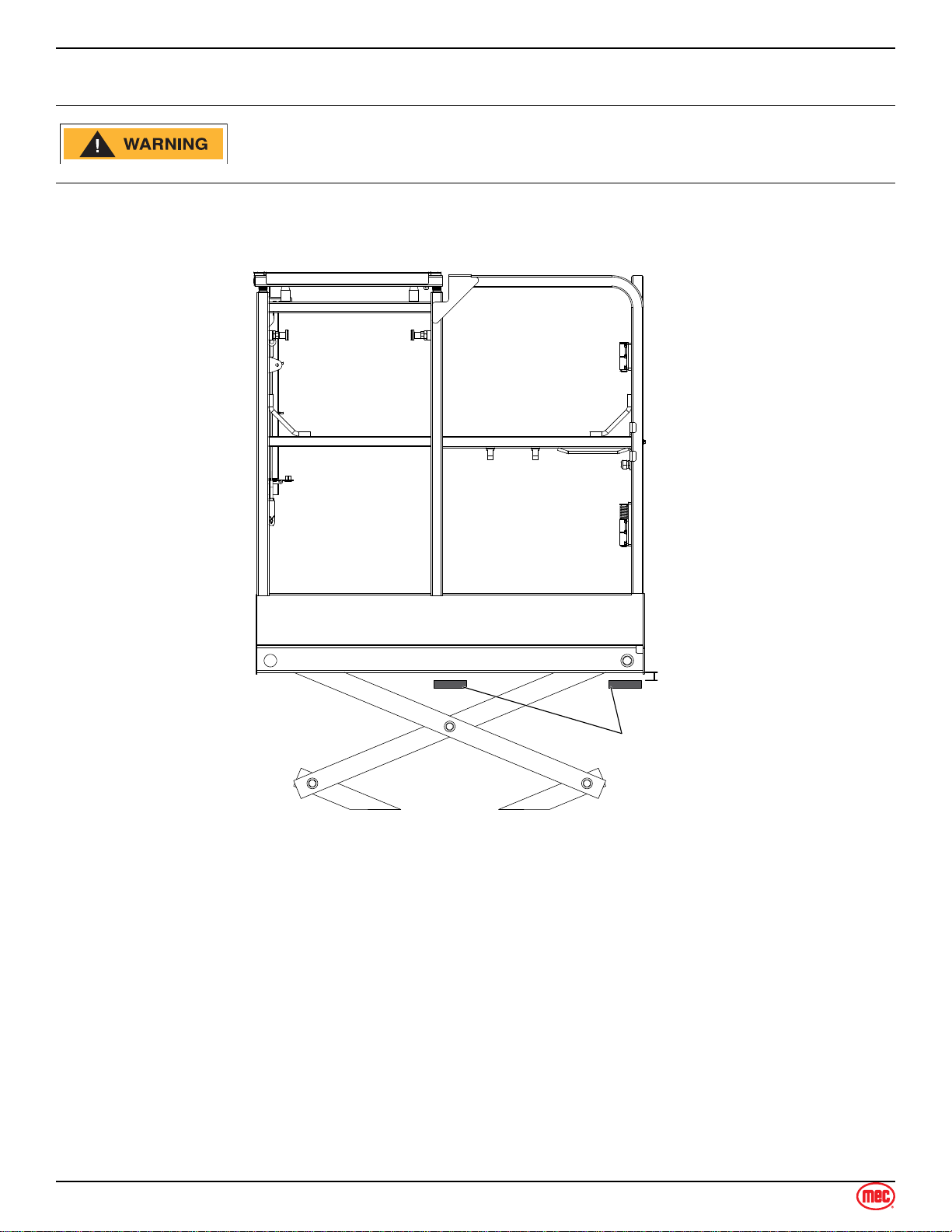

BEFORE PERFORMING MAINTENANCE ON THE LIFT ACTUATOR,
SUPPORT THE PLATFORM WITH A FORKLIFT.
NEVER perform work on the machine with the platform elevated without placing forklift prongs around
1 inch (25 mm) under the platform to support the platform as is shown below.
1 in
Forklift
Prongs
ART_5990

Page 7 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards Hazards
Electrocution Hazard
This machine is not electrically insulated and will not provide protection from
contact with or proximity to electrical current.
Maintain safe distances from electrical power lines and apparatus in
accordance with applicable governmental regulations and the following chart.
ART_5651
Voltage Minimum Safe Approach Distance
Phase to Phase
0 to 300V Avoid Contact
300V to 50kV 10 ft 3.05 m
50kV to 200kV 15 ft 4.60 m
200kV to 350kV 20 ft 6.10 m
350kV to 500kV 25 ft 7.62 m
500kV to 750kV 35 ft 10.67 m
750kV to 1,000kV 45 ft 13.72 m
Keep away from the machine if it contacts energized power lines. Personnel on the ground or in the
platform must not touch or operate the machine until energized power lines are shut o󰀨.
Do not use the machine as a ground for welding.
Energized Conductor Contact Hazard
When working in the area of energized conductors the user shall direct and the operator shall comply
with the requirements to:
a. Stay at least 10 feet away from power lines with any part of their body, conductive object or any
part of the MEWP.
b. If work requires working nearer than 10 feet, stop and consult a qualied person with respect
to electrical transmission and distribution to have appropriate measures taken (such as de-
energizing and grounding).
c. If there is a question that the power lines may carry more than 50kV, consult a qualied person
with respect to electrical transmission and distribution before proceeding.
d. If working or approaching closer than explained above, it shall only be done by a qualied
person with respect to electrical transmission and distribution. Only qualied persons may
work on electric circuit parts or equipment that has not been de-energized. Such persons shall
be capable of working safely on energized circuits and shall be familiar with the proper use
of special precautionary techniques, personal protective equipment, insulating and shielding
materials and insulated tools.

Page 8 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards
ART_3265
No go zone
Spotter
required
zone
Personal
protection
barriers
FRONT VIEW
(a) Distribution lines up to and including 133 kV
SIDE VIEW
6.4
6.4
3
3Sag
Variations
in sag
(b) Transmission lines greater than 133 kV
No go zone Spotter
required
zone
Sway
10
10
8
8
FRONT VIEW SIDE VIEW
Sag
Variations
in sag
Sag
Sag
LEGEND
CLEARANCES FROM LIVE AERIAL CONDUCTORS
= No shading, in the front views, indicates no proximity requirements
= Light shading indicates spotter is required
= Heavy shading indicates the NO GO ZONE
(a) Affected area
Min. volts
Min. volts
Max. volts
Higher voltage
Lower voltage
(b) Avoid simultaneous contact across
areas of high potential difference
5000 V
20000 V
15000 V
10000 V
5000 V

Page 9 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards
Tip-over Hazard
Occupants, equipment and materials must not exceed the maximum platform capacity.
Maximum Platform Capacity Rated
Maximum Occupants Indoors 1
Outdoors 1
Maximum Platform Load 500 lbs (227 kg)
Work Area Safety
Do not raise the platform unless the machine is on a rm, level surface.
Do not drive over 0.25 mph (0.4 km/h) with the platform raised. ART_5651
Do not depend on the tilt alarm as a level indicator. The tilt alarm sounds on the chassis and in the
platform when the machine is on a slope.
If the tilt alarm sounds:
• Lower the platform. Move the machine to a rm, level surface. If the
tilt alarm sounds when the platform is raised, use extreme caution
to lower the platform. ART_5651
When using the machine outside, do not raise the platform when wind speeds may exceed 28 mph
(12.5 m/s). If wind speeds exceed 28 mph (12.5 m/s) when the platform is raised, lower the platform
and do not continue to operate the machine.
Do not switch to Indoor mode unless the wind speed is 0 mph (0 m/s).
Do not operate the machine in strong or gusty winds. Do not increase the surface area of the platform
or the load. Increasing the area exposed to the wind will decrease machine stability.
Do not use the platform controls to free a platform that is caught, snagged or otherwise prevented
from normal motion by an adjacent structure. All personnel must be removed from the platform before
attempting to free the platform using the ground controls.
Use extreme care and slow speeds while driving the machine in the stowed position across uneven
terrain, debris, unstable or slippery surfaces and near holes and drop-o󰀨s.
Do not drive the machine on or near uneven terrain, unstable surfaces or other
hazardous conditions with the platform raised.
Do not push o󰀨 or pull toward any object outside of the platform.
Art_2833
Maximum Allowable Manual Force
Manual Force Maximum Occupants
Indoors 45 lbs (200 N) 1
Outdoors 45 lbs (200 N) 1

Page 10 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards

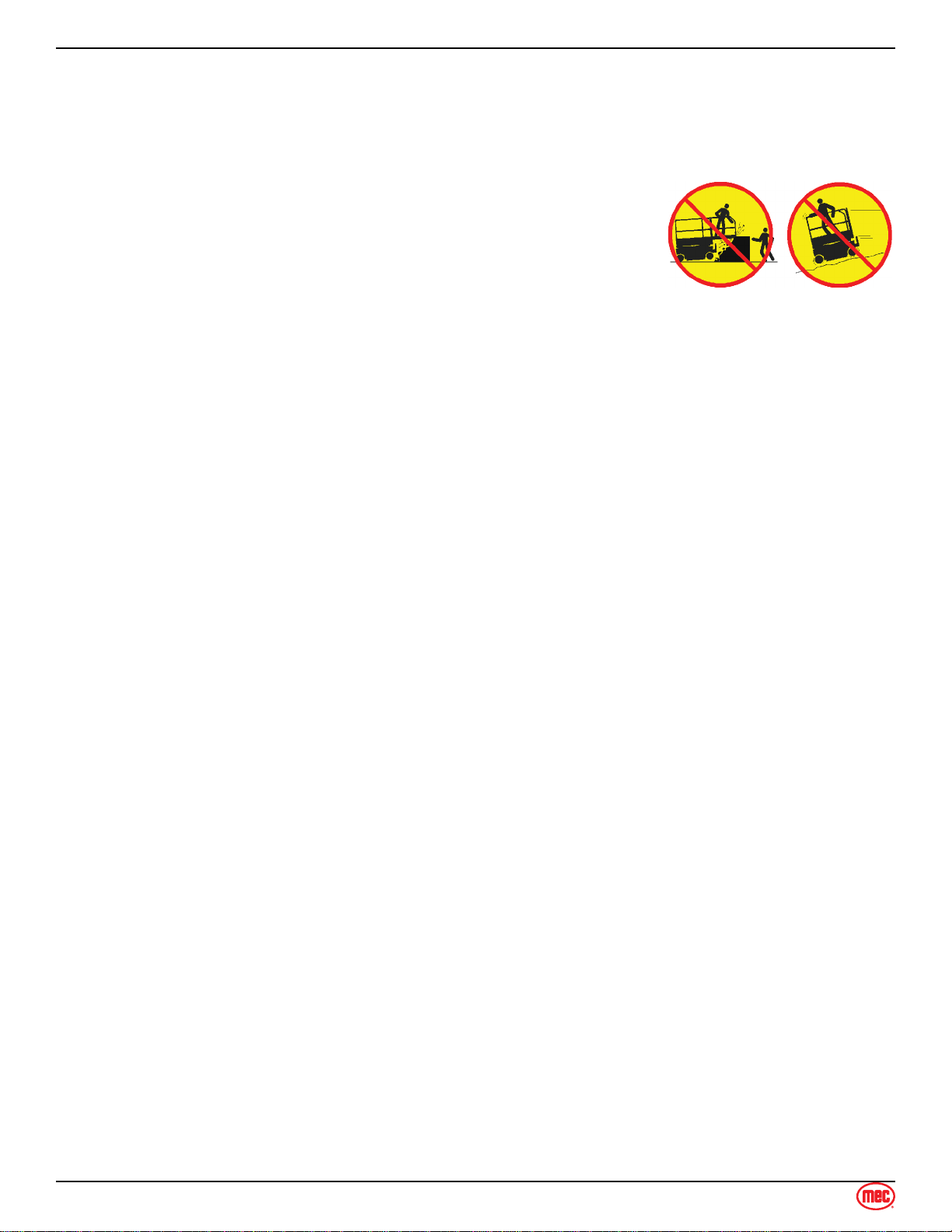

Do not use the machine as a crane.
Do not place or attach xed or overhanging loads to any part of this machine.
Do not push the machine or other objects with the platform.
Do not operate the machine with the chassis trays open.
Do not make contact with adjacent structures with the platform.
Do not alter or disable the limit switches.
Do not tie the platform to adjacent structures.
Do not place loads outside the platform perimeter. ART_5651
Do not alter or disable machine components that in any way a󰀨ect safety and stability.
Do not replace items critical to machine stability with items of di󰀨erent weight or specication.
Do not use batteries that weigh less than the original equipment. Batteries are used as
counterweights and are critical to machine stability. Each battery must weigh 40 lbs (18 kg). The
batteries must weigh a minimum of 80 lbs (36 kg).
Do not modify or alter an aerial work platform without prior written permission from the manufacturer.
Mounting attachments for holding tools or other materials onto the platform, toe boards or guard rail
system can increase the weight in the platform and the surface area of the platform or the load.
Do not place ladders or sca󰀨olds in the platform or against any part of this machine.
Do not transport tools and materials unless they are evenly distributed and can be safely handled by
the person(s) in the platform.
Do not use the machine on a moving or mobile surface or vehicle.
Be sure all tires are in good condition, and the lug nuts are properly tightened.
Crushing Hazard
Keep hands and limbs out of scissors. Keep hands clear when folding rails.
Maintain a rm grasp on the platform rail when removing the rail pins. Do not allow the platform guard
rails to fall.
Use common sense and planning when operating the machine with the controller from the ground.
Maintain safe distances between the operator, the machine and xed objects.

Page 11 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards

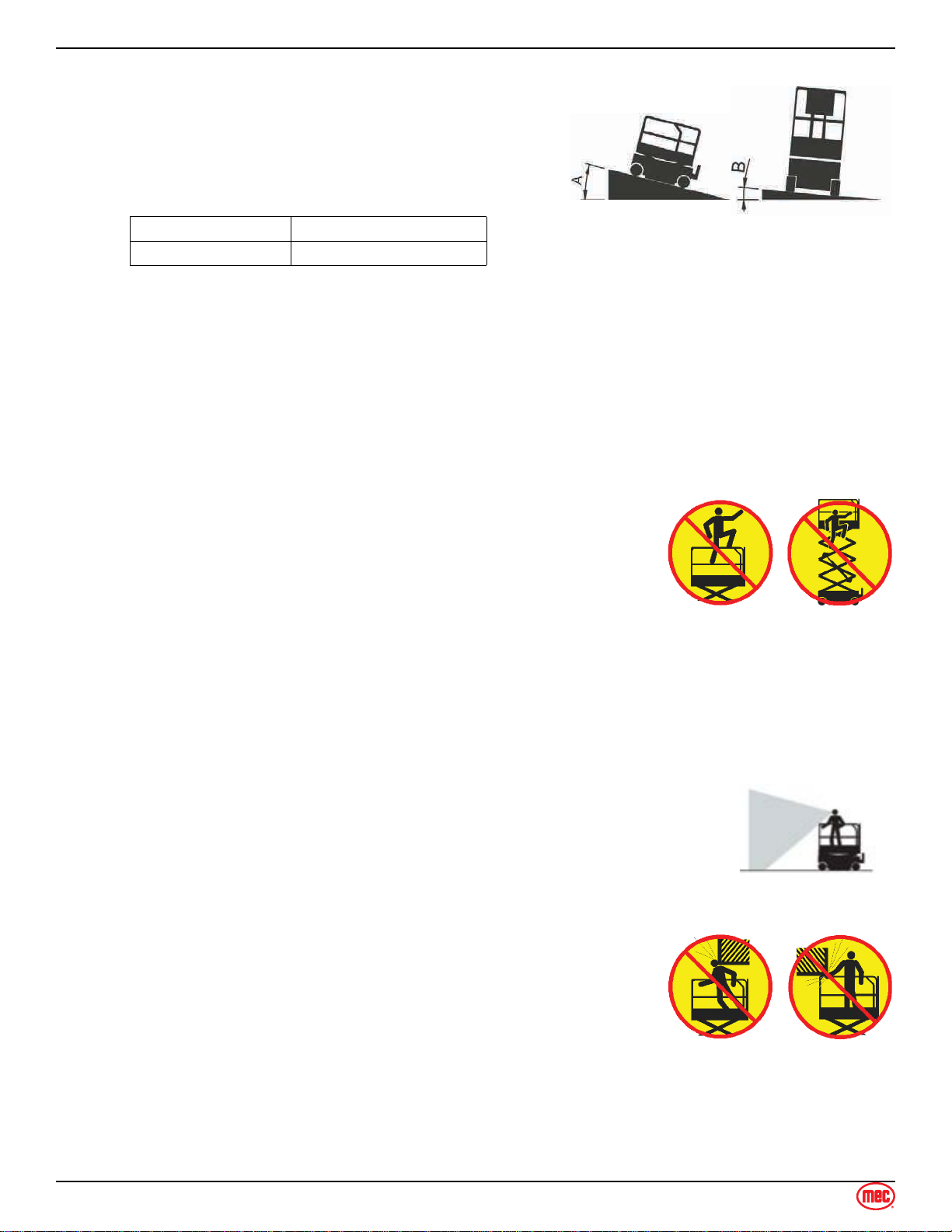

Operation on Slopes Hazard
Do not drive the machine on a slope that exceeds the slope
and side slope rating of the machine.
Slope rating applies to machines only in the stowed position.
A B
25% (14°) 25% (14°)
Maximum Slope
Rating Stowed
Maximum Side Slope
Rating Stowed
ART_5987
Note: Slope rating is subject to ground conditions and adequate traction.
Fall Hazard
The guard rail system provides fall protection. If occupant(s) of the platform are required to wear
personal fall protection equipment (PFPE) due to job site or employer rules, PFPE equipment and its
use shall be in accordance with the PFPE manufacturer’s instructions and applicable governmental
requirements.
Do not sit, stand or climb on the platform guard rails. Maintain a rm
footing on the platform oor at all times.
Do not climb down from the platform when raised.
Keep the platform oor clear of debris.
ART_5651
Close the entry gate before operating.
Do not operate the machine unless the guard rails are properly installed and the entry gate is secured
for operation.
Do not enter or exit the platform unless the machine is in the stowed position.
Collision Hazard
Be aware of limited sight distance and blind spots when driving or operating.
Be aware of platform position(s) when moving the machine.
ART_5651
Check the worksite for overhead obstructions or other possible hazards.
Be aware of crushing hazards when grasping the platform guard rail. ART_5651
Operators must comply with employer, job site and governmental rules regarding use of personal
protective equipment.
Observe and use color-coded direction arrows on the platform controls for drive and steer functions.
Do not operate a machine in the path of any crane or moving overhead machinery unless the controls

Page 12 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards
of the crane have been locked out and/or precautions have been taken to prevent any potential
collision.
No stunt driving or horseplay while operating a machine.
Do not lower the platform unless the area below is clear of personnel
and obstructions.
Limit travel speed according to the condition of the ground surface,
congestion, slope, location of personnel, and any other factors which
may cause collision. ART_5651
Component Damage Hazard
Do not use any battery charger greater than 24V to charge the batteries. The charger must match the
battery type.
Pressure relief valves are used as breathable plugs.
The battery must always be kept clean and dry in order to prevent leakage currents. Do not rinse with
water or wipe with a wet towel.
Please do not change the location of the battery, and it can’t be inverted. Do not block the vent hole of
safety valve. Do not use the machine as a ground for welding.
Explosion and Fire Hazard
Charge the battery only in an open, well-ventilated area away from sparks, ames and lighted
tobacco.
Do not operate the machine or charge the battery in hazardous locations or locations where
potentially ammable or explosive gases or particles may be present.
Damaged Machine Hazard
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of the machine and test all functions before each work
shift. Immediately tag and remove from service a damaged or malfunctioning machine.
Be sure all maintenance has been performed as specied in this manual.
Be sure all decals are in place and legible.
Be sure the operator’s manual is complete, legible and in the storage container located in the
platform.
Bodily Injury Hazard
Improper contact with components under any cover will cause serious injury. Only trained

Page 13 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards
maintenance personnel should access compartments. Access by the operator is only advised when
performing a pre-operation inspection. All compartments must remain closed and secured during
operation.
Battery Safety
Burn Hazard
Batteries contain acid. Always wear protective clothing and eye wear
when working with batteries.
Avoid spilling or contacting battery acid. Neutralize battery acid spills
with baking soda and water.
Do not expose the batteries or the charger to water or rain during
charging.
ART_5651
Explosion Hazard
Keep sparks, ames and lighted tobacco away from batteries. Batteries
emit explosive gas.
The battery tray should remain open during the entire charging cycle.
Do not contact the battery terminals or the cable clamps with tools that
may cause sparks. ART_5651
Electrocution/Burn Hazard
Connect the battery charger to a grounded, AC 3-wire electrical outlet only.
Inspect daily for damaged cords, cables and wires. Replace damaged items
before operating.
Metallic parts of the battery cells are always electried. Therefore, no foreign
objects or tools may be placed on the batteries.
Avoid electrical shock from contact with battery terminals. Remove all rings,
watches and other jewelry.
Tip-over Hazard
Do not use batteries that weigh less than the original equipment. Batteries are used as
counterweights and are critical to machine stability. Each battery must weigh 40 lbs (18 kg). The
batteries must weigh a minimum of 80 lbs (36 kg).
Lifting Hazard
Use the appropriate lifting techniques when lifting batteries.

Page 14 Nano10™-XD - Operator’s Manual
January 2023Section 4 - Safety Rules and Hazards
Transportation and Storage Hazard
Charge the battery as soon as receiving the machine or after long distance transportation.
When the battery is stored for a long time, it needs to be charged regularly. Failure to charge in time
may permanently damage the battery.
Pollution Hazard
Disposal of old batteries must comply with job site and governmental rules.
Lockout after Each Use
1. Select a safe parking location - rm level surface, clear of obstruction and tra󰀩c.
2. Lower the platform.
3. Turn the key switch to the “OFF” position and remove the key to secure from unauthorized use.
4. Push in the red Emergency Stop buttons to the “OFF” position.
5. Charge the batteries.

Page 15 Nano10™-XD - Operator’s Manual
January 2023Section 5 - Xtra Deck Deployment and Stowing
Xtra Deck Deployment and Stowing
Warning! Only 1 person is allowed on the machine when the Xtra Deck is deployed.
1. Extend the telescopic guardrails (painted yellow) until
all 4 pins snap into holes when the guardrails reach the
extended position.
1. Pull up the yellow
guardrails until they
snap into place.
Art_6011
2. Pull rmly on the Xtra Deck to release it from the
magnets and fold down the Xtra Deck.
2
. Pull down on the Xtra
Deck to lower it.
Art_6011
3. Once on the Xtra Deck lift-up and engage the swinging
tube guardrail to enclose the Xtra Deck on all 4 sides.
3. Swinging tube
guardrail must
be across the
Xtra Deck
guardrail entrance
Art_6011
Xtra Deck Deployment and Stowing

Page 16 Nano10™-XD - Operator’s Manual
January 2023Section 5 - Xtra Deck Deployment and Stowing
Important: Maximum capacity - 1 person - 250 lbs (113Kg)
The control box may be placed on the upper telescopic guardrail and the machine
controlled as instructed in this manual.
4. To stow rst dis-engage the swinging tube guardrail
and step down. Fold-up the Xtra Deck until the
magnets pull it into the retained vertical position.
4
. Fold up the Xtra Deck
Art_6011
5. Pull each spring loaded snap pin individually but when
releasing the last snap pin hold the yellow upper
guardrail in the center on either the left hand or right
hand side.
PULL
Detail A
AA
5. Pull the spring
loaded snap pins.
Art_6011
6. When pulling and releasing the last pin support the
weight of the yellow upper guardrail in the center of
either the left hand or right hand yellow guardrail.
7. Gently lower the telescopic guardrail to the lowered
position.
6. Hold the yellow guardrail
when releasing the last
snap pin and gently lower
the yellow guardrail.
Art_6011

Page 17 Nano10™-XD - Operator’s Manual
January 2023Section 6 - Components and Controls
Component Locations
ART_5988
Platform Controller
Manuals Case
Platform Guard Rails
Platform Entry Gate
Battery Charger
Chassis
Main Platform
Lanyard Anchorage Points
Drive Wheels
Forklift Pockets
Tie-Down/Lift Points
Motor Controllers (2x)
Ground Control
Pothole Protection Device Steer Wheels
Scissor Arms
Emergency Down Cable
(Inside Lower Controls)
Electric Cylinder Assembly
Battery
Xtra Step
Battery
Component Locations
