Mec 2047ES User manual
This Operator’s Manual
MUST BE READ AND UNDERSTOOD
prior to operating your
MEC Aerial Work Platform
OPERATOR’S MANUALOPERATOR’S MANUAL
OPERATOR’S MANUALOPERATOR’S MANUAL
OPERATOR’S MANUAL
Part # 90908
Issued July 2005
2047ES / 2647ES / 3247ES2047ES / 2647ES / 3247ES
2047ES / 2647ES / 3247ES2047ES / 2647ES / 3247ES
2047ES / 2647ES / 3247ES
Serial Number Range
3247ES: 10001000 - Present
2647ES: 99011000 - Present
2047ES: 98011000 - Present
Courtesy of Crane.Market
Page i
2047ES / 2647ES / 3247ES Operator’s Manual July 2005
TABLE OF CONTENTS
Introduction................................................................................................................... iii
Machine Specifications ................................................................................................ iv
Section 1: Safety
Safety Symbols ......................................................................................................... 1-2
Safety Rules And Precautions................................................................................... 1-3
Fall Protection Notice ................................................................................................ 1-5
Safety And Control Decal Locations - Battery Side................................................... 1-6

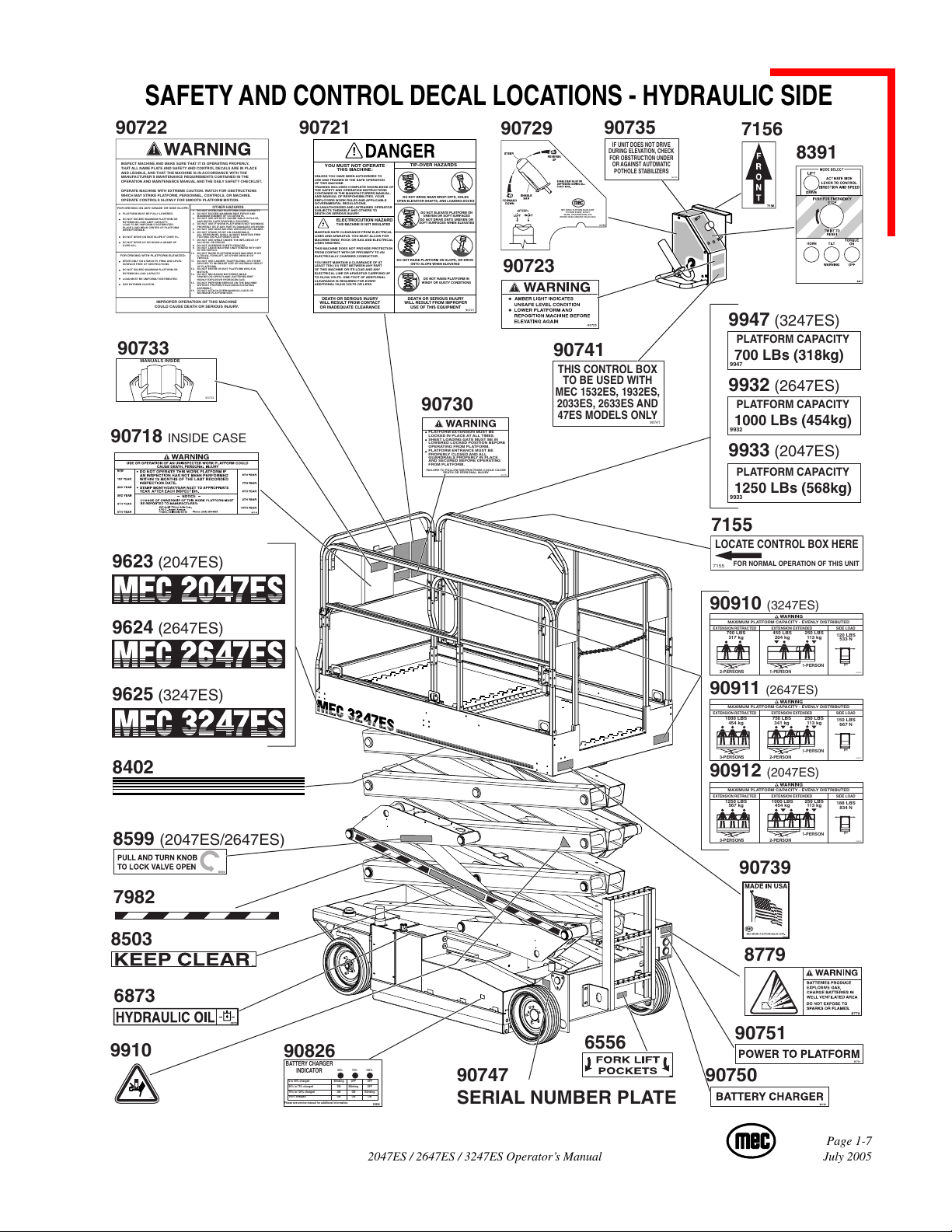

Safety And Control Decal Locations - Hydraulic Side ............................................... 1-7
Section 2: Operation
Unloading Procedures ............................................................................................... 2-2
Primary Machine Components .................................................................................. 2-3
Operator Controls ...................................................................................................... 2-4
Base Controls .................................................................................................... 2-4
Platform Controls ............................................................................................... 2-6
Platform Controls ............................................................................................... 2-7
Prestart Inspection .................................................................................................... 2-8
Machine Start Up ............................................................................................... 2-8
Base Control Operation And Checks ................................................................. 2-9
Platform Control Operation and Checks .......................................................... 2-10
Operation................................................................................................................. 2-11
Driving and Steering ........................................................................................ 2-11
Braking ............................................................................................................ 2-12
Elevating The Platform .................................................................................... 2-12
Using Platform Controls ........................................................................... 2-12
Using Base Controls ................................................................................ 2-12
Lowering The Platform .................................................................................... 2-12
Using Platform Controls ........................................................................... 2-12
Using Base Controls ................................................................................ 2-12
Extending The Roll-out Extension Deck .......................................................... 2-13
Charging The Batteries ........................................................................................... 2-13
Shutdown Procedure ............................................................................................... 2-14
Moving The Machine ............................................................................................... 2-14
Towing/ Winching The Machine ....................................................................... 2-14
Emergency Systems And Procedures..................................................................... 2-16
Emergency Lowering -2047ES and 2647ES ................................................... 2-17
Emergency Lowering - 3247ES ....................................................................... 2-18
Courtesy of Crane.Market
Page ii
July 2005 2047ES / 2647ES / 3247ES Operator’s Manual
Section 3: Maintenance
General Maintenance Tips ........................................................................................ 3-2
Prestart Inspection .................................................................................................... 3-4
Frequent Inspection .................................................................................................. 3-6
Annual Inspection ...................................................................................................... 3-7
Troubleshooting ......................................................................................................... 3-9
What to Check if Functions Will Not Operate ............................................ 3-9
Lubrication Diagram ................................................................................................ 3-10
Lubrication Chart ..................................................................................................... 3-11
Limited Owner Warranty
Courtesy of Crane.Market
Page iii
2047ES / 2647ES / 3247ES Operator’s Manual July 2005
INTRODUCTION
This Operator’s Manual has been designed to provide you, the customer, with the
instructions and operating procedures essential to properly and safely operate your
MEC Self-Propelled Scissors for its intended purpose of positioning personnel, along
with their necessary tools and materials to overhead work locations.
THE OPERATOR’S MANUAL MUST BE READ AND
UNDERSTOOD PRIOR TO OPERATING YOUR MEC
SELF-PROPELLED SCISSORS. THE USER/OPERATOR
SHOULD NOT ACCEPT OPERATING RESPONSIBILITY
UNTIL HE/SHE HAS READ AND UNDERSTANDS THE
OPERATOR’S MANUAL, UNDERSTANDS THEIR
RESPONSIBILITIES SET FORTH IN THE ANSI MANUAL OF
RESPONSIBILITIES PROVIDED WITH THIS LIFT, AS WELL
AS HAVING OPERATED THE MEC SCISSOR LIFT UNDER
SUPERVISION OF AN AUTHORIZED, TRAINED AND
QUALIFIED OPERATOR.
MODIFICATIONS OF THIS MACHINE FROM THE ORIGINAL
DESIGN AND SPECIFICATIONS WITHOUT WRITTEN
PERMISSION FROM MEC ARE STRICTLY FORBIDDEN. A
MODIFICATION MAY COMPROMISE THE SAFETY OF THE
MACHINE, SUBJECTING OPERATOR(S) TO SERIOUS
INJURY OR DEATH.
Your MEC Scissor Lift has been designed, built, and tested to provide safe, dependable
service. Only authorized, trained and qualified personnel should be allowed to operate
or service the machine.
MEC, As Manufacturer, Has No Direct Control Over Machine Application And Operation.
Proper Safety Practices Are The Responsibility Of The User And All Operating Person-
nel.
If There Is A Question On Application And/Or Operation Contact:
MEC Aerial Platform Sales Corp
1775 Park Street Suite 77• Selma, CA 93662 USA
Ph: 1-866-379-7278 • Fax: 1-559-263-9631
E-mail:i fo@mecawp.com • Web:www.mecawp.com
Courtesy of Crane.Market
Page iv
July 2005 2047ES / 2647ES / 3247ES Operator’s Manual
MACHINE SPECIFICATIONS
2047ES 2647ES 3247ES
Working Height* 26 ft. 8.10m 32 ft. 9.92m 38 ft. 11.75m
Platform Height 20 ft. 6.10m 26 ft. 7.92m 32 ft. 9.75m
Stowed Height: 82.6 in. 2.10m 88.8 in. 2.26m 95.1 in. 2.42m
Folded Down Rails 63.8 in. 1.62m 70.0 in 1.78m 76.3 in. 1.94m
Maximum Number of Occupants 33 2
Lift Capacity (Evenly Distributed): 1,250 lbs. 567kg 1,000 lbs. 454kg 700 lbs. 317kg
Roll-out Deck Capacity 250 lbs. 113kg 250 lbs. 113kg 250 lbs. 113kg
Platform Dimensions:
With Roll-Out Deck Extended 133.5 in. 3.39m
With Roll-Out Deck Retracted 91 in. 2.31m
Guard Rail Height 42 in. 1.06m
Toe Board Height 6 in. 15.2cm
Roll-out Deck Length 42.1 in. 1.07m
Overall Length 8.25 ft. 2.31m
Overall Width 47 in. 1.19m
Wheel Base 71 in. 1.80m
Wheel Track 41 in. 1.04m
Turning Radius:
Inside 0 in. 0cm
Outside 94 in. 2.4m
Ground Clearance 3.5 in. 8.9cm
Machine Weight** (Unloaded) (Approx.) 4,450 lbs. 2018kg 5,120 lbs. 2323kg 5,790 lbs. 2627kg
Drive System (Proportional):
Drive Speed (Platform Elevated) 0 - 0.5 mph 0 - .80km/h
Drive Speed (Platform Lowered) 0 - 2.0 mph 0 - 3.2km/h
Lift/Lower Speed (Approx.) 55/45 sec. 55/45sec.
Gradeability 25% 25% 22% 22% 20% 20%
Ground Pressure/Wheel (Maximum) 180 psi 12.7kg/cm2194 psi 13.6kg/cm2205 psi 14.4kg/cm2
Wind Speed (Maximum) 0 mph 0km/h
Tire Size-Standard (Solid, non-marking rubber) 16 in D x 5 in. W 40.6cm D x 12.7cm W
Tire Pressure (Not Applicable For Foam Tires) N/A
Wheel Lug Nut Torque 75-85 ft lbs 102-115 Nm
Hydraulic Pressure:
Main System 2750 psi 190 bar 2750 psi 190 bar 2750 psi 190 bar
Lift System 2500 psi 172.4 bar 2500 psi 172.4 bar 2050 psi 141 bar
Steer 900 psi 62 bar 900 psi 62 bar 900 psi 62 bar
Hydraulic Fluid Capacity 4.5 gal 17.0 liters
Fuel Capacity N/A
Power System – Voltage 24 Volts DC
Battery Charger
Input 110-220 Volt AC, 50/60 Hz, 5.6 Amp
Output 24 Volt DC, 25 Amps Tapering, Timed Shutoff
Batteries Four 6 Volt deep-cycle; 220 Amp hours @ 20 hour rating
Electric Motor 2.0 h.p. (1.49 kW): 3000 r.p.m.
Meets Requirements of ANSI A92.6-1999 Section 4
*Metric equivalent of working height adds 2m to platform height. U.S. adds 6 ft. to platform height.
**Weight may increase with certain options or country standards.
Courtesy of Crane.Market
Page 1-2
July 2005 2047ES / 2647ES / 3247ES Operator’s Manual
SAFETY SYMBOLS
This section of the manual contains important information of the safe use of your MEC
Scissors. Failure to read, understand, and follow all safety rules, warnings, and instructions
will unnecessarily expose you and others to dangerous situations. For your safety and the
safety of those around you, you must operate your machine as instructed in this manual.
You, the operator, are the single most important factor for safety when using any piece of
equipment. Learn to operate your machine in a safe manner.
To help you recognize important safety information, we have identified warnings and in-
structions that directly impact on safety with the following signals:
“DANGER” INDICATES AN IMMINENTLY HAZARDOUS
SITUATION WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH
OR SERIOUS INJURY. THIS SIGNAL WORD IS LIMITED TO THE
MOST EXTREME SITUATIONS.
“WARNING” INDICATES A POTENTIALLY HAZARDOUS
SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN
DEATH OR SERIOUS INJURY.
“CAUTION” indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It may also be used
to alert against unsafe practices. “CAUTION” is used for property-
damage only accidents.
Courtesy of Crane.Market
Page 1-3
2047ES / 2647ES / 3247ES Operator’s Manual July 2005
SAFETY RULES AND PRECAUTIONS
♦MEC designs self-propelled scissor lifts to be safe and reliable. They are in-
tended to position personnel, along with their necessary tools and materials to
overhead work locations.
♦The owner/user/operator of the machine should not accept responsibility for the
operation of the machine, unless properly trained.
♦ANSI A92.6 and other applicable standards identify requirements of all parties
who may be involved with self-propelled elevating work platforms. The A92.6
Manual of Responsibilities is considered a part of this machine and can be found
in the manual compartment, located at the platform control station.
♦To insure safe use of machine, inspections specified in Section 6.7 of
ANSI A92.6-1999 must be performed at designated intervals as prescribed by
ANSI A92.6-1999.
♦♦
♦♦
♦ELECTROCUTION HAZARD!!! THIS MACHINE IS NOT INSULATED!!
♦Maintain safe clearance from electrically charged conductors (power lines) and
apparatus. You must allow for machine sway (side to side movement) when
elevated and electrical line movement. This machine does not provide protection
from contact with, or proximity to, an electrically charged conductor.
♦You must maintain a CLEARANCE OF AT LEAST 10 FEET (3.05 m) between
any part of the machine, or its load, and any electrical line or apparatus carrying
over 300 volts up to 50,000 volts. One foot (30.5 cm) additional clearance is
required for every additional 30,000 volts.
♦DEATH OR SERIOUS INJURY will result from contact with or inadequate clear-
ance from any electrically charged conductor.
♦Only authorized, trained and qualified personnel should operate the scissor lift.
♦NEVER fasten fall protection lanyard to an adjacent structure while on the plat-
form.
♦Make sure that the platform entry is properly closed and secure before operating
machine from the platform.
♦NEVER exceed platform rated capacity. Review the section titled “Machine
Specifications” (earlier in this manual) regarding model capacities and dimen-
sions.
Courtesy of Crane.Market
Page 1-4
July 2005 2047ES / 2647ES / 3247ES Operator’s Manual
♦Before operating the machine, read and understand all safety and control informa-
tion found on the machine and in this manual.
♦When operating the machine follow all safety and control information found on the
machine and in this manual.
♦Evenly distribute loads placed on the platform.
♦NEVER use scaffolding, ladders or similar items to extend your reach while on the
platform.
♦NEVER climb down the beam assembly while the platform is raised.
♦The “Moving the Machine” section (described later in this manual) requires that the
brake be released. After performing this procedure, there is no means to stop the
machine’s travel. MEC recommends using this procedure only in cases of emer-
gency, and only for a short distance. Be on guard against machine runaway on
sloping surfaces. Movement speed shall not exceed 5 MPH (8.0 kph).
♦NEVER attempt to open any hydraulic line or component without first relieving all
system pressure.
♦NEVER alter, modify, or disable any safety devices or interlocks.
♦NEVER recharge the battery near sparks or open flames. Lead-acid batteries gener-
ate EXPLOSIVE HYDROGEN GAS. Always wear safety glasses.
♦NEVER use the machine outdoors during electrical storms or in high wind situations.
♦Only raise the platform when the machine is on a firm, level surface.
♦SECURE all tools and other loose items to prevent injury to persons working on or
below the platform.
♦Precautions should be taken to prevent unauthorized personnel from operating the
platform with the ground controls while the platform is in use.
♦Before disengaging or disconnecting hydraulic motors with brake assembly from a
towing vehicle, ensure that the machine cannot roll.
♦Complete the “Operational Checklist” at designated intervals.
Courtesy of Crane.Market
Page 1-5
2047ES / 2647ES / 3247ES Operator’s Manual July 2005
♦Use of scissor lift as a crane to lift oversized or hanging loads is prohibited.
♦Always check route and areas are clear before driving, lifting or lowering.
♦It is recommended to avoid sudden braking or steering. Go slowly and leave
more maneuvering room during cold weather operation.
FALL PROTECTION NOTICE
The Guardrail System around the perimeter of the platform is the fall protection sys-
tem for self-propelled elevating work platforms per the American National Standards
Institute ANSI/SIA A92.6 Standard. It is prohibited to use an Aerial Work Platform
manufactured by MEC with any portion, or all, of the guardrails removed.
Lanyard anchorage points on this type of equipment are not required to conform to the
applicable ANSI/SIA Standard.
THE IMPROPER USE OF FALL ARREST SYSTEMS MAY
CAUSE MACHINE TO TIP RESULTING IN SERIOUS INJURY
OR DEATH.
However, if anchorage points for lanyard attachments are required by site authorities or
other regulations, the anchorage points on all equipment manufactured by MEC are
recommended to be used for work positioning restraints of personnel only. Lanyard
lengths are to be determined by operator/owner to restrict the operator to the confines
within the Guardrail System.
Courtesy of Crane.Market
Page 1-6
July 2005 2047ES / 2647ES / 3247ES Operator’s Manual
SAFETY AND CONTROL DECAL LOCATIONS - BATTERY SIDE
1775 Park Street, Suite 77
Selma, California 93662
Phone: (559) 891-2488 Fax: (559) 891-2493
90717
9623 (2047ES) 90719
9624 (2647ES)
9625 (3247ES)
700 LBs (318kg)
PLATFORM CAPACITY
9947
1250 LBs (568kg)
PLATFORM CAPACITY
9933
9932
1000 LBs (454kg)
PLATFORM CAPACITY
9947 (3247ES)
9932 (2647ES)
9933 (2047ES)
90263
90732
DO NOT POWERWASH OR
SPRAY ELECTRONIC
COMPONENTS OR
CONNECTORE.
MOISTURE MAY CAUSE
DAMAGE AND/OR
ERRATIC OPERATION.
90732
9052
8779 (INSIDE)
90918 (INSIDE)
(3247ES) 90267 (INSIDE)
90727 (INSIDE)
(2047ES/2647ES)
90726
90725
90726
EACH REPLACEMENT BATTERY MUST WEIGH
A MINIMUM OF 60 POUNDS / 27.3 kg
FAILURE TO MEET MINIMUM WEIGHT
REQUIREMENT MAY CAUSE MACHINE
INSTABILITY
REFER TO SER ICE AND PARTS MANUAL
FOR REPLACEMENT PART NUMBER.
90725
REPLACE TIRES WITH MANUFACTURER’S
EQUIPMENT ONLY.
FAILURE TO USE MANUFACTURER’S
TIRES MAY CAUSE MACHINE INSTABILITY.
EMERGENCY DOWN PROCEDURE
LOCK OPEN AL E ON LIFT
CYLINDER ABO E.
PULL MANUAL ACTI ATOR BELOW
TO LOWER PLATFORM.
TO RETURN TO NORMAL OPERATION
RESET LIFT CYLINDER AL E.
90727
8402
EMERGENCY LOWERING
ACTUATE SWITCH TO
LOWER PLATORM
90918
8503
7982
9910
9910
Courtesy of Crane.Market
Page 1-7
2047ES / 2647ES / 3247ES Operator’s Manual July 2005
SAFETY AND CONTROL DECAL LOCATIONS - HYDRAULIC SIDE
8779
90747
SERIAL NUMBER PLATE
90722
INSPECT MACHINE AND MAKE SURE THAT IT IS OPERATING PROPERLY,
THAT ALL NAME PLATE AND SAFETY AND CONTROL DECALS ARE IN PLACE
AND LEGIBLE, AND THAT THE MACHINE IS IN ACCORDANCE WITH THE
MANUFACTURER’S MAINTENANCE REQUIREMENTS CONTAINED IN THE
OPERATION AND MAINTENANCE MANUAL AND THE DAILY SAFETY CHECKLIST.
OPERATE MACHINE WITH EXTREME CAUTION. WATCH FOR OBSTRUCTIONS
WHICH MAY STRIKE PLATFORM, PERSONNEL, CONTROLS, OR MACHINE.
OPERATE CONTROLS SLOWLY FOR SMOOTH PLATFORM MOTION.
FOR DRI ING ON ANY GRADE OR SIDE SLOPE:
FOR DRI ING WITH PLATFORM ELE ATED:
PLATFORM MUST BE FULLY LOWERED.
DO NOT EXCEED MAXIMUM PLATFORM OR
EXTENSION LOAD LIMIT CAPACITY.
LOAD TO BE UNIFORMLY DISTRIBUTED.
PLACE LOAD NEAR CENTER OF PLATFORM
WHEN POSSIBLE.
DO NOT DRI E ON SIDE SLOPE IF O ER 5%.
DO NOT DRI E UP OR DOWN A GRADE OF
O ER 25%.
DRI E ONLY ON A SMOOTH, FIRM, AND LE EL
SURFACE FREE OF OBSTRUCTIONS.
DO NOT EXCEED MAXIMUM PLATFORM OR
EXTENSION LOAD CAPACITY.
LOAD MUST BE UNIFORMLY DISTRIBUTED.
USE EXTREME CAUTION.
OTHER HAZARDS
IMPROPER OPERATION OF THIS MACHINE
COULD CAUSE DEATH OR SERIOUS INJURY.
1. DO NOT O ERLOAD PLATFORM LOAD CAPACITY.
2. DO NOT EXCEED MAXIMUM SIDE FORCE AND
MAXIMUM NUMBER OF OCCUPANTS.
3. DO NOT USE WITHOUT GUARD RAILS IN PLACE,
AND ENTRY GATE PROPERLY SECURED.
4. DO NOT USE IF WORK PLATFORM IS NOT WORKING
PROPERLY OR IF ANY PART IS DAMAGED OR WORN.
5. DO NOT USE NEAR MO ING EHICLES OR CRANES.
6. DO NOT STAND OR SIT ON GUARDRAILS,
ALL PERSONNEL SHALL ALWAYS MAINTAIN FIRM
FOOTING ON PLATFORM FLOOR.
7. DO NOT USE WHILE UNDER THE INFLUENCE OF
ALCOHOL OR DRUGS.
8. DO NOT O ERRIDE SAFETY DE ICES.
9. DO NOT LEA E MACHINE UNATTENDED WITH KEY
IN THE SWITCH.
10. DO NOT RAISE PLATFORM WHILE MACHINE IS ON
A TRUCK, FORKLIFT, OR OTHER DE ICE OR
EHICLE.
11. DO NOT USE LADDER, SCAFFOLDING, OR OTHER
DE ICES TO INCREASE SIZE OR WORKING HEIGHT
OF PLATFORM.
12. DO NOT ENTER OR EXIT PLATFORM WHILE IN
MOTION.
13. DO NOT RECHARGE BATTERIES NEAR
SPARKS OR OPEN FLAME, BATTERIES EMIT
HIGHLY EXPLOSI E HYDROGEN GAS.
14. DO NOT PERFORM SER ICE ON THE MACHINE
WITHOUT PROPERLY BLOCKING ELE ATING
ASSEMBLY.
15. DO NOT ATTACH O ERHANGING LOADS OR
NICREASE PLATFORM SIZE.
90721
TIP-O ER HAZARDS
YOU MUST NOT OPERATE
THIS MACHINE:
DO NOT DRI E NEAR DROP-OFFS, HOLES
OPEN ELE ATOR SHAFTS, AND LOADING DOCKS
DO NOT ELE ATE PLATFORM ON
UNE EN OR SOFT SURFACES
DO NOT DRI E ONTO UNE EN OR
SOFT SURFACES WHEN ELE ATED
DO NOT RAISE PLATFORM ON SLOPE, OR DRI E
ONTO SLOPE WHEN ELE ATED
DO NOT RAISE PLATFORM IN
WINDY OR GUSTY CONDITIONS
DEATH OR SERIOUS INJURY
WILL RESULT FROM IMPROPER
USE OF THIS EQUIPMENT
DEATH OR SERIOUS INJURY
WILL RESULT FROM CONTACT
OR INADEQUATE CLEARANCE
90721
ELECTROCUTION HAZARD
THIS MACHINE IS NOT INSULATED
UNLESS YOU HA E BEEN AUTHORIZED TO
USE AND TRAINED IN THE SAFE OPERATION
OF THIS MACHINE.
TRAINING INCLUDES COMPLETE KNOWLEDGE OF
THE SAFETY AND OPERATION INSTRUCTIONS
CONTAINED IN THE MANUFACTURERS MANUAL,
ANSI MANUAL OF RESPONSIBILITIES, YOUR
EMPLOYERS WORK RULES AND APPLICABLE
GO ERNMENTAL REGULATIONS.
AN UNAUTHORIZED AND UNTRAINED OPERATOR
SUBJECTS THEMSELF AND OTHERS TO
DEATH OR SERIOUS INJURY.
MAINTAIN SAFE CLEARANCE FROM ELECTRICAL
LINES AND APARATUS. YOU MUST ALLOW FOR
MACHINE SWAY, ROCK OR SAG AND ELECTRICAL
LINES SWAYING.
THIS MACHINE DOES NOT PRO IDE PROTECTION
FROM CONTACT WITH OR PROXIMITY TO AN
ELECTRICALLY CHARGED CONDUCTOR.
YOU MUST MAINTAIN A CLEARANCE OF AT
LEAST TEN (10) FEET BETWEEN ANY PART
OF THIS MACHINE OR ITS LOAD AND ANY
ELECTRICAL LINE OR APARATUS CARRYING UP
TO 50,000 OLTS. ONE FOOT OF ADDITIONAL
CLEARANCE IS REQUIRED FOR E ERY
ADDITIONAL 30,000 OLTS OR LESS.
90910 (3247ES)
90911 (2647ES)
90912 (2047ES)
90910
MAXIMUM PLATFORM CAPACITY - E ENLY DISTRIBUTED
EXTENSION RETRACTED EXTENSION EXTENDED SIDE LOAD
700 LBS
317 kg
450 LBS
204 kg
250 LBS
113 kg 120 LBS
533 N
2-PERSONS 1-PERSON
1-PERSON
90911
MAXIMUM PLATFORM CAPACITY - E ENLY DISTRIBUTED
EXTENSION RETRACTED EXTENSION EXTENDED SIDE LOAD
1000 LBS
454 kg
750 LBS
341 kg
250 LBS
113 kg 150 LBS
667 N
3-PERSONS 2-PERSON
1-PERSON
90912
MAXIMUM PLATFORM CAPACITY - E ENLY DISTRIBUTED
EXTENSION RETRACTED EXTENSION EXTENDED SIDE LOAD
1250 LBS
567 kg
1000 LBS
454 kg
250 LBS
113 kg 188 LBS
834 N
3-PERSONS 2-PERSON
1-PERSON
9623 (2047ES)
9624 (2647ES)
9625 (3247ES)
700 LBs (318kg)
PLATFORM CAPACITY
9947
1250 LBs (568kg)
PLATFORM CAPACITY
9933
9932
1000 LBs (454kg)
PLATFORM CAPACITY
9947 (3247ES)
9932 (2647ES)
9933 (2047ES)
8402
90733
MANUALS INSIDE
90733
8599
8599 (2047ES/2647ES)
7155
LOCATE CONTROL BOX HERE
FOR NORMAL OPERATION OF THIS UNIT
7155
90730
PLATFORM ENTRANCE MUST BE
PROPERLY CLOSED AND ALL
GUARDRAILS PROPERLY IN PLACE
AND SECURED BEFORE OPERATING
FROM PLATFORM.
90730
PLATFORM EXTENSION MUST BE
LOCKED IN PLACE AT ALL TIMES.
SHEET LOADING GATE MUST BE IN
LOWERED LOCKED POSITION BEFORE
OPERATING FROM PLATFORM.
FAILURE TO FOLLOW INSTRUCTIONS COULD CAUSE
DEATH OR PERSONAL INJURY
90718 INSIDE CASE
6873
8503
Please see service manual for additional information.
100% charged
75% to 100% charged
50% to 75% charged
0 to 50% charged
ON
ON
ON
50%
Blinking
ON
ON
Blinking
OFF
ON
Blinking
OFF
OFF
75% 100%
BATTERY CHARGER
INDICATOR
90826
90826
9910
9910
7982
90739
90751
90750
6556
90735
IF UNIT DOES NOT DRI E
DURING ELE ATION, CHECK
FOR OBSTRUCTION UNDER
OR AGAINST AUTOMATIC
POTHOLE STABILIZERS
90735
MEC AERIAL PLATFORM SALES CORP.
1775 PARK STREET, SUITE 77
SELMA, CALIFORNIA 93662, USA
(PHONE: 559-891-2488)(FAX: 559-891-2493)
90729 7156
90723
90741
8391
THIS CONTROL BOX
TO BE USED WITH
MEC 1532ES, 1932ES,
2033ES, 2633ES AND
47ES MODELS ONLY
90741
Courtesy of Crane.Market
Page 2-2
July 2005 2047ES / 2647ES / 3247ES Operator’s Manual
UNLOADING PROCEDURES
♦Inspect the outside of the machine for damage. Inspect all hoses, beam assemblies
(armset), and cables for chafing or road damage. Confirm that all wheel lug nuts are
tight (refer to the “Machine Specifications”).
♦Unlock and open side compartments. Inspect all electrical and hydraulic connections
for damage and security.
♦Turn battery switch to ON position. Check electrolyte level.
♦Check engine oil level and add as required per engine manufacturer’s recommenda-
tions.
♦Check that fluid level is to the fill mark on the hydraulic tank and add fluid as re-
quired (see “Lubrication Chart”).
♦Close side compartments.
ALWAYS ATTACH THE MACHINE TO A WINCH WHEN
LOADING OR UNLOADING FROM A TRUCK OR TRAILER IF
DRIVEN OFF. WE DO NOT RECOMMEND UNASSISTED
LOADING OR UNLOADING OF ANY SCISSOR LIFT.
READ AND UNDERSTAND ALL SAFETY, CONTROL, AND
OPERATING INFORMATION FOUND ON MACHINE AND IN THIS
MANUAL BEFORE OPERATING THE MACHINE.
♦Attach the machine to a winch for the unloading.
♦Perform Machine Start-up procedures in this section. Refer to Operator Controls
Descriptions, as necessary.
♦Remove all machine tie downs. Remove wheel chocks, if used. Turn the Base/
Platform selector switch to the “PLATFORM” position.
♦Enter the platform, activate emergency stop switch (rotate clockwise and release).
Test all platform functions.
♦Carefully drive the machine off the truck or trailer with the winch still attached.
NOTE: The brakes are automatically released for driving and will automatically
apply when the machine stops.
♦Before placing the machine into service, all operators must read and under-
stand the contents of this Operator’s Manual.
Courtesy of Crane.Market
Page 2-4
July 2005 2047ES / 2647ES / 3247ES Operator’s Manual
OPERATOR CONTROLS
BASE CONTROLS
CONTROL DESCRIPTION
1 Lift/Lower Switch Use to control the lift and lowering of the platform from the base
panel, when “BASE” position is selected as the primary control
station.
2 Circuit-breaker Pops out when there is excessive electrical load in the 12-volt
control circuit. Push in to reset.
3 Base/Off/Platform Select “BASE” position to control operation of machine using
Selector Switch the base controls. Select “PLATFORM” position to control opera-
tion of machine using the platform console.
NOTE: A key shall be provided for European machines and will be
removable in “PLATFORM” position only.
4 Battery Gauge Indicates percent of charge left in batteries.
(Optional)
5 Emergency Stop Use to stop all functions in an emergency. Push for emergency
Button stop. To reset turn clockwise.
6 Hour Meter Indicates total elapsed time the machine has been operated.
1
3 5 2 4 6
90263
Courtesy of Crane.Market
Page 2-5
2047ES / 2647ES / 3247ES Operator’s Manual July 2005
90721
TIP-O ER HAZARDS
YOU MUST NOT OPERATE
THIS MACHINE:
DO NOT DRI E NEAR DROP-OFFS, HOLES
OPEN ELE ATOR SHAFTS, AND LOADING DOCKS
DO NOT ELE ATE PLATFORM ON
UNE EN OR SOFT SURFACES
DO NOT DRI E ONTO UNE EN OR
SOFT SURFACES WHEN ELE ATED
DO NOT RAISE PLATFORM ON SLOPE, OR DRI E
ONTO SLOPE WHEN ELE ATED
DO NOT RAISE PLATFORM IN
WINDY OR GUSTY CONDITIONS
DEATH OR SERIOUS INJURY
WILL RESULT FROM IMPROPER
USE OF THIS EQUIPMENT
DEATH OR SERIOUS INJURY
WILL RESULT FROM CONTACT
OR INADEQUATE CLEARANCE 90721
ELECTROCUTION HAZARD
THIS MACHINE IS NOT INSULATED
UNLESS YOU HA E BEEN AUTHORIZED TO
USE AND TRAINED IN THE SAFE OPERATION
OF THIS MACHINE.
TRAINING INCLUDES COMPLETE KNOWLEDGE OF
THE SAFETY AND OPERATION INSTRUCTIONS
CONTAINED IN THE MANUFACTURERS MANUAL,
ANSI MANUAL OF RESPONSIBILITIES, YOUR
EMPLOYERS WORK RULES AND APPLICABLE
GO ERNMENTAL REGULATIONS.
AN UNAUTHORIZED AND UNTRAINED OPERATOR
SUBJECTS THEMSELF AND OTHERS TO
DEATH OR SERIOUS INJURY.
MAINTAIN SAFE CLEARANCE FROM ELECTRICAL
LINES AND APARATUS. YOU MUST ALLOW FOR
MACHINE SWAY, ROCK OR SAG AND ELECTRICAL
LINES SWAYING.
THIS MACHINE DOES NOT PRO IDE PROTECTION
FROM CONTACT WITH OR PROXIMITY TO AN
ELECTRICALLY CHARGED CONDUCTOR.
YOU MUST MAINTAIN A CLEARANCE OF AT
LEAST TEN (10) FEET BETWEEN ANY PART
OF THIS MACHINE OR ITS LOAD AND ANY
ELECTRICAL LINE OR APARATUS CARRYING UP
TO 50,000 OLTS. ONE FOOT OF ADDITIONAL
CLEARANCE IS REQUIRED FOR E ERY
ADDITIONAL 30,000 OLTS OR LESS.
OPERATOR CONTROLS (Continued)
Courtesy of Crane.Market
Other manuals for 2047ES
1
This manual suits for next models
2
Table of contents
Other Mec Lifting System manuals
Mec
Mec Mast Series Guide
Mec
Mec SMART Series User manual
Mec
Mec 60-J Diesel Guide
Mec
Mec 1532ES Building instructions
Mec
Mec Nano10-XD User manual
Mec
Mec Speed Level 2684 RT Building instructions
Mec
Mec TITAN Boom 40-S User manual
Mec
Mec 65-J Diesel Guide
Mec
Mec TITAN Boom 40-S Building instructions
Mec
Mec 3084ES User manual
