Mec MMAE16 User manual

Part # 95810
January 2022
Serial Number Range
17400000 - Up
Operator’s Manual
MMAE16
ART_5805A

Page i MMAE16 - Operator’s Manual
January 2022
Revision History
Date Reason for Update
January 2022 New Release
1401 S. Madera Avenue, Kerman, CA93630 USA
Toll Free: 1-877-632-5438
Phone: [phone]
Fax: [phone]
[email protected]
www.MECawp.com
MEC Aerial Work Platforms

Page ii MMAE16 - Operator’s Manual
January 2022
Table of Contents
Section 1 - Introduction . . . . . . . . . . . . . . . . 1
Introduction.....................1
Section 2 - Safety . . . . . . . . . . . . . . . . . 2
Safety.......................2
Safety Alert Symbols & Fall Protection . . . . . . . . . . . . . . 3
Section 3 - Specifications . . . . . . . . . . . . . . . 4
Specifications.....................4
Section 4 - Hazards and Safety Rules . . . . . . . . . . . . 5
Hazards......................6
Section 5 - Components and Controls. . . . . . . . . . . . 14

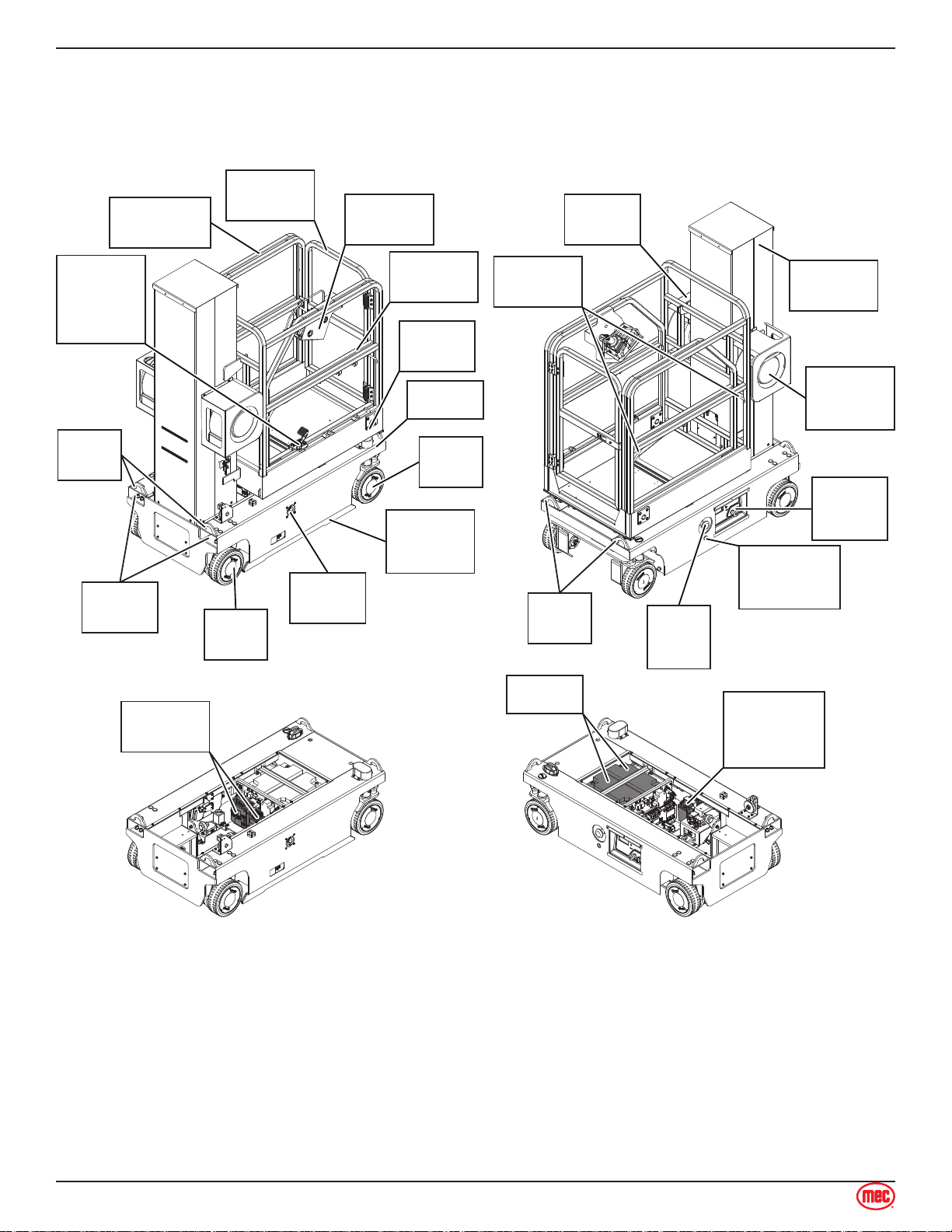

Component Locations . . . . . . . . . . . . . . . . . . . 14
Upper Controls.....................15
LowerControls.....................16
Section 6 - Pre-Operation & Workplace Inspection . . . . . . . . 17
Pre-operation Inspection . . . . . . . . . . . . . . . . . . 17
Pre-operation Inspection Report . . . . . . . . . . . . . . . . 18
Workplace Inspection . . . . . . . . . . . . . . . . . . . 19
Section 7 - Function Tests . . . . . . . . . . . . . . . 20
FunctionTests.....................20
Section 8 - Operating Instructions . . . . . . . . . . . . . 24
Operating Instructions . . . . . . . . . . . . . . . . . . . 24
Battery and Charger Instructions . . . . . . . . . . . . . . . . 27
Emergency Procedures . . . . . . . . . . . . . . . . . . 28
Section 9 - Transport and Lifting Instructions. . . . . . . . . . 30
Transport and Lifting Instructions . . . . . . . . . . . . . . . . 30
Section 10 - Maintenance . . . . . . . . . . . . . . . 32
Maintenance Safety . . . . . . . . . . . . . . . . . . . 32
Maintenance Inspection Report . . . . . . . . . . . . . . . . 33
Section 11 - Decals . . . . . . . . . . . . . . . . . 34
Decals.......................34
SerialPlate .....................36

Page 1 MMAE16 - Operator’s Manual
January 2022
Introduction
This Operator’s Manual has been designed to provide you, the owner, user or operator, with the
instructions and operating procedures essential to properly and safely operate your MEC Aerial Work
Platform for positioning personnel, along with their necessary tools and materials, to overhead work
locations.
This Operator's Manual and other manuals provided by MEC on the
machine must be read and understood prior to operating your MEC Aerial
Work Platform. The operator should not accept operating responsibility
until he/she has read and understands the operator’s manual as well as
having operated the MEC Aerial Work Platform under supervision of an
authorized, trained and qualified operator.
It is essential that the operator of the aerial work platform is not alone at
the workplace during operation.
Modifications of this machine from the original design and specifications
without written permission from MEC are strictly forbidden. A
modification may compromise the safety of the machine, subjecting the
platform occupants and personal around the machine to serious injury or
death.
Your MEC Aerial Work Platform has been designed, built, and tested to provide safe, dependable
service. Only authorized, trained and qualified personnel shall be allowed to operate or service the
machine.
MEC, as manufacturer, has no direct control over machine application and operation. Proper safety
practices are the responsibility of the owner, user and operator.
If there is a question on application and/or operation contact:
1401 S. Madera Avenue, Kerman, CA93630 USA
Toll Free: 1-877-632-5438
Phone: [phone]
Fax: [phone]
[email protected]
www.MECawp.com
MEC Aerial Work Platforms
Section 1 - Introduction

Page 2 MMAE16 - Operator’s Manual
January 2022
Safety
DO NOT operate this machine until you have read and understood this manual, have
performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have
completed all the test operations detailed in the Operating Instructions section.
Failure to read, understand and follow all safety rules, warnings, and instructions could result in
serious injury or death. For your safety and the safety of those around you, you must operate your
machine as instructed in this manual.
MEC designs aerial work platforms to safely and reliably position personnel, along with their
necessary tools and materials, at overhead work locations. The owner/user/operator of the machine
should not accept responsibility for the operation of the machine unless properly trained.
ANSI and other applicable standards identify requirements of all parties who may be involved with
self-propelled elevating work platforms. The Manual of Responsibilities is considered a part of this
machine and can be found in the manual compartment, located at the platform control station. To
ensure safe use of machine, inspections and training specified in ANSI/SIAA92.22 & A92.24 must be
performed at designated intervals as prescribed.
This product can expose you to chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm. For more
information go to www.p65warnings.ca.gov.
Section 2 - Safety Safety

Page 3 MMAE16 - Operator’s Manual
January 2022Section 2 - Safety Safety Alert Symbols & Fall Protection
MEC manuals and decals use symbols, colors and signal words to help you recognize important
safety, operation and maintenance information.
RED and the word DANGER – Indicates an imminently hazardous
situation which, if not avoided, will result in death or serious injury.
ORANGE and the word WARNING – Indicates a potentially hazardous
situation which, if not avoided, could result in death or serious injury.
YELLOW with alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in minor
or moderate injury.
YELLOW without alert symbol and the word CAUTION – Indicates a
potentially hazardous situation which, if not avoided, may result in
property damage.
GREEN and the word NOTICE – Indicates operation or maintenance
information.

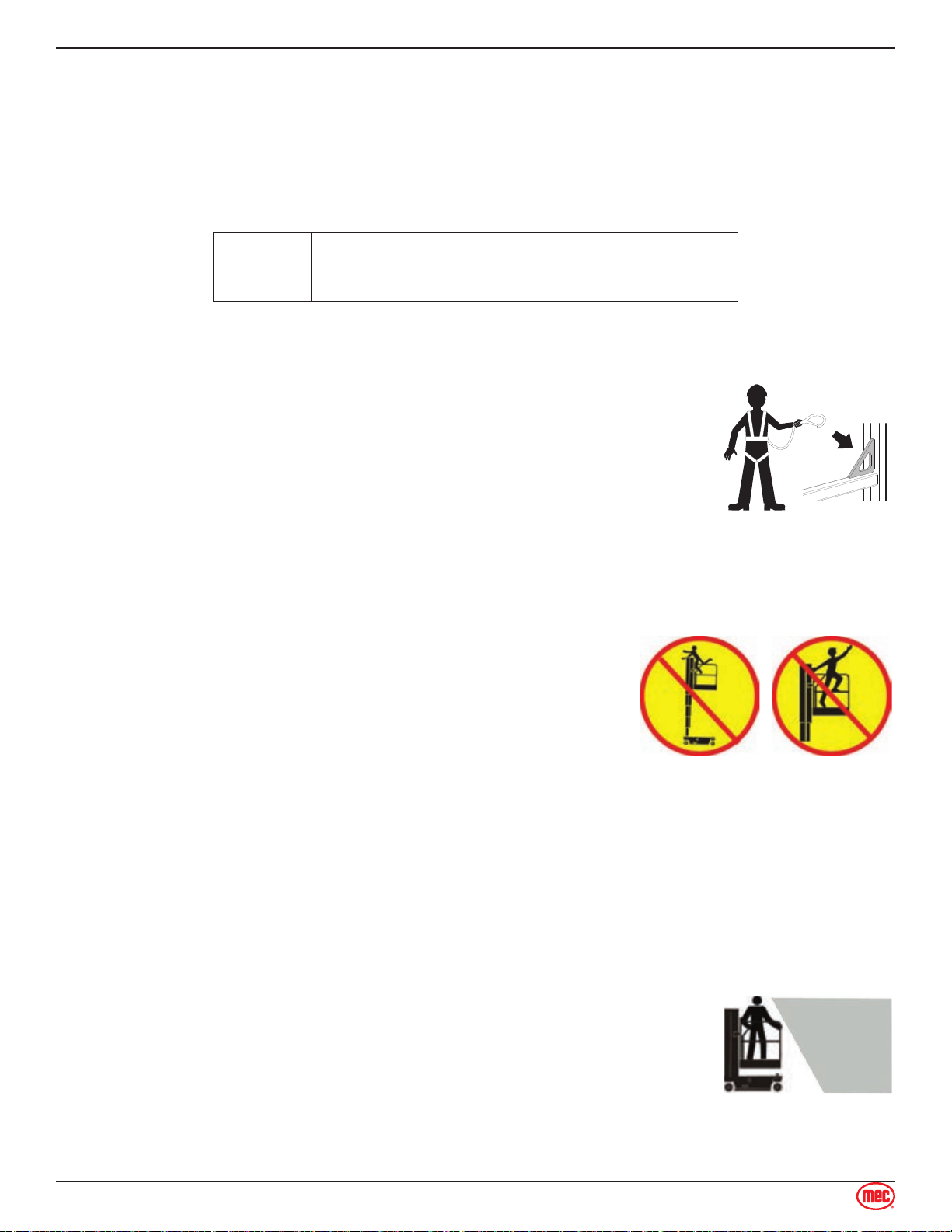

Fall Protection
ART_4713
Operators must comply with employer, job site and governmental rules
regarding the use of personal protective equipment.
If required by your employer or job site, use personal fall protection
equipment (PFPE) when operating this machine.
All PFPE must comply with applicable governmental regulations, and must be
inspected and used in accordance with the PFPE manufacturer’s instructions.
Fall restraint must be properly attached to a designated anchorage point
when driving or operating the machine. Attach only one fall restraint to each
anchorage point.

Page 4 MMAE16 - Operator’s Manual
January 2022
Specifications
Height, Working Maximum* Indoor 22 ft 6.7 m
Outdoor 18 ft 5.5 m
Height, Platform Maximum Indoor 16 ft 4.9 m
Outdoor 12 ft 3.7 m
Height Stowed Maximum 78.3 in 2 m
Guard Rails 43.3 in 1.1 m
Maximum Personnel Indoor 1
Outdoor 1
Manual Force Indoor 45 lbs 200 N
Outdoor 45 lbs 200 N
Width 30 in 0.76 m
Length, Stowed 57 in 1.45 m
Platform Dimensions (Length × Width) 40 × 30 in 1.02 × 0.76 m
Platform Extension Length 20 in 0.5 m
Maximum Load Capacity 500 lbs 227 kg
Platform Extension Load Capacity 250 lbs 113 kg
Maximum Wind Speed 28 mph 12.5 m/s
Wheelbase 47.6 in 1.21 m
Turning Radius Outside 70.8 in 1.8 m
Inside 23.6 in 0.6 m
Ground Clearance 2.5 in 6.4 cm
Ground Clearance (Pothole Guards Deployed) 0.55 in 1.4 cm
Weight** (See Serial Label) 2,170 lbs 985 kg
Maximum Wheel Load 800 lbs 363 kg
Controls Proportional
AC Outlet In Platform Standard
Power Source 2×12V 115Ah AGM
System Voltage 24 V
Tire Size 9×3.1 in 230×80 mm
Airborne Noise Emissions <70 dB (A-weighted) Maximum sound level at normal operating workstations
Vibration value does not exceed 2.5m/s2
Maximum Slope Rating, Stowed Position*** 25%
Maximum Side Slope Rating, Stowed Position*** 10%
Warning Slope X-1.5°, Y-3°
Drive Speeds
Stowed, Maximum 2.5 mph 4.0 km/h
Platform Raised, Maximum 0.5 mph 0.8 km/h
Floor Loading Information
Tire Load, Maximum 800 lbs 363 kg
Tire Contact Pressure Loaded 148 psi 10.4kg/cm2(1,020 kPa)
Unloaded 120 psi 8.5kg/cm2(834 kPa)
Occupied Floor Pressure **** 225 psf 0.11kg/m2(10.8 kPa)
Meets requirements of ANSI A92.20-2020 and CSA B354.6-2019.
*Working Height adds 6 feet (2 m) to platform height.
**Weight may increase with certain options.
***Slope rating is subject to ground conditions and adequate traction.
****Occupied floor pressure with deck extended is 168 psf - 0.08kg/m2(8 kPa).
Section 3 - Specifications Specifications

Page 5 MMAE16 - Operator’s Manual
January 2022
Safety Rules
Failure to obey the instructions and safety rules in this manual will result
in death or serious injury.
Do Not Operate Unless:
You learn and practice the principles of safe machine operation contained in this operator’s
manual.
Avoid hazardous situations. Know and understand the safety rules before going on to
the next section.
Always perform a pre-operation inspection.
Always perform function tests prior to use.
Inspect the workplace and conduct a risk assessment.
Only use the machine as it was intended.
You read, understand and obey the manufacturer’s instructions and safety rules -- safety and
operator’s manuals and machine decals.
You read, understand and obey employer’s safety rules and worksite regulations.
You read, understand and obey all applicable governmental regulations.
You are properly trained to safely operate the machine.
Conditions of using the equipment
The surface of the worksite ground should be flat and hard with no obstacles in the air and the
safety distance between the equipment and high-tension line is adequate.
The environment temperature should be between: -4°F (-20°C) ~ 113°F (45°C)
The environment humidity: ≤ 90%.
Electrical power: AC 110~230V±10%, 50~60Hz.
Intended Use
This machine is intended to be used only to lift personnel, along with their tools and materials to
an aerial work site.
Safety Sign Maintenance
Replace any missing or damaged safety signs. Keep operator safety in mind at all times. Use
mild soap and water to clean safety signs. Do not use solvent-based cleaners because they may
damage the safety sign material.
Operator
Only trained and qualified operators are permitted to operate this machine.
If you are subject to dizziness or seizures, or are bothered by heights, you must not operate this
type of machinery.
An operator must not use drugs or alcohol that can change his/her alertness or coordination.
An operator on prescription or over-the-counter drugs needs medical advice on whether or not
he/she can safely operate machines.
•
1.
2.
3.
4.
5.
•
•
•
•
•
•
•
•
•
•
•
•
•
Section 4 - Hazards and Safety Rules

Page 6 MMAE16 - Operator’s Manual
January 2022Section 4 - Hazards and Safety Rules Hazards

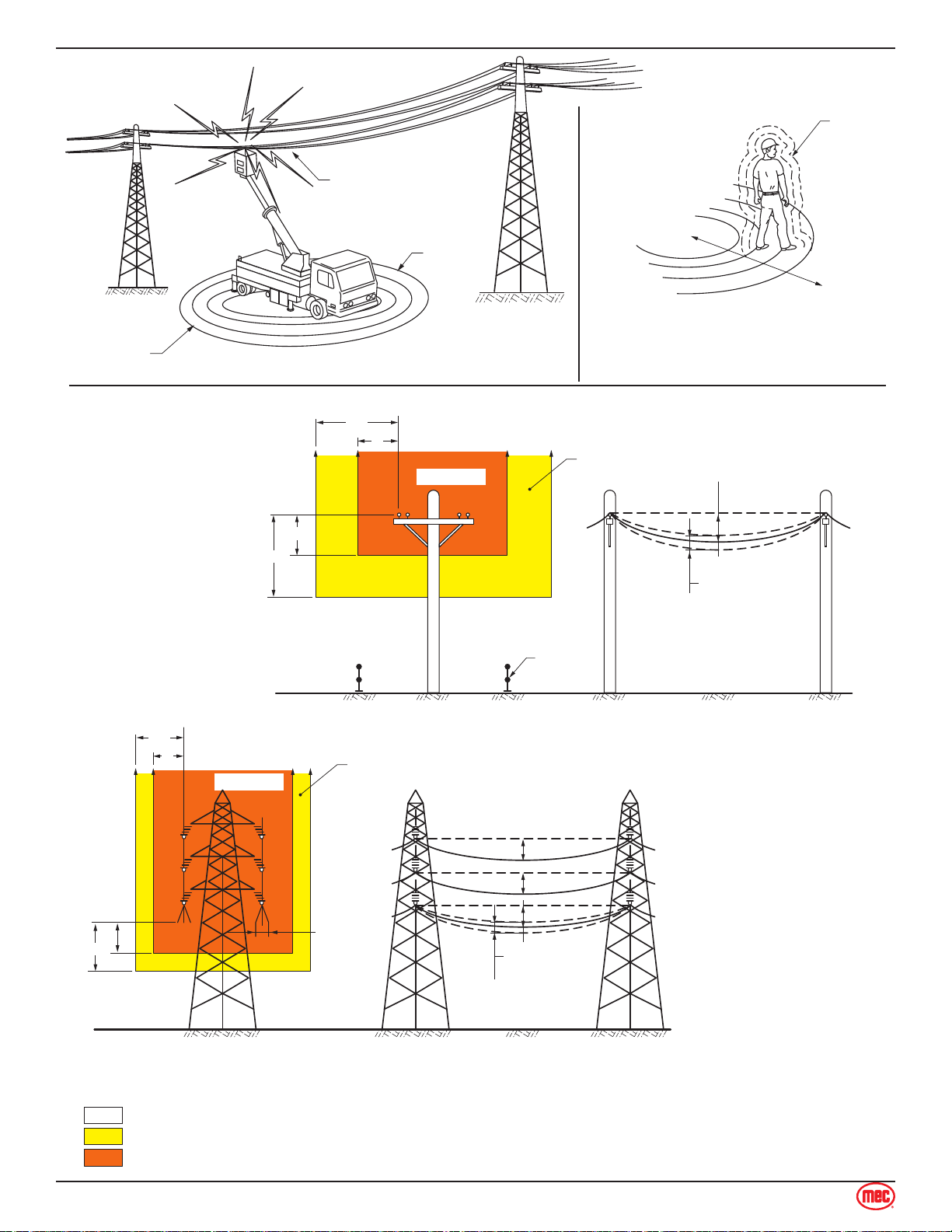

Electrocution Hazard
This machine is not electrically insulated and will not provide
protection from contact with or proximity to electrical current.
Maintain safe distances from electrical power lines and apparatus
in accordance with applicable governmental regulations and the
following chart.
ART_5801A
Voltage Minimum Safe Approach Distance
Phase to Phase
0 to 300V Avoid Contact
300V to 50kV 10 ft 3.05 m
50kV to 200kV 15 ft 4.60 m
200kV to 350kV 20 ft 6.10 m
350kV to 500kV 25 ft 7.62 m
500kV to 750kV 35 ft 10.67 m
750kV to 1,000kV 45 ft 13.72 m
Allow for platform movement, electrical line sway or sag and beware of strong or gusty winds.
Keep away from the machine if it contacts energized power lines. Personnel on the ground or in the
platform must not touch or operate the machine until energized power lines are shut off.
Do not operate the machine during lightning or storms.
Do not use the machine as a ground for welding.
Keep clear of live electric conductors.
Energized Conductor Contact Hazard
When working in the area of energized conductors the user shall direct and the operator shall comply
with the requirements to:
Stay at least 10 feet away from power lines with any part of their body, conductive object or any
part of the MEWP.
If work requires working nearer than 10 feet, stop and consult a qualified person with respect
to electrical transmission and distribution to have appropriate measures taken (such as de-
energizing and grounding).
If there is a question that the power lines may carry more than 50kV, consult a qualified person
with respect to electrical transmission and distribution before proceeding.
If working or approaching closer than explained above, it shall only be done by a qualified
person with respect to electrical transmission and distribution. Only qualified persons may
work on electric circuit parts or equipment that has not been de-energized. Such persons shall
be capable of working safely on energized circuits and shall be familiar with the proper use
of special precautionary techniques, personal protective equipment, insulating and shielding
materials and insulated tools.
a.
b.
c.
d.

Page 7 MMAE16 - Operator’s Manual
January 2022Section 4 - Hazards and Safety Rules
ART_3265
No go zone
Spotter
required
zone
Personal
protection
barriers
FRONT VIEW
(a) Distribution lines up to and including 133 kV
SIDE VIEW
6.4
6.4
3
3Sag
Variations
in sag
(b) Transmission lines greater than 133 kV
No go zone Spotter
required
zone
Sway
10
10
8
8
FRONT VIEW SIDE VIEW
Sag
Variations
in sag
Sag
Sag
LEGEND
CLEARANCES FROM LIVE AERIAL CONDUCTORS
= No shading, in the front views, indicates no proximity requirements
= Light shading indicates spotter is required
= Heavy shading indicates the NO GO ZONE
(a) Affected area
Min. volts
Min. volts
Max. volts
Higher voltage
Lower voltage
(b) Avoid simultaneous contact across
areas of high potential difference
5000 V
20000 V
15000 V
10000 V
5000 V

Page 8 MMAE16 - Operator’s Manual
January 2022Section 4 - Hazards and Safety Rules
Tip-over Hazard
Occupants, equipment and materials must not exceed the maximum platform capacity.
MMAE16 Maximum Capacity
Maximum Occupants Indoor 2
Outdoor 1
Maximum Allowable Load Platform 500 lbs / 227 kg
Extension Deck 250 lbs / 113 kg
WARNING: Take great care when driving, elevating, or lowering when the extension deck is
extended.
Work Area Safety
Do not install any objects that would increase the wind load on the MEWP (Mobile Elevating Work
Platform).
Do not drive over 0.5 mph (0.8 km/h) with the platform raised.
Do not raise the platform unless the machine is on a firm, level
surface.
Do not depend on the tilt alarm as a level indicator. The tilt alarm
sounds on the chassis and in the platform when the machine is on a
slope.
ART_5801B
If the tilt alarm sounds:
Lower the mast. Move the machine to a firm, level surface. Use extreme caution to lower the
mast.
For outdoor use, do not raise the platform when wind speeds may exceed 28 mph (12.5 m/s). If wind
speeds exceed 28 mph (12.5 m/s) when the platform is raised, lower the platform and do not continue
to operate the machine.
When raising the platform, follow ratings for allowable manual force and number of occupants below.
MMAE16 Maximum Allowable Manual Force
Manual Force Maximum Occupants
Indoor 90 Ibs / 400N 2
Outdoor 45 Ibs / 200N 1
Do not operate the machine in strong or gusty winds. Do not increase
the surface area of the platform or the load. Increasing the surface
area exposed to the wind will decrease machine stability.
Do not use the platform controls to free a platform that is caught,
snagged or otherwise prevented from normal motion by an adjacent
structure. All personnel must be removed from the platform before
attempting to free the platform using the ground controls.
ART_5801C
•

Page 9 MMAE16 - Operator’s Manual
January 2022Section 4 - Hazards and Safety Rules
Use extreme care and slow speeds while driving the machine in the stowed position across uneven
terrain, debris, unstable or slippery surfaces, and near holes, and drop-offs.
Do not drive the machine on or near uneven terrain, unstable surfaces or other hazardous conditions
with the platform raised or extended.
Do not use the machine as a crane.
Do not push off or pull toward any object outside of the platform.
Do not alter or disable the limit switches.
ART_5801D
Do not alter or disable machine components that in any way affect safety and stability.
Do not replace items critical to machine stability with items of different weight or specification.
Do not modify or alter an aerial work platform without prior written permission from the manufacturer.
Mounting attachments for holding tools or other materials onto the platform, toe boards or guard rail
system can increase the weight in the platform and the surface area of the platform or the load.
Do not use batteries that weigh less than the original equipment. Batteries are used as
counterweights and are critical to machine stability. Each battery must weigh a minimum of 100 lbs
(46 kg).
Do not place or attach fixed or overhanging loads to any part of this machine.
Do not place ladders or scaffolds in the platform or against any part of this machine.
Do not transport tools and materials unless they are evenly distributed and can be safely handled by
the person in the platform.
Do not use the machine on a moving or mobile surface or vehicle.
Be sure all tires are in good condition.
Do not contact adjacent structures with the platform.
Do not tie platform to adjacent structures.
Do not place loads outside the platform perimeter.
ART_5801E
Crushing Hazard
Keep hands and limbs out of mast.
Keep hands clear when lowering the platform.
Do not work under the platform.
Use risk assement and planning when operating the machine with the controller from the ground.

Page 10 MMAE16 - Operator’s Manual
January 2022Section 4 - Hazards and Safety Rules
Maintain safe distances between the operator, the machine, and fixed objects.
Operation on Slopes Hazard
Do not drive the machine on a slope that exceeds the slope and side slope rating of the machine.
Slope rating applies to machines only in the stowed position.
MMAE16 Maximum Fore/Aft Slope
Rating Stowed Position Maximum Side Slope Rating Stowed Position
25% 10%
Note: Slope rating is subject to ground conditions and adequate traction.
Fall Hazard
The guard rail system provides fall protection. If required by regulations during
operation, occupants in the platform must wear a full body harness with a
lanyard attached to an authorized lanyard anchorage point. Attach only one (1)
lanyard per lanyard anchorage point.
ART_4713
Keep the platform floor clear of debris.
Close the entry gate before operating.
Do not operate the machine unless the entry is securely closed.
Do not sit, stand or climb on the platform guard rails. Maintain a firm
footing on the platform floor at all times.
Do not climb down from the platform when raised.
ART_5801F
Do not exit the platform while raised. If a power failure occurs, have ground personnel activate the
emergency lowering switch.
Use extreme caution when entering or leaving platform. Be sure that the platform is fully lowered.
Face the machine, maintain “three point contact” with the machine, using two hands and one foot or
two feet and one hand during entry and exit.
Collision Hazard
Operators must comply with employer, job site and governmental rules
regarding the use of personal protective equipment.
Be aware of limited sight distance and blind spots when driving or operating.
The machine must be on a level surface or secured before releasing the
brakes.
ART_5801G

Page 11 MMAE16 - Operator’s Manual
January 2022Section 4 - Hazards and Safety Rules
Check the work area for overhead obstructions or other possible
hazards.
Be aware of crushing hazards when grasping the platform guard rail.
ART_5801H
Do not lower the platform unless the area below is clear of personnel
and obstructions.
Limit travel speed according to the condition of the ground surface,
congestion, slope, location of personnel, and any other factors which
may cause collision.
ART_5801I
Do not operate a machine in the path of any crane or moving overhead machinery unless the controls
of the crane have been locked out and/or precautions have been taken to prevent any potential
collision.
No stunt driving or horseplay while operating a machine
Bodily Injury Hazard
Improper contact with components under any cover will cause serious injury. Only trained
maintenance personnel should access compartments. All compartments must remain closed and
secured during operation.
Explosion and Fire Hazard
Charge the battery only in an open, well-ventilated area away from sparks, flames and lighted
tobacco.
Do not operate the machine or charge the battery in hazardous locations or locations where
potentially flammable or explosive gases or particles may be present.
Damaged Machine Hazard
Do not use a damaged or malfunctioning machine.
Conduct a thorough pre-operation inspection of the machine and test all functions before each work
shift. Immediately tag and remove from service a damaged or malfunctioning machine.
Make sure all maintenance has been performed as specified in this manual.
Make sure all decals are in place and legible.
Make sure the operator’s manual, and manual of responsibilities are complete, legible and in the
storage container located on the platform.

Page 12 MMAE16 - Operator’s Manual
January 2022Section 4 - Hazards and Safety Rules
Component Damage Hazard
Do not use the machine as a ground for welding.
Battery Safety
Burn Hazard
Batteries contain acid. Always wear protective clothing and eye wear
when working with batteries.
Avoid spilling or contacting battery acid. Neutralize battery acid spills
with baking soda and water.
Do not expose the batteries or the charger to water or rain during
charging.
ART_5651
Explosion Hazard
Keep sparks, flames and lighted tobacco away from batteries.
Batteries emit an explosive gas.
Do not contact the battery terminals or the cable clamps with tools
that may cause sparks.
ART_5651
Component Damage Hazard
Do not use any battery charger greater than 24V to charge the batteries in the chassis.
Electrocution/Burn Hazard
Connect the battery charger to a grounded, AC 3-wire electrical outlet only.
Inspect daily for damaged cords, cables, and wires.
Replace damaged items before operating.
Avoid electrical shock from contact with battery terminals. Remove all rings,
watches and other jewelry.
Tip-over Hazard
Do not use batteries that weigh less than the original equipment. Batteries are used as
counterweights and are critical to machine stability. Each battery must weigh a minimum of 100 lbs
(46 kg).
Lifting Hazard
Use the appropriate lifting techniques when lifting batteries.

Page 13 MMAE16 - Operator’s Manual
January 2022Section 4 - Hazards and Safety Rules
Pollution Hazard
Disposal of old batteries must comply with job site and governmental rules.
Lockout after Each Use
Select a safe parking location -- firm level surface, clear of obstruction and traffic.
Lower the platform to the stowed position
Turn the key switch to the “OFF” position and remove the key to secure from unauthorized use.
Push in the red Emergency Stop buttons to “OFF” position.
Charge the batteries.
1.
2.
3.
4.
5.

Page 14 MMAE16 - Operator’s Manual
January 2022
Component Locations
Platform
Entry Gate Platform
Controller
Platform
Extension
Pothole
Protection
Device Emergency
Lowering
Button
Emergency
Down
Battery
Main
Power
Switch
Ground
Control
Panel
Comms
Cable
Power To
Platform
Cable
Chassis
Mast
Assembly
Main
Platform
Front
Wheel
Rear
Wheel
Forklift
Pockets
Lanyard
Anchorage
Motor
Controllers
Batteries
Lifting
Points
Lifting
Points
Platform
Guard Rails
Platform
Extension
Release
Pedal
Batteries
Charger
Chassis Covers Removed
To Show Interior For Clarify Art_5805C
Section 5 - Components and Controls
Component Locations

Page 15 MMAE16 - Operator’s Manual
January 2022Section 5 - Components and Controls Upper Controls
ART_5806
1 2 3 5 6
7849
ALWAYS be aware of the machine’s position and of your surroundings
before activating any control function.
Control Description
1Function Enable Switch Function Enable Switch for LIFT & DRIVE & STEER functions.
2Thumb Rocker Switch Press the thumb rocker switch in either direction to activate steer function.
3Proportional Control
Handle DRIVE Proportionally controls Forward and Reverse travel.
LIFT Proportionally controls Lift and Lower functions.
4Horn Button Press to sound warning horn.
5Lift Select Press this button to select the Lift function.
6Drive Select Press this button to select the drive function.
7Drive Speed Button Press this button to activate the slow or fast drive function.
8LED Display Indicates the state of battery charge and displays diagnostic codes when
necessary.
9Emergency Stop Switch Press the EMERGENCY STOP switch at any time to stop all machine functions.
Pull the button out to the “ON” position to operate the machine.
Lift function
Press the Lift Select switch. Squeeze the Function Enable Switch then move the control handle
in the direction indicated by the yellow arrow and the platform will raise. Squeeze the Function
Enable Switch then move the control handle in the direction indicated by the blue arrow and the
platform will lower. The descent alarm will sound while the platform is lowering.
Drive function
Press the Drive Select switch. Squeeze the Function Enable Switch then move the control
handle in the direction indicated by the blue arrow on the control panel and the machine will
move in the direction that the blue arrow points. Squeeze the Function Enable Switch then move
the control handle in the direction indicated by the yellow arrow on the control panel and the
machine will move in the direction that the yellow arrow points.
•
•

Page 16 MMAE16 - Operator’s Manual
January 2022Section 5 - Components and Controls Lower Controls
ART_5804
1
2
3 4 5 6
7 8 9
10 11
ALWAYS be aware of the machine’s position and of your surroundings
before activating any control function.
Control Description
1Menu Escape Button Press this button to exit the Menu screen.
2LED Readout Screen Diagnostic readout and battery charge indicator.
3Menu Up Button Press this button to go up the Menu items.
4Menu Down Button Press this button to go down the Menu items.
5Menu Enter Button Press this button to enter the Menu screen
6Overload Indicator Light Light on indicates when platform is overloaded. Remove weight from the platform.
7Function Enable Button Press and hold this button along with either the Platform Down Button (#8) or the Platform Up Button
(#9) to activate selected function.
8Platform Down Button Press and hold the Function Enable Button (#7) and this button then the platform with lower.
9Platform Up Button Press and hold the Function Enable Button (#7) and this button then the platform with rise.
10 Emergency Stop Switch Press the EMERGENCY STOP switch at any time to stop all machine functions.
Pull button out to the “ON” position to operate the machine.
11 Key Switch PLATFORM Turn the key switch to the platform position and the platform controls will be selected. OFF Turn the key switch to the “OFF” position and the machine will be off.
BASE Turn the key switch to the base position and the ground controls will be selected.
Selecting Indoor/Outdoor Mode:
To select the Indoor/Outdoor Mode press and hold both the Platform Down Button (#8) and the
Platform Up Button (#9) for 3 seconds to switch to Indoor or Outdoor.
INDOOR
Select to allow unrestricted height when not exposed to wind.
OUTDOOR
Select to limit the maximum height when exposed to wind.
••
••

Page 17 MMAE16 - Operator’s Manual
January 2022
Pre-operation Inspection
Do Not Operate Unless:
You learn and practice the principles of safe machine operation contained in this operator’s
manual.
Avoid hazardous situations.
Always perform a pre-operation inspection. Know and understand the pre-operation
inspection before going on to the next section.
Inspect the workplace.
Always perform function tests prior to use.
Only use the machine as it was intended.
Fundamentals
It is the responsibility of the operator to perform a pre-operation inspection and routine maintenance.
The pre-operation inspection is a visual inspection performed by the operator prior to each work shift.
The inspection is designed to discover if anything is apparently wrong with a machine before the
operator performs the function tests.
The pre-operation inspection also serves to determine if routine maintenance procedures are
required. Only routine maintenance items specified in this manual may be performed by the operator.
Refer to the list on the next page and check each of the items.
If damage or any unauthorized variation from factory delivered condition is discovered, the machine
must be tagged and removed from service.
Repairs to the machine may only be made by a qualified service technician, according to the
manufacturer’s specifications.After repairs are completed, the operator must perform a pre-operation
inspection again before going on to the function tests.
Scheduled maintenance inspections shall be performed by qualified service technicians, according to
the manufacturer’s specifications and the requirements listed in this manual.
•
1.
2.
3.
4.
5.
Section 6 - Pre-Operation & Workplace Inspection
Pre-operation Inspection
