Medeli Grand200 User manual

Digital Grand Piano
Owner’s Manual
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 1 2015/8/3 9:46:12AW_Grand200_Manual_G04_150803.ai 1 2015/8/3 9:46:12

02
INFORMATION FOR YOUR SAFETY!
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Unauthorized changes or modification to this system can
void the user's authority to operate this equipment.
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
Power Supply
Please connect the designated AC adaptor to anAC outlet
of the correct voltage.
Do not connect it to an AC outlet of voltage other than that
for which your instrument is intended.
Unplug the AC power adaptor when not using the
instrument, or during electrical storms.
Connections
Before connecting the instrument to other devices, turn off
the power to all units. This will help prevent malfunction and
/ or damage to other devices.
Location
Do not expose the instrument to the following conditions to
avoid deformation, discoloration, or more serious damage:
Direct sunlight
Extreme temperature or humidity
Excessive dusty or dirty location
Strong vibrations or shocks
Close to magnetic fields
Interference with other electrical devices
Radios and televisions placed nearby may experience
reception interference. Operate this unit at a suitable
distance from radios and televisions.
Cleaning
Clean only with a soft, dry cloth.
Do not use paint thinners, solvents, cleaning fluids, or
chemical-impregnated wiping cloths.
Handling
Do not apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects get into the
instrument. If this happens, remove the electric plug from
the outlet. Then have the instrument inspected by qualified
service personnel.
Disconnect all cables before moving the instrument.
CAUTION
The normal function of the product may be disturbed
by Strong Electro Magnetic Interference. If so, simply
reset the product to resume normal operation by
following the owner's manual. In case the function
could not resume, please use the product in other
location.
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 2 2015/8/3 9:46:28AW_Grand200_Manual_G04_150803.ai 2 2015/8/3 9:46:28

Contents
Panel Description
Front Panel............................................................................................................................................................4
Rear Panel............................................................................................................................................................5
Setup
Part List.................................................................................................................................................................6
Setup Guide..........................................................................................................................................................6
Power Supply........................................................................................................................................................9
Connections
Connecting a pair of Headphones.......................................................................................................................10
Connecting an Audio Equipment.........................................................................................................................10
Connecting an MP3/CD Player...........................................................................................................................10
Connecting a Computer and an MIDI..................................................................................................................10
Playing to the Demo song.................................................................................................................................11
Adjusting the Volume........................................................................................................................................11
Playing Voices
Selecting a Voice.................................................................................................................................................12
Playing two Voices Simultaneously.....................................................................................................................12
Playing a Lower Voice.........................................................................................................................................12
Playing Voice Demo............................................................................................................................................13
Touch Response..................................................................................................................................................13
Digital Effects
Reverb and Chorus.............................................................................................................................................14
EQ Effect.............................................................................................................................................................14
Metrnome...........................................................................................................................................................15
Tempo.................................................................................................................................................................16
BeepTone...........................................................................................................................................................16
Troubleshooting................................................................................................................................................17
Specifications....................................................................................................................................................17
Appendices
Voice List.............................................................................................................................................................18

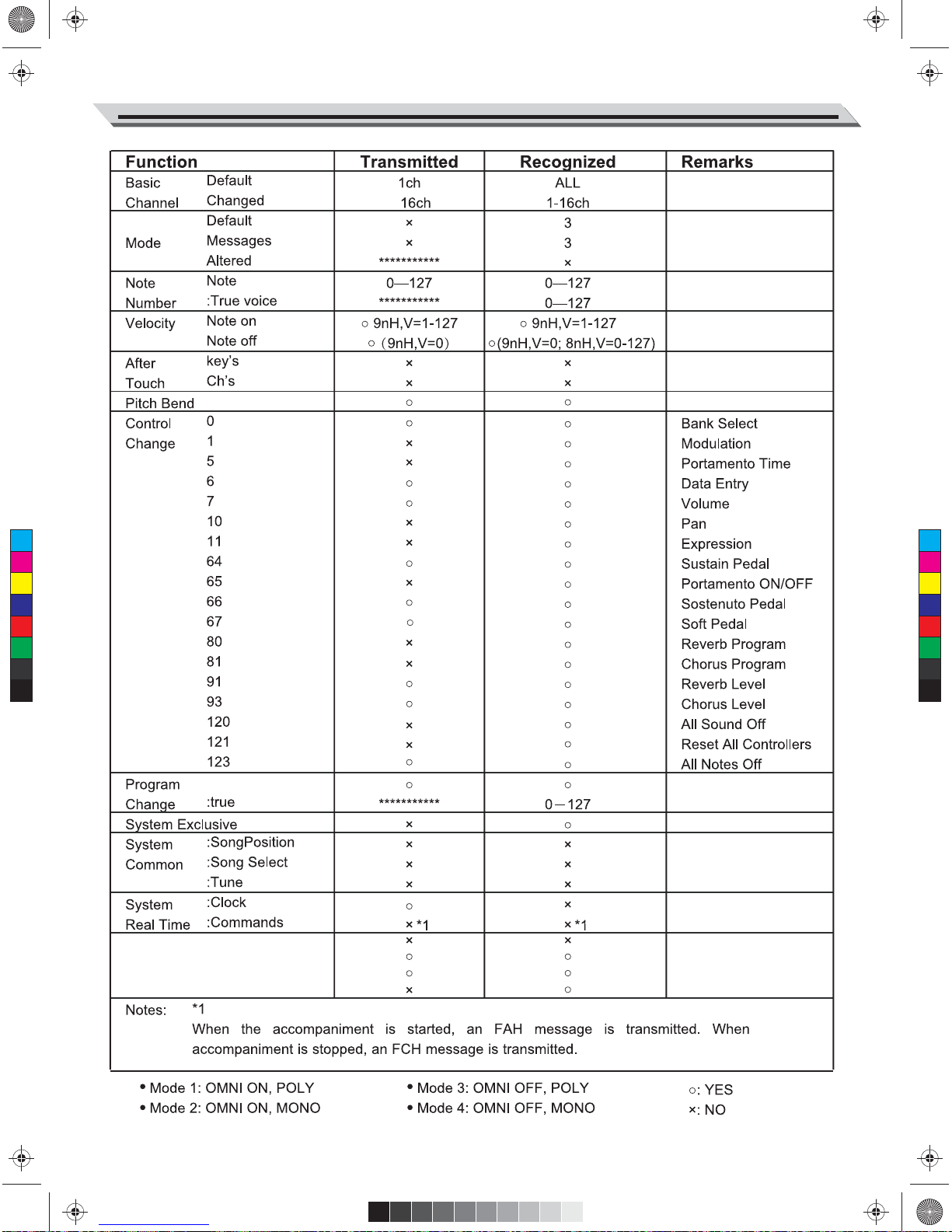

MIDI Implementation List chart...........................................................................................................................19
03
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 3 2015/8/3 9:46:28AW_Grand200_Manual_G04_150803.ai 3 2015/8/3 9:46:28

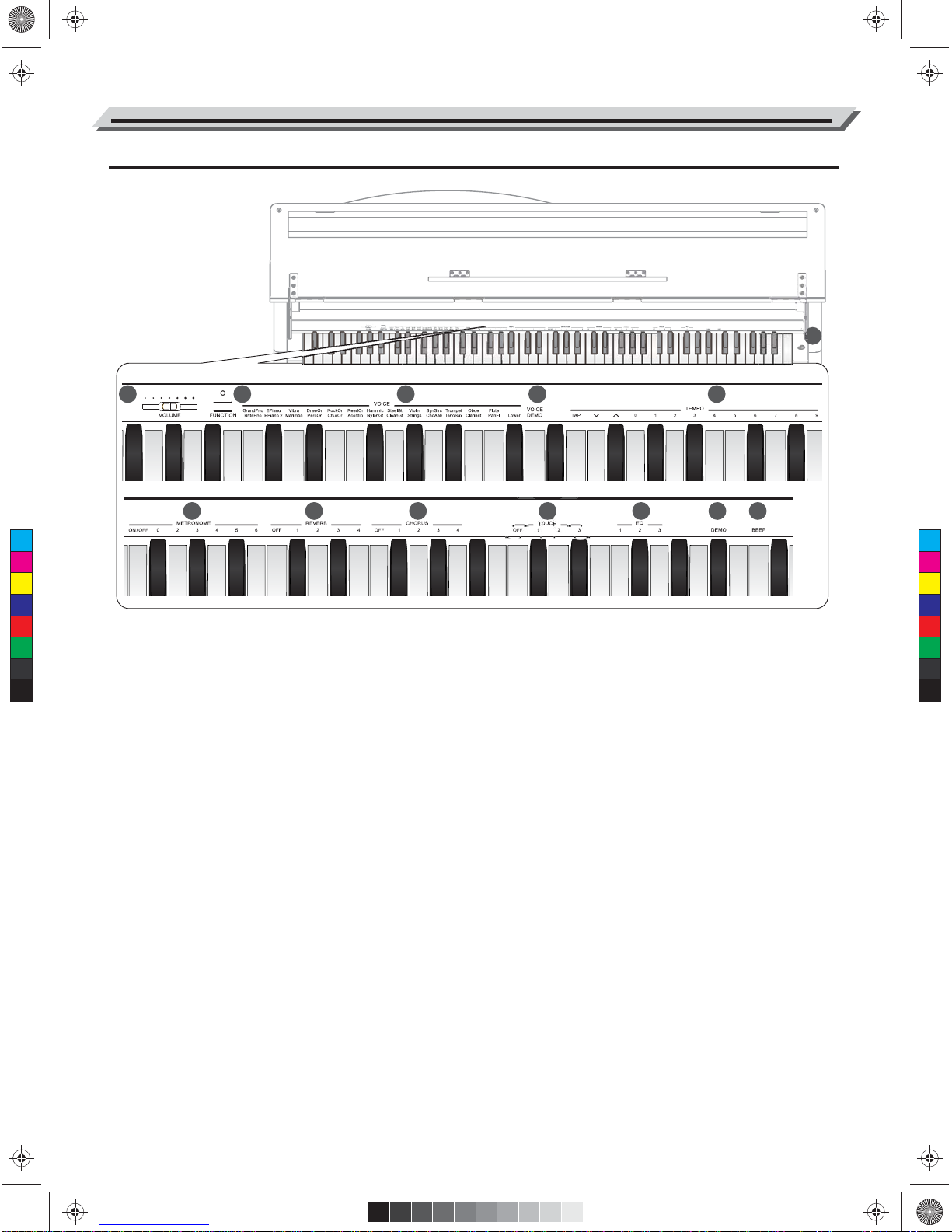

Panel Description
Front Panel
1. [VOLUME] slider
Adjust the master volume.
2. [FUNCTION] button
Press and hold it to access secondary functions of the
keys on the keyboard.

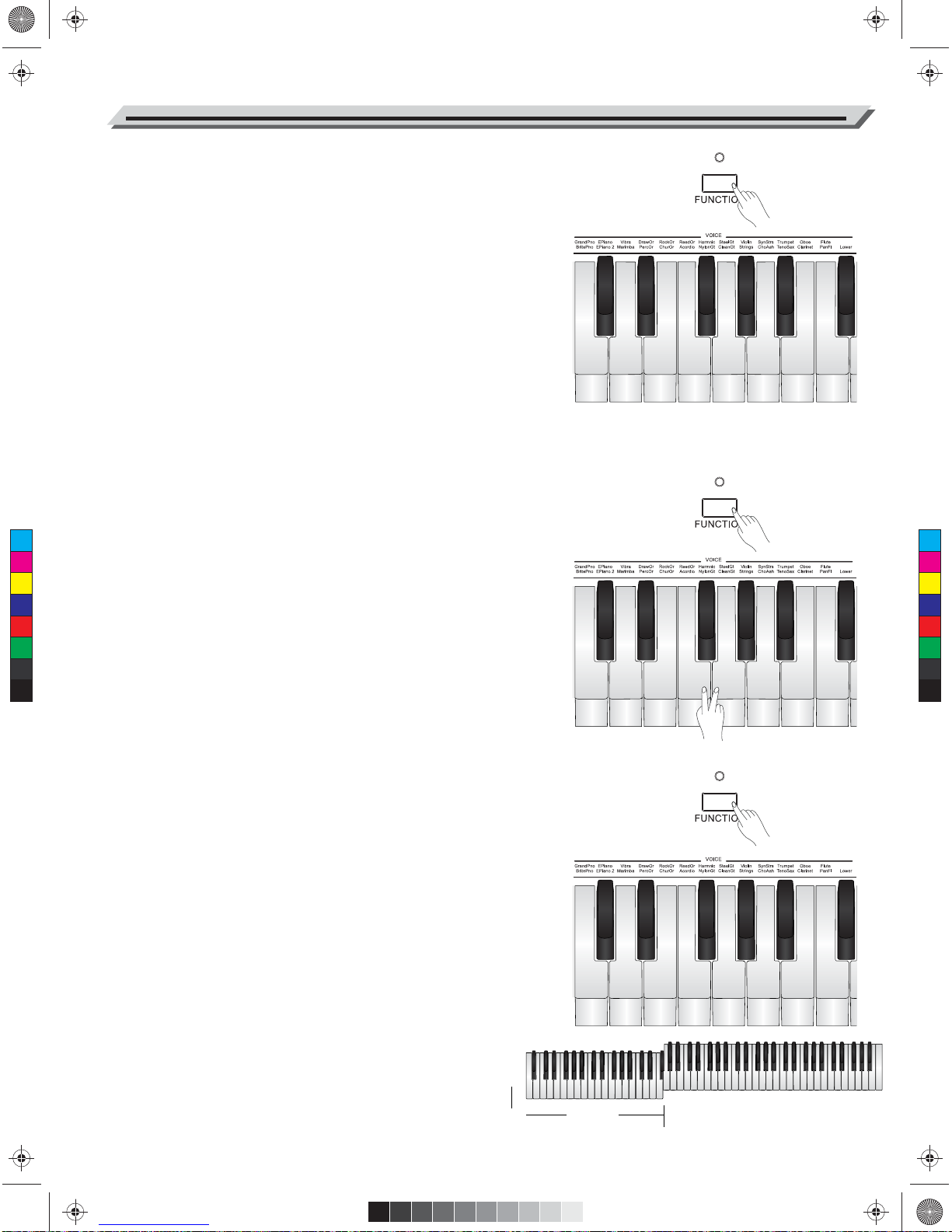

3. VOICE SELECT Keys
Hold down the [FUNCTION] button and press the keys
to select a voice.
4. VOICE DEMO Key
Hold down the [ FUNCTION ] button and press the key
to start or stop the voice demo playing.
5. TEMPO ADJUST Keys
Hold down the [FUNCTION] button and press the keys
to adjust the current tempo.

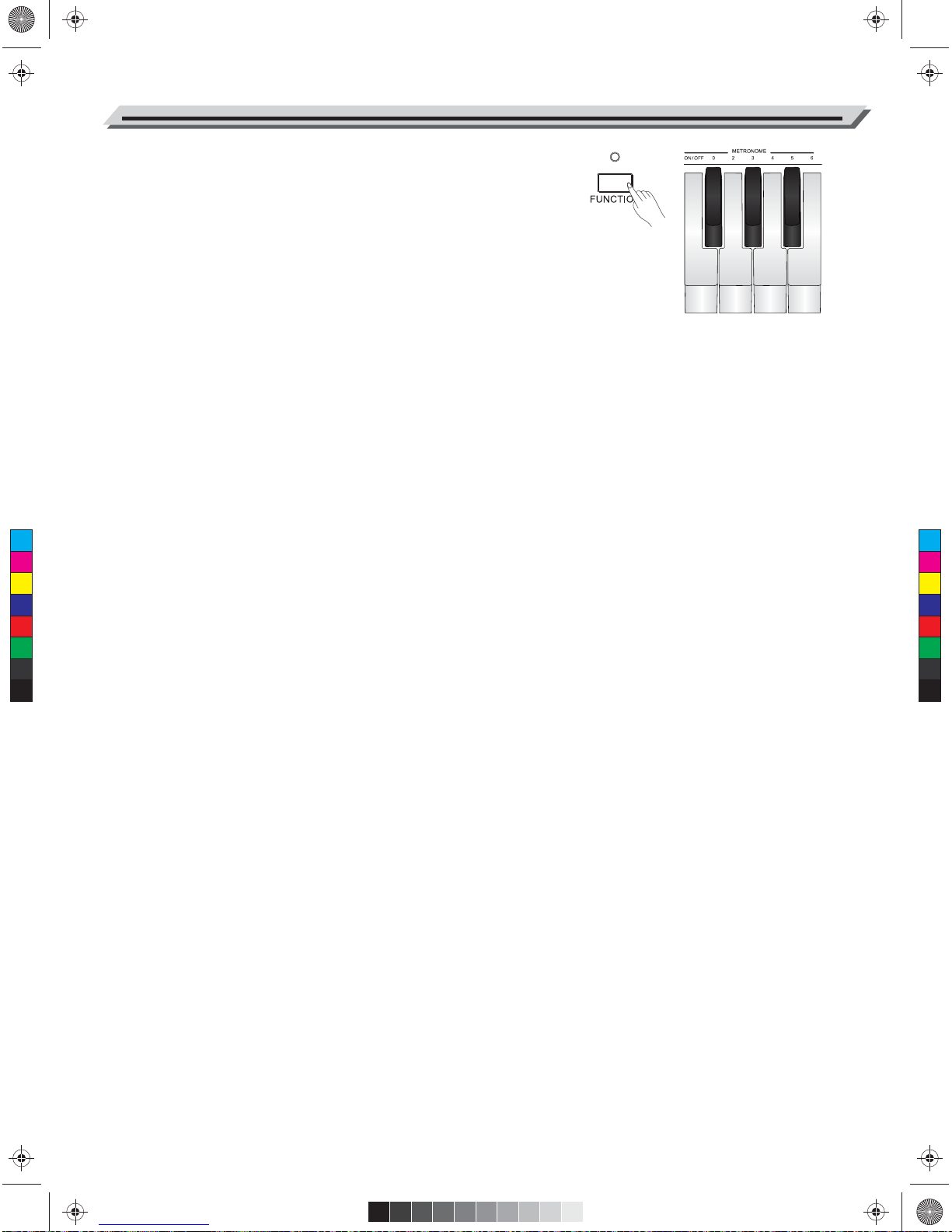

6. METRONOME Keys
Hold down the [FUNCTION] button and press the
[ON/OFF] key to turn the metronome ON or OFF.
Hold down the [FUNCTION] button and press the
other keys to select the time signature.
7. REVERB Keys
Hold down the [FUNCTION] button and press the
[ON/OFF] key to turn reverb effect ON or OFF.
Hold down the [ FUNCTION] button and press the
other keys to select the reverb type.
8. CHORUS Keys
Hold down the [FUNCTION] button and press the
[ON/OFF] key to turn chorus effect ON or OFF.
Hold down the [FUNCTION] button and press the
other keys to select the chorus type.
9. TOUCH Keys
Hold down the [FUNCTION] button and press the keys
to select different touch response level.
10. EQ Keys
Hold down the [ FUNCTION ] button and press the
keys to select the EQ type.

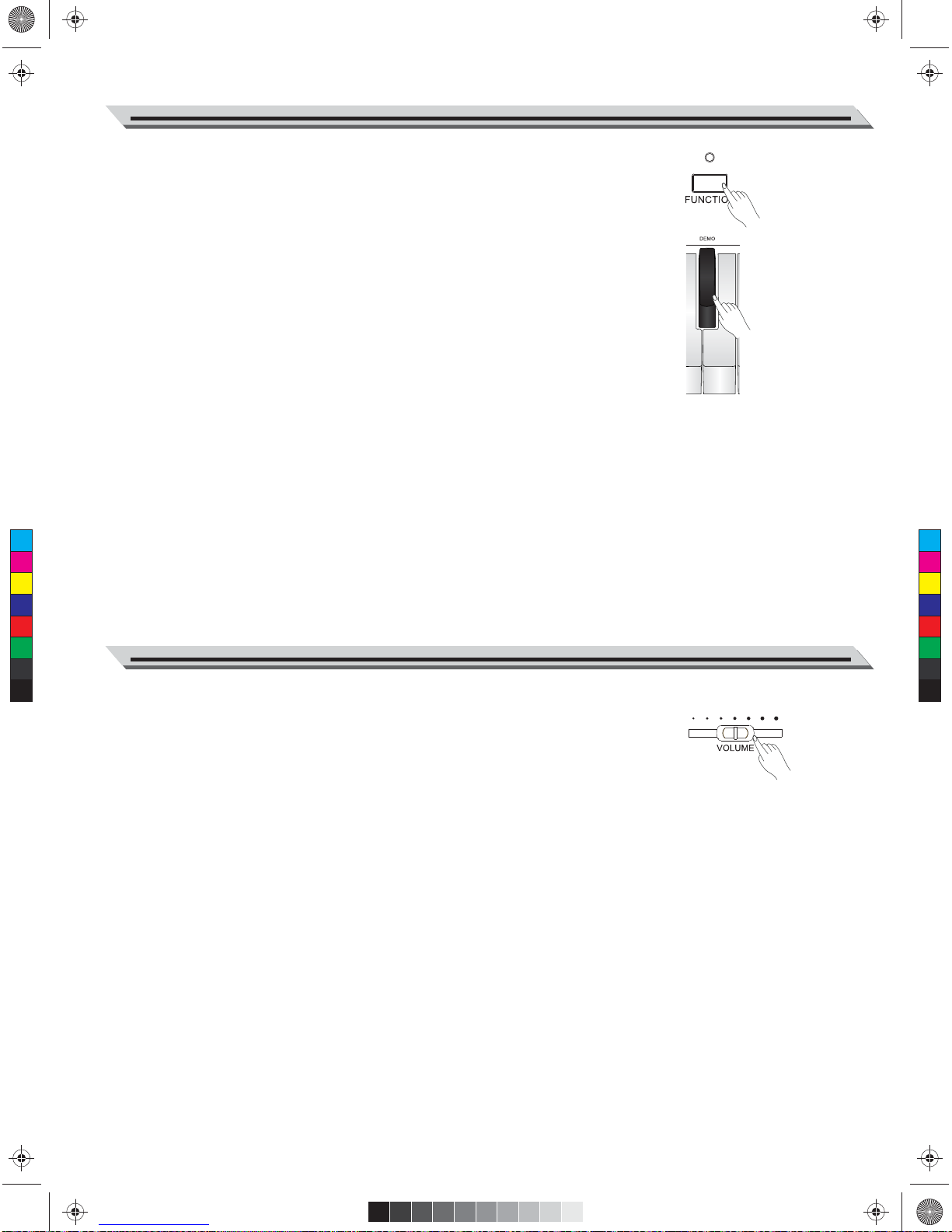

11. DEMO Keys
Hold down the [ FUNCTION ] button and press the
key to start or stop playing the demo song.
12. BEEP Key
Hold down the [ FUNCTION ] button and press the
key to turn the "setting change" tone ON or OFF.
13. [POWER] button
Turn the power ON or OFF.
04
13
1
11
2
12
5
678910
4
3
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 4 2015/8/3 9:46:28AW_Grand200_Manual_G04_150803.ai 4 2015/8/3 9:46:28

14 15 16

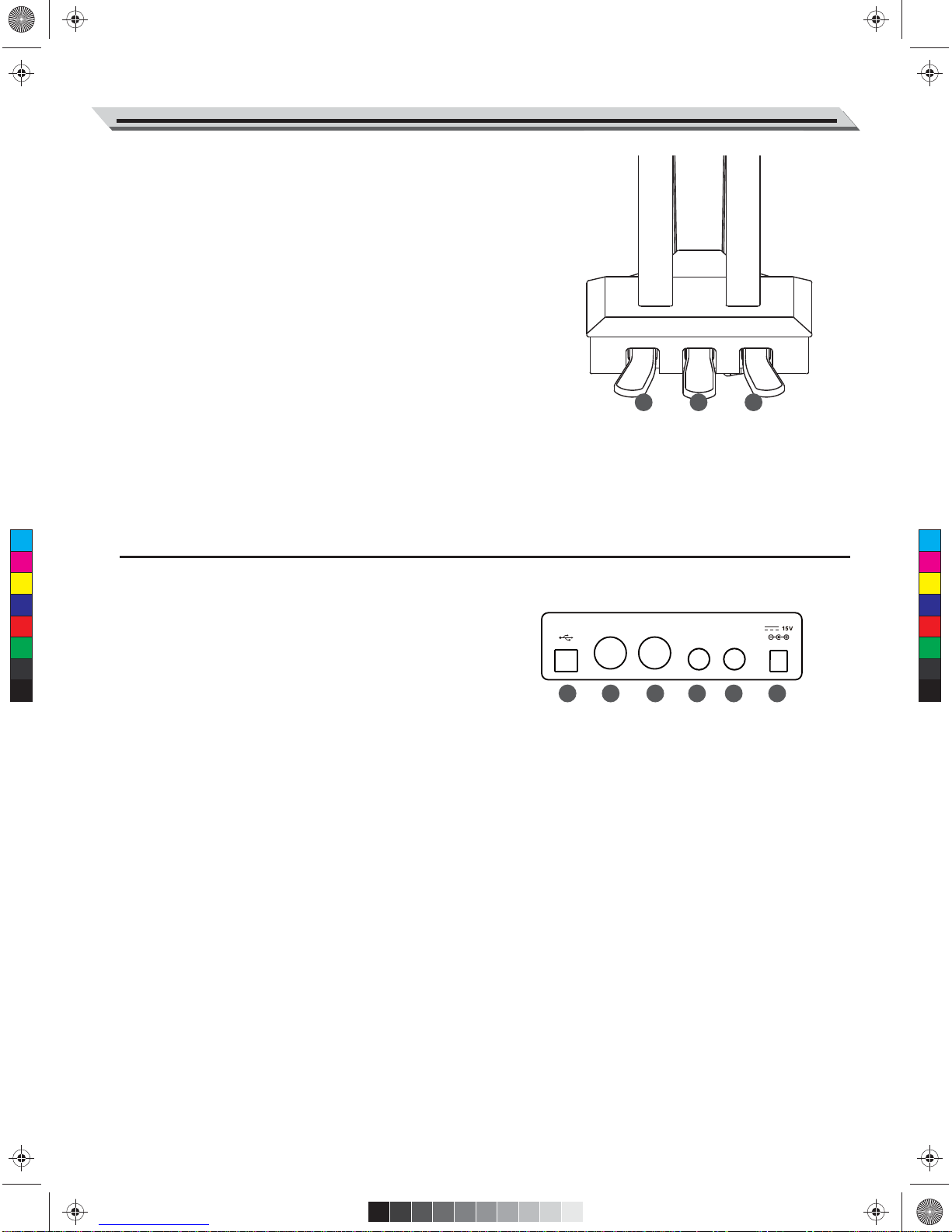

Panel Description
Rear Panel
14. Soft Pedal
When the soft pedal is pressed, all notes played on the keyboard
will have a softer effect.
15. Sostenuto Pedal
When the sostenuto pedal is pressed, the notes played before you
step on the pedal will have a sustain effect.
16. Sustain Pedal
When the sustain pedal is pressed, all notes played on the keyboard
will have a longer sustain.
It also supports the half-pedal operation, which makes your sustain
effect more smooth and real when you are performing.
17. USB Jack
Connect to a computer.
18. MIDI OUT Jack
Connect to the MIDI IN jack of external MIDI device.
19. MIDI IN Jack
Connect to the MIDI OUT jack of external MIDI device.
20. AUX OUT Jack
Connect the audio equipment.
21. AUX IN Jack
Connect an external sound source, such as an MP3 or CD player.
22. DC IN Jack
Connect the DC power adaptor.
05
17 18 19 20 21 22
USB MIDI OUT MIDI IN AUX INAUX OUT
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 5 2015/8/3 9:46:29AW_Grand200_Manual_G04_150803.ai 5 2015/8/3 9:46:29

Setup
06
In addition to the main piano cabinet, your Grand200 should come with the parts shown below. Three people will be need to
complete the assembly, as the piano cabinet must first rest on the floor with support. Then the entire instrument must be lifted once
the legs are securely attached.
8
8
1
1
2
2
5
5
6
6
7
7
4
4
3
3
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 6 2015/8/3 9:46:30AW_Grand200_Manual_G04_150803.ai 6 2015/8/3 9:46:30

Setup
07
1
2
4
3
5
5
6

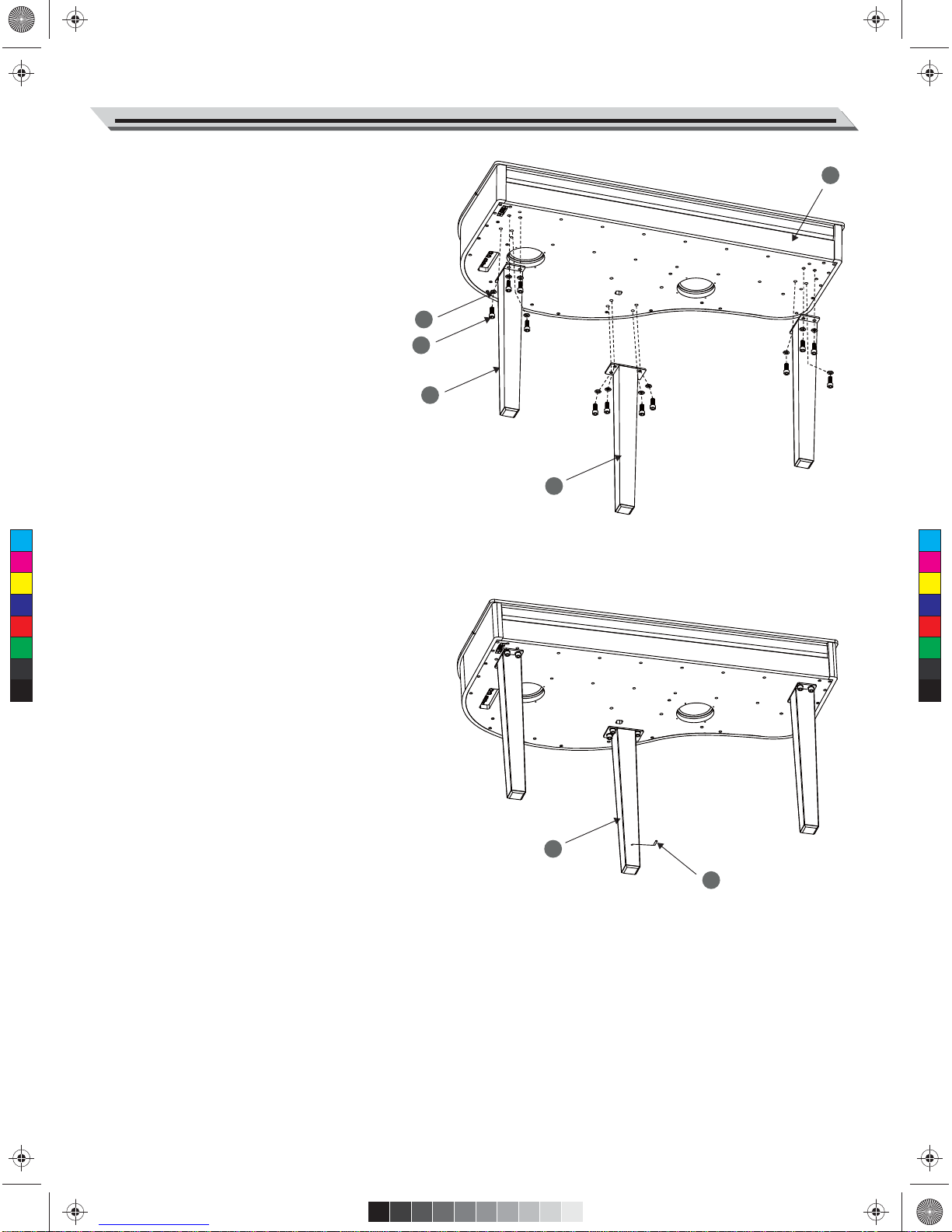

1. Place the left, the right and the rear legs ④& ⑤as
shown in the picture, and then fix the legs with the
M6x25 hexagon blots ③and the washers ②, tighten
with a Hex key (not included).
2. Plug the wood dowel ⑥into the rear leg ⑤.
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 7 2015/8/3 9:46:31AW_Grand200_Manual_G04_150803.ai 7 2015/8/3 9:46:31

Setup
08
2
6
8
7

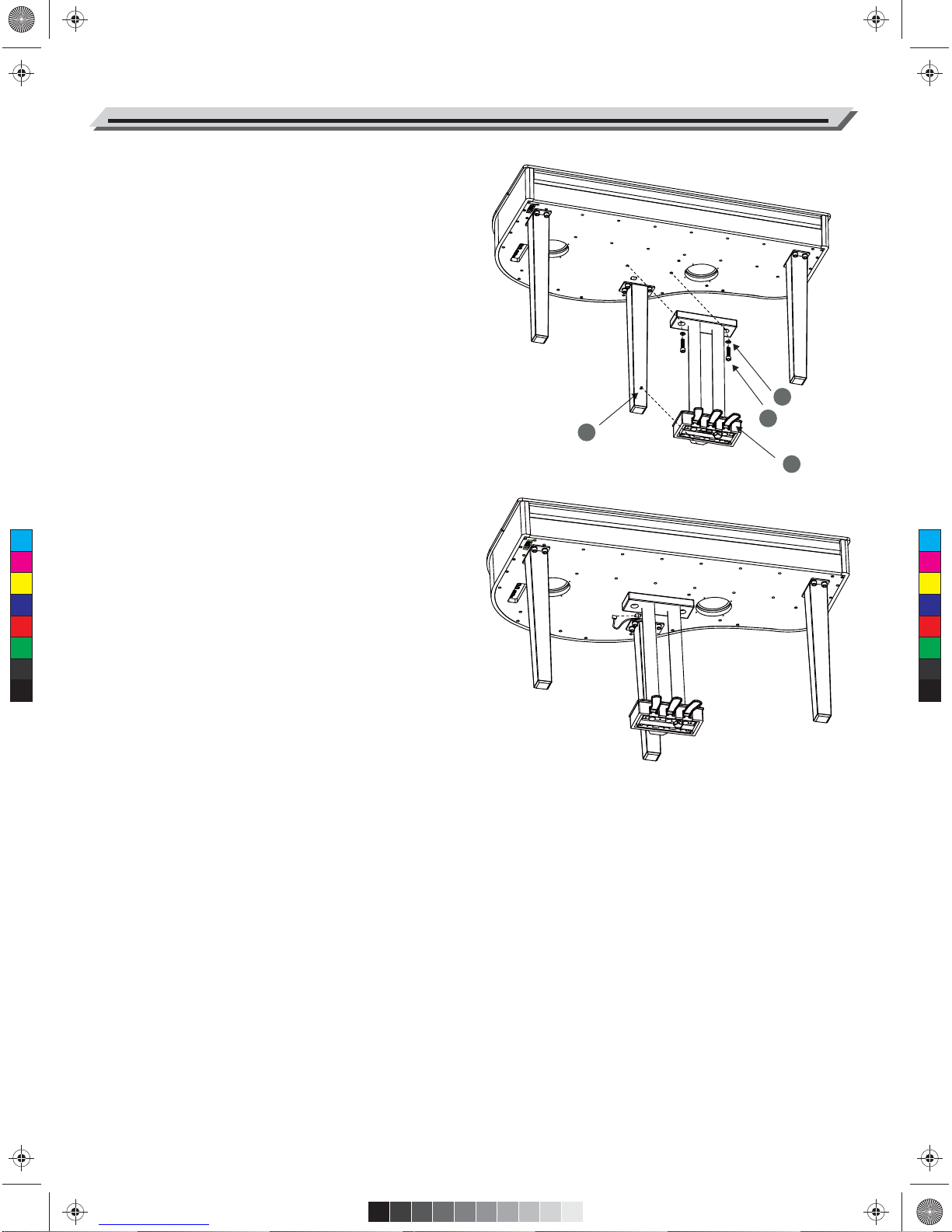

3. Place the pedal leg ⑦as shown in the picture, and then fix
the leg with the M6X40 hexagon bolts⑧and the washers ②,
tighten with a Hex key .
4. Put the pedal assembly line on the plug body pedal jack.
5. Move the piano into an upright position. Using 3 people, one
near each leg, lift the piano body straight upward with legs
parallel to the floor. Then tilt backward until all 3 legs are
vertical. Finally, lower the body until the legs touch the floor.
To avoid possible damage, don’t let the weight of the body
rest on the legs until they are vertical.
WARNING:
The piano cabinet will not safely sit unsupported on the legs
until all of the bolts are in place. Have an assistant hold the
cabinet while the bolts are being secured.
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 8 2015/8/3 9:46:32AW_Grand200_Manual_G04_150803.ai 8 2015/8/3 9:46:32

Setup

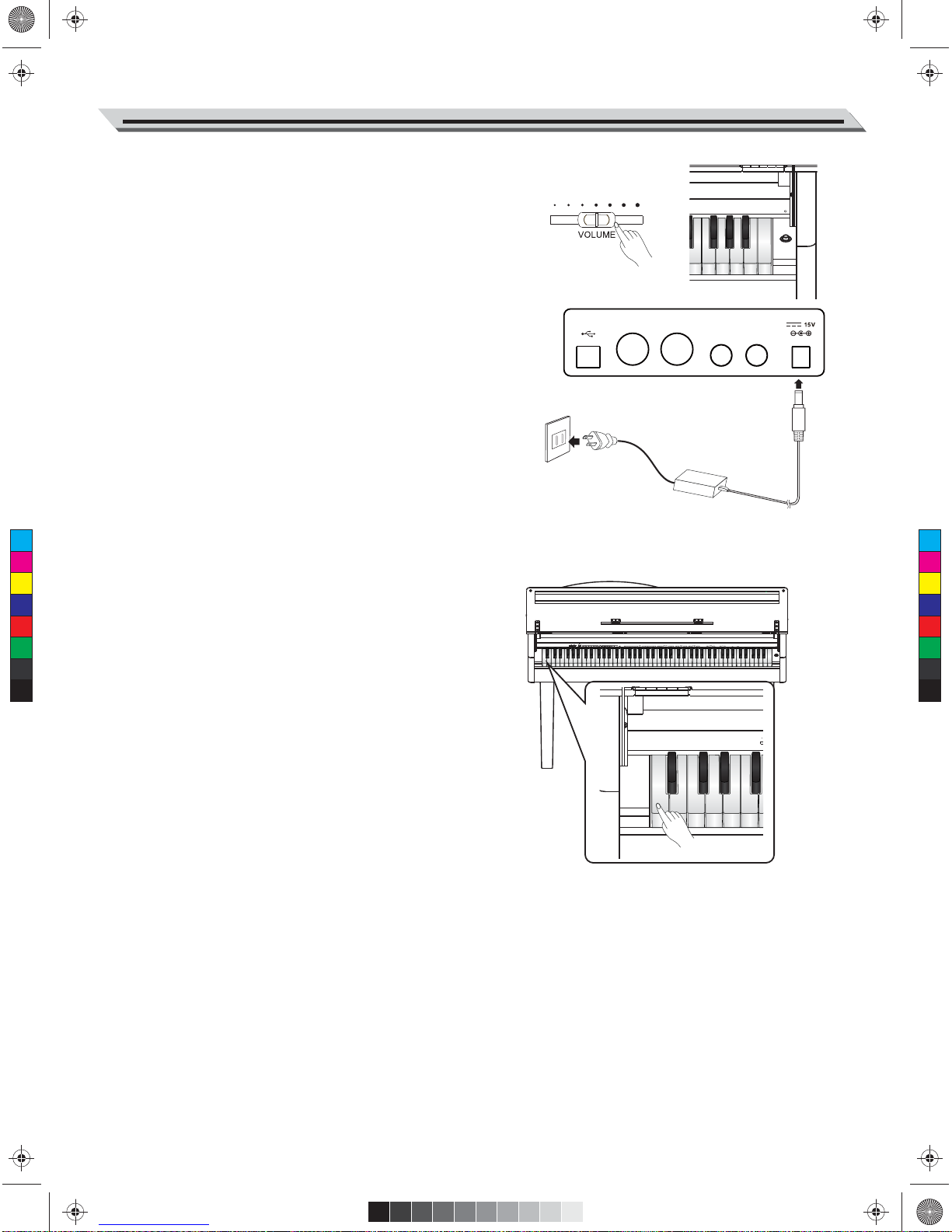

Power Supply
1. Make sure that the piano is turned off. Before you switch your
piano on or off, turn down the volume of piano and any
connected audio equipments first.
2. Connect the AC adaptor to the DC IN jack.
3. Plug the AC adaptor into an AC outlet.
4. Press the [POWER] button, the LED display lights up, that
indicates the piano is powered on.
Note：
1. In order to save energy, we have designed the “Automatic
Shutdown” function. The piano will automatically shut down after
30 minutes if it is not used.
To turn off the function, press and hold [A0] key (the 1st key on
the keyboard), then turn on the power.
2. When the piano is not in use or during thunderstorm, please
disconnect the power for safety purpose.
09
USB MIDI OUT MIDI IN AUX INAUX OUT
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 9 2015/8/3 9:46:33AW_Grand200_Manual_G04_150803.ai 9 2015/8/3 9:46:33

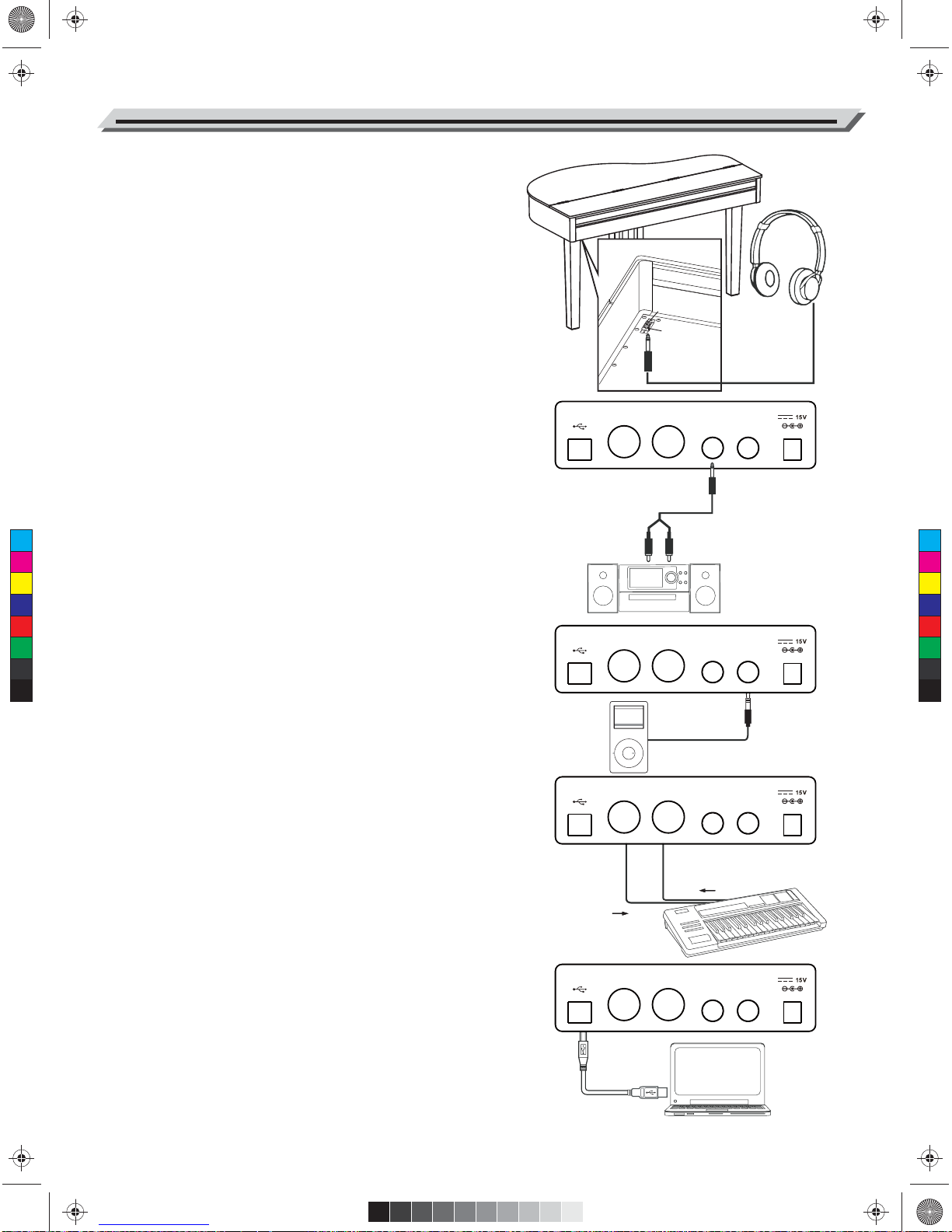

Connecting a pair of Headphones
A standard pair of stereo headphones can be plugged in here for
private practice or late-night playing.
Jack1: When a pair of headphones is plugged into Jack 1, the
sound can be heard from headphones and speakers of the
instrument.
Jack2: When a pair of headphones is plugged into Jack 2, the
internal stereo speaker system is automatically shut off . The sound
can be heard from headphones.
Note:
Do not listen with the headphones at high volume for long periods
of time. Doing so may cause hearing loss.
Connecting an Audio Equipment
The rear-panel AUX OUT jack delivers the output of the instrument
to a keyboard amplifier, stereo sound system, a mixing console, or
tape recorder. Use an audio cord to connect the AUX OUT jack on
the rear panel to the AUX IN jack of the amplifier.
Note:
To avoid damaging the speakers, set the volume level to minimum
before connecting the power and other devices.
Connecting an MP3/CD Player
Connect the audio output of an MP3/CD player or other audio
source to the stereo AUX IN jack on the rear panel.
The input signal is mixed with the piano signal, allowing you to play
along.
Connecting a Computer and an MIDI
MIDI OUT Jack
Connect the MIDI OUT jack to the MIDI IN jack of external MIDI
device with a MIDI cable.
The piano will control the external device by transmitting MIDI
messages to it.
MIDI IN Jack
Connect the MIDI IN jack to the MIDI OUT jack of external MIDI
device with a MIDI cable.
The piano will receive MIDI messages from the external device and
work as a sound source.
USB Jack
Connect the USB jack to a PC with a USB cable, and you can
transfer data between the piano and the PC.
Note:
Do not set the USB device to be input and output simultaneously
when you are setting the software on the computer. Otherwise the
sound will be overlapped when playing the keyboard.
Connections
10
MIDI OUTMIDI IN MIDI OUTMIDI IN
MIDI OUT MIDI IN
Jack 1
Jack 2
USB MIDI OUT MIDI IN AUX INAUX OUT
USB MIDI OUT MIDI IN AUX INAUX OUT
USB MIDI OUT MIDI IN AUX INAUX OUT
USB MIDI OUT MIDI IN AUX INAUX OUT
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 10 2015/8/3 9:46:34AW_Grand200_Manual_G04_150803.ai 10 2015/8/3 9:46:34

While holding down the [ FUNCTION ] button, press DEMO key to
start the demo song playing.
Repeat the operation to stop the demo playback.
Note:
During demo playback, all other keys on the keyboard become invalid.
Playing the Demo Song
11
Move the [VOLUME] slider rightwards, the volume increases. Moving it
leftwards will turn the volume down.
Note：
If the keyboard keeps silent, check if the volume has been set to
minimum, or if headphones have been plugged into Jack 2.
Adjusting the Master Volume
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 11 2015/8/3 9:46:35AW_Grand200_Manual_G04_150803.ai 11 2015/8/3 9:46:35

Playing a Voice
The instrument features 26 exceptionally realistic voices . Please refer
to Voice List.
1. While holding down the [ FUNCTION ] button, press one of the
VOICE SELECT keys to select a desired voice.
2. Play the keyboard and enjoy the wonderful voice.
Note:
1. Each key has two preset voices. Press a key once to select the first
voice, press it again to select the second voice. Press the key
repeatedly to shift between the first and second voices.
2. In voice selection, it will select the voice from the same layer when
you press once another voice key. For example, if you have
selected the second voice of a key, and you only need to press
once another key, it will select the second voice of that key. It works
the same with the first voice of the keys.
3. While voice is selected, the dual voice and lower voice will be turned
off automatically.
Playing two Voices Simultaneously - DUAL
The dual function allows two different voices to be layered together,
creating a much richer sound.
1. While holding down the [ FUNCTION ] button, press in order two
VOICE SELECT keys to turn on the Dual function.
2. Play the keyboard.
You will hear the sound of two different voices layered together, just like
two different instruments playing at the same time.
Notes:
1. The first voice key you've pressed will set the main voice, and the
second key will set the dual voice.
2. When the Dual function is turned on, the Lower function will be
disabled. To use the Lower function, you need to it on again.
3. When Dual and Lower functions are on, play the lower voice in the
left hand area, and play the main and dual voices in the right hand
area.
Playing Different Voices with Both Hands -
LOWER
The Lower function splits the keyboard into the left and the right hand
areas, each with a different voice. Play the lower voice in the left hand
area. The split point is preset to #F3 (34).
1. While holding down the [ FUNCTION ] button, press the key marked
Lower to turn on the Lower function.
Notes:
1. The lower voice is preset to be "String" voice, and not changeable.
2. It will disable the Lower function when Main voice or Dual voice
function is on.
Playing Voices
12 Split Pt
Lower
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 12 2015/8/3 9:46:35AW_Grand200_Manual_G04_150803.ai 12 2015/8/3 9:46:35

Touch Response
The keyboard is equipped with a touch response feature that allows you
to control the level of the voice with your playing strength, just as on an
acoustic piano.
While holding down the [ FUNCTION ] button, press one of the TOUCH
keys to set the desired touch level.
While holding down the [ FUNCTION ] button, press one of the TOUCH
keys to set the desired touch level.
Playing Voice Demo
The instrument has 26 voice demos. Try playing them and enjoy the
wonderful sound.
1. While holding down the [ FUNCTION ] button, press the VOICE DEMO
key to start the demo playback of the selected main voice.
2. Repeat the operation to stop demo playback.
Notes：
In voice demo mode,all other keys on the keyboard will become invalid.
The default type is: Medium
13
Playing Voices
Parameters
OFF
1
2
3
Description
Fixed
Soft
Medium
Hard
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 13 2015/8/3 9:46:36AW_Grand200_Manual_G04_150803.ai 13 2015/8/3 9:46:36

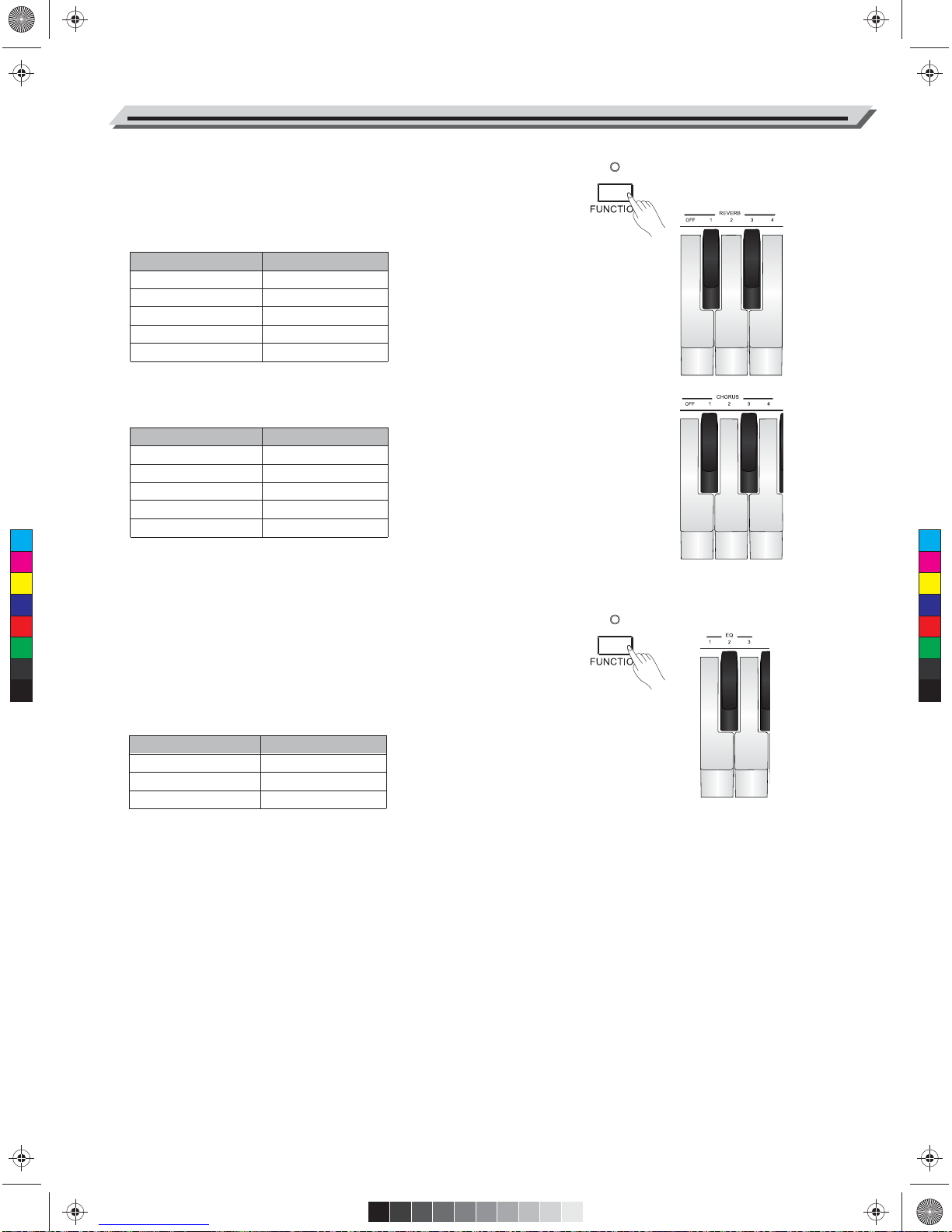

DSP Effects
14
Reverb and Chorus
While holding down the [ FUNCTION ] button, press one of the
REVERB or CHORUS keys to select the desired reverb or chorus
type.
Reverb Value:
The default type is: Small Hall
Chorus Value:
The default type is: OFF
EQ Effect
The EQ function controls the gain of different frequency band.And
different gain settings will produce different sound field effects.
The instrument has 3 EQ types as listed below.
While holding down the [ FUNCTION ] button, press one of the EQ
keys to select the desired EQ type.
Parameters
1
2
3
Description
Standard
Classical
Modern
Parameters
OFF
1
2
3
4
Description
OFF
Room
Small Hall
Large Hall
Stadium
Parameters
OFF
1
2
3
4
Description
OFF
Light Chorus
Medium Chorus
Deep Chorus
Flanger
EQ Type:
The default type is: Standard
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 14 2015/8/3 9:46:37AW_Grand200_Manual_G04_150803.ai 14 2015/8/3 9:46:37

15
Metronome
Turn on the metronome:
While holding down the [ FUNCTION ] button, press METRONOME
ON/OFF key to turn the metronome ON or OFF.
Select different time signature:
While holding down the [FUNCTION] button, press one of the
METRONOME keys to select the desired time signature.
There are 6 types of time signature: 0, 2, 3, 4, 5, 6.
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 15 2015/8/3 9:46:38AW_Grand200_Manual_G04_150803.ai 15 2015/8/3 9:46:38

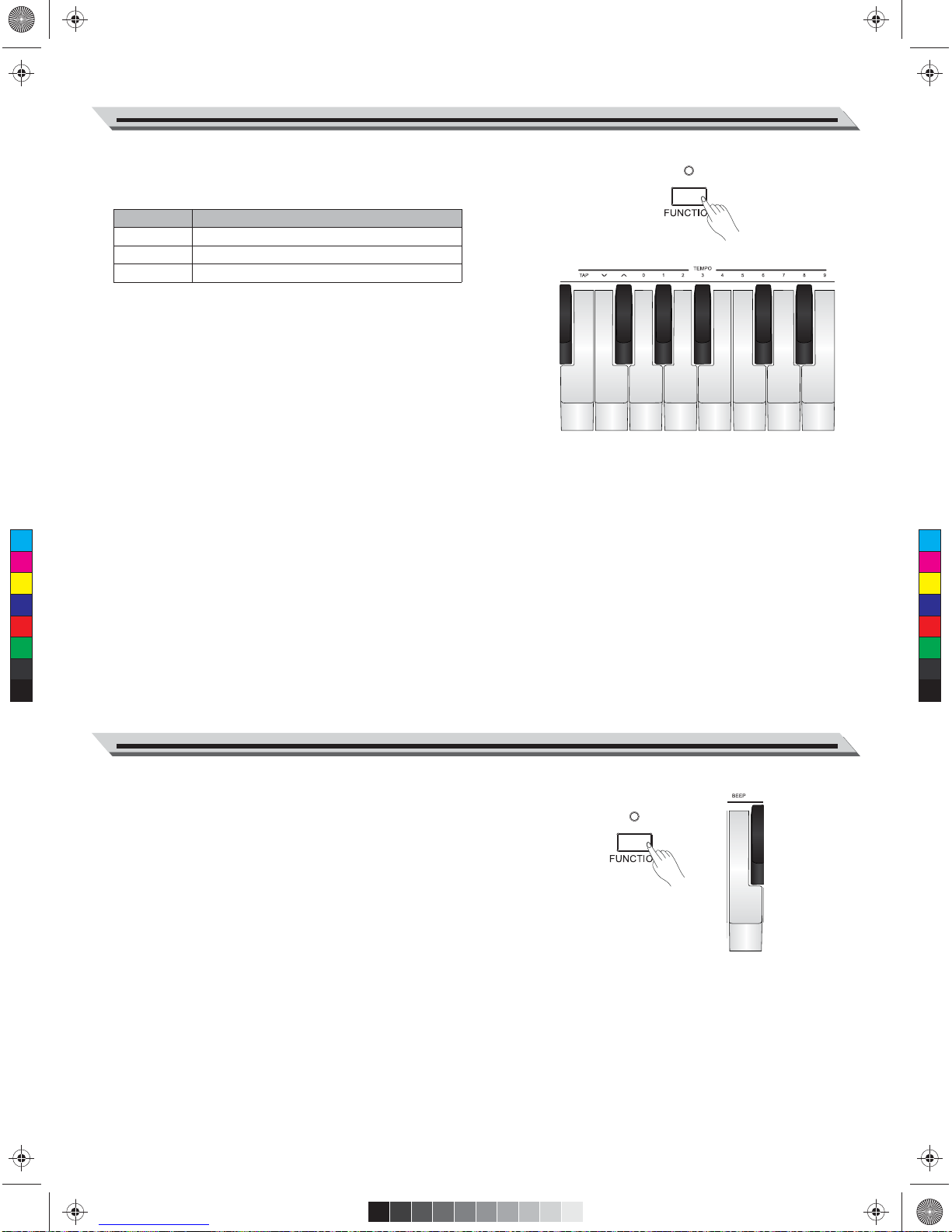

While holding down the [ FUNCTION ] button, press one of the TEMPO
keys to set the desired tempo value.
Notes:
1. Press [ tempo + ] and [ tempo – ] keys simultaneously to set the
tempo value back to the default (120).
2. Continuously tapping the [TAP] key at your desired tempo value, the
piano will start the click sound at the tempo you tapped.
The piano will not recognize your tempo value if you tapped the [TAP]
key less than the beats of current time signature, or the interval
between each tapping is longer than 3 seconds.
However, the metronome will start at the speed of the last interval
when you’ve tapped rightly equal to the current time signature.
The tempo value will be recognized as 30 when the speed is less than
30 or as 280 when the speed is higher than 280.
3. To set the tempo value with the number keys, you need to tap 3 keys.
For example, tap 0, 8, 5 in sequence to set the tempo value to 85.
While holding down the [ FUNCTION ] button, press beep key to turn
the Beep Tone ON or OFF. The default setting is ON.
If you turn on the beep tone, you can hear a beep sound when you press a
valid functional key while the [ FUNCTION ] button is held
down.
Tempo
16
Beep Tone
Parameters
TAP
Tempo+/-
0 ~ 9
Description
Quickly set the desired tempo value.
Increase/ Decrease tempo value by 1.
Directly set the specified tempo value.
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 16 2015/8/3 9:46:39AW_Grand200_Manual_G04_150803.ai 16 2015/8/3 9:46:39

Troubleshooting
17
Specifications
Problem
The speakers produce a “pop” sound whenever
the power is turned ON or OFF.
No sound when the keyboard is played.
When using a mobile phone, noise is produced.
After connecting with the computer,
the piano is not recognized.
Keyboard
88 Hammer-Action Keys
Polyphony
128
Voice
26 panel voices
128GM voices
4 GM drum kits
Demo
1
Tempo
30 – 280
Control Button
Power On/Off switch, Volume, Function.
Control Key
Voice Select Keys, Voice Demo, Tempo Tap,
Tempo +/-, Tempo Number Keys, Metronome
On/Off, Metronome select keys, Reverb On/Off,
Reverb Type Select Keys, Chorus On/Off, Chorus
Type Select Keys, Touch On/Off, Touch Select
Keys, EQ Type, Select Keys, Demo, Beep.
Connectors
Headphones (2 standard. ¼” phone), DC IN,
AUX IN, AUX OUT, MIDI IN, MIDI OUT, USB,
Pedals(Sustain, Soft, Sostenuto)
Power Supply
DC IN 15V 2500mA
Speaker
Woofer：4ohm 25W x 2
Tweeter：8ohm 20W x 2
Weight
51 KG
Dimensions
1398(W) x 750(D) x 790(H) mm
* All specifications and appearances are
subject to change without notice.
Possible Cause and Solution
This is normal and is no cause for alarm.
Make sure the voice volumes are set at appropriate levels.Check if
headphones are plugged into Jack 2.
Using a mobile phone in close proximity to the instrument may produce
interference. To prevent this, turn off the mobile phone or use it further
away from the instrument.
Please check if the USB cable is being connected firmly, or try to connect
another USB port of the computer, without the need to install another
driver on the PC.
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 17 2015/8/3 9:46:39AW_Grand200_Manual_G04_150803.ai 17 2015/8/3 9:46:39

Voice List
18
NO.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Full Name
Acoustic Grand Piano
Bright Acoustic Piano
Electric Piano
Electric Piano 2
Vibraphone
Marimba
Drawbar Organ
Percussive Organ
Rock Organ
Church Organ
Reed Organ
Accordion
Harmonica
Acoustic Guitar /nylon
Acoustic Guitar /steel
Electric Guitar /clean
Violin
String Ensembles
Synth Strings
Choir Aahs
Trumpet
Tenor Sax
Oboe
Clarinet
Flute
Pan Flute
Short Name
GrandPno
BritePno
E.Piano
E.Piano2
Vibra
Marimba
DrawOrgn
PercOrgn
RockOrgn
ChurOrgn
ReedOrgn
Acordion
Harmnica
NylonGtr
SteelGtr
CleanGtr
Violin
Strings
SynStrs
ChoirAah
Trumpet
TenorSax
Oboe
Clarinet
Flute
PanFlute
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 18 2015/8/3 9:46:39AW_Grand200_Manual_G04_150803.ai 18 2015/8/3 9:46:39

19
MIDI Implementation Chart
Aux : LOCAL ON/OFF
: All Notes Off
Message : Active sense
: Reset
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 19 2015/8/3 9:46:39AW_Grand200_Manual_G04_150803.ai 19 2015/8/3 9:46:39

Grand200_G04
C
M
Y
CM
MY
CY
CMY
K
AW_Grand200_Manual_G04_150803.ai 20 2015/8/3 9:46:40AW_Grand200_Manual_G04_150803.ai 20 2015/8/3 9:46:40
