User's Manual
Stage Piano

2
Using the Instruction Manual
Precautions
Please read the following carefully before use:
Do not expose the piano to high temperature, direct sunlight and excessive dusty places.
Do not place the piano too close to other electrical appliances such as television and radio. It may cause interference.
Do not place the piano to excessive humid area. Avoid putting container with liquid on top of the piano in order to
prevent damage of the internal parts of the piano by flowing liquid.
Always unplug AC cord by gripping the plug firmly, but not pulling on the cable.
Do not apply excessive force to the switches and buttons.
When the piano is not in use or in the time of thunderstorm, please disconnect the power supply.
Avoid adjusting the volume level to the maximum or to the levels that you feel uncomfortable, we recommend you to
limit the volume level to two-thirds of the max for preventing the damage of audiory sense.
Unplug the power cable before cleaning the piano. Do not connect or disconnect the power cable with a wet hand.
Check and clean the power plug periodically.
Clean the piano and remove the dust with a dry soft cloth or a slightly damp cloth.
Never use cleaners such as thinner or alcohol. To prevent any damage on the surface of the LED display, please
use lens cleaning tissue to clean the display.
If the piano cable is damaged, please do not use the piano. Otherwise it may cause fire or electrical hazard.
In case of malfunction due to improper handling the piano, please switch off and on again after 30 seconds.
Do not attempt to disassemble or repair the piano. If the piano does not work properly, please contact the
approved repairer.
The piano should not be exposed to dripping or splashing.
Congratulations on your purchase of this stage piano!
The piano is an user friendly piano with fabulous sound quality and advance feature such as scale practise and MIDI
controller. No matter you are adult or children, you will enjoy playing the piano as it provides amazing styles for
accompaniment, expressive tones, and real time record. Other features such as lesson function, variety of songs will
help you better master the playing skil.
This piano also provide with SD card function, you can choose your favorate MIDI song to play;You can backup your
recording setting to SD card.
You are recommended to study this manual carefully before using the unit.
To avoid damages, turn off the power switches before you disconnect the related devices from the piano.

3
Main Feature
General Guide
Control Panel
The Connectors
- Power Jack
- Headphones Jack
- AUXOUTJack
- Sustain/Soft Jack
- MIDI IN/OUT Jack
Operation
- Power on & Master Volume
- Song
- Voices and Effects
- Metronome
- Style Control
- Record
- Lesson
- SD Function
MIDI
- MIDI Controler
- Command
- Channel
- Value
- MIDI OUT
- What is MIDI
Specifications
Voice List
Style List
Song List
MIDI Implementation Chart
4
5
6
7-8
7
7
7
8
8
9-19
9
9
10
15
15-16
17-18
18
18-19
20-24
20
21
22
23
23
24
25
26
26
27
28-29
Conent

4
Main Feature
Keyboard:
88 touch response keyboard with 3 touch levels.
Operation:
Use the [+] & the [-] button or direct select button to select desired function & parameters.
Voice:
20 voices in all, 10 direct select buttons to select.
Style:
20 piano styles in all, use the [+] & the [-] button to select.
Song:
60 songs in all, each one has self-learning mode.
Song learning:
Use the [TRACK1 / SONG MELODY OFF] button to enter.
Record:
1 user song, include 2 record track.
SD card:
Play midi files, save recorded data.
MIDI ctrl:
Send out midi control message
Style :
START/STOP, ACC VOL, FILL A/FILL B.
Others function buttons:
DUAL, SPLIT, REVERB/CHORUS, METRO, TRANSPOSE +/-, TOUCH, etc.
Buttons with indicator:
FILL A/FILL B, RECORD, PLAY/STOP, ACC VOL, SPLIT, DUAL, REVERB/CHORUS, TOUCH, METRO,
(SD)STORE, (SD)PLAY/STOP, TRACK 1,TRACK 2, SCALE.
Pedal:
Sustain pedal, soft pedal .
Interface:
MIDI in/out, USB, Phone, Aux in/out

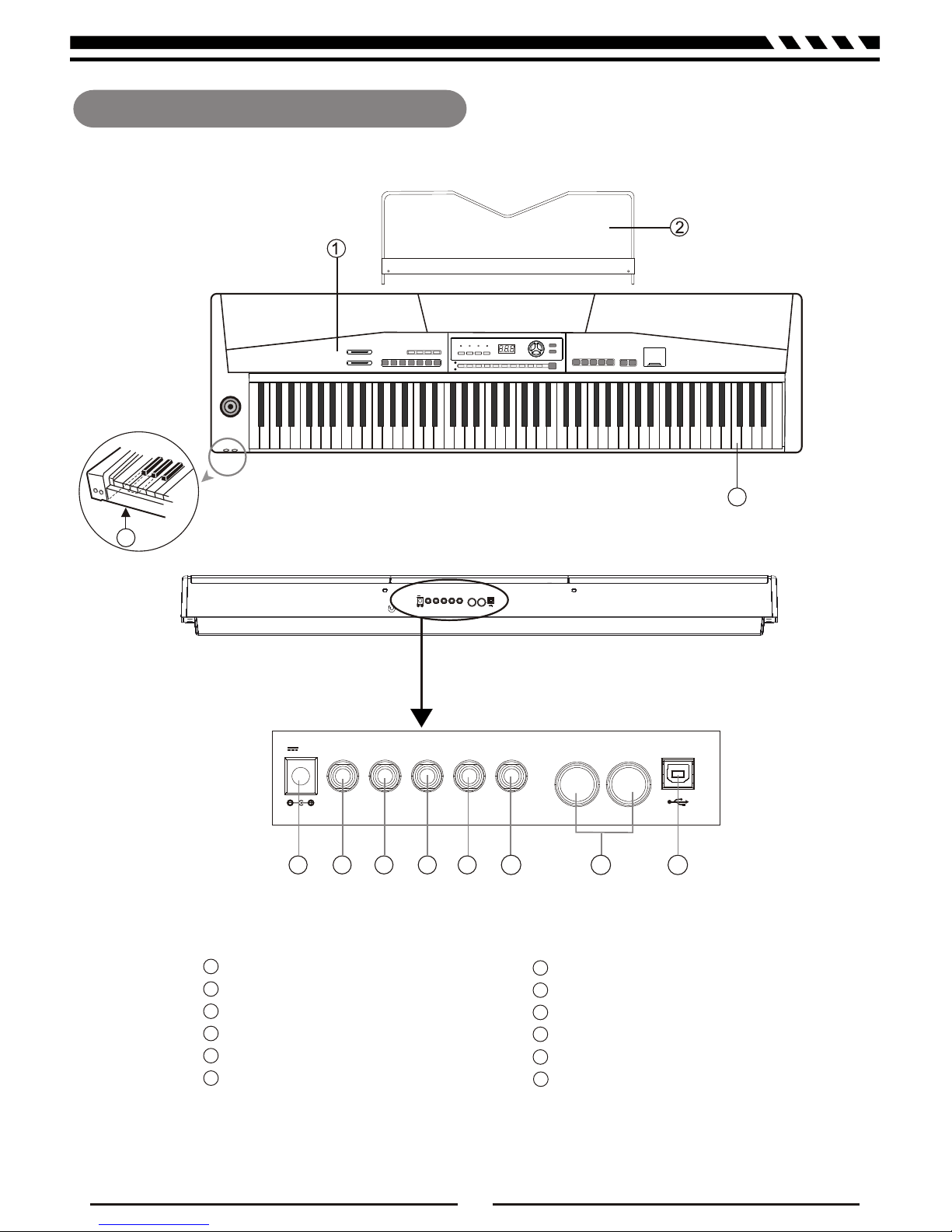

Top View
Rear View
CONTROL PANEL
MUSIC STAND
AUX OUT L / MONO
HEADPHONES JACKS
PIANO KEYBOARD
POWER JACK
1
2
3
4
5
6
SOFT PEDAL JACK
AUX OUT R
AUX IN
SUSTAIN PEDAL JACK
MIDI IN/OUT JACKS
USB JACK
7
8
9
10
L/MONO RSOFTSUSTAIN
USBAUX OUT AUX IN PEDAL MIDI IN MIDIOUT
12V
L/MONO RSOFTSUSTAIN
USBAUX OUT AUX IN PEDAL MIDI IN MIDI OUT
12V
3
4
56 8 9 10
5
General Guide
711
11
12
12

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
POWER SWITCH
START/STOP
FILL A/FILL B
BRILLANCE
MASTER VOLUME
ACC.VOL
RECORD
PLAY/STOP
TRACK 1/SONG MELODY OFF
TRACK 2
TRANSPOSE +/-
TEMPO +/-
MIDI CONTROL
- MIDI OUT
- COMMAND
- VALUE
- CHANNEL
16
STYLE
VOICE
SONG
REVERB/CHORUS
SD SLOT
+ & -
VOICE DIRECT SELECT BUTTONS
LED DISPLAY( VOICE, STYLE, SONG)
SCALE
DUAL
SPLIT
TOUCH
METRONOME
SD CONTROL
- PLAY
- STORE
17
18
19
20
21
22
23
24
25
26
27

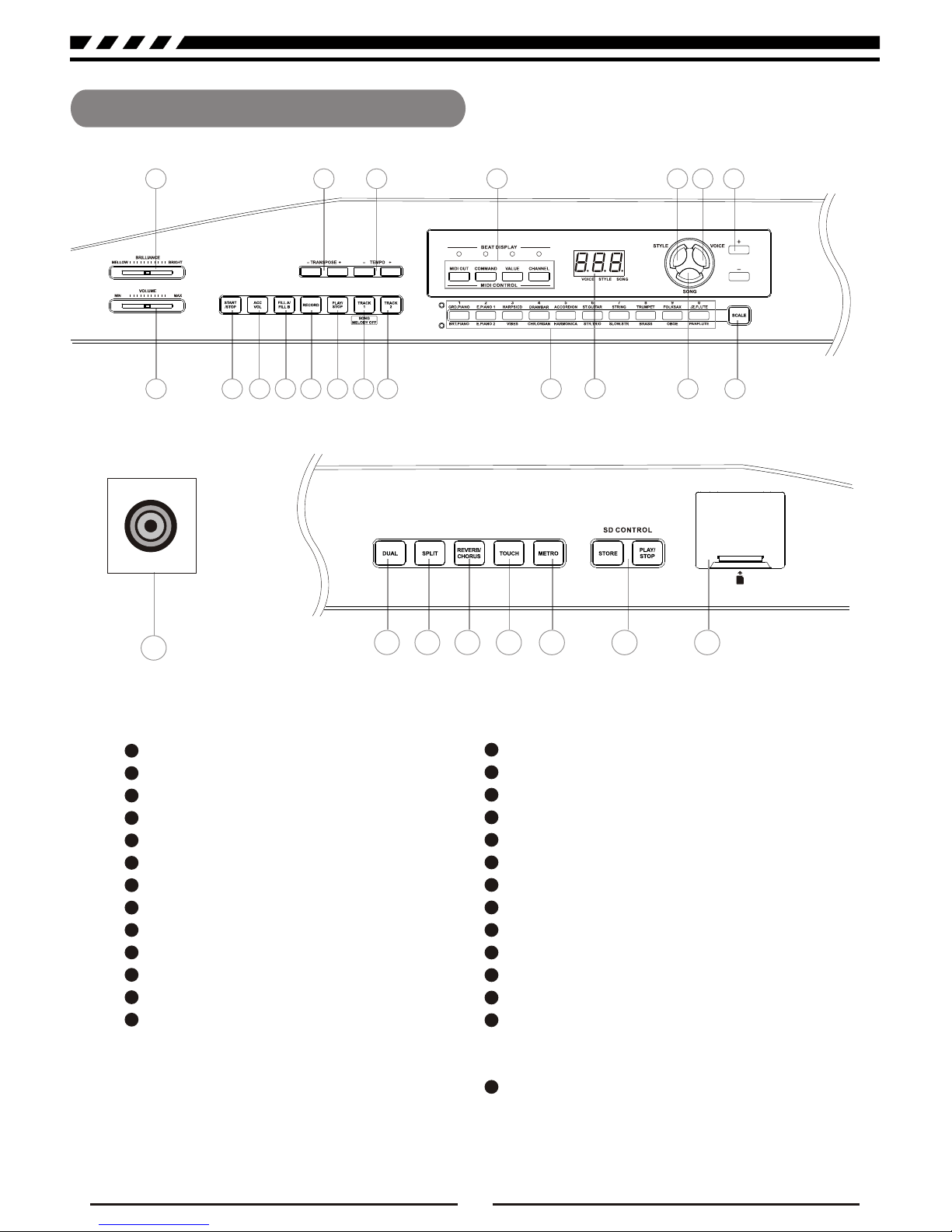

Control Panel
3456
20
17 18 19
21
1
78
2
24 25 26 27
9 10
11 12 13 14 15 16
22
23
-
6

When an optional set of stereo headphones is
connected with the headphones jack 2, the sound from
speakers will switch off automatically resulting in only
the sound from headphone to be heard.
When jack 1 is connected with the stereo headphones,
the sound can be heard from both headphones and
speakers of the piano.
Headphones
Jack 1
Headphones
Jack 2
1
2
Headphones Jack
Never use the headphone with high volume, as it may hurt your sense of hearing.
To prevent the damage of the speakers, ensure that the volume is set to the minimum
level before connecting the power and other devices.
AUX OUT Jack
7

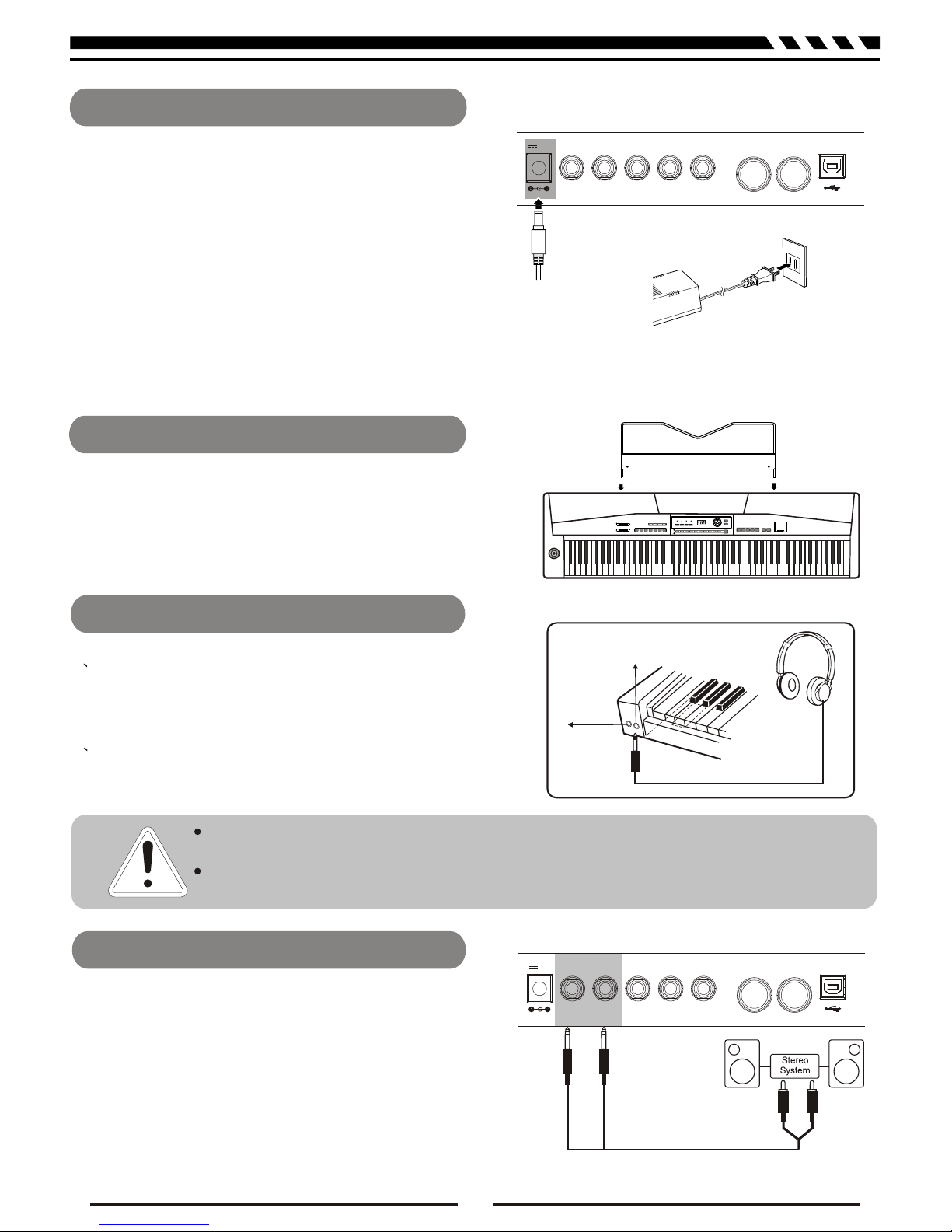

Power Jack
This piano can be powered from a standard household
wall outlet by using the specified AC adaptor.
The power jack is located on the rear panel of the piano
body.
Make sure that only the AC adaptor specified for this
piano is used.
The adaptor shall be 12V DC output, and center positive
type.Make sure to turn off the piano before you connect
the adaptor into the AC wall outlet and the cord into the
unit.
The piano is supplied with a music rest that can be
attached to the instrument by inserting it into slot at the
rear of the control panel.
Please set up the music rest as shown.
Cautions£¡
Use of another type of adaptor creates a danger of fire
and electrical shock.For safety sake, make sure to unplug
the AC adaptor from the wall outlet whenever leaving the
piano unattended for a long time or during a thunderstorm.
Setting Music Rest
To avoid damaging the speakers, please ensure that
volume has set to the minimum level before connecting
the power and other devices.
When you want to listen to the voice with an amplifier,
connect amplifiers to the AUX OUT L/MONO and R jacks
on the rear panel. The volume is adjusted with the
VOLUME button. (For monaural playback, use the L/
MONO jack. For stereo playback, connect both L/
MONO and R jacks.)
L/MONO RSOFTSUSTAIN
AUX OUT AUX IN PEDAL MIDI IN MIDI OUT
12V USB
L/MONO RSOFTSUSTAIN
AUX OUT AUX IN PEDAL MIDI IN MIDI OUT
12V USB

L/MONO RSOFTSUSTAIN
AUX OUT AUX IN PEDAL MIDI IN MIDI OUT
12V USB
8
L/MONO RSOFTSUSTAIN
AUX OUT AUX IN PEDAL MIDI IN MIDI OUT
12V USB
An optional footswitch can be plugged into the SUSTAIN
jack for sustain control. The footswitch function is like
the sustain pedal on a piano.
MIDI stand for Musical Instrument Digital Interface.
MIDI is a world wide standard that makes it possible for
various electronic musical instruments and other devices.
MIDI IN:
MIDI OUT:
Data transmitted from other MIDI instrument via MIDI is
received by this terminal.
Data produced by the Digital Piano is to
other MIDI instruments via MIDI from this terminal.
transmitted
The audio output from a CD player connected to the
AUX IN jack on the rear panel can be mixed with the
sound of the piano brain. This function is convenient
when you want to play along with a favourite song.
The volume of the external signal is adjusted with
the VOLUME button.
An optional footswitch can be plugged into the SOFT
jack for soft control. Step on the soft pedal , all notes
played on the keyboard have a soft effect.
AUX IN Jack
Sustain Jack
Soft Jack
MIDI IN/OUT Jack
USB Jack
L/MONO RSOFTSUSTAIN
Step the sustain pedal on to open the SUSTAIN
function , it will apply SUSTAIN effect to the piano,
then release the sustain pedal to turn off the effect.
Connect PC or other USB host devices that support
USB Audio.
For devices with USB cable, you can simply connect the
MIDI/USB convertor to your USB connector on your
devices and plug the MIDI in and out cables into the
piano, after the driver is installed and initialization is
finished, you can choose USB Audio Device in the
device menu of the software to transfer midi data.
AUX OUT AUX IN PEDAL MIDI IN MIDI OUT
12V USB
L/MONO RSOFTSUSTAIN
AUX OUT AUX IN PEDAL MIDI IN MIDI OUT
12V USB

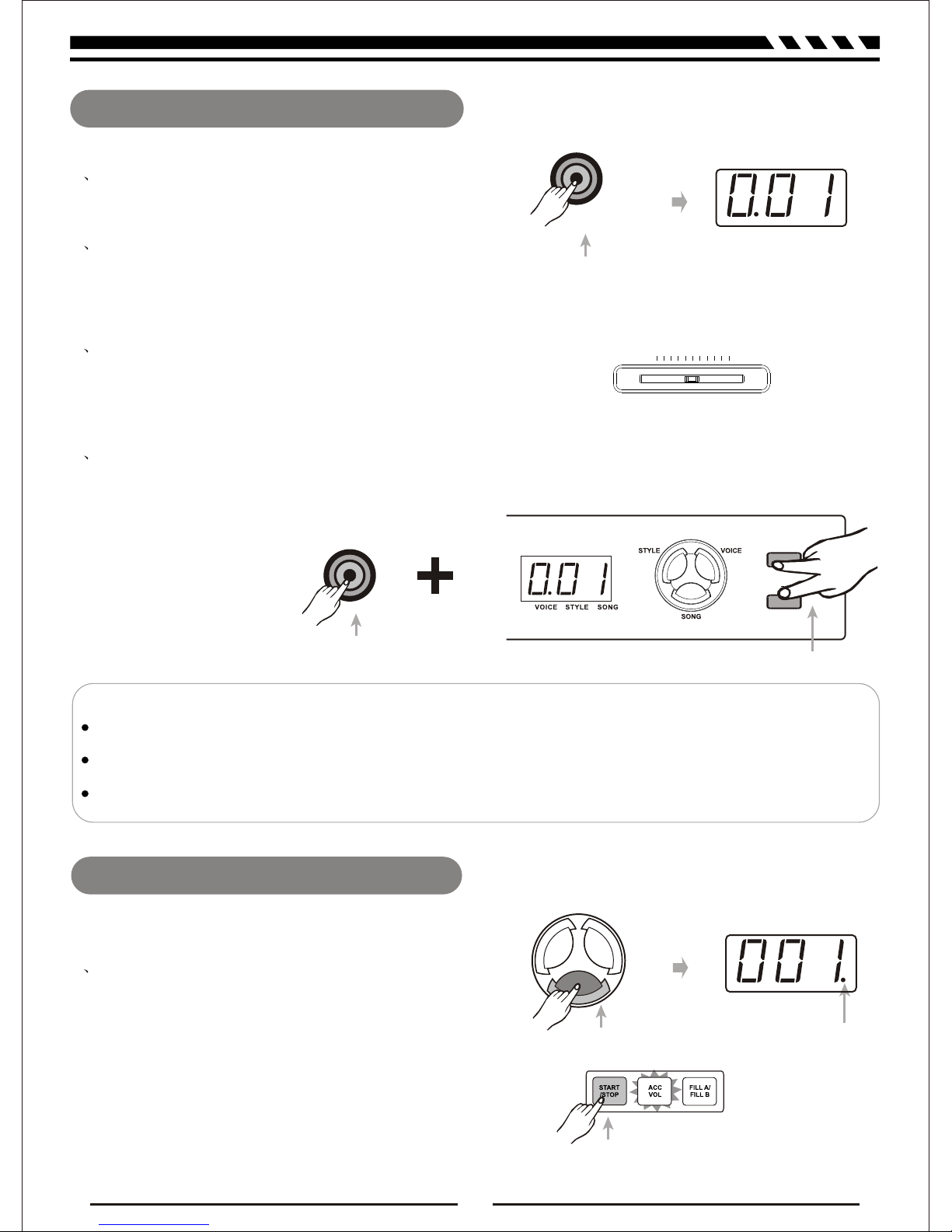

First, make sure the correct connections.
Press the [POWER] switch. The LED display lightens
Push the [VOLUME] sliding bar rightwards, the whole
volume becomes increase, push it leftwards, the
whole volume becomes decrease.
Press the [+] and the [-] button synchronously, and then
power on the piano. it can reset all the setting to the
default value and erase the record data.
Power on & Master Volume
Song
Press the power switch on
Press the power switch on
Press first to stop playing the song,
press again to play current song repeatedly.
The level decreases The level increases
NOTE:
If the LED display has not lightened up after you power on the piano, please check the power supply.
If the piano is silent, the volume may be adjusted to its minimum level.
Although Mains switch is in OFF position, the piano is not disconnected from the power supply completely!
VOICE
VOICE
STYLE
STYLE
SONG
SONG
+
Press together
1
1
2
3
4
There are 60 songs in total. (See Appendix 3 ).
PLAY a song:
Press the [SONG] button to enter the song mode, the
SONG flag on LED is lightened. It will play all songs
circlely.
Press the [START/STOP] button to stop playing the
song, but it will not quit the song mode. The 2nd time
you start playing the song by pressing the [START
/STOP] button, it will play current song repeatedly.
STYLESTYLE
SONGSONG
VOICEVOICE
Enter the song mode
and play all songs circlely.
Song flag
is lightened
9
VOLUME
MAXMIN
up.

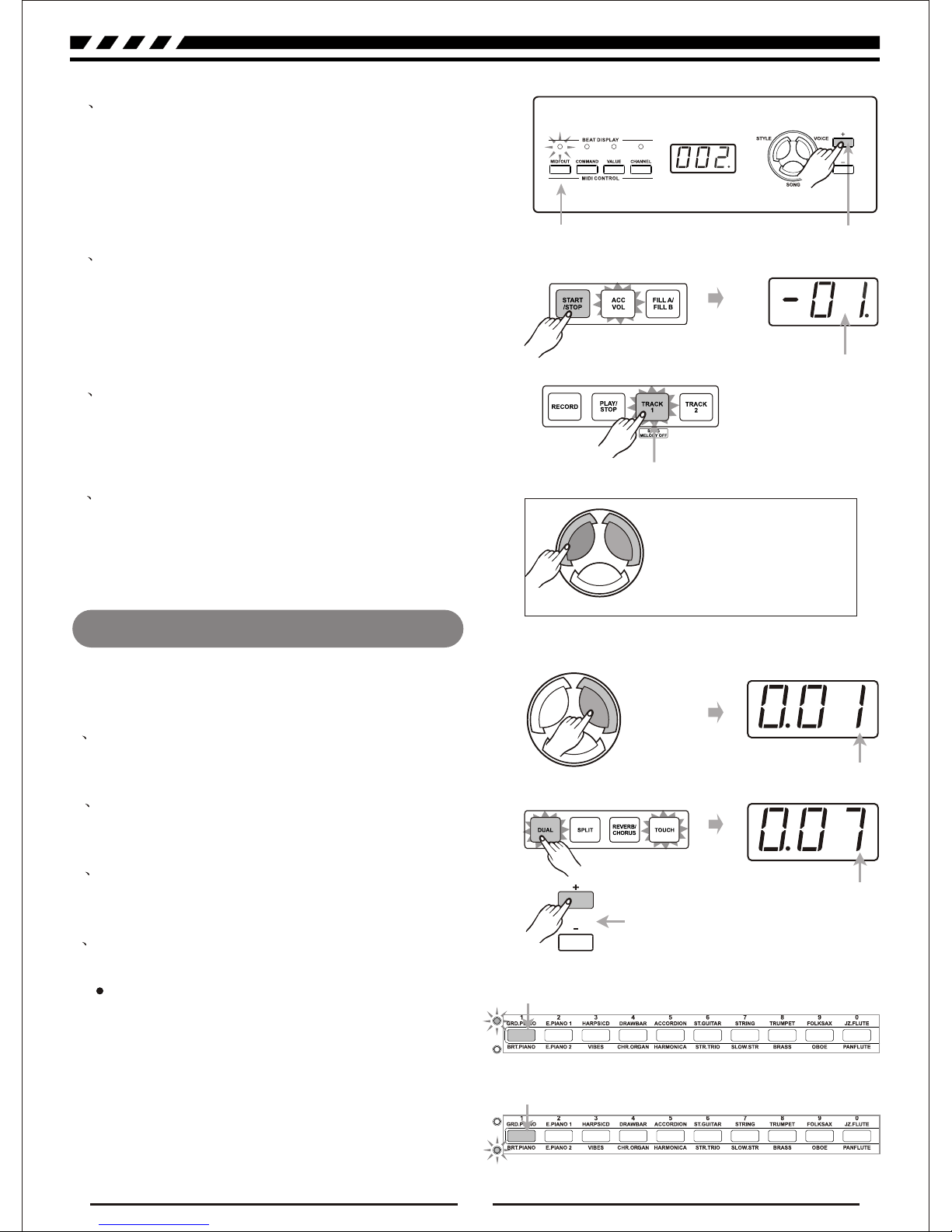

SELECT a song:
Use the [+] or [-] button to select the song you want.
If you select the new song, LED will display it's
number at first and then display introductory beat and
the measure count.
INTRODUCTORY BEAT:
After pressing [START/STOP] , the measure count
begins from negative value to 1, and then begins to
play the song.
Press the [TRACK1] button to enter self-learning mode,
and turn on/off the main melody of the song.
While the song stop playing, you can press the [VOICE]
and the [STYLE] button to exit.
VOICE
VOICE
STYLE
STYLE
SONG
SONG
Select a song
Display the measure count
The beat LED indicators
are lightened in turn.
The LED indicator is lightened.
STYLESTYLE
STYLESTYLE
SONGSONG
SONGSONG
VOICEVOICE
VOICEVOICE
Exit the song mode
2
2
3
3
4
4
5
Voices and Effects
There are 20 voices in total (See Appendix 1).
Voice Select
When power on, LED lightens the VOICE flag and
displays the 001 voice number.
Press the [VOICE] button to enter the voice mode,
LED displays the VOICE R1 number.
Press the [DUAL] button to enter the dual voice mode,
LED displays the VOICE R2 number.
you can select other voice by pressing the [+] and the
[-] or voice Direct Select buttons.
VOICE
VOICE
STYLE
STYLE
SONG
SONG
Display VOICE R1
Display VOICE R2
Select a voice
Press the first time to select GRD.PIANO
Press the second time to select BRT.PIANO
Use Direct Select buttons to select
There are 10 voices Direct Select buttons to select 20
voices. Each Direct Select button can be used to choose
2 different voices.
Press the first time to select upper layer voice , press the
second time to select the lower layer voice.
When you select the upper layer voice, the upper layer
indicator turns on.
When you select the lower layer voice, the lower layer
indicator turns on and the upper layer indicator turns off.
1
10

Turn on the DUAL voice
The indicator goes off.
2
3
4

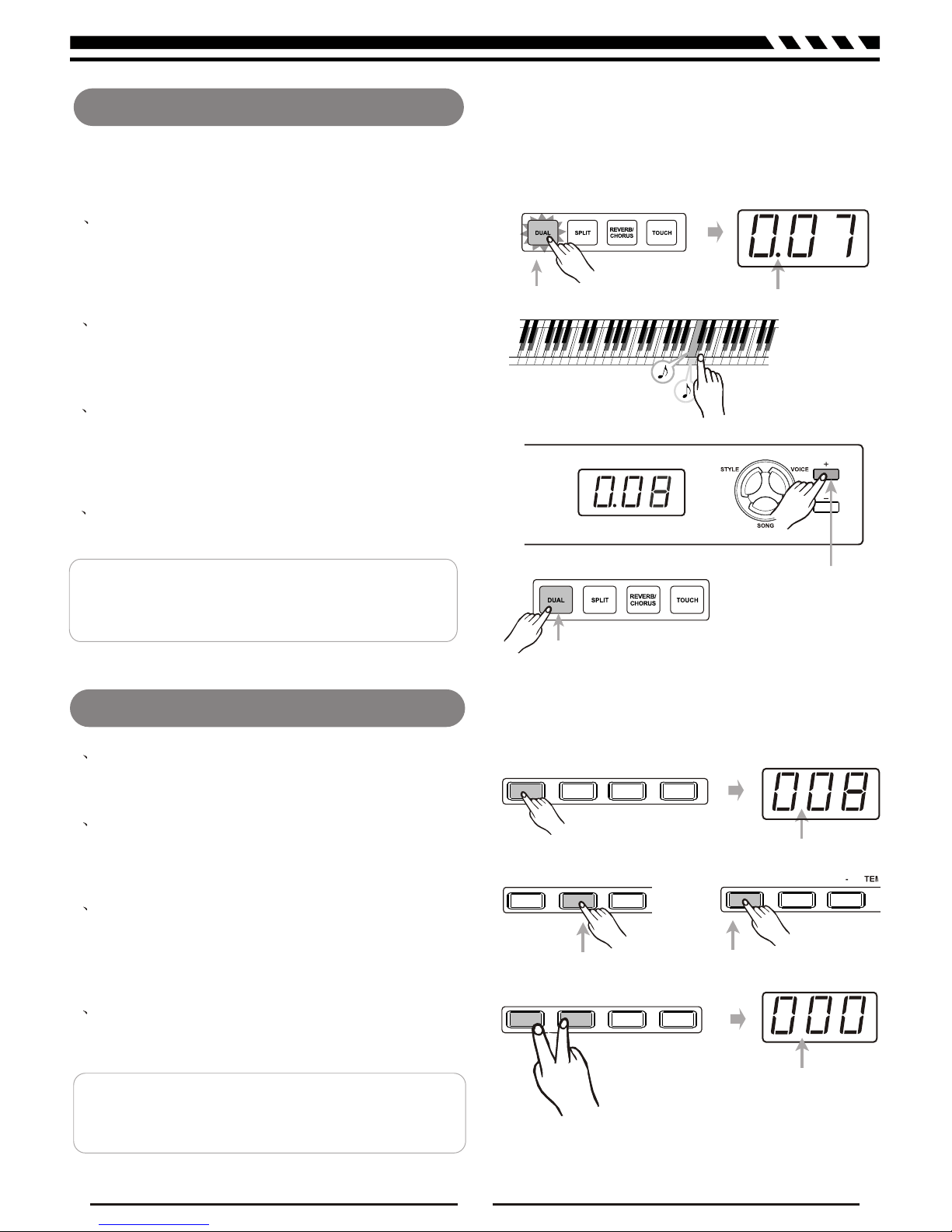

1Press the [DUAL] button to turn on the DUAL mode,
the VOICE flag on the LED and the indicator are both
lightened. The dual voice number is also displayed on
the LED.
Then, you can get two different sounds at the same
time when you press one key on the keyboard.
Use the [+] / [-] button and voice Direct Select buttons
to select your desired voice. The default voice number
is 007.
Press the [DUAL] button again to turn off the DUAL
mode, the indicator goes off.
Select a dual voice
VOICE STYLE SONG
Voice flag is lightened
Two voices will sound
at the same time.
Eg. Piano
STR. TRIO
Dual
The piano has dual voice. You can create the new sound through this function for richer and punchier
sounds. It seems that you can get two different sounds at the same time when you press a key in the right
area in the keyboard.
11
You can change the pitch of the entire keyboard by
semitone steps with TRANSPOSE function.
Press the [TRANSPOSE +] or [TRANSPOSE -] button
for the first time, LED displays current transpose value
temporarily.
Press [TRANSPOSE +] to increase the value and Press
[TRANSPOSE -] to decrease the value, the maximal
range to be adjusted is from -12 to +12 semitones, the
default value is 000.
In TRANSPOSE setting , press the [TRANSPOSE +]
and [TRANSPOSE -] button simultaneously to set the
value to default.
NOTE:
If you don't press any button for 2 seconds in transpose
setting mode, it will quit this mode automatically.
- TRANSPOSE +
- TRANSPOSE +
- TRANSPOSE +
- TEMPO +
- TEMPO +
- TEMPO +
VOICE
VOICE
STYLE
STYLE
SONG
SONG
Display current transpose value
Display default transpose value
increase the value Decrease the value
- TRANSPOSE +
2
3
4
1
Transpose
While the keyboard is splited,only the right hand
area can respond the dual voice, the left hand
area can't.
NOTE:
VOICE STYLE SONG

VOICE STYLE SONG
Display touch value
Select touch response type
2
3
1

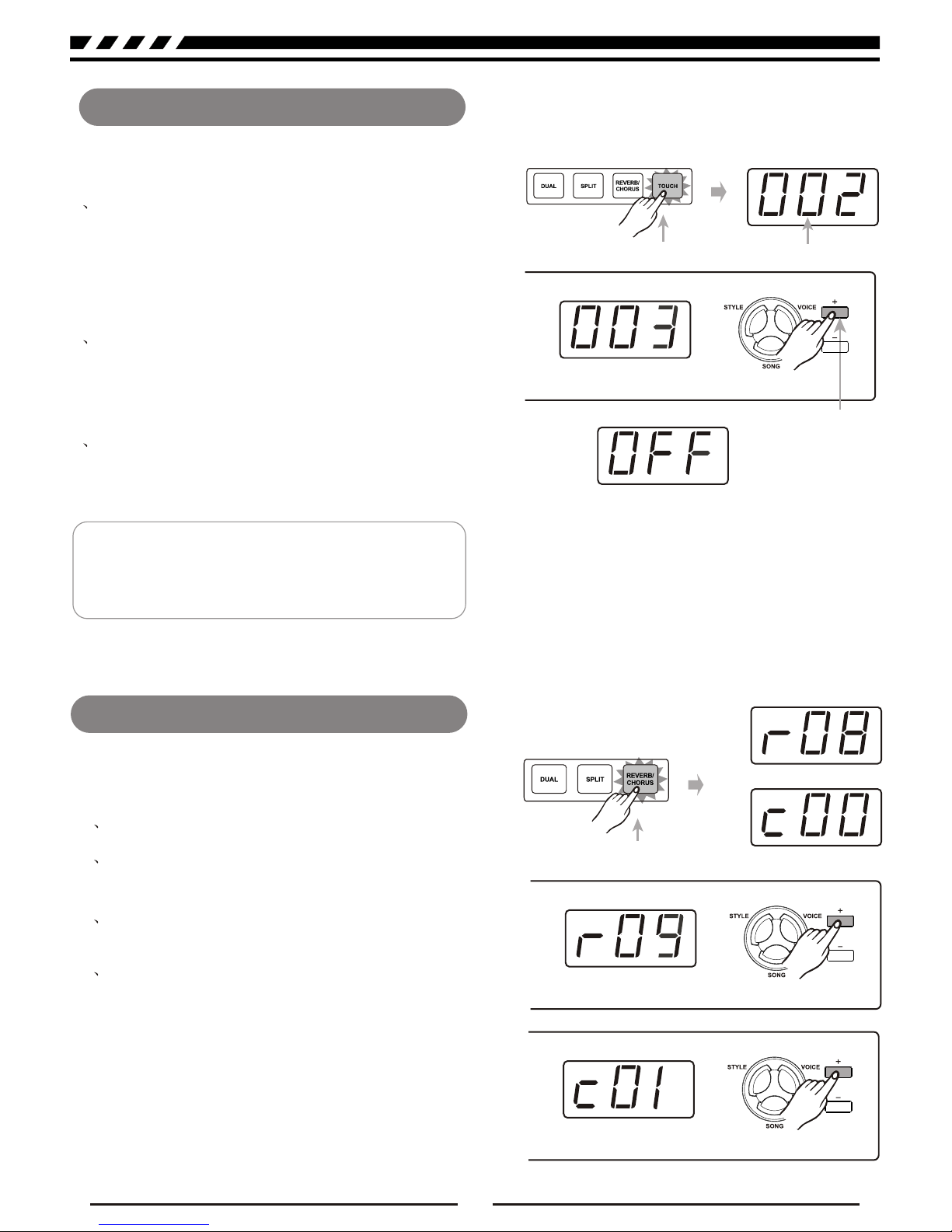

This function allows you to turn on the dynamic
level when playing the keyboard.
When power is on , the TOUCH indicator lightened.
Press the [TOUCH] button continuously to select the
touch response type, the TOUCH indicator is flash and
displays touch response type 00X temporarily on LED.
There are 4 touch response types. Press [TOUCH]
button repeatedly to select, the default is 002.
If the type is set as OFF, it means no touch response
to keyboard, the TOUCH indicator goes off.
NOTE:
If you don't press anybutton for 2 seconds in touch
response type select mode,it will quit this mode
automatically.
The indicator flashes
VOICE
VOICE
STYLE
STYLE
SONG
SONG
12
Touch
Reverb/chorus effect will enhances the piano with
fuller and expressive sound.
When power is on , the Reverb/chorus indicator is on.
Press the [REVERB/CHORUS] button to switch the
DSP response setting.
VOICE STYLE SONG
VOICE STYLE SONG
Display touch
value on the LED
2
1
Reverb/Chorus
VOICE STYLE SONG
VOICE STYLE SONG
Press [REVERB/CHORUS] repeatedly to switch
to reverb or chorus setting mode.
There are 32 level to be selected by pressing [+]
and [-] button. The default chorus level is 00, the
default reverb level is 08.
3
4

2
3
1
VOICE STYLE SONG
Display split parameter
Change split point
The indicator is flashing.
VOICE STYLE SONG
Melody
area
Chord
area
Default split
point F#3
For a mellower sound For a brighter sound

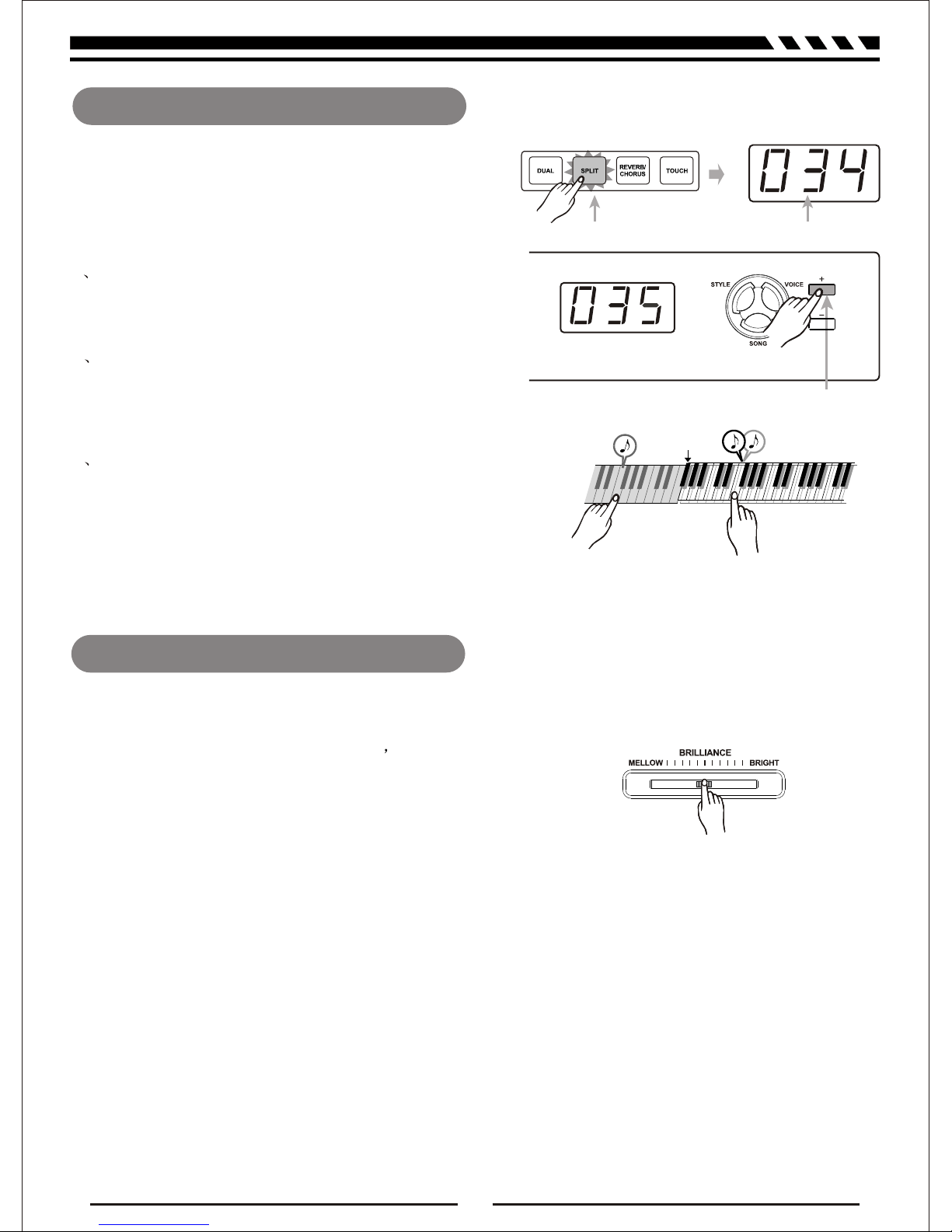

You can split the piano to melody and chord
area by this function.
Press the [SPLIT] button, LED displays the current
split parameter XXX .
Use the [+] / [-] button or Keyboard to change it, after
exit the setting mode the new value becomes to the
new split point, the split default value is 34.
The new split point belongs to the left area of the
keyboard.
13
Brilliance
Split Point
When the piano is power on:
Push BRILLANCE splider bar to right it sounds
brighter ;
Push BRILLANCE splider bar to left, it sounds more
gloomy;
You can change the piano brilliance as your wish.

This function allows you to experience different scales
when you play certain genres of music that is not comp-
osed based on twelve equal interval.
Press [SCALE] button to enter into scale mode and the
button indicator lights up; The default scale is 001
Pythagor.
There are 6 types of scale to select:
Pythagor, Major, Minor, Meantone, Werckmei, kirnberg.
Press [SCALE] button again to exit scale mode and the
button indicator goes off.
Hold and press [SCALE] for 2 seconds to enter into
SCALE select status. The scale number displayed on LED.
Use [+] or [-] to select the scale type, play the key from
C7~B7 to select scale root.
VOICE
VOICE
STYLE
STYLE
SONG
SONG
Enter scale mode and
the indicator lights up.
Press and hold the button for
2 seconds to enter scale select
status. The indicator is flashing.
Display scale type.
Display scale root.Press the G7 key
C7 B7
Press the button again to exit scale
mode. The indicator goes off.
Number Name Number Name
1 Pythagor
2 Major
3 Minor
4 MeanTone
5 Werckmei
6 Kirnberg
Types of scale :
Select the scale type
VOICE STYLE SONG
2
3
4
5
1
For example, to select the scale named "Minor"
and set the root key to "G", keep pressing [+] till
"003 " displayed temporarily on the LED, then
press the G7 key to set the root, LED displays "G",
"G" stands for "Scale Root".
14
Scale

ACC
VOL
START
/STOP
Metronome
Style Control
Press the [METRO] button to turn on the metronome
and the metronome sound will be played.
Press the button again to turn off the metronome.
When the style stops to play, the beat type follows 4/4
after turning on the metronome.
When the style begins to play, the beat type follows the
current style.
Metronome can be turned on together with the style.
If the style plays at first, then to turn on the metronome,
the metronome will respond next measure.
If the metronome plays at first, then to start to play the
style, the metronome responds at once to the first beat
of the style.
The LED indicator is lightened.
Metronome can be turned on
together with the style.
The beat LED indicators
are lightened in turn.
The beat LED indicators are flashing at the same time.
2
2
2
3
4
1
1
1
STYLE SELECT
Press the [STYLE] button to enter style mode, the style
number and style flag on the LED are both lightened.
You can use the [+] / [-] button to select the style you
want.
When the style is not playing, you can press the
[START/STOP] button to enter SYNC START
mode, the beat point are flashing at the same time,
now the style will be start with A.B.C. on if you press
the key in the chord area on Piano.
Press the [START/STOP] button again to stop style
play and turn off the A.B.C. function at the same time.
""
There are 20 styles in total. (See APPENDIX 2).
STYLESTYLE
SONGSONG
VOICEVOICE
VOICE STYLE SONG
Style flag Style number
Select the style
VOICE STYLE SONG
Enter " SYNC START " mode
Chord area
15
Start/Stop The Style
VOICE STYLE SONG
VOICE STYLE SONG

ACC
VOL
START
/STOP
ACC
VOL
START
/STOP
ACC
VOL
START
/STOP
ACC
VOL
START
/STOP
In NORMAL mode, press the [FILL A/FILL B] button
to insert 1 measure fill and the FILL A/FILL B indicator
is flashing, after one measure is over, NORMAL style
will be returned.
In VARIATION mode, press the [FILL A/FILL B] button
to insert 1 measure fill and the [FILL A/FILL B]
indicator is flashing, after one measure is over,
VARIATION style will be returned.
When power is on, the preset style mode is NORMAL
mode.
Press the [ACC VOL] button, LED displays the current
volume temporarily.
You can use the [+] / [-] button to adjust the volume
from 0 ~ 31. (Default Accomp Value is 24) The ACC
VOL indicator is flashing at the same time.
When power is on, the ACC VOL indicator is on.
In ACC VOL mode, press the [+] and [-] buttons
synchronously can mute the accompaniment, the ACC
VOL indicator goes off at the same time; If you press
the [+] and [-] buttons again synchronously can open
the accompaniment, the ACC VOL indicator is lightened
at the same time.
Preset style mode is NORMAL
mode, the indicator is off.
Style is not playing:
Style is playing:
The indicator is flashing, after a
measure is over, the indicator is
on, enter VARIATION mode.
The indicator is flashing, after a
measure is over, the indicator is
off, enter NORMAL mode.
Press and enter VARIATION
mode, the indicator is on.
VOICE STYLE SONG
The indicator is on.
The indicator
is flashing.
The indicator
goes off.
Display current volume.
Adjust the
volume
Press them
together.
Press them
together.
VOICE
VOICE
STYLE
STYLE
SONG
SONG
VOICE STYLE SONG
Display default tempo.
- TRANSPOSE + - TEMPO +
VOICE STYLE SONG
Display current tempo
Adjust the tempo from 30~280.
Use the [TEMPO+] or [TEMPO-] button to adjust the
tempo from 30 to 280.
Press the [TEMPO+] and [TEMPO-] synchronously to
set to the default tempo.
When the style is not playing, it will take out the default
tempo of the style if you select the style.
When the style is playing, it will keep the current tempo
once you change the style.
2
2
2
3
3
3
4
1
1
1
16
Tempo
FILL IN A/B
Accomp Volume
- TRANSPOSE + - TEMPO +
ACC
VOL
START
/STOP
ACC
VOL
START
/STOP
ACC
VOL
START
/STOP
ACC
VOL
START
/STOP
ACC
VOL
START
/STOP

ACC
VOL
START
/STOP

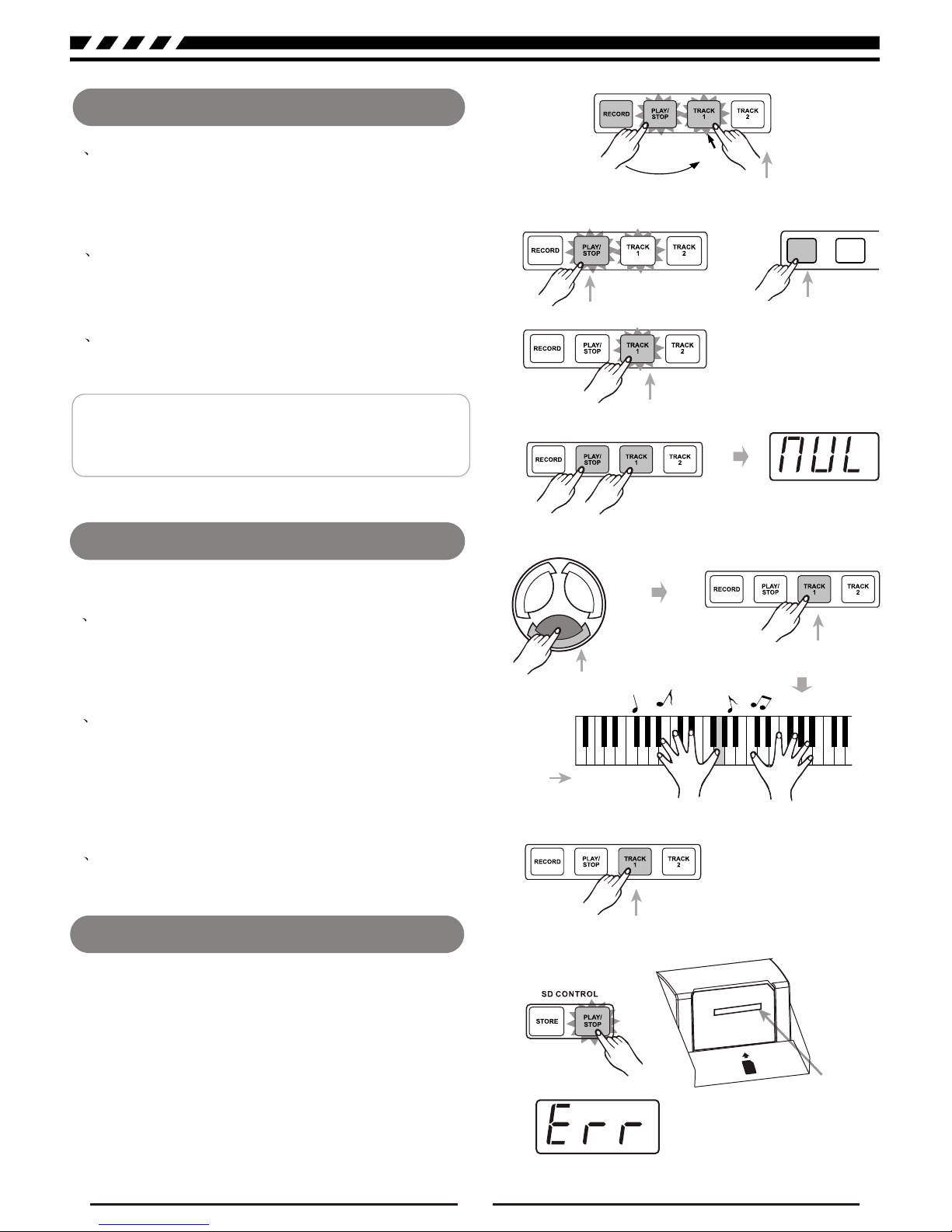

Record
There are one user song can be recorded, include
2 Melody Tracks.
Waiting for recording:
Press the [RECORD] button for the first time to
enter the record mode.
The RECORD indicator flashes, four beats flashes
synchronously to indicate waiting for recording.
At the same time an empty track will be selected to
be recorded automatically and relative track flag
flashes (the selection order is Track 1,Track 2, the
Track 1 will be selected while neither the tracks is
empty )
You also can press the [TRACK 1] or [TRACK 2]
button to select the track you want to record.
Start recording:
When 4 beats flashes on LED, you can play the
keyboard directly to start recording, the RECORD
indicator turns on, the track flag that you select is
still flashing.
When 4 beats flashes , you can also press the
[START/STOP] button, open the A.B.C. and start
record.
Press the key in the left area and sync start style,
then style data are recorded to the correspond track.
If the two tracks all have style data, it plays follow
with the track you newly record.
Stop recording:
Press the [RECORD] button for the second time to
stop recording. LED display and indicator get
back to the previous mode.
If the capacity is full while recording, the recording
will be stopped automatically with the FUL display
on LED.
Enter the record mode,
the indicator is flashing.
The indicator turns on.
The indicator is off.
Play the keyboard to start recording.
Select the record track,
the indicator will flash.
The indicator will still flash.
The indicator turns on.
Four beats flashes synchronously
to indicate waiting for recording.
NOTE:
The recorded data will not be lost when you turn off the
power.
Hold on the [+] and [-] button together and power on
the piano,it will erase all the recorded data.
Open A.B.C. and start record
Chord area
NOTE:
when entering record mode, the old data of the selected
track will lost.
VOICE STYLE SONG
2
3
1
17
VOICE STYLE SONG
Record Song
Get back to previous mode.
VOICE STYLE SONG

ACC
VOL
START
/STOP
Press the [PLAY/STOP] button for the first time
to playback the record data, you can choose any
one track or all two tracks to play, the indicator is on.
Press it for the second time or press the [START/STOP]
to stop playback.
You can press the [TRACK 1] and [TRACK 2] button to
turn on or off the relative track in process of playback.
Enter the lesson mode,
the indicator turns on.
Exit the lesson mode,
the indicator turns off.
SD SLOT
Stop playback record.
VOICE STYLE SONG
2
2
3
3
1
1
Lesson
SD Function
In song mode, press the [TRACK1] button to enter the
lesson mode.
When you press the [TRACK1] button, the [TRACK1]
indicator turns on, it will mute the melody of the song,
then you can play the Piano to practise the song you
want.
You press again the [TRACK1] button, the [TRACK1]
indicator goes off.
STYLESTYLE
SONGSONG
VOICEVOICE
Enter the song mode.
Play the keyboard to practise the song,
and the melody of the song will be muted.
There is a standard SD external interface which supports
the cards of 16M ~ 2G capacity. It is compatible with
the file system format of the FAT 16/32.
Press one of the 2 SD buttons [PLAY], [STORE] to
enter the relative function mode.
If there is no card, "ERR" will display 2 seconds.
VOICE STYLE SONG
18
Playback Song
Then, select the track,
the indicator is on.
Enter the record playback
mode, the indicator is on.
Stop playback record.
Turn on or off the track.
If there is no record data when you press [PLAY/STOP]
LCD will display "NUL" temporarily.
NOTE:

START
/STOP
ACC
VOL
SD card function
PLAY can play midi file at the root directory in SD,
support format 0 and format 1.
STORE can save the recorded data to SD root directory
as midi file which can be played on MIDI player.
SD button
In the SD mode, it won't respond to the other button
except [VOICE],[STYLE], [SONG].
It can play MIDI file and save recorded data at the root
directory.

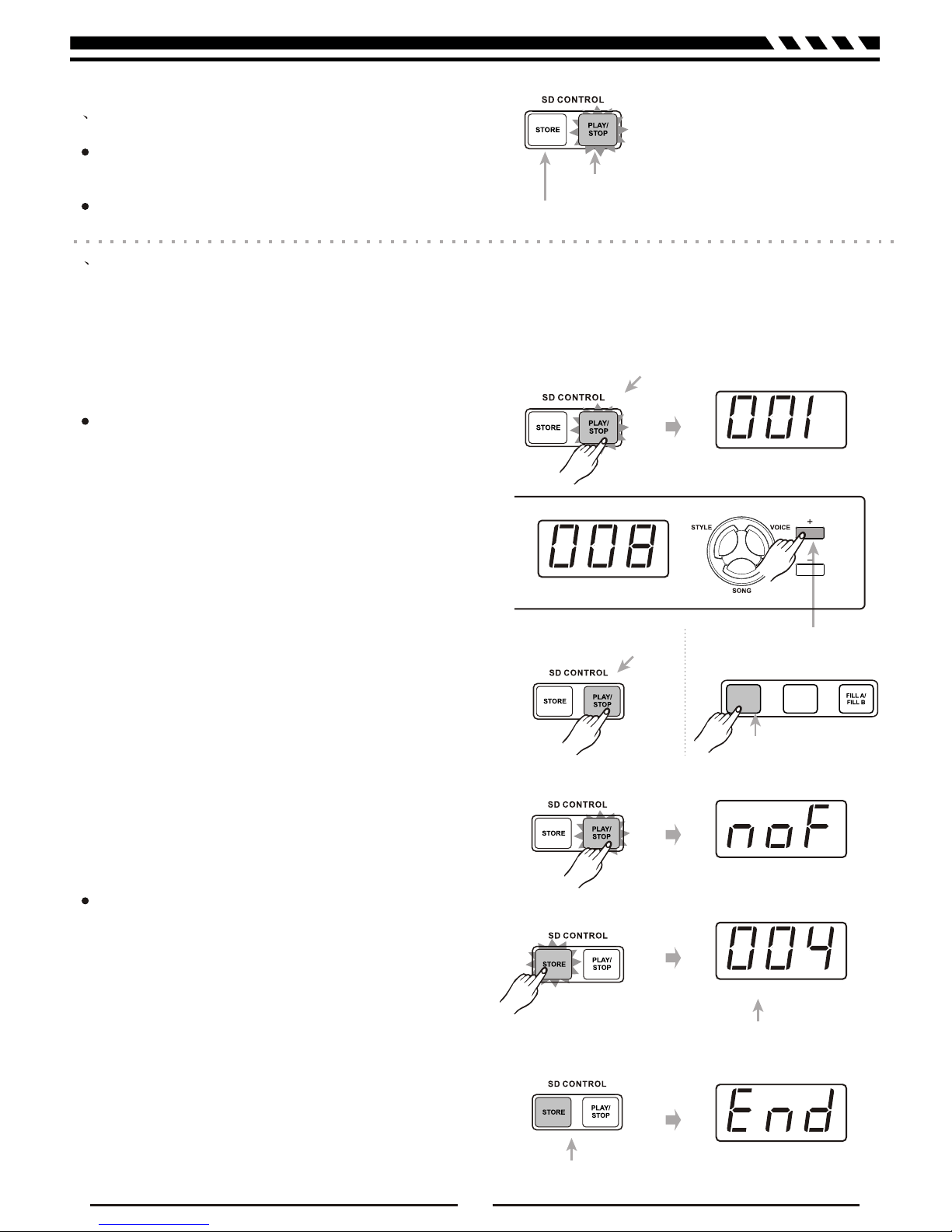

Play
When power is on, press the [PLAY] button to play all
files at the root directory in SD card and the PLAY
indicator is on.
In the SD mode, you can select the midi file with [+]
or [-] button. The default file number is 001.
When playing the midi file, you can press the [PLAY] or
the [START/STOP] button to stop playing.
Press the [START/STOP] button again to start to play it
repeatedly.
Press the [PLAY] button when there is no midi file in the
SD card, LED display "noF", then the display will get back
to previous mode in 2 seconds.
Store
When power is on, press the [STORE] button to enter
store mode and the STORE indicator is on.
It can save the recorded data to SD root directory as
midi file, midi file name is generated by system automa-
tically to avoid same name.
If the SD card capacity is full, it will stop saving
automatically and display "FUL". Then exit the store
mode and return to the previous mode.
After saving, the indicator of the [STORE ] button goes
off, LED will display "End" temporarily which means
saving be over and succeed.
VOICE STYLE SONG
Play midi file at the root directory in SD.
Play all files and indicator is on.
Enter store mode and indicator is on.
After saving, indicator goes off.
The midi file name is generated
by system automatically.
Stop playing.
No midi file in the SD
Select the midi file to play.
Start or stop playing the midi file.
Save the recorded data to SD root
directory as midi file.
VOICE
VOICE
VOICE
VOICE
STYLE
STYLE
STYLE
STYLE
SONG
2
1
19
SONG
SONG
SONG

20
Press this button, the channel indicator is on,
you can select any channel that you want from
1-16 by pressing the [+], [-] or numeric button.
Midi Controler
Under MIDI controller mode, other buttons all
have no effect except four MIDI controller, [+]/[-]
numeric button, the VOICE/STYLE/SONG button.
When power on the piano, press one of the
[COMMAND], [VALUE], [CHANNEL] and
[MIDIOUT] MIDI controller to enter into MIDI
controller mode. When in other mode, press the
[MIDIOUT] button to send out a set of default midi
control command.
Press the [VOICE ] / [STYLE ] / [SONG] button,
can exit the MIDI controller mode, return to voice,
style or song mode.
Press this button, the command indicator is on,
you can choose the related command by pressing
the [+] / [-] or numeric button.
Press this button, the MIDIOUT indicator turns on
and it send out a set of midi control command, the
indicator flashes in the process of sending out,
when it finish sen ding out, the indicator go off.
Press this button, the value indicator is on, you
can set the value by pressing the [+], [-] or numeric
button.
+
Exit the MIDI
controller mode
into midi controllermode
finish sending out
Summarize
Command
MIDI OUT
Value
Channel
