Medline AEROMIST COMPACT HCS70004RD User manual

AEROMIST
COMPACT®

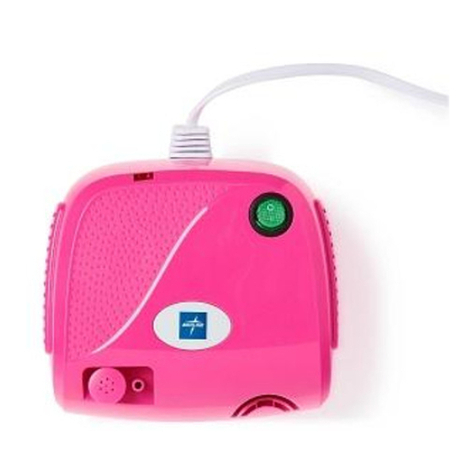

NEBULIZER COMPRESSOR KIT
INSTRUCTION MANUAL
READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE
HCS70004RD

3
TABLE OF CONTENTS
IEC Symbols .......................................................................................................4
ImportantWarnings.........................................................................................4
Introduction .....................................................................................................5
Specifications ...................................................................................................6
Description .......................................................................................................7
Operation Instructions ..................................................................................8
Cleaning ...........................................................................................................9
Maintenance ...................................................................................................9
Trouble Shooting Guide ..............................................................................10
Warranty ..........................................................................................................11

4
IEC SYMBOLS
IMPORTANT WARNINGS
Caution, Attention or Consult accompanying documents ............
Type BF Equipment ..............................................................................
Alternating Current ............................................................................
Double Insulation .................................................................................
Indoor Use Only ...................................................................................
Caution:
1. Federal Law (USA) restricts this device for sale or use on the order of a
physician.
2. Follow the instructions of your physician to operate this unit.
3. This product is a nebulizer for the inhalation of medical aerosols and is
suitable for all commonly used solutions. Use only the type and amount of
medication prescribed by your doctor
4. This product is intended for aerosol therapy only. Any other use is not recom-
mended .
5. Do not untwist the jet nebulizer during operation.
6. Do not pour more than 10 mL of solution into the jet nebulizer.
Danger: To Reduce the risk of electrocution
7. Always unplug the unit immediately after using.
8. Do not use while bathing.
9. Do not place or store the unit where it can fall or be pulled into a tub
or sink.
10. Do not place or drop into water or other liquid.
11. Do not reach for a product that has fallen into water. Unplug immediately.

5
Warning: To Reduce the risk of burns, electrocution,
fire or injury
1. Electrical Shock Hazard - do not remove the cabinet or open the cover.
2. Disconnect the power cord from the electrical outlet before cleaning or
servicing.
3. Do not place this equipment near hot, sparking or burning objects.
4. Do not use oil or grease on or near this device .
5. Turn the unit off when it is not in use.
6. Keep the cord away from HEATED or HOT surfaces.
7. NEVER drop or insert any object into any opening.
8. NEVER block the air openings of the product or place it on a soft surface, such
as a bed or couch, where the air opening may be blocked.
9. Avoid operating in wet or damp locations.
10. Unplug the unit before filling the nebulizer.
Warning: To Reduce the risk of infection:
Cleaning of the nebulizer is recommended after each aerosol treatment.
Disinfecting is recommended once a day. Please follow cleaning and disinfecting
instructions in this manual.
INTRODUCTION
This compressor nebulizer is designed to deliver the prescribed medication
solution to treat your respiratory disorders: such as asthma, allergies, and
bronchitis. The nebulizer converts the medication solution into an aerosolized
mist which is inhaled by the patient through the mouthpiece . Read this manual
thoroughly before using the nebulizer and save for future reference.

6
SPECIFICATIONS
Items HCS70004RD
Current 120V/60HZ
Power consumption 180 VA Max
Nebulize Cup #30503
Operation air pressure 9 - 16 Psi (62 - 110 kPa)
Max air pressure 35 - 50 Psi (241 - 345 kPa)
Operation Air Flow 5.0 - 8.0 Lpm
Nebulizer rate ≥ 0.18mL/min (water)
Noise level ≤ 55 dB
Operation R.H. 30 - 85% RH
Operation temperature 10 - 40°C (50 - 104°F)
Storage R.H. 30 - 85% RH
Storage temperature -20 - 70°C (-4 - 158°F)
Dimensions(L×W×H) 150 × 140 × 90 mm
Weight 1.2kg
(1). Conditions may vary based on altitude above sea level, barometric
pressure air temperature. Specifications subject to change without
notice.
(2).Nebulizer specifications may vary with the kind of medication being
used and its viscosity.
(3). For electromagnetic compatibility the standards are based as follow:
IEC/EN 60601-1-2.
(4). Protection against electric shock is classified as Type II.
(5). Degree of protection against electric shock is classified as Type BF.
(6). Equipment not suitable for use in the presence of a flammable
anesthetic mixture with air, oxygen, or nitrous oxide.

7
DESCRIPTION
Power Cord
Power Switch
Air Outlet
Connector
Compressor
Filter Cap
Mouthpiece
+ reservoir
tubing
Jet Nebulizer
Cap Foam Filters
Tubing
Jet Nebulizer
Chamber
Air Inlet
Connector
Baffle

8
OPERATION INSTRUCTIONS
1. Place compressor on a stable, sturdy and flat surface such that the unit can be
easily reached when you’re seated.
2. Make sure the compressor is off by pressing the power switch to the
“OFF” (O) position.
3. Plug power cord into a wall outlet.
4. Connect one end of the tubing into the compressor air outlet connector.
5. Add the prescribed solution through the opening on jet nebulizer cap using an
eye dropper or pre-measured dose container.
6. Assemble mouthpiece onto the top of the jet nebulizer cap. If an aerosol mask
is used, connect the bottom of mask to the top of jet nebulizer cap.
7. Connect tubing to jet nebulizer air inlet connector.
8. Turn the compressor on by pressing power switch to “ON” (I) position.
9. Implement the treatment by placing the mouthpiece between the teeth.
Inhale and exhale through the mouthpiece .
10. If an aerosol mask is used, place the mask over the mouth and nose.
NOTE: The compressor motor has a thermal protector which will shut off the
unit before the unit overheats . When the thermal protector shuts the unit off:
1) Switch off the unit, 2) Unplug the unit from the electrical outlet, 3) Wait 30
minutes for the motor to cool down before another treatment .

9
CLEANING
MAINTENANCE
1 . Turn the power off and unplug the compressor power cord from the wall
outlet.
2. Remove the tubing from the air inlet.
3. TO CLEAN: Disassemble mouthpiece, jet nebulizer cap, chamber and baffle,
and wash these items in hot water with dish-washing detergent. Rinse these
items thoroughly to remove the detergent and let air dry.
4. TO DISINFECT: Mix 1/4 cup of white vinegar with 3 /4 cup hot water in a clean
container . Submerge mouthpiece, T-piece, nebulizer cap, chamber and baffle
for 30 minutes in the solution. Remove from solution and let air dry.
5. There is no need to clean the tubing . If necessary wipe the surface regularly.
CAUTION: The jet nebulizer must be changed if it gets clogged.
CAUTION: The nebulizer and accessories must not be boiled.
1 . The air compressor filter should be replaced when it turns gray.
Additional filters can be purchased from your dealer.
2. Only authorized personnel shall make repairs to this product.
CAUTION: The nebulizer may be damaged if used with a dirty filter or if the
filter is replaced by other material such as cotton . Do NOT operate without a
filter.

10
TROUBLE SHOOTING GUIDE
If a problem occurs during operation, please check and correct the following
points:
SYMPTOM POSSIBLE
CAUSE
SUGGESTED
SOLUTIONS
When switching
it on, it does not
work.
Incorrectly plugged. Check if the unit is
properly connected.
The mist does not
come out from
the jet nebulizer/
aerosol output
reduced (low) .
1 . Incorrect amount of medi-
cation in the jet nebulizer.
2. Tubing disconnected.
3. The jet nebulizer is not
creating mist.
4. The air filter is clogged.
1. The jet nebulizer’s
maximum capacity
is 10mL. Adjust the
volume until the
nebulizer functions
correctly.
2. Connect the tubing.
3. Replace the jet
nebulizer.
4. Replace the air filter.

11
WARRANTY
Medline Industries, Inc. warrants the nebulizer compressor to be free from
defective workmanship and materials for a period of (5) years from the date of
purchase. Check with your dealer for more details. This warranty is limited to
the original purchaser of the compressor. Any defective part or assembly will
be repaired or replaced, at the sole discretion and determination of Medline In-
dustries, Inc., if the unit has been properly operated during the warranty period.
Normal maintenance items and disposable components are not covered by this
warranty. Shipping charges, if any, shall be paid by the purchaser.
NOTE: There is no other express warranty. Implied warranties, including those of
merchantability and fitness for a particular purpose, are limited to the duration
of the express limited warranty and to the extent permitted by law and all im-
plied warranties are excluded. This warranty does not cover providing a loaner
compressor, compensating for costs incurred for compressor rental, or labor
costs incurred in repairing or replacing defective part(s) .
www.medline.com
Aeromist Compact® and Medline are registered
trademarks of Medline Industries, Inc.
Manufactured for: Medline Industries, Inc.
Three Lakes Drive, Northfield, IL 60093 USA
Product of China. Packaged in China.
1-800-MEDLINE V3 RK20ZBI
