MegaLite PAN T BOT User manual

Table of Contents
Safety Information 2
Technical Information 3
Main Power Connection 4
DMX-512 Connection 4
Segment Position 5
Size and Weight 6
Main Control Menu 7
DMX Profile 9
Item List 12
Rigging the Fixture 13
Cleaning & Maintenance 13
USER MANUAL

2
Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 2 foot distance from any type of flame.
2. For indoor use only do not expose unit to rain or moisture.
3. Replace fuse only with the specified type and rating.
4. Do not install the unit to close to a heat source.
5. Make sure cable are properly secured
6. Maximum surface operating temperature 130º.
Protection Against Electrical Fire
1. Disconnect power before servicing.
2. For connection to main power supply proceed to page 5.
3. This unit must be earthed. (electronically grounded)
4. This fixture must not be left on for long periods of time.
Protection Against Mechanical Hazards
1. Use secondary safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit while it is on, risk of electrical shock.
Check that the unit has not been damaged during transport
Protection Against Fire
Protection Against Electrical Fire
Protection Against Mechanical Hazards
What is Included
1pc Pan T Bot Fixture
1pc Power Con (type) to Nema 5-15 Cable
2pc Quick Connect Clamp Mounts
1pc User Manual

Technical Information
3
Part Numbers
Fixture Road Case
1187-Pan T Bot CAS-1187-2 2 Unit Road Case
Mechanical Specifications
Pan Angle: 540° 8/16 bit
Tilt Angle: 270° 8/16 bit
DMX Connectors: Panel Mounted 3 and 5-pin XLR connectors in/out
Artnet Connection: Panel Mounted RJ45 In and Out
Power Connections: Panel Mounted Power Conn (Type) Power in/out connection. (Nema 5-15 to Power Conn (Type) cable included)
Thermal: Maximum ambient temperature 104°f
Maximum surface temperature 140°f
Display:Digital
Fastening System: 2 Quick Connect Clamp Mount
Lens Angle: 89° RGB Emitters, 40° White Emitters
Electrical Specifications
LED: 960 RGB 0.5 Watts / 300 White 1 Watt (6670K)
Lumen Output: 28,595lm (All Emitters)
Power Input: Universal 100 - 240V 50/60 Hz
Color Rendering: 6911K (White Center Emitter Only)
Ballast: Electronic
Power Consumption:
Watts: 590W
Amps: 5.04A @110V
RDM: Yes
Protocol: DMX 512
RDM: Yes
DMX Channels: 2 Modes of Operation
Mode: 23 Ch: Pan, Pan Fine, Tilt , Tilt Fine, Pan and Tilt Speed, Dimmer, Red, Green, Blue, Strobe, Shutter Macro, Macro Speed,
Color Macro, Macro Speed, Alpha numeric Display, Background Red, Background Green, Background Blue, White Dimmer, White
Strobe, White Macro, Macro Speed, Control
Mode: 256 Ch: Pan, Pan Fine, Tilt , Tilt Fine, Pan and Tilt Speed, Control, RGB X 80, White X 10
Operating Mode: Stand alone 255 step dimmer setting via display
Auto preprogram via display
Control & Programming

4
Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit has Auto switching power supply. It will respond to 110V or 240V automatically
3. This unit must be earthed. (electronically grounded)
4. Replace fuse only with the specified type and rating.
5. Power Link max 3 units at 110V and 6 units at 220V.

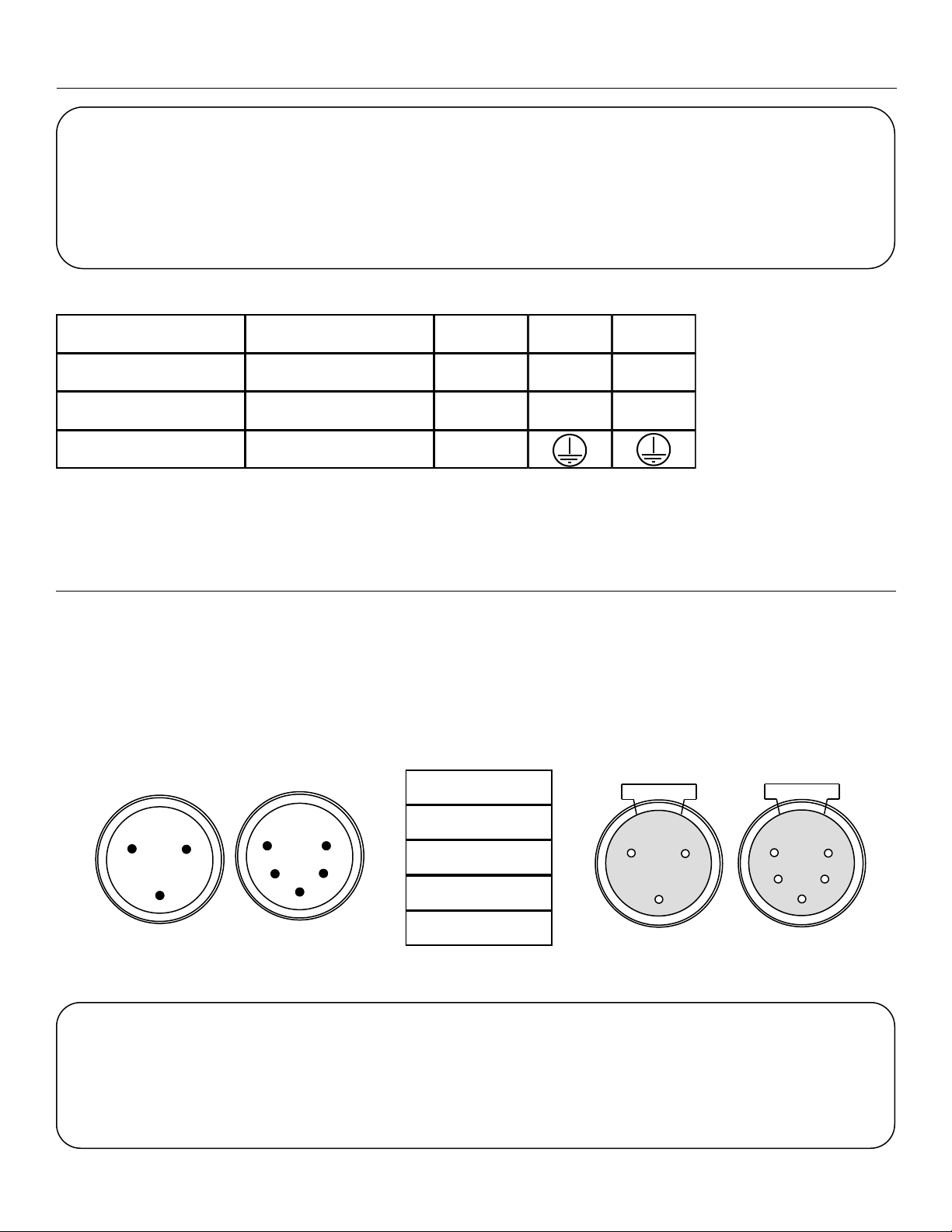

The occupation of the connection-cable is as follows:
DMX-512 Connection
This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120 Ohm re-
sistor between the (-) and the (+) signal into a 3 or 5 pin XLR plug and plug it in to the last fixture
on the signal run. Pre-manufactured terminator plugs are available for purchase from your Mega-
Lite dealer (P-DMXT).
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
220V
L
L
The fixture is equipped with 3 & 5 pin XLR cable mounted sockets for DMX input and output. The sockets are wired in
parallel. Only use a shielded twisted pair cable designed for RS-485 3 and 5 pin XLR plugs and connectors in order to
connect the controller with the fixture or the fixture with another.
DMX—Input DMX—Output
1. Shield
2. Signal (-)
3. Signal (+)
4. N/A
5. N/A
2
3
15
3
4
2
11
2
3
1
2
3
4
5

Segment Positions
12345678910
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
31 32 33 34 35 36 37 38 39 40
1
White
2
White
3
White
4
White
5
White
6
White
7
White
8
White
9
White
10
White
41 42 43 44 45 46 47 48 49 50
51 52 53 54 55 56 57 58 59 60
61 62 63 64 65 66 67 68 69 70
71 72 73 74 75 76 77 78 79 80
5

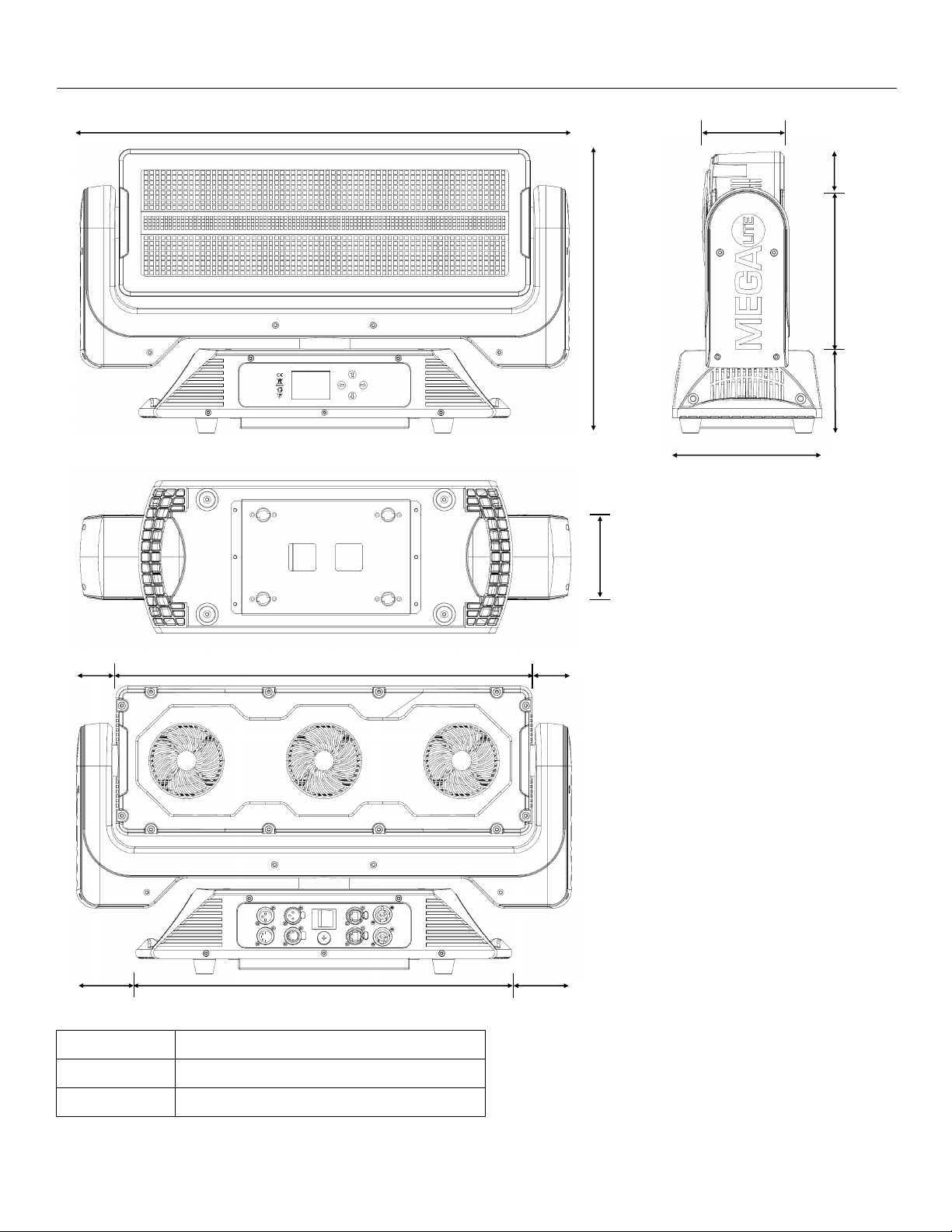

Size and Weight
6
Size 24.5" X 7.6" X 14.5"
Weight 36lb
Packaged 28" X 18" X 11.5" 38.6lb
7.6”
4.4”
24.5”
14.5”
20.9” 1.8”1.8”
4.3”
8.35”
19” 2.75”
2.75”
4.2”
1.85”

Main Control Menu
The control board on the fixture is your interface to access and control
all the functions on the unit. Its digital display gives you a code view of
the options and functions. The following will explain each function and
its options.
7
18668 Highway 16 N Helotes TX 78023
866-460-MEGA www.mega-lite.com
001
DMX
CH15
DMX Address
Press Home button. Use the up/down to select the DMX Address function
press Enter to engage
Use the up/down arrows to select the desired DMX start Channel. Please con-
sult your DMX Controller's Manual to find the correct DMX Start Channel
Systems Settings
DMX Address
Mode
Settings
System Info
001
23Ch
001
Mode
DMX: Allows you to select from the DMX Channel control method, Linebot offers 2 control methods Standard 15 Ch
and Extended 63 Ch. Please select one
Mode: 23 Ch: Pan, Pan Fine, Tilt , Tilt Fine, Pan and Tilt Speed, Dimmer, Red, Green, Blue, Strobe, Shutter Macro, Macro Speed, Color Macro, Mac-
ro Speed, Alpha numeric Display, Background Red, Background Green, Background Blue, White Dimmer, White Strobe, White Macro, Macro Speed,
Control
Mode: 256 Ch: Pan, Pan Fine, Tilt , Tilt Fine, Pan and Tilt Speed, Control, RGB X 80, White X 10
Auto: Allows you to select from the 17 preprogram patterns that are built into the fixture. It also allows you to control
the speed of those programs from 01 to 99
Manual: Allows you to control each of the fixtures functions via the display menu. Control from 000 to 255 for each func-
tion
(note if fixture is powered off and back on the fixture will return to the last set mode function)
Remote: Fixture will copy the same functions as the Main unit. (Master Fixture must be in home screen setting to en-
gage)
Systems Settings
DMX Address
Mode
Settings
System Info
001
255Ch
Press Home button. Use the up/down to select the Mode function press Enter
to engage. Select from the 2 different operating modes.
DMX DMX 23Ch
Auto PRO 01 SP 90
Manual
Remote

8
Settings
Artnet: Please follow your lighting controllers instruction for artnet connection. As each controller has different
procedure for connection. (note: Fixture has a maximum 16 universe setting)
For Mega Control settings please set fixture to this setting:
IP Address
002.168.052.253
SubNet Mask
255.000.000.000
Net 000 Subnet 000
Universe 01
Display: Display On will keep the display on for the entire time the fixtures is powered on. Display Off will auto-
matically turn off the display if there is no changes after 30sec.
Display Rev: Allows you to select from the 17 preprogram patterns that are built into the fixture. It also allows you to
control the speed of those programs from 01 to 99
Pan Rev: Inverts Pan Position
Tilt Rev: Inverts Tilt Position
DMX Fail: This function will allow you to set a default setting if the DMX signal is ever lost or stops working.
Black Out: Will set all channel to 000 and turn light off
Manual: Will go to the set position set on your manual display setting
Auto: Will go to the selected Auto Preset and speed setting set in your auto option
Hold: Will hold last DMX commend until a new command signal is received
Language: Select ether English or Chinese
Systems Settings
DMX Address
Mode
Settings
System Info
001
23Ch
Press Home button. Use the up/down to select the Settings function press En-
ter to engage. Select from the 5 different setting options.
Artnet
Display On
Display Rev Off
Pan Rev N
Tilt Rev N
DMX Fail Bl
Language
Press Home button. Use the up/down to select the System Info function press
Enter to engage. Receive information on 3 different parameters
Firmware V1.1
Time Info 100H
Temp: B38C
Systems Settings
DMX Address
Mode
Settings
System Info
001
23Ch
System Info
Firmware: Gives you information on the software version being used in the fixture.
Time Info: Provides information on the fixture usage, by counting the hours the fixture is powered on
Temp: Gives you fixture internal temperature information.

9
DMX Profile
Pan T Bot 23Channel Mode
DMX Channel Function Description Value Init
1Pan Pan 0-255 127
2Pan Fine Pan Fine 0-255 127
3Tilt Tilt 0-255 127
4Tilt Fine Tilt Fine 0-255 127
5Speed Pan and Tilt Speed (fast to slow) 0-255 0
6Dimmer Dimmer (off to full) 0-255 255
7LED Color Red LED Intensity 0-255 255
8LED Color Green LED Intensity 0-255 255
9LED Color Blue LED Intensity 0-255 255
No Function 0-1
Strobe (slow to fast) 2-127
10 Strobe Strobe Pulse (slow to fast) 128-170 0
RGB Random Strobe All (slow to fast) 171-213
Random 1-80 Strobe (slow to fast) 214-255
No Function 0-1
Macro 1 2-12
Macro 2 13-23
Macro 3 24-34
Macro 4 35-45
Macro 5 46-56
Macro 6 57-67
Macro 7 68-78
Macro 8 79-89
Macro 9 90-100
Macro 10 101-111
11 Shutter Macro Macro 11 112-122 0
(Select Color) Macro 12 123-133
Macro 13 134-144
Macro 14 145-155
Macro 15 156-166
Macro 16 167-177
Macro 17 178-188
Macro 18 189-199
Macro 19 200-210
Macro 20 211-221
Macro 21 222-232
Macro 22 232-255
12 Macro Speed Shutter Macro Speed (slow to fast) 0-255 0
No Function 0-1
Macro 1 2-12
Macro 2 13-23
Macro 3 24-34
Macro 4 35-45
Macro 5 46-56
Macro 6 57-67
Macro 7 68-78
Macro 8 79-89
Macro 9 90-100
Macro 10 101-111 0
13 Multy Color Macro Macro 11 112-122
Macro 12 123-133
Macro 13 134-144
Macro 14 145-155
Macro 15 156-166
Macro 16 167-177
Macro 17 178-188
Macro 18 189-199
Macro 19 200-210
Macro 20 211-221
Macro 21 222-232
Macro 22 232-255
14 Macro Speed Color Macro Speed (slow to fast) 0-255 0

10
No Function 0-1
02-6
17-12
213-18
319-24
425-30
531-36
637-52
743-48
849-54
955-60
A61-66
B67-72
C73-78
D79-84
E85-90
F91-96
G97-102
H103-108
15 Alpha Numeric I109-114 0
Display J115-120
K121-126
L127-132
M133-138
N139-144
O145-150
P151-156
Q157-162
R163-168
S169-174
T175-180
U181-186
V187-192
W193-198
X199-204
Y205-210
Z211-216
Right Arrow 217-222
Down Arrow 223-228
Up Arrow 229-234
Left Arrow 235-255
16 Back Red Background Red 0-255 0
17 Back Green Background Green 0-255 0
18 Back Blue Background Blue 0-255 0
19 White Dimmer White 0-255 255
No Function 0-1
Strobe (slow to fast) 2-127
20 Strobe Strobe Pulse (slow to fast) 128-170 0
Random Strobe All (slow to fast) 171-213
Random 1-10 Strobe (slow to fast) 214-255
No Function 0-1
Macro 1 2-19
Macro 2 20-39
Macro 3 40-59
Macro 4 60-89
21 White Macro Macro 5 90-109 0
(Responds to Macro 6 110-139
White Dimmer) Macro 7 140-159
Macro 8 160-189
Macro 9 190-209
Macro 10 210-239
Macro 11 240-255
22 Macro Speed White Macro Speed (slow to fast) 0-255 0
23 Control No Function 0-127 0
Reset 128-255

11
Pan T Bot 256 Ch Mode
DMX Channel Function Description Value Init
1Pan Pan 0-255 127
2Pan Fine Pan Fine 0-255 127
3Tilt Tilt 0-255 127
4Tilt Fine Tilt Fine 0-255 127
5Speed Pan and Tilt Speed (fast to slow) 0-255 0
6Control No Function 0-127 0
Reset 128-255
7LED Color White 1 0-255 0
8LED Color White 2 0-255 0
9LED Color White 3 0-255 0
10 LED Color White 4 0-255 0
11 LED Color White 5 0-255 0
12 LED Color White 6 0-255 0
13 LED Color White 7 0-255 0
14 LED Color White 8 0-255 0
15 LED Color White 9 0-255 0
16 LED Color White 10 0-255 0
17 LED Color Red 1 0-255 0
18 LED Color Green 1 0-255 0
19 LED Color Blue1 0-255 0
20 LED Color Red 2 0-255 0
21 LED Color Green 2 0-255 0
22 LED Color Blue 2 0-255 0
" " " " " " " "
251 LED Color Red 79 0-255 0
252 LED Color Green 79 0-255 0
253 LED Color Blue 79 0-255 0
254 LED Color Red 80 0-255 0
255 LED Color Green 80 0-255 0
256 LED Color Blue 80 0-255 0

Item List
12
Part Number Description
1187-BEZ-ARM Arm Plastic Housing
1187-BEZ-BAS Base Plastic Housing
1187-BEZ-HAN Handel Plastic Housing
1187-BEZ-HEA Rear Head Plastic Housing
1187-BEZ-LEN Front Head Plastic Housing
1187-BEZ-YOK Yoke Plastic Housing (single piece)
1187-FAN-60 60mm Fan
1187-FAN-90 90mm Fan
1187-LED-MOD-RGB Led Module RGB
1187-LED-MOD-WHI Led Module White
1187-LED-RGB Single LED RGB
1187-LED-WHI Single LED White
1187-MOT-PAN Pan Motor
1187-MOT-TIL Tilt Motor
1187-PCB-DRI-WHI LED PCB for White Driver
1187-PCB-MAI Main PCB
1187-PCB-VOL Voltage Distribution PCB
1187-POW Power Supply
CAS-1187-2Dual Road Case

Cleaning and Maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and
electronics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.
Note: There is no serviceable parts inside the device. Maintenance and service operations are to be carried out by au-
thorized dealers.
Replacing the fuse: When possible only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized
dealers or trained professional only.
Should you have further questions , please contact your dealer.
13
Rigging the Fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injuries if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector
has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least once a year by a skilled person.
Unit can be installed in any of these directions

14

Mega-Lite
18668 Highway 16N
Helotes, Texas 78023
Ph 210-684-2600 Fax [phone]
www.mega.lighting / [email protected]g
Customer Support
Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob-
lem. Please visit our website for any other related technical documents. For service related issue please contact our
service dept.
Monday—Friday 9am to 6pm CST
Phone: [phone]
E-mail: [e-mail]
Document
Version Date Fixture Soware Notes
1.0 01/10/2023 V1.0
Manual Version
Please Visit www.mega.lighting for the most up to date manual version
