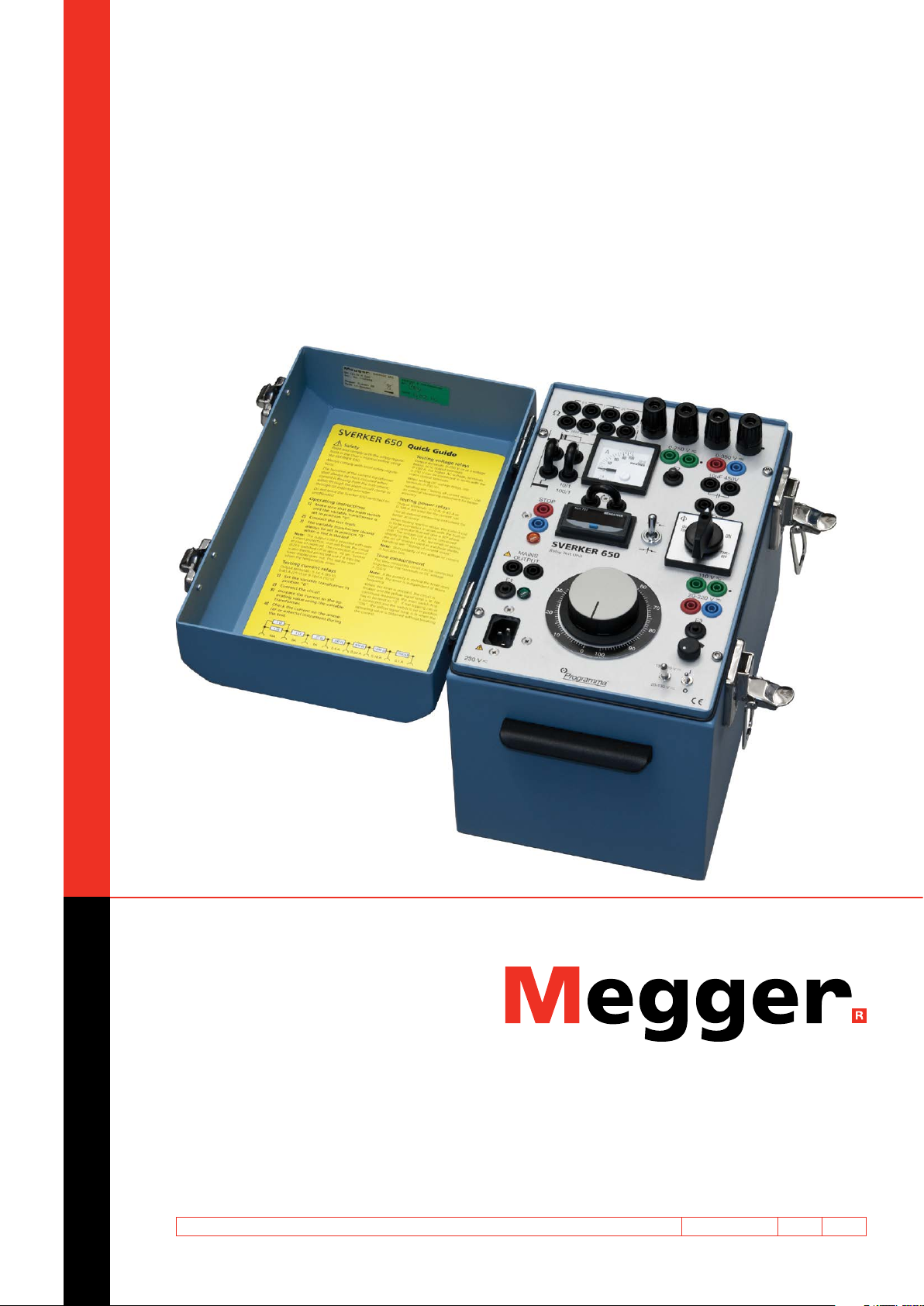

Megger SVERKER 650 User manual

WWW.MEGGER.COM
User’s Manual
SVERKER 650
Relay Test Unit
Art No. ZP-BA01E Doc. BA0143KE V04A 2016

Contents
1 Safety
............................................................. 4
1.1 Symbols on the instrument ..........................4
1.2 Safety instructions........................................4
2 Introduction
............................................................. 6
3 Control panel
............................................................. 8
4 Operating instructions
........................................................... 10
4.1 General......................................................10
4.2 Testing current relays .................................10
4.3 Testing voltage relays .................................11
4.4 Testing power relays...................................11
4.5 Time measurement ....................................12
4.6 Time measurement of over-current and over-
voltage relays ..........................................12
4.7 Time measurement of under-current and
under-voltage relays ................................13
5 Specifications
........................................................... 14

SVERKER 650
Relay Test Unit
NOTICE OF COPYRIGHT & PROPRIETARY RIGHTS
© 2007-2015, Megger Sweden AB. All rights reserved.
The contents of this manual are the property of Megger Sweden AB. No part of this work may be reproduced or transmitted in any form or
by any means, except as permitted in written license agreement with Megger Sweden AB. Megger Sweden AB has made every reasonable
attempt to ensure the completeness and accuracy of this document. However, the information contained in this manual is subject to change
without notice, and does not represent a commitment on the part of Megger Sweden AB. Any attached hardware schematics and technical
descriptions, or software listings that disclose source code, are for informational purposes only. Reproduction in whole or in part to create
working hardware or software for other than Megger Sweden AB products is strictly prohibited, except as permitted by written license
agreement with Megger Sweden AB.
TRADEMARK NOTICES
Megger® and Programma® are trademarks registered in the U.S. and other countries. All other brand and product names mentioned in this
document are trademarks or registered trademarks of their respective companies.
Megger Sweden AB is certified according to ISO 9001 and 14001.
User’s Manual
Postal address:
Megger Sweden AB
Box 724
SE-182 17 DANDERYD
SWEDEN
T [phone]
F [phone]
[e-mail]
www.megger.com
Visiting address:
Megger Sweden AB
Rinkebyvägen 19
SE-182 36 DANDERYD
SWEDEN
BA0143KE ZP-BA01E SVERKER 650 3

4SVERKER 650 ZP-BA01E BA0143KE
1 SAFETY
1Safety
1.1 Symbols on the
instrument
Caution, refer to accompanying docu-
ments.
Protective conductor terminal.
WEEE, Waste Electrical and Electronic
Equipment. Please utilize your local
WEEE collection facilities in the dispo-
sition of this product and otherwise
observe all applicable requirements.
1.2 Safety instructions
Important
Read and comply with the following in-
structions.
Always comply with local safety regula-
tions.
Warning
High voltage/current on input/output terminals.
Do not attempt to service the instrument yourself.
Opening or removing covers may expose you to dan-
gerous voltage. If you attempt to service the instru-
ment yourself the warranty is no longer valid.
Do not use any accessories that are not intended for
use together with the instrument.
Disconnect the instrument from the mains before
cleaning. Use a damp cloth for cleaning. Do not use
liquid cleaners or aerosol cleaners.
Important
Always turn the equipment off before connecting.
The terminal of the current transformer shall always
be short-circuited when current is flowing from the
instrument, either through the short-circuit clamp or
through an external ammeter.
Always use safety connecting leads.
Always connect protective earth (ground).
Never leave the instrument unattended while it is
turned on.
Use only approved mains detachable cable set with
the instrument. Main supply cables shall be rated
for the maximum current for the equipment and the
cable shall meet the requirements of IEC 60227 or IEC
60245. Mains supply cables certified or approved by a
recognized testing authority are regarded as meeting
this requirement.

BA0143KE ZP-BA01E SVERKER 650 5
1 SAFETY
Unplug the instrument from the mains supply when it
is left unattended or not in use.
Refer all servicing to Megger authorized personnel.
If you need to return the instrument, please use either
the original crate or one of equivalent strength

6SVERKER 650 ZP-BA01E BA0143KE
2 INTRODUCTION
The SVERKER 650 is a rugged instrument but it still
should be handled with care.
The relay testing unit is electrically fully isolated in all
measuring ranges, except for the mains output. The
set of resistors is not connected with the rest of the
relay testing unit set.
When current measurement is crucial; use an exter-
nal instrument with a more accurate resolution. The
external instrument can be connected to the built-in
current transformer (terminal W2).
Relays with non-linear impedance can cause distortion
of the current. This can be restrained by connecting
a resistance (as high as possible) in series with the
primary winding of the output transformer (terminal
W1).
The output transformer is protected by a thermal
contact. If the thermal contact trips, the display of the
timer will go out. The thermal contact will be reset
automatically when the temperature drops.
The output (U6) is provided with over-current protec-
tion, that will break the circuit in case of overload.
The protection is reset if (S2) is switched off in aprox.
30seconds.
2Introduction

BA0143KE ZP-BA01E SVERKER 650 7
3 CONTROL PANEL

8SVERKER 650 ZP-BA01E BA0143KE
3 CONTROL PANEL

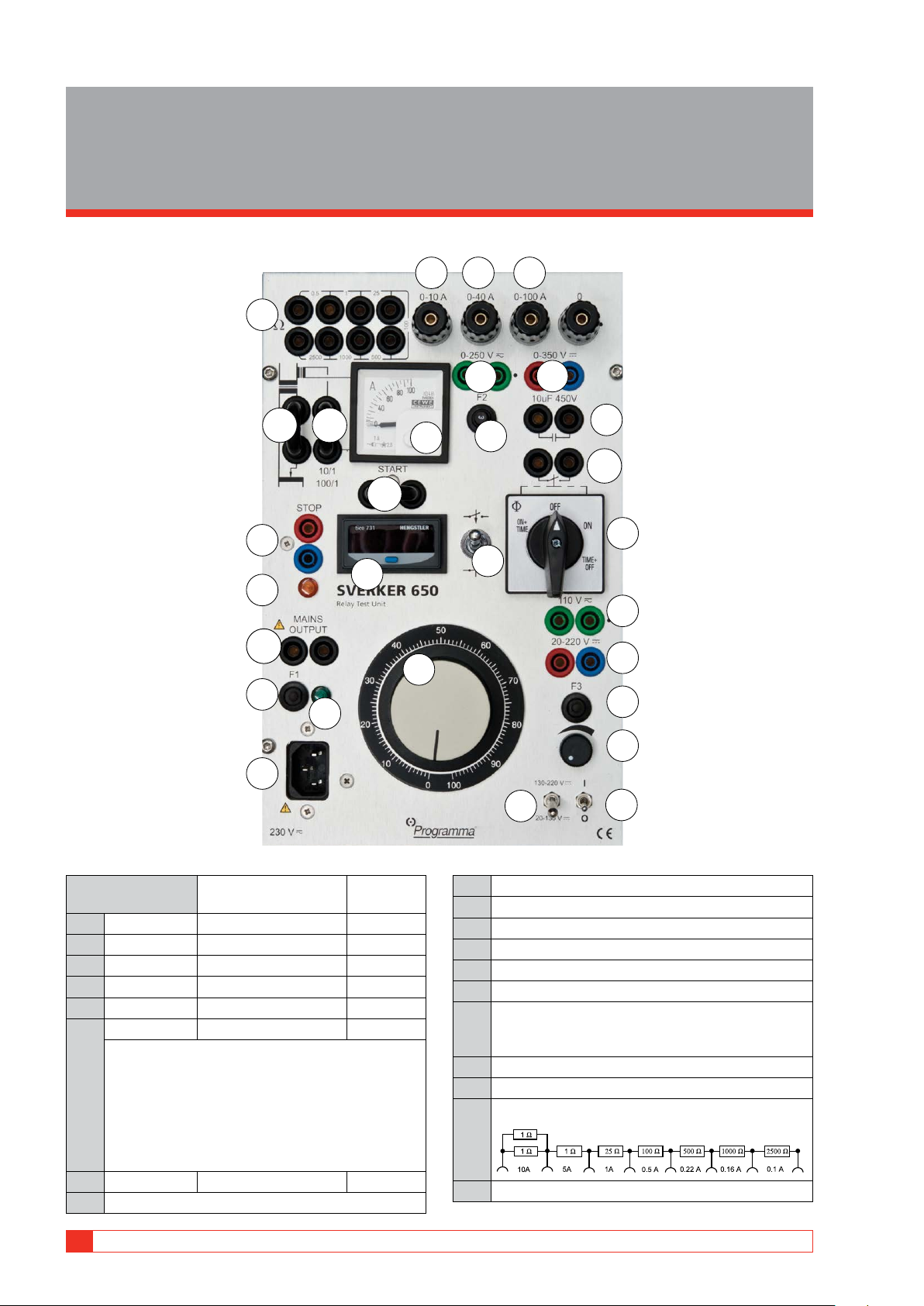

3Control panel
Terminals Unloaded
(Mains 230 V)
Settable
with
U1 0-10 A 85-90 V CA T1
U2 0-40 A 25-27 V CA T1
U3 0-100 A 10.0-11.0 V CA T1
U4 0-250 V, 3 A 250-270 V CA T1
U5 0-350 V, 2 A 350-370 V DC T1
U6 20-220 V DC R5
▪The voltage is stabilized and variable in two steps
with the switch S3.
▪Characteristics at input voltage 220 V AC + 10 %
Ripple (peak to peak) max 4 %
▪Load regulation 3 %
▪Line regulation less than 4 %
U7 110 V 0.3 A 110-125 V CA
F1 Automatic cut-out for the mains voltage, 4 A
F2 Automatic cut-out 3 A
F3 Automatic cut-out 0.5 A
E1 Green indicator for mains voltage
E2 Yellow signal lamp in the trip circuit
MI Mains input
MO Mains output
P1 Electric timer, independent of mains frequency
Measuring range 0-999.999 sec. Accuracy 0.002%
of readout +0,-2 ms
P2 Input for stop of timer
P3 Ammeter class 1.5
R Resistors
C1 Capacitor 10 F/450 V AC for reactive power relays
U1
U4
U3U2
U5
C1
F2
F3
E1
P2
U6
S2
MI
S3
U7
S1
F1
P1
R5
E2
P3
W3
W1 W2
R
S4
MO
T1
W4

BA0143KE ZP-BA01E SVERKER 650 9
3 CONTROL PANEL
S1 Main switch
S2 On/off switch for terminals U6 and U7
S3 Selector voltage range terminal U6
S4 Make/break switch for timer
R5 Voltage adjustment terminal U6
W1 Terminal for connection of a resistor on the primary
side of the output transformer
W2 Terminal for an external ammeter
W3 Terminal for external start and stop of timer
W4 Terminal for starting external operation

10 SVERKER 650 ZP-BA01E BA0143KE
4 OPERATING INSTRUCTIONS
4Operating instructions
4.1 General
Important
Read the manual and comply with the
Safety instructions, see page 5, before us-
ing SVERKER 650.
Always comply with local safety regula-
tions.
The terminal of the current transformer
shall always be short-circuited when
current is flowing from the instrument,
either through the short-circuit clamp or
through an external ammeter..
4.2 Testing current relays
1] Set the variable transformer in position “0”.
2] Connect the circuit, use output terminals
0-10 A (85 V), 0-40 A (25 V) or 0-100 A (10 V).
3] Increase the current to the operating value
using the variable transformer.
4] Check the current on the ammeter or exter-
nal instrument during the test.

BA0143KE ZP-BA01E SVERKER 650 11
4 OPERATING INSTRUCTIONS
4.3 Testing voltage relays
1] Set the variable transformer in position “0”.
2] Connect the circuit. Output terminals 0-250V,
or at a voltage below 10 V, output terminals
0-100 A. If you need a higher CA-voltage,
terminals 0-250 V can be connected in series
with the mains output terminals. When test-
ing DC-voltage relays, use terminals
0-350 V=.
3] Increase the current to the operating value
using the variable transformer.
4] Check the current on the ammeter or exter-
nal instrument during the test.
Use an external measuring instrument for
better accuracy.
4.4 Testing power relays
1] Set the variable transformer in position “0”.
2] Connect the circuit. Output terminals 0-10 A,
0-40 A or 0-100 A are used for the current
coil. Use an external measuring instrument
for better accuracy.
When testing reactive relays, the current coil
is to be connected in series with the built-
in 10 F capacitor that will give a 90° phase
shift.
The voltage coil is to be connected directly
to the 110 V CA terminals or across the set of
resistors used as a voltage divider.
3] Increase the current to the operating value
using the variable transformer.
4] Check the current on the ammeter or exter-
nal instrument during the test.
Note Shift polarity of the voltage or current if func-
tion has failed to appear.

12 SVERKER 650 ZP-BA01E BA0143KE
4 OPERATING INSTRUCTIONS
4.5 Time measurement
1] Connect the time measuring circuit to poten-
tial free terminals or DC voltage 3-350 V.
Note If the polarity is shifted the timer does not
stop. The timer is independent of mains
frequency.
2] When the timer is stopped, the circuit is bro-
ken and the yellow signal lamp is lit.
3] For continued measuring, the main switch
(S1) first has to be reset in position ”OFF”.
If the tripping circuit is connected and the
switch is set in position “ON”, the yellow
signal lamp is lit when the operating value is
obtained without breaking the current.
Note The timer can be started externally by a make
at terminal (W3). The switch (S1) should then
be in position “ON+TIME” or “OFF+TIME”.
When using the timer internally, the terminal
(W3) has to be short-circuited.
4.6 Time measurement
of over-current and over-
voltage relays
1] Connect the current and tripping circuits.
2] Set the switch in position “ON”.
3] Increase the current/voltage to 25-50% over
the operating value and let the variable
transformer be in that position.
4] Reset the switch to position “0”.
5] Set the changeover switch for time measure-
ment in position make/break
6] Set the switch to position “ON + TIME”.

BA0143KE ZP-BA01E SVERKER 650 13
4 OPERATING INSTRUCTIONS
4.7 Time measurement of
under-current and under-
voltage relays
1] Connect the tripping circuit.
2] Set the changeover switch for time measure-
ment in position make/break.
3] Set the switch in position “ON”.
4] Increase the voltage/current until the relay
picks up.
5] Then set the switch in position “OFF + TIME”.

14 SVERKER 650 ZP-BA01E BA0143KE
5 SPECIFICATIONS
5Specifications
Specifications SVERKER 650
Specifications are valid at nominal input voltage and an ambient
temperature of +25°C, (77°F). Specifications are subject to
change without notice.
Environment
Application field The instrument is intended for use in
high-voltage substations and industrial
environments.
Temperature
Operating 0°C to +50°C (32°F to +122°F)
Storage & transport -40°C to 70°C (-40°F to +158°F)
Humidity 5% – 95% RH, non-condensing
CE-marking
LVD 2004/108/EC
EMC 2006/95/EC
General
Mains voltage 115 / 230 V CA, 50 / 60 Hz
Power consumption 1100 VA (max)
Protection Thermal cut-outs, miniature circuit
breakers
Dimensions
Instrument 280 x 178 x 250 mm (11” x 7” x 9.8”)
Transport case 560 x 260 x 360 mm (22” x 10.2” x
14.2”)
Weight 16 kg (35.3 lbs)
26 kg (57.3 lbs) with accessories and
transport case.
Test lead set, with 4 mm
stackable safety plugs
2 x 0.25 m (0.8 ft), 2.5 mm2
2 x 0.5 m (1.6 ft), 2.5 mm2
8 x 2.0 m (6.6 ft), 2.5 mm2
Test leads with spade-
tonge connectors
2 x 3.0 m (9.8 ft), 10 mm2
Measurement section
Current measurement
Built-in ammeter
Ranges 0 – 10 A / 0 – 100 A
Inaccuracy ±5%
External ammeter
Output for external
ammeter
Connected to built-in current transfor-
mer
Inaccuracy ±1%
Timer
Range 0 – 999.999 s
Resolution 1 ms
Inaccuracy ±0.02% of displayed value, +2 ms
Independent of mains frequency
Outputs
Current outputs, CA
Range No-load
voltage
(min)
Output
voltage (min)
Load / un-
load times On
(max) / Off (min)
0 – 10 A 85 V 75 V (10 A) 2 min / 30 min
0 – 40 A 25 V 19 V (40 A) 20 s / 15 min
0 – 100 A 10 V 7.7 V (100 A) 20 s / 5 min
Voltage outputs, CA / DC
Range Output voltage (min)
0 – 250 V CA 220 V (2.7 A)
110 V CA (fixed) 110 V (0.3 A)
0 – 350 V DC 280 V (2 A)
20 – 220 V DC (stab.) 200 V (0.25 A)
Other
Built-in capacitor provides phase shift when testing directional
protection.
Output used to start external cycles.
Terminal for external start / stop of built-in timer.
Terminal for connecting serial impedance when testing nonlinear
protection.
Resistor set used to divide voltages. Max load as shown in figure
below.

BA0143KE ZP-BA01E SVERKER 650 15
5 SPECIFICATIONS

WWW.MEGGER.COM
Your “One Stop” Source for all your electrical test equipment needs
Megger is a leading global manufacturer and supplier
of test and measurement instruments used within the
electric power, building wiring and telecommunication
industries.
With research, engineering and manufacturing facilities
in the USA, UK, Germany and Sweden, combined with
sales and technical support in most countries, Megger
is uniquely placed to meet the needs of its customers
worldwide.
Megger is certified according to ISO 9001 and 14001.
Megger is a registered trademark.
Postal address:
Megger Sweden AB
Box 724
SE-182 17 DANDERYD
SWEDEN
T [phone]
F [phone]
[e-mail]
www.megger.com
Visiting address:
Megger Sweden AB
Rinkebyvägen 19
SE-182 36 DANDERYD
SWEDEN
▪Battery Test Equipment
▪Cable Fault Locating Equipment
▪Circuit Breaker Test Equipment
▪Data Communications Test Equipment
▪Fiber Optic Test Equipment
▪Ground Resistance Test Equipment
▪Insulation Power Factor (C&DF) Test Equipment
▪Insulation Resistance Test Equipment
▪Line Testing Equipment
▪Low Resistance Ohmmeters
▪Motor & Phase Rotation Test Equipment
▪Multimeters
▪Oil Test Equipment
▪Portable Appliance & Tool Testers
▪Power Quality Instruments
▪Recloser Test Equipment
▪Relay Test Equipment
▪T1 Network Test Equipment
▪Tachometers & Speed Measuring Instruments
▪TDR Test Equipment
▪Transformer Test Equipment
▪Transmission Impairment Test Equipment
▪Watthour Meter Test Equipment
▪STATES® Terminal Blocks & Test Switches
▪Professional Hands-On Technical and
Safety Training Programs
▪AUSTRALIA
▪BULGARIA
▪CANADA
▪CZECH REPUBLIC
▪CHINA
▪FRANCE
▪GERMANY
▪HUNGARY
▪INDIA
▪INDONESIA
▪KINGDOM OF BAHRAIN
▪KOREA
▪MALAYSIA
▪PAKISTAN
▪PHILIPPINES
▪POLAND
▪ROMANIA
▪RUSSIA
▪SINGAPORE
▪SLOVAK REPUBLIC
▪SOUTH AFRICA
▪SPAIN
▪SWEDEN
▪SWITZERLAND
▪TAIWAN
▪THAILAND
▪UNITED ARAB EMIRATES
▪USA
▪VIETNAM
Megger Group Limited
UNITED KINGDOM
Dover, Kent CT17 9EN
ENGLAND
Subject to change without notice. Printed matter No. ZP-BA01E Doc. BA0143KE V04a 2016
