Assembly Instructions & User’s Manual
for
Jameson Modern TV Console
Model Number: SMMODTVC-2
Customer Assistance (spare/replacement parts): 1-866-942-5362
or Email: [email protected]om
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
LOT NUMBER: DATE PURCHASED: / /
OR

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 2 | P a g e
Table of Contents
Quality Statement ..................................................................................................................................... 3
Important Safety Information ................................................................................................................ 3
Before Assembly ...................................................................................................................................... 3
Care & Use ................................................................................................................................................. 3
Package Contents .................................................................................................................................... 4
Product Information ................................................................................................................................ 4
Components .............................................................................................................................................. 5
Hardware .................................................................................................................................................... 5
Tools (Not Included) ................................................................................................................................ 5
Step 1 .......................................................................................................................................................... 6
Step 2 .......................................................................................................................................................... 7
Step 3 - Hinge adjustment ..................................................................................................................... 8
Step 4 .......................................................................................................................................................... 9
Step 5 ........................................................................................................................................................ 10
Warning ....................................................................................................................................... 11
Troubleshooting ..................................................................................................................................... 12
Care & Use Instructions ....................................................................................................................... 12
Warranty Information ............................................................................................................................ 12

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 3 | P a g e
Quality Statement
Important Safety Information
 Please read all instructions carefully before assembling this product.
 Where applicable, and for your safety, assembly by an adult is strongly recommended.
 Use only vendor-supplied hardware to assemble this item. Using unauthorized
hardware could jeopardize the structural integrity of the item.
 Hardware may loosen overtime. Periodically check that all connections are tight.
 NOTICE: To prevent injury and property damage from unexpected tipping of
furniture, we highly recommend installation of the anti-tip kit included with this
product.
Before Assembly
 Remove all parts and hardware from the box. Place all items on a carpeted or
scratch-free work surface, as this will avoid damaging parts during assembly.
 The shipping box can provide an ideal work surface if none is available.
 Use the components and hardware lists below to identify, inventory and separate
each of the hardware and components included.
 To avoid accidentally discarding small components or hardware, do not dispose of
any packaging or contents of the shipping carton until assembly is complete.
 DO NOT USE power tools unless it is explicitly identified in this manual as required
for use during assembly. Power tools can damage the fasteners, hardware and/or
components.
 Do not fully tighten all fasteners / screws until all parts are in place. Failure to follow
these instructions may cause the fasteners / screws to misalign during assembly.
Care & Use
 Use a soft, clean cloth that will not scratch the surface when dusting.
 Use of furniture polish is not necessary. Should you choose to use polish, test first in
an inconspicuous area.
 Using solvents of any kind on your furniture may damage the finish.
 Never use water to clean your furniture as it may cause damage to the finish.
 Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill
gently. Avoid rubbing.
 Do not place furniture in direct sunlight.
Questions or Comments?
We would love to hear about your
Member’s Mark experience! Visit us at:
samsclub.com/membersmarkhelp

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 4 | P a g e

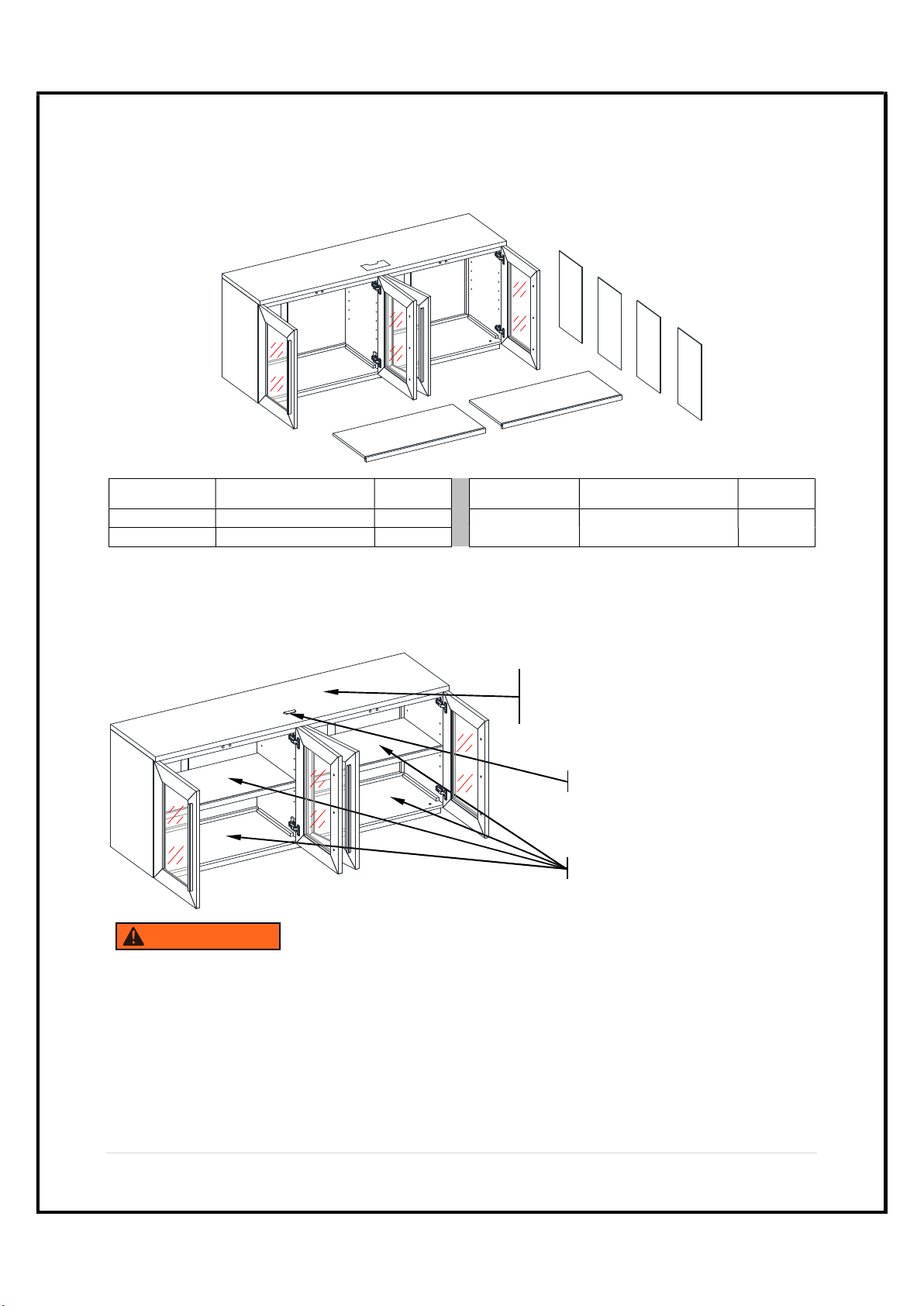

Package Contents
Component Description Quantity Component Description Quantity
A Console 1
C Wood Door Insert 4
B Adjustable Shelf 2
Product Information
Dimensions – 72” x 19.75” x 30.25” (182.9cm x 50.2cm x 76.8cm)
Weight Capacity
FITS UP TO MOST 203.2 cm / 80”
DIAGONAL FLAT-PANEL TVs
MAXIMUM LOAD 61.2 kg / 135 lb
MAXIMUM LOAD 22.7 kg / 50 lb
PLACE TV BEHIND THE STOPPER
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH FLAT PANEL
TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND WEIGHT LIMITS. NEVER USE
WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL TVS OR EQUIPMENT. TO AVOID INSTABILITY,
PLACE FLAT PANEL TV IN THE CENTER OF THE UNIT; THE BASE OF THE TELEVISION MUST BE ABLE TO REST
ON THE SUPPORTING SURFACE OF THE UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY
POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT EXCEED
RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT, CAUSING POSSIBLE
SERIOUS INJURY. FOR USE WITH TELEVISIONS WEIGHING 135 LB (61.2 KG) OR LESS. USE WITH HEAVIER
TELEVISIONS MAY RESULT IN INSTABILITY CAUSING TIP OVER RESULTING IN DEATH OR SERIOUS INJURY.
WARNING
A
C
B
B
C
C
C

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 5 | P a g e
Components
Component A
Part No. not available
Qty: 1
Component B
Part No. 00SMMODTVC-2-B
Qty: 2
Component C
Part No. 00SMMODTVC-2-C
Qty: 4
Component D (Pre-attached)
Part No. 00SMMODTVC-2-D
Qty: 4
Hardware
Shelf Support (H1)
Part No. 00SMMODTVC-2-E
Qty: 8+1 extra
Rubber Liner (H2)
Part No. 00SMMODTVC-2-F
Qty: 1.5m
Hex Wrench (H3)
Part No. 00SMMODTVC-2-G
Qty: 1
Acrylic Stopper (H4)
Part No. 00SMMODTVC-2-H
Qty: 1
Touch-up Pen (H5)
Part No. 00SMMODTVC-2-I
Qty: 1
Tipping Restraint Hardware Kit (H6)
Part No. 00SMMODTVC-2-J
Qty: 2
Tools (Not Included)
Phillips Screwdriver Flat Tip Screwdriver Stud Finder Power Drill
3 mm

(0.1 in)

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 6 | P a g e

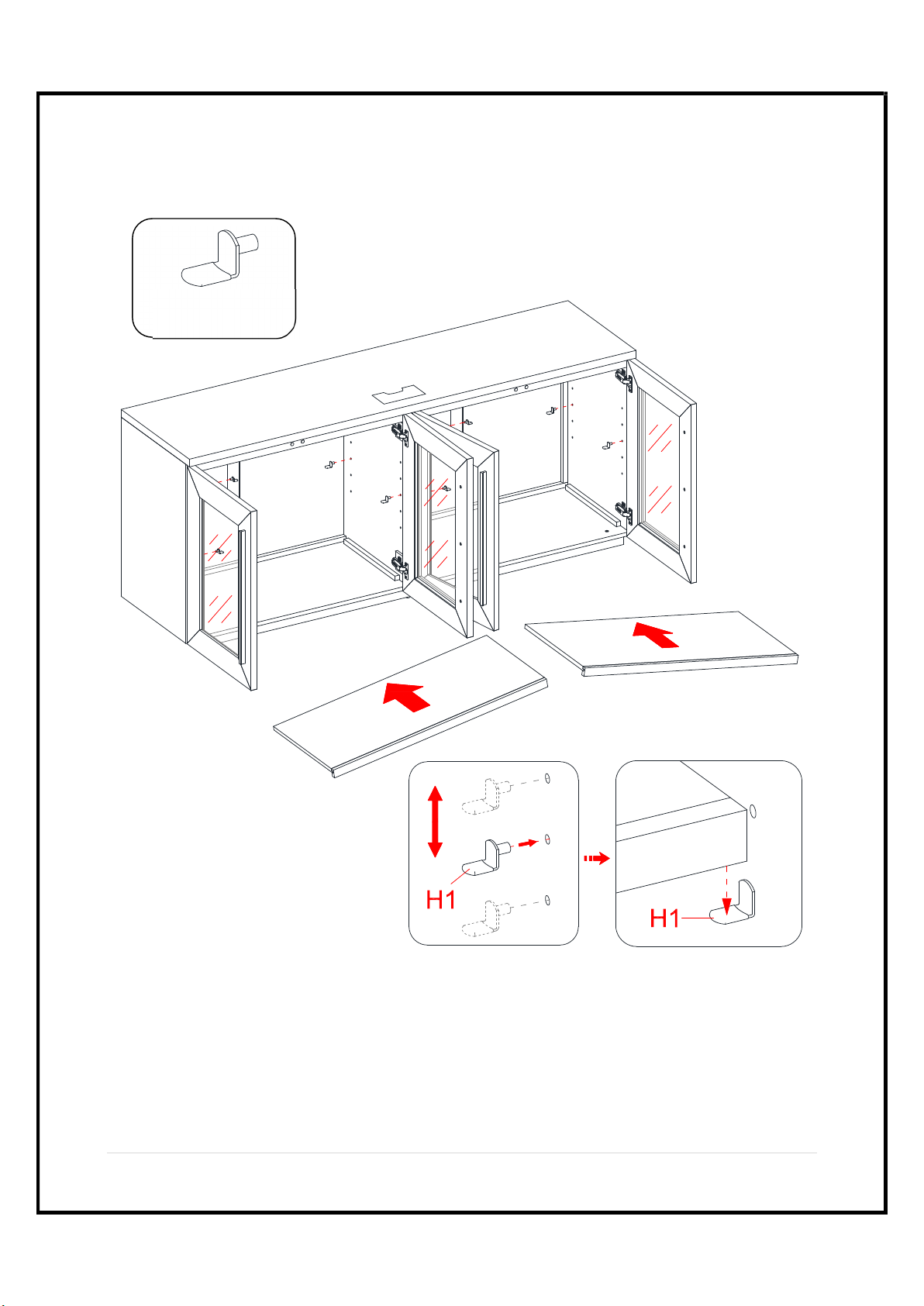

Step 1
a) Unpack the units and confirm that you have all hardware and required parts.
b) Open the doors and insert four Shelf Supports (H1) in the holes at the desired height inside
each compartment. Make sure you place the four Shelf Supports at the same level, so the
shelf is not tilted.
c) Tilt and rest the Adjustable Shelves (B) onto the Shelf Supports (H1).
H1 x 8
B
B
B
A

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 7 | P a g e
Step 2
a) The Glass Door Panels (D) are pre-attached when shipping. You can keep as they are or
interchange with Wood Door Panels (C).
Rubber liner
D
C
D
C

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 8 | P a g e
Step 3 - Hinge adjustment
a) Loosen or tighten the indicated screw to adjust the gaps forward and backward between
doors and console.
b) Rotate the screw clockwise or counterclockwise to adjust the door horizontally as shown.
c) Loosen or tighten the indicated screw to adjust the door vertically to the desired position.
Lateral
adjustment
Height
adjustment
Depth
adjustment
1
2
2
2mm
3
2mm

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 9 | P a g e
Step 4
NOTE: To prevent your TV from tipping, you must follow these instructions if you place a flat
panel television on top of your console. Otherwise, remove the acrylic stopper template
directly
.
a) Remove the paper backing from the Acrylic Stopper (H4) and place it in the cut-out of the
acrylic stopper template on the front of the top panel. Make sure it is properly aligned before
applying pressure.
b) Now, remove the acrylic stopper template carefully.
H4 x 1
A
A

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 10 | P a g e

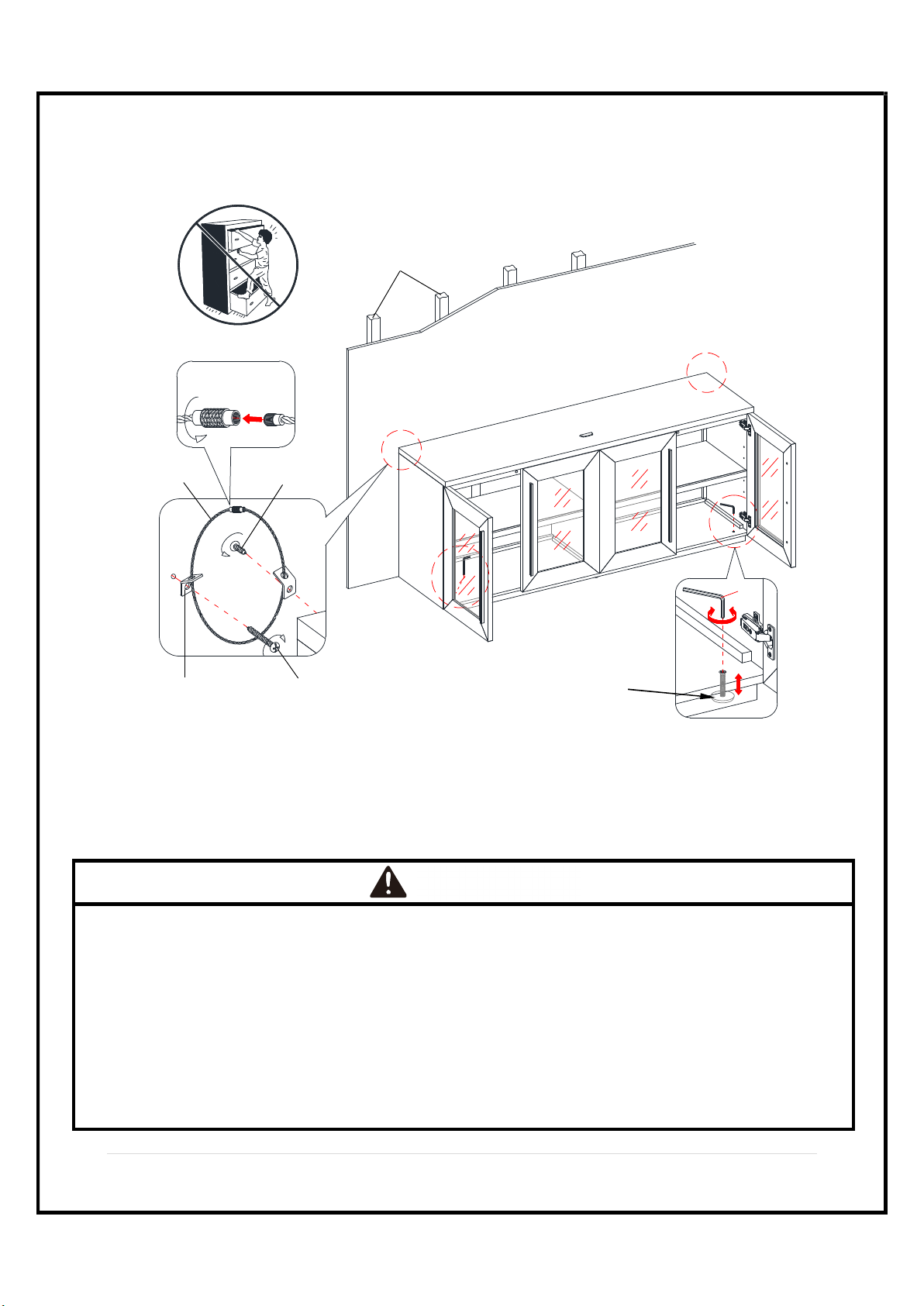

Step 5
a) Ask for assistance to position the assembled unit at the desired location against a wall. Open
the door and you will see a hole at each front corner of the base, use the enclosed Hex Wrench
(H3) to turn the leveler and adjust the height of the unit, until the unit is level.
b) Now, follow the instructions printed on the plastic bag containing the Tipping Restraint
Hardware (H6) to attach the tip-over restraints to the unit and the wall.
H3
Wall
W
all
W
ooden stud
Short
s
crew
Long screw
Metal bracket
Floor leveler
Steel cable
Connector
H
6
WARNING
 Unit must be placed on a level surface or leveled with included hardware (when applicable).
 Do not sit or stand on or allow children to climb, sit or stand on the assembled product.
 For safety reasons, it is imperative that this unit be mounted to the wall.
 Do not use without installing the tip restraint.
 Unit can tip over causing severe injury or death.
 Never open more than one drawer at a time.
 Do not exceed the recommended weight limits.
 Evenly distribute the weight on each level and always keep the heavier loads on the bottom.
 Before cutting, drilling or hammering into any wall or floor surface, verify the location of
electrical, plumbing and gas lines. Cutting may cause serious injury.

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 11 | P a g e
Warning
Please use your furniture correctly and safely. Improper use can cause safety hazards, or
damage to your furniture or household items. Carefully read the following safety information.
This unit is not intended for use with CRT TVs. The top surface maximum weight capacity is 135 lbs.
(61.2 kg) and maximum load 80 in. (203.2 cm) diagonal flat-panel TV. The shelf maximum
recommended weight allowance is 50 lbs. (22.7 kg). Use with heavier televisions may result
in instability causing tip over resulting in death or serious injury.
Death or serious injury may occur when
children climb on audio and/or video equipment
furniture. A remote control or toys placed on the furnishing may encourage a child to climb
on the furnishing and as a result may tip over onto the child.
NEVER allow children to climb or play with the TV or furnishing supporting the TV.
NEVER place toys, food, remote, etc. on top of the TV or TV furnishing.
ALWAYS use either the safety hardware as instructed or other wall anchoring device.
Relocating audio and/or video equipment to furniture not
specifically designed to support
audio and/or video equipment may result in death or serious injury due to furniture collapse
or over turning onto a child.
NEVER place a TV on furniture that is not intended to support a TV.
NEVER exceed the maximum size and weight of the TV shown in the instructions.
Be sure to refer to the TV warning label as shown in the instructions.
Overloading drawers and shelves may result in furniture that can break or sag, or tip
-
over
which may result in injury.
NEVER exceed the weight limits shown in the instructions.
Place the heavier items on lower shelves as far back from the front as possible.
Load the bottom surfaces first to avoid top-heavy furniture.
Moving furniture that is not designed to be moved or equipped with casters may result in
injury or damage to furnishings or personal property.
ALWAYS unload shelves and drawers, starting with the top surfaces, before moving.
NEVER push or pull furniture on carpet. Have a friend help lift properly to move and/or
reposition it.
The unit is not meant as a seat and no one should be sitting or standing on the top panel.
Clean the metal trim using a soft cloth, slightly dampened with citrus oil-based product and
buff with a clean, soft cloth. DO NOT use brass polish or household cleaners as these products
will damage the metal trim. Citrus oil-based products can be obtained at supermarkets or
hardware stores.

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 12 | P a g e
Troubleshooting
Problem Possible Cause Prevention / Solution
Tilting / wobbling Surface not level Adjust the floor levelers
Scratches / Nicks Assembly or shipping damage Use touch-up pen to cover
Doors are not level Hinges are not engaged properly Refer to the hinge sticker for
adjustment
Care & Use Instructions
Care
Use a soft, clean cloth that will not scratch the surface when cleaning.
Use of furniture polish is not necessary. Should you choose to use polish, test first in
an inconspicuous area.
Use
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill
gently. Avoid rubbing.
Do not place furniture in direct sunlight.
Warranty Information
This product component has a (1) year guarantee against defects in material and/or workmanship. If you
have any questions regarding the warranty or spare / replacement parts, please call our toll-free number
1-866-942-5362 or email us at [e-mail]
NOTE: Please consider recycling all applicable packaging material.
Distributed by Sam’s West Inc.
2101 SE Simple Savings Dr.
Bentonville, Arkansas 72716-0745
Made in Vietnam

Need Assistance? Visit us at: samsclub.com/membersmarkhelp 13 | P a g e

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 1 | P a g e
Instrucciones de ensamble & manual del usuario
para
Consola moderna para TV Jameson
Número del modelo: SMMODTVC-2
Asistencia al cliente (partes extras/de repuesto): 1-866-942-5362
o mande un correo electrónico a: [email protected]
ESTÉ INSTRUCTIVO CONTIENE INFORMACIÓN DE SEGURIDAD IMPORTANTE.
POR FAVOR LEA Y MANTENGA PARA USO FUTURO.
O
NÚMERO de LOTE: FECHA de COMPRA: / /

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 2 | P a g e
Tabla de contenido
Declaración de calidad ........................................................................................................................... 3
Información de seguridad importante ................................................................................................ 3
Antes del ensamble ................................................................................................................................. 3
Cuidado y uso ........................................................................................................................................... 3
Contenidos del paquete ......................................................................................................................... 4
Información del producto ...................................................................................................................... 4
Componentes ............................................................................................................................................ 5
Material de ferretería ............................................................................................................................... 5
Herramientas (no incluidas) .................................................................................................................. 5
Paso 1 .......................................................................................................................................................... 6
Paso 2 .......................................................................................................................................................... 7
Paso 3- ajuste de bisagras .................................................................................................................... 8
Paso 4 .......................................................................................................................................................... 9
Paso 5 ........................................................................................................................................................ 10
Advertencia ................................................................................................................................ 11
Solución de problemas ......................................................................................................................... 12
Instrucciones de cuidado y uso ......................................................................................................... 12
Información de garantía ....................................................................................................................... 12

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 3 | P a g e
Declaración de calidad
Información de seguridad importante
 Por favor lea todas las instrucciones antes de ensamblar el mueble.
 Donde se pueda, y por su seguridad, se recomienda el ensamble por un adulto.
 Use solo ferretería suplida por el vendedor para ensamblar la unidad. El uso de
ferretería no autorizada podría poner en riesgo la integridad estructural de la unidad.
 La ferretería se podría aflojar con el tiempo. Revisar periódicamente que las
conexiones estén apretadas
 NOTA: Para prevenir lesiones o daños de inclinación inesperada del mueble,
nosotros recomendamos instalar el juego contra inclinación incluido en este
producto.
Antes del ensamble
 Retirar todas las partes y ferretería de la caja. Poner todo sobre una alfombra o en
un are libre de rasguños, para evitar danos a las partes durante el ensamble.
 La caja de envió provee una superficie ideal de trabajo.
 Para evitar el desecho accidental de partes o ferretería pequeñas, no tire ningún
paquete o contenidos del paquete hasta terminar el ensamble.
 Usar las listas de partes y ferretería para identificar y separar cada una de las
piezas incluidas.
 El uso de herramientas eléctricas no está recomendad, a menos que se especifique.
Estas herramientas pueden dañar la ferretería o la madera.
 No apretar completamente los pernos/sujetadores hasta que las partes estén en su
lugar. La falla de seguir estas instrucciones puede causar que los
pernos/sujetadores se desalineen durante el ensamble.
Cuidado y uso
 Use una toalla suave y limpia para evitar daños y rayaduras.
 Uso de cera para pulir muebles no es necesario. Si desea usar cera cheque en un
área que no sea visible para verificar su funcionamiento.
 Usar solventes de cualquier tipo puede dañar el terminado del mueble.
 Nunca use agua para limpiar la unidad, ya que le puede dañar el acabado.
 Líquidos derramados deben limpiarse inmediatamente, con una toalla suave
evitando tallar.
 No poner el mueble en luz solar directa.
¿Preguntas o Comentarios?
Nos gustaría escuchar sobre su
experiencia Member’s Mark! Visitenos en:
samsclub.com/membersmarkhelp

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 4 | P a g e
Contenidos del paquete
Componente Descripción Cantidad Componente Descripción Cantidad
A Consola 1
C Inserto para puerta
de madera 4
B Repisa ajustable 2
Información del producto
Dimensiones – 72” x 19.75” x 30.25” (182.9cm x 50.2cm x 76.8cm)
Capacidad de peso
PARA LA MAYORÍA DE LAS TELEVISIONES CON
PANTALLA PLANA DE 203.2 cm / 80” pulgadas
CARGA MÁXIMA 61.2 kg / 135 lb
CARGA MÁXIMA 22.7 kg / 50 lb
PONER LA TV DETRÁS DEL TOPE
A
C
B
B
C
C
C
ESTA UNIDAD NO DEBE UTILIZARSE CON TELEVISIONES CRT O DE TUBO. UTILIZARSE
ÚNICAMENTE CON TELEVISIONES DE PANTALLA PLANA Y EQUIPO DE AUDIO/VIDEO QUE TENGA LA
MEDIDA/PESO RECOMENDADO. NUNCA UTILIZAR CON TELEVISIONES MÁS GRANDES/PESADAS DE LAS
RECOMENDADAS. PARA EVITAR INESTABILIDAD COLÓQUELA EN EL CENTRO DE LA UNIDAD; LA BASE DE LA
TELEVISIÓN DEBE DE REPOSAR SOBRE LA SUPERFICIE DE SOPORTE DE LA UNIDAD SIN REBASAR LAS ORILLAS.
LAS TELEVISIONES DE PANTALLA PLANA COLOCADAS INAPROPIADAMENTE, O LAS TELEVISIONES DE
PANTALLA PLANA INCLUYENDO EQUIPO QUE SOBREPASA LAS MEDIDAS Y PESOS RECOMENDADOS PUEDEN
CAERSE Y/O ROMPER LA UNIDAD, CAUSANDO POSIBLES DAÑOS O LESIONES. PARA USO DE TELEVISIONES
DE HASTA 135 LB (61.2 KG) O MENOS. USO CON TELEVISIONES DE MAYOR PESO PUEDE RESULTAR EN
INESTABILIDAD CAUSANDO QUE LA UNIDAD CAIGA, PROVOCANDO EN ALGUNOS CASOS DAÑOS O MUERTE.
ADVERTENCIA

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 5 | P a g e
Componentes
Componente A
# de parte. no disponible
Cantidad: 1
Componente B
# de parte. 00SMMODTVC-2-B
Cantidad: 2
Componente C
# de parte. 00SMMODTVC-2-C
Cantidad: 4
Componente D (Pre-adjuntado)
# de parte. 00SMMODTVC-2-D
Cantidad: 4
Material de ferretería
Soporte de repisa (H1)
# de parte. 00SMMODTVC-2-E
Cantidad:
8+1 extra
Revestimiento de goma (H2)
# de parte. 00SMMODTVC-2-F
Cantidad:
1.5m
Llave hexagonal (H3)
# de parte. 00SMMODTVC-2-G
Cantidad:
1
Tope de acrílico (H4)
# de parte. 00SMMODTVC-2-H
Cantidad: 1
Bolígrafo de retoque (H5)
# de parte. 00SMMODTVC-2-I
Cantidad: 1
Juego de restricción de movimiento (H6)
# de parte. 00SMMODTVC-2-J
Cantidad: 2
Herramientas (no incluidas)
Destornillador estrella Desarmador de punta plana Buscador de vigas Taladro
3 mm

(0.1 in)

¿ Necesita asistencia? Visítenos en: samsclub.com/membersmarkhelp 6 | P a g e
Paso 1
a) Desempacar la unidad y confirmar que se tiene todo el material de ferretería y partes
requeridas
b) Abrir las puertas e insertar 4 soportes de repisa (H1) en los agujeros en las alturas deseadas
adentro de cada compartimiento. Asegurar de poner los cuatro soportes de repisa en el
mismo nivel para que la repisa no esté inclinada.
c) Voltear y descansar las repisas ajustables (B) sobre los soportes de repisa (H1).
H1 x 8
B
B
B
A
