INSTALLATION INSTRUCTIONS FOR PART 95-5812 or 99-5812
APPLICATIONS
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
REV. 9/20/2013 INST-5812
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Ford multi-kit 2004-up
95-5812 or 99-5812
See application list inside
95-5812:
• Double DIN radio provision
• Stacked ISO DIN radio provision
99-5812:
• DIN radio provision with pocket
• ISO radio provision with pocket
95-5812: • A1) Radio housing (DDIN & stacked ISO DIN) • B1) Double DIN brackets
• C1) Spacers • D1) (4) Screws
99-5812: • A2) Radio housing • B2) ISO brackets • C2) Trim plate • D2) Side brackets
• E2) Spacers • F2) (4) Screws

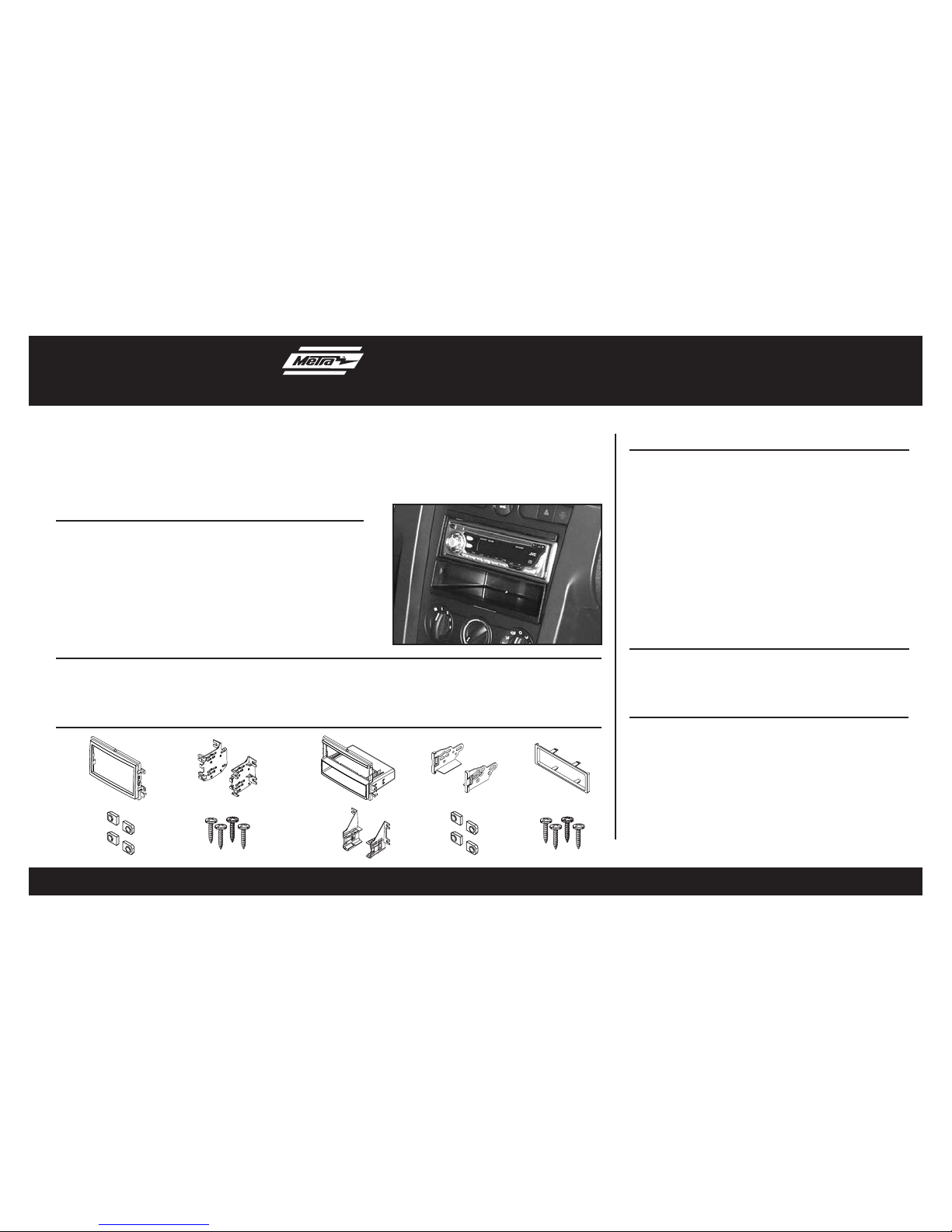

KIT FEATURES
KIT COMPONENTS
A2B1A1
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-5520 - Ford harness 2003-up
• 70-5521 - Ford amplified harness 2003-up
• 70-5522 - Ford sub harness 2003-up
• XSVI-5520 - NAV Ford interface 2006-up
Antenna Adapter:
• 40-CR10 - Chrysler/GM antenna adapter 2002-up
• Panel removal tool • Phillips screwdriver
• Socket wrench
TOOLS REQUIRED
C1 D1
B2
E2
C2
F2D2

INST-5812
Applications
2
Ford
Edge .............................. 2007-2010
Expedition ..................... 2007-up
Explorer ......................... 2006-2010
Explorer Sport Trac ........ 2007-2010
F-150 ............................ 2004-2008
F-250/F-350/F-450/
F-550 ............................ 2005-up
F-650/F-750 ................. 2011-up
E-Series ........................ 2009-up
F-Series Super Duty ...... 2005-up
Five-Hundred ................ 2005-2007
Focus ............................ 2005-2007
FreeStar ........................ 2004-2007
Freestyle ....................... 2005-2007
Fusion ........................... 2006-2009
Mustang ........................ 2005-2009
Taurus ........................... 2008-2009
Taurus X ........................ 2008-2009
Transit ........................... 2012-up
Lincoln
Mark LT ......................... 2006-2008
Factory navigation models only:
MKX .............................. 2007-2010
Navigator ....................... 2007-up
Mercury
Monterey ....................... 2004-2007
Milan ............................. 2006-2009
Montego ........................ 2005-2007
Mountaineer .................. 2006-2010
Sable ............................. 2008-2009
Dash Disassembly
– Ford E-Series 2009-up .............................7
– Ford Edge 2007-2010 ..............................3
– Ford Expedition 2007-up ..........................3
– Ford Explorer 2006-2010 .........................7
– Ford Explorer Sport Trac 2007-2010.........7
– Ford F-150 2004-2008 ............................3
– Ford F-250/F-350/F-450/F-550 ...............8
– Ford F-650/F-750 2011-up ......................8
– Ford F-Series Super Duty 2005-up ...........7
– Ford Five Hundred 2005-2007 .................4
– Ford Freestar 2004-2007 .........................6
– Ford Freestyle 2005-2007 ........................5
– Ford Focus 2005-2007 .............................6
– Ford Fusion 2006-2009 ...........................5
– Ford Mustang 2005-2009 .................... 3-4
– Ford Taurus 2008-2009 ...........................4
– Ford Taurus X 2008 -2009 .......................5
– Ford Transit 2012-up ................................9
– Lincoln Mark LT 2006-2008 .....................3
– Lincoln MKX* 2007-2010 ........................8
– Lincoln Navigator* 2007-up .....................9
– Mercury Milan 2006-2009 .......................5
– Mercury Montego 2005-2007 ..................4
– Mercury Monterey 2004-2007 .................6
– Mercury Mountaineer 2006-2010 ............7
–Mercury Sable 2008-2009 .......................4
Kit Assembly
–Double DIN radio provision .....................10
–Stacked ISO radio provision ....................11
–DIN radio provision with pocket ..............12
–ISO radio provision with pocket ..............13
Table of Contents
*Factory navigation models only

3
Dash Disassembly
1. Unsnap and remove entire panel
surrounding the radio and climate
controls. (Figure A)
2. Remove (4) 9/32” screws to remove
the factory radio. (Figure B)
Continue to kit assembly
Ford Edge 2007-2010/F-150
2004-2008/Expedition 2007-up,
Lincoln Mark LT 2006-2008

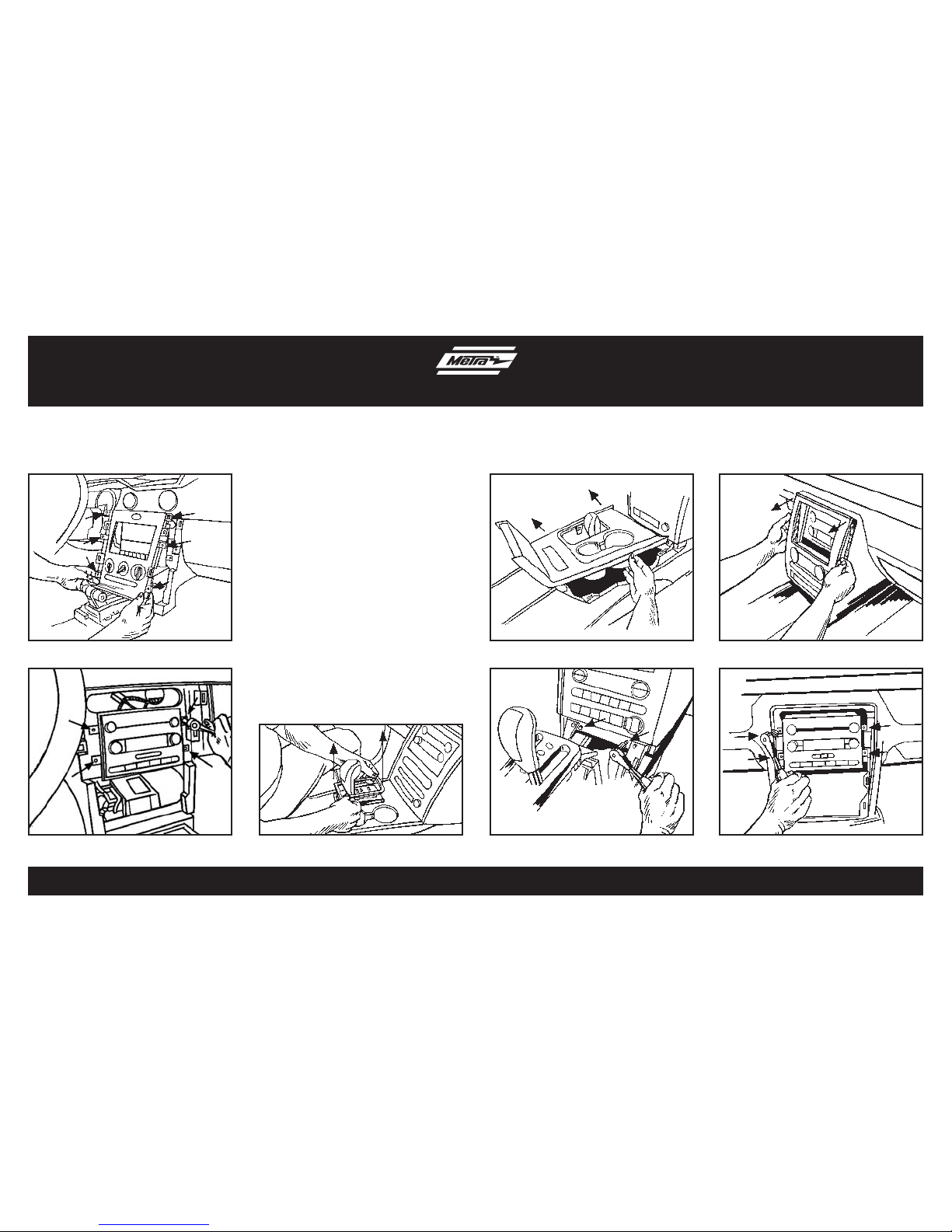

Ford Mustang 2005-2009
(Figure B)(Figure A)
1. Remove the small rectangular
shifter lever trim panel if equipped.
(Figure A)
2. Remove (2) Phillips screws from
under the center armrest at the
back of the shifter trim panel
(including cup holders). (Figure B)
3. Unclip and remove panel.
(Figure B)
4. Unclip and remove the (2) center
stack trim panels from the left and
right side of the radio and climate
controls. (Figure C)
5. Remove (6) 9/32” screws from
center trim panel surrounding
the radio and climate controls
then unclip and remove panel.
(Figure D, see next page)
6. Remove (4) 9/32” screws from
the radio to remove.
(Figure E, see next page)
Continue to kit assembly
(Figure C)
(Figure B)
(Figure A)

4
Dash Disassembly
Ford Five-Hundred 2005-2007/Taurus 2008-2009,
Mercury Montego 2005-2007/Sable 2008-2009
1. Unclip and remove the small
rectangular trim around shift lever.
(Figure A)
2. Unclip and remove the entire panel
(including cup holders) surrounding
the shift lever. (Figure B)
3. Remove (2) 9/32” screws at the
bottom of the center radio/climate
control panel. (Figure C)
4. Unclip and remove the center
panel. (Figure D)
5. Remove (4) 9/32” screws from the
radio to remove. (Figure E)
Continue to kit assembly
(Figure D)
(Figure E)
Ford Mustang
2005-2009
(Figure D)
(Figure E)
(Figure B)
(Figure C)(Figure A)

5
Dash Disassembly
1. Unsnap and remove entire panel
surrounding the radio and climate
controls. (Figure A)
2. Remove (4) 9/32” screws to remove
the factory radio. (Figure B)
Continue to kit assembly
Ford Fusion 2006-2009
Mercury Milan 2006-2009
Ford Freestyle 2005-2007
Ford Taurus X 2008-2009
(Figure B)(Figure A)
1. Unclip and remove entire panel
surrounding the radio and A/C
controls. (Figure A)
2. Remove (4) 9/32” screws from radio
to remove. (Figure B)
Continue to kit assembly
(Figure B)(Figure A)

6
Dash Disassembly
1. Unsnap and remove entire panel
surrounding the radio and climate
controls. (Figure A)
2. Remove (4) 9/32” screws to remove
the factory radio. (Figure B)
Continue to kit assembly
Ford Freestar 2004-2007
Mercury Monterey 2004-2007
Ford Focus
2005-2007
(Figure B)(Figure A)
1. Unsnap and remove entire panel
surrounding the radio and climate
controls. (Figure A)
2. Remove (4) 9/32” screws to remove
the factory radio. (Figure B)
Continue to kit assembly
(Figure B)(Figure A)

7
Dash Disassembly
1. Open center console and remove (2)
Phillips screws then unclip and remove
entire panel surrounding shifter.
(Figure A)
2. Remove dash panel surrounding radio to
access the factory radio screws.
(Figure B)
3. Remove (4) 9/32” screws to remove the
factory radio. (Figure C)
Continue to kit assembly
Ford Explorer 2006-2010
Ford Sport Trac 2007-2010
Mercury Mountaineer 2006-2010
(Figure A) (Figure C)
Ford E-Series 2009-up,
Ford F-Series Super Duty
2005-up
1. Unsnap and
remove entire panel
surrounding the
radio and climate
controls. (Figure A)
2. Remove (4) 9/32”
screws to remove
the factory radio.
(Figure B)
Continue to kit
assembly (Figure A)
(Figure B)
(Figure B)

8
Dash Disassembly
1. Open center console lid and unclip and
remove the center console trim panel
surrounding the shifter. (Figure A)
2. Remove (2) Phillips screws from the
storage bin then unclip and remove the
bin. (Figure B)
3. Unclip and remove the upper and lower
center trim panel as one assembly.
(Figure C)
4. Remove (4) 9/32” screws securing the
radio. Unplug and remove the radio.
Continue to kit assembly
Lincoln MKX 2007-2010
(Factory navigation models only)
Ford Super Duty F-250/F-350/
F-450/F-550 2005-up, Ford Super
Duty F-650/F-750 2011-up
1. Unclip and remove the power
outlet panel and the blank panel
on the left and right side of the
radio trim panel. (Figure A)
2. Remove the (2) 9/32” screws
exposed behind the two panels
previously removed.
3. Unclip and remove the entire
radio trim panel including the
A/C control and vents.
4. Remove (4) 9/32” screws
securing the radio.
Continue to kit assembly
(Figure A) (Figure C)(Figure A)
(Figure B)

1. Unclip and remove the panel
surrounding the shifter. (Figure A)
2. Remove (2) 9/32” screws from the
bottom of the radio/climate control
trim panel. (Figure B)
3. Unclip and remove the entire panel
surrounding the radio and including
the climate controls. (Figure B)
4. Remove (4) 9/32” screws
securing the radio. Unplug and
remove the radio.
Continue to kit assembly
Lincoln Navigator 2007-up
(Factory navigation models only)
Ford Transit
2012-up
(Figure B)(Figure A)
1. Unclip the dash panel and remove.
(Figure A)
2. Remove four screws securing the
radio to the dash and remove.
(Figure B)
Continue to kit assembly
(Figure B)(Figure A)
9
Dash Disassembly

10
Kit Assembly 95-5812
1. For the Ford Freestar 2004-2007, Mercury
Monterey 2004-2007, Ford Focus 2005-2007,
and the Ford F Series Super Duty 2005-up:
Do not cut the rear mounting tabs from the
double DIN brackets. If your vehicle is not listed
above move to step 2.
2. If your vehicle was not listed above, attach the
included spacers to the back of the radio housing
mounting tabs. Cut and remove the rear mounting
tabs. (Figure A)
3. Attach the double DIN brackets to the radio
housing. Note: The notch in the housing should
be on top. (Figure A & B)
4. Slide the double DIN radio into the radio housing/
bracket assembly and secure the radio to the
assembly using the screws supplied with the radio.
(Figure C)
5. Locate the factory wiring harness in the dash.
Metra recommends using the proper mating
adapter from Metra or AXXESS. Re-connect the
negative battery terminal and test the unit for
proper operation.
6. Reassemble dash in reverse order of disassembly.
Double DIN radio provision
(Figure D)(Figure C)
(Figure B)(Figure A)

11
Kit Assembly 95-5812
Stacked ISO DIN radio provision
1. For the Ford Freestar 2004-2007, Mercury
Monterey 2004-2007, Ford Focus 2005-2007,
and the Ford F Series Super Duty 2005-up,
slide the included brackets onto the sides of
the radio housings pocket from the back of the
housing forward. (Figure A)
If your vehicle is not listed above do not use
brackets and move to step 2.
2. Attach the included spacers to the back of the
radio housing mounting tabs. (Figure B)
Note: Use the screws supplied with this
kit to mount the radio housing in the vehicles
that require the spacers. Not all vehicles will
require spacers.
3. Locate the factory wiring harness in the dash.
Metra recommends using the proper mating
adapter from Metra or AXXESS. Re-connect the
negative battery terminal and test the unit for
proper operation.
4. Slide the DIN cage into the radio housing and
secure by bending the metal locking tabs outward.
(Figure C)
5. Slide the aftermarket radio into the cage until it
snaps in place. (Figure D)
6. Reassemble dash in reverse order of disassembly. (Figure D)(Figure C)
(Figure B)(Figure A)

12
Kit Assembly 99-5812
1. For the Ford Freestar 2004-2007, Mercury Monterey
2004-2007, Ford Focus 2005-2007, and the Ford
F Series Super Duty 2005-up, slide the included
brackets onto the sides of the radio housings pocket
from the back of the housing forward. (Figure A)
If your vehicle is not listed above do not use brackets
and move to step 2.
2. Attach the included spacers to the back of the radio
housing mounting tabs. (Figure B)
Note: Use the screws supplied with this kit to
mount the radio housing in the vehicles that require
the spacers. Not all vehicles will require spacers.
3. Locate the factory wiring harness in the dash. Metra
recommends using the proper mating adapter from
Metra or AXXESS. Re-connect the negative battery
terminal and test the unit for proper operation.
4. Slide the DIN cage into the radio housing and secure by
bending the metal locking tabs outward. (Figure C)
5. Slide the aftermarket radio into the cage until it snaps
in place. (Figure D)
6. Reassemble dash in reverse order of disassembly.
DIN radio provision with pocket
(Figure D)(Figure C)
(Figure B)(Figure A)

13
Kit Assembly 99-5812
ISO radio provision with pocket
1. For the Ford Freestar 2004-2007, Mercury Monterey
2004-2007, Ford Focus 2005-2007, and the Ford
F Series Super Duty 2005-up, slide the included
brackets onto the sides of the radio housings pocket
from the back of the housing forward. (Figure A)
If your vehicle is not listed above do not use brackets
and move to step 2.
2. Attach the included spacers to the back of the radio
housing mounting tabs. (Figure B)
Note: Use the screws supplied with this kit to
mount the radio housing in the vehicles that require
the spacers. Not all vehicles will require spacers.
3. Locate the factory wiring harness in the dash. Metra
recommends using the proper mating adapter from
Metra or AXXESS. Re-connect the negative battery
terminal and test the unit for proper operation.
4. Mount the ISO brackets to the head unit with the
screws supplied with the unit. (Figure C)
5. Slide the head unit into the radio opening until the side
clips engage. (Figure D)
6. Snap the Trim plate into the radio housing. (Figure D)
7. Reassemble dash in reverse order of disassembly.
(Figure D)(Figure C)
(Figure B)(Figure A)

Notes

Notes

INSTALLATION INSTRUCTIONS FOR PART 95-5812 or 99-5812
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
REV. 9/20/2013 INST-5812
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians

INSTALLATION INSTRUCTIONS FOR PART 95-5812 o 99-5812
APLICACIONES
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
REV. 9/20/2013 INST-5812
PRECAUCIÓN: Metra recomienda desconectar el terminal
negativo de la batería antes de comenzar cualquier
instalación. Todos los accesorios, interruptores y,
especialmente, las luces indicadoras de airbag deben
estar enchufados antes de volver a conectar la batería o
comenzar el ciclo de ignición.
NOTA: Remítase a las instrucciones incluidas con el
radio de postventa.
Ford multi-kit 2004 y más recientes
95-5812 o 99-5812
Lista de aplicaciones dentro
(se venden por separado)
95-5812:
• Provisión de radio doble DIN
• Provisión de radio DIN ISO de eje
99-5812:
• Provisión de radio DIN con bolsillo
• Provisión de radio ISO con bolsillo
95-5812: • A1) Alojamiento del radio (unidades DIN dobles y DIN ISO apiladas)
• B1) Soportes DIN dobles • C1) Espaciadores • D1) (4) Tornillos
99-5812: • A2) Alojamiento del radio • B2) Soportes ISO • C2) Placa de terminación
• D2) Soportes laterales • E2) Espaciadores • F2) (4) Tornillos
CArACtEríStICAS dEL kIt
COmPONENtES dEL kIt
A2B1A1
CABLEAdO Y CONEXIONES dE ANtENA
Arnés de cableado:
• 70-5520 - Ford arnés 2003 y más recientes
• 70-5521 - Ford amplified arnés 2003
y más recientes
• 70-5522 - Ford sub arnés 2003 y más recientes
• XSVI-5520 - NAV Ford interfaz 2006
y más recientes
Adaptador de antena:
• 40-CR10 - Chrysler/GM adaptador de antena
2002 y más recientes
• Herramienta de remoción de panel
• Destornillador Phillips • Llave de tubo
HErrAmIENtAS rEquErIdAS
C1 D1
B2
E2
C2
F2D2

INST-5812
Aplicaciones
2
Ford
Edge............................. 2007-2010
Expedition .................... 2007 y mas
Explorer........................ 2006-2010
Explorer Sport Trac....... 2007-2010
F-150........................... 2004-2008
F-250/F-350/F-450/
F-550........................... 2005 y mas
F-650/F-750 ................ 2011 y mas
E-Series ....................... 2009 y mas
F-Series Super Duty..... 2005 y mas
Five-Hundred ............... 2005-2007
Focus ........................... 2005-2007
FreeStar ....................... 2004-2007
Freestyle ...................... 2005-2007
Fusion .......................... 2006-2009
Mustang....................... 2005-2009
Taurus .......................... 2008-2009
Taurus X....................... 2008-2009
Transit .......................... 2012 y mas
Lincoln
Mark LT ........................ 2006-2008
Modelos de fábrica
de navegación sólo:
MKX ............................. 2007-2010
Navigator...................... 2007 y mas
Mercury
Monterey...................... 2004-2007
Milan............................ 2006-2009
Montego........................ 2005-2007
Mountaineer.................. 2006-2010
Sable............................. 2008-2009
Desmontaje del tablero
– Ford E-Series 2009 y más recientes.........7
– Ford Edge 2007-2010..............................3
– Ford Expedition 2007 y más recientes......3
– Ford Explorer 2006-2010 .........................7
– Ford Explorer Sport Trac 2007-2010.........7
– Ford F-150 2004-2008 ............................3
– Ford F-250/F-350/F-450/F-550 ...............8
– Ford F-650/F-750 2011 y mas .................8
– Ford F-Series Super Duty 2005 .................
y más recientes .......................................7
– Ford Five Hundred 2005-2007 .................4
– Ford Freestar 2004-2007.........................6
– Ford Freestyle 2005-2007........................5
– Ford Focus 2005-2007.............................6
– Ford Fusion 2006-2009 ...........................5
– Ford Mustang 2005-2009 .................... 3-4
– Ford Taurus 2008-2009 ...........................4
– Ford Taurus X 2008 -2009 .......................5
– Ford Transit 2012 y más recientes............9
– Lincoln Mark LT 2006-2008 .....................3
– Lincoln MKX* 2007-2010 ........................8
– Lincoln Navigator* 2007 y mas ................9
– Mercury Milan 2006-2009 .......................5
– Mercury Montego 2005-2007 ..................4
– Mercury Monterey 2004-2007 .................6
– Mercury Mountaineer 2006-2010 ............7
–Mercury Sable 2008-2009 .......................4
Ensamble del kit
–Provisión de radio doble DIN...................10
–Provisión de radio DIN ISO de eje ...........11
–Provisión de radio DIN con bolsillo..........12
–Provisión de radio ISO con bolsillo..........13
Indice
*Modelos de fábrica de navegación sólo

3
Desmontaje del tablero
1. Quite a presión y retire todo el panel
que rodea el radio y los controles de
clima. (Figura A)
2. Retire (4) tornillos de 9/32 in para
retirar el radio de fábrica. (Figura B)
Continuará al ensamble del kit
Ford Edge 2007-2010/F-150
2004-2008/Expedition 2007 y más
recientes, Lincoln Mark LT 2006-2008
Ford Mustang 2005-2009
(Figura B)(Figura A)
1. Retire el panel de terminación
pequeño rectangular de la palanca
de velocidades, si corresponde.
(Figura A)
2. Retire (2) tornillos Phillips que se
encuentran debajo del apoyabrazos
central en la parte posterior del
panel de terminación de la palanca
de velocidades (incluidos los
portavasos). (Figura B)
3. Desenganche y retire el panel.
(Figura B)
4. Desenganche y retire los (2) paneles
de terminación apilados centrales
de los lados izquierdo y derecho del
radio y de los controles de clima.
(Figura C)
5. Retire (6) tornillos de 9/32 in del
panel de terminación central que
rodea el radio y los controles de
clima y, luego, desenganche y
retire el panel. (Figura D, página
siguiente)
6. Retire (4) tornillos de 9/32 in del
radio para retirarlo. (Figura E,
página siguiente)
Continuará al ensamble del kit (Figura C)
(Figura B)
(Figura A)

4
Desmontaje del tablero
Ford Five-Hundred 2005-2007/Taurus 2008-2009,
Mercury Montego 2005-2007/Sable 2008-2009
1. Desenganche y retire la terminación
pequeña rectangular que rodea la
palanca de velocidades. (Figura A)
2. Desenganche y retire todo el panel
(incluidos los portavasos) que
rodean la palanca de velocidades.
(Figura B)
3. Retire (2) 9/32 tornillos en la parte
inferior del panel central de control
de radio/clima. (Figura C)
4. Desenganche y retire el panel
central. (Figura D)
5. Retire (4) tornillos de 9/32 in para
retirar el radio de fábrica. (Figura E)
Continuará al ensamble del kit
(Figura D)
(Figura E)
Ford Mustang
2005-2009
(Figura D)
(Figura E)
(Figura B)
(Figura C)(Figura A)
