Metra Electronics 99-8100 User manual

99-8100
INSTALLATION
INSTRUCTIONS
TOOLS REQUIRED
Cutting tool
Phillips screwdriver
KIT COMPONENTS
rev. 201202
Radio
Housing #1
Radio
Housing #2
Faceplate
Equalizer
Dummy Plate
Mounting Tabs #3
Mounting Tabs #8
APPLICATIONS
CAR PAGE
TOYOTA
4Runner 1984-88..........................................................................8
Camry 1983-86.............................................................................1
Celica 1982-85..............................................................................1
Celica (GT/GTS) 1986-89...............................................................2
Celica (ST) 1986-89.......................................................................2
Celica 1990-93..............................................................................3
Corolla (sport coupe/liftback) 1982-83.......................................... 3
Corolla 1984-87............................................................................ 4
Corolla (sedan/wagon-lower dash) 1988-93.................................. 4
Corolla (sedan/wagon-upper dash) 1988-93..................................5
Cressida 1985-87.......................................................................... 5
Landcruiser 1982-87..................................................................... 6
Landcruiser 1988-92..................................................................... 6
MR2 1985-86................................................................................7
MR2 1987-90................................................................................7
Pickup 1984-88.............................................................................8
Pickup (single DIN) 1989-91..........................................................8
Pickup (double DIN) 1989-91........................................................ 9
Supra 1983-85..............................................................................1
Supra 1986.5-92...........................................................................9
11
INST 8100
56
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
Re-connect the battery terminal and test the unit
for proper operation. Mount the head unit/kit
assembly to the sub-dash with those screws
previously removed in step #1. (It may be
necessary to trim the ends of the Mounting Tabs
to provide proper clearance).
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
4
2-SHAFT HEAD UNITS: Snap the Faceplate onto the front of the Radio Housing. (For
applications using Faceplate #2, cut and remove the bottom portion of the Faceplate). Slide
the aftermarket head unit into the kit and secure with shaft nuts. (see Fig. A)
DIN HEAD UNITS: Cut and remove the shaft supports from the Faceplate and Radio
Housing. (For applications using Faceplate #2, cut and remove the bottom portion of the
Faceplate). Snap the Faceplate onto the front of the Housing. Slide the DIN cage into the kit
and secure by bending the metal locking tabs down. Slide the aftermarket head unit into the
cage until secure. (see Fig. B)
(If an equalizer will be included, slide the unit into the back of the Radio Housing and secure.
If an equalizer will NOT be included, snap the Equalizer Dummy Plate into the opening).
Fig. A
Fig. B
Celica 1990-93
application
shown
(4) Phillips Pan-head
Screws
1-800-221-0932 www.metraonline.com
© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION

110

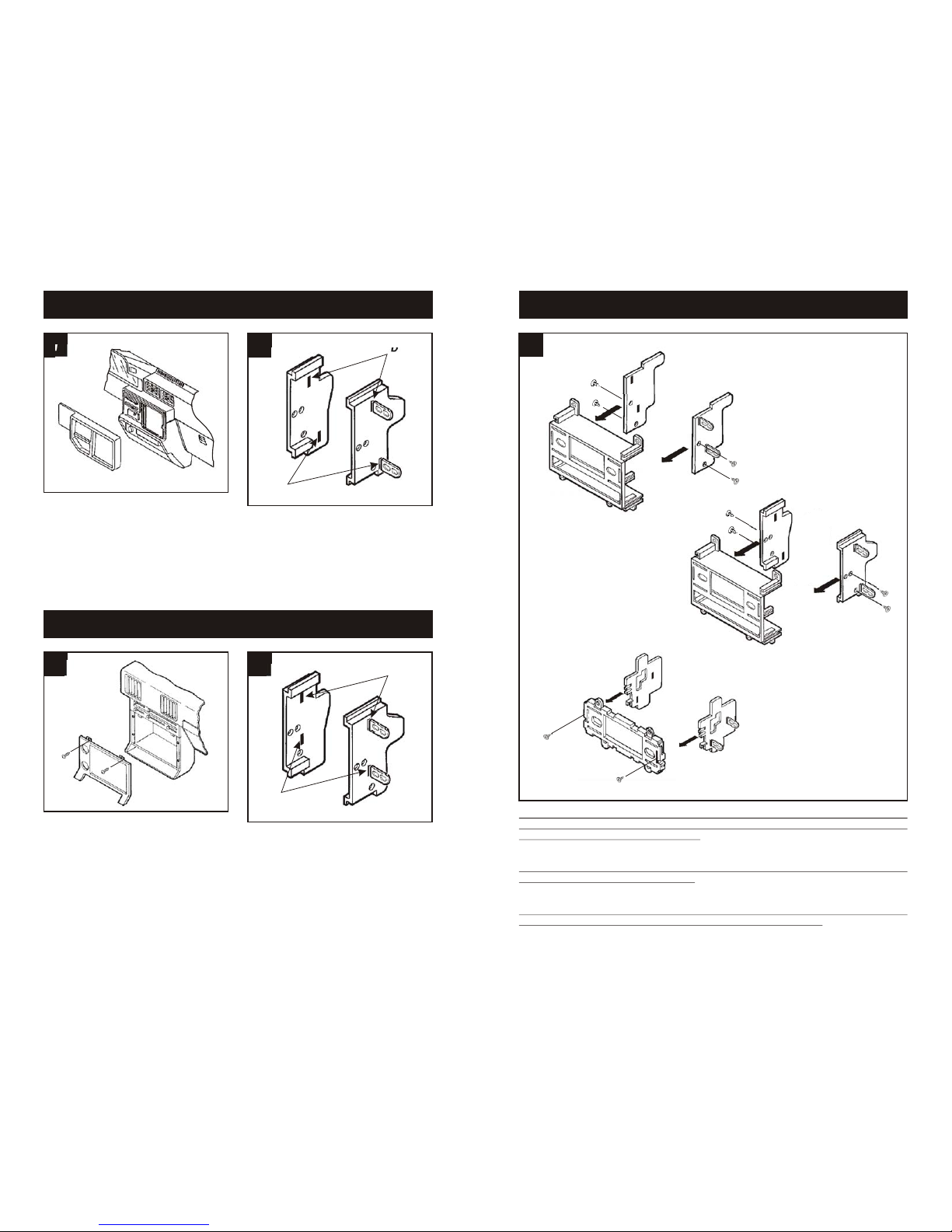

CELICA 1990-93, COROLLA (sport coupe/liftback) 1982-83, COROLLA (sedan/wagon-
lower dash) 1988-92, COROLLA 1984-87, LANDCRUISER 1988-92, MR2 1987-90,
PICKUP 1984-88, CRESSIDA, 4RUNNER: MountBracket Set #1 to Radio Housing #1 with
(4) Phillips Pan-head Screws supplied. (see Fig. A)
CELICA 1982-85, CELICA 1986-89, COROLLA (lower dash) 1988-92, PICKUP (double
DIN) 1989-91, SUPRA 1982-85, CAMRY: Mount Bracket Set #2 to Radio Housing #1 with
(4) Phillips Pan-head Screws supplied. (see Fig. B)
COROLLA (upper dash) 1982-83, COROLLA (sedan/wagon-upper dash) 1988-92,
LANDCRUISER 1982-87, MR2 1985-86, PICKUP (single DIN) 1989-91: Mount Bracket Set
#12 to Radio Housing #2 with (2) Phillips Pan-head Screws supplied. (see Fig. C)
ALL VEHICLES
3
"D"
1
TOYOTA Camry 1983-86
2
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(3) Phillips screws above the climate
controls. Remove (2) Phillips screws from
the left side of the dash trim bezel and
remove the bezel. Remove the screws
securing the factory head unit and
disconnect the wiring.
Slide Mounting Tabs #3 into slots "D" on
Bracket Set #2. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the ashtray and the climate control knobs.
Remove (3) flat-head screws from the
climate control panel and remove the panel.
Remove (2) Phillips screws from the top
edge of the radio trim bezel. Remove (4)
Phillips screws from the base of the radio
trim bezel and remove the bezel. Remove
(4) Phillips screws from the factory head unit
and disconnect the wiring.
1
TOYOTA Celica / Supra 1983-85
2
Slide Mounting Tabs #3 into slots "A" on
Bracket Set #2. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
"D"
"A"
"A"
Fig. A
Fig. B
Fig. C

92
1
1

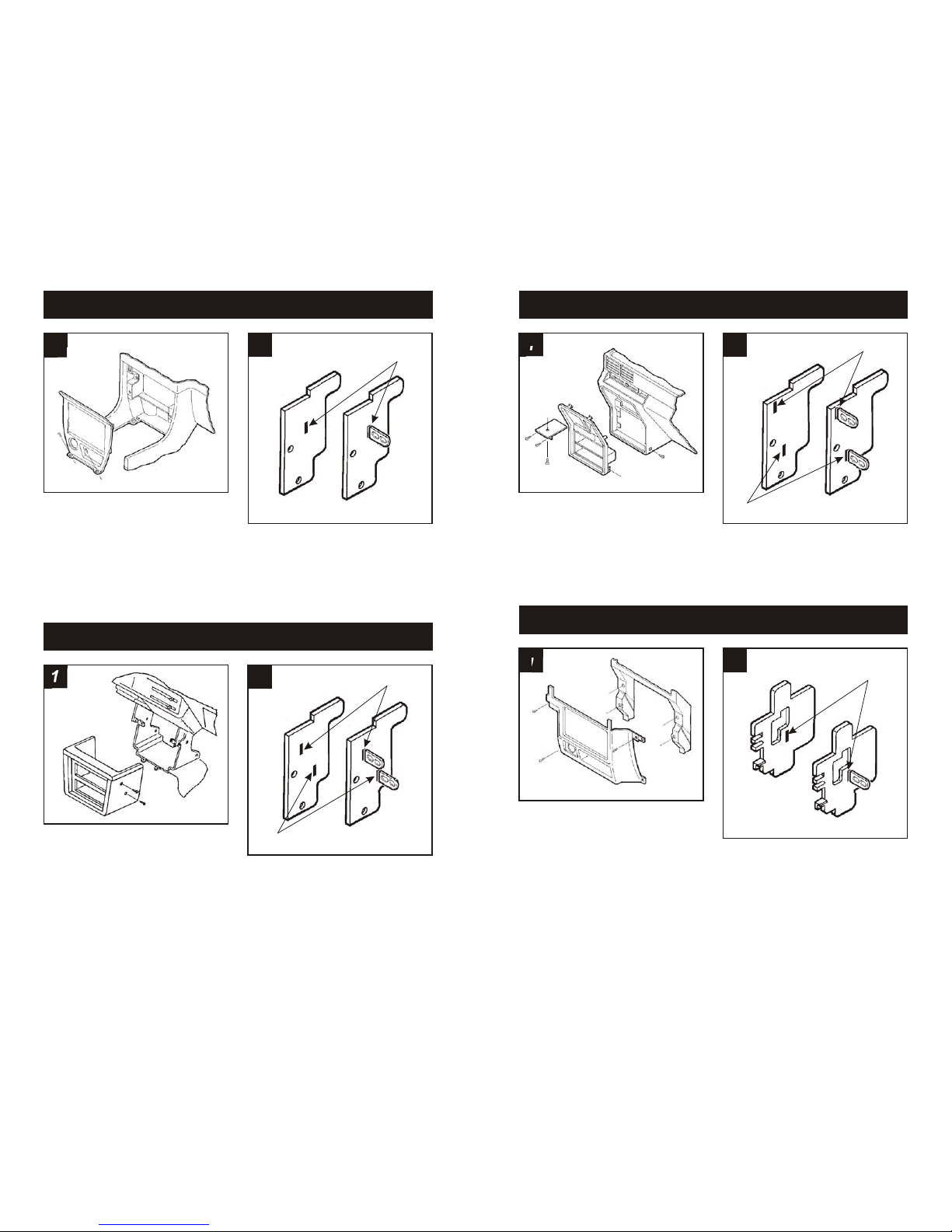

TOYOTA Celica (GT/GTS) 1986-89
TOYOTA Celica (ST) 1986-89
2
2
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) screws from the lower steering column
panel and remove the panel. Remove (2)
screws exposed on the dash trim bezel.
Open the glove box and remove (2) screws
exposed. Remove (2) screws from the
ashtray cavity and (2) screws from the
bracket. Remove (2) screws from each side
of the dash trim bezel and unclip the bezel.
Remove the screws securing the factory head
unit and disconnect the wiring.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) screws from the lower steering column
panel and remove the panel. Remove (2)
screws exposed on the dash trim bezel.
Open the glove box and remove (2) screws
exposed. Remove (2) screws from the
ashtray cavity and (2) screws from the
bracket. Remove (2) screws from each side
of the dash trim bezel and unclip the bezel.
Remove the screws securing the factory head
unit and disconnect the wiring.
Slide Mounting Tabs #3 and #8 into slots
"B" on Bracket Set #2. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Slide Mounting Tabs #8 into slots "C" on
Bracket Set #2. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
1
TOYOTA Pickup (double DIN) 1989-91
2
Slide Mounting Tabs #3 into slots "H" and
"D" on Bracket Set #2. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(3) screws and (1) bolt securing the driver's
side speaker panel and remove the panel.
Remove (1) screw from the left side of the
housing and unsnap the ignition cover.
Remove the glove compartment assembly
by removing (1) 10mm bolt from the bottom
of the speaker panel and (3) screws from the
right side of the housing. Remove the
remaining (3) screws securing the radio trim
bezel. Remove the screws securing the
factory head unit and disconnect the wiring.
"B"
"C"
"C"
"B"
"D"
"H"
1
TOYOTA Supra 1986-92
2
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the ashtray and (2) screws from the ashtray
cavity. Remove (1) screw to the right of the
steering column and (1) screw to the left of
the gear shifter. Remove the screws
securing the factory head unit and
disconnect the wiring.
Locate the Mounting tabs on Radio
Housing #1. (Brackets are NOT required
for this vehicle). Skip to the Installation
Instructions for ALL VEHICLES on Page
#10.

38
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) screws from each side of the dash trim
bezel and remove the bezel. Remove (4)
screws securing the upper radio dummy
cover to the bezel and remove.
1

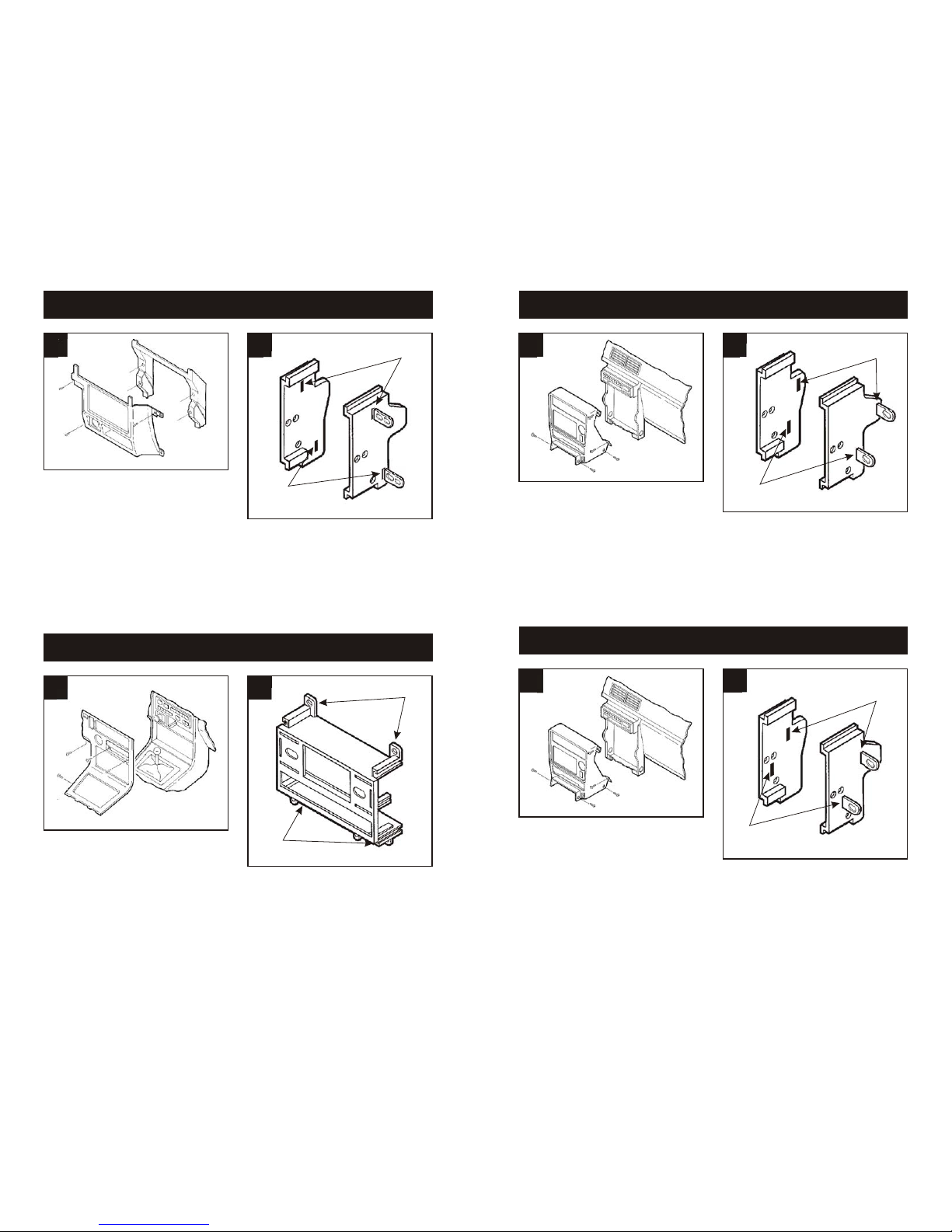

TOYOTA Corolla (sport coupe/liftback) 1982-83
2
Slide Mounting Tabs #3 into slots "B" on
Bracket Set #1. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
the ashtray and (3) screws from the ashtray
bracket. Remove (1) screw from each side
of the dash console and unclip the dash trim
bezel. Remove the screws securing the
factory head unit and disconnect the wiring.
1

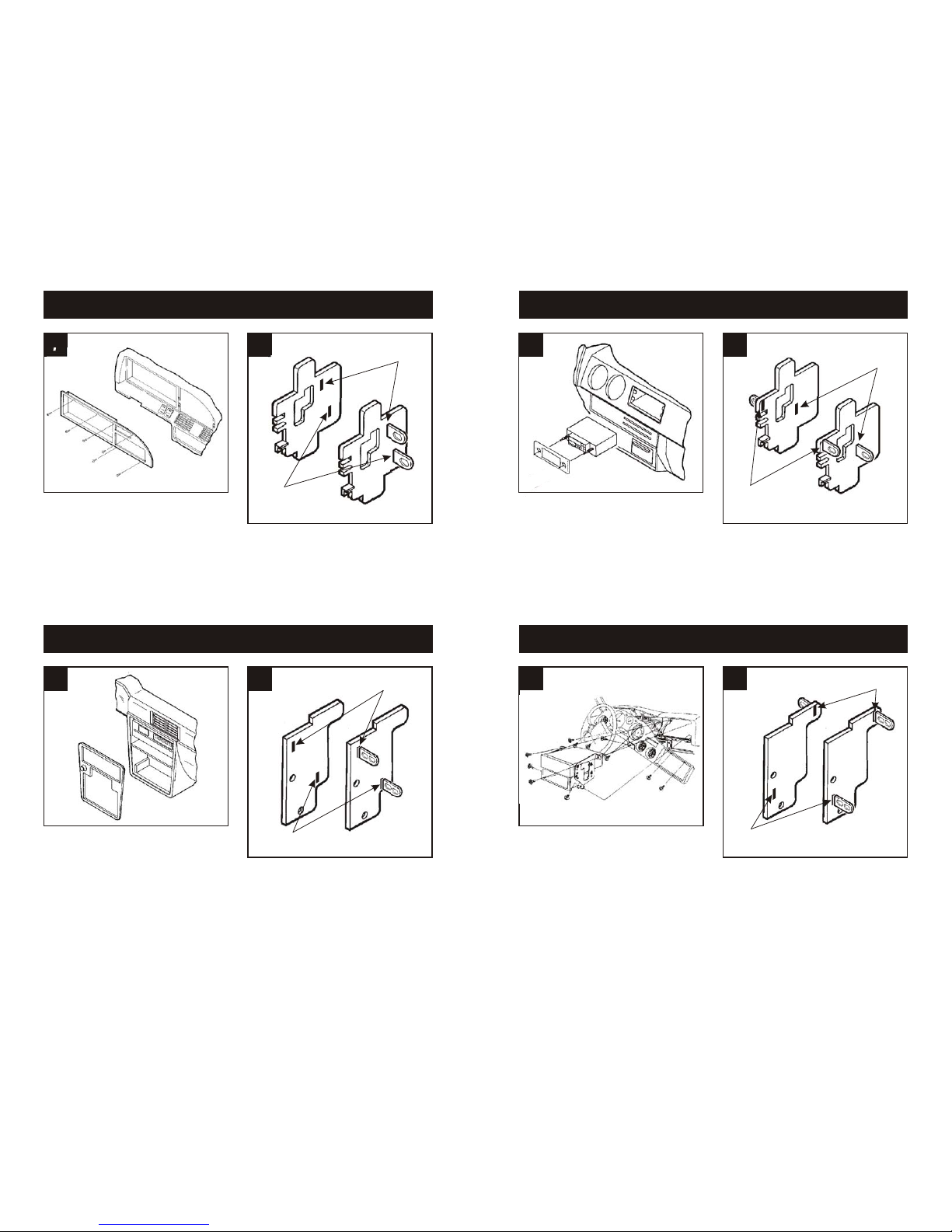

TOYOTA Pickup 1984-88 / 4Runner 1984-88
2
Slide Mounting Tabs #3 into slots "J" and
"I" on Bracket Set #1. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(3) screws and (1) bolt securing the driver's
side speaker panel and remove the panel.
Remove (1) screw from the left side of the
housing and unsnap the ignition cover.
Remove the glove compartment assembly
by removing (1) 10mm bolt from the bottom
of the speaker panel and (3) screws from the
right side of the housing. Remove the
remaining (3) screws securing the radio trim
bezel. Remove the screws securing the
factory head unit and disconnect the wiring.
1
TOYOTA Pickup (single DIN) 1989-91
2
Slide Mounting Tabs #3 into slots "D" on
Bracket Set #12. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Pry up
on the gear shifter trim panel and remove the
panel. Remove (2) screws exposed on the
bottom edge of the radio trim bezel. Unclip
the bezel, and disconnect the ashtray and
cigarette lighter wiring. Remove the screws
securing the factory head unit and
disconnect the wiring.
1
TOYOTA Celica 1990-93
2
Slide Mounting Tabs #3 into slots "A" on
Bracket Set #1. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
"A"
"B"
"B"
"J"
"I"
"D"

74
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(1) screw to the right of the ignition switch.
Remove (1) screw above the left speaker.
Unclip the dash trim bezel (some force may
be required). Remove the screws securing
the factory head unit and disconnect the
wiring.
1
TOYOTA Corolla (sed/wag-lower dash) 1988-93
2
Slide Mounting Tabs #3 into slots "F" on
Bracket Set #2. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) Phillips screws above the climate
controls. Unclip the lower edge of the radio
trim bezel and remove. Remove the screws
securing the factory head unit and
disconnect the wiring.
1
TOYOTA MR2 1985-86
2
Slide Mounting Tabs #3 into slots "C" on
Bracket Set #12. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) screws from the top of the dash trim bezel
and remove the bezel. Remove (4) screws
from the factory head unit (or coin tray
dummy panel) and disconnect the wiring.
1
TOYOTA MR2 1987-90
2
Slide Mounting Tabs #3 into slots "I" on
Bracket Set #12. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(2) Phillips screws from each side of the
radio trim bezel. Remove the bezel.
Remove (4) screws securing the factory
head unit and disconnect the wiring.
1
TOYOTA Corolla 1984-87
2
2DR/3DR MODELS: Slide Mounting Tabs
#3 into slots "G" on Bracket Set #1. (see Fig.
A).
4DR/5DR MODELS: Slide Mounting Tabs
#3 into slots "F" on Bracket Set #1. (see Fig.
B).
The Mounting Tabs, Brackets and Bracket
slots can be identified by the stamped letter
on each component. Skip to the Installation
Instructions for ALL VEHICLES on Page #10.
"C"
"C"
"I"
"I"
Fig. A
Fig. B
"F"
"F"
"F"
"F"
"G"
"G"

56
"A" "B"
"B"
"A"
Disconnect the negative battery terminal to
prevent an accidental short circuit. Unclip
the climate control trim panel and remove (2)
screws exposed. Remove (2) screws above
the radio opening. Unclip the dash trim
bezel, disconnect the wiring and remove the
bezel. Remove (4) screws securing the
factory head unit and disconnect the wiring.
1
TOYOTA Cressida 1985-87
2
Slide Mounting Tabs #3 into slots "C" on
Bracket Set #1. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(4) Phillips screws securing the factory head
unit and disconnect the wiring.
1
TOYOTA Landcruiser 1982-87
2
Slide Mounting Tabs #3 and #8 into slots
"B" on Bracket Set #12. The Mounting
Tabs, Brackets and Bracket slots can be
identified by the stamped letter on each
component. Skip to the Installation
Instructions for ALL VEHICLES on Page
#10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(3) screws from the lower edge of the climate
control panel. Remove (8) screws from the
perimeter of the dash trim bezel. Pull out on
the lower edge of the bezel and remove.
Remove the screws securing the factory
head unit and disconnect the wiring.
1
TOYOTA Landcruiser 1988-92
2
Slide Mounting Tabs #3 into slots "H" on
Bracket Set #1. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
Disconnect the negative battery terminal to
prevent an accidental short circuit. Remove
(4) screws from the top edge of the dash trim
bezel. Remove (2) screws below the radio
opening. Remove (1) screw from the lower-
left tab of the dash trim bezel (to the right of
the a/c vent). Unclip the bezel. Remove the
screws securing the factory head unit and
disconnect the wiring.
1
TOYOTA Corolla (sed/wag-upper dash) 1988-93
2
Slide Mounting Tabs #8 into slots "A" on
Bracket Set #12. The Mounting Tabs,
Brackets and Bracket slots can be identified
by the stamped letter on each component.
Skip to the Installation Instructions for ALL
VEHICLES on Page #10.
"C"
"C" "H"
"H"
