Migatronic OMEGA2 BASIC II User manual

QUICKGUIDE
OMEGA2BASIC II
DK
50113770 I
Proces 1,0 mm 1,5 mm 2,0 mm 3,0 mm
Materiale Tråd Gas S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0,8 CO22,5 19,0 4,5 19,5 7,0 21,0 11,0 27,0
Fe 1,0 CO22,0 18,0 2,5 19,0 3,0 20,0 4,5 21,0
Fe 1,2 CO21,0 18,0 2,0 20,0 2,5 21,0 3,5 22,0
Fe 0,8 ArCO23,0 16,0 6,0 18,0 7,5 19,5 11,0 20,0
Fe 1,0 ArCO22,0 15,0 3,0 16,0 4,0 17,0 6,0 19,0
Fe 1,2 ArCO21,5 16,5 2,5 17,5 3,5 18,0 4,5 20,5
Fe 1,6 ArCO21,0 17,0 2,0 18,0 2,5 18,5
CrNi 1,0 ArCO23,0 15,0 4,0 16,0 6,0 17,0 8,5 20,0
CrNi 1,2 ArCO22,0 15,0 3,0 16,0 3,5 16,5 6,0 18,0
AI 1,0 Ar 4,0 14,5 6,0 15,0 7,5 16,0 9,0 19,0
AI 1,2 Ar 3,5 13,0 5,0 15,0 8,0 16,0 9,0 17,0
Proces 4,0 mm 6,0 mm 10,0 mm
Materiale Tråd Gas S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0,8 CO213,0 29,0 18,0 30,0 24,0 37,0
Fe 1,0 CO26,0 22,5 9,0 24,5 14,0 32,0
Fe 1,2 CO24,5 23,0 7,5 28,5 11,0 36,0
Fe 0,8 ArCO214,0 26,0 18,0 31,0 24,0 33,0
Fe 1,0 ArCO28,0 20,0 11,5 26,5 16,0 30,0
Fe 1,2 ArCO25,5 20,5 8,0 29,0 10,0 32,0
Fe 1,6 ArCO23,0 19,5 4,0 22,0 5,5 29,0
FeFlux 1,2 ArCO26,0 21,0 8,0 25,0 11,0 28,0
CrNi 1,0 ArCO29,0 25,0 10,0 27,0
CrNi 1,2 ArCO28,0 24,0 10,0 24,0 12,0 31,0
AI 1,0 Ar 11,0 22,0 13,0 25,0 15,0 27,0
AI 1,2 Ar 10,0 18,0 13,0 23,0 15,0 26,0
Svejsetabel (indstillet værdi) BASIC II - fabriksindstilling
Indstillingsmuligheder Område Trin Fabriksindstilling Enhed
2T/4T
Primære parametre:
1 Trådhastighed OMEGA2300 1,5 - 18,0 0,1 3,0 m/min
Trådhastighed OMEGA2400/550 1,5 - 27,0 0,1 3,0 m/min
2 Lysbuespænding OMEGA2300 13 - 32 0,1 18,0 V
Lysbuespænding OMEGA2400/550 13 - 37 0,1 18,0 V
Sekundære parametre:
1 Arc Adjust -5,0 - +5,0 0,1 0,0 -
2 Gasforstrømning 0,0 - 10,0 0,1 0,2 s
3 Krybestart Off / 1,5 - Max. 0,1 2,0 m/min
6 Burnback 1 - 30 1 5 ms
7 Gasefterstrømning 0,0 - 10,0 0,1 3,0 s
t Punkttid 0,0 - 50,0 0,1 0,0 s
G Gas Manuel 0,5 - 27,0 l
r Fjernkontrol 0 = intern
1 = brænderkontrol
2 = fjernkontrol
C Køling ON / Off
L Låsefunktion ON / OFF

QUICKGUIDE OMEGA2BASIC II
DK
3 Drejeknap
Indstilling af lysbuespænding. Hvis
knappen for sekundære parametre er
aktiv, vil sekundære parametre kunne
trimmes.
4 Trådhastighed og Lysbuelængde
Tryk på knappen og drej på dreje-
knapperne, indtil den ønskede
trådhastighed og lysbuelængde opnås.
5 Sekundære parametre
Tryk på knappen indtil den ønskede
parameter vises i displayet. Afslut med
et kort tryk på knap 4
Låsefunktion
(under sekundære parametre)
Sekundære parametre kan låses/låses op
ved at holde knap 1 og knap 4 inde
samtidigt.
ASvejsespænding
B Advarsel - Overophedning

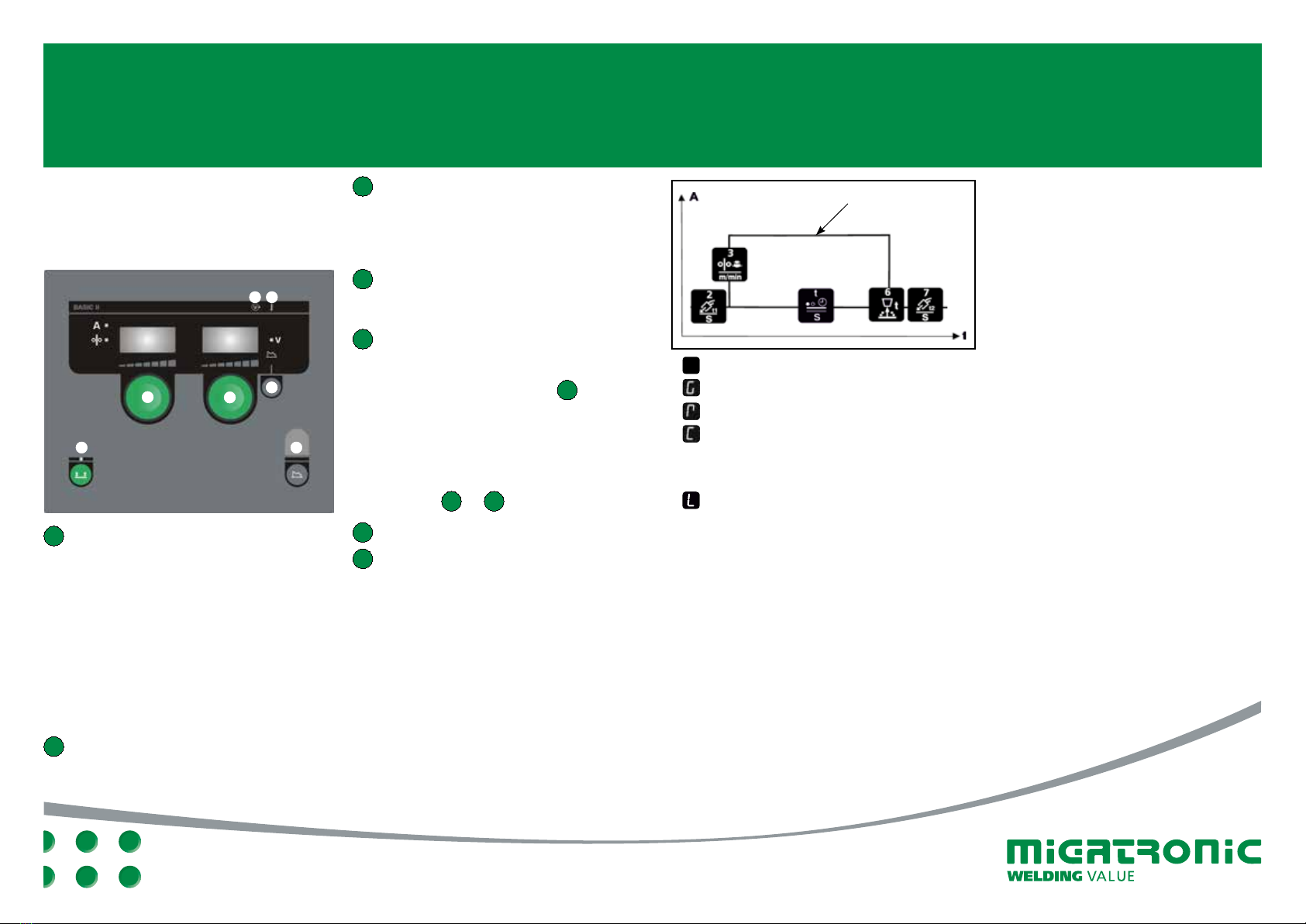

BASIC II BETJENINGSPANEL
I. Tænd maskinen
II. Indstil trådhastighed
III. Indstil lysbuespænding
1 Valg af tastemetode
Skift mellem 2-takt (indikator slukket)
og 4-takt (indikator lyser).
2-takt: Svejseforløbet begynder, når
brændertasten aktiveres og afsluttes,
når brændertasten slippes.
4-takt: S vejseforløbet begynder, når
brændertasten aktiveres og slippes.
Afsluttes når brændertasten atter
aktiveres.
2 Drejeknap
Indstilling af trådhastighed samt ranger-
hastighed når der rangeres.
2
B
1
A
4
3
5
Arc Adjust (elektronisk drossel)
GAS
Fjernkontrol
Køling 4-takt tast (1) skal holdes inde for at
aktivere/deaktivere kølingen via drejeknap 3
(kun Omega2400/550)
Låsefunktion
Indstillet svejsestrøm (A)
Krybestart
(m/min.)
Gasfor-
strømning (t) Burnback
Gasefter-
strømning (t)
1
Punkttid (s)

QUICKGUIDE
OMEGA2BASIC II
UK
50113770 I
Process 1.0 mm 1.5 mm 2.0 mm 3.0 mm
Material Wire Gas S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0.8 CO22.5 19.0 4.5 19.5 7.0 21.0 11.0 27.0
Fe 1.0 CO22.0 18.0 2.5 19.0 3.0 20.0 4.5 21.0
Fe 1.2 CO21.0 18.0 2.0 20.0 2.5 21.0 3.5 22.0
Fe 0.8 ArCO23.0 16.0 6.0 18.0 7.5 19.5 11.0 20.0
Fe 1.0 ArCO22.0 15.0 3.0 16.0 4.0 17.0 6.0 19.0
Fe 1.2 ArCO21.5 16.5 2.5 17.5 3.5 18.0 4.5 20.5
Fe 1.6 ArCO21.0 17.0 2.0 18.0 2.5 18.5
CrNi 1.0 ArCO23.0 15.0 4.0 16.0 6.0 17.0 8.5 20.0
CrNi 1.2 ArCO22.0 15.0 3.0 16.0 3.5 16.5 6.0 18.0
AI 1.0 Ar 4.0 14.5 6.0 15.0 7.5 16.0 9.0 19.0
AI 1.2 Ar 3.5 13.0 5.0 15.0 8.0 16.0 9.0 17.0
Process 4.0 mm 6.0 mm 10.0 mm
Material Wire Gas S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0.8 CO213.0 29.0 18.0 30.0 24.0 37.0
Fe 1.0 CO26.0 22.5 9.0 24.5 14.0 32.0
Fe 1.2 CO24.5 23.0 7.5 28.5 11.0 36.0
Fe 0.8 ArCO214.0 26.0 18.0 31.0 24.0 33.0
Fe 1.0 ArCO28.0 20.0 11.5 26.5 16.0 30.0
Fe 1.2 ArCO25.5 20.5 8.0 29.0 10.0 32.0
Fe 1.6 ArCO23.0 19.5 4.0 22.0 5.5 29.0
FeFlux 1.2 ArCO26.0 21.0 8.0 25.0 11.0 28.0
CrNi 1.0 ArCO29.0 25.0 10.0 27.0
CrNi 1.2 ArCO28.0 24.0 10.0 24.0 12.0 31.0
AI 1.0 Ar 11.0 22.0 13.0 25.0 15.0 27.0
AI 1.2 Ar 10.0 18.0 13.0 23.0 15.0 26.0
Welding table (set value) BASIC II - Factory setting
Setting possibilities Area Step Factory setting Unit
2T/4T
Primary parameters:
1 Wire feed speed OMEGA2300 1.5 - 18.0 0.1 3.0 m/min
Wire feed speed OMEGA2400/550 1.5 - 27.0 0.1 3.0 m/min
2 Arc voltage OMEGA2300 13 - 32 0.1 18.0 V
Arc voltage OMEGA2400/550 13 - 37 0.1 18.0 V
Secondary parameters:
1 Inductance -5.0 - +5.0 0.1 0.0 -
2 Gas pre flow 0.0 - 10.0 0.1 0.2 s
3 Soft start Off / 1.5 - Max. 0.1 2.0 m/min
6 Burnback 1 - 30 1 5 ms
7 Gas post flow 0.0 - 10.0 0.1 3.0 s
t Spot time 0.0 - 50.0 0.1 0.0 s
G Gas Manual 0.5 - 27 l
r Remote control 0 = internal
1 = torch control
2 = remote control
C Cooling ON / OFF
L Lock function ON / OFF

QUICKGUIDE OMEGA2BASIC II
UK
3 Control knob
Setting the arc voltage. If the key
for secondary parameters is active,
it is possible to trim the secondary
parameters.
4 Wire feed speed and arc length
Press the key and turn the control knobs
until the desired wire feed speed and arc
length are achieved.
5 Secondary parameters
Press the key until the desired
parameter is shown on the display.
Press key 4briefly to finish.
Lock function
(under secondary parameters)
Lock/unlock secondary parameters
by pressing keys 1 and 4
simultaneously.
AWelding voltage
B Warning – overheating
BASIC II CONTROL PANEL
I. Switch on the machine
II. Set wire feed speed
III. Set arc voltage
1 Selecting trigger mode
Change between 2-stroke (indicator off)
and 4-stroke (indicator on).
2-stroke: The welding process starts
when the torch trigger is activated and
ends when the torch trigger is released.
4-stroke: The welding process starts
when the torch trigger is activated
and released, and ends when the torch
trigger is activated again.
2 Control knob
Setting the wire feed speed and inching
speed during wire inching.
Arc adjust (electronic choke)
GAS
Remote control
Cooling Press and hold down 4-stroke key (1)
to activate/deactivate cooling using control
knob 3 (Omega2400/550 only)
Lock funktion
Set welding current (A)
Soft start
(m/min.)
Gas
pre flow (t) Burnback
Gas post
flow (t)
1
2
B
1
A
4
3
5
Spot time (s)

QUICKGUIDE
OMEGA2BASIC II
DE
50113770 I
Verfahren 1,0 mm 1,5 mm 2,0 mm 3,0 mm
Material Draht Gas S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0,8 CO22,5 19,0 4,5 19,5 7,0 21,0 11,0 27,0
Fe 1,0 CO22,0 18,0 2,5 19,0 3,0 20,0 4,5 21,0
Fe 1,2 CO21,0 18,0 2,0 20,0 2,5 21,0 3,5 22,0
Fe 0,8 ArCO23,0 16,0 6,0 18,0 7,5 19,5 11,0 20,0
Fe 1,0 ArCO22,0 15,0 3,0 16,0 4,0 17,0 6,0 19,0
Fe 1,2 ArCO21,5 16,5 2,5 17,5 3,5 18,0 4,5 20,5
Fe 1,6 ArCO21,0 17,0 2,0 18,0 2,5 18,5
CrNi 1,0 ArCO23,0 15,0 4,0 16,0 6,0 17,0 8,5 20,0
CrNi 1,2 ArCO22,0 15,0 3,0 16,0 3,5 16,5 6,0 18,0
AI 1,0 Ar 4,0 14,5 6,0 15,0 7,5 16,0 9,0 19,0
AI 1,2 Ar 3,5 13,0 5,0 15,0 8,0 16,0 9,0 17,0
Verfahren 4,0 mm 6,0 mm 10,0 mm
Material Draht Gas S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0,8 CO213,0 29,0 18,0 30,0 24,0 37,0
Fe 1,0 CO26,0 22,5 9,0 24,5 14,0 32,0
Fe 1,2 CO24,5 23,0 7,5 28,5 11,0 36,0
Fe 0,8 ArCO214,0 26,0 18,0 31,0 24,0 33,0
Fe 1,0 ArCO28,0 20,0 11,5 26,5 16,0 30,0
Fe 1,2 ArCO25,5 20,5 8,0 29,0 10,0 32,0
Fe 1,6 ArCO23,0 19,5 4,0 22,0 5,5 29,0
FeFlux 1,2 ArCO26,0 21,0 8,0 25,0 11,0 28,0
CrNi 1,0 ArCO29,0 25,0 10,0 27,0
CrNi 1,2 ArCO28,0 24,0 10,0 24,0 12,0 31,0
AI 1,0 Ar 11,0 22,0 13,0 25,0 15,0 27,0
AI 1,2 Ar 10,0 18,0 13,0 23,0 15,0 26,0
Schweißtabelle (eingestellter Wert) BASIC II – werkseitige Einstellungen
Einstellmöglichkeiten Bereich Abstufung Werkseitige
Einstellung
Einheit
2T/4T
Primärparameter:
1 Drahtfördergeschwindigkeit OMEGA 300 1,5 - 18,0 0,1 3,0 m/min
Drahtfördergeschwindigkeit OMEGA 400/550 1,5 - 27,0 0,1 3,0 m/min
2 Lichtbogenspannung OMEGA 300 13 - 32 0,1 18,0 V
Lichtbogenspannung OMEGA 400/550 13 - 37 0,1 18,0 V
Sekundärparameter:
1 Drossel -5,0 - +5,0 0,1 0,0 -
2 Gasvorströmung 0,0 - 10,0 0,1 0,2 s
3 Einschleichstart Off / 1,5 - Max. 0,1 2,0 m/min
6 Drahtrückbrand 1 - 30 1 5 ms
7 Gasnachströmung 0,0 - 10,0 0,1 3,0 s
t Punktschweißzeit 0,0 - 50,0 0,1 0,0 s
G Gas Manuell 0,5 - 27,0 l
r Fernregelung 0 = intern
1 = Brennerregelung
2 = Fernregelung
C Kühlung Ein/Aus
L Schlossfunktion Ein/Aus

QUICKGUIDE OMEGA2BASIC II
DE
3 Drehregler
Einstellung der Lichtbogenspannung.
Wenn die Taste für Sekundärparameter
aktiv ist, können die Sekundär-
parameter eingestellt werden.
4 Drahtgeschwindigkeit und
Lichtbogenlänge
Die Taste drücken und die Drehregler
drehen, bis die gewünschten Draht-
geschwindigkeit und Lichtbogenlänge
erreicht sind.
5 Sekundärparameter
Taste gedrückt halten, bis der
gewünschte Parameter im Display
angezeigt wird.
Untermenü, Sekundärparameter:
Verlassen erfolgt durch kurzen
Tastendruck auf 4
Schlossfunktion
(unter Sekundärparameter)
Zum Sperren/Entsperren der Sekundär-
parameter die Taste 1 und die Taste 4
gleichzeitig drücken.
ASchweißspannung
B Warnung – Überhitzung
BASIC II BEDIENFELD
I Maschine einschalten
II Drahtfördergeschwindigkeit einstellen
III Lichtbogenspannung einstellen
1 Trigger-Modus
Wechseln Sie zwischen 2-Takt (Indikator
aus) und 4-Takt (Indikator ein).
2-Takt: Der Schweißvorgang beginnt,
wenn der Trigger gedrückt wird und
endet, wenn er wieder losgelassen wird.
4-Takt: Der Schweißvorgang beginnt,
wenn der Trigger gedrückt und
losgelassen wird und endet, wenn er
wiederum gedrückt wird.
2 Drehregler
Einstellung der Drahtgeschwindigkeit
und Drahtfördergeschwindigkeit
während der Drahtförderung.
Arc adjust (elektronische Drossel)
GAS
Fernregelung
Kühlung Die 4-Takt-Taste (1) gedrückt halten
um Kühlung mittels Drehregler 3 zu
aktivieren/deaktivieren (nur Omega2400/550)
Schlossfunktion
Eingestellter Schweißstrom (A)
Einschleichstart (m/Min.)
Gasvor-
strömung (t) Drahtrückbrand
Gasnach-
strömung (t)
1
2
B
1
A
4
3
5
Punktschweißzeit (s)

GUIDE RAPIDE
OMEGA2BASIC II
F
50113770 I
Procédé 1,0 mm 1,5 mm 2,0 mm 3,0 mm
Matériau Fil Gaz S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0.8 CO22.5 19.0 4.5 19.5 7.0 21.0 11.0 27.0
Fe 1.0 CO22.0 18.0 2.5 19.0 3.0 20.0 4.5 21.0
Fe 1.2 CO21.0 18.0 2.0 20.0 2.5 21.0 3.5 22.0
Fe 0.8 ArCO23.0 16.0 6.0 18.0 7.5 19.5 11.0 20.0
Fe 1.0 ArCO22.0 15.0 3.0 16.0 4.0 17.0 6.0 19.0
Fe 1.2 ArCO21.5 16.5 2.5 17.5 3.5 18.0 4.5 20.5
Fe 1.6 ArCO21.0 17.0 2.0 18.0 2.5 18.5
CrNi 1.0 ArCO23.0 15.0 4.0 16.0 6.0 17.0 8.5 20.0
CrNi 1.2 ArCO22.0 15.0 3.0 16.0 3.5 16.5 6.0 18.0
AI 1.0 Ar 4.0 14.5 6.0 15.0 7.5 16.0 9.0 19.0
AI 1.2 Ar 3.5 13.0 5.0 15.0 8.0 16.0 9.0 17.0
Procédé 4,0 mm 6,0 mm 10,0 mm
Matériau Fil Gaz S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0.8 CO213.0 29.0 18.0 30.0 24.0 37.0
Fe 1.0 CO26.0 22.5 9.0 24.5 14.0 32.0
Fe 1.2 CO24.5 23.0 7.5 28.5 11.0 36.0
Fe 0.8 ArCO214.0 26.0 18.0 31.0 24.0 33.0
Fe 1.0 ArCO28.0 20.0 11.5 26.5 16.0 30.0
Fe 1.2 ArCO25.5 20.5 8.0 29.0 10.0 32.0
Fe 1.6 ArCO23.0 19.5 4.0 22.0 5.5 29.0
FeFlux 1.2 ArCO26.0 21.0 8.0 25.0 11.0 28.0
CrNi 1.0 ArCO29.0 25.0 10.0 27.0
CrNi 1.2 ArCO28.0 24.0 10.0 24.0 12.0 31.0
AI 1.0 Ar 11.0 22.0 13.0 25.0 15.0 27.0
AI 1.2 Ar 10.0 18.0 13.0 23.0 15.0 26.0
Tableau de soudage (consigne) BASIC II - Valeur usine
Possibilités de réglage Plage de réglage Précision Valeur usine Unité
2T/4T
Paramètres principaux :
1 Vitesse fil OMEGA2300 1.5 - 18.0 0.1 3.0 m/min
Vitesse fil OMEGA2400/550 1.5 - 27.0 0.1 3.0 m/min
2 Tension d’arc OMEGA2300 13 - 32 0.1 18.0 V
Tension d’arc OMEGA2400/550 13 - 37 0.1 18.0 V
Paramètres secondaires :
1 Réglage self (dureté d’arc) -5.0 - +5.0 0.1 0.0 -
2 Pré-Gaz 0.0 - 10.0 0.1 0.2 s
3 Dévidage fil froid Off / 1.5 - Max. 0.1 2.0 m/min
6 Burnback 1 - 30 1 5 ms
7 Post-Gaz 0.0 - 10.0 0.1 3.0 s
t Pointage (tempo) 0.0 - 50.0 0.1 0.0 s
G Gaz Manuel 0.5 - 27.0 l
r Commande à distance 0 = interne
1 = réglage à la torche
2 = commande à distance
C Cooling (Refroidissement) ON / OFF
L Fonction de verrouillage ON / OFF

GUIDE RAPIDE OMEGA2BASIC II
F
2 Encodeur de réglage
Cet encodeur permet de régler la vitesse
de fil et la vitesse de dévidage du fil à
froid.
3 Encodeur de réglage
Cet encodeur permet de régler la
tension d’arc. L’activation de la touche
des paramètres secondaires vous permet
de régler les paramètres correspondants.
4 Vitesse de dévidage et
longueur de l’arc
Appuyer sur la touche et tourner les
boutons de commande jusqu’à ce que la
vitesse du fil d’ alimentation souhaitée
et la longueur d’ arc sont atteints.
5 Paramètres secondaires
Appuyez sur cette touche jusqu’à ce que
le paramètre souhaité s’affiche à l’écran.
Appuyez brièvement sur la touche 4
pour terminer.
Fonction de verrouillage
(dans les paramètres secondaires)
Verrouiller / déverrouiller les paramètres
secondaires en appuyant sur les touches
1 et 4 simultanément.
APrésence Arc
B Alerte surchauffe
PANNEAU DE COMMANDE BASIC II
I. Démarrer la machine
II. Régler la vitesse de fil
III. Régler la tension d’arc
1 Sélection du mode gâchette
Possibilité de choisir entre le mode
2temps (LED éteinte) et mode 4 temps
(LED allumée).
2-temps: Le cycle de soudage commence
quand on appui sur la gâchette et
s’arrête quand on relâche la gâchette.
4-temps: le procédé de soudage
démarre lorsque la gâchette de la
torche est activée puis relâchée,
et s’arrête lorsque la gâchette est
réactivée.
Réglage self (dureté de l’arc)
GAZ
Commande à distance
Cooling (Refroidissement) Appuyez sur
la touche à 4 temps (1) et maintenez-
la enfoncée pour activer/désactiver le
refroidissement à l’aide du bouton de
commande 3 (Omega2400/550 uniquement)
Fonction de verrouillage
Courant de soudage (A)
Dévidage fil froid (m/min.)
Pré-Gaz (t)
Burnback
Post-Gaz (t)
1
2
B
1
A
4
3
5
Pointage (tempo) (s)

GUIDA RAPIDA
OMEGA2BASIC II
IT
50113770 I
Processo 1.0 mm 1.5 mm 2.0 mm 3.0 mm
Materiale Filo Gas S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0.8 CO22.5 19.0 4.5 19.5 7.0 21.0 11.0 27.0
Fe 1.0 CO22.0 18.0 2.5 19.0 3.0 20.0 4.5 21.0
Fe 1.2 CO21.0 18.0 2.0 20.0 2.5 21.0 3.5 22.0
Fe 0.8 ArCO23.0 16.0 6.0 18.0 7.5 19.5 11.0 20.0
Fe 1.0 ArCO22.0 15.0 3.0 16.0 4.0 17.0 6.0 19.0
Fe 1.2 ArCO21.5 16.5 2.5 17.5 3.5 18.0 4.5 20.5
Fe 1.6 ArCO21.0 17.0 2.0 18.0 2.5 18.5
CrNi 1.0 ArCO23.0 15.0 4.0 16.0 6.0 17.0 8.5 20.0
CrNi 1.2 ArCO22.0 15.0 3.0 16.0 3.5 16.5 6.0 18.0
AI 1.0 Ar 4.0 14.5 6.0 15.0 7.5 16.0 9.0 19.0
AI 1.2 Ar 3.5 13.0 5.0 15.0 8.0 16.0 9.0 17.0
Processo 4.0 mm 6.0 mm 10.0 mm
Materiale Filo Gas S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
S
(m/min)
U0
(V)
Fe 0.8 CO213.0 29.0 18.0 30.0 24.0 37.0
Fe 1.0 CO26.0 22.5 9.0 24.5 14.0 32.0
Fe 1.2 CO24.5 23.0 7.5 28.5 11.0 36.0
Fe 0.8 ArCO214.0 26.0 18.0 31.0 24.0 33.0
Fe 1.0 ArCO28.0 20.0 11.5 26.5 16.0 30.0
Fe 1.2 ArCO25.5 20.5 8.0 29.0 10.0 32.0
Fe 1.6 ArCO23.0 19.5 4.0 22.0 5.5 29.0
FeFlux 1.2 ArCO26.0 21.0 8.0 25.0 11.0 28.0
CrNi 1.0 ArCO29.0 25.0 10.0 27.0
CrNi 1.2 ArCO28.0 24.0 10.0 24.0 12.0 31.0
AI 1.0 Ar 11.0 22.0 13.0 25.0 15.0 27.0
AI 1.2 Ar 10.0 18.0 13.0 23.0 15.0 26.0
Tabella parametri di saldatura Regolazioni di fabbrica BASIC II
Possibilità di regolazione Campo Incrementi Regolazioni
di fabbrica
Unità di
misura
2/4 tempi
Parametri principali :
1 Velocità filo OMEGA2300 1.5 - 18.0 0.1 3.0 m/min
Velocità filo OMEGA2400/550 1.5 - 27.0 0.1 3.0 m/min
2 Tensione d’arco OMEGA2300 13 - 32 0.1 18.0 V
Tensione d’arco OMEGA2400/550 13 - 37 0.1 18.0 V
Parametri secondari :
1 Reattanza -5.0 - +5.0 0.1 0.0 -
2 Pregas 0.0 - 10.0 0.1 0.2 s
3 Soft Start Off / 1.5 - Max. 0.1 2.0 m/min
6 Burnback 1 - 30 1 5 ms
7 Postgas 0.0 - 10.0 0.1 3.0 s
t Tempo puntatura 0.0 - 50.0 0.1 0.0 s
G Gas Manuale 0.5 - 27.0 l
r Controllo a distanza 0 = interno
1 = torcia
2 = comando a distanza
C Raffreddamento ON / OFF
L Blocco ON / OFF

GUIDA RAPIDA OMEGA2BASIC II
IT
3 Manopola di regolazione
Girare la manopola per regolare la
tensione d’arco. Se è selezionato un
parametro secondario, ne permette la
regolazione.
4 Velocità filo e lunghezza d’arco
Schiacciare il pulsante e girare la
manopola fino ad impostare velocità
filo e lunghezza d’arco desiderate.
5 Parametri secondari
Premere il tasto fino a visualizzare sul
display il parametro desiderato.
Premere brevemente 4per finire.
Blocco (parametri secondari)
Blocco/sblocco dei parametri
secondary premendo i tasti 1 e 4
simultaneamente.
ATensione di saldatura
B Allarme – surriscaldamento
Pannello di controllo BASIC II
I. Accendere la macchina
II. Regolare la velocità del filo
III. Regolare la tensione d’arco
1 2/4 tempi
Permette di cambiare da 2 tempi (LED
spento) a 4 tempi (LED acceso).
2 tempi : Il processo di saldatura inizia
quando viene premuto il pulsante torcia
e si interrompe quando questo viene
rilasciato.
4 tempi : Il processo di saldatura inizia
quando il pulsante torcia viene premuto
e rilasciato e si interrompe quando
questo viene premuto nuovamente.
2 Manopola di regolazione
Regola la velocità del filo in saldatura e
nel cambio bobina.
Reattanza elettronica
GAS
Controllo a distanza
Raffreddamento Schiacciare e tenere
premuto il pulsante 4 tempi (1) per
attivare/disattivare l’unità di raffreddamento
usando la manopola 3 (solo Omega2400/550)
Blocco
Corrente di saldatura (A)
Soft start (m/min.)
Pregas (t)
Burnback
Postgas (t)
1
2
B
1
A
4
3
5
Tempo puntatura (s)
