C Controlle
r
Module
User’s Manual
(Hardware)
Q06CCPU-V-H01
Thank you for buying the Mitsubishi programmable controller
MELSEC-Q Series
Prior to use, please read both this manual and detailed manual
thoroughly and familiarize yourself with the product.
MODEL Q06CCPU-V-H01-U-HW-J
MODEL
CODE 13JP63
IB(NA)-0800306-F(0809)MEE
© 2004 MITSUBISHI ELECTRIC CORPORATION

A
-1
zSAFETY PRECAUTIONS z
(Always read these instructions before using this product.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
In this manual, the safety instructions are ranked as "DANGER" and "CAUTION".
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in minor or moderate personal injury
or physical damage.
Note that the CAUTION level may lead to a serious consequence according
to the circumstances.
Always follow the instructions of both levels because they are important to
personal safety.
Please keep this manual in a safe place for future reference and also pass this
manual on to the end user.
[DESIGN PRECAUTIONS]
DANGER
zProvide a safety circuit outside the C Controller module to ensure that the
entire system will operate safely even if an external power failure or C
Controller module failure occurs.
Failure to do so could result in accidents due to erroneous output or
operation.
(1) For an emergency stop circuit, protection circuit and interlock circuit that
is designed for incompatible actions such as forward/reverse rotation or
for damage prevention such as the upper/lower limit setting in
positioning, any of them must be provided outside the C Controller
module.
(2) When the C Controller module detects the following conditions, it will
disable the output (Y) from the user program and writing to buffer
memory in the case of both (a) and (b) and turn off all outputs for (b).
Whether to hold or clear all the outputs is set by a parameter.
(a) The overcurrent protector or overvoltage protector of the power
supply module is activated.
(b) An error such as a watchdog timer error is detected by the
self-diagnostic function of the C Controller module.
If an error occurs in I/O control parts and the C Controller module cannot
detect the error, all the outputs may turn ON.
Provide a fail-safe circuit or a preventive mechanism outside the C
Controller module so that machines will operate safely in such a case.

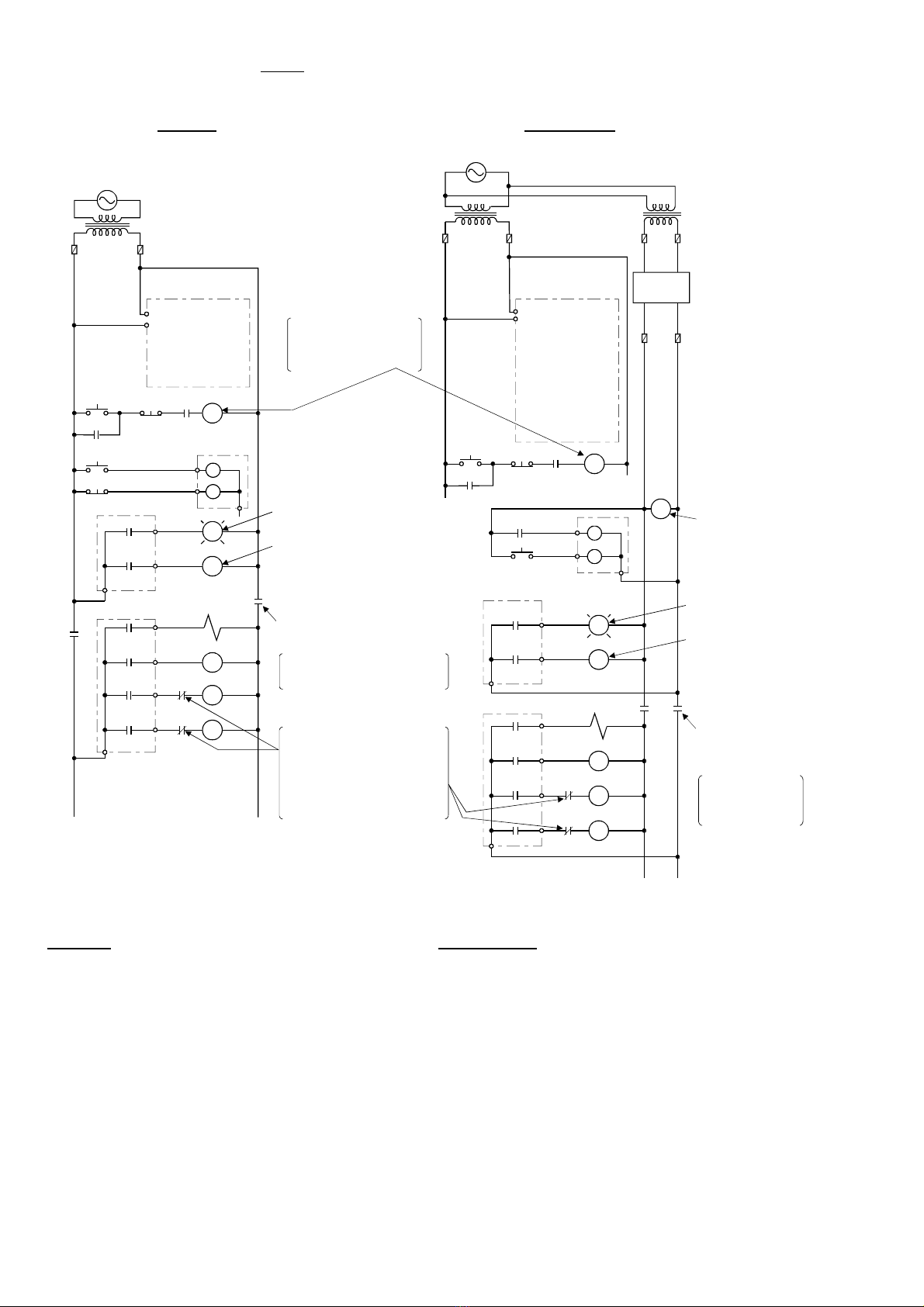

For fail-safe circuit examples, refer to Section 3.2 in this manual.
DANGER
CAUTION

A
-2
[DESIGN PRECAUTIONS]
DANGER
(3) Output could be left on or off when there is a fault in an output module
relay or transistor.
So build an external monitoring circuit that will monitor any output signal
that could cause serious accidents.
zIf load current more than the rating or overcurrent due to a short circuit in the
load has flowed in the output module for a long time, it may cause a fire and
smoke. Provide an external safety device such as a fuse.
zCreate the circuit so that the external power supply will turn on after the C
Controller system is powered on.
Turning on the external power supply first could result in accidents due to
erroneous output or operation.
zFor each station's operating status in the event of a each station error, refer
to the corresponding each station manual.
Not doing so could result in erroneous output or operation.
zWhen controlling a running C Controller module (data modification) by
connecting a personal computer to the C Controller module, create an
interlock circuit on user programs so that the whole system functions safely
all the time.
This must be also done when performing any other controls (e.g. operating
status change (status control)) or operations instructed from the computer.
In these controls, especially the one performed from an external device to a
C Controller module in a remote location, some C Controller side problem
may not be resolved immediately due to failure of data communications.
To prevent this, create an interlock circuit on user programs and establish
corrective procedures for communication failure between the external device
and the C Controller module.
zWhen setting up the system, do not allow any empty slot on the base unit.
If any slot is left empty, be sure to use a blank cover (QG60).
Otherwise, in the short circuit test or when an overcurrent or overvoltage is
accidentally applied to the external I/O section, internal parts of the module
may be flied.
CAUTION
zDo not install the control wires or communication cables together with the
main circuit or power wires, or bring them close to each other.
Keep a distance of 100 mm (3.94 inch) or more between them.
Not doing so could result in malfunctions due to noise.
zWhen controlling a lamp, heater or solenoid valve using an output module,
large current (approximately ten times greater than in normal conditions)
may flow when the output is turned ON from OFF.
Take preventive measures such as replacing the module with the one having
sufficient rated current.

A
-3
[INSTALLATION PRECAUTIONS]
CAUTION
zUse the C Controller module in an environment that meets the general
specifications shown in this manual.
Using this C Controller module in an environment outside the range of the
general specifications could result in an electric shock, fire, erroneous
operation, and damage to or deterioration of the product.
zWhile pressing the installation lever located at the bottom of module, insert
the module fixing tab into the fixing hole in the base unit until it stops. Then,
mount the module with the fixing hole as a supporting point.
Incorrect loading of the module can cause a malfunction, failure or drop.
When using the C Controller module in the environment of frequent
vibrations, tighten the module with screws.
Tighten the screws in the specified torque range.
Undertightening can cause a drop, short circuit or malfunction.
Overtightening can cause a drop, short circuit or malfunction due to damage
to the screw or module.
zConnect extension cables to the connectors of the base unit and the
extension module correctly.
After connection, check them for looseness.
Poor contact could cause an input or output failure.
zBe sure to set the CompactFlashTM card by pressing it into the
CompactFlashTM card slot.
Confirm it is completely set.
Poor contact may lead to malfunctions.
zCompletely turn off the externally supplied power used in the system before
mounting or removing the module.
Not doing so could result in damage to the product.
zDo not directly touch the module's conductive parts.
Doing so could cause an operation failure or give damage to the module.

A
-4
[WIRING PRECAUTIONS]
DANGER
zCompletely turn off the externally supplied power used in the system when
wiring.
Failure to do so could result in an electric shock or damage to the product.
zBefore energizing or operating the system after wiring, be sure attach the
terminal cover supplied with the product.
Failure to do so could result in an electric shock.
CAUTION
zBe sure to ground the FG and LG terminals to the protective ground
conductor.
Not doing so could result in an electric shock or erroneous operation.
zPrevent foreign matter such as dust or wiring debris from entering the
module.
Failure to do so could cause fires, damage, or erroneous operation.
zWhen wiring, check the rated voltage and terminal layout.
Connecting a power supply of a different voltage rating or incorrect wiring
may result in a fire or failure.
zConnect the Ethernet and/or RS-232 cables to the corresponding connectors
of the C Controller module properly.
zTighten the terminal screws with the specified torque.
If the terminal screws are loose, it could result in short circuits, fire, or
erroneous operation.
Tightening them too much may cause drop due to damages to the screws
and/or the module, resulting in short circuits or malfunction.
zBe sure to place the communication and power cables into a duct or fasten
them using clamps.
Failure to do so may damage the module or cables by pulling a dangling
cable inadvertently or cause the module to malfunction due to poor contact.
zWhen disconnecting the communication and power cables from the module,
do not pull a cable part by hand.
For a cable with connectors, hold the connector by hand and disconnect it
from the module.
Loosen screws on the part connected to the module before disconnecting a
cable.
Pulling a cable that is still connected to the module may cause a malfunction
or damage the module or the cable.
zDo not connect the outputs of multiple power supply modules in parallel.
Doing so can heat the power supply modules, causing fires or failures.
zCrimp, pressure weld, or solder external connectors properly with the tools
specified by the maker.
For crimping/pressure welding tools, refer to the user's manual for the I/O
module.
Incomplete connection may cause a short circuit, fire or malfunction.

A
-5
[STARTUP AND MAINTENANCE PRECAUTIONS]
DANGER
zDo not touch the terminals while power is on.
Doing so may cause an electric shock.
zCorrectly connect the battery.
Also, do not charge, disassemble, heat, place in fire, short circuit, or solder
the battery.
Mishandling of the battery can cause overheating or cracks which could
result in injury and/or fires.
zBe sure to shut off all phases of the external power supply before
retightening the terminal screws and module fixing screws or cleaning.
Failure to do so may result in an electric shock.
If a terminal screw is loose, it may cause a short circuit or malfunction.
If too tight, it may cause damage to the screws and/or module, resulting in an
accidental drop of the module, short circuit or malfunctions.
zWhen controlling a running C Controller module (data modification) by
connecting a personal computer to the C Controller module, create an
interlock circuit on user programs so that the whole system functions safely
all the time.
This must be also done when performing any other controls (e.g. operating
status change (status control)) or operations instructed from the computer.
In these controls, especially the one performed from an external device to a
C Controller module in a remote location, some C Controller side problem
may not be resolved immediately due to failure of data communications.
To prevent this, create an interlock circuit on user programs and establish
corrective procedures for communication failure between the external device
and the C Controller module.

A
-6
[STARTUP AND MAINTENANCE PRECAUTIONS]
CAUTION
zDo not disassemble or modify the modules.
Doing so could cause malfunction, erroneous operation, injury, or fire.
zPerform online operations connecting peripheral devices to the running C
Controller module (especially program modification, forced output, and
operation status change) after reading the manual carefully and fully
ensuring the safety.
Operation mistakes could cause mechanical damage or accidents.
zCompletely turn off the externally supplied power used in the system before
mounting or removing the module.
Not doing so could result in module failure or malfunction.
zDo not mount/remove the module onto/from the base unit more than 50
times (IEC 61131-2 compliant), after the first use of the product.
Doing so may cause malfunction.
zUse any radio communication device such as a cellular phone or a PHS
phone more than 25cm (9.85 inch) away in all directions of the C Controller
module.
Not doing so can cause malfunction.
zDo not drop or give an impact to the battery installed to the module.
Doing so may damage the battery, causing the battery fluid to leak inside the
battery.
If the battery is dropped or given an impact, dispose of it without using.
zBefore handling the module, touch a grounded metal object to discharge the
static electricity from the human body.
Not doing so can cause the module to fail or malfunction.
[DISPOSAL PRECAUTIONS]
CAUTION
zWhen disposing of this product, treat it as industrial waste.
When disposing of batteries, separate them from other wastes according to
the local regulations.
(For details of the battery directive in EU member states, refer to the C
Controller Module User's Manual.)
[TRANSPORTATION PRECAUTIONS]
CAUTION
zWhen transporting lithium batteries, make sure to treat them based on the
transport regulations. (Refer to Chapter 7 for details of the relevant models.)

A
-7
Revisions
*The manual number is noted at the lower right of the top cover.
Print Date *Manual Number Revision
Nov., 2004 IB(NA)-0800306-A First edition
Jun., 2005 IB(NA)-0800306-B Partial Correction
Section 2.1, 3.2, 4.3.2
Nov., 2005 IB(NA)-0800306-C Partial Correction
Section 3.2
Oct., 2006 IB(NA)-0800306-D Partial Correction
SAFETY PRECAUTIONS, Section 3.2,
Chapter 6
Aug., 2007 IB(NA)-0800306-E Partial Correction
SAFETY PRECAUTIONS, Chapter1,
Section 2.2, 3.1, 3.2, 4.3.1, 4.3.2, 5.2
Sep., 2008 IB(NA)-0800306-F Partial Correction
SAFETY PRECAUTIONS, Section 3.1
This manual confers no industrial property rights or any rights of any other kind, nor does it
confer any patent licenses.
Mitsubishi Electric Corporation cannot be held responsible for any problems involving
industrial property rights which may occur as a result of using the contents noted in this
manual.
©2004 MITSUBISHI ELECTRIC CORPORATION

A
-8
CONTENTS
1. Overview .......................................................................................................1
2. Specification ..................................................................................................3
2.1 General Specifications..............................................................................3
2.2 Performance Specifications ......................................................................4
3. Mounting and Installation ...............................................................................6
3.1 Handling Precautions................................................................................6
3.2 Fail-safe Circuit.........................................................................................8
4. Parts Names and Functions .........................................................................15
4.1 Parts Names and Functions....................................................................15
4.2 LED Indicator Specifications ...................................................................17
4.2.1 In normal operation mode
(When the MODE LED is lit "green")................................................17
4.2.2 In hardware self-diagnostic operation mode
(When the MODE LED is lit "orange")..............................................18
4.3 Switch Operation ....................................................................................19
4.3.1 RUN/STOP/MODE switch operation ................................................19
4.3.2 RESET/SELECT switch operation....................................................20
5. External Wiring.............................................................................................21
5.1 10BASE-T/100BASE-TX Connection......................................................21
5.2 RS-232 Connection ................................................................................22
6. External Dimensions ....................................................................................24
7. Transportation Precautions ..........................................................................25
7.1 Applicable Model ....................................................................................25
7.2 Transportation Guidelines.......................................................................25

A
-9
About Manuals
The following manuals are also related to this product.
If necessary, please place an order referring to the table below.
Related Manuals
Manual name Manual Number
(Model code)
C Controller Module User's Manual
This manual explains the features, specifications,
functions and troubleshooting of the C Controller module.
(Sold separately)
SH-080555ENG
(13JR81)
QCPU (Q mode) CPU Module User's Manual (Hardware)
This manual provides the specifications and other
information of power supply modules, base units and I/O
modules. (Sold separately)
IB-0800061
(13JL96)
QCPU User's Manual (Hardware Design, Maintenance
and Inspection)
This manual provides the specifications of the CPU
modules, power supply modules, base units, extension
cables, memory cards and others. (Sold separately)
SH-080483ENG
(13JR73)

1
1. Overview
(1) About this manual
The C Controller module installation and wiring to other devices are
described in this manual.
This manual explains the C Controller module.
Refer to the QCPU (Q mode) CPU Module User's Manual (Hardware) for
the details of the C Controller system listed below.
When referring to the manual, read the "CPU module" as the "C Controller
module", and the "programmable controller" as the "C Controller system".
Item Reference to
related manual
Checking power supply module specifications Section 2.3
Checking base unit specifications Section 2.4
Conforming the C Controller system to the EMC and
Low Voltage Directives Chapter 3*1
Mounting the module Section 4.1
Wiring the power supply module Section 4.3
Checking part names of power supply module Section 4.7
Checking I/O module specifications and connection
methods Chapter 5
*1 To conform the C Controller module to the EMC Directive, it must satisfy
the criteria for the noise immunity standards of the Ethernet and RS-232
cables.

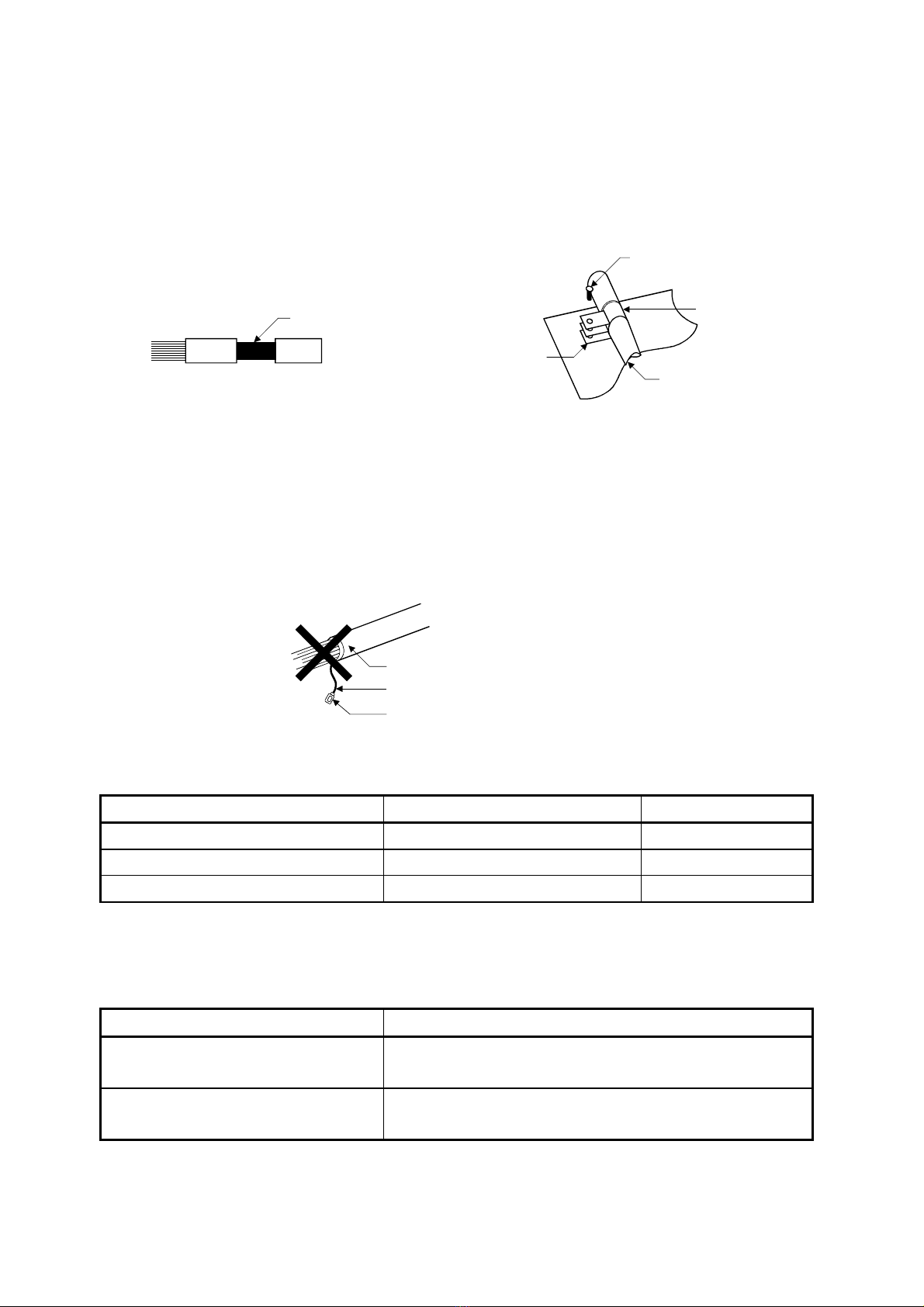

1) Ethernet cable
Use shielded twisted pair cables as the twisted pair cables connected
to the 10BASE-T/100BASE-TX interface connectors for the C
Controller module. For the shielded twisted pair cables, strip part of
the outer cover and earth the exposed shield section to the ground on
the widest contact surface as shown in the following.
Shield
Shielded twisted pair cables
2) RS-232 cable
For the RS-232 cable to be pulled out of the control panel, always
earth the shield section of the shielded cable as shown below.
(a) Earth the shield of the shielded cable as near the C Controller
module as possible taking care so that the earthed cables are not
induced electromagnetically by the cable to be earthed.

2
(b) Take appropriate measures so that the shield section of the
shielded cable from which the outer cover was partly removed for
exposure is earthed to the control panel on an increased contact
surface.
A clamp may also be used as shown in the following.
In this case, however, apply a cover to the inner surface of the
control panel which comes in contact with the clamp when
painting.
Shield section
Shield cable
Clamp fitting
Masked
Screw
Recommended clamp fitting:
Mitsubishi AD75CK
Note) The method of earthing by soldering a wire onto the shield
section of the shielded cable as shown below is not
recommended. The high frequency impedance will increase
and the shield will be ineffective.
Shield cable
Wire
Solderless terminal
(2) Included parts
The following tables list the parts included with the C Controller module.
Product Name Type Quantity
C Controller Module Q06CCPU-V-H01 1
Battery Q6BAT 1
This Manual ------ 1
(3) Generic terms and abbreviations used in this manual
Unless otherwise specified, this manual uses the following generic terms
and abbreviations to explain the Q06CCPU-V-H01 C Controller module.
Generic term/abbreviation Description
C Controller module Abbreviation for the Q06CCPU-V-H01 C
Controller module
C Controller system Generic term for systems where the C
Controller module is mounted

3
2. Specification
2.1 General Specifications
The following indicates the general specifications of the C Controller module.
Item Specification *6
Operating ambient
temperature 0 to 55°C
Storage ambient
temperature -20 to 75°C *3
Operating ambient
humidity 5 to 95%RH *4, non-condensing
Storage ambient
humidity 5 to 95%RH *4, non-condensing
Frequency Acceleration Amplitude
Sweep
count
10 to 57Hz — 0.075mm
(0.003inch)
Under
intermittent
vibration 57 to 150Hz 9.8m/s2—
10 to 57Hz — 0.035mm
(0.001inch)
Vibration resistance
Conforming
to
JIS B 3502,
IEC
61131-2 Under
continuous
vibration 57 to 150Hz 4.9m/s2—
10 times
each in
X, Y, Z
directions
(for 80
min.)
Shock resistance Conforming to JIS B 3502, IEC 61131-2
(147 m/s2, 3 times in each of 3 directions X, Y, Z)
Operating ambience No corrosive gases
Operating altitude *52000m (6562ft.) max.
Installation location Inside control panel
Overvoltage
category *1II max.
Pollution level *22 max.
*1 This indicates the section of the power supply to which the equipment is assumed to
be connected between the public electrical power distribution network and the
machinery within premises. Category II applies to equipment for which electrical
power is supplied from fixed facilities.
The surge voltage withstand level for up to the rated voltage of 300 V is 2500 V.
*2 This index indicates the degree to which conductive material is generated in terms
of the environment in which the equipment is used.
Pollution level 2 is rated when only non-conductive pollution occurs. A temporary
conductivity caused by condensing can be expected occasionally.
*3 The storage ambient temperature is -20 to 75°C if the system includes the AnS
series modules.
*4 The operating ambient humidity and storage ambient humidity are 10 to 90%RH if
the system includes the AnS series modules.
*5 Do not use or store the C Controller module under pressure higher than the
atmospheric pressure of altitude 0m.
Doing so can cause a malfunction.
For use in a pressurized environment, please contact your sales representative.
*6 When installing a commercially available CompactFlash card into the C Controller
module, please follow the lower specifications of either the C Controller module or
CompactFlash card.

4
2.2 Performance Specifications
This section explains the performance specifications of the C Controller module.
Item Specifications
Hardware specifications ------
Endian format (Memory format) Little endian
Standard
ROM 6M bytes
User file
capacity (For
user file
storage)
CompactFlash
card
Depends on the CompactFlash card used
(max. 1G bytes)
Work RAM (for OS, driver, user
program execution) 32M bytes
Battery-backed-up RAM 128k bytes
Number of writes to standard
ROM Max. 100,000 times to the same area
10BASE-T/100BASE-TX ------
Interface *110BASE-T 100BASE-TX
Communication method Full-duplex/half-duplex communication mode
Data transmission speed 10Mbps 100Mbps
Transmission method Base band
Number of cascaded stages Max. 4 stages Max. 2 stages
Maximum segment length *2100m
Connector applicable to
external wiring RJ45
Supported function Auto negotiation function
(automatically recognizes 10BASE-T/100BASE-TX)
RS-232 ------
Interface Compliance with RS-232 (D-sub 9 pin)
Communication method Full-duplex/half-duplex communication method
Synchronization method Start-stop synchronization method
Transmission speed 9600,14400,19200,28800,38400,57600,115200bps
Transmission distance Max. 15m
Start bit 1
Data bit 7/8
Parity bit 1/None
Data format
Stop bit 1/2
Parity check Parity check performed/not performed
Sum check code Sum check performed/not performed
Transmission control Flow control (RS/CS control) performed/not performed
Recommended cable
7/0.127 P HRV-SV outside diameter: 8.5mm or longer
(Oki Electric Cable Company, Limited Specify
the number of pairs in .)
Connector applicable to
external wiring 9 pin D-sub (Male) fixing type
*1 The C Controller module differentiates 10BASE-T and 100BASE-TX according
to the target device.
*2 Distance between the hub and node.

5
Item Specifications
CompactFlash card ------
Supply power voltage 3.3V 5%
Supply power capacity Max. 150mA
Card size *3TYPE I card
Number of loadable cards 1
Number of I/O points
(number of points accessible to
actual I/O modules)
4096 points (X/Y0 to FFF)
Clock function
Year, month, day, hour, minute, second, day of week
(automatic leap year detection)
Clock accuracy: Daily error -10.89 to +8.64 seconds
(0 to 55°C) *4
Daily error -4.32 to +5.25 seconds
(25°C) *4
Permissible momentary stop time Depends on the power supply module
5V DC internal current
consumption 0.71A
External dimensions 98(H) 27.4(W) 89.3(D)[mm]
Weight 0.17kg
*3 A TYPE II card is not available.
I/O cards, such as a modem card, are not available.
*4 Error of -0.5 to +0.5 seconds may further be produced at power-on.

6
3. Mounting and Installation
3.1 Handling Precautions
This section explains the handling precautions for the C Controller module.
CAUTION zUse the C Controller module in an environment that meets
the general specifications shown in this manual.
Using this C Controller module in an environment outside
the range of the general specifications could result in an
electric shock, fire, erroneous operation, and damage to or
deterioration of the product.
zWhile pressing the installation lever located at the bottom
of module, insert the module fixing tab into the fixing hole in
the base unit until it stops. Then, mount the module with the
fixing hole as a supporting point.
Incorrect loading of the module can cause a malfunction,
failure or drop.
When using the C Controller module in the environment of
frequent vibrations, tighten the module with screws.
Tighten the screws in the specified torque range.
Undertightening can cause a drop, short circuit or
malfunction.
Overtightening can cause a drop, short circuit or
malfunction due to damage to the screw or module.
zConnect extension cables to the connectors of the base
unit and the extension module correctly.
After connection, check them for looseness.
Poor contact could cause an input or output failure.
zBe sure to set the CompactFlashTM card by pressing it into
the CompactFlashTM card slot.
Confirm it is completely set.
Poor contact may lead to malfunctions.
zCompletely turn off the externally supplied power used in
the system before mounting or removing the module.
Not doing so could result in damage to the product.
zDo not directly touch the module's conductive parts.
Doing so could cause an operation failure or give damage
to the module.

7
(1) The casing of the C Controller module is made of resin.
Do not drop it or not apply strong shock to it.
(2) Do not remove the printed boards of the module from the casing.
Doing so may cause a failure.
(3) Tighten the module fixing screws and the RS-232 cable connector
mounting screw within the following range.
Screw location Tightening torque range Remarks
Module fixing screw (normally
not required) (M3 screw) *10.36 to 0.48N•m ------
RS-232 cable connector
mounting screw (M2.6 screw) 0.20 to 0.39N•m Depth of screw hole:
L=3.2mm or less
*1 The module can be easily secured to a base unit by the hook on the
module top. However, it is recommended to fix it with the module
mounting screws in a place of high vibration and/or shock.
When installing a dummy CompactFlash card to the C Controller module,
use the dummy CompactFlash card installed when shipping.
Do not use the dummy CompactFlash card that has no "A" printed, as
shown in the figure below, to the products whose serial No. (first four digits)
is "1008" or later. Failure to do so may disable to remove the dummy
CompactFlash card, resulting in damage to the CompactFlash card slot.
A dummy CompactFlash card with "A" printed, as shown in the figure below,
is installed to the products whose serial number (first four digits) is "1008"
or later when shipping.
"A" is not displayed "A" is displayed
No chamfering
"A" is not displayed
No chamfering
No chamfering
Chamfering
"A" is displayed
Chamfering
Chamfering

8
3.2 Fail-safe Circuit
DANGER
zProvide a safety circuit outside the C Controller module to
ensure that the entire system will operate safely even if an
external power failure or C Controller module failure
occurs.
Failure to do so could result in accidents due to erroneous
output or operation.
(1) For an emergency stop circuit, protection circuit and
interlock circuit that is designed for incompatible
actions such as forward/reverse rotation or for damage
prevention such as the upper/lower limit setting in
positioning, any of them must be provided outside the C
Controller module.
(2) When the C Controller module detects the following
conditions, it will disable the output (Y) from the user
program and writing to buffer memory in the case of
both (a) and (b) and turn off all outputs for (b).
Whether to hold or clear all the outputs is set by a
parameter.
(a) The overcurrent protector or overvoltage protector
of the power supply module is activated.
(b) An error such as a watchdog timer error is detected
by the self-diagnostic function of the C Controller
module.
If an error occurs in I/O control parts and the C
Controller module cannot detect the error, all the
outputs may turn ON.
Provide a fail-safe circuit or a preventive mechanism
outside the C Controller module so that machines will
operate safely in such a case.
(3) Output could be left on or off when there is a fault in an
output module relay or transistor.
So build an external monitoring circuit that will monitor
any output signal that could cause serious accidents.
zIf load current more than the rating or overcurrent due to a
short circuit in the load has flowed in the output module for
a long time, it may cause a fire and smoke. Provide an
external safety device such as a fuse.
zCreate the circuit so that the external power supply will turn
on after the C Controller system is powered on.
Turning on the external power supply first could result in
accidents due to erroneous output or operation.
zFor each station's operating status in the event of a each
station error, refer to the corresponding each station
manual.
Not doing so could result in erroneous output or operation.

9
DANGER
zWhen controlling a running C Controller module (data
modification) by connecting a personal computer to the C
Controller module, create an interlock circuit on user
programs so that the whole system functions safely all the
time.
This must be also done when performing any other controls
(e.g. operating status change (status control)) or
operations instructed from the computer.
In these controls, especially the one performed from an
external device to a C Controller module in a remote
location, some C Controller side problem may not be
resolved immediately due to failure of data
communications.
To prevent this, create an interlock circuit on user
programs and establish corrective procedures for
communication failure between the external device and the
C Controller module.
CAUTION zDo not install the control wires or communication cables
together with the main circuit or power wires, or bring them
close to each other.
Keep a distance of 100 mm (3.94 inch) or more between
them.
Not doing so could result in malfunctions due to noise.
zWhen controlling a lamp, heater or solenoid valve using an
output module, large current (approximately ten times
greater than in normal conditions) may flow when the
output is turned ON from OFF.
Take preventive measures such as replacing the module
with the one having sufficient rated current.
When the C Controller system is powered ON-OFF, the control output may not be
supplied normally for a little while because of the delay time and rise time
difference between the C Controller system power supply and the external power
supply for the control target (especially in DC).
In the case of a DC output module, for example, when power is applied to the
external power supply first and then the C Controller system power supply, the
DC output module may temporarily generate false output at power-on of the C
Controller system. Therefore, it is necessary to configure a circuit in which power
is applied to the C Controller system first.
Also, erroneous operations may be performed when the external power supply or
C Controller module is faulty.
To prevent the erroneous operations from resulting in entire system failure, and
from a viewpoint of fail-safe system operation, configure circuits outside the C
Controller module for the areas that will lead to mechanical damage and/or
accidents due to erroneous operations (emergency stop circuit, protective circuit,
interlock circuit, etc.)
A system design circuit example based on the above viewpoint is shown on the
next page.

10
(1) System design circuit example
(when not using ERR contact of power supply module)
For AC For AC/DC
MC
RA1
RA2
L
Ym
Yn
MC2
MC1
MC
MC2
MC1
L
Yn
MC
RA1
(-)(+)
MC
RUN/STOP circuit
Started when RA1
(control start output of
C Controller module)
turns ON.
In the case of an emergency
stop or a stop caused by a
limit switch.
Provide external interlock
circuits for conflicting
operations, such as forward
rotation and reverse rotation,
and for parts that could
damage the machine or
cause accidents if no
interlock were used.
Voltage relay is
recommended.
Transformer
Fuse
Power supply
START SW
STOP SW
Input module
Ym
Output module
C Controller
module
User program *1
Power to output equipment
switched OFF when the STOP
signal is given.
Low battery alarm
(Lamp or buzzer)
Turns ON at start of C Controller
module user program.
MC
In the case of an
emergency stop
or a stop caused
by a limit switch.
Power to output
equipment switched
OFF when the STOP
signal isgiven.
Low battery alarm
(Lamp or buzzer)
Turns ON at start of
C Controller module
user program.
C Controller
module
User program *2
START SW
STOP SW
Fuse
Power supply
DC
power
Fuse
MC
XM
Transformer Transformer
Output module
MC
MC1
RA1
MC2
MC1
MC2
RA1
RA2
MC
Fuse
Output module
Output module
Interlock circuits as necessary.
The power-ON procedure is as follows:
For AC
1) Turn ON the power.
2) Set the C Controller module to
"RUN".
3) Turn ON the start switch.
4) When the magnetic contact
(MC) comes ON, the output
equipment is driven by the user
program *1.
For AC/DC
1) Turn ON the power.
2) Set the C Controller module to "RUN".
3) When the DC power is established,
RA2 goes ON.
4) RA2’s ON turns XM ON, and
processing starts in the user program*2
when the DC input signal is established
100%.
5) Turn ON the start switch.
6) When the magnetic contact (MC)
comes ON, the output equipment is
driven by the user program.
