Lossnay Energy Recovery Ventilator
LGH-F300RVX-E, LGH-F470RVX-E, LGH-F600RVX-E
LGH-F1200RVX-E
Installation Instructions (For use by dealer/contractor)
Models LGH-F300 to F600RVX-E Model LGH-F1200RVX-E
This product needs to be installed properly in order to ensure maximum functionality as well as safety.
Please make sure to read this installation manual before starting the installation.
lInstallation must be performed by a dealer or installation contractor. Please note that improper installation may cause malfunction or accident.
“Operating Instructions” and this manual must be handed over to the customer after completing the installation.
Safety precautions
The following signs indicate that death or serious injury may be caused by failure to heed the precautions described below.
WARNING
Do not modify or disassemble.
(It could cause re, electric shock or injury.)
Do not
disassemble
Prohibition of use in
bath or shower room
Connect the
grounding wire.
The instructions
given must be
followed.
The instructions
given must be
followed.
The Lossnay unit and remote controller should not be
installed where it is highly humid, like a bathroom, or
other wet place.
(It could cause electric shock or power leakage.)
Connect the product properly to ground.
(Malfunctioning or power leaks can cause electrical shock.)
Wiring work must be performed by qualied
professionals, and be implemented safely and securely
in accordance with the engineering standards and the
extension wiring rules for electrical equipment.
(Poor connection or improper wiring work could cause
electric shock or re.)
Install a power supply isolator at the power supply
side as per local electrical regulations. All supply
circuits must be disconnected before obtaining
access to the terminal devices. Use the specied
cable size and connect the cables securely to prevent
disconnection when they are pulled.
(If there is a defect in the connection, there is a possibility
of re.)
Select an adequate place for the opening to introduce
outdoor air, where it will not intake the exhaust fumes
like combustion gas, or others, and there is no risk of
blockage.
(Shortage of fresh air could put the room in a state of
oxygen deciency.)
A duct made of steel must be installed with care not
to be connected electrically with metal, wire, stainless
steel plate, or others.
(It could cause re when power leakage occurs.)
Not suitable for use with solid-state speed controls.
Use the specied power supply and voltage.
(Use of incorrect power supply or voltage could cause re
or electric shock.)
Select a place with sufcient strength and install the
main unit securely.
(It could cause injury if it falls.)
1911876H33301

Eng-2
Prohibited
CAUTION
Do not place a burning appliance in a place where it is
exposed directly to the air from the Lossnay unit.
(It could cause an accident as a result of incomplete combustion.)
Do not use at a place where it is exposed to high
temperatures (104 ˚F (40 ˚C) or higher), naked ames,
or in environment with combustible fumes.
(It could cause re.)
Do not use in an environment such as a chemical
factory, where hazardous gases such as acidic gases,
alkaline gases, organic solvent fumes, paint fumes, or
gases containing corrosive components are generated.
(It could malfunction.)
Do not install this product in a place where it is
exposed to ultraviolet light.
(UV may damage covering insulation.)
Do not install in a cooking area or connect directly to
any appliance.
Put on gloves during installation.
(It could cause injury.)
Make sure the power supply isolator is turned off on
the power distribution panel when Lossnay is not
used for a long period of time after the installation.
(It could cause electric shock, power leakage, or re as a
result of deteriorated insulation.)
The instructions
given must be
followed.
The instructions
given must be
followed.
Safety precautions (continued)
CAUTION
lWhen using the product where it is exposed to high temperatures
and humidity (104 ˚F (40 ˚C) or higher, RH 80% or higher), or where
fog occurs frequently, moisture is likely to condense in the core,
and may result in condensation build up in the unit. The product
should not be used under such conditions.
lOutdoor air may enter the Lossnay owing to the pressure
difference between indoor and outdoor or external winds even
when the product is not operated. It is recommended to install an
Electrically operated damper to block the outdoor air.
lIn a cold weather area where outdoor temperature becomes lower
than 23 ˚F (-5 ˚C), an area with strong external winds or where fog
occurs frequently, cold outdoor air, external winds or fog may be
introduced into the product when its operation is stopped. It is
recommended to install an Electrically operated damper.
lWhen using the product in an environment where there is a
window, or opening near the outdoor louvre , where insects are
likely to gather around the interior or exterior light , take note that
small insects may intrude into the product.
lIn a cold weather area, or others, dewing or freezing could
occur on the main unit, where the duct is connected, or other
sections, depending on the conditions of outdoor air and indoor
temperature and moisture, even if they are within the range
of operating conditions. Make sure to conrm the operating
conditions and other precautions, and do not use the product if
dewing or freezing is anticipated.
*Example of dewing condition - Outdoor air: 23 ˚F (-5 ˚C) or lower, dew-
point temperature at installation place: 50 ˚F (10 ˚C) or higher (When
the indoor temperature is 71.6 ˚F (22 ˚C) or higher with the relative
humidity higher than 50%, or other)
Always use the specied suspension bolts, nuts and
washers or correctly rated wire / chain hangers.
(Use of hardware with insufcient strength could result in
the product dropping.)
The outside ducts must be tilted at a gradient (1/30 or
more) down toward the outdoor louvres from Lossnay,
and properly insulated.
(The entry of rain water may cause power leakage, re, or
damage to household property.)
The control box cover must be closed after the
installation.
(Dust or humidity may cause power leakage or re.)
When connecting external devices (electric heater,
damper, lamp, monitoring unit, etc.) using output
signals of the Lossnay unit, make sure to install safety
equipment for the external devices.
(It could cause re, damage, etc. without safety equipment.)
Select a duct heater in compliance with local and
national laws, ordinances, and standards.
Select a duct heater that meets adequate standard in
each country.
Install the duct heater separated from the product by a
distance of 2.2 yd (2 m) or more.
(Failure to do so may result in re or equipment damage
due to the transmission of residual heat from the heater.)

Eng-3
English
N
J
JA
F
C
F
K L
B
E
D
M
13/16 (20)
M
φG φH
N
4 17/32 (115)

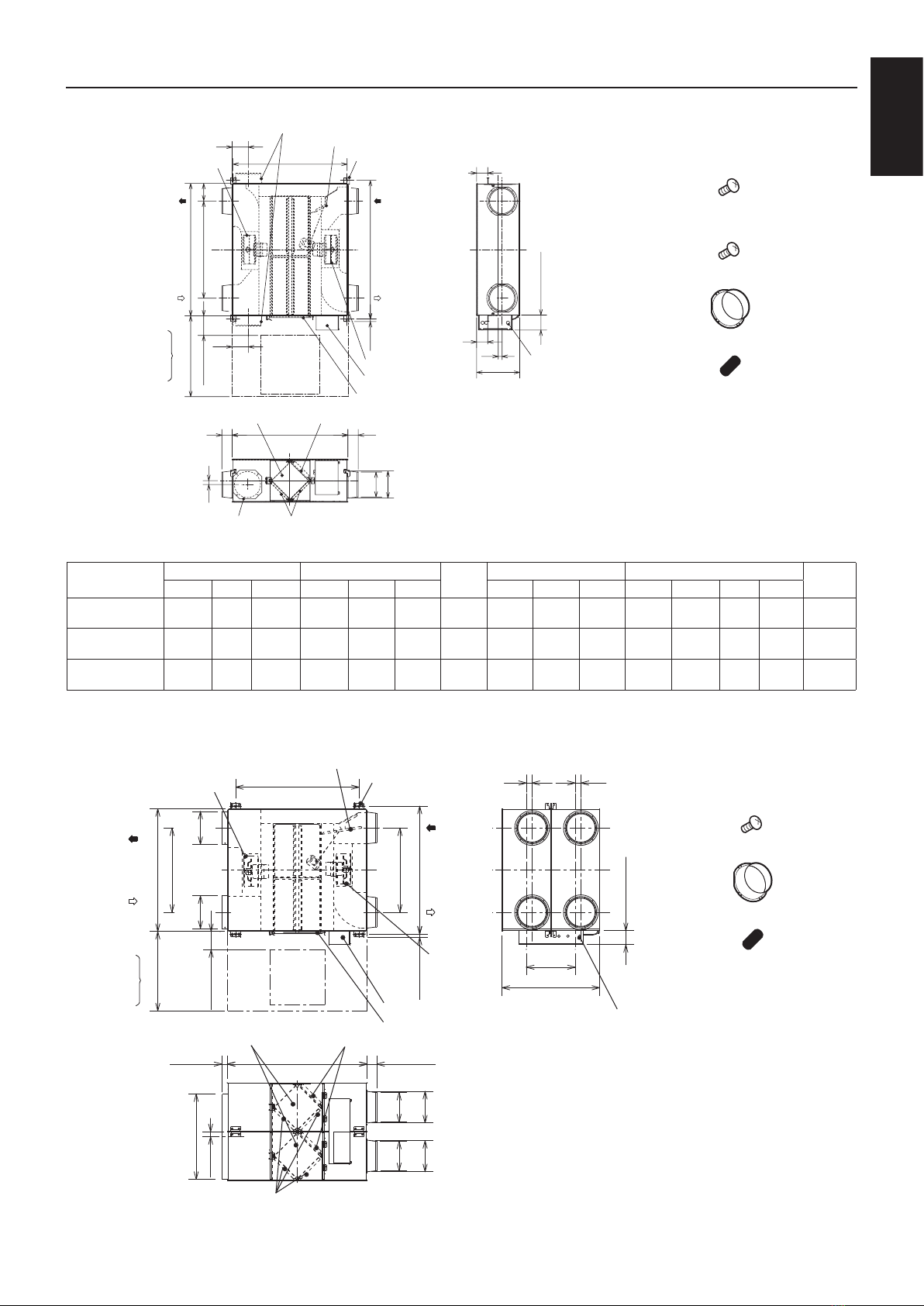

Outline drawings
Accessory parts
• Mounting small screws for duct
anges ..........................................x16
• Mounting large screws for ceiling
suspension xture...........................x4
• Duct connecting anges .................x4
• Screw cap.......................................x6
• Slim-Lossnay connection cable
(gray: two wires) .............................x1
LGH- F1200RVX-E
Unit: Inch (mm)
Weight lbs (kg): 251 (114)
Accessory parts
• Mounting small screws for duct
anges ...................................x16
• Duct connecting anges ..........x4
• Screw cap................................x6
• Slim-Lossnay connection cable
(gray: two wires) ......................x1
EA
(exhaust air outlet)
Air exhaust fan
OA
(outside air intake)
Core, air lter,High-
Efciency lter, fan,
maintenance space
More than 23 5/8 (600)
Position where duct
direction change is possible
Air lters
Lossnay core
Inspection
opening
1.5 x 1.5 ft (450 x
450) or more
Control box
Maintenance cover
Air supply fan
RA
(return air)
SA
(supply air)
By-pass damper plate
Position where duct direction change is possible
High-Efciency lter (sold separately) attachment position
Ceiling suspension xture
(4-9/16 X 13/16 (4-15 X 20) oval)
Power supply
cable opening
LGH-F300 to F600RVX-E
5 7/8 ~ 9 7/8 (150~250)
39 3/4 (1010)
36 1/8 (917)
36 1/8 (917)
50 1/8 (1272)
48 1/2 (1231)
45 1/16 (1144) 3 1/8 (79)1 3/4 (44)
27 9/16 (700)
1 37/64 (40)
1 37/64
(40) 1 37/64 (40)
10 5/8 (270)
10 5/8 (270)
5 7/8 - 9 7/8 (150 - 250)
More than 23 5/8 (600)
ø9 1/2
(ø242)
ø10 3/16
(ø258)
ø9 1/2
(ø242)
ø10 3/16
(ø258)
15 29/32
(404)
31 13/16 (808)
1 1/32 (26)
4 5/16 (110)
Ceiling suspension xture
(4-9/16 X 1 3/16 (4-15 X 30) oval)
SA
(supply air)
RA
(return air)
EA
(exhaust
air outlet)
OA
(outside air
intake)
Core, air lter,
High-Efciency
lter,
fan,
maintenance
space
Lossnay cores
Air exhaust fan
By-pass damper plate
Air supply fan
Maintenance cover
Inspection
opening
1.5 x 1.5 ft (450 x
450) or more
Air lters
Power supply cable
opening
Control box
High-Efciency lter (sold separately) attachment position
Unit: Inch (mm)
Model Dimensions
Ceiling suspension xture pitch
Nominal
diameter
Duct connecting ange Duct pitch Weight
lbs (kg)
A B C D E F G H J K L M N
LGH-F300RVX-E 34 15/16
(888) 40 (1016) 13 1/32 (331) 34 1/2 (875) 41 7/8 (1063) 3 11/32 (85) 7 7/8 (200) 7 9/16 (192) 8 3/16 (208) 3 1/8 (79) 29 3/8 (745) 5 5/16 (135.5) 4 7/8 (124) 1 3/16 (30) 75 (34)
LGH-F470RVX-E 45 1/16
(1144) 39 1/2 (1004) 15 29/32 (404) 44 17/32 (1131)
41 3/8
(1051) 3 1/32 (77) 9 7/8 (250) 9 1/2 (242) 10 3/16 (258) 3 1/8 (79) 27 3/16 (690) 6 3/16 (157) 6 1/2 (165) 1 37/64 (40) 110 (50)
LGH-F600RVX-E 45 1/16
(1144) 48 1/2 (1231) 15 29/32 (404) 44 17/32 (1131) 50 5/16 (1278) 3 1/32 (77) 9 7/8 (250) 9 1/2 (242) 10 3/16 (258) 3 1/8 (79) 36 1/8 (917) 6 3/16 (157) 6 1/2 (165) 1 37/64 (40) 123 (56)

Eng-4

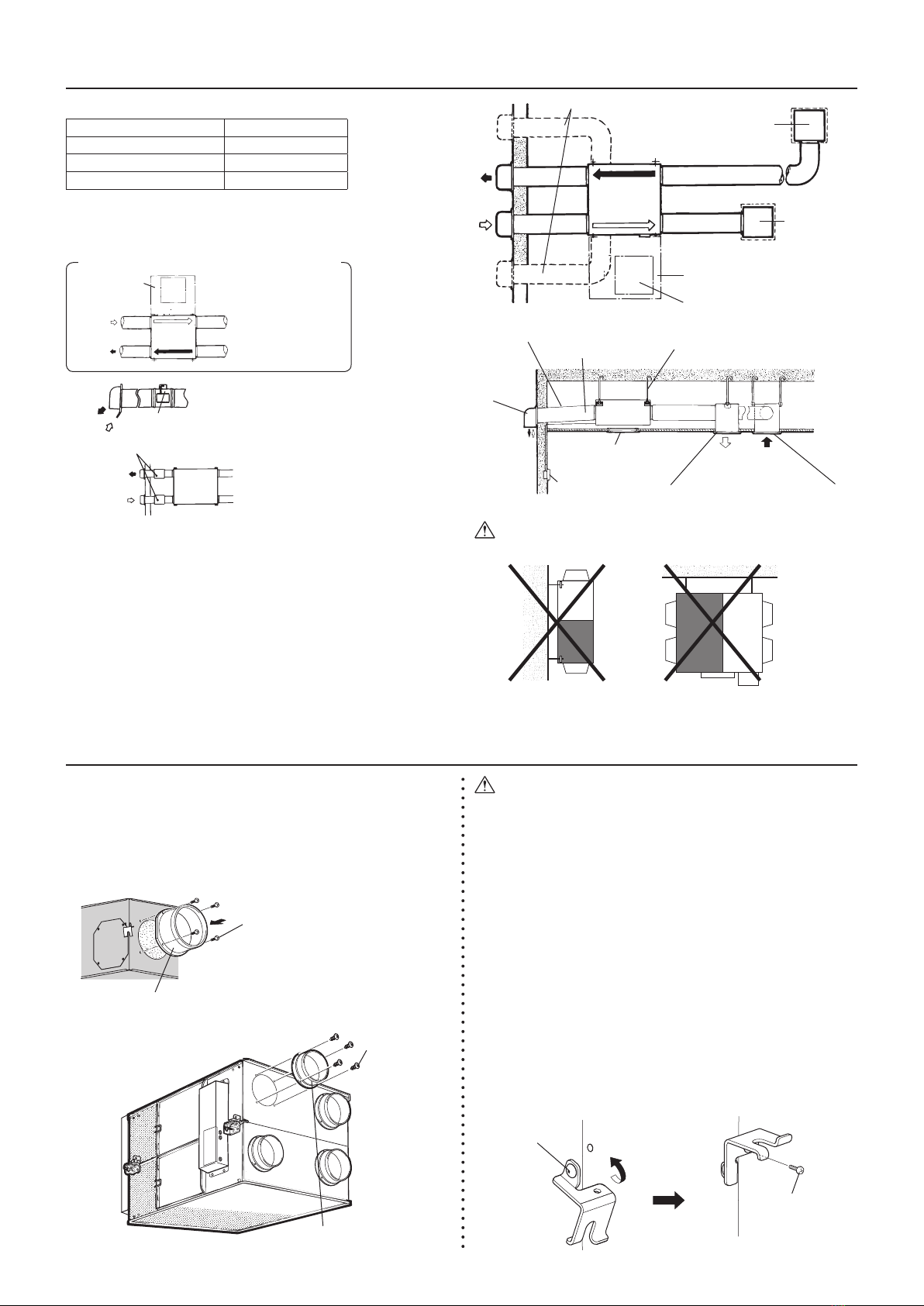

Standard installation examples
Model Distance
LGH-F300RVX-E 3.3 ft (1 m) or more
LGH-F470 and F600RVX-E 8.2 ft (2.5 m) or more
LGH-F1200RVX-E 9.8 ft (3 m) or more
• The parts can also be installed upside down.
Remove the maintenance cover, rotate the parts
by 180°, and re-install.
• Duct length
Installation method
EA
(exhaust air outlet)
Inspection opening
(1.5 x 1.5 ft (450x450 mm) or more)
SA
(supply air)
Supply air grille
(not included)
Deep hood
(to prevent rain water from
seeping in)
Downward gradient of duct:
1/30 or more (toward wall side) and provision of distance
in table below (to prevent rain water from seeping in)
Duct Anchor bolt (to be provided by user)
RA
(return air)
Return air grille
(not included)
OA
(outside air intake)
Lossnay unit
Duct connecting ange
(Accessory parts)
Mounting small
screw
(Accessory parts)
Mounting small screw
(Accessory parts)
Duct connecting ange
(Accessory parts)
Models LGH-F300 to F600RVX-E
Model LGH-F1200RVX-E
Lossnay unit
Return air grille
(not Included)
Maintenance space
Inspection opening
EA (exhaust air outlet)
OA (outside air intake) Supply air grille
(not included)
* Except the LGH-F1200 RVX-E.
Remote controller
(optional parts)
EA
(exhaust
air outlet)
OA
(outside
air intake)
* It can be installed by inverting the top and the bottom.
After installing the duct
connecting ange, remove
the maintenance cover.
Turn the cover by 180˚,
and then reinstall it.
Maintenance
space
Lossnay unit
Inspection
opening
EA
(exhaust
air outlet)
OA
(outside
air intake)
EA
(exhaust
air outlet)
OA
(outside
air intake)
Lossnay unit
Electrically operated damper
(Protection against the intrusion of cold air
while Lossnay is stopped in winter)
(To be provided by the customer)
• In a region where there is risk of freezing in winter, it is
recommended to install an Electrically operated damper, or the like,
in order to prevent the intrusion of (cold) outdoor air while Lossnay
is stopped.
CAUTION
• Do not install Lossnay unit vertically or on an incline.
Installing the Lossnay unit

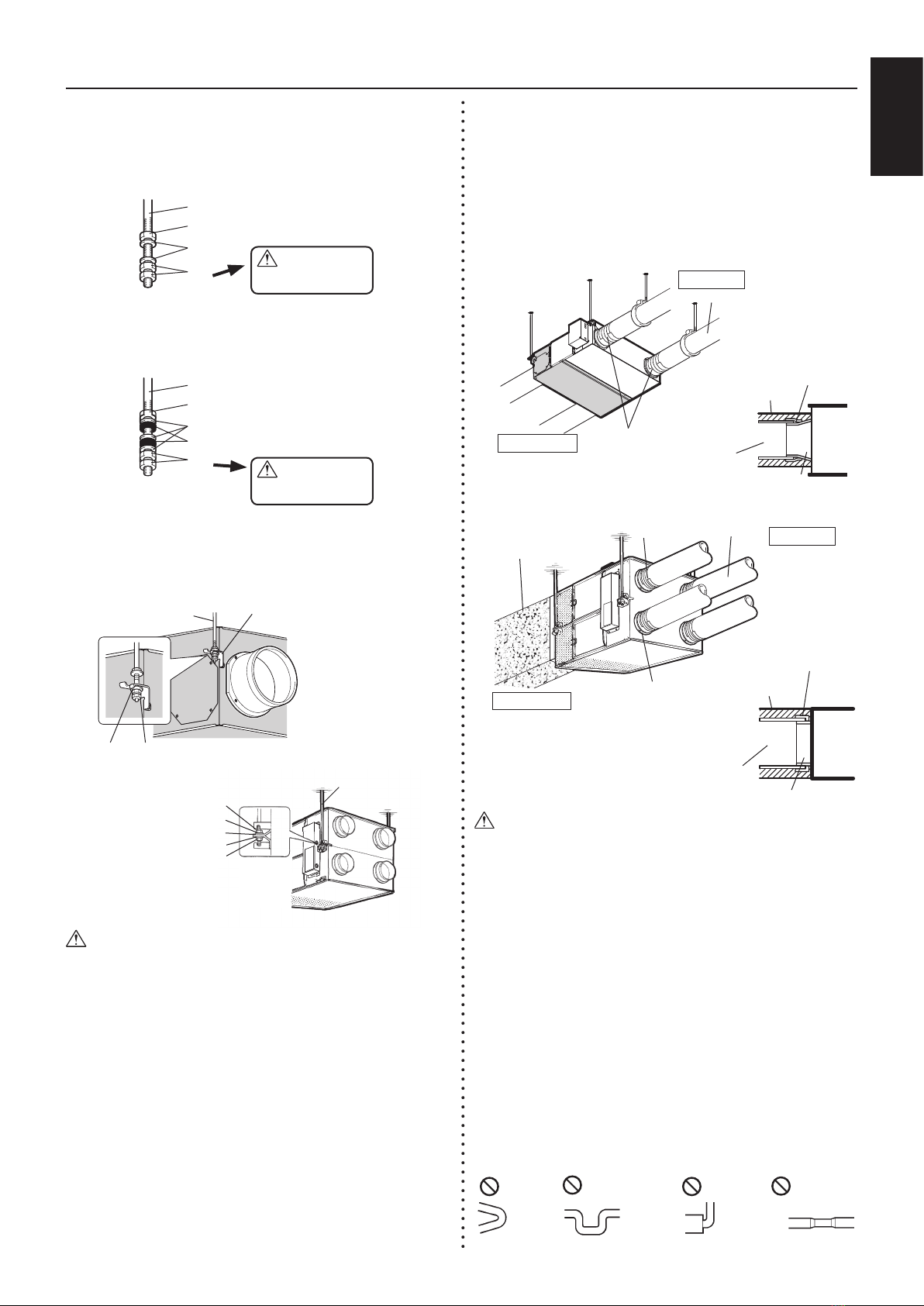

1. Attaching the duct connecting anges
Use the supplied small screws to secure the duct connecting
anges to the Lossnay unit.
CAUTION
• Before attaching the duct connecting anges, check that no
foreign matter (scraps of paper, vinyl, etc.) has found its way
inside to Lossnay unit.
• Attach the duct connecting anges with the packing at the SA
and RA sides.
• Alway use accessory screws. Otherwise the screw may
interfere internal parts and result abnormal operation.
2. Securing the ceiling suspension xtures
Models LGH-F300 to F600RVX-E
(1) Loosen the screws for the ceiling suspension xtures.
(2) Rotate the ceiling suspension xtures 90° centered around the
loosened screws to make them horizontal.
(3) Firmly tighten and secure the ceiling suspension xtures to the
product with the loosened screws and the included mounting
large screws.
* The ceiling suspension xtures are folded and secured to the
unit when shipped from the factory.
Loosen
Mounting large
screw
(Accessory parts)

Eng-5
English
Installation method (continued)
Models LGH-F300 to F600RVX-E
Model LGH-F1200RVX-E
Taping Duct
Heat-insulating material
Duct connecting ange
Duct
Taping
Aluminium tape
Duct connecting ange
Outdoor duct
Heat-insulating material
Lossnay
unit
Aluminium tape
Duct connecting ange
Outdoor duct
Heat-insulating material
Lossnay
unit
• Extremely
sharp bends
• Multiple bends • Bends right next
to the outlet
• Extreme reduction in
the diameter of the
connected ducts
5. Connecting the ducts
(1) Fasten the duct securely to the duct connecting ange, and
wrap aluminium tape (eld supply) around the joints so that
there is no air leakage.
(2) Suspend the ducts from the ceiling so that their weight will not
be applied to the Lossnay unit.
(3) The two outdoor ducts must be covered with heat-insulating
material in order to prevent condensation from forming.
CAUTION
• When on-site commissioning is planned, a straight duct
length more than 10xD (D=duct diameter) from the source of
turbulence like bends, contractions and dampers etc, to the
measurement point is recommended for correct measurement.
In the United Kingdam, on-site measurment should therefore be
measured in accordance with BSRIA guideline (Commissioning
Air System. Application procedures for buildings AG3/89.3(2001))
• Before attaching the ducts, check that no (debris or any other)
foreign matter (scraps of paper, vinyl, etc.) has found its way
inside the ducts.
• Do not touch the damper plate inside Lossnay unit when
connecting the ducts.
• If it is expected that the ambient temperature around the place
where the Lossnay unit is installed will be high during the
summer air conditioning season, it is recommended that the
indoor duct work be covered with insulation material.
Do not carry out the following types of duct construction. (Doing so
could cause a drop in the air volume and generate abnormal noises.)
Anchor bolt Ceiling suspension
xture
Washer Nut
Models LGH-F300 to F600RVX-E
Model LGH-F1200RVX-E
Ceiling suspension xture
Anchor bolt
(3/8-16 or 7/16-14 UNC
(M10 or M12))
Washer
Washer
Nut
Nut
4. Mounting Lossnay unit
(1) Hang the ceiling suspension xtures on the anchor bolts and
adjust in such a way that Lossnay unit is level.
(2) Tighten up securely using double nuts.
CAUTION
• When suspending Lossnay unit from the ceiling, do not handle
it in such a way that force will be applied to the control box.
• Install the anchor bolts to ensure the product's weight or
earthquake load. (Correctly rated wire/chain may also be used)
3. Preparing the anchor bolts
Mount the washers (outer diameter of >13/16 inch for 3/8-16 UNC
(21 mm for M10) >15/16 inch for 7/16-14 UNC (24 mm for M12)
and nuts onto the pre-recessed anchor bolts (3/8-16 or 7/16-14
UNC (M10 or M12)), as shown in the gure below .
[When using (customer-prepared) vibration isolation rubber]
When using (customer-prepared) vibration isolation rubber, there
is a possibility of this causing a decrease in strength, so we
recommend the following type of construction.
Anchor bolt (3/8-16 or 7/16-14 UNC
(M10 or M12))
Anchor bolt (3/8-16 or 7/16-14 UNC
(M10 or M12))
Nut
Nut
Washer
Washer
Nut
Nut
Vibration isolation rubber
CAUTION
USE TWO NUTS
CAUTION
USE TWO NUTS
Room Side
Outdoor Side
Room Side
Outdoor Side

Eng-6
(2) Installation of duct connecting ange
1. Install the duct connecting ange using attached mounting screws.
2. Fix the removed ange cover with the removed mounting
screws (4 pcs).
Mounting screw
(Accessory parts)
Duct connection ange
Ceiling suspension xture
6. When changing the direction of the out
door side duct (EA/OA) ···Except for LGH-
F1200RVX-E
(1) Removal of ange cover
Unscrewing the ange cover mounting screws (4 pcs), remove
the ange cover.
Flange cover
Mounting screw
(for ange cover)
Ceiling suspension xture
Installation method (continued)
Names of components in control box
Electrical installation
With this product, the wiring installation method will vary according to
the design of the system.
Perform electrical installation to meet local electrical regulations.
* Always use double insulated PVC cable for the transmission cables.
* Wiring work must be performed by qualied professionals.
* All supply circuits must be disconnected before obtaining access to
the terminal devices.
TM1
LED3
LED1, 2, 4
SW2, SW5, SW7
SA1, SA2
TM3
TB5
TM2
TM4
CAUTION
• Do not pull out preconnected connectors unnecessarily
during installation.

Eng-7
English
Installation method (continued)

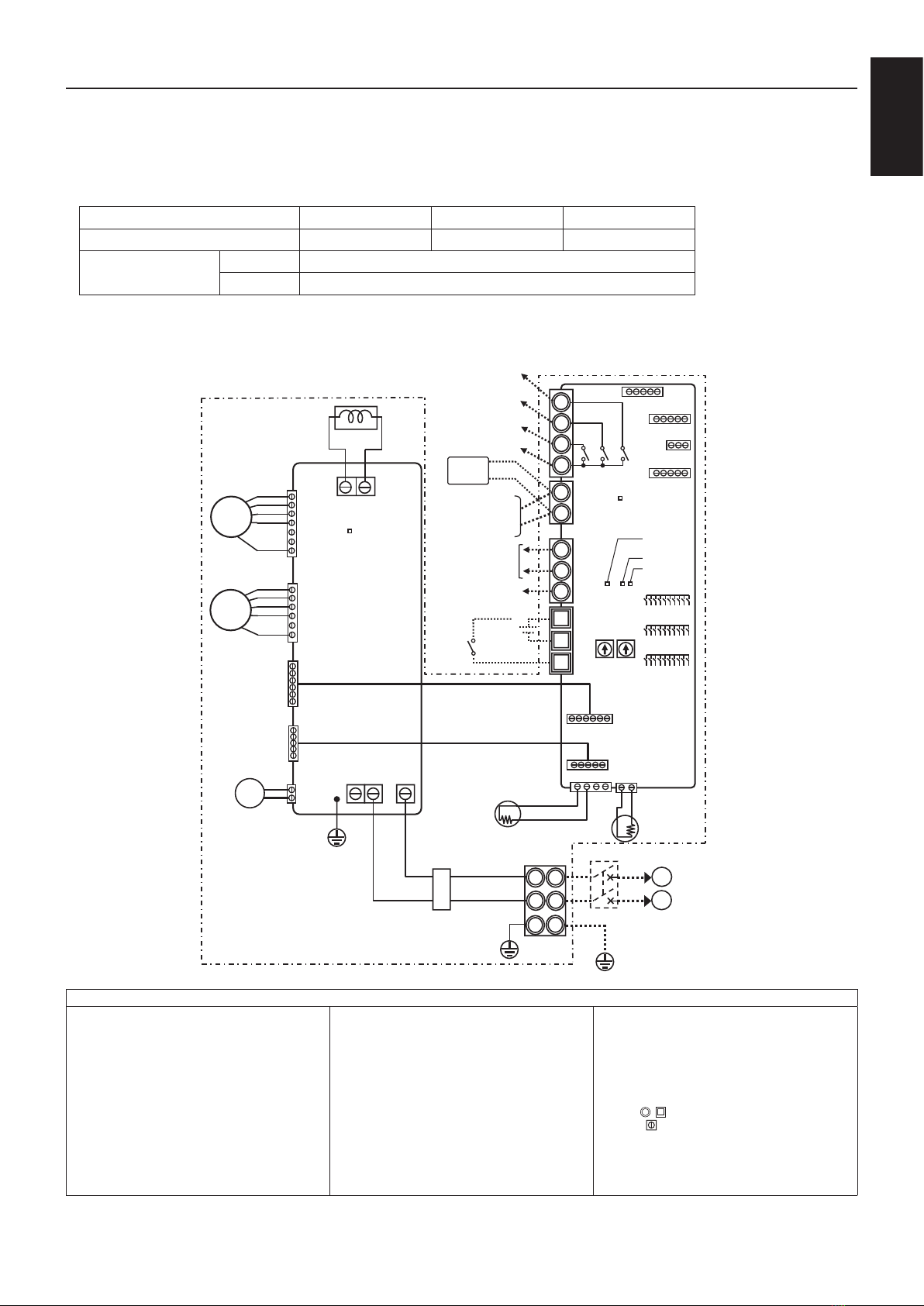

Wire connection diagram ----- Models LGH-F300 to F600RVX-E
* TM1, TM2, TM3, TM4, TB5 shown in dotted lines are eld work.
* Be sure to connect the ground wire.
* A power supply isolator must be installed.
* Always use an isolator for the main switch power connection.
* Select proper circuit breaker according to the electrical current information in the chart below.
Model LGH-F300RVX-E LGH-F470RVX-E LGH-F600RVX-E
Maximum current when operating [A] 2.05 3.10 3.45
Inrush current after
power supply ON [A] 10 ms 6.1
100 ms 3.6
Denition of symbols
M1: Motor for exhaust fan
M2: Motor for supply fan
GM: Motor for By-pass damper
TH1: Thermistor for outside air
TH2: Thermistor for return air
SW2, 5, 7: Switch (Function selection)
TM1:
Terminal block (Power supply)
TM2: Terminal block (External control input)
TM3: Terminal block (Monitor output)
TM4: Terminal block (Transmission cable)
TB5: Terminal block (M-NET Transmission cable)
TAB1, TAB2, (TAB5) : Connector (Power supply)
TAB3,TAB4 : Connector (Reactor)
X13: Relay contact
X14: Relay contact
X15: Relay contact
CN5: Connector (Thermistor RA)
CN7: Connector (Motor for By-pass damper)
CN9: Connector (Fan motor)
CN10: Connector (Fan motor)
CN17: Connector (Fan speed 1/2/3/4)
CN18: Connector
CN118: Connector
CN19: Connector
CN119: Connector
CN20: Unused
CN22: Connector (Thermistor OA)
CN26: Connector (
By-pass, 0 - 10 VDC Fan speed control )
CN32: Connector (Remote control selection)
SA1: Address setting rotary switch (10 digit)
SA2: Address setting rotary switch (1 digit)
LED1 to LED3: Inspection indicator lamp
LED4, LED6: Power supply indicator lamp
SYMBOL : Terminal block
: Connector on PCB
7
8
9
10
S
A
B
1
2
1
2
N
L
N
PE
L
M
1
M
2
GM
CN7
CN118
CN119
CN10
CN9
LED6
TAB3,4
TAB2TAB5 TAB1
TH1(OA)
TH2(RA)
TM1
CN19
CN18
CN22
CN5
SA2
SA1
DIP-SW5
DIP-SW7
DIP-SW2
3
TM2
TB5
TM4
TM3
PZ-
61DR-E
LED3
LED4
LED2
LED1
SUPPLY
FAN MOTOR
REACTOR
EXHAUST
FAN MOTOR
Bypass monitor or Pre-
heater signal output (*1)
Malfunction monitor
output (*1)
Operation monitor
output (*1)
12VDC or
24VDC
Mr .Slim
(non-polar)
Volt-free
contact
M-NET-
transmission cable
2nd remote controller
(Max. 2 controllers)
2nd Lossnay unit
(Max. 15 units)
(*1)
MAX 240 VAC 1 A MIN 208 VAC 100 mA
24 VDC 1 A 5 VDC 100 mA
Isolator (Field supply)
POWER SUPPLY
208-230 V / 60Hz
LINE FILTER
Shielded Wire
CN20 (Green)
CN26 (White)
CN32 (White)
CN17 (Red)
COM
Lower Printed
Circuit Board
Upper Printed
Circuit Board
X15 X14 X13

Eng-8
Installation method (continued)
Wire connection diagram ----- Model LGH-F1200RVX-E
* TM1, TM2, TM3, TM4, TB5 shown in dotted lines are eld work.
* Be sure to connect the ground wire.
* A power supply isolator must be installed.
* Always use an isolator for the main switch power connection.
* Select proper circuit breaker according to the electrical current information in the chart below.
Model LGH-F1200RVX-E
Maximum current when operating [A] 6.40
Inrush current after
power supply ON [A] 10 ms 12.2
100 ms 7.2
Denition of symbols
M1: Motor for exhaust fan
M2: Motor for supply fan
GM: Motor for By-pass damper
TH1: Thermistor for outside air
TH2: Thermistor for return air
SW2, 5, 7 : Switch (Function selection)
TM1:
Terminal block (Power supply)
TM2: Terminal block (External control input)
TM3: Terminal block (Monitor output)
TM4: Terminal block (Transmission cable)
TB5: Terminal block (M-NET Transmission cable)
TAB1, TAB2, TAB5 : Connector (Power supply)
TAB3, TAB4 : Connector (Reactor)
X13: Relay contact
X14: Relay contact
X15: Relay contact
CN5: Connector (Thermistor RA)
CN7: Connector (Motor for By-pass damper)
CN9: Connector (Fan motor)
CN10: Connector (Fan motor)
CN17: Connector (Fan speed 1/2/3/4)
CN18: Connector
CN118: Connector
CN19: Connector
CN119: Connector
CN20: Unused
CN21: Connector
CN121: Connector
CN22: Connector (Thermistor OA)
CN26: Connector (
By-pass, 0 - 10 VDC Fan speed control )
CN32: Connector (Remote control selection)
SA1: Address setting rotary switch (10 digit)
SA2: Address setting rotary switch (1 digit)
LED1 to LED3: Inspection indicator lamp
LED4, LED6: Power supply indicator lamp
SYMBOL : Terminal block
: Connector on PCB
7
8
9
10
S
A
B
1
2
1
2
N
L
N
PE
L
M1
M2
GM
CN7
CN118
CN119
CN10
CN9
TAB3,4
TAB2
TAB1
TH1(OA)
TH2(RA)
TM1
CN19
CN18
CN22
CN5
SA2SA1
DIP-SW5
DIP-SW7
DIP-SW2
3
TM2
TB5
TM4
X15 X14 X13
TM3
PZ-
61DR-E
TAB5
M
1
M
2
GM
CN7
CN10
CN9TAB3,4
TAB2TAB1
CN121
CN21
LED6
LED6
LED3
LED4
LED2
LED1
SUPPLY FAN
MOTOR
EXHAUST
FAN MOTOR
SUPPLY FAN
MOTOR
EXHAUST
FAN MOTOR
REACTOR
REACTOR
Bypass monitor or Pre-
heater signal output (*1)
Malfunction monitor
output (*1)
Operation monitor
output (*1)
M-NET-
transmission cable
2nd remote controller
(Max. 2 controllers)
2nd Lossnay unit
(Max. 15 units)
(*1)
MAX 240 VAC 1 A MIN 208 VAC 100 mA
24 VDC 1 A 5 VDC 100 mA
Isolator (Field supply)
Shielded Wire
COM
Lower Printed
Circuit Board 2
Lower Printed
Circuit Board 1
Upper Printed
Circuit Board
LINE FILTER
12VDC or
24VDC
Mr .Slim
(non-polar)
Volt-free
contact
POWER SUPPLY
208-230 V / 60Hz
CN20 (Green)
CN26 (White)
CN32 (White)
CN17 (Red)

Eng-9
English
Black screws
Model LGH-F1200RVX-E
Control box cover
Control box cover
Models LGH-F300 to F600RVX-E
Black screws
Installation method (continued)
Connecting the power supply cable
1. Remove the black screws and the control box cover
Power supply cable
Power supply cable
Cord clip
Insert the cutting
TM1
Bush
PG connector
Ground wire
Transmission cable
3. Connecting the power supply cable and
transmission cable
Pass the Power supply cable through the bush* and connect to the
TM1 terminal block using the round terminals. Connect the ground
wire to the ground terminal and secure tightening the bush. (* Use
an item that can rmly secure the cable such as a PG connector.)
2. Attach the screw cap.
CAUTION
• After installing the Lossnay unit, attach the supplied screw
caps to the screws at the bottom of the unit.
CAUTION
• Always separate the power supply cable and transmission cable
by 2” (5 cm) or more to prevent malfunctioning of the unit.
• If the length of the stripped Power supply cable is too long,
the conductors may touch and short out.
• Power supply cable size : AWG 14 (
ø 1.6 ) or more.
Models LGH-F300 to F600RVX-E Model LGH-F1200RVX-E
(1) Tighten the ground wire and transmission cables to the
terminal block.
(2) Secure the transmission cables using the cord clips.
Upon completion of the wiring connections, replace the control box
cover.
The following system conguration can
be created. Connect the necessary parts.
1 When connecting with remote controller (PZ-61DR-E).
2 When interlocked with indoor unit of air conditioner or other
external device including other manufactures.
3 When operating multiple Lossnay units.
4By-pass monitor or Pre-heater signal output.
5Malfunction monitor output.
6Operation monitor output
7 When switching fan speed externally (when a sensor or other
device is connected).
8 When switching By-pass externally.
9To change fan speed by 0 - 10 VDC input
10 When using the remote/local switching and the ON/OFF input
(level signal)
11 When connecting to the City Multi or Mitsubishi Electric Air-
Conditioner Network System (MELANS).
12 To start/stop Lossnay stand-alone operation without using the
remote control
CAUTION
• When connecting external devices (electric heater, damper,
lamp, monitoring unit, etc.) using output signals of the
Lossnay unit, make sure to install safety equipment for the
external devices.
(It could cause re, damage, etc. without safety equipment.)
Power supply
Up to two remote controllers
Lossnay
When connecting with remote controller (PZ-61DR-E)
1
2
1
Remote controller input terminal
Transmission cables
* When controlling Lossnay units with MELANS, connect wires
according to
11
.
Securely connect the transmission cable from the remote controller
to 1and 2 of the input terminal block (TM4). (No polarity)
Wire type: two-core sheathed cable
Wire diameter: AWG 22 (0.3 mm2) or more
• If there are two remote controllers, connect them in the same way.
• Keep the overall length of the transmission cable between
Lossnay and the remote controller within 219 yd (200 m).
Note
• Do not tighten screws of terminal block with a torque larger
than 0.5 Nm. It could damage the PCB.
• Take care not to connect the power supply cable or M-NET
transmission cable.
• Number of transmission wires which can be connected to
single input terminal is up to 4 wires for AWG 22 (ø 0.65)
PVC wire or AWG 22 (0.3 mm2) stranded wire. It is up to 2
wires for any other wires.
• Single wires cannot be connected.
Screw
Screw cap
Screw
Screw cap

Eng-10
When interlocked with indoor unit of air conditioner or
other external device including other manufactures
2
CAUTION
• The connection may vary according to the output signal type
of the external unit.
• Don’t tighten screws of terminal block with a torque larger
than 0.5 Nm. It could damage the PCB.
Installation method (continued)
When using Mitsubishi Mr. Slim air conditioner with MA
Remote controller
Conrm that the pulse input switch (SW2-2) is set to “OFF”.
(Factory setting is “OFF”.) (Refer to function settings No. 28 )
Connect the interlocking cable connector side to CN2L on the
circuit board for the Mr. Slim indoor unit, then connect the lead
wire side to the 1and 2 of the input terminal block (TM2) for the
Lossnay external controller input. (No polarity)
• Always separate the power supply cable and the Slim-Lossnay
connection cable by 2” (5 cm) or more to prevent the unit from
malfunctioning.
• The Slim-Lossnay connection cable is 109 yd (100 mm) long.
When wiring, extend it as far as necessary.
Lossnay external
control input
(TM2)
Slim-Lossnay connection cable
(Accessory parts)
Printed circuit board
Maximum 457 yd (500 m)
CN2L
Mr. Slim (Indoor unit)
Operating switch for
external device
Operating switch for
external device
Power supply
Power supply
External
device
External
device
Lossnay
Power supply
Note
• The Lossnay remote controller (PZ-61DR-E) cannot be used
with this system.
• Use MA remote controller of Mr. Slim for switching Lossnay
ON/OFF or the fan speed.
• The ventilation mode is “automatic ventilation”.
• Ensure that all connections are secure and that the
appropriate insulation is provided.
Use extension cable sheathed PVC cable or cable AWG 20
(0.5 mm2) to AWG 17 (1.0 mm2).
When the external device has a charged operating signal
of 12 VDC or 24 VDC
[SW2-2] setting vary depending on the types of output signal of
external device.
• Move the pulse input switch [SW2-2] to the ON position.
(Refer to function settings No. 28 )
• When interlocking with a pulse output device, a pulse width is
at least 200 m sec. to turn Lossnay ON, and 10 sec. interval is
necessary to next output.
• The wiring should be the following picture.
Lossnay external
control input
(TM2) External device
12 or 24 VDC
Overall connection extension length
(Follow the operation manual for the external equipment.)
AWG 20 (0.5 mm2) to AWG 17 (1.0 mm2)
sheathed PVC cable
Lossnay external
control input
(TM2)
AWG 20 (0.5 mm2) to AWG 17 (1.0 mm2)
sheathed PVC cable
External device
Uncharge a-contact
Maximum 457 yd (500 m)
When the external device has an uncharged a-contact signal
• The wiring should be the following picture.
CAUTION
• If an optocoupler or any other type of polar coupler is used at
the uncharged a-contact, connect the positive side to 3and
the negative side to 1.
When operating multiple Lossnay units
3
1) Connect from Lossnay Unit 1 to Lossnay Unit 2, and from Unit 2 to
Unit 3 and so on up to a maximum of 15 units using a transmission
cable.
Wire type: two-core sheathed cable
Wire diameter: AWG 22 (0.3 mm2) or more
2) When it is interlocked with an external device, turn ON the setting
switch (SW5-10) of main Lossnay where the external signal is
input.
Lossnay Remote controller
(PZ-61DR-E)
Lossnay
MAX 15 units
Power supply
Power supply
Power supply
Lossnay
Connect to
remote controller
(PZ-61DR-E)
Connect to
third Lossnay
21
21
Transmission cable
First
Lossnay
Second
Lossnay
TM4
TM4
CAUTION
Don’t tighten screws of terminal block with a torque larger
than 0.5 Nm. It could damage the PCB.
Note
• Up to four transmission cables can be connected to one
input terminal when AWG 22 (0.3 mm2) is used. For other
types of wire, up to two can be connected.
• Single wires cannot be connected.
• Only one unit can be set as main Lossnay. The operating
signal and pulse signal of the external device can be
connected to main Lossnay only.
• When the external signal is not input, main-unit setting is
not required even for operation of multiple units.
• Connect the power supply cable to each Lossnay unit.
TM2
1 2
SW5 ON
OFF
345678910
ON

Eng-11
English
Installation method (continued)
By-pass monitor or Pre-heater signal can be selected at SW5-6.
(Refer to function settings No. 58 )
Always check that it is the intended setting.
CAUTION
• Select a duct heater in compliance with local and national
laws, ordinances, and standards.
Select a duct heater that meets adequate standard in each
country.
• Always select a heater that is equipped with a non-self-
resetting safety device.
Do not directly supply power from the Lossnay unit to the
duct heater.
(Doing so could cause re.)
• Install a circuit breaker for the duct heater in compliance with
all applicable laws, ordinances, and standards.
• Install the duct heater separated from the product by a
distance of 2.2 yd (2 m) or more.
(Failure to do so may result in equipment damage due to the
transmission of residual heat from the heater.)
• When using a heater without a temperature control function,
select a heater with a capacity that is matched to the air
volume.
• Do not use the heater outside the set air volume.
(If the heater’s capacity is too larger, this may result in the
heater frequently turning ON/OFF.)
(If the heater’s capacity is too small, this may result an
inability to heat.)
• Ensure that the duct heater and Lossnay are wired and that
the Lossnay function settings have been congured, and then
always check operation by trial operation.
• For the duct heater output, see function setting SW5-6.
By-pass monitor or Pre-heater signal output.
9
8
7
10
9
8
7
10
By-pass monitor SW5-6 OFF
Pre-heater output SW5-6 ON
Power
Supply
Relay
Pre-heater
2.2 yd (2 m) or more
Power Supply
for heater Power Supply
for relay
TM3
TM3
4
Max 240 VAC, 1 A
24 VDC, 1 A
Min 208 VAC, 100 mA
5 VDC, 100 mA
Max 240 VAC, 1 A
24 VDC, 1 A
Min 208 VAC, 100 mA
5 VDC, 100 mA
By-pass operation
indicator
9
8
7
10
Operation monitor output can be selected to sympathize with exhaust
fan or supply fan at SW 5-2.
SW5-2 OFF: Exhaust fan operation monitor output
SW5-2 ON: Supply fan operation monitor output
(Refer to function settings No. 57 )
Always check that it is the intended setting.
Operation
indicator
Power Supply
Operation monitor output
6
Malfunction monitor output.
9
8
7
10
Relay
2.2 yd (2 m) or more
Power Supply
for heater Power Supply
for relay
Power
Supply
TM3
TM3
TM3
5
Max 240 VAC, 1 A
24 VDC, 1 A
Min 208 VAC, 100 mA
5 VDC, 100 mA
Max 240 VAC, 1 A
24 VDC, 1 A
Min 208 VAC, 100 mA
5 VDC, 100 mA
Max 240 VAC, 1 A
24 VDC, 1 A
Min 208 VAC, 100 mA
5 VDC, 100 mA
Malfunction indicator
9
8
7
10
When switching fan speed externally
(when a sensor or other equipment is connected)
7
Using a eld supply sensor, etc., make connection by inserting the
optional remote display adaptor (PAC-SA88HA-E or PAC-725AD) in
the connector CN17 (Red) as shown by the gure.
Lossnay will operate the fan speed following the table below,
regardless of the remote controller setting.
CN17 (Red) Fan speed
1-2 (Brown-Red) 4
1-3 (Brown-Orange) 3
1-4 (Brown-Yellow) 2
1-5 (Brown-Green) 1
nExample “Fan speed 4”
Use this in such a way that it ventilates at low fan speed normally,
and when the external sensor detects contamination of indoor air,
it changes to high fan speed operation.
SW1 CN17
Field supply sensor, etc.
Remote display adaptor
(Optional) PAC-SA88HA-E
or PAC-725AD
Brown 1
Red 2
Orange 3
Yellow 4
Green 5
Not used. Insulate completely.
Max wiring length 11 yd (10 m)
Lossnay
control board
Fan speed
selection
X13
SA
OA
Lossnay
Lossnay
X13
X14
X15
X15
SA
OA
To use operation monitor output for a supply after-heater, turn SW2-8
ON, and use the supply fan operation monitor output with delayed
operation. (Refer to function settings No. 57 )
For the heater, observe the cautions listed in 4.

Eng-12
SW1
CN26
CN26
Installation method (continued)
S
BA
TB5
M-NET transmission cable
Shielded wire M-NET transmission cable input terminal block

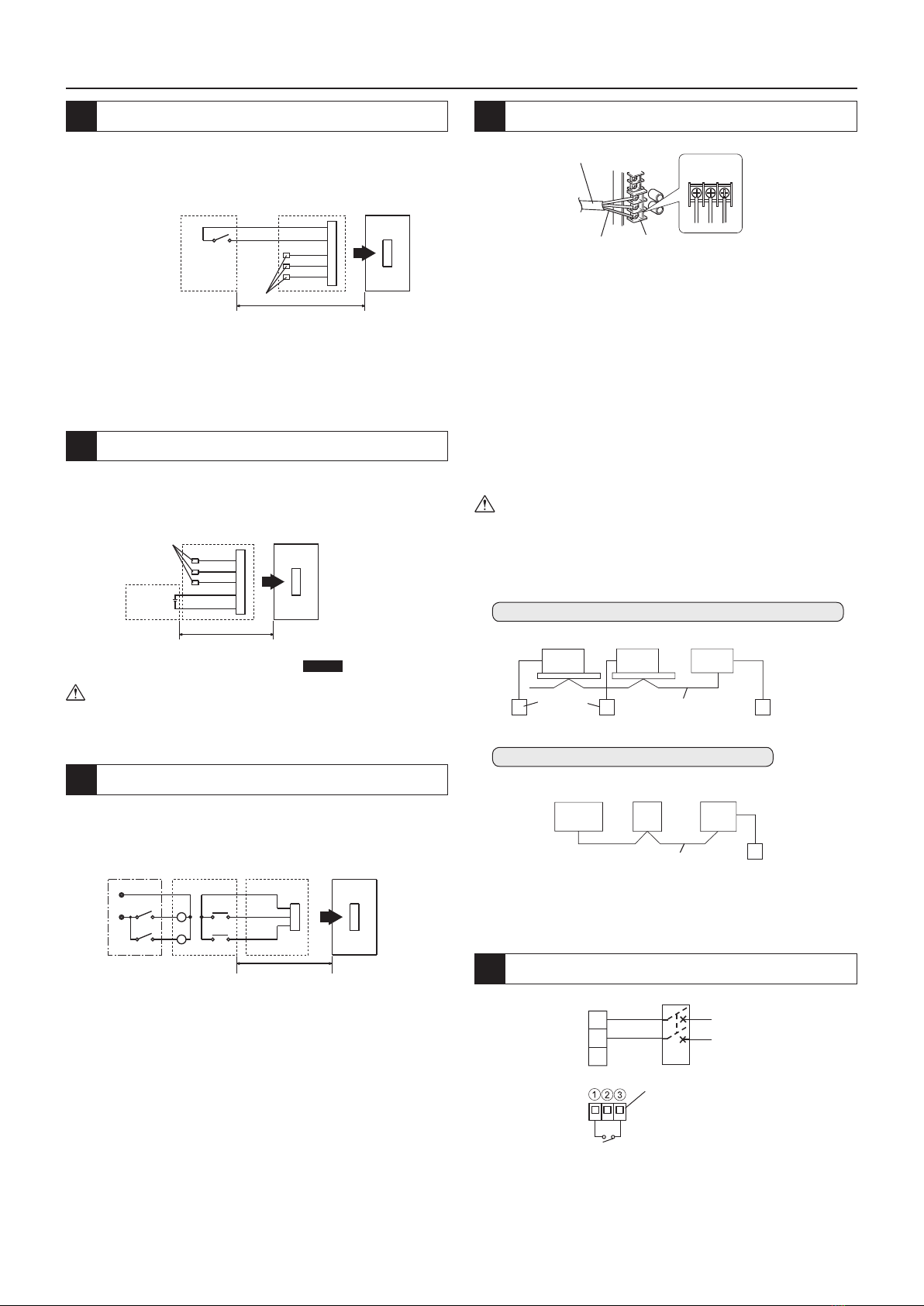

When switching By-pass externally.
To change fan speed by 0 - 10 VDC input
8
9
Establish the wire connection by inserting the optional remote display
adaptor (PAC-SA88HA-E or PAC-725AD) in the connector CN26
(White).
Establish the wire connection by inserting the optional remote display
adaptor (PAC-SA88HA-E or PAC-725AD) in the connector CN26
(White).
To change fan speed by 0 - 10 VDC input, the wiring should be the
above picture. Refer to function settings No. 63 for more details.
With SW1 is “ON”, the ventilation mode of Lossnay is changed to the
By-pass ventilation regardless of the setting on the remote controller.
* When the outdoor air temperature drops lower than 46 ˚F
(8˚C), it changes to the heat exchanger ventilation. (Display of
the remote controller does not change.)
When using the remote/local switching and the ON/OFF
input (level signal)
10
Insert the optional remote ON/OFF adaptor (PAC-SE55RA-E or PAC-
715AD) in CN32 on the Lossnay control PCB.
Remote control
board
Remote ON/OFF adaptor
(Optional) PAC-SE55RA-E
or PAC-715AD
Lossnay
control board
Relay circuit
CN32
SW1
SW2
Y
X
Y
X
Max wiring length 11 yd (10 m)
Orange 1
Red 2
Brown 3
Relay power supply
SW1: When this is ON, Lossnay cannot turn ON/OFF by the
Remote Controller (PZ-61DR-E).
SW2: When SW1 is ON, Lossnay can be turned ON by setting
SW2 at ON or turned OFF by setting SW2 at OFF.
SW1: Remote/local selector switch
SW2: ON/OFF switch
X, Y : Relay (Contactor rating DC 1 mA)
When connecting to the City Multi, Mitsubishi Electric Air-
Conditioner Network System (MELANS)
11
SW1: By-pass ventilation operation switch
(When closed: For By-pass ventilation operation)
Remote display adaptor
(Optional) PAC-SA88HA-E
or PAC-725AD
Remote display adaptor
(Optional) PAC-SA88HA-E
or PAC-725AD
Brown 1
Red 2
Orange 3
Yellow 4
Green 5
Yellow 4 (0 - 10 VDC)
Green 5 (COM)
Lossnay
control board
Lossnay
control board
Fan speed/
Ventilation
mode selection
Fan speed/
Ventilation
mode selection
External
device
Max wiring length 11 yd (10 m)
Max wiring length 11 yd (10 m)
• One shielded wire is connected to terminal TB5 Son the PCB.
Address setting is required. (Refer to function setting section.)
M-NET transmission cable:Connect any of the City Multi indoor
unit, or Mitsubishi Electric Air-
Conditioner Network System (MELANS)
- to the Lossnay.
• Remote Controller
PZ-61DR-E:
Connect to TM4 1, 2on the PCB. (See Section 1“When
connecting with Remote Controller (PZ-61DR-E)”.)
• Securely connect the M-NET transmission cables to TB5 AB.
(No-Polar)
Type: (Shielded wire, CVVS/CPEVS)
Wire diameter: AWG 16 (1.25 mm2) to AWG 14 (2.0 mm2)
CAUTION
• Don’t tighten screws on the terminal block with a torque larger
than 0.5 Nm. It may damage the PCB.
• Always use shielded wires only for the M-NET transmission
cables, and nish the shield properly.
When interlocking with Mitsubishi M-NET air conditioner
• Incase of PZ-61DR-E
* Limit the total length of transmission cables no longer than 457
yd (500 m). Limit the wiring length between Lossnay and the
power supply unit (Optional) or the outdoor unit no longer than
219 yd (200 m).
M-NET transmission cable
Lossnay
Power
supply unit
Lossnay MELANS
M-NET transmission cable
Air
conditioner
Air
conditioner
MA remote
controller
When connecting to PZ-61DR-E and MELANS
• Connect the power feeding unit.
(Optional)
PZ-61DR-E
PZ-61DR-E
L
N
PE
Switch
Isolator
To start/stop Lossnay stand-alone operation without
using the remote control
12
Start/stop the unit by a switch connected to TM213.
When turned the unit ON, it operates at fan speed 4 and
automatic ventilation mode.
Do not start/stop the unit by turning the power supply to the unit
ON/OFF.
TM2
TM1
CAUTION
• Make sure of correct polarity.
Brown 1
Red 2
Orange 3
Not used. Insulate completely.
Not used. Insulate
completely.
Lossnay external
control input

Eng-13
English

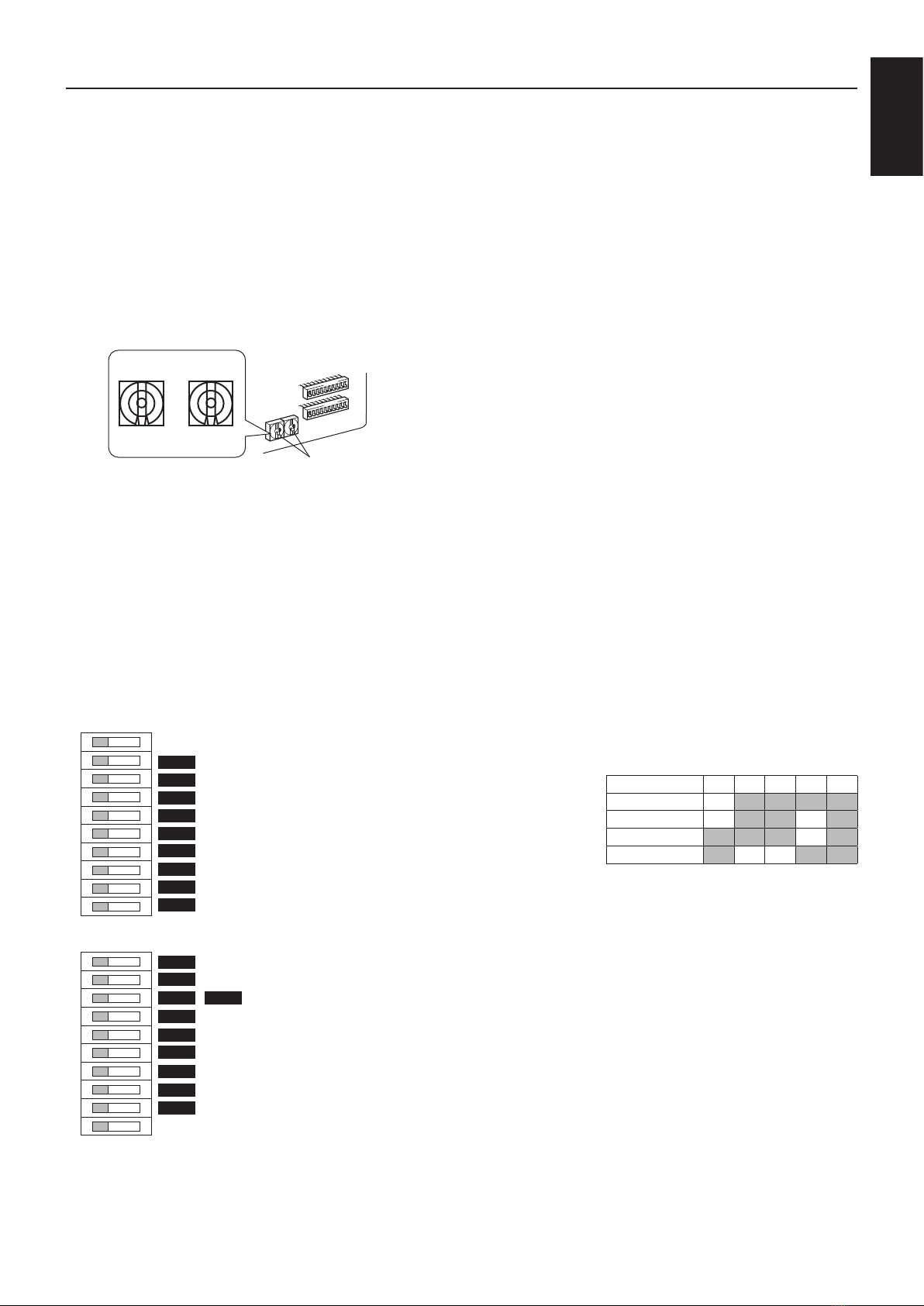

Function settings
Address setting is required when connecting to City Multi and MELANS.
Setting the address
Use the following procedure when setting the address for dedicated
Lossnay.
(The method in determining the addresses will depend on the existing
system. Refer to the appropriate technical documents for details.)
(1) Remove the control box cover.
(2) Use a at blade screwdriver to turn the address setting switch on
the circuit board.
• SA1 indicates the 10 digit and SA2 indicates the 1 digit.
• The factory setting is “00”.
Changing the function selection
switches (SW-2, 5, 6 and 7)
Set the selection switches (SW-2 and 5) to perform the appropriate
function.
* All function except “Trial operation” and “Main unit setting” can be
set also from the remote controller (PZ-61DR-E). If the function is
switched later using the remote controller, it operates according to
the setting on the remote controller.
1
2
3
4
5
6
7
8
9
10
(SW2)
1
2
3
4
5
6
7
8
9
10
(SW5)
OFF ON
OFF ON
Trial operation
No. 28 Pulse input setting
No. 63 External fan speed input setting (0 - 10 VDC)
No. 6 Indoor negative pressure setting
No. 7 Indoor positive pressure setting
No. 63 External fan speed input setting (0 - 10 VDC)
No. 51 Automatic ventilation mode setting
No. 57
Operation monitor output synchronized with exhaust fan or supply fan
No. 61 Fan speed for air volume “High” input
No. 62 Fan speed for air volume “Low” input
No. 9 Delay start setting for air conditioner starting
No. 57 Operation monitor output synchronized with exhaust fan or supply fan
No. 13 ,No. 14 Exhaust fan setting
No. 5 Automatic recovery setting after power interruption
No. 1 Filter maintenance and fan power up setting against lter choking
No. 58 By-pass monitor output or Pre-heater output setting
No. 15 Interlock mode setting
No. 15 Interlock mode setting
No. 14 Exhaust fan setting at OA temperature lower than 5 ˚F (-15 ˚C)
Main unit setting (refer to page 10)
SA1 SA2
10 digit 1 digit
Address setting switch
* When the address number has been changed, the data in the
memory is automatically reset.
Change the function settings from the
remote controller PZ-61DR-E.
Please refer to the Instruction book of PZ-61DR-E for how to set the
function settings.
DIP-SW 6 and 7 is to idenify the model for
PCB. When replacing to new PCB, set the
same setting as old one.
(SW6)
SW6-1SW6-2SW6-3SW6-4SW7-8
LGH-F300RVX-E OFF ON ON ON ON
LGH-F470RVX-E OFF ON ON OFF ON
LGH-F600RVX-E ON ON ON OFF ON
LGH-F1200RVX-E ON OFF OFF ON ON
* Do not change from factory setting.
If changed,please set as factory setting.
SW7 is not available except SW7-8.

Eng-14
Function settings (continued)
No Function Setting Data
Factory
setting
DIP-SW
No.
0123456 7
*1 Filter maintenance and fan power up setting
against lter choking
Dip-SW
priority
Indicator
available
Fan power
up N/A
Indicator N/A
Fan power
up N/A
Indicator
available
Fan power
up available
----05-5
2 Lossnay core maintenance indicator setting N/A Available - - - - - - 0 N/A
5
Automatic recovery setting after power interruption
Dip-SW
priority
Stop when
the power
is On
Start when
the power
is On
Return to the
state before
interruption
----05-4
6 Indoor negative pressure setting Dip-SW
priority N/A Supply 1
down
Supply 2
down - - - - 0 2-4
7 Indoor positive pressure setting Dip-SW
priority N/A
Exhaust 1
down
Exhaust 2
down
----02-5
8
Max. fan speed setting during the rst 30 minutes N/A Available - - - - - - 0 N/A
9 Delay start setting for air conditioner starting Dip-SW
priority N/A 15 min 30 min - - - - 0 5-1
13
Exhaust fan setting during air conditioner defrosting
Dip-SW
priority Stop No change - - - - - 0 5-3
14 Exhaust fan setting at OA temperature lower
than 5 ˚F (-15 ˚C)
Dip-SW
priority Stop Fan speed
1 or 2 No change - - - - 0 5-3
5-9
15 Interlock mode setting Dip-SW
priority
ON/OFF
interlock
ON inter-
lock
OFF inter-
lock
External
input given
priority
- - - 0 5-7
5-8
28 Pulse input setting Dip-SW
priority
Non-pulse
input
Pulse
input - - - - - 0 2-2
*30 Night-purge setting 1)
Air volume N/A
Fan speed 1 Fan speed 2 Fan speed 3 Fan speed 4 - - - 0 N/A
*31 Night-purge setting 2)
Outdoor and indoor temperature gap
32 ˚F
(0 ˚C)
34 ˚F
(1 ˚C)
36 ˚F
(2 ˚C)
38 ˚F
(3 ˚C)
40 ˚F
(4 ˚C)
41 ˚F
(5 ˚C)
43 ˚F
(6 ˚C)
45 ˚F
(7 ˚C) 5 N/A
*32 Night-purge setting 3)
The lowest outdoor temperature
Setting Data 0 to 15 -->
The lowest outdoor temperature for Night-purge 59 ˚F (15 ˚C) to 86 ˚F (30 ˚C) 2N/A
*34 Input priority setting
Main unit
input prior-
ity
Individual
input prior-
ity
------0N/A
36 Outdoor temperature display setting N/A Available - - - - - - 0 N/A
37 Indoor temperature display setting N/A Available - - - - - - 0 N/A
38 Calculated supply air temperature display setting N/A Available - - - - - - 0 N/A
39
Temperature exchange efciency setting (10 digit) Setting Data 0 to 9 --> 10 digit of temperature exchange efciency 0 to 9 7N/A
40 Temperature exchange efciency setting (1 digit) Setting Data 0 to 9 --> 1 digit of temperature exchange efciency 0 to 9 0N/A
*41 Outdoor temperature correction Setting Data 0 to 14 --> Outdoor temperature correction 20 ˚F (-7 ˚C) to 45 ˚F (7 ˚C) 7N/A
*42 Indoor temperature correction Setting Data 0 to 14 --> Room temperature correction 20 ˚F (-7 ˚C) to 45 ˚F (7 ˚C) 7N/A
*51 Automatic ventilation mode setting Dip-SW
priority Pattern A Pattern B Free
setting - - - - 0 2-7
*52 Automatic ventilation mode setting 1)
Outdoor and indoor temperature gap Setting Data 0 to 7 --> Temperature gap 32 ˚F (0 ˚C) to 45 ˚F (7 ˚C) 0N/A
*53 Automatic ventilation mode setting 2)
The lowest outdoor temperature setting Setting Data 0 to 15 --> Lowest outdoor temperature 50 ˚F (10 ˚C) to 77 ˚F (25 ˚C) 6N/A
*54 Automatic ventilation mode setting 3)
The lowest indoor temperature setting Setting Data 0 to 15 --> Lowest indoor temperature 59 ˚F (15 ˚C) to 86 ˚F (30 ˚C) 1N/A
*55 Supply fan power up setting N/A 1 level up 2 level up 3 level up 4 level up - - - 0 N/A
*56 Exhaust fan power up setting N/A 1 level up 2 level up 3 level up 4 level up - - - 0 N/A
57 Operation monitor output synchronized with
exhaust fan or supply fan
Dip-SW
priority
EA fan
monitor
output
SA fan
monitor
output
SA fan
monitor
with delay
operation
----02-8
5-2
58 By-pass monitor output or Pre-heater output set-
ting
Dip-SW
priority
By-pass
monitor
output
Operation
monitor
output for
Pre-heater
-----05-6
*59 Pre-heater setting 1)
ON temperature
32 ˚F
(0 ˚C)
30 ˚F
(-1 ˚C)
28 ˚F
(-2 ˚C)
27 ˚F
(-3 ˚C)
25 ˚F
(-4 ˚C)
23 ˚F
(-5 ˚C)
21 ˚F
(-6 ˚C)
19 ˚F
(-7 ˚C) 0N/A
*60 Pre-heater setting 2)
OFF interval 1 hr 2 hr 3 hr 4 hr 5 hr - - - 0 N/A
*61 Fan speed for air volume “High” input Dip-SW
priority
Fan speed
4
Fan speed
3- - - - - 0 2-9
*62 Fan speed for air volume “Low” input Dip-SW
priority
Fan speed
2
Fan speed
1- - - - - 0 2-10
*63 External fan speed input setting (0 - 10 VDC) Dip-SW
priority N/A Pattern X Pattern Y Pattern Z - - - 0 2-3
2-6
100 Initialization - Initialize - - - - - - 0 N/A
This table shows the summary of function settings. Please refer to the following pages for more details.
The functions indicated with * are newly added or modied from Lossnay LGH-RX5-E series.
The functions indicated with “N/A” in the “DIP-SW No.” column are available only when using with remote controller PZ-61DR-E.

Eng-15
English
Function settings (continued)
No. 1 Filter maintenance and fan power up
setting against lter choking
Set the schedule for lter cleaning based on the estimated
concentration of dust in the air.
When fan power up is available, exhaust and supply fans power up at
1,000 hrs and 2,000 hrs gradually .
If function No. 55 or No. 56 is already worked, fan power up function
may not available.
Estimated hour differs by actual operated fan speed.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Filter maintenance
indicator
Fan power
UP
SW No. Setting Function No. Setting Data
SW5-5
- -
1
0
(Factory setting)
DIP-SW priority
- - 1
Indicate at
estimated 3,000 hrs
N/A
OFF
(Factory setting)
2N/A N/A
ON 3
Indicate at
estimated 3,000 hrs Available
CAUTION
• When the setting for the cumulative operation time of the
Lossnay is exceeded, the lter cleaning icon will appear on the
indoor unit remote controller or the Lossnay remote controller.
After cleaning the lter, the lter cleaning icon can be reset.
Refer to the Instruction book for the remote controller.
•
Even fan power up is selected “Available”, it may not work when
the unit is used at higher air volume than fan speed 4 rating.
No. 2 Lossnay core maintenance indicator
setting
Set to enable Lossnay core maintenance display. Estimated hour
differs by actual operated fan speed.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Lossnay core
maintenance indicator
SW No. Setting Function No. Setting Data
N/A - - 2
0
(Factory setting)
N/A
- - 1
Indicate at estimated 6,000 hrs
No.5 Automatic recovery setting after power
interruption
Sets for automatic recovery following power interruption.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Automatic recovery
SW No. Setting Function No. Setting Data
SW5-4
- -
5
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 Stop when the power is on
- - 2 Start when the power is on
ON 3 Lossnay returns to the
state before interruption
No. 6 Indoor negative pressure setting
Exhaust fan speed becomes
bigger than supply fan speed.
Remote controller indicates fan
speed of exhaust fan.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Down level of supply fan
speed
SW No. Setting Function No. Setting Data
SW2-4
- -
6
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1N/A
ON 2
Supply fan speed is 1
down to exhaust fan speed
- - 3
Supply fan speed is 2
down to exhaust fan speed
Fan speed
Display
Exhaust
fan
Supply fan
1 down 2 down
4 4 3 2
3 3 2 1
2 2 1 1
1 1 1 1
No.7 Indoor positive pressure setting
Supply fan speed becomes bigger
than exhaust fan speed.
Remote controller indicates fan
speed of supply fan.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Down level of exhaust
fan speed
SW No. Setting Function No. Setting Data
SW2-5
- -
7
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1N/A
ON 2
Exhaust fan speed is 1
down to supply fan speed
- - 3
Exhaust fan speed is 2
down to supply fan speed
No.8
Max. fan speed setting during the rst 30
minutes
This sets the fan to run forcibly for 30 minutes when operation starts
to ventilate the indoor area. After 30 minutes, fan speed can be
changed.
Use this setting if the indoor air is contaminated at night when the
system is shut down and you desire to ventilate the indoor area
quickly when operation is started in the morning.
This function is N/A from Lossnay unit DIP-SW.
During this function is working, is displayed at PZ-61DR-E and
selected fan speed is displayed.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Max. fan speed setting
during the rst 30 minutes
SW No.
Setting Function No. Setting Data
N/A - - 8
0
(Factory setting)
N/A
- - 1 Available
No.9
Delay start setting for air conditioner starting
Delays Lossnay operation for 30 minutes when City Multi or Mr. Slim
starts operating or when a external device starts operating.
This function is available only when Lossnay is interlocked with air
conditioners. This function is N/A during Night-purge.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Lossnay delay start
SW No. Setting Function No. Setting Data
SW5-1
- -
9
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1N/A
- - 2 15 min
ON 3 30 min
No.13 Exhaust fan setting during air conditioner
defrosting
This function can be used under the condition Lossnay supply duct is
connected to Mr. Slim or City Multi indoor unit.
Sets the operation of the exhaust fan during defrosting of the air
conditioner (when supply fan stop).
To enable this function, it is necessary to set the DIP-SW of the
indoor unit also. Please refer to its manual.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Exhaust fan operation during
air conditioner defrosting
SW No. Setting Function No. Setting Data
SW5-3
- -
13
0
(Factory setting)
DIP-SW priority
ON 1 Stop
OFF
(Factory setting)
2 No change
Fan speed
Display
Supply
fan
Exhaust fan
1 down 2 down
4 4 3 2
3 3 2 1
2 2 1 1
1 1 1 1

Eng-16
No.14 Exhaust fan setting at OA temperature
lower than 5 ˚F (-15 ˚C)
Sets the operation of the exhaust fan when the outdoor air is lower
than 5 ˚F (-15 ˚C) (when supply fan stop).
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Exhaust fan operation at outdoor
temp. 5 ˚F (-15 ˚C) or less
SW No. Setting Function No. Setting Data
SW5-3
SW5-9
- -
14
0
(Factory setting)
DIP-SW priority
5-3 OFF
5-9 ON 1 Stop
5-3 ON
5-9 OFF 2Forced to fan speed 2
or less*
5-3 OFF
5-9 OFF
(Factory setting)
3 No change
5-3 ON
5-9 ON
* In case Lossnay is operating fan speed 1, exhaust fan keeps fan
speed 1. Function No. 13 and No. 14 are included in DIP-SW 5-3,
then it is impossible to set independently without PZ-61DR-E.
No.15 Interlock mode setting
These settings indicate how Lossnay should operate when external
devices are started or stopped.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Interlock setting
SW No. Setting Function No. Setting Data
SW5-7
SW5-8
- -
15
0
(Factory setting)
DIP-SW priority
5-7 OFF
5-8 OFF
(Factory setting)
1
The Lossnay will start and stop
according to the operation of the
external devices. Subsequent
operation will be possible using
the remote controller for the
Lossnay or MELANS.
5-7 ON
5-8 OFF 2
The Lossnay will start whenever
external devices are operated.
Lossnay stop operation will
be possible using its remote
controller or MELANS.
5-7 OFF
5-8 ON 3
The Lossnay will stop whenever
external devices are stopped.
Lossnay start operation will
be possible using its remote
controller or MELANS.
5-7 ON
5-8 ON 4
The Lossnay will start and stop
according to the operation of
the external devices. Control
via the Lossnay remote
controller or MELANS will only
be possible when external
devices are stopped.
No.28 Pulse input setting
Set external input signal type from external device for TM2.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Pulse input setting
SW No. Setting Function No. Setting Data
SW2-2
- -
28
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 NOT pulse input
ON 2 Pulse input
Function settings (continued)
No.30 Night-purge setting 1)
Air volume
Set fan speed during Night-purge. To use Night-purge function, it is
necessary to set No. 30 , No. 31 , No. 32 correctly.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Night-purge setting 1)
Air volume
SW No. Setting Function No. Setting Data
N/A
- -
30
0
(Factory setting)
N/A (Night-purge
function is not available)
- - 1 Fan speed 1
- - 2 Fan speed 2
- - 3 Fan speed 3
- - 4 Fan speed 4
No.31 Night-purge setting 2)
Outdoor and indoor temperature gap
Set one of conditions for Night-purge start, temperature gap between
indoor and outdoor.
When the actual gap between indoor and outdoor becomes bigger
than the setting, Night-purge starts.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Indoor temperature -
outdoor temperature
SW No. Setting Function No. Setting Data
N/A
- -
31
032 ˚F (0 ˚C) or more
- - 1 34 ˚F (1 ˚C) or more
- - 2 36 ˚F (2 ˚C) or more
- - 3 38 ˚F (3 ˚C) or more
- - 4 40 ˚F (4 ˚C) or more
- - 5
(Factory setting)
41 ˚F (5 ˚C) or more
- - 6 43 ˚F (6 ˚C) or more
- - 7 45 ˚F (7 ˚C) or more
No.32 Night-purge setting 3)
The lowest outdoor temperature
Set one of conditions for Night-purge start, maximum outdoor
temperature within 24 hours.
When this setting temperature is low, it is likely to start Night-purge.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
The maximum outdoor
temp. within 24 hrs
SW No. Setting Function No. Setting Data
N/A
- -
32
059 ˚F (15 ˚C) or more
- - 1 61 ˚F (16 ˚C) or more
- - 2
(Factory setting)
63 ˚F (17 ˚C) or more
- - 3 64 ˚F (18 ˚C) or more
- - 4 66 ˚F (19 ˚C) or more
- - 5 68 ˚F (20 ˚C) or more
- - 6 70 ˚F (21 ˚C) or more
- - 7 72 ˚F (22 ˚C) or more
- - 8 73 ˚F (23 ˚C) or more
- - 9 75 ˚F (24 ˚C) or more
- - 10 77 ˚F (25 ˚C) or more
- - 11 79 ˚F (26 ˚C) or more
- - 12 81 ˚F (27 ˚C) or more
- - 13 82 ˚F (28 ˚C) or more
- - 14 84 ˚F (29 ˚C) or more
- - 15 86 ˚F (30 ˚C) or more
No.34 Input priority setting
Set to follow input to the main unit from air conditioner, fan speed
controller, etc.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Input priority setting
SW No. Setting Function No. Setting Data
N/A - - 34
0
(Factory setting)
Main unit input priority
- - 1 Individual input priority

Eng-17
English
No.36 Outdoor temperature display setting
Set to display outdoor temperature detected by Lossnay unit
thermistor or not.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Outdoor temperature
display
SW No. Setting Function No. Setting Data
N/A
- -
36
0
(Factory setting)
N/A
- - 1 Display on the screen of
PZ-61DR-E
No.37 Indoor temperature display setting
Set to display indoor temperature detected by Lossnay unit thermistor
or not.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Indoor temperature
display
SW No. Setting Function No. Setting Data
N/A
- -
37
0
(Factory setting)
N/A
- - 1 Display on the screen of
PZ-61DR-E
No.38 Calculated supply air temperature display
setting
Set to display calculated supply air temperature or not.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Calculated supply
temperature display
SW No. Setting Function No. Setting Data
N/A
- -
38
0
(Factory setting)
N/A
- - 1 Display on the screen of
PZ-61DR-E
No.39, 40 Temperature exchange efciency
setting
Set the 10 digit of temperature exchange efciency which is used to
calculate supply air temperature.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
10 digit of temperature
exchange efciency
SW No. Setting Function No. Setting Data
N/A
- -
39
0 0
- - 1 1
- - 2 2
- - 3 3
- - 4 4
- - 5 5
- - 6 6
- - 7
(Factory setting)
7
- - 8 8
- - 9 9
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
1 digit of temperature
exchange efciency
SW No. Setting Function No. Setting Data
N/A
- -
40
0
(Factory setting)
0
- - 1 1
- - 2 2
- - 3 3
- - 4 4
- - 5 5
- - 6 6
- - 7 7
- - 8 8
- - 9 9
Function settings (continued)
No.41 Outdoor temperature correction
Set the correction for the outdoor temperature displayed on the
PZ-61DR-E screen by function No. 36 .
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
The correction to
thermistor detection
SW No. Setting Function No. Setting Data
N/A
- -
41
019 ˚F (-7 ˚C)
- - 1 21 ˚F (-6 ˚C)
- - 2 23 ˚F (-5 ˚C)
- - 3 25 ˚F (-4 ˚C)
- - 4 27 ˚F (-3 ˚C)
- - 5 28 ˚F (-2 ˚C)
- - 6 30 ˚F (-1 ˚C)
- - 7
(Factory setting)
32 ˚F (0 ˚C)
- - 8 34 ˚F (+1 ˚C)
- - 9 36 ˚F (+2 ˚C)
- - 10 38 ˚F (+3 ˚C)
- - 11 40 ˚F (+4 ˚C)
- - 12 41 ˚F (+5 ˚C)
- - 13 43 ˚F (+6 ˚C)
- - 14 45 ˚F (+7 ˚C)
No.42 Indoor temperature correction
Set the correction for the indoor temperature displayed on the
PZ-61DR-E screen by function No. 37 .
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
The correction to
thermistor detection
SW No. Setting Function No. Setting Data
N/A
- -
42
019 ˚F (-7 ˚C)
- - 1 21 ˚F (-6 ˚C)
- - 2 23 ˚F (-5 ˚C)
- - 3 25 ˚F (-4 ˚C)
- - 4 27 ˚F (-3 ˚C)
- - 5 28 ˚F (-2 ˚C)
- - 6 30 ˚F (-1 ˚C)
- - 7
(Factory setting)
32 ˚F (0 ˚C)
- - 8 34 ˚F (+1 ˚C)
- - 9 36 ˚F (+2 ˚C)
- - 10 38 ˚F (+3 ˚C)
- - 11 40 ˚F (+4 ˚C)
- - 12 41 ˚F (+5 ˚C)
- - 13 43 ˚F (+6 ˚C)
- - 14 45 ˚F (+7 ˚C)
No.51 Automatic ventilation mode setting
Set the pattern of conditions to go into By-pass mode in automatic
ventilation operation.
When setting Data is set “3” by PZ-61DR-E, function No. 52 , No. 53 ,
and No. 54 are available.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Conditions to go into
By-pass mode
SW No. Setting Function No. Setting Data
SW2-7
- -
51
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1
Pattern A
Indoor temperature is 61 ˚F (16 ˚C) or more
Outdoor temperature is 61 ˚F (16 ˚C) or more
Indoor temperature - outdoor
temperature ≥ 32 ˚F (0 ˚C)
ON 2
Pattern B
Indoor temperature is 72 ˚F (22 ˚C) or more
Outdoor temperature is 64 ˚F (18 ˚C) or more
Indoor temperature - outdoor
temperature ≥ 36 ˚F (2 ˚C)
- - 3 Free setting
* Pattern A is more likely to become By-pass mode than pattern B.

Eng-18
Note;
The ventilation mode follows the table below.
Remote controller Interlocked air conditioner
(Mr. Slim or City Multi) Lossnay
Energy recovery
ventilation mode Either Yes or No
Energy recovery ventilation
mode
By-pass ventilation
mode By-pass ventilation mode
Automatic
Cooling/Stop Automatic (Follows the map)
Other than above Always energy recovery
ventilation mode
No.52 Automatic ventilation mode setting 1)
Outdoor and indoor temperature gap
Set one of conditions for By-pass mode in auto ventilation operation,
temperature gap between indoor and outdoor.
This function is N/A from Lossnay unit DIP-SW.
This function is available when setting Data 3 is selected at function
No. 51.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Indoor temperature -
outdoor temperature
SW No. Setting Function No. Setting Data
N/A
- -
52
0
(Factory setting)
32 ˚F (0 ˚C) or more
- - 1 34 ˚F (1 ˚C) or more
- - 2 36 ˚F (2 ˚C) or more
- - 3 38 ˚F (3 ˚C) or more
- - 4 40 ˚F (4 ˚C) or more
- - 5 41 ˚F (5 ˚C) or more
- - 6 43 ˚F (6 ˚C) or more
- - 7 45 ˚F (7 ˚C) or more
No.53 Automatic ventilation mode setting 2)
The lowest outdoor temperature
Set one of conditions for By-pass mode in auto ventilation operation,
minimum outdoor temperature which comes in indoor directly.
This function is N/A from Lossnay unit DIP-SW.
This function is available when setting Data 3 is selected at function
No. 51.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Outdoor temperature
SW No. Setting Function No. Setting Data
N/A
- -
53
050 ˚F (10 ˚C) or more
- - 1 52 ˚F (11 ˚C) or more
- - 2 54 ˚F (12 ˚C) or more
- - 3 55 ˚F (13 ˚C) or more
- - 4 57 ˚F (14 ˚C) or more
- - 5 59 ˚F (15 ˚C) or more
- - 6
(Factory setting)
61 ˚F (16 ˚C) or more
- - 7 63 ˚F (17 ˚C) or more
- - 8 64 ˚F (18 ˚C) or more
- - 9 66 ˚F (19 ˚C) or more
- - 10 68 ˚F (20 ˚C) or more
- - 11 70 ˚F (21 ˚C) or more
- - 12 72 ˚F (22 ˚C) or more
- - 13 73 ˚F (23 ˚C) or more
- - 14 75 ˚F (24 ˚C) or more
- - 15 77 ˚F (25 ˚C) or more
Function settings (continued)
No.54 Automatic ventilation mode setting 3)
The lowest indoor temperature setting
Set one of conditions for By-pass mode in auto ventilation operation,
minimum indoor temperature.
This function is N/A from Lossnay unit DIP-SW.
This function is available when setting Data 3 is selected at function
No. 51.
When Lossnay is interlocked to Mr. Slim or City Multi indoor unit, the
target temperature of the indoor unit is the lowest indoor temperature
for By-pass mode
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Indoor temperature
SW No. Setting Function No. Setting Data
N/A
- -
54
059 ˚F (15 ˚C) or more
- - 1
(Factory setting)
61 ˚F (16 ˚C) or more
- - 2 63 ˚F (17 ˚C) or more
- - 3 64 ˚F (18 ˚C) or more
- - 4 66 ˚F (19 ˚C) or more
- - 5 68 ˚F (20 ˚C) or more
- - 6 70 ˚F (21 ˚C) or more
- - 7 72 ˚F (22 ˚C) or more
- - 8 73 ˚F (23 ˚C) or more
- - 9 75 ˚F (24 ˚C) or more
- - 10 77 ˚F (25 ˚C) or more
- - 11 79 ˚F (26 ˚C) or more
- - 12 81 ˚F (27 ˚C) or more
- - 13 82 ˚F (28 ˚C) or more
- - 14 84 ˚F (29 ˚C) or more
- - 15 86 ˚F (30 ˚C) or more
Free By-pass setting
User can set conditions to go into By-pass mode in automatic
ventilation mode by function No. 52 , No. 53 and No. 54.
Setting examples are shown below.
Example 1*
By-pass/Energy recovery ventilation map in automatic ventilation
mode
Function No. Setting Data
52 0 (32 ˚F (0 ˚C))
53 0 (50 ˚F (10 ˚C))
54 2 (63 ˚F (17 ˚C))
46
(8)
46(8)
50(10)
54(12)
57(14)
61(16)
64(18)
68(20)
72(22)
75(24)
79(26)
82(28)
86(30)
90(32)
93(34)
97(36)
101(38)
104(40)
54
(12)
50
(10) 57 (14) 64 (18)
61
(16) 68 (20) 72 (22) 75 (24) 79 (26) 82 (28) 86 (30) 90 (32) 93 (34) 97 (36)101 (38) 104 (40)
Outdoor temperature (˚F (˚C))
Indoor temperature (˚F (˚C))
Set by function No. 53
Energy recovery ventilation area
By-pass ventilation area
Set by function No. 52
Set by function No. 54
(Terget temp. of air conditioner)

Eng-19
English
Example 2
By-pass/Energy recovery ventilation map in automatic ventilation
mode
Function No. Setting Data
52 5 (41 ˚F (5 ˚C))
53 1 (52 ˚F (11 ˚C))
54 7 (72 ˚F (22 ˚C))
When the setting of Function No. 53 is low, with using the pre-
heater function, the outdoor temperature may be detected as
higher and the mode may change to By-pass mode even in winter.
Set the setting 61 ˚F (16 ˚C) or more, or use energy recovery
ventilation mode.
No.55, 56 Supply fan power up setting
Exhaust fan power up setting
Use these functions when the air volume is needed to be up after
installation.
Function No. 55 is for supply fan power up and function No. 56 is for
exhaust fan power up.
When function No. 1 is on and fan speed already reached the
maximum power, this function is N/A.
These functions are N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Supply fan power up
SW No. Setting Function No. Setting Data
N/A
- -
55
0
(Factory setting)
N/A
- - 1 1 level up
- - 2 2 level up
- - 3 3 level up
- - 4 4 level up
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Exhaust fan power up
SW No. Setting Function No. Setting Data
N/A
- -
56
0
(Factory setting)
N/A
- - 1 1 level up
- - 2 2 level up
- - 3 3 level up
- - 4 4 level up
CAUTION
• This function is available when the unit is used at smaller air
volume than the rating.
46
(8)
46(8)
50(10)
54(12)
57(14)
61(16)
64(18)
68(20)
72(22)
75(24)
79(26)
82(28)
86(30)
90(32)
93(34)
97(36)
101(38)
104(40)
54
(12)
50
(10) 57 (14) 64 (18)
61
(16) 68 (20) 72 (22) 75 (24) 79 (26) 82 (28) 86 (30) 90 (32) 93 (34) 97 (36)101 (38) 104 (40)
Outdoor temperature (˚F (˚C))
Indoor temperature (˚F (˚C))
Energy recovery ventilation area
By-pass ventilation area
Set by function No. 53
Set by function No. 52
Set by function No. 54
(Terget temp. of air conditioner)
Function settings (continued)
No.57 Operation monitor output synchronized
with exhaust fan or supply fan
Set operation monitor output from TM3 90 synchronized with
supply of exhaust fan.
Also supply fan delay operation, ex. for after-heater, can be set.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Operation monitor
output from TM390
SW No. Setting Function No. Setting Data
SW2-8
SW5-2
- -
57
0
(Factory setting)
DIP-SW priority
2-8 OFF
5-2 OFF
(Factory setting)
1 EA fan monitor output
2-8 OFF
5-2 ON 2
SA fan monitor output
* When supply fan stops
during cold outdoor temp.
or defrosting, output stops.
2-8 ON
(Either
5-2 ON or
OFF)
3
Operation monitor output
corresponds with supply
fan with following.
Starts the output 10 seconds
after supply fan operates.
Fan continues to operate
supply fan for 3 min after
stopping the output.
To use SW2-8 as the after-heater, observe the cautions listed in 4on
the page 11.
No.58 By-pass monitor output or Pre-heater
output setting
Set By-pass monitor or Pre-heater output from TM3 70
synchronized with supply of exhaust fan.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Output setting from
TM370
SW No. Setting Function No. Setting Data
SW5-6
- -
58
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1
By-pass ventilation
operation monitor
output. Corresponds to
operation mode output
of By-pass damper.
ON 2
Pre-heater output.
Corresponds to
operation output supply
fan with following.
Start the output 10
seconds after supply fan
starts. Fan continues
to operate for 3 min
after stopping the
output. Lossnay starts
output when outdoor
temp. 32 ˚F (0˚C) or
less, and stops output
when detecting temp.
becomes 59 ˚F (15˚C).
Lossnay stop the output
every 1 hour. Error code
is shown on the remote
controller and stop
the output in case of
following.
1) TH1 detects higher
than 59 ˚F (15 ˚C) within
15 minutes after the
output starts.
2) TH1 detects 14 ˚F
(-10 ˚C) or lower, 60
minutes after the output
starts.
- For heater selection, observe the cautions listed in 4on the page
11.
- When set to auto ventilation mode while using the Pre-heater
function, the outdoor temperature may be detected as higher and
the mode may change to By-pass mode, even in winter.
- During pre-heater is ON, Lossnay does not go to Fan speed 1.
Even remote controller displays Fan speed 1, Lossnay is operated
at Fan speed 2.

Eng-20
No.59 Pre-heater output setting 1)
ON temperature
Set the outdoor temperature for Pre-heater output ON.
When detecting temp. becomes the setting or less, Pre-heater output
from TM370 starts.
This function is N/A from Lossnay unit DIP-SW.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Outdoor temp. for Pre-
heater output ON
SW No. Setting Function No. Setting Data
N/A
- -
59
0
(Factory setting)
32 ˚F (0 ˚C) or less
- - 1 30 ˚F (-1 ˚C) or less
- - 2 28 ˚F (-2 ˚C) or less
- - 3 27 ˚F (-3 ˚C) or less
- - 4 25 ˚F (-4 ˚C) or less
- - 5 23 ˚F (-5 ˚C) or less
- - 6 21 ˚F (-6 ˚C) or less
- - 7 19 ˚F (-7 ˚C) or less
No.60 Pre-heater output setting 2)
OFF interval
Set the Pre-heater output interval. Output stops according to the set
hours.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Pre-heater output OFF
interval
SW No. Setting Function No. Setting Data
N/A
- -
60
0
(Factory setting)
1 hr
- - 1 2 hrs
- - 2 3 hrs
- - 3 4 hrs
- - 4 5 hrs
No.61 Fan speed for air volume “High” input
Set the fan speed setting when receiving “High” signal from remote
controllers(e.g. remote controller of City Multi and Mr. Slim, Lossnay
simple remote controller) which have High/Low or High/Middle/Low
air volume.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Operating fan speed
SW No. Setting Function No. Setting Data
SW2-9
- -
61
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 Fan speed 4
ON 2 Fan speed 3
No.62 Fan speed for air volume “Low” input
Set the fan speed setting when receiving “Low” signal from remote
controllers(e.g. remote controller of City Multi and Mr. Slim, Lossnay
simple remote controller) which have High/Low.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Operating fan speed
SW No. Setting Function No. Setting Data
SW2-10
- -
62
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 Fan speed 2
ON 2 Fan speed 1
Function settings (continued)
No.63
External fan speed input setting (0 - 10 VDC)
Set external fan speed input setting.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
External fan speed
control using CN26
SW No. Setting Function No. Setting Data
SW2-3
SW2-6
- -
63
0
(Factory setting)
DIP-SW priority
2-3 OFF
2-6 OFF
(Factory setting)
1External fan speed
control is N/A.
2-3 ON
2-6 OFF 2Refer to pattern X
2-3 OFF
2-6 ON 3 Refer to pattern Y
2-3 ON
2-6 ON 4Refer to pattern Z
Lossnay changes fan speed according to input voltage to CN26.
When pattern X or Y is selected, it is not possible to change fan
speed from remote controllers.
(External input has higher priority)
[Pattern X]
When the input voltage is more than 6.0 VDC, Lossnay operates at
fan speed 4 (maximum air volume). Lower voltage than 6.0 VDC,
Lossnay operate at weaker fan speed. (Connection example: if you
use a CO2 sensor which 0 - 10 VDC equals to 0 - 2000 ppm, 6.0
VDC equals to 1200 ppm)
[Pattern Y]
When the input voltage is more than 5.0 VDC, Lossnay operates at
fan speed 4 (maximum air volume). Lower voltage than 5.0 VDC,
Lossnay operate at weaker fan speed. (Connection example,:if you
use a CO2 sensor which 0 - 10 VDC equals to 0 -2000 ppm, 5.0
VDC equals to 1000 ppm)
[Pattern Z]
Lossnay changes fan speed as the table below. (Connection
example: BMS (Building Management System))
Input voltage[VDC] Fan speed Fan speed changing from
Remote controller
0 - 1.0 - Available
1.5 - 2.5 1 Not available
3.5 - 4.5 2 Not available
5.5 - 7 3 Not available
8.5 - 10 4 Not available
When the input voltage is in-between, it will cause unstable operation.
No.100 Initialization
Set to initialize the remote PZ-61DR-E setting.
All settings which are changed by users are cancelled.
DIP-SW
Setting
check
PZ-61DR-E
Setting
check
Initialization
SW No. Setting Function No. Setting Data
N/A - - 100 0N/A
- - 1 Available
