Motorola RAZR V3 - Cell Phone 5 MB Operating instructions

Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Technical Support Group
V3-Razr Repair Manual
April 2005
KS-042050-V1.2
D54

V3-Razr Repair Manual
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Page 1
TABLE OF CONTENTS
M
M
MO
O
OD
D
DU
U
UL
L
LE
E
E
1
1
12
TECHNOLOGY 3
GSM OVERVIEW 3
PREFACE 3
SYSTEM ARCHITECTURE 3
PRODUCT FUNCTIONALITY 6
FEATURES 6
M
M
MO
O
OD
D
DU
U
UL
L
LE
E
E
2
2
29
PARTS LIST 10
MOL 11
REPAIR CATEGORIES 12
LABOUR RATES 13
M
M
MO
O
OD
D
DU
U
UL
L
LE
E
E
3
3
314
ASSEMBLY &DISASSEMBLY 15
KNOWN ISSUES &RESOLUTIONS 26
SERVICE WEBSITE 28
REPAIR CODES 29
CLAIMABLE PARTS 29
M
M
MO
O
OD
D
DU
U
UL
L
LE
E
E
4
4
430
TEST EQUIPMENT 31
SOFTWARE 32
ACCESSORIES 33

V3-Razr Repair Manual
Page 2
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Module 1
MODULE 1
•-Technology
•-Product functionality
•-Features

V3-Razr Repair Manual
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Page 3
Technology
GSM overview
Preface
This page discusses the GSM mobile telephony system, which is increasingly
popular and established throughout the world. The term GSM usually means
the GSM standard and protocols in the frequency spectrum around 900MHz.
There is also DCS1800 - GSM protocols but at different air frequencies around
1800 MHz - and in the United States, where spectrum for Personal
Communication Services (PCS) was auctioned at around 1900MHz, operators
using the aptly-named GSM1900 are competing against a plethora of other
standards. As a result of this, the original and most widely-used GSM
frequency implementation is also becoming known as GSM900, and DCS1800
is also known as GSM1800. However, although the physical frequencies used
differ, the protocols and architecture remain the same.
System architecture
Figure 4 below shows the GSM system architecture, which consists of the
switching system, the base station system and the user equipment.

V3-Razr Repair Manual
Page 4
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed

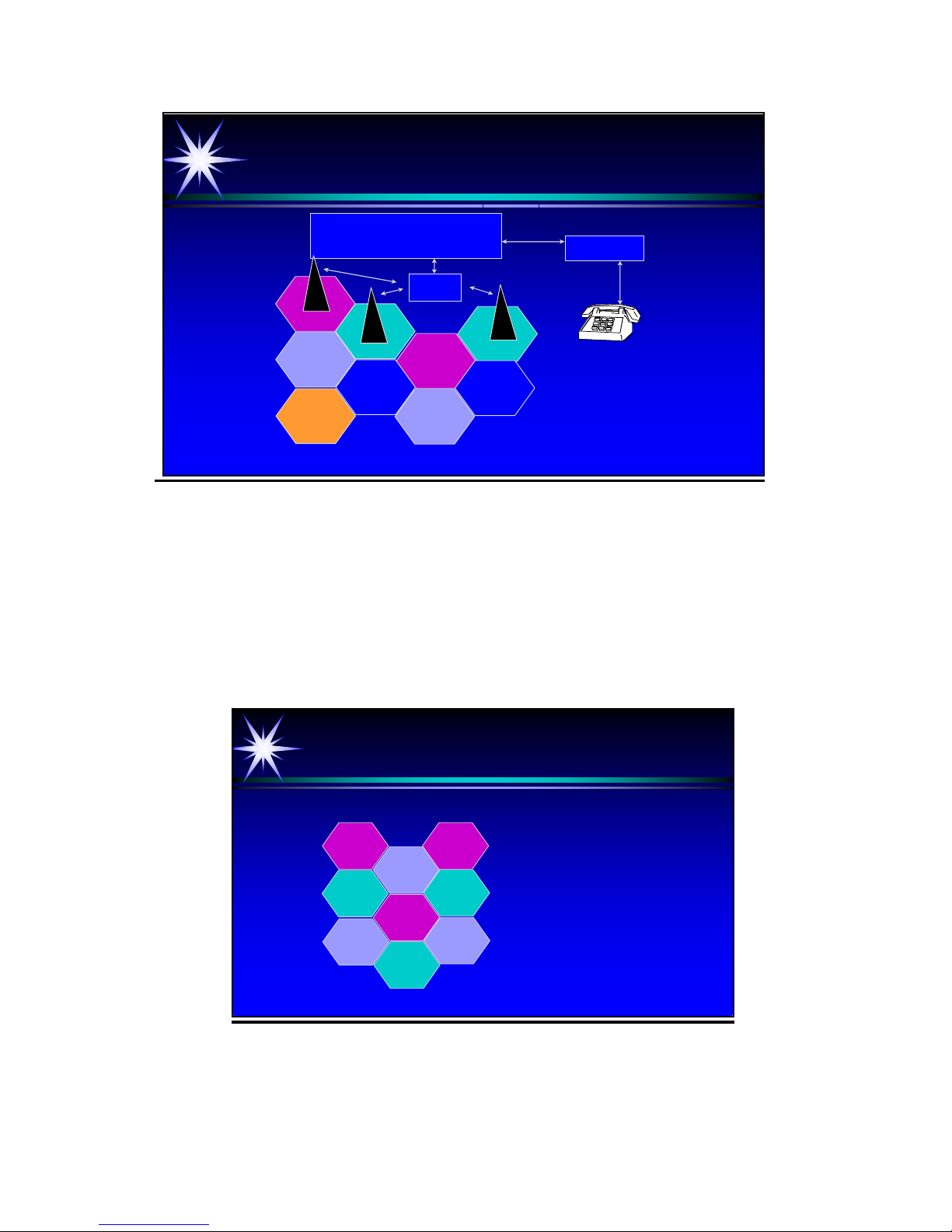

GSM, Basic Cellular System
GSM, Basic Cellular System
1
1
2
2
3
3
2
2
3
3
1
1
2
2
3
3
1
1
3 Cell repeat pattern
3 Cell repeat pattern
Only possible in GSM due to
Only possible in GSM due to
higher cross channel interference
higher cross channel interference
tolerances
tolerances
GSM, Basic Cellular System
GSM, Basic Cellular System
MSC
MSC
BSC
BSC
BTS
BTS
BTS
BTS BTS
BTS
PSTN
PSTN
Area divided up into Cells each with its own Base Transceiver station
(BTS) which operates on its own set of frequencies
The BTS are controlled by their own BSC (Base station controller) which
can control multiple BTS
The BSCis connected to the MSC (usually by land line) so the digital over
air connection is from the Mobile to the BTS, the link from the BTS to the
BSC can also be by land line.
MSC : Mobile Switching Centre acts as the interface to the PSTN.
3 cell repeat: possible in GSM due to higher tolerance to
cross channel interference. digital timing specs etc.
Other patterns apply,

V3-Razr Repair Manual
Page 6
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Product Functionality
•Form Factor: Clamshell
•Finish: Tri-coated paint, colour TBD
•Bands/Modes: GSM : 850/900/1800/1900
GPRS Class 10
•Size: 63 cc
•Weight: 90g
•Dimensions: 98 x 53 x 15
•Display: 176 x 220 64K TFT internal
96 x 80 4K CSTN external
•Antenna: Internal
•TT/SB Time: TBD (700mAh Battery)
•Audio MIDI (24Ch/22Khz),
MP3 Ring tones
Features
•Superior Design and CMF
•Internal Quad-Band Antenna
•External Picture caller ID
•Integrated VGA camera
•Integrated Class 1 Bluetooth™
•22kHz MIDI and polyphonic speaker
•MPEG4 video playback
•3D Graphics Engine
•UI Skinning
•SyncML
•Mini-USB connector

V3-Razr Repair Manual
Page 7
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed

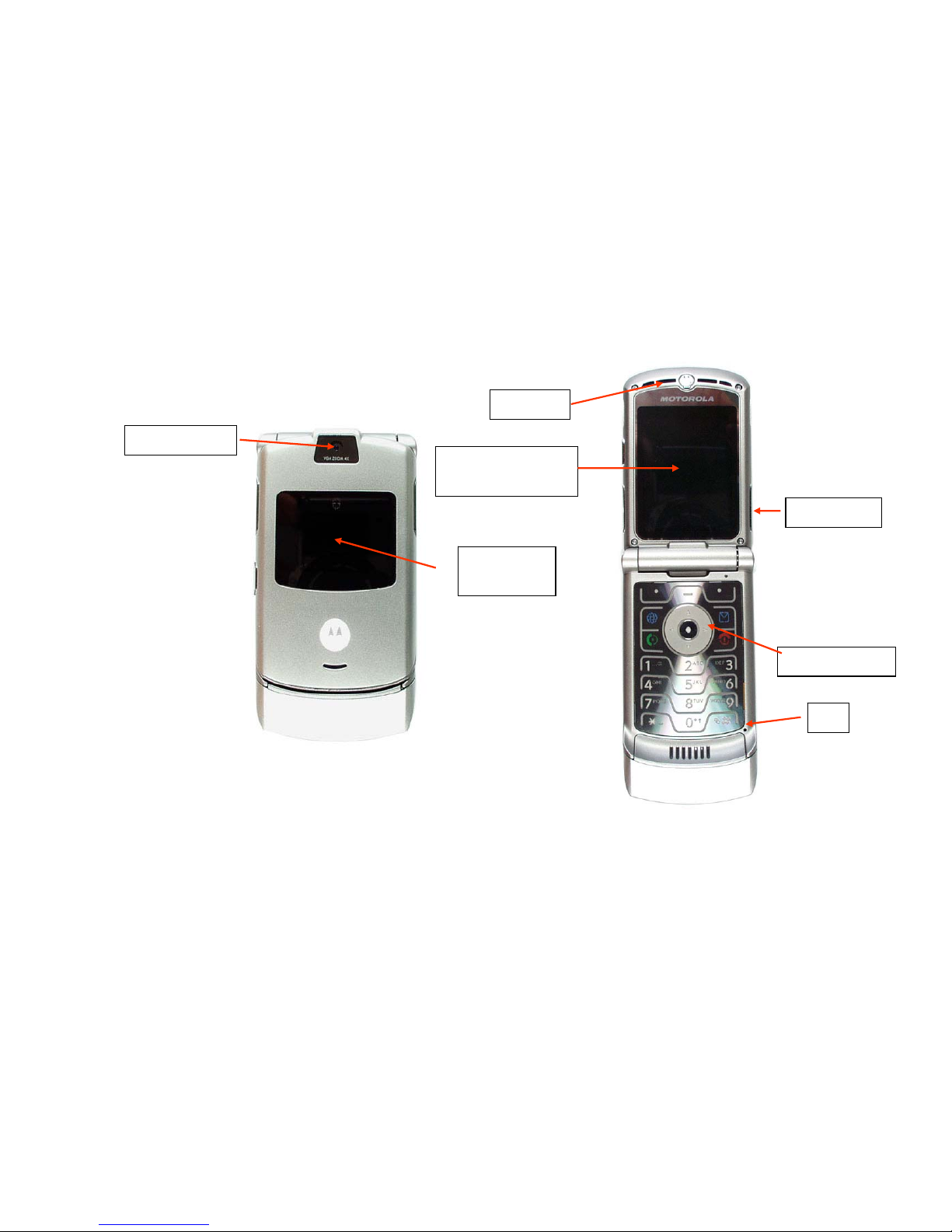

Physical Overview
MOTOROLA V3
Camera Lens
Speaker
64k TFT
176 x 220 Display
5way Nav Key
VA/VR Key
Mic
4k CSTN
96 x 80 CLI

V3-Razr Repair Manual
Page 8
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed

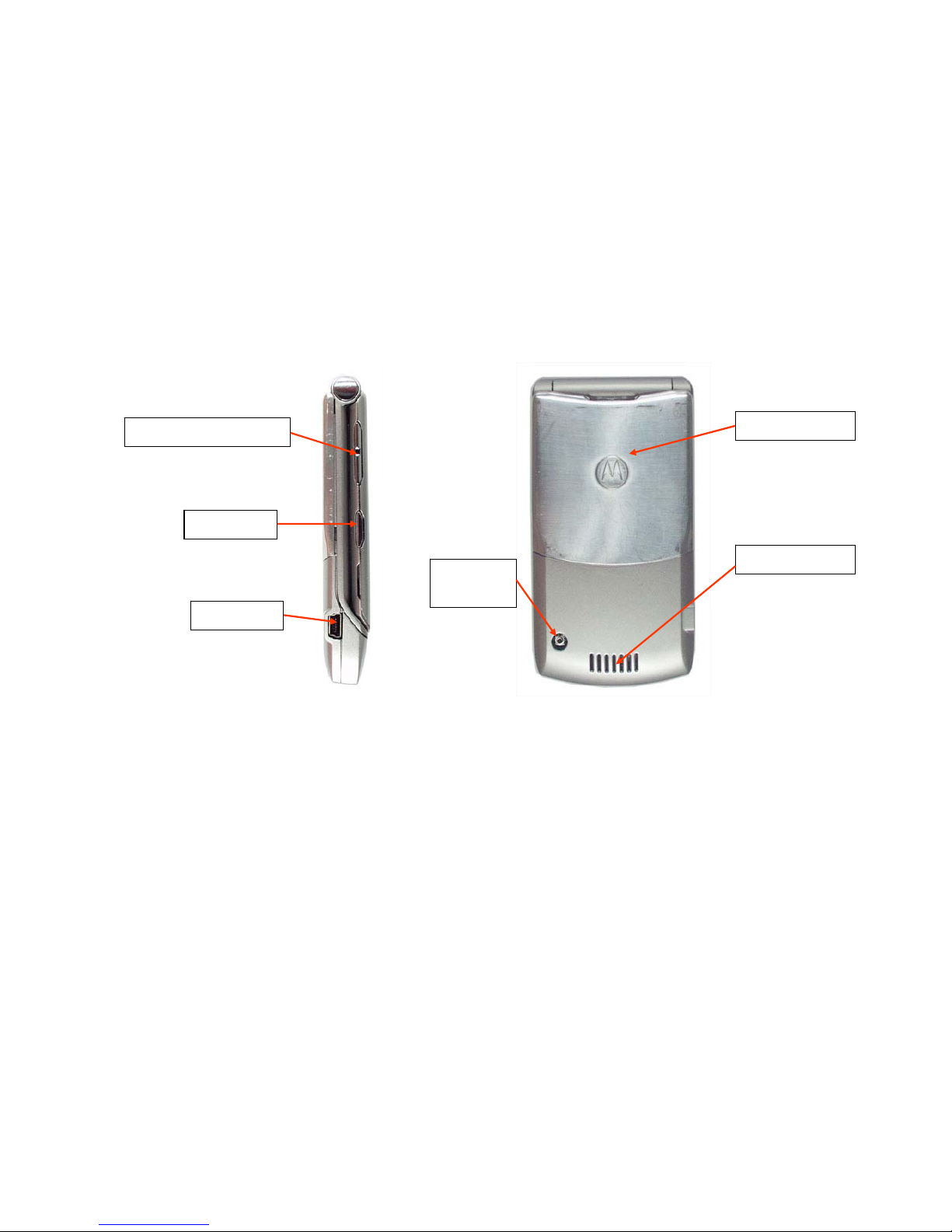

Physical Overview (Cont’d)
MOTOROLA V3
Volume up/down
MIDI Speaker
Soft key
USB
Ext.
Antenna
Batt. Door

V3-Razr Repair Manual
Page 9
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Module 2
MODULE 2
•-Piece Parts
•-Motorola on line(MOL)
•-Repair Categories
•-Labour Rates

V3-Razr Repair Manual
Page 10
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Parts List

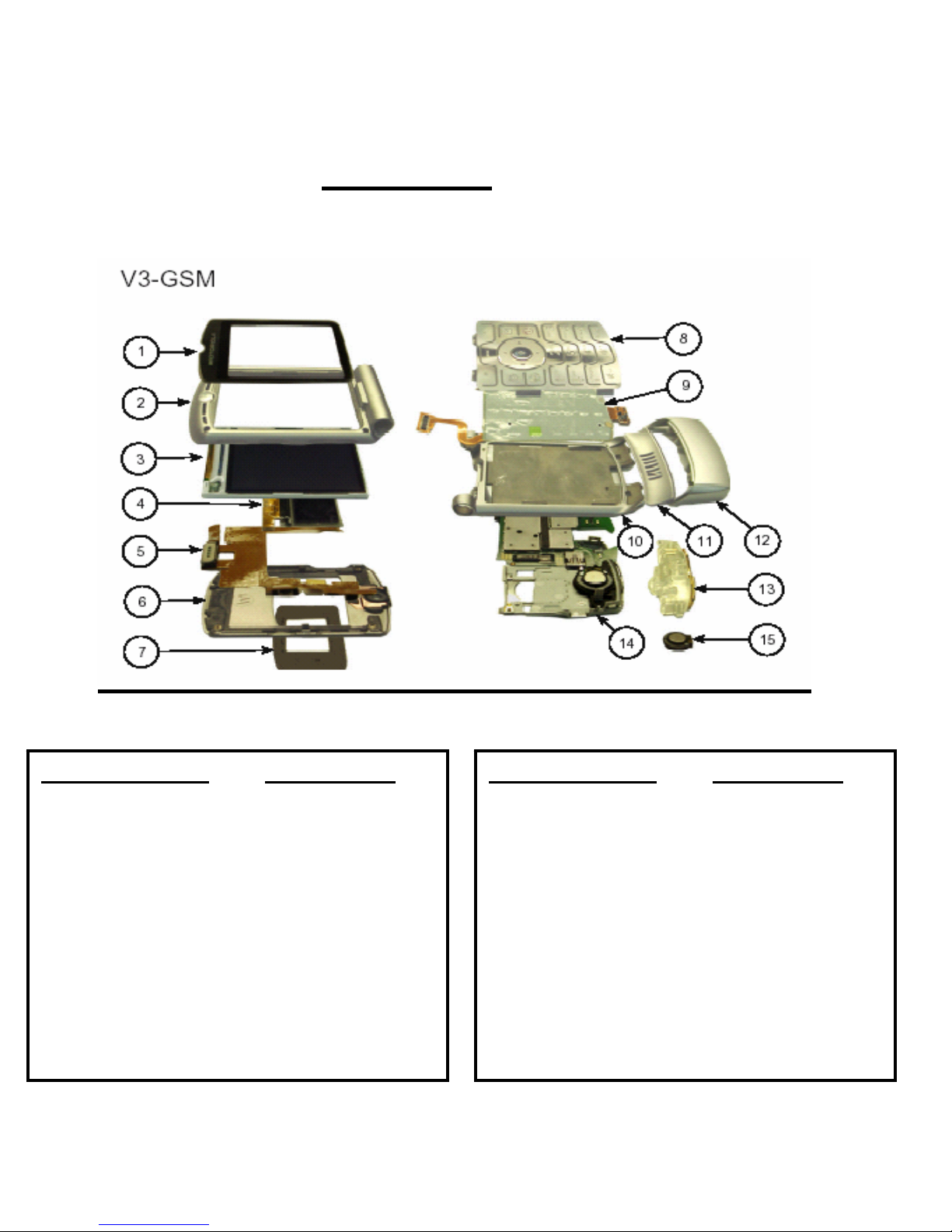

Exploded View Diagram: V3
Part Description Part Number
1-Lens 6190016N03
2-Front Flip housing 1590025N02
3-Display Module 7290086N01
4-Display Call ID 7287518Y01
5-Flex Circuit 8490007N01
6-Flip Housing Back 0790000N01
7-Lens Caller ID 6190015N02
8-Keypad 3888182Y03
9-Keyboard Assy. 8489976N02
10-Front Housing 1590043N01
Part Description Part Number
11-Front grill p/o Front housing
12-Antenna Cover p/o Front Housing
13-Antenna 1590051N03
14-Back Housing 1590048N01
15-Midi Speaker 5088017N02

V3-Razr Repair Manual
Page 11
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
All piece parts and prices for the V3 model
are available when you log into the
Motorola on-line system (MOL)
Motorola On Line (MOL)
To Place your piece parts order please log in to:
http//businessonline.motorola.com
You will be asked to enter your Motorola on-line Logon ID and
Password.
Part numbers and prices are subject to change without notice.
Please reference the terms and conditions on the MOL website.
If you do not have login ID and password:
Please see signup information on MOL startup page.
You will need to provide the following Information:
(A) Your company name
(B) Your company ship to address
(C) Your company billing address
(D) Contact name

V3-Razr Repair Manual
Page 12
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Repair Categories
There are Seven (7) repair categories
(1) Major repairs – REP01- e.g. Major component
replacement.
(2) Minor Repairs – RMP01 or RPR01- Simple
component replacement – e.g. Non- soldered
parts.
(3) Basic Repairs – RSP01 or RAS01 - e.g. Re-
solder simple components, clean contacts.
(4) Batt repair – RBT01 – e.g test and or replace
battery
(5) Software – SWU01 – e.g Flashing, force
flashing
(6) Antenna - RAN01 – e.g test and or replace
antenna.
(7) Sent-mot - FWD01 - unknown or unauthorized
repairs sent to Motorola or authorized service
centre
The examples above are for reference only, each
repair category contains many more items than are
listed here. Motorola reserves the right to add,
remove or change items in each repair category
from time to time.

V3-Razr Repair Manual
Page 13
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Labour Rates
Please refer to your warranty compensation
schedule for warranty labour rates.
Motorola provides a limited warranty of twelve
(12) months on the V3 phone. Proof of purchase
must be provided in order to validate warranty.
In order to be paid for in-warranty repairs
performed in your service centre you must
submit a warranty claim through Motorola
Service link system.
NOTE:
Motorola will not reimburse the service centre
for repairs performed on V3 units unless your
technicians are trained on this specific model.

V3-Razr Repair Manual
Page 14
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Module 3
Only technicians that are Motorola trained on the V3 model are
allowed perform in-warranty repairs on the V3 phones.
MODULE 3
•-Assembly & Disassembly
•-Architecture
•-Known issues & resolutions
•-Service Website
•-Repair Codes
•-Claimable Parts

V3-Razr Repair Manual
Page 15
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Disassembly & Assembly –V3 Razor
This product contains static-sensitive devices. Use anti-static
handling procedures to prevent electrostatic discharge (ESD) and
component damage.
Removing and Replacing the Battery Housing and Battery
1. Ensure the phone is turned off.
2. Press in and hold the battery door latch as shown.
3. Rotate the battery cover upwards and lift it completely off the phone.
4. Lift the end of the battery first, and then remove it from the phone.
5. To replace, Align the battery with the battery compartment so the
contacts on the battery match the battery contacts in the phone.
6. Insert the battery, contacts side first, into the battery compartment and
push down followed by the opposite edge of the battery.

V3-Razr Repair Manual
Page 16
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
7. Insert the bottom edge of the of the battery cover into the rear housing,
then push the top edge of the cover down and snap it into place.

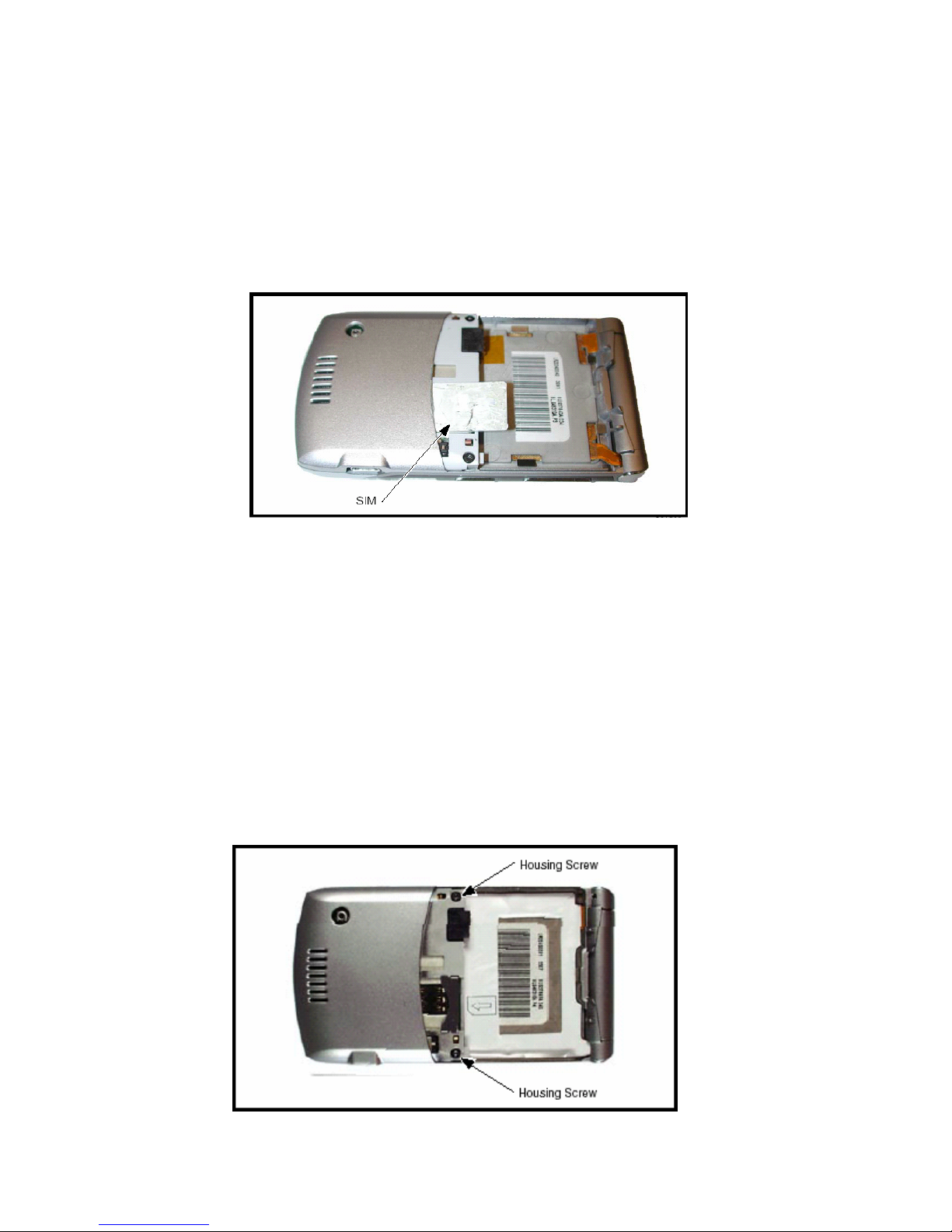

Removing and Replacing the Subscriber Identity Module (SIM)
1. Remove the battery cover and battery as described in the procedures.
2. Slide the SIM card out of the phone as shown.
3. Carefully lift the SIM from the phones.
4. To replace, insert the SIM into the holder, ensuring the keyed corner of
the SIM faces the outside of the phone.
5. Replace the battery and battery door as described in the procedures.
Removing and Replacing the Rear Housing
1. Remove the battery cover, battery, and SIM as described in the
procedures.
2. Using a Torx driver with a T-5 bit, remove the screws at each side of
the phone. Retain the screws for reassembly..

V3-Razr Repair Manual
Page 17
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed

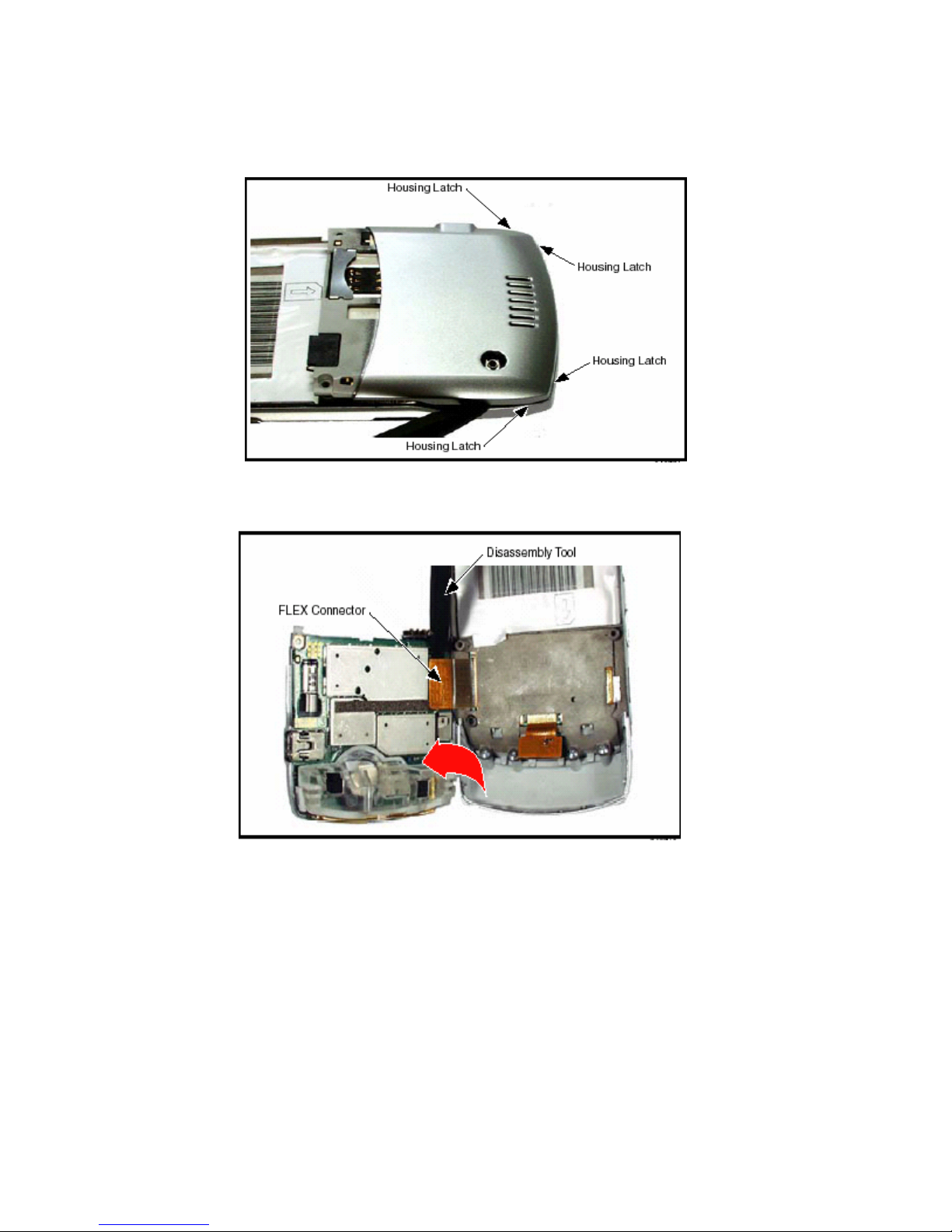

3. Release the four housing latches by inserting the pointed end of the
plastic disassembly tool into the openings on the rear housing.
4. Carefully rotate the rear housing away from the front housing and flip
assembly.
5. Use the disassembly tool to unseat the flex connector from it’s socket.
6. Lift the rear housing assembly away from the phone.
7. To replace, carefully align the flex connector to it’s socket on the rear
housing assembly, then gently press down on the flex connector until it is
properly seated in it’s socket.
8. Rotate the rear housing assembly so it sits over the phone.
9. Align the housing latches with the corresponding openings on the front
housing. Gently press the housings together until the catches snap into
place.

V3-Razr Repair Manual
Page 18
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
10. Replace the 2 housing screws and tighten to a final torque setting of
1.5 inch pounds. Do not over tighten.
11. Replace the antenna, SIM, battery, and battery cover as described in
the procedures.
Removing and Replacing the Antenna
1. Remove the battery cover, battery, SIM, and rear housing assembly as
described in the procedures.

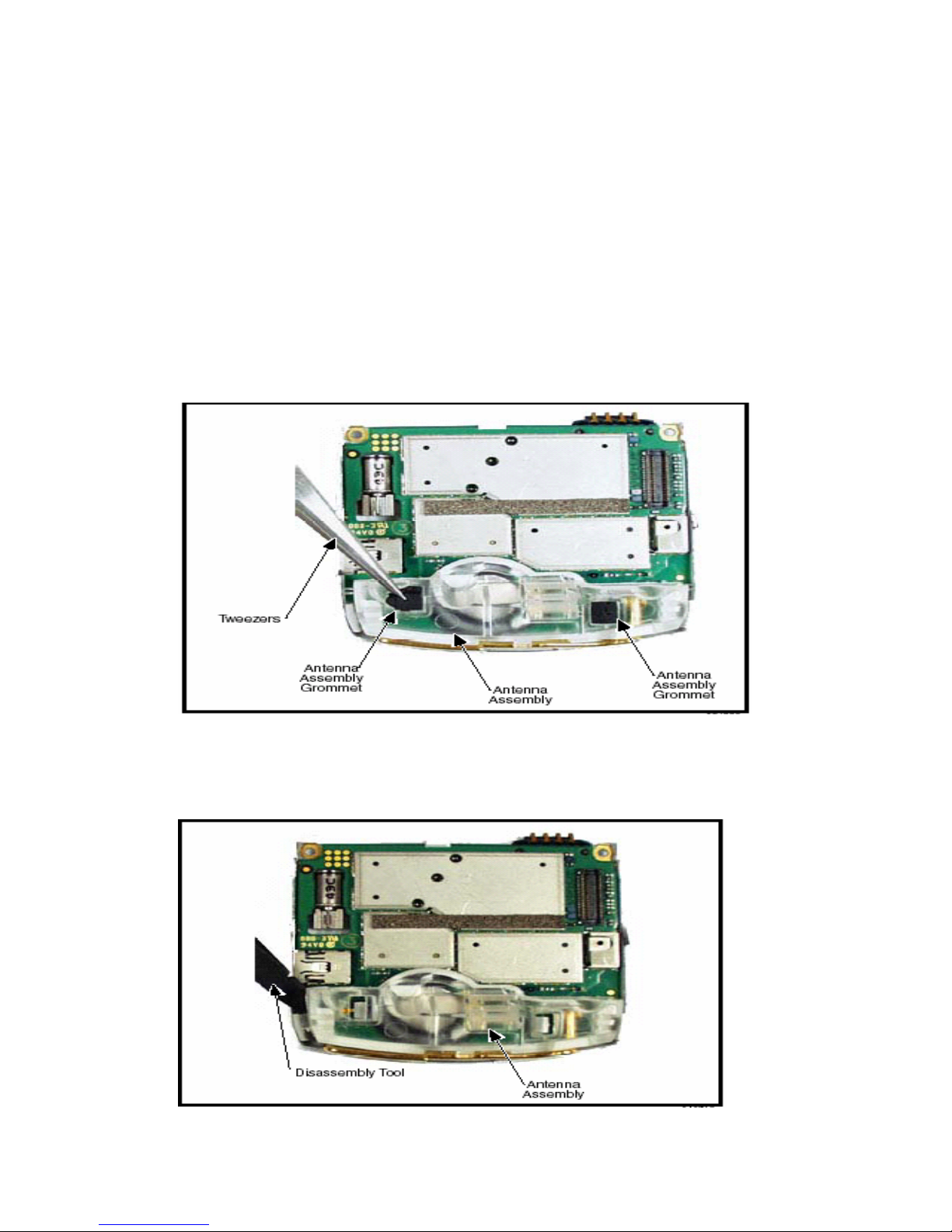

2. Use the metal tweezers to grasp the rubber antenna grommets and
carefully remove them from the antenna assembly. See Figure 7. Set the
rubber grommets aside for reuse.
Fig7
3. Use the disassembly tool to release the antenna assembly as shown in
Figure 8.

V3-Razr Repair Manual
Page 19
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
4. Carefully lift the antenna assembly away from the phone.
5. To replace, align the antenna assembly to the phone.
6. Carefully press the antenna assembly into position until the antenna
assembly latches snap into position.
7. Reinstall the rubber antenna assembly grommets into their slots. Each
antenna grommet is uniquely shaped to fit into its respective position.
8. Replace the rear housing assembly, SIM, battery and battery cover as
described in the procedures.
Removing and Replacing the Transceiver Board Assembly
1. Remove the battery cover, battery, SIM, antenna, rear housing and
battery tray as described in the procedures.

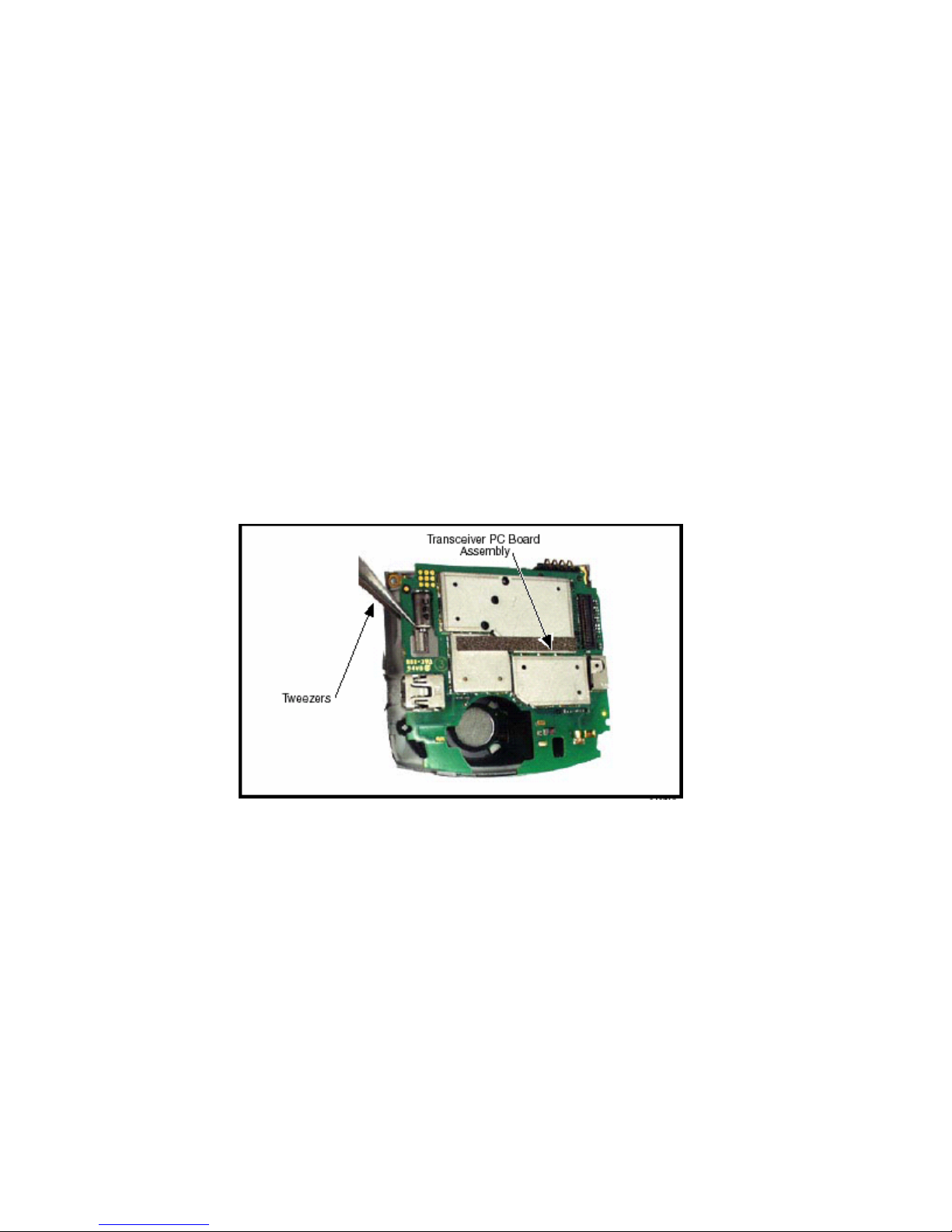

2. Lift the transceiver board assembly out of the front housing with the
metal tweezers. See Figure 9.
Fig9
3. To replace, insert the transceiver board assembly into the rear housing.
4. Carefully and gently press the transceiver board into position and until
it snaps into place.
5. Replace the antenna assembly, rear housing, SIM, battery, and battery
cover as described in the procedures.

V3-Razr Repair Manual
Page 20
Document –ED05020 rev.1.2
This document is considered an uncontrolled document when printed
Removing and Replacing the Flip Assembly Cover
1. Remove the battery cover, battery, SIM, antenna, rear housing, and
transceiver board assembly as described in the procedures.
2. Remove the 4 flip assembly screw caps.
3. Use the T-5 driver to remove the 4 screws from the flip assembly (see
Figure10). Retain the screws for re-assembly.
Fig10
4. Before removing the flip cover, note the locations of the smart buttons
on the sides of the flip assembly.
5. Use the disassembly tool to gently pry off the flip cover (see Figure 11).
