Motorola H500 User manual

1
Welcome
The Motorola H500 Bluetooth Headset makes connectivity invisible and
reliable. It is astonishingly advanced and simple to use.
Motorola is actively creating Bluetooth solutions for work, play, home,
and life everywhere around the globe.
Thank you for choosing the Motorola H500 headset with Bluetooth
technology!
TM

2
Export Law Assurances
This product is controlled under the export regulations of the United
States of America and Canada. The Governments of the United States
of America and Canada may restrict the exportation or re-exportation of
this product to certain destinations. For further information contact the
U.S. Department of Commerce or the Canadian Department of Foreign
Affairs and International Trade.
The use of wireless devices and their accessories may be prohibited or
restricted in certain areas. Always obey the laws and regulations on the
use of these products.
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. The Bluetooth trademarks are owned by their
proprietor and used by Motorola, Inc. under license.
All other product or service names are the property of their respective
owners.
© Motorola, Inc., 2005.

3
欢欢
欢欢
欢迎迎
迎迎
迎使使
使使
使用用
用用
用
摩托罗拉 H500 蓝牙耳机，自由实现可靠连接。它非常先进且使用简单。
摩托罗拉一直在积极努力，为世界各地的人们能更好地工作、娱乐、生活创
造全新的 BluetoothTM 解决方案。
非常感谢您选择摩托罗拉 H500蓝牙耳机！

4
出出
出出
出口口
口口
口法法
法法
法律律
律律
律保保
保保
保证证
证证
证
本产品受美国、加拿大出口管理法规制约。美国、加拿大政府可能会限
制本产品出口或再出口到某些目的地。详情请垂询美国商务部或加拿大外交
与国际贸易部。
一些地区可能禁止或限制使用无线设备及其配件设备。请遵守有关法律法规
使用本设备。
MOTOROLA 及 Stylized M 标识已经在美国专利商标局进行注册。蓝牙
商标的所有权归其所有者，摩托罗拉公司经批准可以使用。
所有其它产品和服务名称均为各自所属公司所有。
© 200 摩托罗拉公司版权所有。 5

5
歡歡
歡歡
歡迎迎
迎迎
迎使使
使使
使用用
用用
用
摩托羅拉 H500 藍牙耳機，自由實現可靠連接。它非常先進且使用簡單。
摩托羅拉一直在積極努力，為世界各地的人們能更好地工作、娛樂、生活創
造全新的 BluetoothTM 解決方案。
非常感謝您選擇摩托羅拉H500藍牙耳機！

6
本產品受美國、加拿大出口管理法規制約。美國、加拿大政府可能會限
制本產品出口或再出口到某些目的地。詳情請垂詢美國商務部或加拿大外交
與國際貿易部。
一些地區可能禁止或限制使用無線裝置及其配件裝置。請遵守有關法律法規
使用本裝置。
MOTOROLA 及 Stylized M 標識已經在美國專利商標局進行註冊。藍牙
商標的所有權歸其所有者，摩托羅拉公司經批准可以使用。
所有其他產品和服務名稱均為各自所屬公司所有。
摩托羅拉公司版權所有。
© 2005

7
GET CONNECTED IN 4 QUICK STEPS..........................................1
USING YOUR H500......................................................................8
Contents
............................................................................................2
..........................................................................3
...............................................4
.................................................................................................5
................................................................................................6
.....................................................................................................7
..........................................................................................8
..............................................................9
.................................................10
.....................................................................................11
.......................................................................................................12
..............................................................................13
................................................................................................14
.........................................................................................................15
.............................................................................................16
BEFORE YOU BEGIN
①CHARGE Your Headset's Battery
②START BLUETOOTH Feature On Your Handset
③PAIR Your Headset
③PAIR CONTINUED
④TEST AND USE
TURNING ON AND OFF
CHANGING FOR USE ON OTHER EAR
CHANGING VOLUME BUTTON ORIENTATION
WEARING THE HEADSET
MAKINGCALLS
MAKING CALLS CONTINUED
INDICATOR LIGHTS
AUDIO TONES
TROUBLESHOOTING

8
4 步快速连接步快速连接
步快速连接步快速连接
步快速连接
使用使用
使用使用
使用 H500
目目
目目
目录录
录录
录
..................................................................................................................1818
1818
18
........................................................................................................................19
.........................................................................................................20
....................................................................................................21
.............................................................................................................22
....................................................................................................23
.................................................................................................................24
..........................................................................................................................2525
2525
25
.....................................................................................................................25
................................................................................................................26
.........................................................................................................27
.........................................................................................................................28
.........................................................................................................................29
............................................................................................................30
.............................................................................................................................31
........................................................................................................................32
................................................................................................................33
准备工作
①将耳机电池充电
②启动手机蓝牙功能
③匹配您的耳机
③继续匹配您的耳机
④测试 / 使
开机和关机
两耳交换佩戴
改变音量按钮方向
佩戴耳机
进行通话
进行通话 继续
指示灯
声音提示
疑难问题解答

9
4 步快速連接步快速連接
步快速連接步快速連接
步快速連接
使用使用
使用使用
使用 H500
目目
目目
目錄錄
錄錄
錄
..................................................................................................................36
........................................................................................................................37
........................................................................................................38
....................................................................................................39
............................................................................................................40
....................................................................................................41
.................................................................................................................42
..........................................................................................................................43
....................................................................................................................43
................................................................................................................44
.........................................................................................................45
........................................................................................................................46
........................................................................................................................47
............................................................................................................48
.............................................................................................................................49
........................................................................................................................50
.................................................................................................................51
準備工作
①將耳機電池充電
②啟動手機藍牙功能
③匹配您的耳機
③繼續匹配您的耳機
④測試 / 使用
開機和關機
兩耳交換佩戴
改變音量按鈕方向
佩戴耳機
進行通話
進行通話
繼續
指示燈
聲音提示
疑難問題解答

1
GET CONNECTED IN
4 QUICK STEPS
1-CHARGE
2-START BLUETOOTH ON HANDSET
3-PAIR
4-TEST AND USE

2
BEFORE YOU BEGIN
Take a moment before you get started to familiarize yourself with your
new H500 Handsfree Headset.
Volume
Buttons
Call
Button
Blue
Indicator
Light
Microphone
Earhook

3
①①
①①
① CHARGE Your Headset’s Battery
Charge your headset’s battery for 2 hours:
1Plug the Motorola charger into the top of the headset.
The blue indicator light turns on when the battery is charging. It may
take up to 1 minute for the light to turn on. When the headset’s battery
is fully charged (about 2 hours), the blue indicator turns off.
2Unplug the charger from the headset.
Note: Headset is not functional while charging.

4
②②
②②
② START BLUETOOTH Feature
On Your Handset
Your phone's Bluetooth feature is off by default. To use your headset, turn
on the Bluetooth feature in your phone.
For most Motorola phones:
1Select (Menu) > Settings > Connection > Bluetooth Link > Setup.
2Scroll to Power.
3Select Change.
4 Scroll to On.
5Press Select to turn on Bluetooth feature.
Bluetooth feature remains on until you it off.
Note: These steps are for most Motorola phones. For other phones, see
your phone's user's guide.

5
③③
③③
③ PAIR Your Headset
Step A - PUT HEADSET IN PAIRING MODE
Before you can use your headset, you must pair (link) it with your phone.
1With the headset power off, press and hold the Call button for 6 to 7
seconds
2If the indicator light is flashing or does not remain steadily lit, turn off
the headset and repeat these step 1.

6
③③
③③
③ PAIR CONTINUED Your Phone
Step B - SET THE PHONE TO LOOK FOR YOUR HEADSET
For most Motorola phones:
1On your Motorola phone, select (Menu) >Settings > Connection >
Bluetooth Link >Handsfree > Look for Devices.
The phone lists all Bluetooth devices it finds.
2Select Motorola H500.
3Select OK or Yes to pair (link) the handsfree device.
4Enter the passkey: 0000
5Select OK.
When your headset is successfully paired with your phone, the blue
indicator light changes from steadily lit to flashing.
Note: These steps are for most Motorola phones. For other phones,
see your phone's user's guide.

7
④④
④④
④ TEST AND USE
Your phone and headset are now paired and ready to make and receive
calls.
To confirm they are operating properly, make a call:
1Place the headset over your ear. See "Wearing the Headset"
2On your phone, dial the number you want to call and Press the Send
key.
3If your phone and headset are successfully paired, you hear ringing on
the headset.
After you have successfully paired your phone and headset, you do
not need to repeat these initial setup steps each time you use the headset.

8
TURNING ON AND OFF
To turn your headset on, press and hold the Call button until The indicator
light flashes. Then, release the button.
To turn your headset off, press and hold the Call button until the indicator
light flashes rapidly and then turns off.
To conserve battery power, turn off your headset when don't plan to use
it for a while.
USING YOUR H500
Features and Functions Guide
Call
Button

9

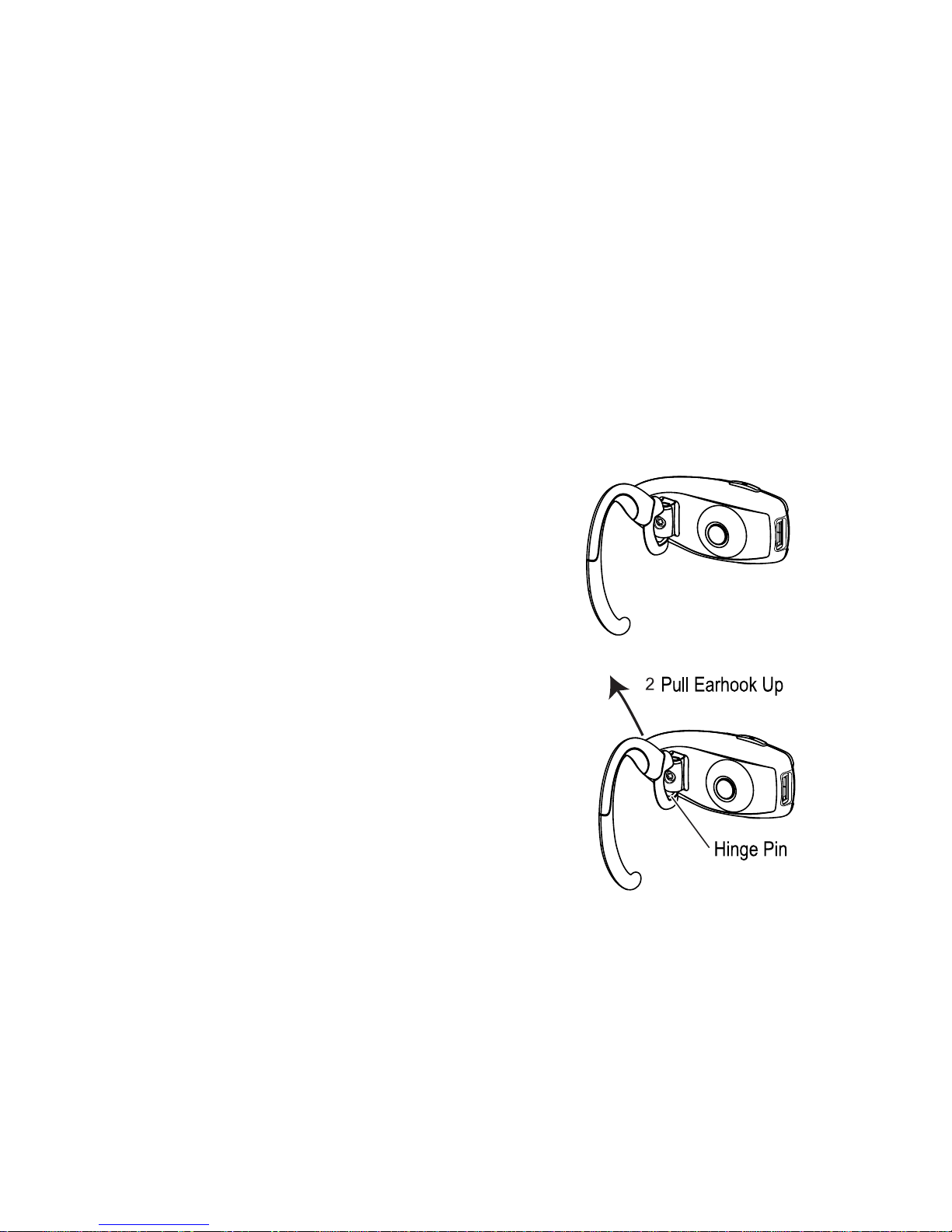

CHANGING FOR USE ON OTHER EAR
You can wear your H500 headset on your left or right ear. The headset
comes ready for the right ear. To change the headset for the left ear:
1
2
3
4
Open the ear hook 90 degrees from the
headset.
Gently lift and pull the top of the earhook
up and off the upper hinge pin.Then, pull
it away to remove it.
Flip the headset over.
Hook the bottom of the earhook onto the
lower hinge pin, then lift and pull the top
of the earhook over the upper hinge pin.

10
CHANGING VOLUME BUTTON ORIENTATION
If you change your headset to wear on the other ear, you can also change
the orientation of the volume buttons.
1Turn the headset power off.
2Press the Call button and the volume button you want to assign as the
"volume up" button until the indicator light flashes twice.
The headset power turns on.
