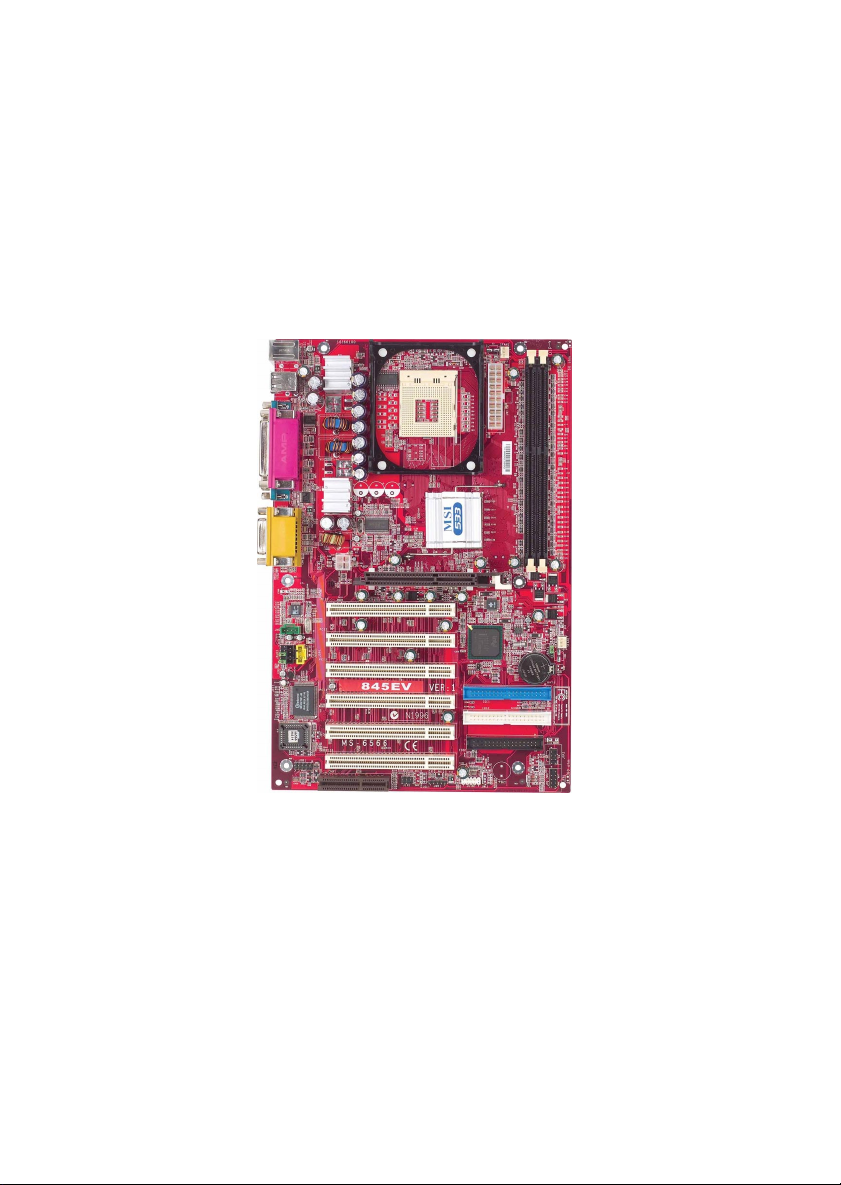

MSI 845EV User manual

i
Version 1.1
G52-M6566X2-K01
MS-6566 (v1.X) ATX Mainboard
MSI
MICRO-STAR INTERNATIONAL
845EV

ii
Manual Rev: 1.1
Release Date: March 2003
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-Star International MS-6566
Tested to comply
with FCC Standard
For Home or Office Use

iii
Edition
March 2003
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks are the properties of their respective owners.
Intel®and Pentium®are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows®95/98/2000/NT/XP are registered trademarks of Microsoft
Corporation.
Netware®is a registered trademark of Novell, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
AMI®is a registered trademark of American Megatrends Inc.
Revision History
Revision Revision History Date
V1.1 Update specification, March 2003
MSI Special Features
and BIOS

iv
Safety Instructions
1. Read the safety instructions carefully.
2. Save this User’s Guide for possible use later.
3. Keep this equipment away from humidity.
4. Lay this equipment on a stable and flat surface before setting it up.
5. The openings on the enclosure are used for air convection and to prevent
the equipment from overheating. Note: Do not cover the openings.
6. Make sure that the power voltage is within its safety range and has been
adjusted properly to the value of 110/220V before connecting the equip-
ment to the power inlet.
7. Place the power cord in a way that people are unlikely to step on it. Do not
place anything on the power cord.
8. Always unplug the power cord before inserting any add-on card or module.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage the equipment
or cause an electrical shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zthe power cord or plug is damaged
zliquid has penetrated into the equipment
zthe equipment has been exposed to moisture
zthe equipment has not work well or you can not get it work according
to User’s Guide
zthe equipment was dropped and damaged
zthe equipment has obvious signs of breakage
12. Do not leave the equipment in an unconditioned environment with a stor-
age temperature of 600 C (1400F) or above, which may damage the
equipment.
CAUTION: To prevent explosion caused by improper battery
replacement, use the same or equivalent type of battery recommended
by the manufacturer only.

v
CONTENTS
Chapter 1. Getting Started ........................................................................ 1-1
Mainboard Specification ...................................................................... 1-2
Mainboard Layout ............................................................................... 1-4
Quick Components Guide .................................................................... 1-5
MSI Special Features ........................................................................... 1-6

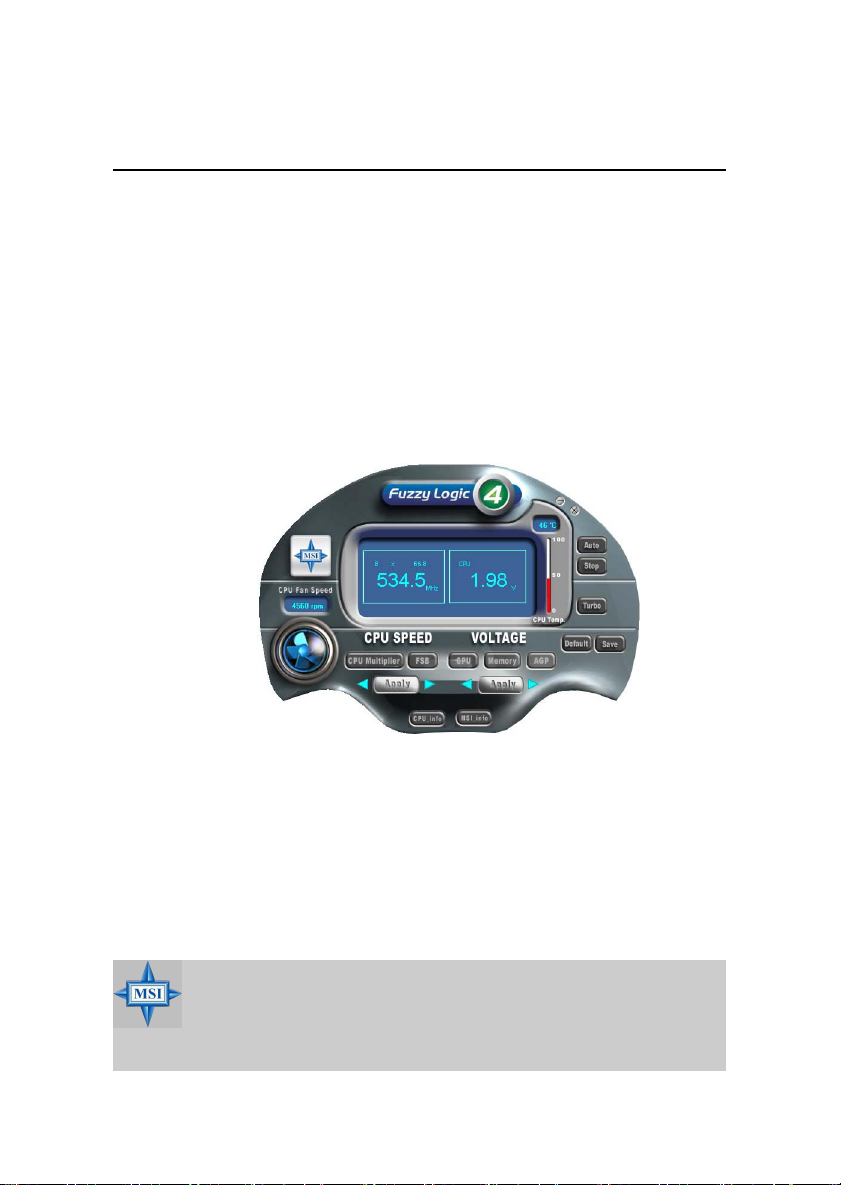

Fuzzy Logic™ 4 ............................................................................. 1-6
Live BIOS™/Live Driver™ ............................................................ 1-7
D-Bracket™ (Optional) .................................................................. 1-8

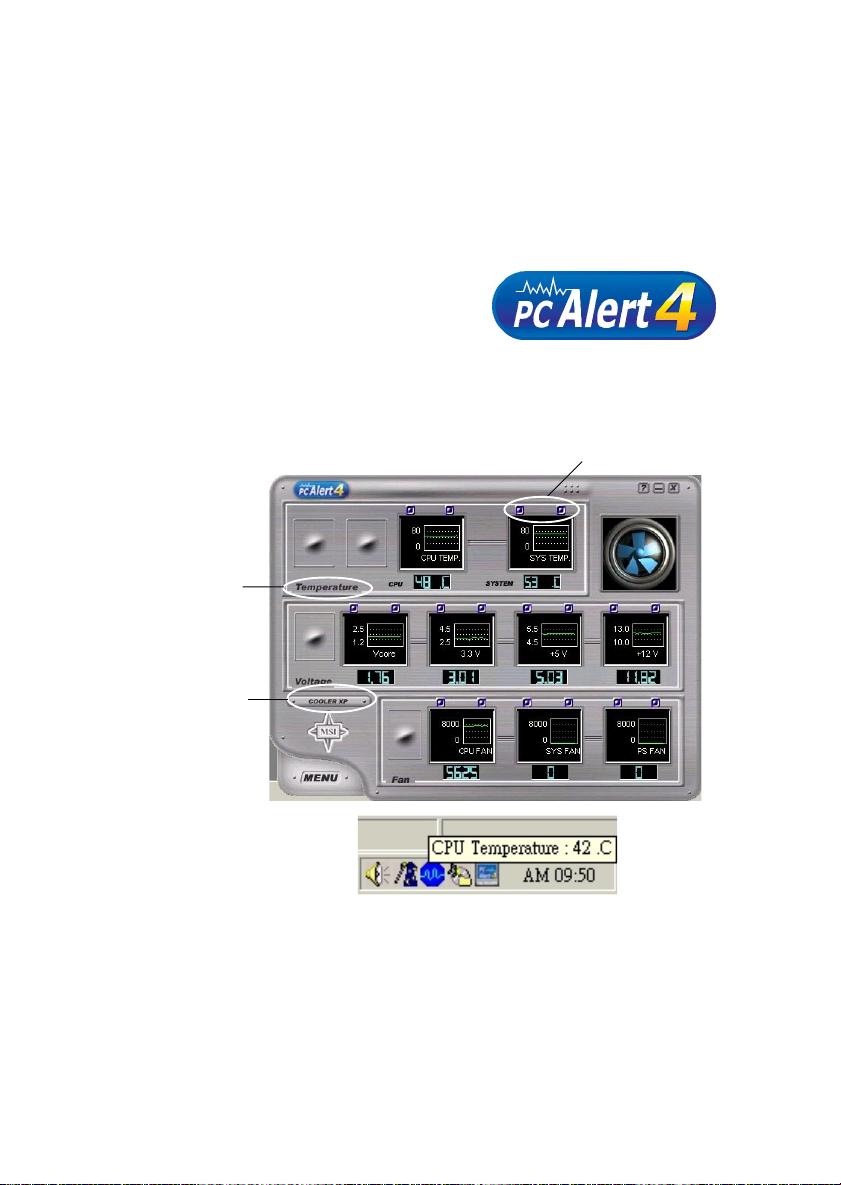

PC Alert™ 4 ................................................................................. 1-10
Chapter 2. Hardware Setup ....................................................................... 2-1
Central Processing Unit: CPU .............................................................. 2-2
CPU Installation Procedures ......................................................... 2-2
Installing the CPU Fan .................................................................. 2-3
CPU Core Speed Derivation Procedure ......................................... 2-4
Memory ................................................................................................ 2-5
Introduction to DDR SDRAM ....................................................... 2-5
DDR Module Combination ............................................................ 2-6
Installing DDR Modules ............................................................... 2-6
Power Supply ....................................................................................... 2-7
ATX 20-Pin Power Connector: JW1 .............................................. 2-7
ATX 12V Power Connector: JPW1 ................................................ 2-7
Back Panel ............................................................................................ 2-8
Mouse Connector: JKBMS1 ......................................................... 2-8
Keyboard Connector: JKBMS1 ..................................................... 2-9
USB Connectors ............................................................................ 2-9
Serial Port Connector: COM A & COM B ................................... 2-10
Joystick/Midi Connectors ........................................................... 2-10

vi
Audio Port Connectors ............................................................... 2-10
Parallel Port Connector: LPT1 ...................................................... 2-11
Connectors ......................................................................................... 2-12
Floppy Disk Drive Connector: FDD1 ........................................... 2-12
IrDA Infrared Module Header: JIR1 ............................................ 2-12
Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-13
CD-In Connector: JCD1 ............................................................... 2-14
Aux Line-In Connector: JAUX1 .................................................. 2-14
Modem-In Connector: JMD1 ....................................................... 2-14
Fan Power Connectors: CFAN1/SFAN1 ...................................... 2-15
Wake On Ring Connector: JWR1 ................................................ 2-16
Power Saving Switch Connector: JGS1 ........................................ 2-16
Front Panel Connector: JFP1 & JFP2 ........................................... 2-17
Front Panel Audio Connector: JAUD1 ........................................ 2-18
Front USB Connectors: JUSB1 .................................................... 2-19
D-Bracket™ Connector: JDB1 ..................................................... 2-20
Jumpers .............................................................................................. 2-21
Clear CMOS Jumper: JBAT1 ........................................................ 2-21
Slots ................................................................................................... 2-22
AGP (Accelerated Graphics Port) Slot ......................................... 2-22
PCI Slots ...................................................................................... 2-23
CNR (Communication Network Riser) ......................................... 2-23
PCI Interrupt Request Routing .................................................... 2-24
Chapter 3. AMI BIOS Setup ..................................................................... 3-1
Entering Setup ...................................................................................... 3-2
Selecting the First Boot Device ..................................................... 3-2
Control Keys ................................................................................. 3-3
Getting Help .................................................................................. 3-3

vii
The Main Menu ................................................................................... 3-4
Standard CMOS Features .................................................................... 3-6
Advanced BIOS Features .................................................................... 3-8
Advanced Chipset Features ............................................................... 3-12
Power Management Setup ................................................................. 3-14
PNP/PCI Configurations ..................................................................... 3-17
Integrated Peripherals ........................................................................ 3-19
Hardware Monitor Setup .................................................................... 3-22
Load High Performance/BIOS Setup Defaults .................................... 3-24
Supervisor/User Password ................................................................. 3-25
IDE HDD AUTO Detection ................................................................ 3-27
Glossary .................................................................................................... G-1

Getting Started
1-1
Chapter 1. Getting Started
TOPICS
Mainboard Specification 1-2
Mainboard Layout 1-4
Quick Components Guide 1-5
MSI Special Features 1-6
1
Getting Started
Thank you for purchasing the MS-6566 v1.X ATX mainboard. The MS-
6566 v1.X is based on Intel®845E & ICH2 chipsets for optimal system efficiency.
Designed to fit the advanced Intel®Pentium®4/Celeron processors in the 478
pin package, the MS-6566 delivers a high performance and professional desk-
top platform solution.

Chapter 1
1-2
CPU
Support Intel®Pentium®4/Celeron processor in 478 pin package
Support 1.4GHz~3.06GHz processor
- FSB 400MHz up to 1.4~2.6GHz
- FSB 533MHz up to 2.26~3.06GHz
Chipset
Intel®845E chipset
- AGP 4x slot (1.5V only)
- Support 400/533MHz FSB
- Support 400/533MHz Intel NetBurst micro-architecture bus
Intel®ICH2 chipset
- AC’97 Controller Integrated
- 2 full IDE channels, up to ATA 100
- Low pin count interface for SIO
MainMemory
Support two 184-pin DDR DIMM slots
Support up to 2 GB memory size
Slots
One AGP (Accelerated Graphics Port) 4x slot (1.5V only)
Six PCI 2.2v 32-bit Master PCI bus slots
One CNR (Communication Network Riser) slot
On-Board IDE
An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA66/100 operation modes
Can connect up to four IDE devices.
Mainboard Specification
Note: The AGP slot DOES NOT support 3.3V AGP card. Use of
3.3V AGP card may cause damage to the mainboard.

Getting Started
1-3
On-Board Peripherals
On-board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 2 serial ports (COM 1 + COM 2)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports (Rear x 2/ Front x 2)
- 1 Line-In/Line-Out/Mic-In/Game port
Audio
ICH2 chip integrated
AC’97 codec supports 2 channel Audio
BIOS
The mainboard BIOS provides “Plug & Play” function which detects the
peripherals devices and expansion cards of the board automatically
The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications
Dimension
ATX Form Factor 30.5cm x 20cm
Mounting
6 mounting holes
Others
Vcore/Vio adjustable
LAN/Modem Wake-up function
ACPI support, including STR/STD
PC 2001 compliant

Chapter 1
1-4
845EV (MS-6566 v1.X) ATX Mainboard
Mainboard Layout
SFAN1
CFAN1
JDB1
ATX Po wer
Supply
IDE 1
IDE 2
Winbond
W83627HF-AW
CNR
USB
ports
Top : mouse
Bottom: keyboard
JCD1
JPW1
JBAT1
JAUX1
JMD1
Codec
JAUD1
To p :
Game port
Bottom:
Line-Out
Line-In
Mic
FDD1
AGP Slot
JIR1 JWR1 JUSB1 JFP1
JFP2
JGS1
BATT
+
ICH 2
PCI Slot 6
PCI Slot 5
PCI Slot 4
PCI Slot 3
PCI Slot 2
PCI Slot 1
FWH
DIMM2

Getting Started
1-5
Quick Components Guide
Component Function Reference
JW1 ATX 20-pin power connector See p. 2-7
JPW1 ATX 12V power connector See p. 2-7
JKBMS1 Mouse connector See p. 2-8
JKBMS1 Keyboard connector See p. 2-9
USB Connectors Connecting to USB devices See p. 2-9
COM A & COM B Serial port connector See p. 2-10
LPT1 Parallel port connector See p. 2-11
FDD1 Floppy disk drive connector See p. 2-12
JIR1 IrDA infrared module connector See p. 2-12
IDE1~ IDE2 Hard disk connectors See p. 2-13
JCD1 CD-in connector See p. 2-14
JAUX1 Aux line-in connector See p. 2-14
JMD1 Modem-in connector See p. 2-14
CFAN1/SFAN1 Fan power connectors See p. 2-15
JWR1 Wake on ring connector See p. 2-16
JGS1 Power Saving Switch See p. 2-16
JFP1/JFP2 Front panel connectors See p. 2-17
JAUD1 Front panel audio connector See p. 2-18
JUSB1 Front USB connector See p. 2-19
JDB1 D-Bracket connector See p. 2-20
JBAT1 Clear CMOS jumper See p. 2-21
AGP Slot Connecting to AGP card See p. 2-22
PCI Slots Connecting to expansion cards See p. 2-23
CNR Slot Connecting to expansion card See p. 2-23

Chapter 1
1-6
MSI Special Features
Features:
ØMSI Logo links to the MSI Web site
ØCPU Speed allows users to adjust the CPU speed through CPU
Multiplier and FSB
ØVoltage allows user to adjust the voltage of CPU/Memory/AGP
ØMSI Info provides information about the mainboard, BIOS and OS
ØCPU Info provides detailed information about the CPU
ØCPU Fan Speed shows the current running speed of CPU Fan
ØCPU Temp. shows the current CPU temperature
Fuzzy Logic™4
The Fuzzy Logic™ 4 utility is a user friendly tool that allows users to
view and adjust the current system status. To overclock the CPU FSB (Front
Side Bus) frequency under the Windows operating system, click FSB and use
the right and left arrow keys to select the desired FSB, and then click Apply to
apply the new setup value. To enable the system running at the specified FSB
every time when you click Turbo, click Save to save the desired FSB first. If
you want to know the maximal CPU overclocking value, click Auto to start
testing. The CPU FSB will automatically increase the testing value until the PC
reboots. After rebooting, click Turbo to apply the test result. Click Default to
restore the default values.
MSI Reminds You...
To adjust the options under CPU Speed and Voltage, use the right
and left arrow keys to select the desired value and then click Ap-
ply to run the setup value.

Getting Started
1-7
Live BIOS™/Live Driver™
The Live BIOS™/Live Driver™ is a tool used to detect and
update your BIOS/drivers online so that you don’t need to search
for the correct BIOS/driver version throughout the Web site. To
use the function, you need to install the “MSI Live Update 2”
application. After the installation, the “MSI Live Update 2” icon
(as shown on the right) will appear on the screen.
Double click the “MSI Live Update 2” icon, and the follow-
ing screen will appear:
Five buttons are placed on the leftmost pane of the screen. Click the desired
button to start the update process.
zz
zz
zLive BIOS – Updates the BIOS online.
zz
zz
zLive Driver – Updates the drivers online.
zz
zz
zLive VGA BIOS – Updates the VGA BIOS online.
zz
zz
zLive VGA Driver – Updates the VGA driver online.
zz
zz
zLive Utility – Updates the utilities online.
If the product you purchased does not support any of the functions listed
above, a “sorry” message is displayed. For more information on the update
instructions, insert the companion CD and refer to the “Live Update Guide”
under the “Manual” Tab.

Chapter 1
1-8
D-Bracket™ (Optional)
D-Bracket™ is a USB bracket integrating four Diagnostic LEDs, which
use graphic signal display to help users understand their system. The LEDs
provide up to 16 combinations of signals to debug the system. The 4 LEDs can
debug all problems that fail the system, such as VGA, RAM or other failures.
This special feature is very useful for the overclocking users. These users can
use the feature to detect if there are any problems or failures.
D-Bracket™
Red Green
D-Bracket Description
System Power ON
- The D-LED will hang here if the processor is dam-
aged or not installed properly.
Early Chipset Initialization
Memory Detection Test
- Testing onboard memory size. The D-LED will hang
if the memory module is damaged or not installed
properly.
Decompressing BIOS image to RAM for fast booting.
1 2
3 4
Initializing Keyboard Controller.
Testing VGA BIOS
- This will start writing VGA sign-on message to the
screen.

Getting Started
1-9
D-Bracket Description
Processor Initialization
- This will show information regarding the processor
(like brand name, system bus, etc...)
Testing RTC (Real Time Clock)
Initializing Video Interface
- This will start detecting CPU clock, checking type of
video onboard. Then, detect and initialize the video
adapter.
BIOS Sign On
- This will start showing information about logo, pro-
cessor brand name, etc...
Testing Base and Extended Memory
- Teting base memory from 240K to 640K and ex-
tended memory above 1MB using various patterns.
Assign Resources to all ISA.
Initializing Hard Drive Controller
- This will initialize IDE drive and controller.
Initializing Floppy Drive Controller
- This will initialize Floppy Drive and controller.
Boot Attempt
- Thi will set low stack and boot via INT 19h.
Operating System Booting
1 2
3 4

Chapter 1
1-10
PC Alert™ 4
The PC AlertTM 4 is a utility you can find in the CD-ROM disk. The utility
is just like your PC doctor that can detect the following PC hardware status
during real time operation:
Ømonitor CPU & system temperatures
Ømonitor fan speeds
Ømonitor system voltages
If one of the items above is abnormal, the program main screen will be
immediately shown on the screen, with the abnormal item highlighted in red.
This will continue to be shown until the condition returns to the normal status.
Users can use the Adjusting Keys to change the minimum and maximum
threshold of each item for the system to send out a warning message. Click
Temperature to select the temperature modes of either Fahrenheit (℉) or Cel-
sius (℃). The PC Alert4 icon on the Status Area will show the current CPU
temperature.
temperature
modes
Adjusting Keys
COOLER XP

Getting Started
1-11
MSI Reminds You...
The new feature COOLER XP will work only if your mainboard
supports AMD Athlon XP CPU.
Items shown on PC Alert 4 vary depending on your system’s status.

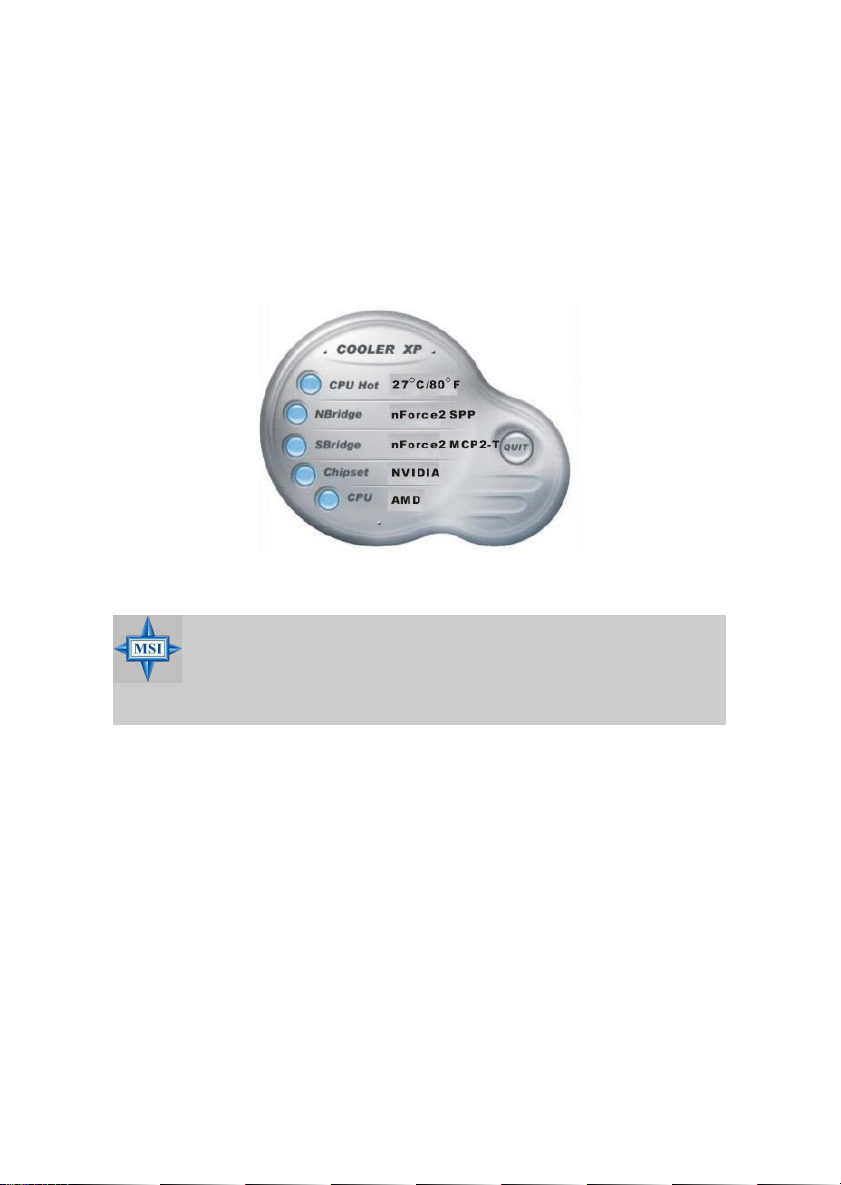

To better protect the CPU from overheating, a new feature, COOLER
XP, has been added to decrease the temperature of AMD Athlon XP CPU. To
do so, simply click COOLER XP and the screen will show the Cute skin (as
shown below) with information about the CPU and chipset. Right-click the
mouse to select the skin you want to switch to.
Cute

Hardware Setup
2-1
Chapter 2. Hardware Setup
TOPICS
Central Processing Unit: CPU 2-2
Memory 2-5
Power Supply 2-7
Back Panel 2-8
Connectors 2-12
Jumpers 2-21
Slots 2-22
2
Hardware Setup
This chapter provides you with the information about hardware setup
procedures. While doing the installation, be careful in holding the components
and follow the installation procedures. For some components, if you install in
the wrong orientation, the components will not work properly.
Use a grounded wrist strap before handling computer components. Static
electricity may damage the components.

Chapter 2
2-2
Central Processing Unit: CPU
The mainboard supports Intel®Pentium®4 processor in the 478 pin
package. The mainboard uses a CPU socket called PGA478 for easy CPU
installation. When you are installing the CPU, make sure the CPU has a heat
sinkandacoolingfanattachedonthetoptopreventoverheating. Ifyoudonot
find the heat sink and cooling fan, contact your dealer to purchase and install
them before turning on the computer.
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
2. Look for the gold arrow. The
gold arrow should point to-
wards the lever pivot. The
CPU will only fit in the correct
orientation.
3. Hold the CPU down firmly,
and then close the lever to
complete the installation.
CPUInstallationProcedures
Overheating will seriously damage the CPU and system,
always make sure the cooling fan can work properly to
protect the CPU from overheating.
WARNING!
Open Lever
Gold Arrow
Sliding
Plate
Close
Lever
Dot
