Murdock AI81.8 Series User manual

CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
ELECTRIC DRINKING FOUNTAINS
Revised: 03/29/2021
7020-007-001 RVB
TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:
1.800.591.9360
Technical Assistance Fax: [phone]
AI81408S
NOTES TO INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing, electrical and other applicable codes.
Murdock warrants that every cooler, bottle filling station, packaged water chiller, fountain and accessory to be free
from defects in material and workmanship under normal use for one (1) year from date of install or eighteen (18)
months after the date of shipment from the factory, whichever comes first.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this
warranty. Murdock shall not be liable under any circumstances for incidental, consequential or direct charges
caused by defects in the materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all
other warranties expressed or implied. Product maintenance instructions are issued with each unit and disregard
or non-compliance with these instructions will constitute an abnormal use condition and void the warranty.
Stainless steel must be protected on job site during construction and must be properly maintained after the water
has been introduced into the water cooler or drinking fountain, or Murdock’s limited warranty is void.
Murdock warrants the compressor and hermetically sealed refrigeration system, including cooling coil assembly
when part of the hermetically sealed refrigeration system, to be free from defects in material and workmanship
under normal use for an additional four (4) years from the end of the one (1) year period described above.
LIMITED WARRANTY - UNITED STATES & CANADA
LIMITED EXPORT WARRANTY - One year on parts only.
COMPLIES WITH
Member of
Murdock™ assumes no responsibility for use
of void or superseded data. © Copyright
Murdock Mfg., City of Industry, CA Member of
Morris Group International. Please visit
www.murdockmfg.com for most current
specifications. 15125 Proctor Ave, City of Industry,
CA, 91746 U.S.A.
Phone [phone]
626-336-4561
Fax [phone]
www.murdockmfg.com
Federal
Public Law
111-380
(No Lead)
03/29/2021
AI81.8 Series
Barrier Free, Wall Mounted Electric Drinking Fountain

Page 2 of 8 AI81.8
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
ELECTRIC DRINKING FOUNTAINS
Revised: 03/29/2021
7020-007-001 RVB

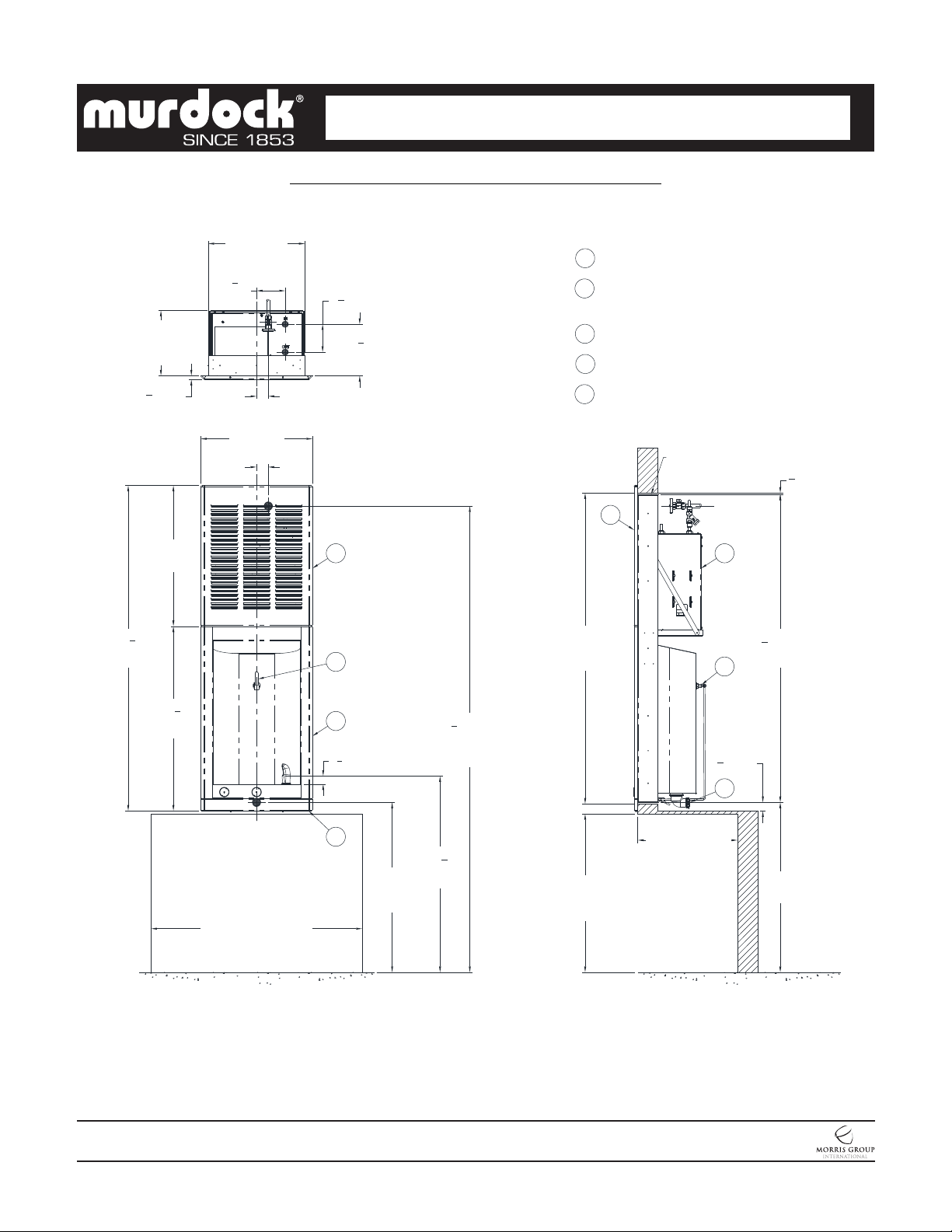

ROUGHING-IN AND DIMENSIONAL DRAWING
Prior to roughing consult with local, state, and federal codes for proper mounting height.
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
GENERAL NOTES:
1. ALL DIMENSIONS ARE IN INCHES [MM]
*2. DIMENSIONS SHOWN ARE FOR RECOMMENDED ADULT HEIGHT, ADJUST VERTICAL
DIMENSIONS AS NECESSARY TO COMPLY WITH FEDERAL, STATE, & LOCAL CODES
3. STOP VALVE NOT PROVIDED
4. WATER LINE FROM CHILLER TO FOUNTAIN SHOULD BE COVERED WITH SPONGE
FOAM RUBBER OR ICE WATER TYPE INSULATION OF ADEQUATE THICKNESS
331
2"
(851)
521
2" (1334)
FRAME
29" (373)
WASTE
OUTLET
27" (686) ADA
MIN WALL
OPENING
13
8"
791
2" (2019)
SUPPLY
INLET
17" (432) ADA
MIN WALL
OPENING
24"
(610)
311
2"
(800)
17" (432)
WALL
OPENING
12" (305)
WALL
OPENING
5
8" (16)
551
2"
(1410)
2" (51)
C
L
47
8"
(124) 43
4" (121)
83
4"
(222)
C
L
19" (483)
36" (914) ADA MIN
WALL OPENING
2"
(51)
53" (1346)
WALL
OPENING
1
4" (6)
MOUNTING FRAME
PROVIDED
29"
(737)
11
2" (38)
1
3
1
4
5
1
ACCESS PANEL
OPTIONAL GLASS FILLER
RECESSED DRINKING FOUNTAIN
A9100080-A, 8 GPH CHILLER
1-1/2" SLIP JOINT WASTE
CONNECTION
22
1
3
4
5
2
SHOWN

Page 3 of 8 AI81.8
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
ELECTRIC DRINKING FOUNTAINS
Revised: 03/29/2021
7020-007-001 RVB
NOTE: FITTINGS AND TUBE SHOULD BE KEPT
CLEAN, BAGGED AND UNDAMAGED PRIOR TO
INSTALLATION.
PUSH-IN FITTING INSTALLATION
2. Pull on the fitted Tubing to ensure it is secure. Tube
should not come free from the Fitting. Water test the
connection assembly prior to leaving the site to ensure
there are no leaks.
DISCONNECTING THE TUBE:
Prior to disconnecting the Tube from the Fitting, ensure
that the Water Line is depressurized. Push Collet Square
towards the Push-In Fitting Body and hold. While holding
the Collet in, pull on the PE Tubing to remove from the
Push-In Fitting.
TO CUT TUBE:
Cut to fit length of 1/4” PE Tubing and remove any
burrs or sharp edges. Ensure that the outside diameter
is free from score marks. Tube ends should be square.
INSERTING THE TUBE:
1. Firmly and fully insert the Tubing end into the Push-In
Fitting up to the Tube Stop located approximately 1/2”
deep.
COLLET
COLLET
O-RING
O-RING
TUBE STOP
COLLET
COLLET
COLLET
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

Page 4 of 8 AI81.8
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
ELECTRIC DRINKING FOUNTAINS
Revised: 03/29/2021
7020-007-001 RVB
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
3. Provide mounting surface, sufficient to support the fixture and loads on the fixture.
10. Fixture operates within water pressure range of 174 kPa (25 psig) to 724 kPa (105 psig). Acorn Engineering
will not warranty chiller damaged when connected to supply lines with flow pressure lower than 174 kPa (25
psig) or higher than 724 kPa (105 psig). A pressure regulator must be furnished by others on supply line if
inlet pressure is greater than 724 kPa (105 psig).
9. WARNING: Warranty is voided if installation is not made following current Acorn Engineering installation
instructions and if components are assembled to the fixture that are not approved by Acorn Engineering.
5. It is common for electrical equipment to be grounded to water lines either within a structure or away otherwise
remains unchanged by the materials in the water cooler. Every attempt should be made to prevent this kind of
grounding from generating feedback into the water cooler creating electrolysis. Electrolysis will cause a
metallic taste or cause water content to increase.
8. This unit must be grounded per the requirements of applicable electrical codes.
11. Due to cold waste water, Acorn Engineering recommends that waste piping supplied by installer be insulated
appropriately to prevent excessive condensation.
2. Carefully remove all fixture components from packaging, preventing scratching or damage. Inspect fixture and
all parts from damages and all parts are bolted on.
1. Read all installation instructions carefully, before proceeding.
IMPORTANT:
3. Waste is 1-1/4” Outer Diameter. Chiller water inlet is 3/8” Outer Diameter copper tube. Chiller water outlet is
3/8” Outer Diameter copper tube. Drinking Fountain water inlet is 1/4” Outer Diameter connection. Bottle
Filler water inlet is 1/4” Outer Diameter connection. Water line by others from in-wall chiller to drinking
fountain must have adequate insulation.
7. Power supply must be identical in voltage, cycle and phase to that specified on the chiller data plate. Refer to
submittal.
12. Per UPC 609.10-All building water supply systems in which quick acting valves are installed shall be
provided with devices to absorb the hammer caused by high pressure resulting from the quick closing of the
valve. These pressure-absorbing devices shall be approved mechanical devices. Water pressure-absorbing
devices shall be installed as close as possible to the quick closing valve.
6. All burrs must be removed from outside of cut tubes before inserting into strainer or other components.
PRIOR TO INSTALLATION:
2. Provide 4” minimum clear space in front of bottom trim panel and above in-wall chiller to allow for proper
ventilation.
5. Do NOT solder tubes inserted into the chiller, bottle filler or the fountain strainer as damage to the o-rings on
the push-in fittings may result.
4. Provide rough-ins as shown on the roughing-in and dimensional drawing, including water supply, drain pipe
and electrical service. (See rough-in details)
6. Receptacle(s) must be wired to a GFCI protected circuit. Fixture must be earth grounded per NEC (National
Electrical Code).
7. Completely flush water supply lines of all foreign debris, before connecting to the fixture.
1. Water Supply Service Stop Valve, Water Connections and Electrical Connections to be supplied by others in
accordance with local codes.
4. Completely flush supply lines of all foreign debris before connecting to fixture. Chiller is designed to not
cause problems with taste, odor, color, or sediment. Optional water filters (WF1 & WF3), are available for
remote installation should any of these problems arise from the water supply.

Page 5 of 8 AI81.8
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
ELECTRIC DRINKING FOUNTAINS
Revised: 03/29/2021
7020-007-001 RVB
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
IN
OUT IN
OUT
2 31
TO DRINKING
FOUNTAIN
1
OUTIN
4
5
2 3
4

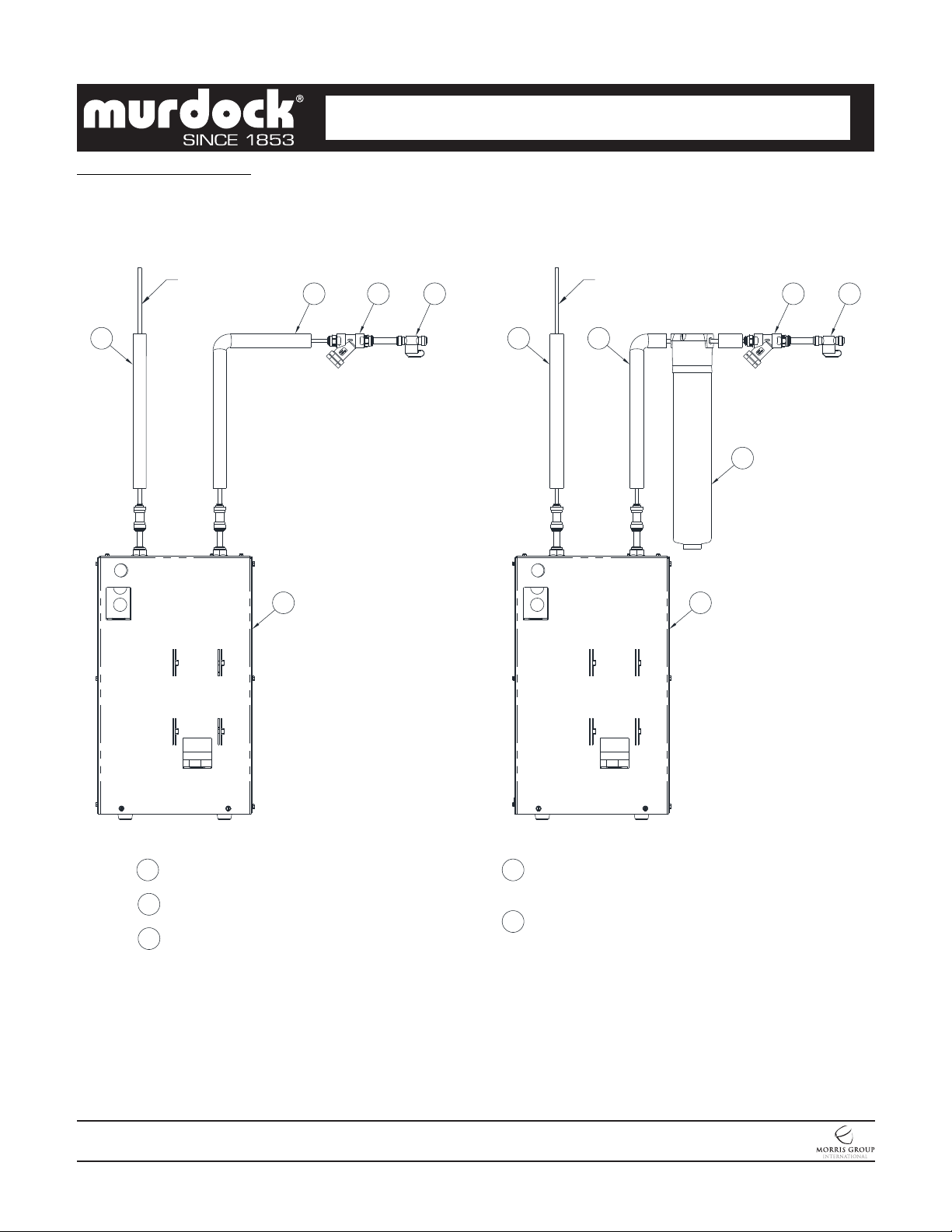

INSULATED 1/4" OD TUBING
Y-STRAINER
ANGLE STOP BY OTHERS
CHILLER w/ 3/8" OD TUBE
INLET/OUTLET CONNECTIONS
OPTIONAL -WF1 1500 GALLON
WATER FILTER SHOWN WITH
*NOTE: INSULATION TUBING MAY OVERLAP FITTINGS. ILLUSTRATIONS
MAY SHOW EXPOSED 1/4" OD TUBING FOR CLARITY ONLY.
1
2
3
4
5
1
1/4" OD TUBE INLET/OUTLET
TO DRINKING
FOUNTAIN
1
WATER PATH DETAIL

Page 6 of 8 AI81.8
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
ELECTRIC DRINKING FOUNTAINS
Revised: 03/29/2021
7020-007-001 RVB
2. Carefully remove Drinking Fountain and Chiller mounting frame from packaging to prevent damage.
1. Provide wall opening as indicated in Rough-in sheet. Provide structural support around opening for frame
anchoring if required.
3. Recheck all water and drain connections with water flowing through system.
4. Install Removable Access Panels to fixture. Secure with hardware provided.
5. Place the Chiller Unit onto the basepan of the frame assembly. Make up electrical connections as required.
Refer to A910.8 Chiller manual 7020-978-001 for complete Chiller installation information.
INSTALLATION:
6. Position the top of the Fountain assembly over the Frame S-clip just below the Chiller basepan and engage
while securing bottom tabs to Frame assembly with #10-32 screws and washers provided. Scews must
thread into captive nuts behind Frame tab. Tighten screws to pull the Fountain flush with the wall.
7. Assembly 3/8” OD Tube x 3/8” Tube Y-Strainer assembly to Chiller inlet. Ensure Y-strainer assembly is
orientated in the proper direction of flow. Refer to arrow on strainer.
9. Make-up Waste connection to drinking fountain 1-1/4” OD connection.
2. Air within the Fountain or the structure supply piping will cause an irregular outlet stream until purged out by
incoming water.
1. Before assembling Access Panels to fixture, but after thoroughly flushing the supply line and connecting it to
the fixture, turn on building water supply and check all connections for leaks.
8. Make up 1/4” OD Tube riser connections to 1/4” OD x 3/8” OD push-in fitting on the Chiller outlet and run
riser tube to connections Fountain and optional Bottle Filler. The 1/4” OD Riser tube from Chiller to Fountain
should be insulated to prevent condensation and maintain cool water temperature.
3. Insert and center mounting frame into the rough-in blockout, with sides, top and bottom flange against
finished wall. Level and secure using mounting hardware provided by the installer. Verify if level and shim if
necessary.
4. Secure Frame to wall through sides top and bottom using anchoring hardware by others.
10. After thoroughly flushing supply line, connect water supply to 3/8” OD Tube connection on Chiller.
START UP:
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of

Page 7 of 8 AI81.8
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
ELECTRIC DRINKING FOUNTAINS
Revised: 03/29/2021
7020-007-001 RVB
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
FRAME
ASSEMBLY
#6 FASTENERS
BY OTHERS
CHILLER, LOUVERED
ACCESS PANEL
BOTTOM ACCESS
PANEL
EXPLODED VIEW

Page 8 of 8 AI81.8
CONTEMPORARY WATER COOLERS
I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S
ELECTRIC DRINKING FOUNTAINS
Revised: 03/29/2021
7020-007-001 RVB
AI81408S PART LIST:
1
2
4
5
3
15
14
13
6
7
8
9
10 12
11
** 16
NOTE:
** Flow Restrictor Only Available
With Low Flow Bubbler.
MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA
Phone [phone] or 626-333-2543 • Fax [phone] • www.murdockmfg.com Member of
ITEM # PART NUMBER DESCRIPTION
1 A0000000-MF7 CHILLER/FOUNTAIN FRAME ASSY
2 A9100080-A CHILLER
3 7035-107-199
LOUVERED ACCESS PANEL
4 0279-002-000
#8-32 x 3/4" L, BUTTON HEAD SCREW
5 0322-001-000
#8-32 LOCKWASHER, STAR
7000-012-001 BUBBLER, STAINLESS STEEL
7000-099-002
BUBBLER, FLEXIBLE -LOW FLOW
7 7000-050-001
CARTRIDGE VALVE ASSEMBLY
8 7000-060-000
CARTRIDGE FLOW REG, 0.50 GPM
9 7000-091-001
CARTRIDGE PUSHBUTTON
10 7035-111-199
BOTTOM ACCESS PANEL
11 7000-021-000
Y-STRAINER
12 4926-055-001
GRID STRAINER w/CLOSE ELL ASSY
13 0116-006-000
#10-32 x 1" L, PHILLIPS SCREWS
14 0321-011-000
#10 LOCKWASHER, STAR
15 0331-004-000
#10 WASHER, FLAT, SS
16 7003-093-001
FLOW RESTRICTOR, FLEX BUBBLER
6
