Mustang Survival SENTINEL MSD624 03 User manual

FOR MODEL NUMBER MSD624 03
OWNERS MANUAL
SENTINELTM SERIES/
WATER RESCUE DRY SUIT
MOBILITY BASED SIZING™
In order to take your measurements correctly and select the appropriate size,
please follow the instructions provided on our website at:
www.mustangsurvival.com/mobility

TABLE OF CONTENTS
DESCRIPTION
MSD624 03 - SENTINEL™ SERIES WATER RESCUE DRY SUIT ......1-2
SENTINEL SERIES SIZING GUIDE............................................................. 2
INSTRUCTIONS FOR USE .......................................................................... 3
CCS™ ADJUSTABLE NECK SEAL .......................................................... 3
NEOPRENE WRIST SEAL FITTING .................................................. 3-4
ATTACHING SUSPENDERS .................................................................... 5
DONNING & DOFFING THE DRY SUIT................................................. 6-8
CLEANING AND MAINTENANCE.......................................................... 8-9
STORING THE DRY SUIT
FOLDING AND PACKING ......................................................................10
REPAIRS ......................................................................................................10
ACCESSORIES .............................................................................................11
WARRANTY INFORMATION..................................................................... 12
CONTACT ....................................................................................................13

1
DESCRIPTION
MSD624 03 - SENTINEL™SERIES WATER RESCUE DRY SUIT
The Sentinel Series Water Rescue Dry Suit is waterproof & breathable
constant wear dry suit ideal for professional users engaged in Swift
Water Rescue and Search and Rescue (SAR) operations.
Optimizing fit, comfort and functionality are extremely important,
especially when a poorly fitted suit can impede on a mission’s
efficiency and your safety. Validated by NAVAIR and the SAR Model
Manager Office, Naval Special Warfare, and swift water and ice
compatible with all types of equipment used in these environments.
• GORE-TEX®waterproof & breathable dry suit fabric
•
price tag
• Elongated, lightweight-polymer YKK® entry zipper
• Two-point attachment removable suspender system for an improved
fit, mobility and comfort
•
wrist seals and repair small leaks in an hour or less
• Rapid Repair Adjustable Neck Seal, combines the benefits of our
adjustable neck seal with our Rapid Repair Technology™
• Nylon reinforced elbows, knees, seat, and overcuffs
• Molded foam knee and elbow pads help prevent injury
• Adjustable tail bone protector pad
• Pull adjust waist belt
• Integrated GORE-TEX dry socks
®
• Neck collar for abrasion protection
• 2 arm pocket and 2 thigh cargo pockets
•
Leg and wrist over cuffs have Velcro closures for adjustability
®
• SOLAS retro-reflective tape for increased visibility

2 MUSTANG SURVIVAL/ SENTINELTM SERIES – WATER RECSUE DRY SUIT
MSD624 03 - SENTINEL™SERIES WATER RESCUE DRY SUIT (CONT’D)
The Sentinel Series Water Rescue Dry Suit is easily donned/doffed by
the wearer using a diagonal watertight entry zipper across the torso
and wearer’s left shoulder. Customized fit can be achieved through
adjustment of the internal suspenders to modify trunk length for
improved range of motion.
Every Sentinel Series Water Rescue Dry Suit produced by Mustang is
leak tested to ensure waterproof integrity prior to leaving our factory.
All suits are 100% tested to ensure the highest level of reliability and
performance.
WARNING: Dry suits alone provide inadequate protection for extreme
climate differences. All users should wear appropriate wicking thermal
undergarments to prevent hypothermia (in cold climates) and moisture
wicking undergarments to prevent heat stroke (in warm climates).
WARNING: Dry suits are not inherently buoyant. All users should wear
appropriate flotation devices with the dry suit. Water rescue and SAR
are inherently dangerous. Users should be aware of risks associated with
these types of operations and complete training in the use of water rescue
operations equipment and techniques.
SENTINEL SERIES SIZING GUIDE
Exclusively available for the Sentinel™Dry Suits, we introduce the
industry’s newest improved fitting platform designed specifically for
dry suit users for tactical, rescue or special operations.
Based on more than two years of extensive anthropometric research,
range of motion testing and user evaluations, Mobility Based Sizing™
offers users a semi-custom suit that reduces bulk and increases range
of motion without the expensive custom price tags or long lead times.
The Mobility Based Sizing™platform is like none other currently in the
industry.
There are 25 sizes available. To order a suit that fits you best, please
follow the instructions provided on our website at:
www.mustangsurvival.com/mobility.
SHORT
REGULAR
LONG
QUAD
EXTRA
LARGE
-
4XLR
-
TRIPLE
EXTRA
LARGE
3XLS
3XLR
3XLL
DOUBLE
EXTRA
LARGE
XXLS
XXLR
XXLL
EXTRA
LARGE
XLS
XLR
XLL
LARGE 2
L2S
L2R
L2L
LARGE 1
L1S
L1R
L1L
MEDIUM
MS
MR
ML
SMALL
SS
SR
SL
EXTRA
SMALL
XSS
XSR
XSL

3
INSTRUCTIONS FOR USE
This manual supplies instructional, maintenance and safety
information for the Sentinel Series Water Rescue Dry Suit.
CCS™ADJUSTABLE NECK SEAL
Mustang’s patented Closed Comfort System CCS™can be worn loose
to provide comfort out of the water and can quickly be drawn tight
to keep the water out. The adjustable seal also provides increased
durability compared to traditional latex seals and allows the suit to be
worn by multiple users without compromising waterproof integrity.
CAUTION: THE CLOSED COMFORT SYSTEM NECK SEAL (CCS™) MUST BE FULLY CLOSED
TO PREVENT WATER INTAKE.
1. The CCS™neck seal can be worn loose for comfort, but whenever there is a
risk of accidental immersion the neck seal should be closed enough so that
there aren’t any gaps between the neck seal and the wearer’s neck.
2. To close, pinch the toggle while pulling the elastic drawstring away from the
neck. For maximum effectiveness the neck seal should be adjusted to be
snug, but not uncomfortably tight
3. Once the neck seal has been drawn tight, the Velcro® tabs can be attached to
keep the elastic out of the way.
4. To loosen, insert fingers between the neck and the neck seal while pinching
the toggle. Then gently pull on the neck seal with your fingers to loosen.
NEOPRENE WRIST SEAL FITTING
The neoprene seals should only be trimmed if they are unreasonably
tight and restrict blood flow. The below chart indicates the target
body dimensions for the standard neoprene seals. The seals are
designed to fit the individuals with the smallest measurements. If
your neck and/or wrist is larger than the target dimensions, you will
likely have to trim your seals. If your measurements are better suited
to another size, you can order a Rapid Repair replacement kit in the
appropriate size.
SUIT SIZE
TARGET NECK
CIRCUMFERENCE
TARGET WRIST
CIRCUMFERENCE
RAPID REPAIR
REPLACEMENT KIT
INCH CM INCH CM NECK SEAL WRIST SEAL
XS 12" 30.5CM 5.75" 14.6CM RE0007-XS RE0009-S
S 13.25" 33.6CM 5.75" 14.6CM RE0007-S RE0009-S
M–L2 14.25" 36.2CM 6.25" 15.9CM RE0007-M RE0009-M
XL–4XL 15.25" 38.7CM 6.75" 17.1CM RE0007-L RE0009-L

4 MUSTANG SURVIVAL/ SENTINELTM SERIES – WATER RECSUE DRY SUIT
If seal trimming is required, proceed as follows:
CAUTION: Trim seals with extreme caution. A smooth trim line is essential. Excessive
or careless trimming could result in loose seals that leak and necessitate replacement.
Avoid nicking seal fabric, as this could result in tearing the seals when donning and
doffing, and also could result in skin irritation. Trim only ⅛” at a time. You can always
trim more, but you can’t replace what you have cut off.
Required materials: • Ruler
• Sharp scissors
• White china marker or silver pen
NOTE: ONLY NEOPRENE SEALS CAN BE TRIMMED USINGTHIS PROCEDURE.
1. Trim only 1/8” at a time. Using a ruler, mark a circular line around the seal that
is offset from the edge of the cuff end by 1/8”.
2. Using sharp scissors carefully cut the cuff end at the marked line. Evaluate
the fit and repeat step 1 & 2 until there is a proper fit.
NOTE: VISUALLY INSPECT THE TRIMMED EDGE FOR NICKS. IF THE CUT IS NOT SMOOTH
AND STRAIGHT CAREFULLY TRIM OUT ANY NICKS. NICKS CAN CAUSE A TEAR DURING
DONNING AND DOFFING.
3. After trimming the seals, have the user don the suit to determine seal
restriction and water-sealing characteristics. Make any additional adjustments
to the seal.

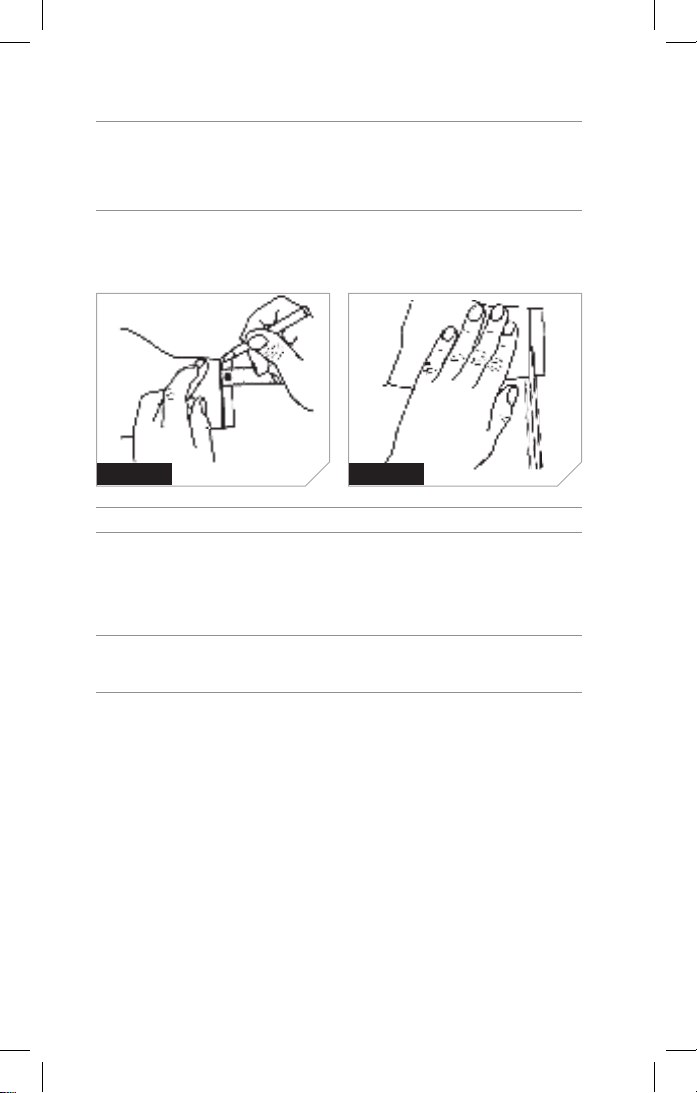

FIGURE 1 FIGURE 2

5
To attach suspenders please follow the instructions below. The
removable suspenders can be used to improve fit, lower in-water
resistance, and reduce fatigue. Suspenders can be adjusted to a
comfortable and secure position.
1. Completely unzip the entry zipper.
2. Open the suit so that the two attachment points are visible (Fig. 3).
3. Thread the end of the nylon strap attached to the suit through the
rectangular clip on the suspenders (Fig. 4).
4. Once the nylon strap has been threaded, flare the sewn folds on the
strap to prevent it from passing back through the rectangular clip
(Fig. 5).
5. Repeat these steps for the other attachment point.
6. Use the suspender strap ends to adjust for a secure, comfortable fit.
FIGURE 3 FIGURE 4
FIGURE 5
ATTACHMENT POINTTHREADING STRAP
FLARING THE FOLD
ATTACHING SUSPENDERS

6 MUSTANG SURVIVAL/ SENTINELTM SERIES – WATER RECSUE DRY SUIT
DONNING & DOFFING THE DRY SUIT
Before donning the suit, ensure that appropriate undergarments have
been selected for the conditions.
CAUTION: ALWAYS DON THE DRY SUIT ON A CLEAN SURFACE SUCH AS A TOWEL OR
TARP TO AVOID ATTRACTING DEBRIS. PEBBLES, SAND, DIRT AND OTHER DEBRIS ON
THE GROUND CAN CAUSE DAMAGE TO DRY SUIT SOCK AND COMPROMISE THE SUIT’S
INTEGRITY.
CAUTION: USE EXTREME CARE WHEN DONNING THE DRY SUIT. PRIOR TO DONNING,
REMOVE ALL RINGS, WATCHES, EARRINGS, NECKLACES AND EYEGLASSES THAT WILL
CAUSE DAMAGE TO WRIST AND NECK SEALS. FOOTWEAR OTHER THAN SOCKS MUST
NOT BE WORN INSIDE THE DRY SUIT.
SUIT PREPARATION PRIOR TO DONNING
1. Ensure that the Velcro®wrist covers and ankle covers are unfastened.
2. Ensure waist adjusters are loosened.
3. Ensure that the waterproof entry zipper is fully opened.
4. Ensure the suspenders are pulled out of the suit legs.

7
DONNING THE DRY SUIT
1. Slide your legs into the suit until your toes reach the end of the socks.
2. Don the suspenders. Ensure they are crossed in back but not twisted.
3. Apply talcum powder inside wrist seals.
4. Place the right arm into the right sleeve.
5. Carefully place the right hand into the right cuff by pointing the fingers
straight, tucking the thumb underneath and inserting the hand through the
seal. Do not make a fist when putting your wrist through the seal.
6. Roll the Velcro®wrist covers back and refasten to a snug fit.
7. Repeat Steps 4 - 6 for the left arm.
8. Bring the upper portion of the suit over your head, aligning the neck opening
with the top of the head. Reach inside the top of the neck seal with fingers
and gently pull the seal outward and down as you push your head through.
Flatten any folds or rolls of the seal against the skin.
9. Close the waterproof entry zipper. Reach over your left shoulder with your
right hand and grasp the zipper toggle. While holding the top of the zipper,
pull the toggle down until the zipper is completely fastened.
WARNING: FAILURE TO COMPLETELY CLOSE THE WATERPROOF ENTRY ZIPPER
WILL RESULT IN LEAKAGE OF WATER INSIDE THE SUIT AND REDUCTION OF
SURVIVAL TIME WHEN IN THE WATER. HAVE A FELLOW TEAM MEMBER DOUBLE-CHECK
EACH SLIDE FASTENER TO ENSURE THEY ARE COMPLETELY CLOSED AGAINST THEIR
SEALING PLUGS.
10.Tighten the ankle Velcro®covers to a snug fit.
11. Burp the suit before water entry. Cross arms in front and gently slide fingers
between the neck seal and your neck, squat down and force excess air
through the neck opening.

8 MUSTANG SURVIVAL/ SENTINELTM SERIES – WATER RECSUE DRY SUIT
DOFFING THE DRY SUIT
1. Remove all equipment worn over the suit.
2. Thoroughly rinse down the exterior of the suit while wearing it, paying special
attention to the seals and zippers. Remove all dirt, salt and debris.
3. Loosen Velcro®waist and ankle adjustment tabs.
4. Completely open the outer shell entry zipper and the inner immersion layer
waterproof zipper. If not completely open, the zippers face the risk of being
damaged during doffing.
CAUTION: PLACING UNDUE FORCE ON THE ZIPPER MAY DAMAGE THE SEAL AND HARM
THE INTEGRITY OF THE SUIT. NEVER FORCEFULLY YANK ON THE ZIPPER.
5. Insert fingers between neck seal and neck. Gently stretch the seal outward
and upward while pulling neck seal over your head.
6.
fingers straight, tucking the thumb underneath the seal. Slowly pull your hand
through the wrist seal. Do not make a fist when putting your wrist through the
seal or pull on the seal. Once your hands are out the seals invert the seals back
out of the suit sleeve so that they are oriented away from the suit.
7. Pull suit down past hips and slide legs from the suit.
8. Follow the cleaning and storage instructions for the suit.
CAUTION: PULLING ON THE WRIST SEAL MAY DAMAGE THE SEAL.
NOTE: IF WEARING SUSPENDERS, REMOVE SUSPENDERS PRIOR TO PROCEEDING
CLEANING AND MAINTENANCE
CLEANING
1. Thoroughly rinse your dry suit after every use.
CAUTION: DO NOT DRY CLEAN. DO NOT IRON. DO NOT BLEACH.
2. Treat stains with a pre-wash treatment such as Shout®or Spray ‘n Wash®.
Follow the manufacturer’s instructions. Rinse well.
3. Machine wash warm (104° F/40° C) on gentle cycle using a gentle powder or
liquid detergent. Do not use fabric softener, bleach or wash-in treatments, as
they can affect the suit’s breathability.
CAUTION: USE ONLY A FRONT LOADING WASHING MACHINE OR AN TOP LOADING
WASHING MACHINE THAT DOES NOT HAVE AN AGITATOR POST. WASHING MACHINES
WITH AGITATOR POSTS CAN DAMAGE THE SUIT.
4. Tumble-dry using an air setting

9
MAINTENANCE
Regular zipper maintenance is recommended to maintain a water-
tight seal, inhibit corrosion and keep the zipper gliding freely. These
steps are essential to zipper longevity:
FOR PLASTIC YKK AQUASEAL® ZIPPER:
1. Clean the zipper of any heavy deposits of mud, sand, salt or foreign
substances by gently brushing and rinsing the zipper with fresh water.
2. YK® zippers need to be lubricated on the docking end approximately
every 15-20 days of field use.
a. Open the zipper to expose the W-SEAL.
b.
c. S
d. Flip over the zipper end and lubricate the back in the same highlighted
areas as the front.
e. Close the zipper.
3. Repeat before long term storage.
CAUTION: DO NOT lubricate the zipper teeth.
FIGURE 7FIGURE 6

10 MUSTANG SURVIVAL/ SENTINELTM SERIES – WATER RECSUE DRY SUIT
STORING THE DRY SUIT
Hang the suit with the entry zipper open.
FOLDING AND PACKING
1. Ensure that the suit is thoroughly clean and dry and that the main entry
zipper is in the closed position before folding and packing.
2. Lay the suit flat on its back on a horizontal; clean surface, allowing the suit to
be fully extended with none of the parts overlapping.
3. Fold the left sleeve, from the shoulder, straight across the body of the suit.
Fold the right sleeve, from the shoulder, straight across the body of the suit
on top of the folded left arm.
4. Fold the socks over top of the legs until they reach crotch level.
5. Fold the legs, from the crotch, up to the chest level, right below the folded
sleeves.
6. Fold the suit in half.
7. To pack, roll or fold the suit ensuring that the zippers do not crease.
REPAIRS
The protection provided by this dry suit relies very much on its
watertight characteristics. It is extremely important that damaged
suits are handled in accordance with repair requirements.
The Sentinel Series Water Rescue Dry Suit takes advantage of
neck and wrist seals and repair small leaks in an hour or less. For
detailed information on repair procedures please visit the below
website and download the user manual:
www.mustangsurvival.com/rapid-repair-technology
All major repairs should be performed by the manufacturer. For
inspection, testing, and repair information, please contact our
customer service department at:
1 800 526 0532
[e-mail]

11
ACCESSORIES
The following Accessories are available for your Sentinel Series
Lightweight Boat Crew Dry Suit:
NEOPRENE SURVIVAL HOOD (PART # MA7348)
SENTINEL DRY SUIT LINER (PART # MSL600)
SENTINEL FEMALE DRY SUIT LINER (PART # MSL601)
PLASTIC YKK AQUASEAL® ZIPPER LUBRICANT (PART # MA0094)
HUDSON™REPLACEMENT SUSPENDERS (PART #MA0200)
SENTINEL™ SERIES BASE LAYERS (MSL602/603/604/605/606)
For more information on these items please visit:
www.mustangsurvival.com.

12 MUSTANG SURVIVAL/ SENTINELTM SERIES – WATER RECSUE DRY SUIT
WARRANTY INFORMATION
LIMITED WARRANTY/ Mustang Survival products are warranted to be free
from defects in materials and workmanship for a period of one year
from the date of purchase by the initial purchaser (the Customer
End User) under normal and intended conditions and use. Proof of
purchase may be required at the discretion of Mustang Survival.
Products, which, in the sole judgment of Mustang Survival, have
received excessive or abusive use or have been altered in any way by
a dealer, the Customer or any other person, will not be covered by
this limited warranty. Mustang Survival requires return of the product
(postage or delivery costs prepaid by Customer) for inspection before
determining whether the product will be covered under limited
warranty.
A return authorization is required before the goods are returned and
should be obtained by contacting our Customer Service Department.
Once returned, Customer Service, Quality Assurance and Sales
Departments inspect the product as required. It is then determined
whether the product will be covered under this limited warranty. If
the product is deemed to be covered under our warranty policy, it
will either be repaired or replaced at the sole discretion of Mustang
Survival at no charge to the Customer.
The only obligation or liability of Mustang Survival under this
limited warranty is to repair or replace the product and Mustang
Survival shall not, under any circumstances be liable for loss of use
or any consequential damages sustained by the Customer. All other
warranties expressed or implied, and remedies with respect to the
condition or use of the product, which might otherwise be provided
by law in any jurisdiction, are specifically excluded.

13
CONTACT
For further information concerning this manual or the suit, contact
Mustang Survival:
TF 1 800 526 0532
E [e-mail]

MUSTANG SURVIVAL AND SEAHORSE DESIGN ARE ALL REGISTERED TRADEMARKS OF
MUSTANG SURVIVAL CORP.
DO NOT REMOVE PRIOR TO SALE.
HT0624REV 11MAY2022
MUSTANG ENGINEERED
For 50 years Mustang Survival has been engineering high-
performance marine gear for military, coast guard, and rescue
personnel. With a focus on applied research and field-testing,
we’re committed to the protection and enhancement of those
who push themselves to extremes. We build gear that saves lives
and fuels exploration.
www.mustangsurvival.com
