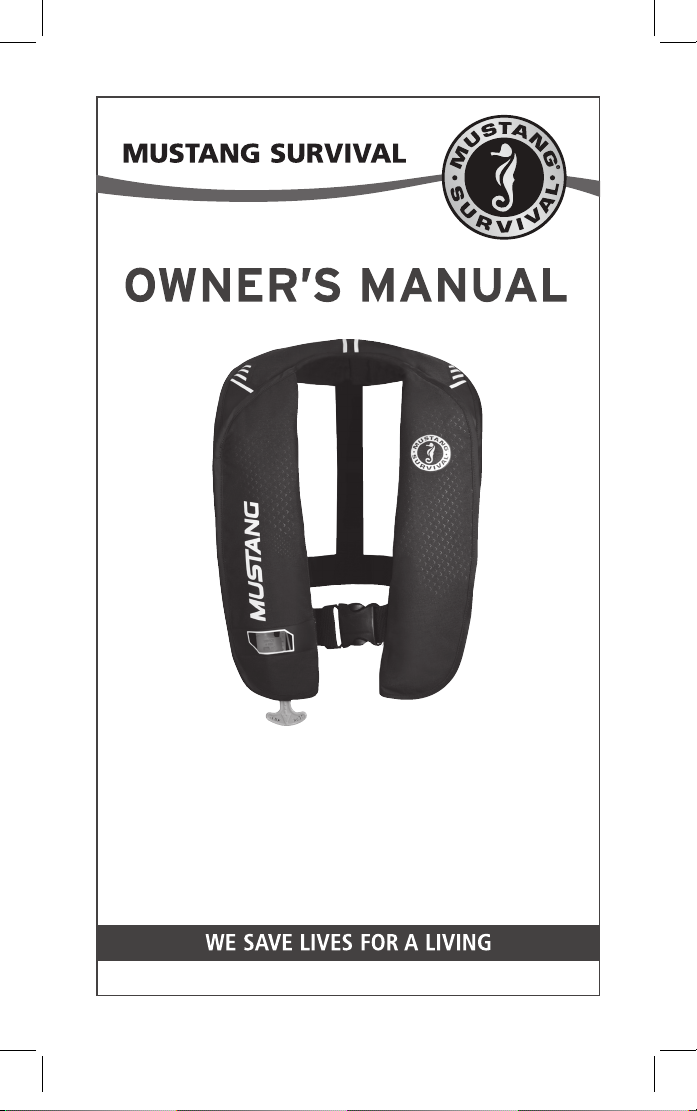

Mustang Survival MD2015 INFLATABLE PFD User manual

HT3160 (Rev28AUG2015)
DO NOT REMOVE PRIOR TO SALE
MD2015 INFLATABLE PFD
Manual Inflation Model
APPROVED BY
TRANSPORT CANADA
WARNING: The MD2015 will not inflate
automatically upon immersion. Tab must be pulled
to activate inflation mechanism.
MD2017 INFLATABLE PFD
Manual with Automatic
Backup Inflation Model
APPROVED BY
TRANSPORT CANADA
HT3160_MD2015_MD2017_28AUG2015.indd 1 28/08/2015 10:39:30 AM

TABLE OF CONTENTS
INFLATABLE PFDS............................................................................... 1
Approval Conditions and Carriage Regulations ............................. 1
Mandatory Carriage Requirements ............................................... 1
What is an Inflatable PFD? ............................................................ 1
INSTRUCTIONS FOR USE ................................................................... 2
Readiness Checklist ...................................................................... 3
Sizing and Fit ................................................................................ 3
DONNING INSTRUCTIONS ................................................................. 3
INFLATING YOUR INFLATABLE PFD .................................................... 4
Information .................................................................................. 5
SPECIAL CONSIDERATIONS FOR AUTOMATIC DEVICES (MD2017) .... 6
DEFLATING THE INFLATABLE PFD ...................................................... 6
RE-ARMING YOUR PFD (MD2015) .................................................... 7
RE-ARMING YOUR PFD (MD2017) .................................................... 9
REPACKING .................................................................................... 12
IS YOUR PFD IN GOOD AND SERVICEABLE CONDITION? ................ 13
USAGE BELOW FREEZING ............................................................... 13
CARE AND MAINTENANCE INSTRUCTIONS ..................................... 13
CLEANING AND STORING YOUR INFLATABLE PFD............................ 14
HT3160_MD2015_MD2017_28AUG2015.indd 2 28/08/2015 10:39:30 AM

WHY ARE PFDS REQUIRED SAFETY EQUIPMENT? ........................... 14
HOW AND WHY TO TEST YOUR PFD .............................................. 15
MODEL MD2017 ............................................................................ 15
HOW DO YOU TEST YOUR PFD USING
THE AUTOMATIC INFLATOR? (MD2017) ......................................... 16
HOW DO YOU TEST YOUR PFD USING
THE MANUAL INFLATOR? ............................................................... 16
HOW DO YOU TEST YOUR PFD USING
THE ORAL INFLATOR? ..................................................................... 17
WEAR YOUR PFD ............................................................................ 18
HYPOTHERMIA ............................................................................... 18
EACH OF THESE DEVICES IS INTENDED TO
HELP YOU SAVE YOUR OWN LIFE ................................................... 19
INFLATABLE PFD SAFETY ACCESSORIES .......................................... 20
ADDITIONAL INFORMATION ........................................................... 20
DO NOT ATTACH PFD’S TO YOUR BOAT ......................................... 20
AIRLINE OPERATOR POLICY ON CARRIAGE OF
INFLATABLE PFDS AND CO2CARTRIDGES ....................................... 20
HT3160_MD2015_MD2017_28AUG2015.indd 3 28/08/2015 10:39:30 AM

1
INFLATABLE PFDS
Inflatable PFDs are special devices in that the flotation of the wearer
is not derived from inherently buoyant materials. In order for them
to do their job, you, the wearer, must do yours! This means you have
the responsibility to ensure you are familiar with the operation and
maintenance requirements of your inflatable PFD! You must also
be aware of the limitations of the device and know that it is not
approved under the Small Vessel Regulations for certain boating
activities.
READ YOUR OWNER’S MANUAL AND THE
INFORMATION LABELS ON YOUR PFD!
IT COULD SAVE YOUR LIFE!
APPROVAL CONDITIONS AND CARRIAGE REGULATIONS
This inflatable PFD is approved by Transport Canada for use as a
Type III Personal Flotation Device (PFD). It is not approved for water
skiing or other high impact, high speed activities. This inflatable PFD
was designed to be more comfortable and less restrictive to wear than
inherently buoyant PFDs. When worn, used, and serviced according
to this owner’s manual, this PFD can greatly increase your chances of
survival in the water. Not recommended for non-swimmers or weak
swimmers. Users of inflatable PFDs must be at least 16 years old.
MANDATORY CARRIAGE REQUIREMENTS
The Small Vessel Regulations require that you carry on board a
Transport Canada approved personal flotation device, which bear a
mark or label indicating the approval and is of an appropriate size
for each person on board. To be considered serviceable, this PFD shall
not exhibit deterioration that could diminish its performance such as
broken or deformed hardware, detached webbing, rotted structural
components, air leaks, or nonfunctional oral inflation tube. Unless
worn inflated, this PFD must also be properly armed with a full CO2
cylinder, inflation system status indicator, and an accessible manual
inflation lanyard. A PFD which is “approved only when worn” or
“required to be worn” must be worn under the specified conditions.
WHAT IS AN INFLATABLE PFD?
While traditional PFDs are inherently buoyant, inflatable PFDs rely
entirely on inflation for buoyancy. Uninflated, the Inflatable PFD
is a comfortable slim collar that can be inflated at any time with a
24-gram CO2gas cylinder. The Inflatable PFD is designed to offer
HT3160_MD2015_MD2017_28AUG2015.indd 1 28/08/2015 10:39:30 AM

2
maximum mobility with minimum bulk. The Inflatable PFD (MD2015)
can be inflated either manually by jerking a pull-tab, or orally
(by mouth). The Inflatable PFD (MD2017) can be inflated either
automatically during water immersion, manually by jerking a pull-tab,
or orally by mouth. It is recommended that you familiarize yourself
with the procedures outlined in INSTRUCTIONS FOR USE.
INSTRUCTIONS FOR USE
This manual supplies instructional, maintenance and safety
information for models MD2015 and MD2017. The model number is
listed on the underside label.
Component Inspection Instructions
1) Examine the service indicator through the window panel
(Fig. 1). Ensure the service indicator is green. If the service
indicator is red, the mechanism has been fired or is incorrectly
fitted (see "Re-arming Your PFD (MD2015)" on page 7 or see
"Re-arming Your PFD (MD2017)" on page 9).
Note: The service indicator must be green before
proceeding.
2) Undo the Velcro™strips along both sides of the PFD (Fig. 1).
MD2017 Service Indicator
Automatic Inflator
MD2015 Service Indicator
Pull Tab
Manual Inflator
Pull Tab
Service Indicators
Figure 1
3) Ensure the oral-inflation dust cap is in the stowed position (Fig. 6).
4) Ensure the service indicator is green and the pull-tab lanyard is
hanging on the outside (Fig. 1); secure the Velcro™strips on both
sides of the Inflatable PFD.
5) For the MD2017 only – Ensure the bobbin is valid. The PFD, or
HT3160_MD2015_MD2017_28AUG2015.indd 2 28/08/2015 10:39:31 AM

3
bobbin, must have been purchased within the last three (3) years.
If the purchase date is unknown, check the date printed on the
bobbin and replace if older than three (3) years (see "Re-arming
Your PFD (MD2017)" on page 9).
READINESS CHECKLIST
Check your Inflatable PFD and ensure all of the checkpoints listed
below are true before use.
Service indicator is green.
No rips, tears or holes; all seams are securely sewn; and the fabric,
straps and hardware are still strong.
All Velcro™are securely fastened.
Inflatable PFD is not twisted.
Oral-inflation dust cap is in the stowed position.
For the MD2017 only – Ensure the bobbin is valid. The PFD, or
bobbin, must have been purchased within the last three (3) years.
If the purchase date is unknown, check the date printed on the
bobbin and replace if older than three (3) years (see "Re-arming
Your PFD (MD2017)" on page 9).
Your Inflatable PFD is ready for use if all applicable boxes are checked.
NOTE: Contact your Mustang Dealer if you have any
concerns about the readiness of your Inflatable PFD.
SIZING AND FIT
This PFD provides a minimum of 100 Newtons (22.5 lbs) of buoyancy
when inflated and is designed for wearers over 16 years of age, with
a chest range of 76-132 cm (30-52 inches) weighing over 36 kg (80
pounds).
DONNING INSTRUCTIONS
It is important that the Inflatable PFD is properly adjusted to fit
the person wearing it. An incorrect fit or improper fastening of
attachments could impede its effectiveness.
1) All belts and straps are already threaded correctly and only need
to be adjusted for fit.
The belt should fit below your rib cage adjusted to a tight
personal fit.
HT3160_MD2015_MD2017_28AUG2015.indd 3 28/08/2015 10:39:32 AM

4
2) Put the Inflatable PFD on just like a jacket (Fig. 2) and fasten the
front buckle. Adjust the waist belt using the side buckle on the
belt and secure the belt’s loose end in the belt loop.
Warning: Do not wear Inflatable PFDs under clothing as
the inflation could be restricted or you could be injured.
Donning
Figure 2
INFLATING YOUR INFLATABLE PFD
It is recommended that the following procedures be followed to
inflate your Inflatable PFD:
1) Manual Inflation
Activate the inflation system by jerking firmly downward on the
pull-tab (Fig. 3). The Inflatable PFD should fully inflate within 5
seconds.
MD2015 MD2017
Manual Inflator Automatic Inflator
Figure 3
HT3160_MD2015_MD2017_28AUG2015.indd 4 28/08/2015 10:39:33 AM

5
2) Automatic Backup Inflation (MD2017)
Inflation will occur automatically within 10 seconds after the
inflator is immersed in water. The water-sensing bobbin will
disintegrate, triggering a spring-loaded plunger, which punctures
the CO2cylinder (Fig. 10 and 11) to inflate the Inflatable PFD.
INFORMATION
When inflated, the carbon dioxide (CO2gas) used to inflate the PFD
will slowly escape through the fabric over time. A slight reduction
of pressure will be observed after several hours of inflation. Topping
up by oral inflation may be required in the event of very prolonged
immersion.
Important: See Special Considerations for Automatic
Devices
Figure 4 3) Oral Inflation
Properly armed and
inspected Inflatable PFDs
will inflate when manually
or automatically activated.
However, you can fully inflate
the Inflatable PFD by mouth
(Fig. 4) should inflation not
occur, or if you are in a non-
emergency situation.
To orally inflate the Inflatable
PFD, first locate the oral
inflation tube by opening the
wearer ’s left front panel of the
Inflatable PFD. Remove the dust
cap from the end of the oral tube and blow into the tube
until the Inflatable PFD is fully inflated. Place the oral tube dust
cap back in the stowed position (Fig. 6).
IMPORTANT: DOUBLE INFLATION
DO NOT MANUALLY ACTIVATE THE INFLATOR WHEN
YOUR PFD IS FILLED WITH AIR. Doing so will result in
excessively high pressure within the inflation chamber,
which may cause permanent damage. When your
PFD is completely filled with air, the inflator may not
automatically inflate when exposed to water.
HT3160_MD2015_MD2017_28AUG2015.indd 5 28/08/2015 10:39:33 AM

6
SPECIAL CONSIDERATIONS FOR
AUTOMATIC DEVICES (MD2017)
The Inflatable PFD might not be armed when needed, either knowingly
or unknowingly. Premature automatic inflation causes several risks
that you must address to avoid drowning. Much less common but also
important are:
1) Inflation when stored in a tight space could damage the PFD, and
2) The PFD could inflate when you are in an awkward place or
position. Premature inflation may occur in certain conditions,
including when the device is subjected to: heavy splashing, high
humidity, heavy fog, and heavy rain.
Care and attention should be taken to ensure that when the device
is used in these types of conditions, auto-inflation does not occur
prematurely.
If this PFD should inflate prematurely, a re-arm kit (MA2014) is
required to re-arm the device.
Important: The Inflatable PFD should be re-armed
according to the instructions (see "Re-arming Your PFD
(MD2017)" on page 9).
DEFLATING THE INFLATABLE PFD
Dust cap
position for
deflation
Dust cap
in stowed
position
Oral Inflator
Cap In
Deflate
Position
Figure 5
Dust cap
position for
deflation
Dust cap
in stowed
position
Oral Inflator
Cap In
Deflate
Position
Figure 6
1) To deflate the Inflatable PFD, reverse the oral-inflation tube dust
cap and insert it into the valve. The dust cap will not lock in the
deflate position so it is necessary to hold it in place (Fig. 5).
HT3160_MD2015_MD2017_28AUG2015.indd 6 28/08/2015 10:39:33 AM

7
2) Gently squeeze the Inflatable PFD until all air or gas has been
expelled. To avoid damage do not wring or twist the Inflatable
PFD. Put the inflation tube dust cap back in its stowed position on
the oral inflation tube (Fig. 6).
3) Examine the service indicator (Fig. 1). If the service indicator is
red, the mechanism has been fired or is incorrectly fitted and the
inflator requires service (see "Re-arming Your PFD (MD2015)"
on page 7 or see "Re-arming Your PFD (MD2017)" on page
9).
Note: The service indicator must be green before
proceeding.
4) Your device is ready to be repacked (see "Repacking" on page 12).
RE-ARMING YOUR PFD (MD2015)
NOTE: A re-arm kit (MA2014) is required for this
procedure.
IMPORTANT: Follow instructions in the exact sequence
below.
1) Unpack or open the Inflatable PFD so that the manual inflator is
exposed (Fig. 7).
2) Remove the cylinder/bayonet assembly by rotating counter-
clockwise and then pull out. Discard the used cylinder/bayonet
assembly.
3) Check the new cylinder/bayonet assembly to ensure the o-ring is
in place and the sensor ring is attached (Fig. 7). Ensure that the
CO2cylinder has not been pierced (Fig. 10).
4) Raise, and hold, the lever into the inflator housing. Install a new
cylinder/bayonet assembly by engaging bayonet tabs in housing,
pushing in then turning clockwise 1/8 turn to a full stop (Fig. 8).
WARNING: PFD WILL ONLY INFLATE IF CYLINDER IS
TURNED TO A FULL STOP.
HT3160_MD2015_MD2017_28AUG2015.indd 7 28/08/2015 10:39:33 AM

8
MD2015 Manual Inflator
Cylinder
Step 2
Sensor Ring
Step 3
Bayonet
Tab
Step 4
O-Ring
Step 3
Lever
Step 4
Service Indicator
Step 5
If GREEN
unit is operable
If RED
stop and service unit
Service Indicator:
Figure 7
Tab
Piercing Pin
Cylinder
Lever
Service Indicator
MD2015 Manual Inflator
1/8 Turn
Figure 8
HT3160_MD2015_MD2017_28AUG2015.indd 8 28/08/2015 10:39:34 AM

9
5) Examine the service indicator (Fig. 8) and ensure it is GREEN. If
the service indicator is red, the mechanism has been fired or is
incorrectly fitted and the inflator requires service.
NOTE: The service indicator must be green before
proceeding.
6) Refold the Inflatable PFD in accordance with the Repacking
section (see "Repacking" on page 12).
YOUR INFLATABLE PFD (MD2015) IS NOW READY FOR
MANUAL USE
RE-ARMING YOUR PFD (MD2017)
NOTE: A re-arm kit (MA2014) with a valid bobbin
install-by-date (check re-arm kit packaging) is required
for this procedure.
IMPORTANT: Follow instructions in the EXACT sequence below.
1) Open the inflator cover flap so that the manual/automatic inflator
is exposed (Fig. 9).
2) Remove the cylinder/bayonet assembly by rotating counter-
clockwise and then pull out. Discard the used
cylinder/bayonet assembly.
3) Remove cap by turning counter-clockwise. (Fig. 9).
4) Remove bobbin from cap or housing unit. Discard bobbin.
NOTE: The yellow bobbin may remain in the housing or
in the cap assembly when you remove the cap.
The bobbin must be removed prior to re-arming.
5) Check the housing to be sure it is clear and dry. If necessary,
rinse the inflator with fresh water to remove dirt and salt. Let dry
before going to step 6.
6) Inspect the bobbin. If the bobbin has been fired or damaged,
replace it! Ensure the new bobbin is valid. It must have been
purchased within the last three (3) years. If the bobbin purchase
date is unknown, check the manufacturing date printed on the
bobbin and replace if older than three (3) years.
HT3160_MD2015_MD2017_28AUG2015.indd 9 28/08/2015 10:39:34 AM

10
MD2017 Automatic Inflator
Cap
Step 3
Yellow Bobbin
(white side up)
Step 3
HOUSING***
Step 4
Housing Shoulder
Step 8
Service Indicator
Step 11
Cylinder
Step 2
Cylinder/Bayonet Assembly
Sensor Ring
Step 9
Bayonet
Tab
Step 10
O-Ring
Step 9
Pins
Lever
Step 10
Pull Tab
If GREEN, unit is operable
If RED, stop and service unit
Service Indicator:
Figure 9
Solid
Cylinder
Top
Attached
Sensor
Ring
Pierced
Cylinder
Top
Broken
Sensor
Ring
Caution: Do not use
the cylinder/bayonet
assembly if either
the o-ring or sensor
ring is broken,
missing or damaged.
Figure 10
HT3160_MD2015_MD2017_28AUG2015.indd 10 28/08/2015 10:39:34 AM

11
7) IMPORTANT! Bobbin (yellow) must be installed into the
HOUSING (***Fig. 9), white side up, aligning the slots on the
bobbin with the ridges inside the threaded housing. The bobbin
will slide in.
8) Install cap by screwing clockwise until it meets the housing
shoulder.
9) Check the new cylinder/bayonet assembly to ensure the o-ring is
in place and the sensor ring is attached (Fig. 9). Ensure that the
CO2cylinder has not been pierced (Fig. 10).
IMPORTANT: You will damage the sensor ring if bobbin
and cap are not installed first.
Service
Indicator
Groove
Pull-cord
Tab
Piercing
Pin
Cylinder
MD2017 Automatic Inflator
1/8 Turn
Figure 11
10) Push, and hold, the lever into the inflator housing. The pull-cord
should be situated in the groove (Fig. 11). Install a new cylinder/
bayonet assembly by engaging bayonet tabs in housing, pushing
in then turning clockwise 1/8 turn to a full stop (Fig. 11).
WARNING: PFD WILL ONLY INFLATE IF CYLINDER IS
TURNED TO A FULL STOP.
11) Examine the service indicator (Fig. 9) and ensure it is GREEN. If
the service indicator is red, the mechanism has been fired or is
incorrectly fitted and the inflator requires service.
NOTE: The service indicator must be green before
proceeding.
HT3160_MD2015_MD2017_28AUG2015.indd 11 28/08/2015 10:39:34 AM

12
12) Refold the Inflatable PFD in accordance with the Repacking
section (see "Repacking" on page 12).
YOUR INFLATABLE PFD (MD2017) IS NOW READY FOR
MANUAL USE WITH AUTOMATIC BACKUP
REPACKING
Gently squeeze the Inflatable PFD with the oral tube dust cap in the
deflate position (Fig. 6, page 6) until all air or gas has been expelled
(Fig. 5, page 6). Do not wring or twist the Inflatable PFD. Put the
inflation tube dust cap back in its stowed position on the oral inflation
tube (Fig. 6, page 6).
Note: Before following the repacking sequence, be sure
to properly re-arm your Inflatable PFD.
A
Figure 12
B C
Figure 13
View Status Indicator
Figure 14
1. Fold lapel (A) back along the dotted line (Fig. 12).
2. Fold sides (B) and (C) outward along dotted lines. Secure with
Velcro™.
3. Make sure inflator status indicator is viewable through window.
4. Make sure the inflator pull-tab is on the outside of the folded PFD.
Fig. 14 depicts a correctly folded PFD.
Note: Ensure that all Velcro™strips are fastened.
HT3160_MD2015_MD2017_28AUG2015.indd 12 28/08/2015 10:39:35 AM

13
IS YOUR PFD IN GOOD AND SERVICEABLE
CONDITION?
Check your Inflatable PFD between outings to be sure that it is
properly armed; that it is free of rips, tears or holes; that all seams are
securely sewn; and that the fabric, straps and hardware are still strong
(see "Readiness Checklist" on page 3). Inspect the inflatable
portion of the Inflatable PFD in accordance with the CARE AND
MAINTENANCE INSTRUCTIONS.
USAGE BELOW FREEZING [0OC / 32OF]
If you choose to use your PFD below freezing, performance will not
be as expected. Below freezing, a discharged cylinder may not fully
inflate your PFD to the intended pressure. You will need to rely on
your back up oral inflation system to adjust the internal pressure
to achieve adequate buoyancy (see "Orally inflating your PFD" on
page 5).
CARE AND MAINTENANCE INSTRUCTIONS
It is important to care for and maintain your inflatable PFD in order to
ensure it will perform as designed when you need it. Keep a record
of the inspections performed on your PFD for reference. If you are not
confident in the self-inspection and servicing of your inflatable PFD in
accordance with these instructions, contact Mustang Survival customer
service.
INSPECTING YOUR INFLATABLE PFD
Before Each Use:
oExamine the single point status indicator ensuring it is
green. If the indicator is red, your PFD needs to be re-armed
(see "Re-arming Your PFD (MD2015)" on page 7 or see
"Re-arming Your PFD (MD2017)" on page 9).
oEnsure the manual pull-tab is accessible.
oVisually examine your inflatable PFD for damage or excessive
abrasion, wear, tear and/or contamination. If any item shows
signs of damage, perform tasks listed in "Every Six (6)
Months" inspection details.
HT3160_MD2015_MD2017_28AUG2015.indd 13 28/08/2015 10:39:35 AM

14
Every Six (6) Months:
In addition to the inspections specified for before each use, perform
the following at least every 6 months, or more often if exposed to
potential damage or used in extreme conditions.
oLeak Test: Your Inflatable PFD should be tested for leakage by
inflating with air until firm and leaving it to stand for at least
2 hours in a temperature controlled environment. A leaking
Inflatable PFD will not remain firm and should be replaced. If
your Inflatable PFD leaks, contact Mustang Survival
customer service.
Annually:
In addition to the inspections specified for every six months, perform
the following at the beginning of each boating season or whenever
the integrity of your inflatable PFD is in doubt:
oThoroughly check all components for dirt and/or corrosion.
Clean or replace, as necessary. If any item shows signs of
damage, perform inspections listed in "Every Six (6) Months"
inspection details. If in doubt, contact Mustang Survival
customer service.
oFor MD2017 only. Ensure the current date is not three (3)
years past the date on the bobbin. If it is, re-arm the inflator
(see Re-arming Your PFD (MD2017) on page 9).
CLEANING AND STORING YOUR PFD
To clean your inflatable PFD, hand wash or sponge down in warm,
soapy water, taking care not to expose the inflator to water. Rinse
your PFD with clean water, and hang to dry on a plastic coat hanger.
Do not dry-clean, use chlorine bleach, or apply direct heat. Always
store your fully dried PFD in a warm, dry, well ventilated place out of
direct sunlight.
WHY ARE PFDS REQUIRED SAFETY
EQUIPMENT?
Drownings are the leading cause of fatalities involving recreational
boating. A PFD provides flotation to help keep your head above water,
help you to stay face up in the water, and increase your chances for
survival and rescue. Most adults only need an extra 3.2 to 5.5 kg (7 to
12 pounds) of flotation to keep their heads above water. The proper
size PFD will properly support the weight of the wearer.
HT3160_MD2015_MD2017_28AUG2015.indd 14 28/08/2015 10:39:35 AM

15
Since this Inflatable PFD does not have inherent buoyancy, it provides
flotation only when inflated. Familiarize yourself with the use of this
Inflatable PFD so you know what to do in an emergency.
HOW AND WHY TO TEST YOUR PFD
Inflate your Inflatable PFD and try it out in the water to:
Make sure it floats you:
• Comfortably (when worn properly)
• Adequately for expected wave conditions (body shapes/densities
affect performance)
Make sure it works:
• A flow of bubbles should not appear (see "Care and Maintenance
Instructions" on page 13 for leak tests). It should inflate quickly
and easily.
Learn how it works by:
• Activating the CO2inflation system
• Re-arming the CO2inflation system
• Using the oral inflator tube
To check the manual inflation system (with CO2cylinder/bayonet
assembly removed); determine that the CO2cylinder piercing pin
moves freely when pushing up on the lever arm by pushing down on
the pins and releasing the pins followed by the lever arm (for MD2015
see Fig. 8 and for MD2017 see Fig. 11). Repeat this several times to
check the manual inflation system.
MODEL MD2017
It is recommended that you purchase two automatic re-arming kits
(MA2014). One kit is to be used immediately in testing the automatic
inflation system (see "How do you test your PFD using the automatic
inflator? (MD2017)" on page 16) and the other to carry on board
as a spare.
It is recommended you test the automatic inflation system in the
water at the beginning of each boating season. By doing this, you
demonstrate that the automatic inflation system is still working
properly and reduce the likelihood of premature inflation and its
associated dangers.
HT3160_MD2015_MD2017_28AUG2015.indd 15 28/08/2015 10:39:35 AM

16
HOW DO YOU TEST YOUR PFD USING THE
AUTOMATIC INFLATOR? (MD2017)
1) To test your Inflatable PFD, you will need your fully armed
Inflatable PFD, and re-arming kit (MA2014) approved for your
Inflatable PFD
2) Put on the Inflatable PFD.
3) Get into shallow water, just deep enough that you can stand with
your head above the surface. Once the inflator is underwater the
Inflatable PFD should fully inflate automatically within 10 seconds.
4) See if the Inflatable PFD will float you on your back or just slightly
back of vertical. In a relaxed floating position, verify that your
mouth is well above the water’s surface. Note the effect of where
you hold your legs on how you float.
5) Get out of the water and remove the Inflatable PFD. Remove the
used CO2cylinder/bayonet assembly and the used bobbin from the
Inflatable PFD inflator.
Deflate the Inflatable PFD by depressing the oral inflator valve
(see "Deflating the Inflatable PFD" on page 6).
6) Let the Inflatable PFD dry thoroughly. Re-arm and Repack the
PFD (see "Re-arming Your PFD (MD2017)" on page 9 and see
"Repacking" on page 12).
HOW DO YOU TEST YOUR PFD USING THE
MANUAL INFLATOR?
1) To test your Inflatable PFD, you will need your fully armed
Inflatable PFD, and re-arming kit approved for your Inflatable PFD:
MA2014.
2) Put on the Inflatable PFD.
3) Actuate the inflation system by jerking firmly downward on the
pull-tab. The Inflatable PFD should fully inflate within 5 seconds.
4) Get into shallow water, just deep enough that you can stand with
your head above the surface.
5) See if the Inflatable PFD will float you on your back or just slightly
back of vertical. In a relaxed floating position, verify that your
mouth is well above the water’s surface. Note the effect of where
you hold your legs and how you float.
HT3160_MD2015_MD2017_28AUG2015.indd 16 28/08/2015 10:39:35 AM

17
6) Get out of the water and remove the Inflatable PFD. Completely
deflate the Inflatable PFD using the oral inflator (see "Deflating
the Inflatable PFD" on page 6). Remove the CO2cylinder/
bayonet assembly from the inflator.
7) Let the Inflatable PFD dry thoroughly. Re-arm and Repack the
PFD (see "Re-arming Your PFD (MD2015)" on page 7 or
see "Re-arming Your PFD (MD2017)" on page 9 and see
"Repacking" on page 12).
HOW DO YOU TEST YOUR PFD USING THE
ORAL INFLATOR?
1) No spare parts or re-arming kits are needed to test your Inflatable
PFD, using the oral inflator.
2) Remove the CO2cylinder/bayonet assembly to prevent inadvertent
inflation, which could potentially damage the Inflatable PFD.
Inspect the cylinder to confirm it is unused (Fig. 10). Unscrew and
remove the cap and the bobbin (MD2017 only). Otherwise the
bobbin will disintegrate during water immersion.
3) Put on the Inflatable PFD.
4) Get into shallow water, just deep enough that you can stand with
your head above the surface.
5) If you are a weak swimmer or non-swimmer, inflate the Inflatable
PFD partially so that you are supported well enough to be able
to complete inflation without touching bottom, either orally or
manually. Note this level of inflation because it is the minimum
needed for you to safely use this Inflatable PFD.
6) Fully inflate the Inflatable PFD using the oral inflator.
7) See if the Inflatable PFD will float you on your back or just slightly
back of vertical. In a relaxed floating position, verify that your
mouth is well above the water’s surface. Note the effect of where
you hold your legs on how you float.
8) Get out of the water and remove the Inflatable PFD. Completely
deflate the Inflatable PFD using the oral inflator. Let the Inflatable
PFD dry thoroughly. Re-arm and Repack the PFD (see "Re-arming
Your PFD (MD2015)" on page 7 or see "Re-arming Your PFD
(MD2017)" on page 9 and see "Repacking" on page 12).
HT3160_MD2015_MD2017_28AUG2015.indd 17 28/08/2015 10:39:35 AM
