Mustang Survival MSD576 User manual

FOR MODEL NUMBER MSD576
OWNER'S MANUAL
WATER RESCUE
DRY SUIT
MOBILITY BASED SIZING™
In order to take your measurements correctly and select the appropriate size,
please follow the instructions provided on our website at:
www.mustangsurvival.com/mobility

TABLEOFCONTENTS
DESCRIPTION
MSD576 – WATER RESCUE DRY SUIT ...............................................1-2
SIZING GUIDE........................................................................................... 2-3
INSTRUCTIONS FOR USE ...........................................................................4
CCM™ ADJUSTABLE NECK SEAL ..............................................................4
NEOPRENE WRIST SEAL FITTING ........................................................4-5
ATTACHING SUSPENDERS ........................................................................6
DONNING AND DOFFING THE DRY SUIT ............................................ 7-9
CLEANING AND MAINTENANCE.........................................................10-11
STORING THE DRY SUIT........................................................................... 10
WARRANTY INFORMATION..................................................................... 13
CONTACT .................................................................................................... 13

1
DESCRIPTION
MSD576 – WATER RESCUE DRY SUIT
The Water Rescue Dry Suit is a waterproof & breathable constant wear
dry suit ideal for Swift Water Rescue and Search and Rescue (SAR)
operations.
Optimizing fit, comfort and functionality are extremely important,
especially when a poorly fitted suit can impede on a mission’s
eciency and your safety. The Water Rescue Dry Suit is designed
to be compatible with all types of equipment used in these
environments.
• GORE-TEX®waterproof & breathable dry suit fabric
• YKK metal entry zipper and YKK plastic relief zipper
• Two-point attachment removable suspender system for an improved
fit, mobility and comfort
• Rapid Repair Technology™enables users to self-replace neck and
wrist seals and repair small leaks in an hour or less
• Rapid Repair Adjustable Neck Seal, combines the benefits of our
adjustable neck seal with our Rapid Repair Technology™
• Ballistic nylon reinforced elbows, knees and seat
• Neoprene knee and elbow pads help prevent injury
• Pull adjust waist belt
• Integrated GORE-TEX®Dry Socks
• CORDURA®leg and wrist over cus have Velcro®closures for
adjustability
• SOLAS retro-reflective tape for increased visibility
• 1 Package of YKK Aquaseal® lubricant

2 MUSTANG SURVIVAL/ OWNER'S MANUAL – WATER RESCUE DRY SUIT
LOCATION VALUE PROCEDURE
1 Chest Measure the horizontal circumference around the chest
at maximum girth. For males, this is typically where the
tape runs under the armpits at the scye. For females, this
is at the bustline.
2 Waist Measure the horizontal circumference around the waist
(belt) line.
3 Hips Measure the horizontal circumference around the hips and
buttock at maximum girth.
4 Sleeve With your arms horizontal, bent at the elbows, and with
your fists touching knuckle-to-knuckle out from the chest,
measure the distance from the center of the back along
the outside of the arm to the outer tip of the wrist.
5 Inseam Measure the vertical distance from the crotch to the
floor. Use a book pressed firmly up between the legs and
measure from the top of the book.
6 Torso
Hoop
With your shoulders relaxed and the tape running
over the center of one shoulder and between the legs,
measure the vertical trunk circumference
7 Height Vertical standing height with good posture and no footwear.
MSD576 – WATER RESCUE DRY SUIT (CONT'D)
The Water Rescue Dry Suit is easily donned/doed by the wearer
using a diagonal watertight entry zipper across the torso and wearer’s
left shoulder and includes a relief zipper. Customized fit can be
achieved through adjustment of the internal suspenders to modify
trunk length for improved range of motion.
Every Water Rescue Dry Suit produced by Mustang is leak tested to
ensure waterproof integrity prior to leaving our factory. All suits are
100% tested to ensure the highest level of reliability and performance.
WARNING: DRY SUITS ALONE PROVIDE INADEQUATE PROTECTION FOR EXTREME
CLIMATE DIFFERENCES. ALL USERS SHOULD WEAR APPROPRIATE WICKING THERMAL
UNDERGARMENTS TO PREVENT HYPOTHERMIA (IN COLD CLIMATES) AND MOISTURE
WICKING UNDERGARMENTS TO PREVENT HEAT STROKE (IN WARM CLIMATES).
WARNING: DRY SUITS ARE NOT INHERENTLY BUOYANT. ALL USERS SHOULD WEAR
APPROPRIATE FLOTATION DEVICES WITH THE DRY SUIT. WATER RESCUE AND SAR
ARE INHERENTLY DANGEROUS. USERS SHOULD BE AWARE OF RISKS ASSOCIATED
WITH THESE TYPES OF OPERATIONS AND COMPLETE TRAINING IN THE USE OF
WATER RESCUE OPERATIONS EQUIPMENT AND TECHNIQUES.
SIZING GUIDE
To properly fit a Water Rescue Dry Suit follow the instructions below.
STEP 1 – MEASURING
For accurate measurements, please refer to the measurement diagram
and instructions provided.

3
STEP 2 – SIZING
Based on your measurements, determine your size according to the
chart below. If all your measurements fall between the ranges of two
sequential sizes (such as between S and M) select the size that best
fits your Torso Hoop and Inseam.
LOCATION M L XL XXL
Chest 39-42" 43-46" 45-48" 49-52"
Waist 34-37" 37-40" 41-44" 46-49"
Hips 39-42" 41-44" 43-46" 47-50"
Sleeve 33-35" 35-37" 36-38" 37-39"
Inseam 32-34" 34-36" 34-36" 34-36"
Torso Hoop 65-68" 69-72" 71-74" 76-79"
*PLEASE NOTE: IF ALL YOUR MEASUREMENT DO NOT FALL INTO THE RANGE OF SIZES
LISTED HERE, YOU MAY CONSIDER ORDERING AN MSD624 SENTINEL SERIES WATER
RESCUE DRY SUIT. THE MSD624 IS AVAILABLE IN OUR MOBILITY BASED SIZING,
WHICH INCLUDES 8 STANDARD SIZES FROM XS TO 3XL, AS WELL AS SHORT AND
LONG SIZES AS A SPECIAL ORDER. PLEASE CONTACT MUSTANG SURVIVAL FOR MORE
INFORMATION.
6
3
2
1
7
5
4
MEASURING LOCATIONS
All measurements should be taken
with a ”tailors” (flexible) tape while
wearing garments and any accessories
such as body armor usually worn
under the dry suit.

4 MUSTANG SURVIVAL/ OWNER'S MANUAL – WATER RESCUE DRY SUIT
TARGET NECK
CIRCUMFERENCE
TARGET WRIST
CIRCUMFERENCE
RAPID REPAIR
REPLACEMENT KIT
SIZE INCH CM INCH CM NECK SEAL WRIST SEAL
XS 12" 30.5CM 5.75" 14.6CM RE0007-XS RE0009-S
S13.25" 33.6CM 5.75" 14.6CM RE0007-S RE0009-S
M–L2 14.25" 36.2CM 6.25" 15.9CM RE0007-M RE0009-M
XL–XXXL 15.25" 38.7CM 6.75" 17.1CM RE0007-L RE0009-L
INSTRUCTIONS FOR USE
This manual supplies instructional, maintenance and safety information
for the Water Rescue Dry Suit.
CCS™ADJUSTABLE NECK SEAL
Mustang’s patented Closed Comfort System (CCS™) can be worn loose
to provide comfort out of the water and can quickly be drawn tight
to keep the water out. The adjustable seal also provides increased
durability compared to traditional latex seals and allows the suit to be
worn by multiple users without compromising waterproof integrity.
CAUTION: THE CLOSED COMFORT SYSTEM NECK SEAL (CCS™) MUST BE FULLY CLOSED
TO PREVENT WATER INTAKE.
1. The (CCS™) neck seal can be worn loose for comfort, but whenever there is a
risk of accidental immersion the neck seal should be closed enough so that
there aren’t any gaps between the neck seal and the wearer’s neck.
2. To close, pinch the toggle while pulling the elastic drawstring away from the
neck. For maximum eectiveness the neck seal should be adjusted to be snug,
but not uncomfortably tight
3. Once the neck seal has been drawn tight, the Velcro® tabs can be attached to
keep the elastic out of the way.
4. To loosen, insert fingers between the neck and the neck seal while pinching
the toggle. Then gently pull on the neck seal with your fingers to loosen.
NEOPRENE WRIST SEAL FITTING
The neoprene seals should only be trimmed if they are unreasonably
tight and restrict blood flow. The below chart indicates the target body
dimensions for the standard neoprene seals. The seals are designed to
fit the individuals with the smallest measurements. If your neck and/or
wrist is larger than the target dimensions, you will likely have to trim
your seals. If your measurements are better suited to another size, you
can order a Rapid Repair replacement kit in the appropriate size.

5
FIGURE 1 FIGURE 2
If seal trimming is required, proceed as follows:
CAUTION: TRIM WRIST SEALS WITH EXTREME CAUTION. A SMOOTH TRIM LINE IS
ESSENTIAL. EXCESSIVE OR CARELESS TRIMMING COULD RESULT IN LOOSE SEALS
THAT LEAK AND NECESSITATE REPLACEMENT. AVOID NICKING SEAL FABRIC, AS THIS
COULD RESULT IN TEARING THE SEALS WHEN DONNING AND DOFFING, AND ALSO
COULD RESULT IN SKIN IRRITATION. TRIM ONLY 1/8” AT A TIME. YOU CAN ALWAYS
TRIM MORE, BUT YOU CAN’T REPLACE WHAT YOU HAVE CUT OFF.
REQUIRED MATERIALS: Ruler, sharp scissors and a white china marker
or silver pen.
Only the neoprene wrist seals can be trimmed using this procedure.
1. Trim only 1/8” at a time. Using a ruler mark a circular line around the seal that
is oset from the edge of the cu end by 1/8”.
2. Using sharp scissors carefully cut the cu end at the marked line. Evaluate the
fit and repeat step 1 & 2 until there is a proper fit.
NOTE: VISUALLY INSPECT THE TRIMMED EDGE FOR NICKS. IF THE CUT IS NOT SMOOTH
AND STRAIGHT CAREFULLY TRIM OUT ANY NICKS. NICKS CAN CAUSE A TEAR DURING
DONNING AND DOFFING
3. After trimming seals, have the user don the suit to determine seal restriction
and water-sealing characteristics. Make any additional adjustments to the seal.

6 MUSTANG SURVIVAL/ OWNER'S MANUAL – WATER RESCUE DRY SUIT
FIGURE 3
FIGURE 4
FIGURE 5 FIGURE 6

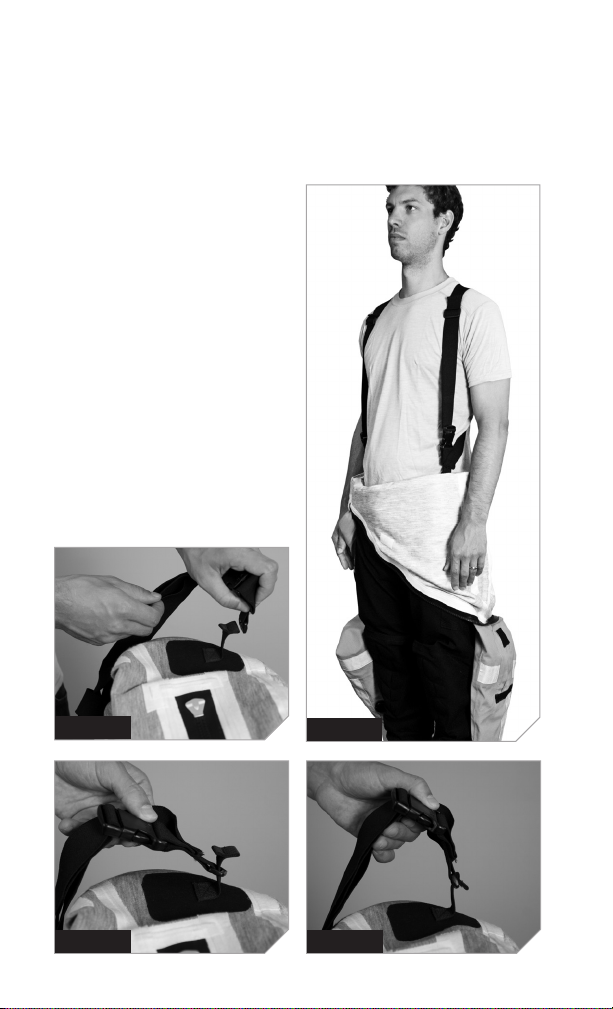

1. Completely unzip the entry zipper.
2. Open the suit so that the two
attachment points are visible.
3. Thread the end of the nylon strap
attached to the suit through the
rectangular clip on the suspenders.
4. Once the nylon strap has been
threaded, flare the sewn folds
on the strap to prevent it from
passing back through the
rectangular clip.
5. Repeat these steps for the other
attachment point.
6. Use the suspender strap ends to
adjust for a secure comfortable fit.
ATTACHING SUSPENDERS
To attach suspenders please follow the instructions below.
The removable suspenders can be used to improve fit, lower in-water
resistance and reduce rescuer fatigue. Suspenders can be adjusted to
a comfortable and secure position.

7
DONNING & DOFFING THE DRY SUIT
Before donning the suit, ensure that appropriate undergarments have
been selected for the conditions.
CAUTION: ALWAYS DON THE DRY SUIT ON A CLEAN SURFACE SUCH AS A TOWEL OR
TARP TO AVOID ATTRACTING DEBRIS. PEBBLES, SAND, DIRT AND OTHER DEBRIS ON
THE GROUND CAN CAUSE DAMAGE TO DRY SUIT SOCK AND COMPROMISE THE SUIT’S
INTEGRITY.
CAUTION: USE EXTREME CARE WHEN DONNING THE DRY SUIT. PRIOR TO DONNING,
REMOVE ALL RINGS, WATCHES, EARRINGS, NECKLACES AND EYEGLASSES THAT WILL
CAUSE DAMAGE TO WRIST AND NECK SEALS. FOOTWEAR OTHER THAN SOCKS MUST
NOT BE WORN INSIDE THE DRY SUIT.
SUIT PREPARATION PRIOR TO DONNING
1. Ensure that the Velcro®wrist covers and ankle covers are unfastened.
2. Ensure waist adjusters are loosened.
3. Ensure that the waterproof entry zipper is fully opened.
4. Ensure the suspenders are pulled out of the suit legs.

8 MUSTANG SURVIVAL/ OWNER'S MANUAL – WATER RESCUE DRY SUIT
DONNING THE SUIT
1. Slide your legs into the suit until your toes reach the end of the socks.
2. Don the suspenders. Ensure they are crossed in back but not twisted.
3. Apply talcum powder inside wrist seals.
4. Place the right arm into the right sleeve.
5. Carefully place the right hand into the right cu by pointing the fingers
straight, tucking the thumb underneath and inserting the hand through the
seal. Do not make a fist when putting your wrist through the seal.
6. Roll the Velcro®wrist covers back and refasten to a snug fit.
7. Repeat Steps 4 - 8 for the left arm.
8. Bring the upper portion of the suit over your head, aligning the neck opening
with the top of the head. Reach inside the top of the neck seal with fingers
and gently pull the seal outward and down as you push your head through.
Flatten any folds or rolls of the seal against the skin.
9. Close the waterproof entry zipper. Reach over your left shoulder with your
right hand and grasp the zipper toggle. While holding the top of the zipper,
pull the toggle down until the zipper is completely fastened.
10. Ensure the waterproof relief zipper is completely closed and the slider is
fully engaged with the zipper stop. Stow the zipper toggle in the yellow loop
located under the zipper cover.
WARNING: FAILURE TO COMPLETELY CLOSE THE WATERPROOF ENTRY ZIPPER
AND THE RELIEF ZIPPER WILL RESULT IN LEAKAGE OF WATER INSIDE THE SUIT
AND REDUCTION OF SURVIVAL TIME WHEN IN THE WATER. HAVE A FELLOW TEAM
MEMBER DOUBLE-CHECK EACH SLIDE FASTENER TO ENSURE THEY ARE COMPLETELY
CLOSED AGAINST THEIR SEALING PLUGS.
11. Tighten the ankle Velcro®covers to a snug fit.
12 Burp the suit before water entry. Cross arms in front and gently slide fingers
between the neck seal and your neck, squat down and force excess air
through the neck opening.

9
DOFFING THE DRY SUIT
1. Remove all equipment worn over the suit.
2. Thoroughly rinse down the exterior of the suit while wearing it, paying special
attention to the seals and zippers. Remove all dirt, salt and debris.
3. Loosen Velcro®waist and ankle adjustment tabs.
4. Completely open the waterproof zipper. If not completely open, the zipper
faces the risk of damage to the zipper during dong.
CAUTION: PLACING UNDUE FORCE ON THE ZIPPER MAY DAMAGE THE SEAL AND
HARM THE INTEGRITY OF THE SUIT. NEVER FORCEFULLY YANK ON THE ZIPPER.
5. Insert fingers between neck seal and neck. Gently stretch the seal outward
and upward while pulling neck seal over your head.
6. With an unclenched fist, slowly pull each hand through wrist seals while
holding the rubber seal open.
CAUTION: PULLING ON THE WRIST SEAL MAY DAMAGE THE SEAL.
NOTE: IF WEARING SUSPENDERS, REMOVE SUSPENDERS PRIOR TO PROCEEDING.
8. Pull suit down past hips and slide legs from the suit.
9. Follow the cleaning and storage instructions for the suit.

10 MUSTANG SURVIVAL/ OWNER'S MANUAL – WATER RESCUE DRY SUIT
STORING THE DRY SUIT
Hang the suit with the entry zipper open and the relief zipper closed.
CLEANINGANDMAINTENANCE
CLEANING
1. Thoroughly rinse your dry suit after every use.
CAUTION: DO NOT DRY CLEAN. DO NOT IRON. DO NOT BLEACH.
2. Treat stains with a pre-wash treatment such as Shout®or
Spray ‘n Wash®. Follow the manufacturer’s instructions. Rinse well.
3. Machine wash warm (104° F/40° C) on gentle cycle using a gentle powder or
liquid detergent. Do not use fabric softener, bleach or wash-in treatments, as
they can aect the suit’s breathability.
CAUTION: USE ONLY A FRONT LOADING WASHING MACHINE OR AN TOP LOADING
WASHING MACHINE THAT DOES NOT HAVE AN AGITATOR POST. WASHING MACHINES
WITH AGITATOR POSTS CAN DAMAGE THE SUIT.
4. Tumble-dry using an air setting

11
FIGURE 9
FIGURE 8
MAINTENANCE
Regular zipper maintenance is recommended to maintain a water-
tight seal, inhibit corrosion and keep the zipper gliding freely. These
steps are essential to zipper longevity:
FOR PLASTIC YKK AQUASEAL® RELIEF ZIPPER:
1. Clean the zipper of any heavy deposits of mud, sand, salt or foreign
substances by gently brushing and rinsing the zipper with fresh water.
2.YKK® zippers need to be lubricated on the docking end approximately
every 15-20 days of field use. One package of zipper lubricant is included
with your suit. Only use lubricant recommended by Mustang.
Visit: www. mustangsurvival.com for information.
a. Open the zipper to expose the W-SEAL.
b. Open the zipper lubricant by either ripping the package or tearing at the
notch cut-out on the plastic tube seal.
c. Squeeze the package or tube gently and apply a small amount of
lubricant to the W-SEAL as indicated in the image. Only apply to the
indicated areas.
d. Flip over the zipper end and lubricate the back in the same highlighted
areas as the front.
e. Close the zipper.
3. Repeat before long term storage.
CAUTION: DO NOT LUBRICATE THE ZIPPER TEETH.
NOTE: DO NOT DISCARD THE BLISTER PACKAGE OR PLASTIC TUBE. THE ZIPPER
LUBRICANT CAN BE STORED IN THE ZIPLOCK BAG AND REUSED.
FOR METAL YKK ENTRY ZIPPER:
1. Clean the zipper of any heavy deposits of mud, sand, salt or foreign
substances using warm soapy water. Rinse, and let dry.
2. Apply a recommended lubricant to the outer elements of the zipper only.
Recommended zipper lubricants are Zip Tech and Zip Care by McNett and
Zippy Cool by YKK® USA.
3. Open and close the zipper TWICE, then store the unit with the zipper OPEN.
4. A suit that is used daily requires steps 1 to 3 to be done on a weekly basis, as
a minimum, paying close attention to more frequent cleaning of the zipper
as required.

12 MUSTANG SURVIVAL/ OWNER'S MANUAL – WATER RESCUE DRY SUIT
FOLDING AND PACKING
1. Ensure that the suit is thoroughly clean and dry and that the main entry zipper
is in the open position and the relief zipper is in the closed position before
folding and packing.
2. Lay the suit flat on its back on a horizontal; clean surface, allowing the suit to
be fully extended with none of the parts overlapping.
3. Fold the left sleeve, from the shoulder, straight across the body of the suit.
Fold the right sleeve, from the shoulder, straight across the body of the suit on
top of the folded left arm.
4. Fold the socks over top of the legs until they reach crotch level.
5. Fold the legs, from the crotch, up to the chest level, right below the folded
sleeves.
6. Fold the suit in half.
7. To pack, roll or fold the suit ensuring that the zippers do not crease.
REPAIRS
The protection provided by this dry suit relies very much on its
watertight characteristics. It is extremely important that damaged
suits are handled in accordance with repair requirements.
The Water Rescue Dry Suit takes advantage of Mustang’s Rapid Repair
Technology™,enabling users to self-replace neck and wrist seals and
repair small leaks in an hour or less. For detailed information on repair
procedures please visit the below website and download the user
manual: www.mustangsurvival.com/rapid-repair-technology
All major repairs should be performed by the manufacturer. For
inspection, testing, and repair information, please contact our
customer service department at: 1 800 526 0532 or email:
[e-mail]
ACCESSORIES
The following Accessories are available for your Water Rescue
Dry Suit:
NEOPRENE SURVIAL HOOD (PART # MA7348)
SENTINEL DRY SUIT LINER (PART # MSL600)
SENTINEL FEMALE DRY SUIT LINER (PART # MSL601)
PLASTIC YKK AQUASEAL® ZIPPER LUBRICANT (PART # MA0094)
ZIP TECH LUBRICANT FOR METAL YKK ZIPPER (PART #MA2292)
SENTINEL™ SERIES BASE LAYERS (MSL/602/603/604/605/606)
For more information on these items please visit:
www.mustangsurvival.com

13
WARRANTY INFORMATION
LIMITED WARRANTY/ Mustang Survival products are warranted to be free
from defects in materials and workmanship for a period of one year
from the date of purchase by the initial purchaser (the Customer
End user) under normal and intended conditions and use. Proof of
purchase may be required at the discretion of Mustang Survival.
Products, which, in the sole judgment of Mustang Survival, have
received excessive or abusive use or have been altered in any way by
a dealer, the Customer or any other person, will not be covered by
this limited warranty. Mustang Survival requires return of the product
(postage or delivery costs prepaid by Customer) for inspection before
determining whether the product will be covered under limited
warranty.
A return authorization is required before the goods are returned and
should be obtained by contacting our Customer Service Department.
Once returned, Customer Service, Quality Assurance and Sales
Departments inspect the product as required. It is then determined
whether the product will be covered under this limited warranty. If
the product is deemed to be covered under our warranty policy, it
will either be repaired or replaced at the sole discretion of Mustang
Survival at no charge to the Customer.
The only obligation or liability of Mustang Survival under this
limited warranty is to repair or replace the product and Mustang
Survival shall not, under any circumstances be liable for loss of use
or any consequential damages sustained by the Customer. All other
warranties expressed or implied, and remedies with respect to the
condition or use of the product, which might otherwise be provided
by law in any jurisdiction, are specifically excluded.
CONTACT
For further information concerning this manual or the suit, contact
Mustang Survival:
TF 1 800 526 0532
E [e-mail]

MUSTANG SURVIVAL AND SEAHORSE DESIGN ARE ALL REGISTERED TRADEMARKS OF
MUSTANG SURVIVAL ULC.
DO NOT REMOVE PRIOR TO SALE.
HT0576 REV 22JUL2019
MUSTANG ENGINEERED
For 50 years Mustang Survival has been engineering high-
performance marine gear for military, coast guard, and rescue
personnel. With a focus on applied research and field-testing,
we’re committed to the protection and enhancement of those
who push themselves to extremes. We build gear that saves lives
and fuels exploration.
www.mustangsurvival.com
