myPhone Hammer Energy User manual

USER MANUAL
myPhone Hammer Energy
(smartphone)
Lot number: 201609

©2016 myPhone. All rights reserved. Hammer Energy
Thank you for choosing the device
myPhone Hammer Energy. Please read
the Manual carefully.
SAFETY
Read these simple guidelines. Not
following them may be dangerous or
illegal DO NOT RISK
Do not switch on the phone when the
use of mobile phones is prohibited or if
it might cause interference or danger.
ROAD SAFETY
Do not use the mobile phone while
driving a car.
INTERFERENCE
All wireless devices may be susceptible
to interference, which could affect
performance of the device.
RESTRICTED AREAS
Switch OFF your telephone in a plane
since it may disturb the operation of

©2016 myPhone. All rights reserved. Hammer Energy
other equipment located therein. The
telephone may interfere with operation
of the medical equipment in hospitals
and health protection entities. Abide by
any kinds of bans, regulations and
warnings transferred by the medical
staff. QUALIFIED SERVICE
Only qualified personnel may install or
repair this product. Repairing by an
unauthorized service may cause a
phone damage and warranty loss.
BATTERY AND ACCESSORIES
Avoid exposing the battery to very
high/low temperatures (below 0°C/32°F
and over 40°C/104°F). Extreme
temperatures may influence capacity
and battery life. Avoid contact with
liquids and metal objects as it may
cause partial or complete battery
damage. The battery should be used
according to its purpose. Disconnect an
unused charger from mains supply.

©2016 myPhone. All rights reserved. Hammer Energy
Excessive charging the battery can
cause damage. Therefore, a single
battery charge should not last longer
than three days. In case of a damage
the charger should not be repaired but
replaced with a new one. Use only
original myPhone accessories available
with your phone. Installing an incorrect
battery type can cause explosion.
Please dispose of battery according to
the instructions. In a case that the
charger wire is damaged, it should not
be repaired but the charger should be
replaced with a new one. Use the
original manufacturer’s accessories
only. ALARM CALLS
Making alarm calls may not be possible
in some areas or circumstances. It is
recommended tofind an alternative way
to notify emergency services if you are
going to undeveloped or remote areas.

©2016 myPhone. All rights reserved. Hammer Energy
WATERPROOF
The device contains IP68 certificate.
According to which, the device is
dustproof and waterproof when all of the
rubber seals are intact and properly put
in place, as well as when the cover has
been tightened properly with screws.
We also advise you to not immerse your
phone in water or other fluids without a
reason. Water particles may result in
occurrence of moisture inside the
device and this is not of any positive
impact upon operation of electronic
components. When immersed in water
or other fluids you should wipe and dry
the device as soon as possible.
CHILDREN
The phone is not a toy. The memory
card and the SIM card are small enough
and may be swallowed by a child or
result in its choking. Keep the device
and its accessories out of reach of
children.
USING THE MANUAL

©2016 myPhone. All rights reserved. Hammer Energy
Before you use the device refer to
information about safety precautions
and instructions for using the phone.
The descriptions in this manual are
based on the default settings of the
phone. The latest version of the user
manual can be found on website:
www.myphone.pl.
Depending on the installed version of
the software, service providers, SIM
card or country, some of the
descriptions in this manual may not
match your phone.
PETROL STATION SAFETY
Always turn off the phone while
refueling your car on petrol station. Do
not use your phone close to chemicals.
WI-FI (WLAN)
In the European Union Member States,
a WLAN network may be used indoors
without any restrictions. In France, a
WLAN network may not be used
outdoors.

©2016 myPhone. All rights reserved. Hammer Energy
PHYSICALLY OR MENTALLY DIS-
ABLED PERSONS
The device should not be operated by
persons (including children) of limited
physical or mental predispositions, as
well as by persons of no earlier
experience in operation of electronic
equipment. They may use the device
only under supervision of persons
responsible for their safety.
SOUNDS
To avoid hearing damage, do not
use the device at high volume
levels for a long period of time, do not
put operating device directly to the ear.
SIGHT
To avoid any damage to your sight,
do not look closely at an activated
flash light. A powerful ray of light may
lead to a permanent damage to your
eyes.

©2016 myPhone. All rights reserved. Hammer Energy
Manufactured by:
myPhone Sp. z o.o.
ul. Nowogrodzka 31
00-511 Warszawa
Polska
Customer service:
myPhone Sp. z o.o.
ul. Krakowska 119
50-428 Wrocław
Polska
phone: [phone]
E-mail: [e-mail]
website: www.myphone.pl

©2016 myPhone. All rights reserved. Hammer Energy
MyPhone Hammer Energy contents
Before you start using your phone,
make sure all of the following items are
included in the box:
•Mobile telephone myPhone
HAMMER ENERGY
•wired headset
•mains charger (adapter + USB wire)
•operating instructions
•guarantee card
•screwdriver
If any of the above items is missing or
damaged, please contact your dealer.
There is a sticker containing the IMEI
and serial number on the packaging of
myPhone Hammer Energy set. We
advise you to keep the packaging for a
case of a possible complaint.
Therefore it is recommended to keep
the packaging in case of any complaint.
Keep the container out of reach of
children.

©2016 myPhone. All rights reserved. Hammer Energy
myPhone Hammer ENERGY
overview
Nr
Icon
Function
1
nanoSIM/microSD tray
2
LCD screen
3
Headphone jack 3.5mm
mini jack

©2016 myPhone. All rights reserved. Hammer Energy
4
Brightness and proximity
sensors
5
Internal speaker
6
Front 2 Mpx camera
7
Main/Rear 8Mpx camera
8
LED Flashlight
9
Volume buttons Up/Down
10
On/Off/Lock button
11
Microphone
12
Main speaker
13
MicroUSB connector
Specifications
Parameters
Description
Processor
Quad Core Cortex-
A53 1,5 GHz
MT6737 / Mali-
T720MP2 600 MHz

©2016 myPhone. All rights reserved. Hammer Energy
Rear camera
(main)
8 Mpx with LED
light
Front camera
2 Mpx
RAM memory
2 GB
Internal memory
16 GB
Card reader
microSD (up to 32
GB)
Operating system
Android™6.0
Marshmallow
Dual SIM
2 x nanoSIM
(hybrid)
Dustproof and
waterproof
IP68
Connectors
microUSB,
minijack 3,5 mm
Communication
Wi-Fi 802.11 b/g/n,
Bluetooth, GPS z
A-GPS
GSM
850/900/1800/
1900 MHz
WCDMA (3G)
900/2100 MHz
Rechargeable
built-in Li-po 5000

©2016 myPhone. All rights reserved. Hammer Energy
battery
mAh
Loader input
characteristics
100-240 V~, 50/60
Hz, 0,5 A
Loader output
characteristics
5, 7,9 V , 1,67 A;
12 V , 1,25 A
Dimensions
146,6×75,9×13,95
mm
Telephone
201 g
First steps
Installation of nanoSIM cards
myPhone Hammer ENERGYwas made
in Dual SIM technology, which enables
the use of two mobile networks
simultaneously. To correctly insert
nanoSIM cards you must:
•Turn off the phone.

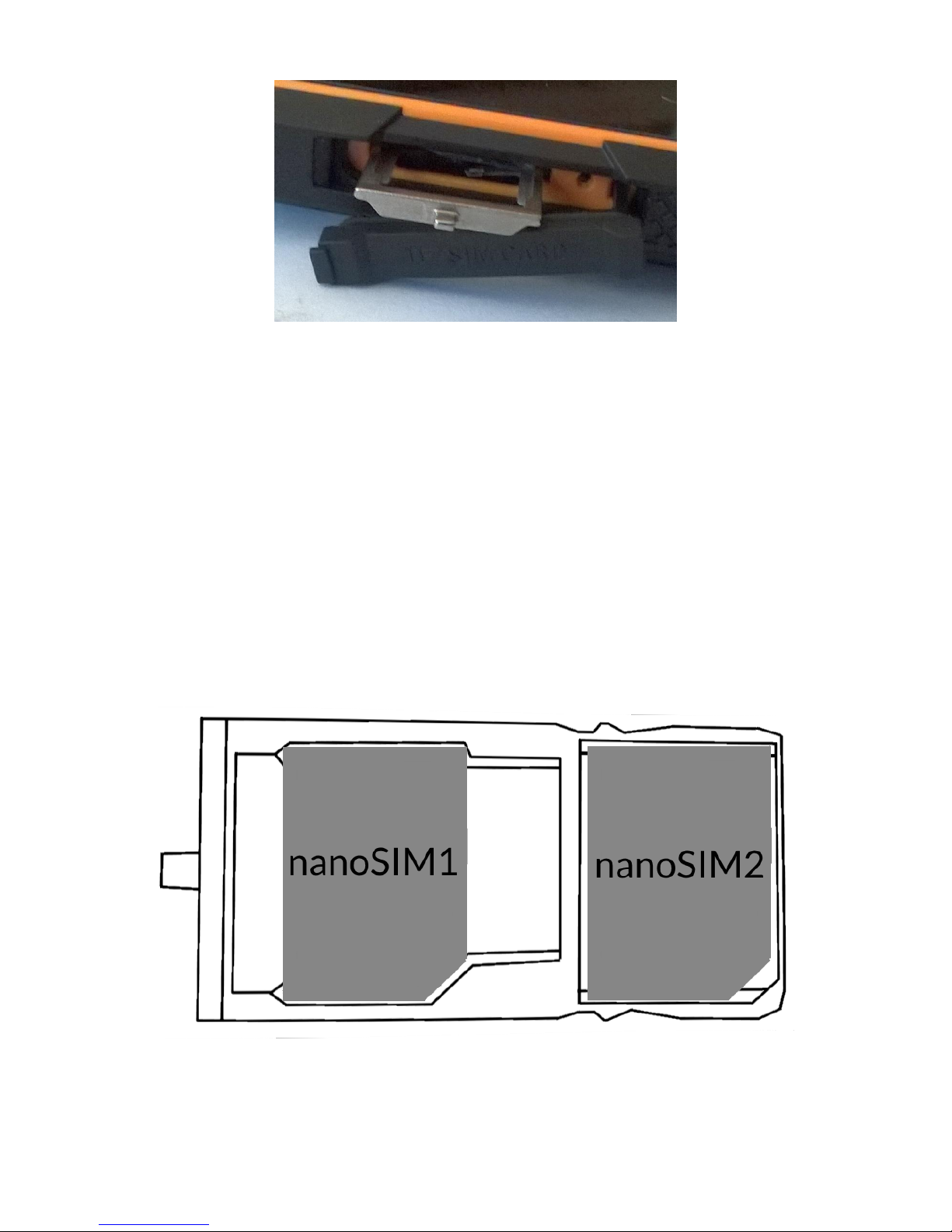

•Remove the rubber seal, seen on the
picture below:

©2016 myPhone. All rights reserved. Hammer Energy
•By using special tool added to the
device open (insert it in the hole
firmly) and pull out the SIM tray, as in
the above picture.
•Insert the nanoSIM card in the tray
as in the picture below.
•Insert the tray with nanoSIM cards.

©2016 myPhone. All rights reserved. Hammer Energy
Installation of memory card
The phone memory can be expanded
with memory cards. Remember to use
only memory cards recommended by
the manufacturer, usage of other types
of memory cards than microSD with the
recommended capacity may result with
irreversible damages to this machine or
the corruption of your stored data.
To properly insert a memory card:
•Turn off the phone.
•By using special tool added to the
device open and pull out the SIM
tray.
•Instead of a nanoSIM, insert a
microSD card as in the picture
below.

©2016 myPhone. All rights reserved. Hammer Energy
Charging the battery
Remember to use only batteries
recommended and approved by the
manufacturer for this model. Replace or
deliver the battery to the service center
in case of any problems with it.
To properly charge the battery you
must:
•Plug the charger into the device’s
microUSB socket. Remember that
improper connection of the charger
(USB cable) can damage the unit or
AC adapter. Any damage resulting
from improper handling are not
covered by the warranty.
•Connect the charger to the AC
outlet. Once you start charging the

©2016 myPhone. All rights reserved. Hammer Energy
battery, in the upper right corner of
the screen the battery icon will
change to an animated lightning
symbol, if the device was turned off
it should appear as an animation
depicting the level of battery charge.
During the charging process, the device
may heat up. This situation is
completely normal and it should not
affect the lifespan and efficiency of your
device.
•When the charge level reaches
100% it means that the battery has
been charged and the process
should be finished.
•Plug out the charger from the AC
outlet and from the device.
In case of any problems with the
charging process, both the device and
its charger should be delivered to the
manufacturer’s service.
Turning on / off the phone

©2016 myPhone. All rights reserved. Hammer Energy
To turn on the phone press and hold (for
about 3 seconds) the on/off/lock key. To
turn the phone off press and hold (for
about 3 seconds) the on/off/lock key
and select: [Power off].
First use of a new SIM card:
Enter 4-digit PIN code and confirm.
Be aware that the PIN is a 4 digit
number, you have only 3 attempts to
input it correctly. After the third incorrect
entry, the SIM card might be unlocked
only via entering the PUK code. The
terms PIN and PUK pertain to the
documentation received from your
mobile operator.
Connection with a computer
To connect myPhone Hammer
ENERGY to a computer with the
operating system Microsoft Windows
7/8/10/Vista/XP, use the USB cable

©2016 myPhone. All rights reserved. Hammer Energy
included in the box as follows:
•Connect the USB cable to the
multifunction microUSB connector.
•The other end of the cable put into
the USB port on your computer.
•When the device is connected, the
appropriate notification will appear
on your computer screen.
•On your phone, swipe from the top
edge to the bottom and click "USB
charging mode." There are more
options.
•Touploadfiles,select"FileTransfer".
•From the window that should appear
on your computer screen, select
"Open device to view files".
•Now you can exchange files
between your phone and computer.
Indicator icons
Various information may appear on your
notification bar, most of them will pertain
to the apps that were preinstalled on

©2016 myPhone. All rights reserved. Hammer Energy
myPhone Hammer ENERGY. The
indicator icons that will most commonly
occur on top of your screen are as
follows:
