Model 710 Swing Door System
Low Energy Operator
WARNING
Do not install, operate or service this product unless you have read and understand the Safety Practices,
Warnings, Installation and Operating Instructions contained in this manual. Failure to do so may result
in property damage, or bodily injury.
Part Number 15-10677
August 23, 2004 Revision INSTALLATION MANUAL
G Y R O T E C H
Magnum Board IV.
Retrofit kit (Old Casting)

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 2 -
CAUTION:
Read these safety practices before installing, operating or servicing the automatic door. Failure to follow
these practices may result in serious consequences.
Read, study and understand the operating instructions contained in or referenced in this manual before
operating.If you do not understand the instruction, ask the installing qualified technician to teach you
how to use the door.
This manual and the owners’ manual must be given to and retained by the purchasing facility or end
user.
1. If the door appears broken or does not seem to work correctly, it should be immediately removed
from service and a qualified service technician contacted for corrective action.
2. Disconnect power at the fused disconnect during all electrical or mechanical service. When uncertain
whether power supply is disconnected, always verify using a voltmeter.
3. All electrical troubleshooting or service must be performed by qualified electrical technicians and
must comply with all applicable governing agency codes.
4. It is the responsibility of the installing door technician to install all warning and instructional labels in
accordance with ANSI A156.19.
5. It is the responsibility of the purchasing facility or end user to keep warning and instructional labels
and literature legible, intact and with the door.
6. Replacement labels and literature may be obtained from local NABCO Entrances Inc. distributors.
If the name of the local distributor is unknown, contact NABCO Entrances Inc. at (877-622-2694)
for assistance.
7. Do not place finger or uninsulated tools inside the electrical control box. Touching wires or other
parts inside the enclosure may cause electrical shock, serious injury or death.

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 3 -
Contents
Overview 4
Specifications 5
Handing Requirements 6
Hardware Kit List 7~8
Magnet Switch Assembly 9
Single Door Conversion 10
Simultaneous Pair Conversion 11
Hydraulic Closer 12
Hydraulic Closer Adjustment 13
Setting Back Check and Door Closed Switches 14~18
Simultaneous Pair Installations 19
Control Switches 19
Signage 19
Troubleshooting 20
ANSI/BHMA Specs. 21-22

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 4 -
DN0036
To The Installer The purpose of this manual is to familiarize the purchaser with the proper
installation and operation of this system. It is essential that this equipment be
properly installed and operational before the door is used by the public. It is the
purchaser’s responsibility to inspect the operation of the entrance system to be
sure it complies with any applicable standards. In the United States, ANSI
Standard 156.19 usually covers this type of door. Other local standards or codes
may apply. Use them in addition to the ANSI Standard. The GT 710 is listed
with the Underwriters Laboratory and is identified as such on the label.
Instruct the building owners/operator on the essentials of the operation of the door
and this device. The owner should follow these instructions to determine whether
the door is operating properly and should immediately call for service if there is
any malfunction.
All installation changes and adjustments must be made by qualified, NABCO
trained technicians.
Overview Earlier version of the NABCO GT710 can be retrofitted with the newer Magnum
Control Board (Magnum IV). This combination offers several control features
that accommodate most installations.
This Manual offers step-by-step instructions on how to upgrade an existing
GT710 installation with the Magnum IV and related hardware.
Figure 1 –Overview of GT710 with Magnum IV

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 5 -
Table 1 –Comparison of Magnum IV to the original GT710 Controller
Magnum IV Board GT710 Controller
Adjustable opening speed. Adjustable opening speed.
Adjustable current limit/door block
trip.
Adjustable current limit/door block
trip.
Adjustable activation timer (0 to 60
seconds)
One adjustable timer for activation and
push-n-go (0 to 60 seconds)
Adjustable separate push-n-go timer
(0 to 60 seconds)
None
Adjustable door action when detection
(continuous safety) occurs –allow
door to stop, creep open or creep
closed.
No adjustment.
Automatic shut-off of motor if door
does not open within 30 seconds.
Shut-off occurs when the timer for
activation expired.
Connection provided for swing side
mats and swing side presence detector
(Continuous safety and safety with
lockout).
N/A
Enable/disable sequential operation
via dip switch.
Enable/disable sequential operation via
onboard jumper.
Enable/disable push-n-go via dip
switch.
Wiring change required to activate
push-n-go.
Specifications Power Input 120 (±10%) AC 50-60 Hz, 5Amps
Available current for Accessories 0.5 Amps 24 Volts AC
Available Wire Size for Incoming
Power 14 AWG
Minimum Frame Face for Mounting 1¾” (44 mm)
Minimum Clearance from Top of
Door to Ceiling
7” (178 mm)
Door Hinge Requirements ¾” Butt, Offset Pivot, or Center Pivot
Door Thickness 1 ¾” (44 mm) Minimum
Door Width Specify When Ordering
Tools required 5/32”Hex Key (Allen Wrench)
Phillips Screwdriver #2
Slotted Screwdrivers, Small and Medium
Drill Bits: 11/64”and 7/8”

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 6 -
LEFT HAND
OUT-SWING
(LH)
RIGHT HAND
OUT-SWING
(RH)
LEFT HAND
IN-SWING
(LH)
RIGHT HAND
IN-SWING
(RH)
DN0015

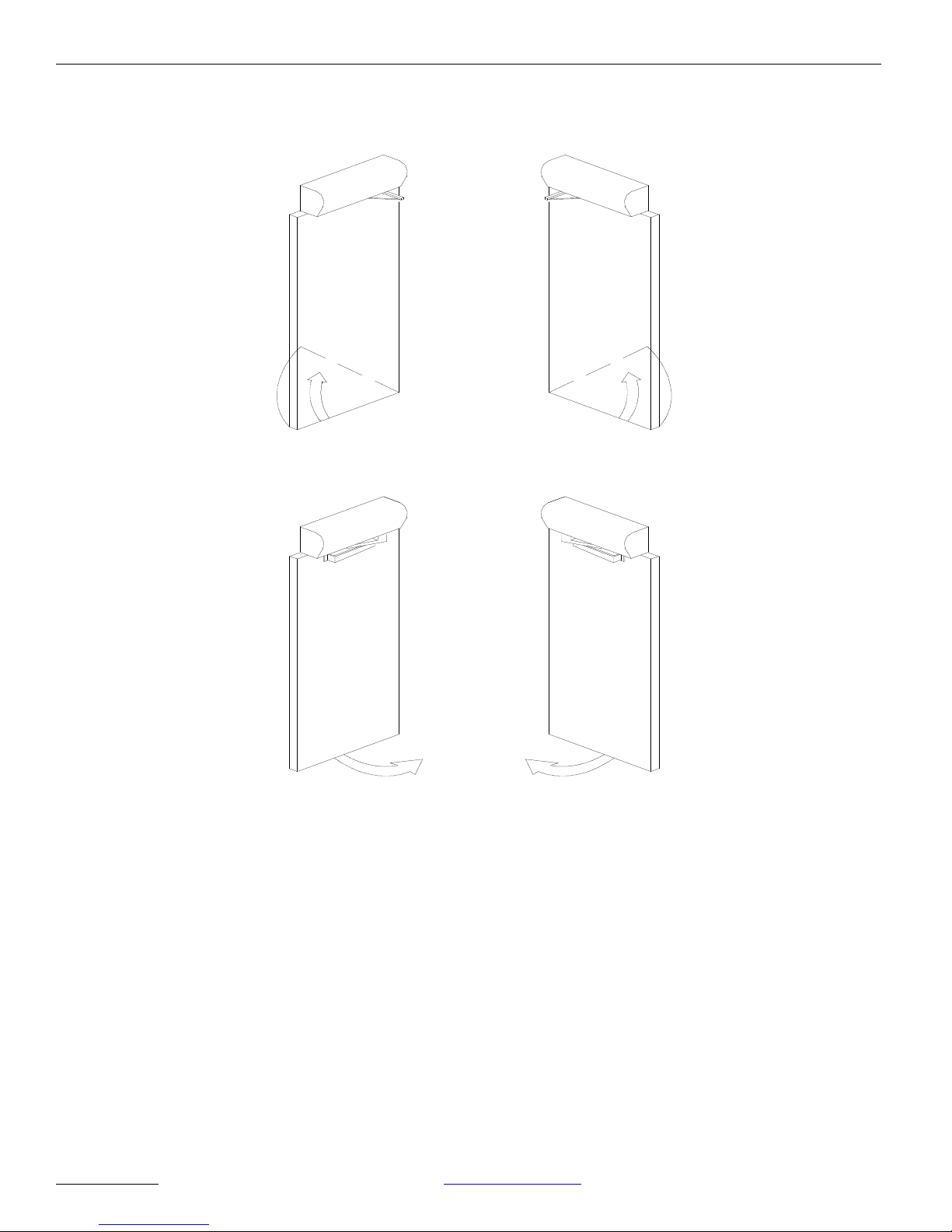

Handing Requirements The type of door will determine whether a left-hand or a right-hand operator is
required. Figure 2can be used to determine which unit is required.
Note:
The hand of the unit and the hand of the door must be the same. The
hand of the unit is not reversible and cannot be converted in the field.
Figure 2–Determine the Swing (Hand) of the Door.

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 7 -
Hardware Kit List
This kit has been shipped with the following installation hardware.
MAGNUM IV RETRO FIT for SINGLE –P/N 11-10361-01
MAGNUM IV RETRO FIT for SIM.PAIR –P/N 11-10361-02
QtyPart #Part Description
Single Sim-
Pair
Notes
All items (#1~#24) would be packed into 8”x6”x6” box (P/N 14-1159).
1 24-9800-04 Magnum IV Control Board 1 2
2 22-10065 Main Harness -Single 1--- With Terminal Block
3 22-10270 Main Harness –Simultaneous Pair --- 1With Terminal Block
4 11-10286 Motor Harness 1 2 Four Pin Connector
5 21-9933 Power Harness -Single 1---
6 14-5883 Power Harness –Simultaneous Pair --- 1
7 11-10272 Rocker Switch Assy 1 1 No connector
8 21-9941-01 Magnetic Switch Assy - RH --- 1
9 21-9941-02 Magnetic Switch Assy - LH --- 1
10 21-10005 Magnetic Switch Plate Assy 1---
11 14-9940-01 Label for RH Operator 1---
12 14-9940-02 Label for LH Operator 1---
Use one of Labels.
13 15-10677 GT710 Retrofit Kit Manual 1 1
Packed into a 3”x4” ziplock bag (P/N 14-0828-01).
14 14-9944 Epoxy Package & Stir Stick 1 2
Packed into a 4”x6” ziplock bag (P/N 14-0828-03).
15 14-9960 Wire Saddle 3 6
16 24-1447 Wire Harness Clip 4 8
17 14-9959 Cable Clamp --- 4
18 14-9943 Ceramic Magnet 2 4
19 14-8743 Spacer for Magnum Board 4 8
20 14-1218 Wire Nut 2 4
21 14-1838 Male Pin Housing , 4 circuit 1--- For Magnetic Switch
22 24-0011-014 #10-32x1/2”Phillips Black Oxide
Screw
2 2 For Rocker Switch
23 24-4941-19 3/8-16x3/4”Hex Washer Head Screw,
F
2 4 For Magnetic Switch
24 24-0010-01 #10-24x7/8”Socket Head Cap Screw 4 8 For Magnum Board

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 8 -
LED
TRANSFORMER
CAPACITOR
O F F
1 2
AUX
PWR
4
J2
3
J5
AC IN
F2
SW2
SW1
F1
RELAY
R2
RELAY
R3
J4
R4 R5 R6 R7 R8
TDAS
SIGNAL
INPUT
TDPG LCHK CLOSE
Fuse 2: 0.5A 24 VAC
STOP OPEN BCHK
CURRENT
LIMIT MOTOR
J1
R28
MAGNUM IV
Fuse 1: 3A 120/240
P/N 24-0010-01
Socket Head Cap Screw
#10-24x7/8"
P/N 24-4941-19
Hex Washer Head Screw, Type F
3/8-16x3/4"
P/N 24-0011-014
Phillips Head Black Oxide Screw
#10-32x1/2"
P/N 14-8743
for Magnum Board
Spacer
P/N 14-1838
4 circuit
Male Pin Housing
P/N 14-1218
Wire Nut
P/N 14-9943
Ceramic Magnet
(2)
Wire Nut
P/N 14-9944
Epoxy & Stir Stick
Epoxy and Stir Stick
P/N 24-1447
Wire Harness Clip
P/N 14-9959
Cable Clamp
P/N 14-9960
Wire Saddle
P/N 14-5883
Power Harness - Sim.Pair
P/N 11-10272
Rocker Switch Assy.
Off
On
Hold Open
Off
P/N 22-10065
Main Harness - Single P/N 21-9933
Power Harness - Single
1
P/N 11-10286
Motor Harness
P/N 24-9800-04
Magnum IV Board
P/N 22-10270
Main Harness - Sim. Pair
DN0037 Figure 3 –Installation Hardware

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 9 -
R/L
Mounting Magnetic Switch subassy
5/16-18 x 3/4" Hex Washer Head, Type F P/N 24-4941-19
Door
Closed Switch
Back
Check
Switch
For
RIGHT HAND
Units
For
LEFT HAND
Units
Door
Closed
Switch
Back
Check Switch
3
4 2 1124 3
Magnetic Switch Right Hand P/N 21-9941-01
Magnetic Switch Left Hand P/N 21-9941-02
DN0038
Figure 4 –Magnetic Switch assembly

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 10 -
WIRE Hrness Clip P/N 24-1447
WIRE SADDLE P/N 14-9960
2. Push the Clip
into the Clip. 1. Insert wires
SCREWS & SPACERS P/N 24-4941-16 & 14-8743
MAGNUM IV BOARD P/N 24-8900-04
MAIN HARNESS P/N 22-10065
SINGLE DOOR CONVERSION of GT710
into the Extrusion.
DN0039
Figure 5 –Single Door Conversion of GT710
