INSTALLATION AND
OPERATION MANUAL
Log Set Burner Assembly
For use with GD19-2 models

This burner and log assembly is approved for use with the GD19N/P-2 gas appliances only. It is not approved for
use as a stand alone appliance or in conjunction with any other appliance.
1.0 general information
2.0 installation
2.1 burner installation
1.0 general information 2
2.0 installation 2
2.1 burner installation 2
2.2 log placement 3
2.3 charcoal embers 4
2.4 glowing embers 4
3.0 adjustment 5
3.1 flame characteristics 5
3.2 venturi adjustment 5
4.0 replacement parts 6
4.1 overview 7
BURNER
ASSEMBLY
SCREW
LOCATIONS
ORIFICE
LOCATION
LOCATING
PINS

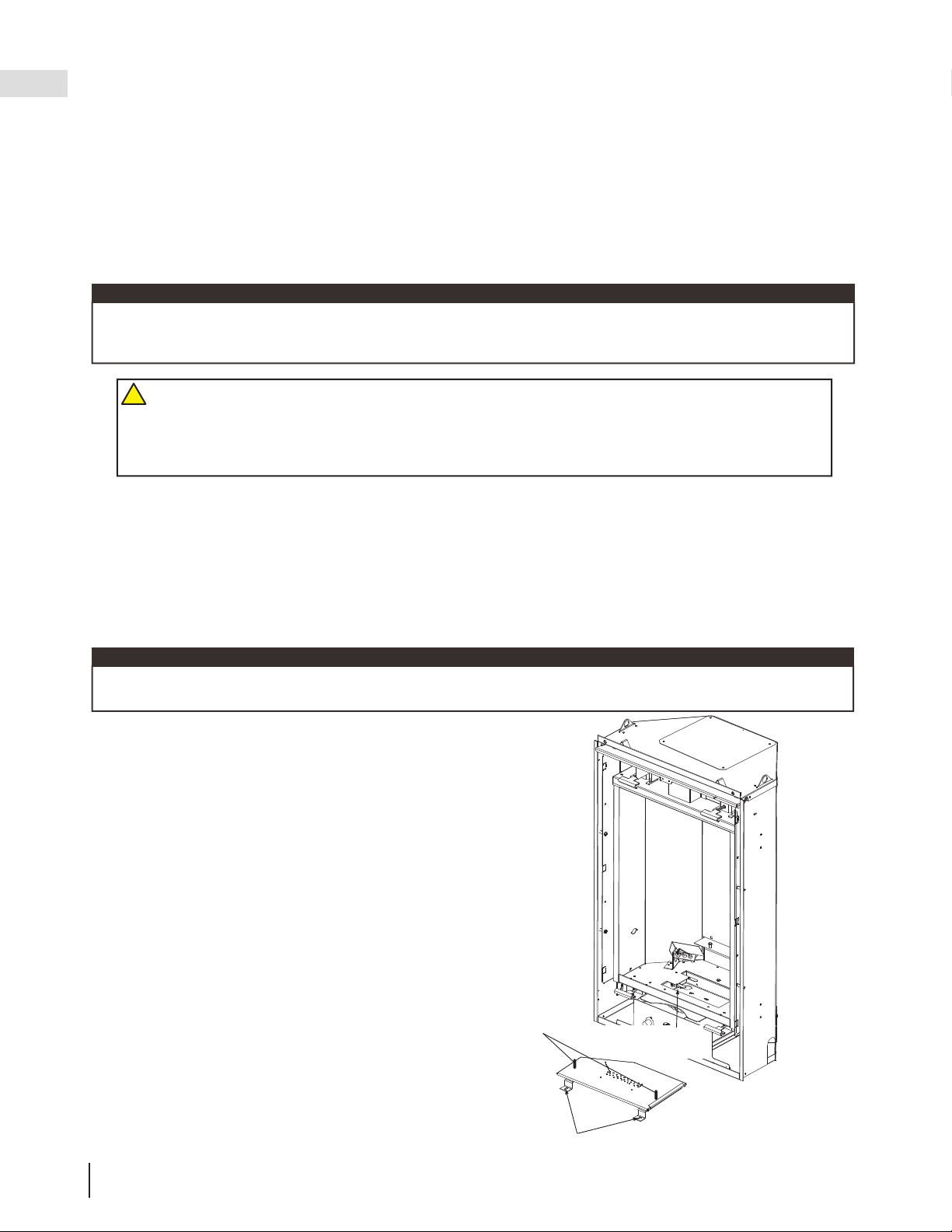

A. Install the burner assembly, ensuring that the venturi tube fits
over the orifice.
B. Secure using screws (supplied).
Before installing the burner, adjust the air shutter for the desired fuel and install the fuel conversion kit if re-
quired (see “venturi adjustment” section).
note:
!
WARNING:
This product can expose you to chemicals including lead and lead compounds,
which are known to the State of California to cause cancer, and chemicals including carbon
monoxide, which are known to the State of California to cause birth defects or other reproduc-
tive harm. For more information, go to www.P65Warnings.ca.gov.
W415-2781 / 10.09.19
EN
2
table of contents
The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves
the right to change or modify any information within this manual at any time without notice. Changes, other
than editorial, are denoted by a vertical line in the margin.
note:

2.2 log placement
A. Place the rear log as shown, ensuring the
holes on the underside are placed onto the 2
pins of the log support.
In order to install the log set, the glass door must be removed (see “safety barrier and glass door” section in the
GD19N/P-2 manual).
C. Place the center log as shown, ensuring the
holes on the underside are placed onto the
two centre pins.
D. Place the hole in the underside of the right log
onto the locating pin on the burner base and
rest it against the rear log as shown.
E. Re-install the glass door.
B. Place the left log as shown, ensuring the hole
on the underside is placed onto the burner pin.
This will rest on the left side of the rear log.
!WARNING
• Failure to position the logs in accordance with these diagrams or failure to use only logs specifically approved
with this appliance may result in property damage or personal injury.
• Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since
appliance may not function properly and delayed ignition may occur.
• The logs are fragile and should be handled with care.
EN
W415-2781 / 10.09.19 3
installation
BRACKET

2.4 glowing embers
2.3 charcoal embers
Randomly place the charcoal embers along the front and sides of the log support in a realistic manner.
Fine dust found in the bottom of the bag should not be used.
!WARNING
• Do not block or close off the burner ports. Blocked ports can cause an incorrect flame pattern, carbon
deposits and delayed ignition.
• When supplied, charcoal embers, charcoal lumps and vermiculite are not to be placed on the burner.
note:
Charcoal embers are not to be placed on the burner.
T
ear the embers into pieces and loosely layer above the burner ports covering the burner area. Care should be
taken to shred the embers into thin, small irregular pieces as only the exposed edges of the fibre hairs will glow.
The ember material will only glow when exposed to direct flame; however, care should be taken to not
b
lock off the burner ports.
Blocked burner ports can cause an incorrect flame pattern, carbon deposits and delayed ignition. PHAZER™
logs glow when exposed to direct flame. Use only certified “glowing embers” and PHAZER™logs available from
your local authorized dealer / distributor.
!WARNING
• Completely blocking the burner ports can cause an incorrect flame pattern, carbon deposits and delayed
ignition.
W415-2781 / 10.09.19
EN
4
installation

Air Shutter Openings
P 1/16”
NG 1/32”
3.0 adjustment

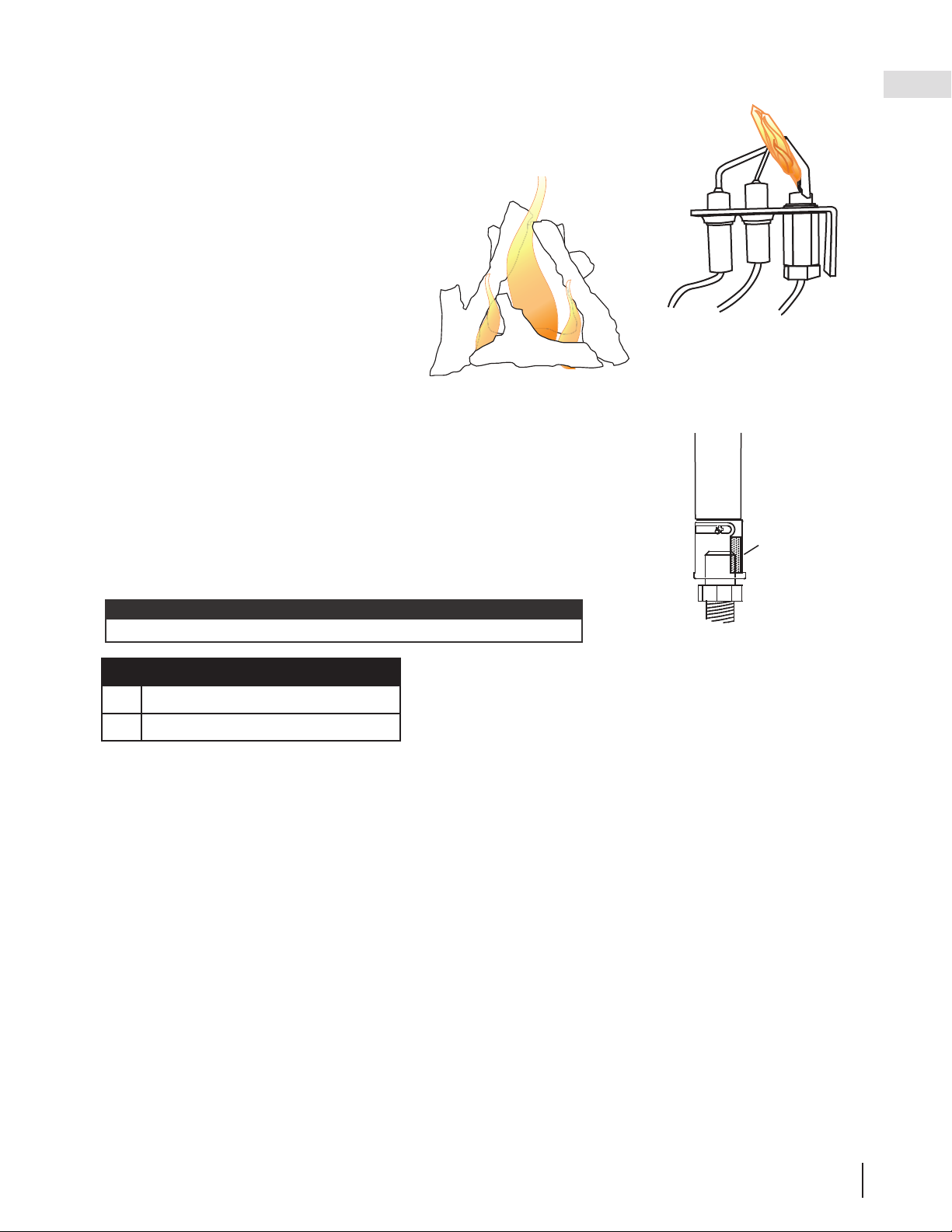

3.1 flame characteristics
3.2 venturi adjustment
It’s important to periodically perform a visual check of
the pilot and burner flames. Compare them to the
illustration provided. If any flames appear abnormal,
call a service person.
This appliance has an air shutter that has been factory set open according to
the chart below:
Regardless of venturi orientation, closing the air shutter will cause a more
yellow flame, but can lead to carbonization. Opening the air shutter will cause
a more blue flame, but can cause flame lifting from the burner ports. The flame
may not appear yellow immediately; allow 15 to 30 minutes for the final flame
colour to be established.
AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED
INSTALLER.
AIR
SHUTTER
OPENING
VENTURI
BURNER
ORIFICE
It is important that the orifice is securely inserted into the venturi.
note:
EN
W415-2781 / 10.09.19 5

Installation and repairs must be performed by a qualified installer, service agency, or the supplier.
note:
W415-2781 / 10.09.19
EN
6
4.0 replacement parts
!WARNING
• Failure to position the parts in accordance with this manual or failure to use only parts specifically approved
with this appliance may result in property damage or personal injury.
Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can
be ordered through your Authorized dealer / distributor.
For warranty replacement parts, a photocopy of the original invoice will be required to honour the
claim.
When ordering replacement parts always give the following information:
• Model & Serial Number of appliance
• Installation date of appliance
• Part number
• Description of part
• Finish
Parts, part numbers, and availability are subject to change without notice.
Parts identified as stocked will be delivered within 2 to 5 business days for most delivery
destinations.
Parts not identified as stocked will be delivered within a 2 to 4 week period, for most cases.
Parts identified as ‘SO’ are special order and can take up to 90 days for delivery.

EN
W415-2781 / 10.09.19 7
replacement parts
6
Ref. No. Part No. Description Stocked
1
2
3 W135-0323
W135-0324 W135-0322 Log #1, rear
Log #2, right Log #3, left Yes
4 5 6
W135-0325 GL-662 W010-1760
Log #3, centre Log set Pan burner assembly
7
8
W361-0016 W550-0001
Glowing embers Charcoal embers
7
8
Yes
Yes
Yes
Yes Yes
1
3
4
2
5
4.1 overview
