NS 75X
Assembly Manual

2
TABLE OF CONTENTS
Before You Assemble.................... 3
Product Specifications .................. 4
Product Features ........................... 4
Parts List / Box Contents ............. 5
Exploded View............................... 6
Hardware and Tool List ................ 7
Assembly Guide ............................ 8
Warranty Information ................... 15
Important Contact Numbers........ 16

3
Nautilus NS75X
BASIC ASSEMBLY PRINCIPLES
Here are a few basic tips that will aid in the assembly of the Nautilus® NS75X. By using these
principles, you can simplify each process and save yourself extra time and effort.
1. To make the assembly process go faster, gather the pieces you need for each step and
thoroughly read the assembly instructions for that step prior to starting assembly for the step.
2. When tightening a locknut on a bolt, use a combination wrench to grip the locknut and ensure
that it is fastened securely.
3. When attaching two pieces, gently lift and look through the bolt holes to help guide the bolt
through the holes.
4. As a general rule, and for all bolts and nuts on your NS75X Bench, turn bolts or nuts toward
the right to tighten and left to loosen. Or you can remember the mnemonic: “Righty tighty, lefty
loosey.”
BEFORE YOU ASSEMBLE

4
PRODUCT SPECIFICATIONS
NOTE: All instructions in the manual are given with the orientation
of sitting on the machine ready to exercise.
User Weight Capacity: 300lbs / 136.1Kg
Dimensions: 56”w x 76”l x 46”h / 142 cm x 193 cm x 117 cm
Shipping Weight: 207 lbs / 93.9 kg
Net Weight: 185 lbs / 83.9 kg

5
Nautilus NS75X
PARTS LIST / BOX CONTENTS
# DESCRIPTION QTY
1 Main Base Assembly ........................1
2 Connecting Tube Assembly .............1
3 Seat Tube Assembly ......................... 1
4 Seat Handle.........................................2
5 Vertical Pulley Bracket ....................1
6 Cable Retaining Bracket ..................1
7 Angled Pulley Bracket ......................1
8 Leg Press Top Link ............................ 1
9 Foot Plate Assembly .........................1
10 Leg Press Front Link Left................... 1
11 Leg Press Front Link Right ............... 1
12 Leg Press Rear Link Left .................. 1
13 Leg Press Rear Link Right ................1
14 Leg Press Power Arm ....................... 1
15 Leg Press Power Link .......................1
16 Seat Back Support Assembly ........1
17 Seat Back Adjuster .......................... 1
18 Ab Crunch Support Arm .................. 1
19 Ab Crunch Arm .................................1
20 Ab Crunch Handle ............................ 1
21 Ab Crunch Pad Support ..................1
22 Ab Crunch Pad ..................................1
23 Leg Press Seat Pad ........................... 1
24 Leg Press Back Pad .......................... 1
25 Leg Press Cable w/ Termination .....1
26 3 1/2” Pulley ....................................... 4
27 4 1/2” Pulley ....................................... 3
28 Plastic Cap ......................................... 1
29 Pivot Shaft .......................................... 5
HARDWARE
30 Hex Bolt - 1/2” x 7”L .......................... 1
31 Hex Bolt - 1/2” x 3”L .......................... 2
32 Hex Bolt 3/8” x 3 1/4”L ......................7
33 Hex Bolt 3/8” x 3”L ........................... 14
34 Hex Bolt 3/8” x 2 3/4”L ......................5
35 Hex Bolt 3/8” x 2”L ............................ 3
37 Hex Bolt 3/8” x 1”L ........................... 13
38 Button Head Screw
3/8” x 3/4”L w/ Thread Lock ........... 15
39 1” x 1/2” Flat Washer ........................ 6
40 3/8” Flat Washer ............................... 60
41 Shim Washer ..................................... 1
42 1/2” Lock Nut ..................................... 3
43 3/8” Lock Nut .................................... 30
44 Step Spacer - 5/8”H ..........................8

6

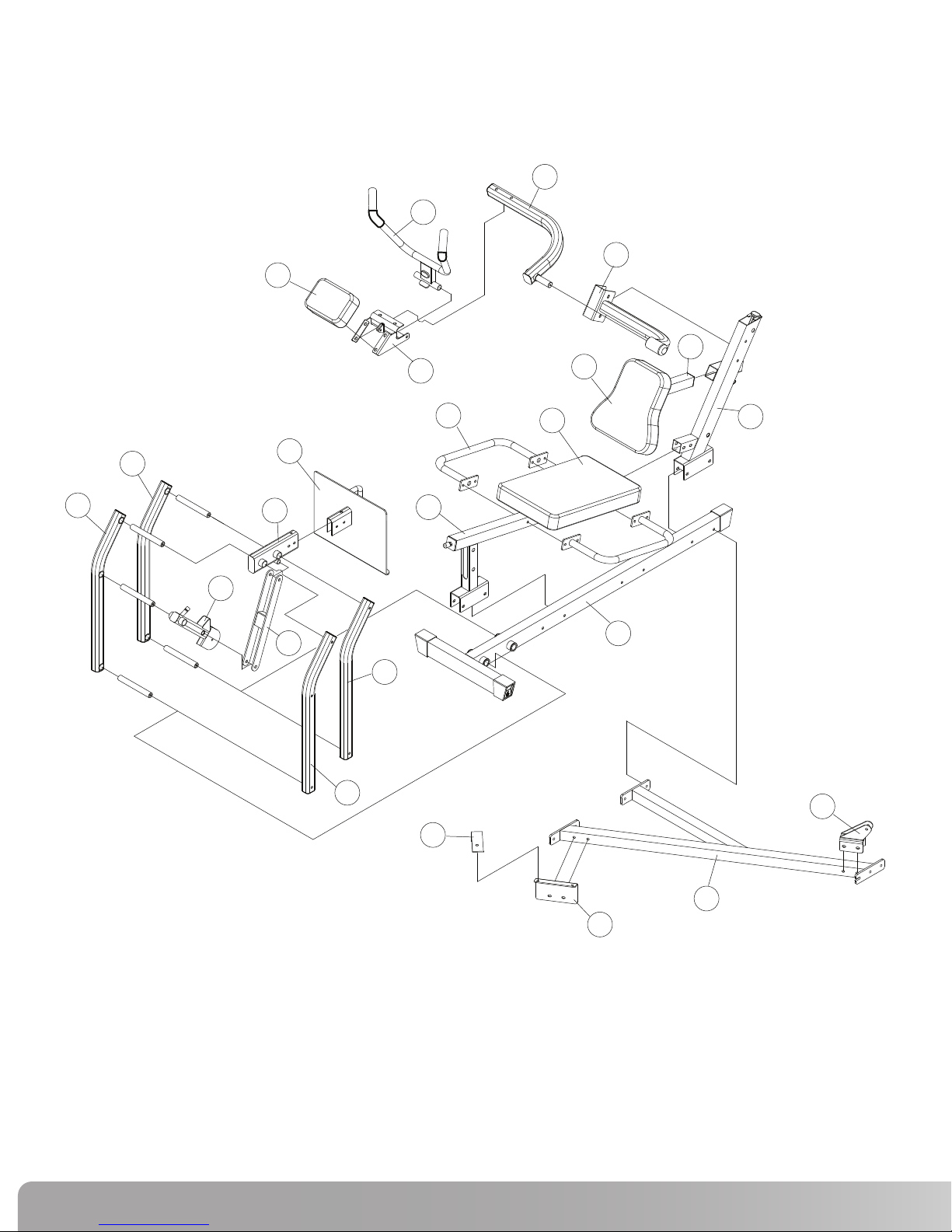

EXPLODED VIEW
• Compare the Bill of Materials to the box contents to insure that all parts are present before installation begins.
2
7
12
15
14
6
5
1
10
13
11
8
9
22
24
21
3
423 16
20
18
17
19
5
7
6
4

7
Nautilus NS75X
HARDWARE AND TOOLS
NS-75
4

8

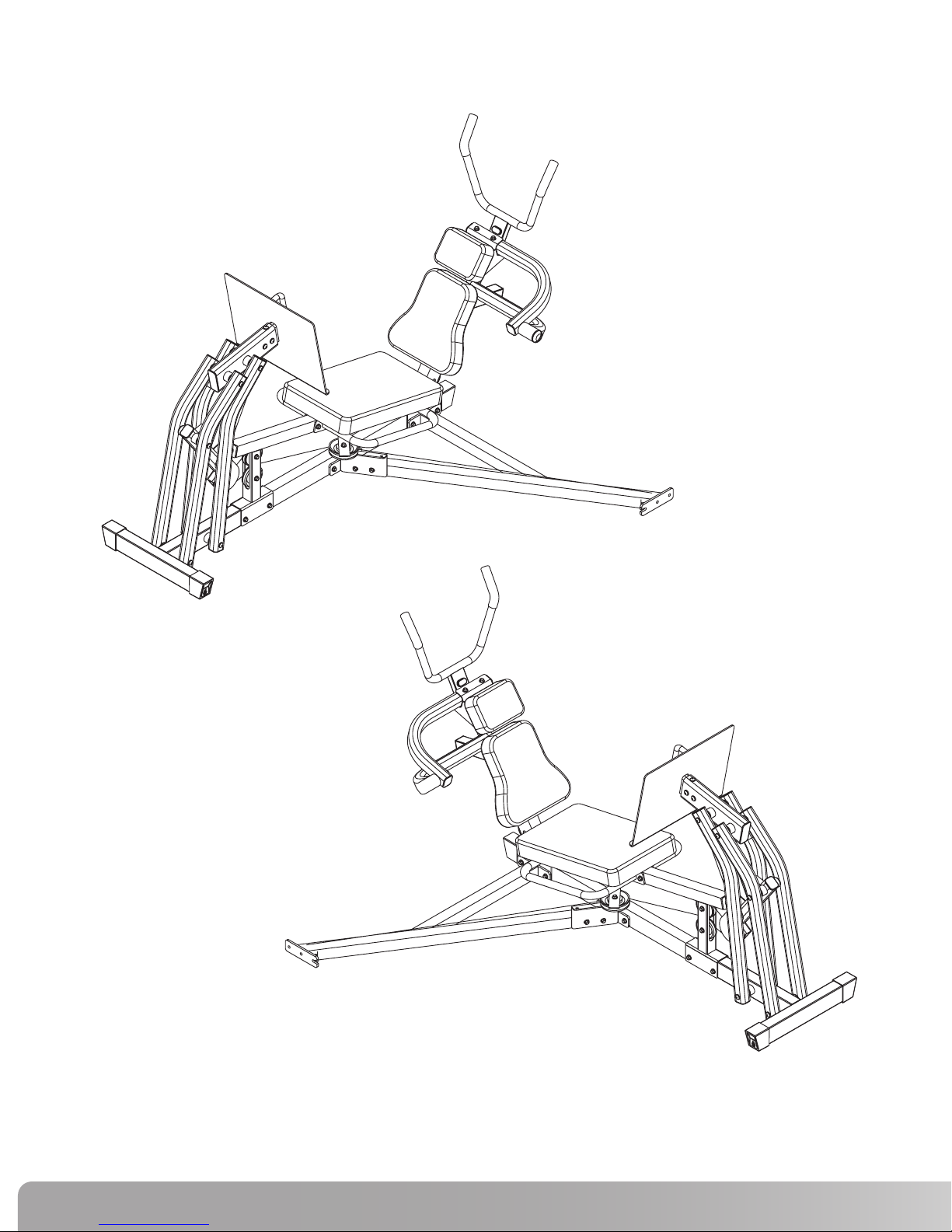

NS75X Leg Press attachment can be assembled in a right or left configuration for
use on the NS300X ,NS200X, NS600X and NS700X. You may also mount the Ab Crunch arm on
either side to most efficiently use space.

9
Nautilus NS75X
Procedure:
ASSEMBLY
STEP 1
# Component Qty
Step 1 Components:
2 Connecting Tube Assembly 1
5 Vertical Pulley Bracket 1
32 Hex Bolt - 3/8” x 3 1/4”L 1
33 Hex Bolt - 3/8” x 3”L 3
40 3/8” Flat Washer 8
43 3/8” Lock Nut 6
45 Hex Bolt - 3/8” x 3 1/2”L 2

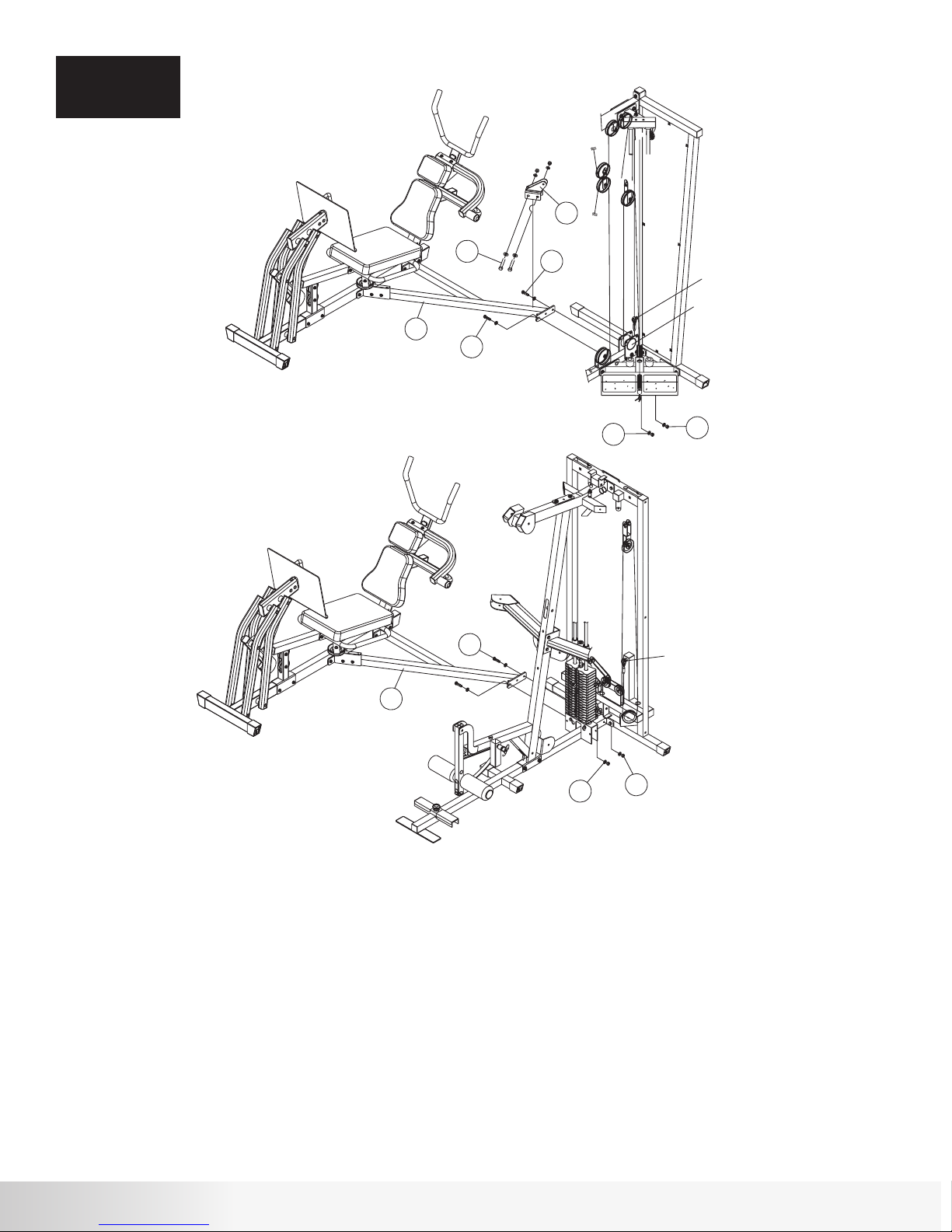

A. Attach the Connecting Tube Assembly (2) to the gym
with hardware shown above. If using a NS200X,NS300X or NS600X
gym, remove the Cable Bracket and the rear bolt on the
gyms foot plate.
B. If using a NS200X,NS300X or NS600X attach the Vertical Pulley
Bracket (5) to the connecting Tube Assembly (2) using the hardware
shown above.
C. Tighten all hardware securely.
A. Attach the Connecting Tube Assembly (2) to the gym
with hardware shown above. If using a NS200X,NS300X or NS600X
3/8" x 3"L
3/8" x 3 1/4"L
3/8" x 3"L
3/8" x 3"L
LEG PRESS CABLE
NS 700X
RIGHT SIDE ONLY
NS200X,NS300X & NS600X
RIGHT OR LEFT SIDE
(OPPOSITE OF WEIGHT
STACK)
REMOVE CABLE
BRACKET
LEG PRESS CABLE
43
40
2
33
33
40
5
33
43
2
32
Note: If NS75X is attached to NS700X
use 3/8” x 3 1/2” Hex Bolt

10
Step 2 Components: Procedure:
ASSEMBLY
STEP 2
# Component Qty
1 Main Base Assembly 1
3 Seat Tube Assembly 1
4 Seat Handle 2
16 Seat Back Support Assembly 1
32 Hex Bolt - 3/8” x 3 1/4”L 6
33 Hex Bolt - 3/8” x 3”L 4
34 Hex Bolt - 3/8” x 2 3/4”L 1
40 3/8” Flat Washer 22
43 3/8” Lock Nut 11

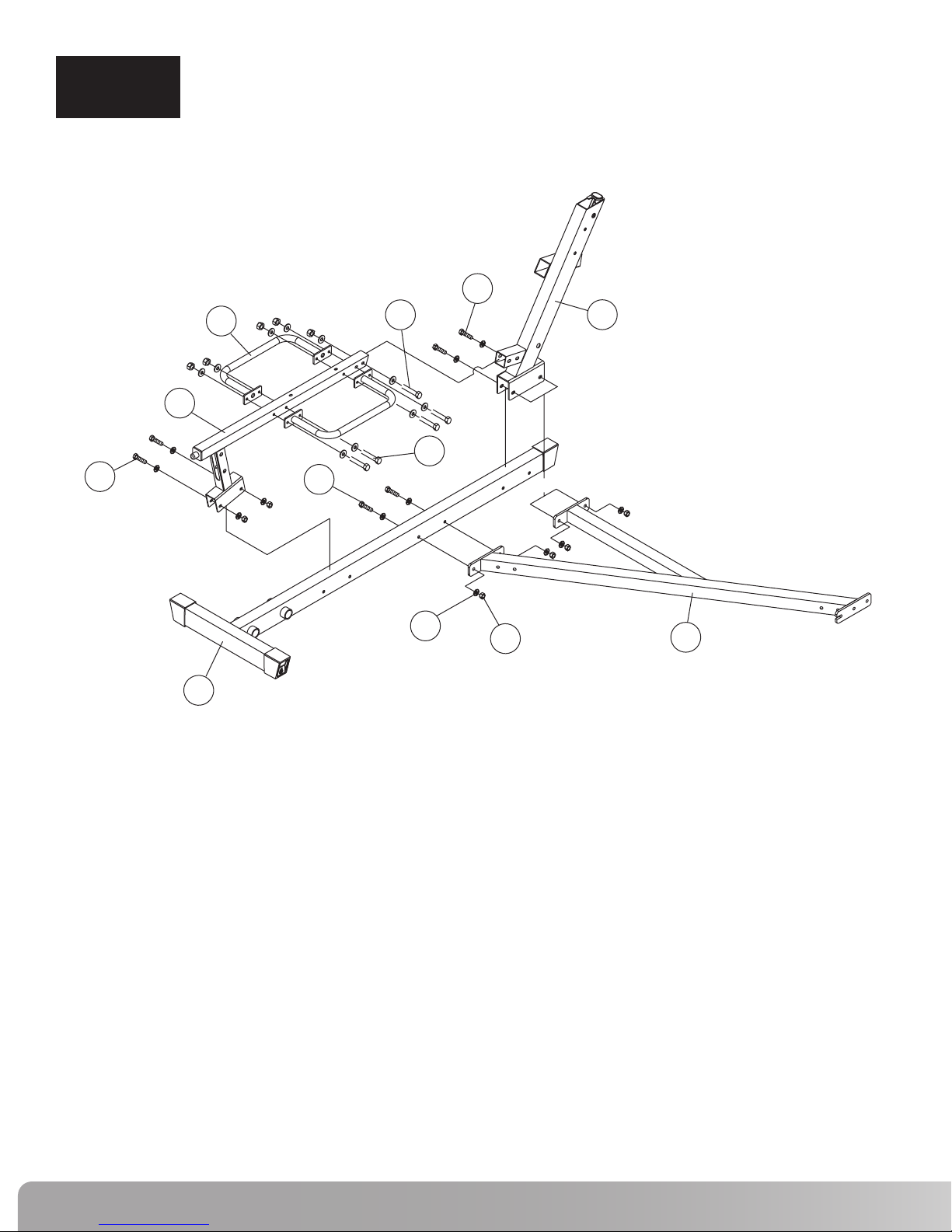

A. Position the Seat Back Support Assembly (16) over the
rear holes of the Main Base Assembly (1) and position
next to the Connecting Tube Assembly (2). Secure parts
with hardware shown above, but do not tighten.
B. Slide the Seat Tube Assembly (3) over the Seat Back
Support Assembly (16) and the Main Base Assembly (1).
Secure parts with hardware shown above, but do not
tighten.
C. Attach the Seat Handles (4) to the Seat Tube Assembly
(3) using the hardware shown above. After the cable is
routed in Step #6
D. Tighten all hardware securely.
3/8" x 3"L
3/8" x 3"L
3/8" x 2 3/4"L
3/8" x 3 1/4"L
3/8" x 3 1/4"L
32
32
33 33
40
4
3
16
34
43 2
1
