NEC 535 User manual

Copyright Ó2004 by NEC America, Inc. All rights reserved.
NEC is a registered trademark of NEC Corporation.
All other company or product names are the trademarks of their respective owners.
Manual Part Number: 621-0353
Version 1**
**This may include features not available in all NEC 535 phones, or may not include features available in updated or later version
NEC 535 phones. Contact NEC Service Support with any questions.
NEC America, Inc. (”NEC”) reserves the right to make changes or improvements to any of the products described in this guide
without prior notice.
All features, specifications, conditions, and actual colors are subject to change without notice.
The availability of particular products may vary by region. Some operations and features are network and subscription dependent
and are not available in all areas. Check with your wireless service provider for availability and description of features.
Some of the mobile Internet services have been pre-configured by the service provider.
Printed in U.S.A.
THE CONTENTS OF THIS GUIDE ARE PROVIDED ON AN “AS IS” BASIS. EXCEPT AS REQUIRED BY APPLICABLE LAW, NO
WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO THE IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE MADE REGARDING THE
ACCURACY, COMPLETENESS, OR CONTENTS OF THIS GUIDE. NEC RESERVES THE RIGHT TO REVISE OR RESCIND
THIS GUIDE AT ANY TIME WITHOUT PRIOR NOTICE.
NEC IS NOT RESPONSIBLE FOR ANY LOSS OR CORRUPTION OF DATA, LOSS OF INCOME OR BUSINESS, OR ANY
CONSEQUENTIAL, INCIDENTAL, OR SPECIAL DAMAGE, HOWSOEVER CAUSED.
WARNING! The power cords of this product contain lead, a chemical known to the State of California to cause birth defects or other
reproductive harm. Wash hands after handling.
i

Contents
NEC 535 1
Wireless System Structure.......................1
User Guide Conventions ........................1
User Guide Instructions .......................2
Keypad Phone Controls.......................2
Phone Controls ............................3
Parts and Functions ..........................4
Display Information ..........................5
Check box and Radio Buttons ...................5
LCD and Displayed Icons .......................6
Main Menu ...............................8
Sub-Menus and Options Menu ...................9
Menu Shortcut Selection ......................9
Keypad Shortcuts...........................10
Main Phone Features.........................11
Safety and Performance 12
User Caution .............................12
Emergency Services .........................12
Safety.................................13
General Care ...........................13
...................................13
General Safety...........................14
Radio Frequency (RF) Signals ..................15
Aircraft Safety ................................16
Road Safety ............................16
Vehicles Equipped with an Air Bag ................16
Blasting Areas And Explosive Atmospheres............16
Electromagnetic Interference ...................17
Battery Care and Disposal ......................18
Performance .............................19
Third Party Equipment .......................19
Service...............................19
Efficient Use ............................19
Battery ...............................19
Antenna ..............................19
Licenses ..............................20
Getting Started (TBD) 21
Service Activation...........................21
Voice Mail and Text Messaging ...................21
PIN and Security Codes .......................21
SIM Card ...............................22
Inserting a SIM Card........................22
Removing a SIM Card .......................23
Charging the Battery .........................24
Battery ................................25
Checking the Battery .......................25
Low Battery Alarm .........................26
Changing the Battery .......................26
Powering-On the Phone .......................27
Turning the Phone On .......................27
Turning the Phone Off .......................27
Basic Calls and Phone Use (TBD) 28
Dialing Calls .............................28
Correcting Mistakes ........................28
Ending Calls .............................28
Receiving Calls ............................29
Accepting a Call ..........................29
Rejecting a Call ..........................29
Receiving a Call While in an Application ...............30
Using Features/Application During a Call ..............30
Unsuccessful Calls/Auto Redial ...................30
Call Features .............................31
Caller ID ..............................31
Returning an Unanswered Phone Call ..............31
Last Number Redial ........................31
Dialing a Number in Message Text ................31
Emergency Calls..........................32
ii

Speed Dialing ...........................32
Entering a Pause (for DTMF Dialing) ...............32
International Dialing ........................33
Volume Controls ..........................33
Voice Mail .............................34
Forwarding Calls ...........................34
Call Timer...............................34
Using Call Features During a Call ..................34
Placing a Call On Hold.......................34
Call Waiting ............................35
Mute A Call ............................35
DTMF Tones............................35
Conference Calls ...........................36
Receiving Second Call.......................36
Making a Second Call ......................36
Putting Calls on Hold .......................37
Private Conversation .......................37
Disconnecting a Party .......................37
Roaming ...............................38
Personalizing Settings (TBD) 39
Phone Settings ............................39
Text Entry (TBD) 40
Messaging and Voice Mail (TBD) 41
Accessing Messages .........................41
Web Browser (TBD) 42
Phonebook (TBD) 43
Camera Function (TBD) 44
Camera View Finder Screen .....................44
Audio and Visual (TBD) 45
Games and Apps (TBD) 46
Call Records (TBD) 47
Tools (TBD) 48
Accessories (TBD) 49
Authorized Accessories........................49
U.S. FDA’s Consumer Update 50
Warranty and Service 55
NEC 535 Wireless Phone ......................55
Limited Warranty..........................55
NEC Authorized Accessories .....................58
Limited Warranty..........................58
NEC Customer Service Support ...................60
CTIA 62
iii

iv

NEC 535
Welcome to the NEC 535 wireless phone.
Your NEC 535 wireless phone is equipped with a battery, SIM card, hands-free headset, and a charger. Other accessory options
can customize your phone for greater performance and mobility. To purchase optional accessories, contact your wireless service
provider or contact NEC customer Care Center at 1-800-637-5917.
Wireless System Structure
Every time you use your wireless phone, different organizations are involved:
All the 535 features described in this user guide are supported by your phone. However, for all these features to work, you must
have a SIM card (main piece that the whole phone functions on; included in the box supplied by your Service Provider) that also
supports these features. Even if you have a fully featured SIM card, any feature will not work if it is not supported by the Network
transmitting your call. This last point is especially important when you are roaming among networks.
User Guide Conventions
The user guide legends direct your attention to specific information. The user guide legends are:
*This is a set of paragraphs containing instructions. Follow the directions in the sequential order provided in the user guide.
LThis type of paragraph contains details of where to find related information to the topic being explained.
OThis type of paragraph contains information worth noting and is provided in the right column.
IThis type of paragraph contains important information.
The people that supply
your SIM card and bills
Service
Provider
The people that
transmit your calls
Network Provider
The people that
provide your mMode service
s
Content Provider
The people that
make your phone
1

User Guide Instructions
The instructions for all tasks and phone functions start at the Idle screen (see page ) unless instructed otherwise. These
instructions make use of shortcut selections except for special cases.
The instruction “press” means to press a key or button for one second or less.
The instruction “press and HOLD”means to press and hold a key for two to three seconds.
The instruction “highlight” means to press the appropriate navigation keys to move the highlight bar over a desired option or item.
The instruction “scroll” and “scroll to” means to press the Down navigation key to show more selections one at a time on a menu
or screen. Press and HOLD the Up or Down navigation key to scroll a page at a time, instead of one item at a time.
The instruction “highlight and select” means to press the appropriate navigation keys to move the highlight bar over a desired item
and pressing the Select button to confirm your choice and advance to the next screen of the selected item.
Keypad Phone Controls
The following table provides the wording used for the key names of the phone controls on the keypad.
Key Name Wording
Softkey 1 Softkey 1
Softkey 2 Softkey 2
Menu MENU
Send SEND
Phonebook BOOK
End/On-Off END
Select/Save Select
Left, Right Left,Right
Up, Down Up,Down
Clear/Back CLR
2

Phone Controls
At the Idle screen, press Softkey 1 to access Messages; press Softkey 2 to access mModeTM .
Softkey 1 and Softkey 2 functions change according to the phone’s current use. Softkey 1 function displays on the bottom, left
corner of the graphic display screen. Softkey 2 function displays on the bottom, right corner of the graphic display screen. Softkey
1 is located on the upper left of the round shape with the navigation keys on the keypad. Softkey 2 is located on the upper right of
the round shape with the navigation keys on the keypad.
When an Options menu is available for the displayed screen, the Options Menu icon (an “M”) displays between the two softkey
buttons on the bottom of the graphic display screen. The Options menu key is located on the bottom left of the round shape with
the navigation keys.
The Phonebook key is located on the bottom right of the round shape with the navigation keys and is used to display a
phonebook.
The Select key is located in the center of the round shape with the
navigation keys. The Select key is used to select highlighted items
or tools. It is also used to save selections and changes.
The navigation keys (Up,Down,Left, and Right) are located on
the outer edge of the round shape. Press the corresponding part of
the 4 way navigation key to move the cursor, scroll, cycle, or
highlight. Navigation keys are also used as keypad shortcuts to
access a specific menu or list. Refer to page for more keypad
shortcuts information.
The Send key is used to dial and send calls. The Send key is
located above the digit 1 key.
The Clear key is used to remove a character or letter in the text
entry screen and clear the present screen to return (go back) to the
previous screen. The Clear key is located above the digit 2 ABC
key.
The End/On-Off key is used to turn the wireless phone On, turn it
Off, terminate a phone call, and end current screen activity or
application to return to the Idle screen. End/On-Off key is located
on the right side of the keypad, above the digit 3 DEF key.
Softkey 1 Softkey 2
Menu
Phonebook
Select Button Navigation Keys
(Up, Down,
Left, and Right)
Send
Clear/Back
End/On-Off
Select Button
3

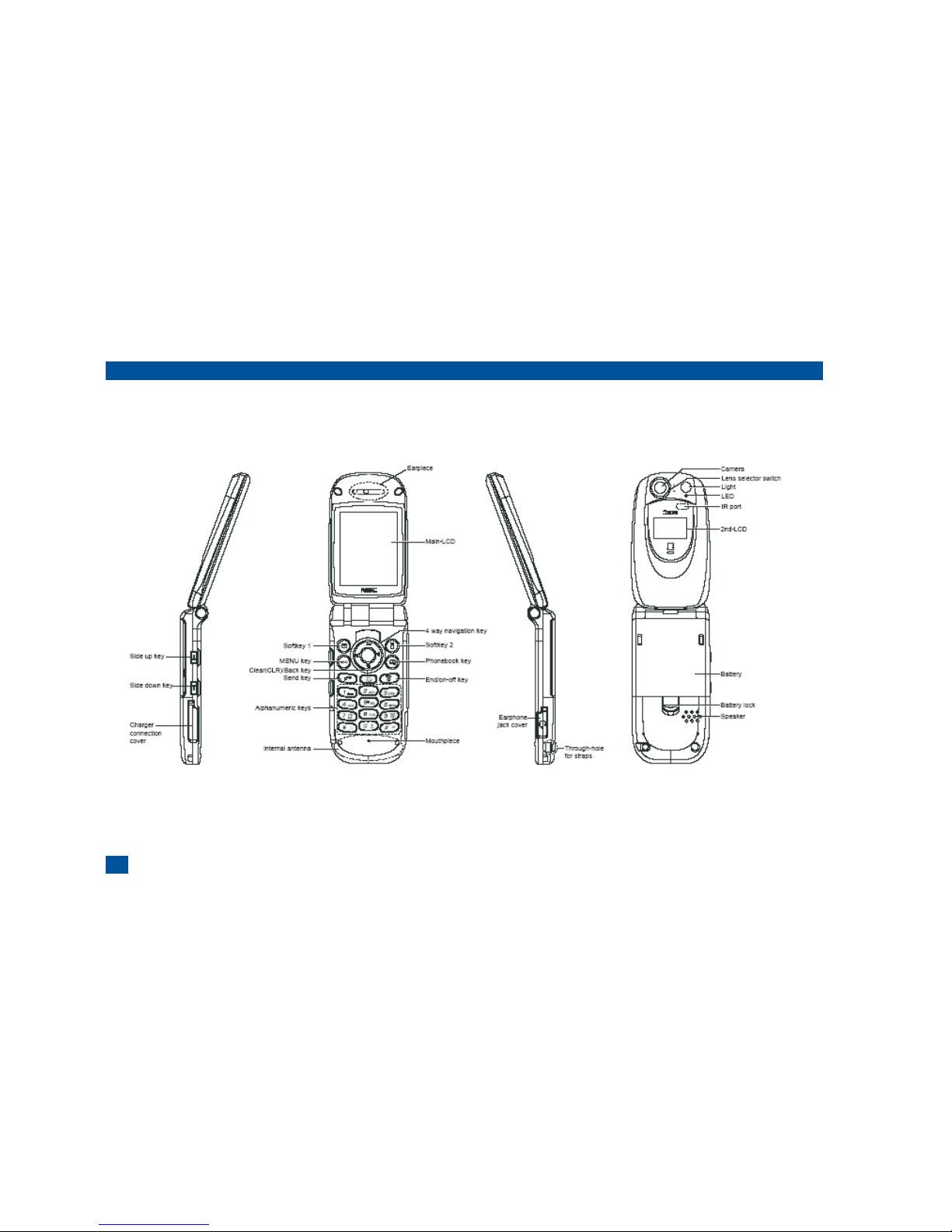

Parts and Functions
4

Display Information
IThe LCDs on your phone use high-precision technology. Even so, the LCDs may contain pixels (dote) that fail to
light or remain permanently lit. Note that this is normal and does not indicate a problem with your display.
Check box and Radio Buttons
A check box enables/disables a feature or option. Multiple check boxes can be selected at the same time. Selecting a radio button
option automatically cancels the previous selection, so only one radio button can be selected at one time. To select or cancel a
check box or radio button, highlight and select the option.
5

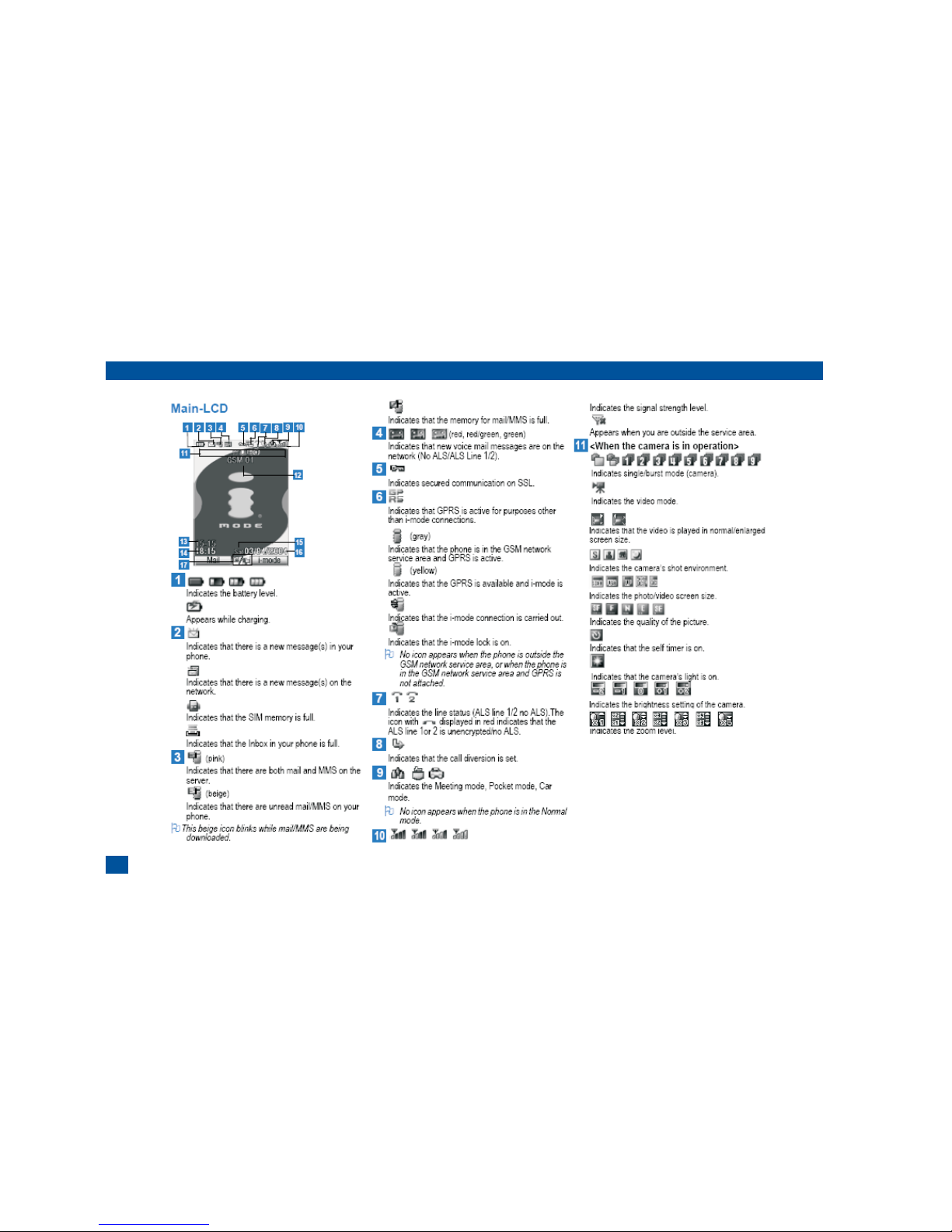

LCD and Displayed Icons
6

7

Main Menu
The menu structure begins with the Main Menu icons for top level options. To access a menu option:
*Press MENU to access the Main Menu and press the option number 1through 8or highlight and select the desired option.
8

Sub-Menus and Options Menu
A sub-menu list displays for the selected Main Menu option. The sub-menu options are shown in the table on the previous page.
Press the sub-menu option number or highlight and select the desired sub-menu option. You may also highlight the desired option
and Right navigation key to advance to the next sub-menu. A scroll bar displays on the side of the display screen when more
selections are below the ones shown on the display screen.
An options menu provides additional options for an application function. The Options Menu icon displays between the two softkey
indicators on the bottom of the Main LCD. Within an application, press MENU to display the available options menu.
Menu Shortcut Selection
An alternative ‘shortcut’ method of selection allows you to jump straight to a menu or function without highlighting an icon and
scrolling through the sub-menu options. The selections are made by pressing numbers on the keypad that relate to the displayed
menu options.
Shortcut Selection Example
Use the shortcut selection method to set Any Answer Key feature On as follows:
*Press MENU (Main),1,1,3,and 2. The any key answer option is set and return to the previous menu.
9

Keypad Shortcuts
The following shortcuts are available from the Idle screen.
Key Name Press Key To Press and HOLD Key To
Softkey 1 Access Mail screen Access Message Inbox
Softkey 2 Access mMode screen Access JavaTM applications
MENU Access Main Menu or Options menu Set the Side key lock
BOOK Access phone book list Access Message screen
Select Access camera view finder screen Access video camera view finder screen
Up Access phone modes screen Set phone mode to Meeting mode
Down Access My data screen Access voice recall (voice memo)
Left Access received calls list –
Right Access missed calls list –
SEND Access dialed calls list –
CLR Delete a character or return to previous screen Delete all characters when entering text
END End a call or return to the Idle screen Power phone off and power phone on
1 Enter phone number digit 1 Call Voice Mail center
2-9 Enter phone number digits 2 to 9 Go to corresponding number in SIM phonebook
0Enter phone number digit 0 Enter + symbol when you make an international call
#Enter # symbol Enter a pause
*Enter * symbol Switch ALS Line1/2ormute and retrieve sound during a call
10

Main Phone Features
The 535 phone can be used almost anywhere in the world with tri-band operation (GSM 850/1800/190 bands). Your phone has
the following features:
lGames (user may delete)
l2 Softkeys
l7-Color LED
l20 Voice memos (20 second recording time per memo)
l10 Voice Recognition Tags
l800 mAh Lithium-ion Battery
lAlternate Line Service (ALS) compatibility*
lCalculator
lCamera and video camera
lColor ID alert and vibrate mode
lCurrency converter
lDate, Time & Alarm
lDownload graphics, phonebook pictures and ring tunes
lEmail
lInternet Enabled
lIR interface
lJAVA
lMain LCD screen, 2.2 inch, 216 (height) by 162 (width)
pixels with 65,536 color display
lMessaging (MMS/SMS)
lMulti-media Messaging Service (MMS)
lShort Messaging Service (SMS)
lMulti-party call capability (conference calling)
lOne-button Internet access (mMode)
lOrganize your life with SyncML functionality (synchronizes
Phone book, ToDo’s, and Scheduler/Calendar)
lContacts
lScheduler/Calendar events
lToDo tasks
lPersonalize your phone with down-loadable content
l40-layer polyphonic ring tunes
lWallpapers
lPicture caller-id (10)
lPhone mode operation (Normal, Meeting, Pocket, and Car)
lPhone book (can store up to 500 records)
lSecond LCD screen, 1 inch, 108 (height) by 80 (width)
pixels with 4,096 color display
lSIM memory phonebook (store up to 250 records,
depending on SIM capacity)
lT9™ Text Input
lUSB interface
lVoice mail
* Alternate Line Service (ALS) is having 2 phone numbers. The digit 1 displays with icons that represent ALS 1. The digit 2
displays with icons that represent ALS 2. ALS feature is available if provided by your network service provider.
11

Safety and Performance
Fully charge the phone’s battery before you use your new wireless phone (see page 25 for the first time charging instructions).
User Caution
Phone settings should be adjusted to suit the likes and preferences of the individual user. Users sensitive to loud noises or sudden
alarms should take care not to use or set the phone in any manner that may result in the user being unduly alarmed.
For example, users with heart problems or heightened sensitivity to noise should adjust the wireless phone to a volume setting
that is within his or her range of comfort. If you believe the wireless phone causes you any adverse reaction, you should
discontinue using the phone immediately.
Emergency Services
Ensure your wireless phone is turned On, the battery is properly charged, and the network connection signal strength level is
adequate before attempting an emergency call. If your battery is empty, you can not make or receive any calls, including
emergency calls. Emergency calls are possible without service activation or a SIM card by pressing Softkey 1 (SOS).
To make an emergency call in the United States,
*Press END key to return to the Idle screen if needed.
Input 911 (or other designated emergency number).
Press the SEND key. (Your location and caller ID is delivered to the emergency operator as required by FCC guidelines.)
Follow instructions received and do not end the emergency call until told to do so.
Ask the operator for the service you require: Police, Ambulance, Fire, Coastguard or Mountain Rescue Services. Give your position and
accurate and necessary information. If possible, remain stationary to maintain contact. Do not terminate the call until given permission to
do so.
OFind out what the designated emergency number is for the area that you are within when traveling outside the United States.
The 911 emergency number service is available on every digital network service while in the United States. Designated
emergency numbers can only be used with a valid SIM.
ODue to the nature of the wireless system, the connection of emergency calls cannot be guaranteed. Never rely solely on a
wireless phone for essential communications such as medical emergencies.
OWhen the SIM card is not inserted or when the dial lock function is on, just press the Softkey 1 (SOS).
12

Safety
Prior to operating your wireless phone, please read this manual thoroughly, including the care and safety information. Observe the
following guidelines for safe and efficient operation of the phone.
General Care
A wireless phone contains delicate electronic circuitry, magnets, and battery systems. You should treat it with care and give
particular attention to the following points.
lDo not allow the phone or its accessories to come into contact with liquid or moisture at any time.
lDo not place anything in the folded phone.
lDo not expose your phone to extreme high or low temperatures.
lDo not leave your phone
lDo not expose your phone to direct flame, cigars or cigarettes.
lDo not paint your phone.
lDo not drop or subject your phone to abusive treatment.
lDo not place the phone near or against computer diskettes, credit cards, travel cards and other magnetic media. The
information contained on disks or cards may be affected by the phone.
lDo not remove the phone’s battery while the phone is turned On.
lDo not allow children to play with the phone; it is not a toy.
lDo not sit on your phone with it in a skirt or pants pocket and do not place heavy objects on top of the phone at any time
where it may be subjected to heave weight or pressure. Doing so may damage to the LCD and camera lens and cause them
to malfunction.
lDo not attempt to disassemble the phone or any of its accessories. For repair, contact an NEC qualified repair center.
lUse only a damp or anti-static cloth to clean the phone. Do NOT use a dry cloth, a saturated wet-cloth, or electrostatically
charged cloth. Do not use chemical or abrasive cleaners as these may damage the case.
13

General Safety
lThe earpiece and phone may become warm during normal use. The unit itself may become warm during charging and use.
lPut only the headset’s earpiece covered with foam in your ear. Do not put any other part of the headset in your ears.
lObserve ‘Turn off 2-way radio’ signs, such as those near gas stations, chemicals or explosives.
lA small rubber plug (for hands free socket protection) is included in the carton. Keep this out of reach of small children for
whom it could be a choking hazard.
lDo not allow children to play with the phone, battery charger, batteries or SIM card.
lThe operation of some medical electronic devices (such as hearing aids, cardiac pacemakers, and other implanted equipment)
may be affected if a wireless phone is used next or near to them. Observe any warning signs and manufacturer’s
recommendations.
lDo not place the wireless phone on or near high heat items (e.g., candles, appliances that generate heat, etc.) or areas (e.g.,
fireplace, stoves, etc.) when the wireless phone is in vibrate mode. The vibration could cause the phone to move into the high
heat and cause a hazard.
lUsing any battery pack, AC adapter, or vehicle power adapter not specified by the manufacturer for use with the 535 wireless
phone may create a potential safety hazard.
lTake care not to hold the Light too close to your eyes or other people’s eyes when the Light is on.
lDo not aim or direct the InfraRed (IR) data port towards your eyes or other people’s eyes when using the IR data exchange.
lThe wireless phone contains metal, which may cause a rash, itching, eczema, inflammation, or other skin conditions to appear
if the person has metal allergies.
lTurn off your phone in any facility where posted notices require you to do so.
OWhen in hazardous areas, turn off the phone. The wireless phone can still be a hazard in these areas even when set in
vibrate mode.
ORemember to recycle: the cardboard packaging supplied with this phone is ideal for recycling.
14

Radio Frequency (RF) Signals
THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone contains a radio transmitter and receiver. Your NEC phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general
population. The guidelines are based on standards that were developed by independent scientific organizations through periodic
and thorough evaluation of scientific studies.
The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR).
The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC
with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the output.
Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit
established by the government-adopted requirement for safe exposure. The tests are performed on position and locations (for
example, at the ear and worn on the body) as required by FCC for each model. The highest SAR value for this model phone as
reported to the FCC when tested for use at the ear is (0.56)W/kg, and when worn on the body, is (0.26)W/kg. (Body-worn
measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be
differences between the SAR levels of various phones and at various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance
with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the
Display Grant section at http://www.fcc.gov/oet/fcid after search on FCC ID A98-KMP6J1L1-9.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with a NEC
accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a
minimum of 1.5 cm from the body.
*In the United States, the SAR limit for wireless mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram
of tissue. SAR values may vary depending upon national reporting requirements and the network band.
15

Aircraft Safety
The use of wireless phones in aircraft may be dangerous to the operation of the aircraft and may be illegal. Any use of a wireless
phone on board an aircraft must be in accordance with applicable regulations. Follow all flight crew instructions. When instructed
to turn off your wireless telephone, do so.
Road Safety
Check the laws and regulations concerning the use of wireless telephones and their accessories in the areas where you drive and
always obey them. If you find it necessary to use your cellular telephone behind the wheel of a car, please:
lGive full attention to driving and exercise proper control of your vehicle at all times.
lObserve all the recommendations contained in your local traffic safety documentation.
lPull off the road and park before making or answering a call, if driving conditions so require.
lTurn off your wireless phone at a refueling point, such as a gas station, even if you are not refueling your own car. The
wireless phone can still be a hazard in these areas even when set in vibrate mode.
lDo not store or carry flammable or explosive materials in the same compartment as a wireless phone.
OUse hands-free operation, if available, when driving.
Vehicles Equipped with an Air Bag
An air bag inflates with great force. Do not place objects, including either installed or portable wireless equipment, in the area over
the air bag or in the air bag deployment area. If wireless equipment is improperly installed in the vehicle and the air bag inflates,
serious injury could result.
Blasting Areas And Explosive Atmospheres
To avoid interfering with blasting operations, turn Off your phone when in a blasting area or areas posted: “Turn Off Two-Way
Radio.” Obey all signs and instructions.
Turn Off your phone prior to entering any area with a potentially explosive atmosphere, and obey all signs and instructions. Do not
remove, install, or change batteries in such areas. Sparks in such areas could cause an explosion or fire resulting in bodily injury
or even death.
Areas with a potentially explosive atmosphere are often, but not always, clearly marked. These include fueling areas such as
gasoline stations; below deck on boats; fuel or chemical transfer or storage facilities; vehicles using liquefied petroleum gas (such
a propane or butane); areas where oxygen is used; areas where the air contains chemicals or particles such as grain, dust, or
metal powders; and any other area where you would normally be advised to turned Off your vehicle engine.
16
