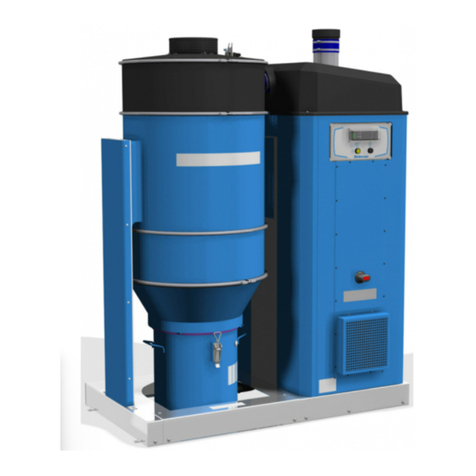

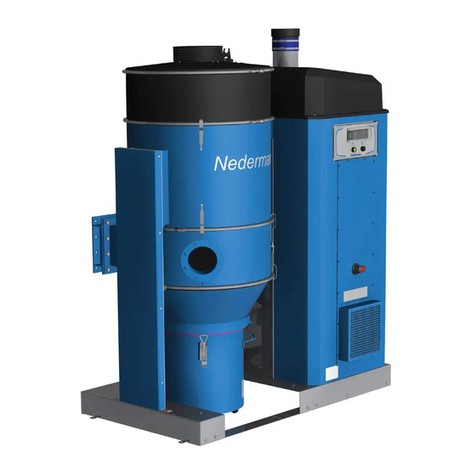

Nederman FlexPAK 800 Manual

Compact dust collectors
FlexPAK 800/1000 All Models
(Software #2168209-X)
2130066(01)2018-10-16
Original PLC Settings Manual
EN PLC SETTINGS MANUAL
PLC Settings Manual

FlexPAK 800/1000
2

FlexPAK 800/1000
3
Figures......................................................................................................................................................4
English......................................................................................................................................................7

FlexPAK 800/1000
4
Figures
ESC OK
FlexPak
Hi Vacum Unit
OFF
TimeTo Service
2000 Hours
ESC OK
NEDERMAN
FLEXPAK
Standby
Waing For
Pilot Signal
Mo 15:33
ESC OK
FlexPak
Hi Vacuum Unit
IDLING
Time To StandBy
11:59m
ESC OK
Running
kPA -20
DIRTm 00:00 s
OTTmr 00:00 h
Exhaust
Air Temp 60°C
ESC OK
FlexPak
Hi Vacuum Unit
IDLING
Time To StandBy
05:33m
PS
PS
ESC OK
Running
kPA -20
DIRTm 09:00 s
OTTmr 00:00 h
Exhaust
Air Temp 60°C
ESC OK
FlexPak
Hi Vacuum Unit
IDLING
Time To StandBy
00:00m
PS
Running
P = -5
 -20/-35 kPa
IDLING
P = 0 kPa
PS
PS
Pilot signal OFF
Pilot signal On
DIRTm < 10:00 s DIRTm > 10:00 s
ESC OK
Running
kPA -20
DIRTm 00:00 s
OTTmr 00:00 h
Exhaust
Air Temp 60°C
T > 12:00m T < 12:00m
FlexPAK O
Standby
Running
Idling
E
M
E
R
G
E
N
C
Y
S
T
O
P
E
M
E
R
G
E
N
C
Y
S
T
O
P
1

FlexPAK 800/1000
5
*
$
*
$
*
$
#
*
$
#
2

FlexPAK 800/1000
6
Run mode
Run Closed valve Closed valve Open valve Open valve Off
FCDelay
Clencyl
FC Start
Impulse
Output Q3
(FC Valve)
Output
Q12 Duct Isolaon
Damper SFV2)
Duct Isolaon Damper
Mechanical status
Closing Time
Extra delay mer to FC
TL=2s
TL=3s TH=2s
TH=
1s
TL=3s
15s
TH=2s TL=3s TH=2s
T=Approximately 22 seconds
Filter Cleaning
IsoVDly(T=4s)
Vacuum
Equalizaon
me
Opening Time
Timing Diagram FlexPAK 800-1000 ATEX Duct Isolaon Damper: Soware 2168079-1, 2168209-X
3

FlexPAK 800/1000
7
EN
English
PLC Sengs manual
1 Preface................................................................................................................................................................................ 9
2 Safety................................................................................................................................................................................... 9
2.1 General..............................................................................................................................................................10
3 PLC messages................................................................................................................................................................10
3.1 Status messages...........................................................................................................................................10
3.1.1 Nederman FlexPAK O (O mode)........................................................................................10
3.1.2 FlexPAK Standby (Standby mode)..........................................................................................10
3.1.3 Running (Running mode)............................................................................................................11
3.1.4 FlexPAK Idling (Idling mode)......................................................................................................11
3.1.5 Filter Cleaning...................................................................................................................................11
3.1.6 Emptying preseparator................................................................................................................11
3.1.7 Open Upper Slide Valve V12.....................................................................................................11
3.1.8 Close Upper Slide Valve V12 .....................................................................................................12
3.1.9 Emptying bin TVFD Advanced..................................................................................................12
3.1.10 Close Lower Slide Valve V11...................................................................................................12
3.1.11 Flushing duct...................................................................................................................................12
3.1.12 Isolaon Damper Closing Duct .............................................................................................13
3.1.13 Emptying bin AEB ap valve...................................................................................................13
3.1.14 Emptying bin TVFD simple ......................................................................................................13
3.2 Warning messages......................................................................................................................................13
3.2.1 Time For service...............................................................................................................................13
3.2.2 Warning! Main Filter Clogged..................................................................................................14
3.2.3 Dustbin Full.........................................................................................................................................14
3.2.4 Bag Replacement Switch Acvated.......................................................................................14
3.2.5 Warning Low Vacuum...................................................................................................................14
3.3 Alarms................................................................................................................................................................15
3.3.1 External Fire Alarm Explosion Detected.............................................................................15
3.3.2 Frequency Conv Alarm.................................................................................................................15
3.3.3 Emergency Stop Acvated .........................................................................................................15
3.3.4 Low Pressure or Duct Isolaon Released .........................................................................16
3.3.5 Alarm! Hi Vacuum...........................................................................................................................16
3.3.6 Exhaust Air Temp High .................................................................................................................16
3.3.7 Bag Replacement Switch Time Out.......................................................................................16
3.3.8 Alarm! Control Filter Clogged...................................................................................................17
3.3.9 TVFD Alarm! Upper Slide Not Closed...................................................................................17
3.3.10 TVFD Alarm! Upper Slide Not Open...................................................................................17
3.3.11 TVFD Alarm! Lower Slide Not Closed................................................................................18
3.3.12 TVFD Alarm! Lower Slide Not Open...................................................................................18
3.3.13 TVFD Alarm! Slides In Open Posion.................................................................................18
3.3.14 Alarm! Dustbin Full......................................................................................................................19
3.3.15 Alarm! Main Filter Clogged.....................................................................................................19
4 PLC sengs ....................................................................................................................................................................20
4.1 Find a parameter and set its value ....................................................................................................20
4.2 Parameter sengs......................................................................................................................................21
4.2.1 Adjust the me and date............................................................................................................21
4.2.2 Set the weekly mer .....................................................................................................................22
4.2.3 H-Meter 1............................................................................................................................................23
4.2.4 SSR_Time .............................................................................................................................................23
4.2.5 CoolTmr ................................................................................................................................................24
Figures................................................................................................................................................................................. 4
Table of contents

FlexPAK 800/1000EN
8
4.2.6 FltClean......................................................................................................................................................... 24
4.2.7 DIR_Time ..................................................................................................................................................... 24
4.2.8 Weekly Timer ............................................................................................................................................ 24
4.2.9 Presep............................................................................................................................................................ 25
4.2.10 MFDPS-Wr................................................................................................................................................ 25
4.2.11 MFDPS-FC ................................................................................................................................................. 25
4.2.12 BLI-Empt.................................................................................................................................................... 25
4.2.13 BLI-Wr ......................................................................................................................................................... 26
4.2.14 AEBTme...................................................................................................................................................... 26
4.2.15 BinOpnTm................................................................................................................................................. 26
4.2.16 CFDPS-Al.................................................................................................................................................... 26
4.2.17 TVFDAdv.................................................................................................................................................... 26
4.2.18 PSCFlush .................................................................................................................................................... 27
4.2.19 BinAuto ...................................................................................................................................................... 27
4.2.20 LiAuto.......................................................................................................................................................... 27
4.2.21 LSOTmr ....................................................................................................................................................... 27
4.2.22 FlushCy2 .................................................................................................................................................... 27
4.2.23 OTTmr ......................................................................................................................................................... 28
4.2.24 FlushTmp................................................................................................................................................... 28
4.2.25 CoolTmp..................................................................................................................................................... 29
4.2.26 TVFD-Al-Tmr ............................................................................................................................................ 29
4.2.27 BRSTmr ....................................................................................................................................................... 29
4.2.28 Vac_Low..................................................................................................................................................... 30
4.2.29 AEB-TVFD.................................................................................................................................................. 30
4.2.30 FlushCy1 .................................................................................................................................................... 30
4.2.31 VacLoTm..................................................................................................................................................... 31
4.2.32 PSIFC............................................................................................................................................................ 31
4.2.33 PresepTm .................................................................................................................................................. 31
4.2.34 FlushTmr.................................................................................................................................................... 31
4.2.35 FCDelay ...................................................................................................................................................... 32
4.2.36 IsoVDly........................................................................................................................................................ 32
4.2.37 DuctIsoDamp .......................................................................................................................................... 32
4.2.38 BLI-Alarm .................................................................................................................................................. 33
4.2.39 MFDPS-Al .................................................................................................................................................. 33
4.2.40 DPFClean................................................................................................................................................... 33
4.2.41 EmtyIdli...................................................................................................................................................... 33
4.2.42 Clean cycle................................................................................................................................................ 34
5 Automac bin emptying funcon.............................................................................................................................. 34
5.1 AEB-Flap Valve sengs .................................................................................................................................... 34
5.1.1 Hardware..................................................................................................................................................... 34
5.1.2 PLC Sengs................................................................................................................................................ 34
5.1.3 Timer Sengs ........................................................................................................................................... 34
5.2 Simple TVFD Valve Sengs............................................................................................................................ 34
5.2.1 Hardware..................................................................................................................................................... 34
5.2.2 PLC Sengs................................................................................................................................................ 34
5.2.3 Timer sengs............................................................................................................................................ 35
5.3 Pre-Separator Sengs...................................................................................................................................... 35
5.3.1 Hardware..................................................................................................................................................... 35
5.3.2 PLC Sengs................................................................................................................................................ 35
5.3.3 Timer sengs: Pre-Separator 1 ...................................................................................................... 35
5.3.4 Timer sengs: Pre-Separator 2 ...................................................................................................... 35
5.4 Advance TVFD Valve Sengs........................................................................................................................ 36
5.4.1 Hardware..................................................................................................................................................... 36
5.4.2 PLC Sengs................................................................................................................................................ 36
5.4.3 Timer sengs............................................................................................................................................ 36
6 Machining chips and swarf extracon .................................................................................................................... 36
6.1 Electrical connecon of indicator lamp .................................................................................................. 36
7 Pneumac lter cleaning valve................................................................................................................................... 37
7.1 Filter cleaning buon........................................................................................................................................ 37

FlexPAK 800/1000
9
EN
1 Preface
Read all product documentaon and product idencaon plate carefully before
installaon, use, and service of this product. Replace documentaon immediately if lost.
Nederman reserves the right, without previous noce, to modify and improve its products
including documentaon.
This product is designed to meet the requirements of relevant EU direcves. To maintain
this status, all installaon, maintenance, and repair is to be done by qualied personnel
using only Nederman original spare parts and accessories. Contact the nearest authorized
distributor or Nederman for advice on technical service and obtaining spare parts. If there
are any damaged or missing parts when the product is delivered, nofy the carrier and the
local Nederman representave immediately.
(Include this when needed:
This manual is supplemented by an installaon and service manual.)
2 Safety
This document contains important informaon that is presented as either a warning,
cauon or note. See the following examples:
WARNING! Risk of personal injury.
Warnings indicate a potenal hazard to the health and safety of personnel, and how that
hazard may be avoided.
CAUTION! Risk of equipment damage.
Cauons indicate a potenal hazard to the product but not to personnel, and how that
hazard may be avoided.
NOTE! Notes contain other informaon that is important for personnel.
7.2 Filter cleaning in Standby mode.................................................................................................................. 37
7.3 Filter cleaning in Running mode ................................................................................................................. 37
7.4 Filter cleaning valve funcon........................................................................................................................ 37
8 ATEX Duct Isolaon Valve sengs............................................................................................................................. 38
8.1 Flush Cycle sengs ............................................................................................................................................ 38
8.1.1 FlushCy1(T) (Timer)................................................................................................................................ 38
8.1.2 FlushCy2(T) (Timer) (Dual Funcon)............................................................................................. 38
8.2 Tuning Duct Isolaon Damper sequence ............................................................................................... 38
8.2.1 FCDely(T) Parameter ............................................................................................................................. 38
8.2.2 FCDely(T) Parameter Calculaon See, Timing diagram...................................................... 39
8.2.3 Default FCDely(T) Parameter Sengs ......................................................................................... 39
8.3 IsoVDly(T) Parameter Sengs...................................................................................................................... 39
8.3.1 Default IsoVDly(T) Parameter Sengs........................................................................................ 39
8.4 Default ClenCyl(T) Parameter Sengs .................................................................................................... 39
8.4.1 Procedure to set ClenCyl(T) Parameter ...................................................................................... 39
8.4.2 Sengs TH = Cleaning Pulse Time (FC Valve opening Time) .......................................... 39
8.5 Total Filter Cleaning sequence me.......................................................................................................... 40
8.5.1 Sengs TL = Vacuum Load Time .................................................................................................... 40
8.6 FC Start Impulse................................................................................................................................................... 40
Appendix A: PLC sengs protocol .........................................................................................41

FlexPAK 800/1000EN
10
2.1 General
WARNING! High vacuum.
A high vacuum system creates a powerful sucon that may cause serious eye injury or
hearing impairment. Persons who will be using FlexPAK 800/1000, or may come in contact
with FlexPAK 800/1000, are to be informed about this risk.
WARNING! Risk of personal injuries.
Never look into the exhaust air duct. Debris and parcles coming out of the outlet may
cause eye injuries.
WARNING! Risk of electric shock.
Personnel operang FlexPAK 800/1000 need to pay special aenon to avoiding discharge
of stac electricity.
NOTE! Only authorized personnel are allowed to have access to this unit.
3 PLC messages
The following secons show the dierent status, warning and alarm messages that can be
seen in the PLC display.
3.1 Status messages
The following status messages give informaon about what mode the unit is in or what
roune service is being performed. See gure 1 for a chart that shows how FlexPAK moves
between dierent unit modes.
3.1.1 Nederman FlexPAK O (O mode)
The unit is in O mode, which is also the unit’s start menu. The unit can also go into O
mode if something is wrong, such as if an alarm is acvated. The pump motor is o, there is
no vacuum, the Filter Cleaning Valve (FCV) is closed, and the unit cannot be acvated by a
pilot signal.
ESC OK
FlexPak
Hi Vacuum Unit
OFF
Time To Service
2000 hours
TimeToService: The amount of me unl next scheduled service. The
default seng is 2000 hours. See Secon ‘4.2.3 H-Meter 1’.
3.1.2 FlexPAK Standby (Standby mode)
The unit is in Standby mode. The pump motor is o, there is no vacuum, the FCV is closed,
and the unit is waing for a pilot signal to go into Running mode.
ESC OK
NEDERMAN
FLEXPAK
Standby
Waing For
Pilot Signal
Mo 15:33

FlexPAK 800/1000
11
EN
3.1.3 Running (Running mode)
The unit in Running mode. The pump motor is on and the unit generates a vacuum. The
FCV is closed. The current vacuum of the unit is shown on the display, for example, -20 kPa.
ESC OK
Running
kPA -20
DIRTm 00:00 s
OTTmr 00:00 h
Exhaust
Air Temp 60°C
DIRTm: The amount of me before the unit goes into Idling mode. The
default is 10 seconds. See also Secon ‘4.2.7 DIR_Time’.
OTTmr: If the Overme mer has been acvated, OTTmr shows the
elapsed me since the overme mer started.
The temperature of the exhaust air is displayed at the boom of the
display.
3.1.4 FlexPAK Idling (Idling mode)
The unit in Idling mode. The pump motor is on, there is no vacuum, and the FCV is open.
The unit goes into Idling mode when there has been no pilot signal for the me set in DIR_
Time, see Secon ‘4.2.7 DIR_Time’.
ESC OK
FlexPak
Hi Vacuum Unit
IDLING
Time To StandBy
05:33m
TimeToStandby: The amount of me unl the unit goes into Standby
mode. The default seng is 12 minutes. See Secon ‘4.2.4 SSR_Time’.
3.1.5 Filter Cleaning
The unit is cleaning its lter.
ESC OK
Filter
Cleanining
Cycles 1
Elapsed 0
Clean 00:00 s
Charge 00:00 s
Cycles: How many cleaning pulses will be carried out.
Elapsed: How many cleaning pulses are made.
Clean: Remaining me for cleaning pulse.
Charge: Remaining vacuum build me; the me unl cleaning pulse is
acvated.
3.1.6 Emptying preseparator
The me remaining unl the preseparator bin is to be emped.
ESC OK
EMPTYING
Preseparator
Bin 1 08:00s
Bin 2 06:00s
Bin 1: The me remaining to empty the preseparator as set in BinOpnTm.
Bin 2: The me remaining for preseparator 2 to be emped as set in
PresepTm.
3.1.7 Open Upper Slide Valve V12
The message appears when the TVFD Upper Solenoid Valve is expected to open. The mer
is set with TVFDO-Al, see Secon ‘4.2.39 MFDPS-Al’. If the mer elapses, the ‘TVFD Alarm!
Upper Slide Not Open is acvated. This message is only shown when TVFD advanced is
acvated.
ESC OK
OpenUpper
Slide Valve
Remaing time
06:00s
Remaining Time: The remaining me for the valve to open before the
alarm is acvated.

FlexPAK 800/1000EN
12
3.1.8 Close Upper Slide Valve V12
The message appears when the TVFD Upper Solenoid Valve is expected to close. The
mer is set with TVFDC-Al, see Secon ‘4.2.26 TVFD-Al-Tmr’. If the mer elapses, the
‘TVFD Alarm! Upper Slide Not Closed is acvated. This message is only shown when TVFD
advanced is acvated.
ESC OK
Close Upper
Slide Valve
Remaing me
08:00s
Remaining Time: The remaining me for the valve to close before the
alarm is acvated.
3.1.9 Emptying bin TVFD Advanced
The message appears when the TVFD Lower Solenoid Valve is expected to open. The mer
is set with TVFDC-Al, see Secon ‘4.2.26 TVFD-Al-Tmr’. If the mer elapses, the ‘TVFD
Alarm! Lower Slide Not Open is acvated. This message is shown when TVFD advanced is
acvated. TVFD-Al is only acvated when using TVFD advanced.
ESC OK
EMPTYING BIN
OpenLower
Slide Valve
Remaing Time
02:00s
Remaining Time: The remaining me for the valve to open before the
alarm is acvated.
3.1.10 Close Lower Slide Valve V11
The message appears when the TVFD Lower Solenoid Valve is expected to close. The
mer is set with TVFDC-Al, see Secon ‘4.2.26 TVFD-Al-Tmr’. If the mer elapses, the
‘TVFD Alarm! Lower Slide Not Closed is acvated. This message is only shown when TVFD
advanced is acvated.
ESC OK
Close Lower
Slide Valve
Remaing time
05:00s
Remaining Time: The remaining me for the valve to close before the
alarm is acvated.
3.1.11 Flushing duct
The unit is ushing the duct system. This message is shown when FlushCy1 and FlushCy2
acvate the ush valve. This message is also shown when FlushTemp is acvated, see
Secons ‘4.2.30 FlushCy1’, ‘4.2.22 FlushCy2’ and ‘4.2.24 FlushTmp’.
ESC OK
Flushing
Ducts
Cycl 1 03:00 s
Cycl 2 05:00 s
Cycl1: The me remaining for the ush cycle with the ush valve 1
(SFV1).
Cycl2: The me remaining for the ush cycle with the ush valve 2
(SFV2).

FlexPAK 800/1000
13
EN
3.1.12 Isolaon Damper Closing Duct
When the parameter (Sokey, DuctIsoDamp = On), FlexPak is congured to control a
damper that separates the lter from the factory’s channel system. The message appears
before lter cleaning starts. The display shows the me delay set for opening the damper
aer lter cleaning.
ESC OK
Isolation Damper
Closing Duct
Delay Open Time
04:00s
RemaningTm 02:00s
3.1.13 Emptying bin AEB ap valve
When the system is congured for an AEB Flap Valve, the following message appears when
BIN emptying is performed. The message is displayed about Parameter → AEB-TVFD = On.
ESC OK
EMPTYING BIN
Open
AEB Flap Valve
Remaing Time
04:00s
3.1.14 Emptying bin TVFD simple
When the system is congured for a simple TVFD without the limit mode sensor, the
message below will be displayed when BIN emptying is performed. The message is
displayed about Parameter → AEB-TVFD = O.
ESC OK
EMPTYING BIN
OpenLower
Slide Valve
Remaing Time
02:00s
When the system is congured for an AEB Flap Valve, the following
message appears when BIN emptying is performed.
The message is displayed about Parameter → AEB-TVFD = On.
3.2 Warning messages
If a warning is acvated, there is a problem that needs to be corrected, but the unit
connues to work. If a warning message is displayed in the PLC display, the light in the
Standby/Running buon ashes one second on, one second o. This 1/1 on/o sequence
connues unl the problem is corrected.
There are two excepons to this rule, Secons ‘10.3.1 Time For service’ and
‘3.2.4 Bag Replacement Switch Acvated’.
3.2.1 Time For service
The me interval set in the ‘Service Interval Seng’ menu has expired. If this warning is
acvated, the light in the Standby/Running buon is lit one second and then again in 7
seconds. This 1/7 on/o sequence connues unl the warning is reset.
Reset the alarm by rst pung the unit into O mode. Restart the unit. In Standby mode,
press the manual lter cleaning buon for 10 seconds.
ESC OK
FlexPak
Hi Vacuum Unit
Time for
Service
Th 15:01
Reset OK 
E
M
E
R
G
E
N
C
Y
S
T
O
P

FlexPAK 800/1000EN
14
3.2.2 Warning! Main Filter Clogged
This Warning is only shown when the Main Filter Delta Pressure Switch (MFDPS) is
installed. This message is displayed if the Dierenal Pressure switch “DP switch” is
installed and the Dp switch detects a high dierenal pressure across the lter.
When the Dp switch detects a high Dp pressure, it acvates a mer, which is shown in the
display. If the Dp pressure is sll high when the mer elapses, the vacuum unit will stop and
the alarm message “Alarm! Main Filter Clogged” is acvated.
ESC OK
Warning!
Main Filter Clogged
Th 11:23
Time to Unit
Stop 08:00 m
Reset OK 
Time to Unit Stop: Displays the me unl the unit is stopped.
3.2.3 Dustbin Full
The Bin Level Indicator has detected that the dust bin has been full for 12 minutes. Empty
the dust bin and press
OK
to reset the warning.
ESC OK
Warning!
D u s t b i n F u l l
Th 15:01
Time To Unit
Stop 05:00 m
Reset OK 
Time to Unit Stop: Displays the me unl the unit is stopped.
3.2.4 Bag Replacement Switch Acvated
The bag replacement switch (SC2) is acvated. It shows the maximum allowed me to
replace the dust bag, and how much me is le to replace the dust bag and turn o the
bag replacement switch before the unit is put into O mode.
If this warning is acvated, the light in the Standby/Running buon is lit for two seconds
and then again in 2 seconds. This 2/2 on/o sequence connues unl the warning is reset.
ESC OK
Bag Replacement
Switch Activated
Time to Unit
Stop 02:00m
Max Time 30:00m
Stop: The remaining me to replace the dust bag before the unit is put
into O mode.
MaxTime: The maximum amount of me allowed to replace the dust
bag.
3.2.5 Warning Low Vacuum
Funcon to warn when the vacuum is too low in the system.
When the vacuum is too low, Vac_Low acvates the delay mer (VacLoTm) funcon when
the message expires. When the vacuum rises above the set limit value, the message
disappears automacally.
The Vac_Low parameter default seng is -15kPa.
The VacLoTm parameter default seng is 1 minute.
ESC OK
Warning Low
Vacuum
Limit 15kPa
Actual kPa 10kPa

FlexPAK 800/1000
15
EN
3.3 Alarms
If an alarm is acvated, the unit goes into O mode unl the problem is corrected.
If an alarm message is displayed in the PLC display, the light in the Standby/Running
buon ashes one second on, one second o. This 1/1 on/o sequence connues unl the
problem is corrected and the alarm reset.
3.3.1 External Fire Alarm Explosion Detected
An external re alarm is acvated or a Relief Panel Sensor (RPS) is connected and has
detected an explosion. Press the green OK buon
OK
to reset the alarm.
ESC OK
E x t e r n a l
F i r e A l a r m o r
E x p l o s i o n
D e t e c t e d
Th 11:23
Reset OK==>
3.3.2 Frequency Conv Alarm
The frequency converter has detected a problem and that the PTC sensors in the motor
have reached the maximum temperature for the unit (140°C) so the unit has been put into
O mode.
The following list shows the most common problems:
• Connecon problem to main power supply.
• Motor cable problem.
• Power supply fault.
• There is a problem with the frequency converter.
• PTC temp monitor detect an overheated motor.
ESC OK
PTC Detect Hi
Motor Temp or
Inverter Fault
Th 12:23
Unit is stopped
Reset OK 
3.3.3 Emergency Stop Acvated
If this message appears in the display, one or more emergency stops have been acvated
and the machine has been switched o.
Find out why the emergency stop has been acvated and correct the problem. When all
hazards have been eliminated that acvated the emergency stop, the emergency stop can
be reset. Reset the Emergency Stop Buon by turning it and then pulling it outward.
When all emergency stops have been reset, the security circuit can be reset by pressing the
green OK buon
OK
in the display.
If the Green OK buon
OK
can not be reset even though all emergency stops are reset, it
may be due to a short circuit to ground in the emergency stop circuit or pilot signal circuit.
The emergency stop circuit and pilot signal are fed by fuse F4. If the fuse needs to be
replaced, replace the defecve fuse with a 5 * 20mm, 50mAF (fast fuse).
ESC OK
Emergency Stop
Activated
Th 11:23
Reset
E-Stop And Press
OK==>

FlexPAK 800/1000EN
16
3.3.4 Low Pressure or Duct Isolaon Released
The Compressed Air Switch (CAS) indicates that the compressed air pressure is too low.
Or, there is a duct isolaon valve connected to the system that has released and isolated
FlexPAK from the duct system. Check the isolaon valve release sensor, released isolaon
vale = open electrical circuit to input on PLC.
Press the green OK buon
OK
to reset the alarm.
ESC OK
Low Pressure
CAS<3Bar Or
Duct Isolation
Valve Released
Th 11:23
Reset OK ==>
3.3.5 Alarm! Hi Vacuum
The maximum vacuum level has been acvated, and the delay me for the vacuum alarm
has elapsed. Press ‘OK’ to reset the alarm.
ESC OK
Alarm!
Hi Vacuum
Level > -36 kPA
Th 12:23
Unit is Stopped
Reset OK==>
3.3.6 Exhaust Air Temp High
The temperature of the air exing the pump has exceeded the maximum allowable limit of
135ºC (275ºF). When the ‘Current Value’ has become lower than 90°C (194ºF), press ‘OK’
to reset the alarm. Check for the cooling air valve or PT100 sensor values.
ESC OK
Max Temp Exhaust
Air Exceeded
Unit is Stopped
Limit 135 °C
Current 130 °C
Reset OK 
3.3.7 Bag Replacement Switch Time Out
The maximum amount of me for the bag replacement being ‘On’ has been exceeded. To
restart the unit, the alarm needs to be reset by turning the bag replacement switch (SC2)
to ‘O‘ and pressing the green OK buon
OK
to reset the alarm.. See also Secon ‘4.2.27
BRSTmr’.
ESC OK
Bag Replacment
Switch Time Out
Th11:23
Unit is Stopped
Reset OK ==>

FlexPAK 800/1000
17
EN
3.3.8 Alarm! Control Filter Clogged
The control lter is clogged and needs to be cleaned. It generally indicates a problem with
the main lter, or the control lter has been used too long and needs to be replaced. This
alarm is acvated when CFDPS-Al has been acvated for 5 seconds. Press the green OK
buon
OK
to reset the alarm. See Secon ‘4.2.16 CFDPS-Al’.
ESC OK
Alarm!
Control Filter
Clogged
Th 15:01
Unit is Stopped
Reset OK 
3.3.9 TVFD Alarm! Upper Slide Not Closed
The TVFD Upper Solenoid Valve does not close while the dust bin is being emped. TVFDC-
Al has expired. It can be caused by the following:
• The upper slide valve has not been acvated as it should.
• Something can be stuck in the upper slide valve.
• The compressed air pressure hose has either been disconnected or the compressed
air pressure is too low.
This message is only shown when TVFD advanced is acvated.
ESC OK
TVFD Alarm!
Upper slide
not closed
Th 11:23
Unit is Stopped
Reset OK==>
3.3.10 TVFD Alarm! Upper Slide Not Open
The TVFD Upper Solenoid Valve does not open while the dust bin is being emped. TVFDO-
Al has expired. It can be caused by the following:
• The upper slide valve has not been acvated as it should.
• Something can be stuck in the upper slide valve.
• The compressed air pressure hose has either been disconnected or the compressed
air pressure is too low.
This message is only shown when TVFD advanced is acvated.
ESC OK
TVFD Alarm!
Upper slide
not open
Th 11:23
Unit is Stopped
Reset OK==>

FlexPAK 800/1000EN
18
3.3.11 TVFD Alarm! Lower Slide Not Closed
The TVFD Lower Solenoid Valve does not close while the dust bin is being emped. TVFDC-
Al has expired. It can be caused by the following:
• The lower slide valve has not been acvated as it should.
• Something can be stuck in the lower slide valve.
• The compressed air pressure hose has either been disconnected or the compressed
air pressure is too low.
This message is only shown when TVFD advanced is acvated.
ESC OK
TVFD Alarm!
Lower slide
not closed
Th 11:23
Unit is Stopped
Reset OK==>
3.3.12 TVFD Alarm! Lower Slide Not Open
The TVFD Lower Solenoid Valve does not open while the dust bin is being emped. TVFDO-
Al has expired. It can be caused by the following:
• The lower slide valve has not been acvated as it should.
• Something can be stuck in the lower slide valve.
• The compressed air pressure hose has either been disconnected or the compressed
air pressure is too low.
This message is only shown when TVFD advanced is acvated.
ESC OK
TVFD Alarm!
Lower slide
not closed
Th 11:23
Unit is Stopped
Reset OK==>
3.3.13 TVFD Alarm! Slides In Open Posion
Both TVFD slide valves are open, which puts the unit into O mode. It can be caused by the
following:
• One of the slide valves has not been acvated as it should.
• Something can be stuck in one of the slide valves.
• The compressed air pressure hose has either been disconnected or the compressed
air pressure is too low.
This message is only shown when TVFD advanced is acvated.
ESC OK
TVFD Alarm!
Upper andLower
Slides in
Openposition
Th 01:23
Reset OK==>

FlexPAK 800/1000
19
EN
3.3.14 Alarm! Dustbin Full
When a level indicator set for a me delay of 30 minutes is acvated, then when the
delay has elapsed a message “Alarm! Dustbin Full” appears on the display and the unit is
stopped.
Empty the dust bin and press the green OK buon
OK
to reset the Alarm.
ESC OK
Alarm!
Dustbin Full
Max Time lapsed
Mo 09:50
Unit is Stopped
Reset OK ==>
3.3.15 Alarm! Main Filter Clogged
When the Delta pressure indicator is set, the MFDPS-Al mer starts to count down. When
the seng me has elapsed (T = 30.00 m), then the message, “Alarm Main Filter Clogged”
appears on the display and the Start/Stop buon starts to ash. The unit is stopped. Fix the
problem with the clogged lter.
Press the green OK buon
OK
to reset the Alarm.
ESC OK
Alarm!
Main
Filter Clogged
Th 12:23
Unit is Stopped
Reset OK-->

FlexPAK 800/1000EN
20
4 PLC sengs
The following PLC displays show the dierent sengs that can be congured for the unit.
4.1 Find a parameter and set its value
ESC OK
Thu 10:45
2018-02-01
ESC OK
Stop >
Program >
Setup >
Network >
Diagnoscs >
ESC OK
Set Parameter
Program Name
ESC OK
FlexPak
Hi Vacuum Unit
OFF
Time To Service
2000 hours
ESC OK
H-Meter 1/1
MI =2000h:0m
OT =0h:15m
MN =1999h:45
MN Ext =2000
ESC OK
H-Meter >
SSR_Time >
Cool_Tmr >
ClenCyl >
FItClean >
DIRTime Z
Do the following to nd a parameter and set its value:
1. From the PLC status screen, press the down arrow to go to the date and me
screen.
2. Press ‘Escape’
ESC
to go to the main menu.
3. Press the down arrow to go to ‘Program’. Press ‘OK’
OK
to conrm.
4. Select ‘Set Parameter’. Press ‘OK’
OK
to conrm.
5. Use the up or down arrows to nd the parameter. Press ‘OK’
OK
to conrm.
6. Use the le and right arrows to select a value.
7. Use the up or down arrows to set the value. Press ‘OK’
OK
to conrm.
8. Press ‘Escape’
ESC
to go to the main menu.
9. Press ‘Escape’
ESC
to go to go to the date and me screen.
10. Press the up arrow to exit.
NOTE! There are several other input menus on the same level as the date and me screen.
If pressing the down arrow takes the PLC to one of those menus, use the le arrow
to get to the date and me screen.
NOTE! The blinking cursor shows the current value that can be changed.
