Nibe ELK 42 User manual

INSTALLATION AND MAINTENANCE INSTRUCTIONSMOS GB 1435-4
ELK 42
231253 ELK 42
LEK

For Home Owners
General
System description
3Principle of operation
3Components
3System diagram
Maintenance routines
4General
4Operation
4Venting
4Safety valve
4Actions in the event of freeze risk
Dealing with malfunctions
5Low room temperature
For the Installer
General information for the installer
6General
6Assembly
Pipe installation
7Circulation pump
7Pressure drop diagram ELK 42
Electrical installation
8Power supply
Service
9Draining
Miscellaneous
Electrical circuit diagram
10ELK 42
Technical specifications
11Dimensions
12Component positions
12List of components
13Technical specifications
1ELK 42
Table of Contents

General
In order to get the greatest benefit from electric heater ELK 42 you should read through the "For the Property owner"
section in this Installation and Maintenance Instruction..
ELK 42 is an electric heater that is intended for installation together with a heat pump for heating detached houses
and small apartment buildings.
ELK 42 is a Swedish-made quality product offering long life and reliable operation.
The serial number* (95) must always be stated in all correspondence with NIBE.
069___________
Installation date
Plumber
Electrician
Installed power on the immersion heater
Insert any notes here.
Datum__________________________ Sign___________________________
*The serial number can be found at the bottom corner on the inside of the electric heater.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Rights to make any design or technical modifications are reserved.
©NIBE 2014.
ELK 422
For Home Owners
General

System description
Principle of operation
NIBE ELK 42 is an electric heater that is primarily intended
for installation together with a heat pump for heating
buildings.
ELK 42 contains overheat protection and contactors for
external control of the three power groups, 6, 12 and
24 kW.
The electric heater is in principle an immersion heater
mounted in a water container or an electric boiler without
a water heater.
The stainless steel electric coils and electric boiler tube are
made of stainless steel (SIS 2333) which gives a very good
service life.
Economical
A small water volume and a well insulated cassette mean
small heat losses.
Components
6KXWRij valveAV
Non-return valveBV
Circulation pumpCP
Expansion vesselEXP
Flow line sensorFG
Return line sensorRG
Control valveRV
Safety valveSÄV
NOTE! This is an outline sketch. Actual installations must
be planned according to applicable standards.
To connect the dLijerent heat pumps, please refer to the
relevant outline diagram.

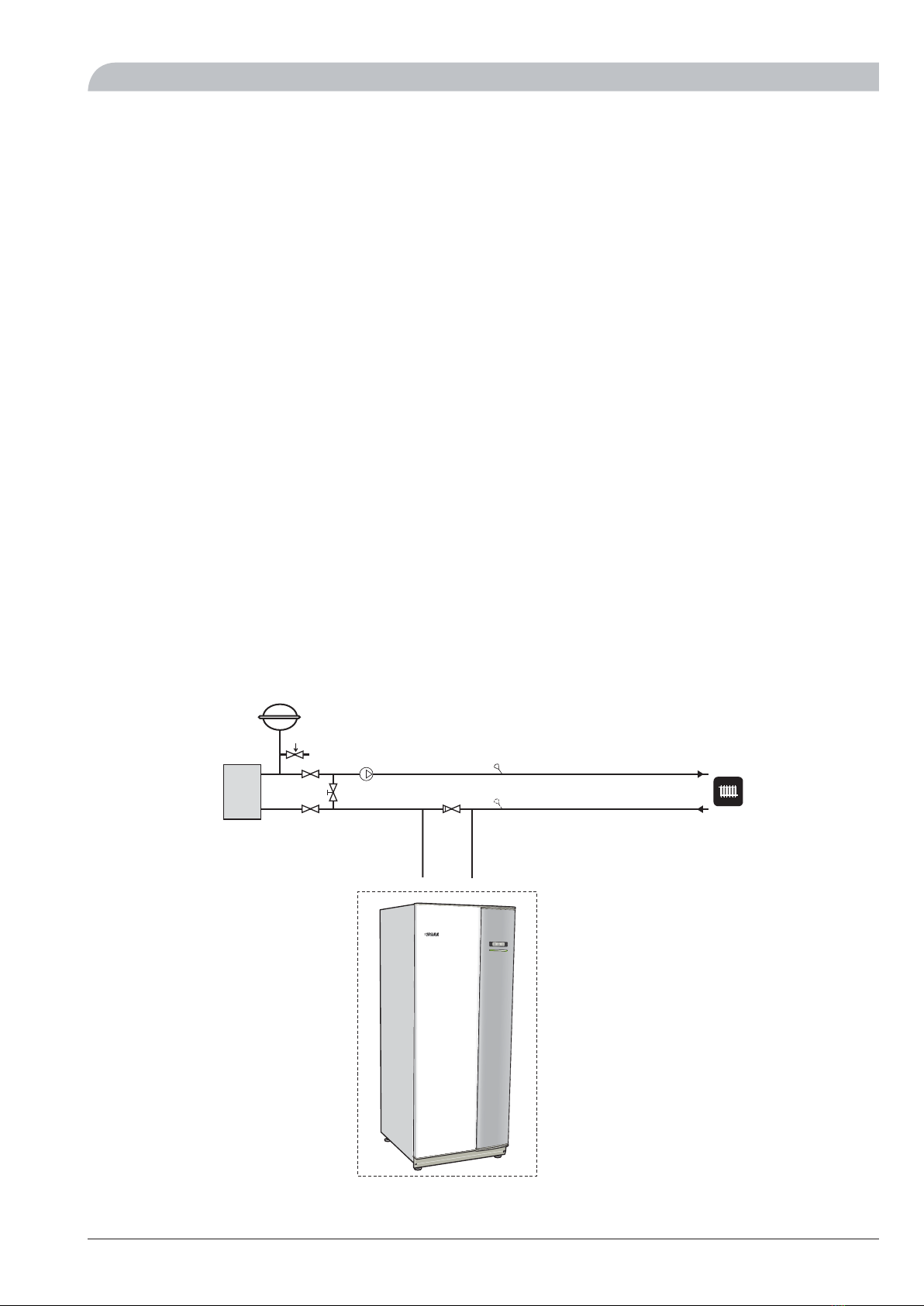

System diagram
Additional heat from ELK 42 is controlled by the heat pump.
LEK
BV
RV
AV
AV
SÄV
EXP
CP FG
RG
ELK 42
3ELK 42
For Home Owners
System description

Maintenance routines
General
After installation, check with the installer that the unit is
in perfect condition. Request that the installer shows you
the controls and functions so that you are fully aware of
how the installation should work and be maintained.
Operation
Electrical output is controlled externally by the heat pump.
This means that the electrical output is connected and
disconnected by the additional heater.
Venting
Regularly check that there is water in the system. Air can
remain in the system after installation and the radiators
and boiler should be bled again. After bleeding, the pres-
sure must be checked and water topped up if necessary.
Safety valve
The heating system's safety valve must be completely
sealed and not release any water. The safety valve must
be checked regularly, about 4 times a year. Perform checks
as follows:
1. Open the valve.
2. Check that water flows through the valve.
3. Close the valve.
Reset the pressure by filling with water.
Actions in the event of freeze risk
In the event of extreme cold, no part of the heating system
must be switched off, there is a risk of frost damage.
If a part of the heating system is thought to be frozen,
contact the installer.
If the heating system will not be used for an extended
period of time, the water should be drained and steps
taken to ensure that the immersion heater cannot be
started.
ELK 424
For Home Owners
Maintenance routines

Dealing with malfunctions
In the event of a malfunction or disruption to normal operation, first check the points below:
Low room temperature
႑Circuit or main MCB tripped.
႑Possible earth circuit-breaker tripped.
႑Overheat protection 6 has deployed. If the overheat
protection has deployed, the function of the system's
circulation pumps and valves must be checked. Resetting
occurs by pressing the button on the overheat protec-
tion, when the temperature has fallen below 80 °C.
႑Circulation pump stopped.
႑Thermostat on immersion heater (1) set too low.
႑Air in boiler or system.
႑The pressure is to low in the expansion vessel.
႑The load monitor or some external control unit may have
blocked the power output.
NOTE
Work behind panels secured by screws may only be
carried out by a qualified installation engineer.
5ELK 42
For the Installer
Dealing with malfunctions

General information for the installer
General
The area of use for ELK 42 is in combination with NIBE
ground source and air/water heat pumps. When the
heating demand is greater than the heat pump's capacity,
the immersion heater connects automatically for supple-
mentary heating. The electrical equipment is adapted to
the heat pump's function.
ELK 42 contains overheat protection and three contactors
to control the three power steps 6, 12 and 24 kW respect-
ively. For best function the power should binary controlled,
that is to say 6, 12, 18, 24, 30, 36 and 42 kW.
The products that do not have an internal immersion
heater can use the emergency mode relay for this function.
Ensure that the heating medium circulates through the
electric heater.

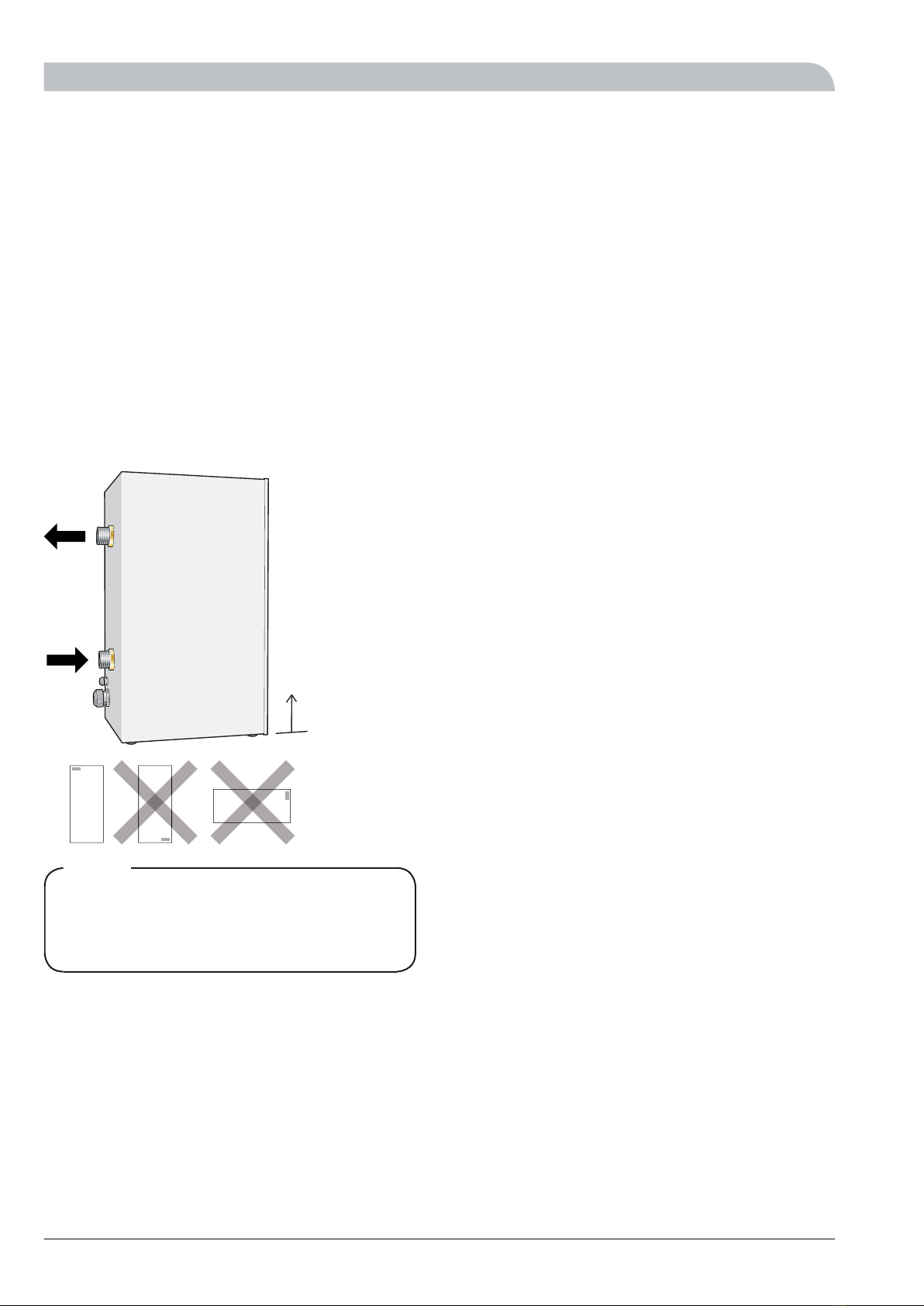

Assembly
LEK
NOTE
The thermostat (35) must be adjusted so that the
system's highest permitted temperature is not ex-
ceeded. The adjustment must not be so great that it
limits the power.
The electric heater must be installed upright (see image
above).
Free space of 500 mm is required in front of the heater for
service. If this is not possible, detachable connections must
be used.
ELK 426
For the Installer
General information for the installer

Pipe installation
The pipe installation must be carried out in accordance
with applicable standards.
Circulation pump
A circulation pump must be used to ensure the IJRZ over
the immersion heater. If the heating system valves can
close the circulation completely, the bypass valve must be
installed so that the IJRZ through the electric heater does
not stop. In closed installations an approved safety valve
and pressure expansion vessel must be used.
NOTE
The pipe work must be IJXVKHG before the electric
heater is FRQQHFWHG so that any contaminants GR not
GDPDJH the component parts.

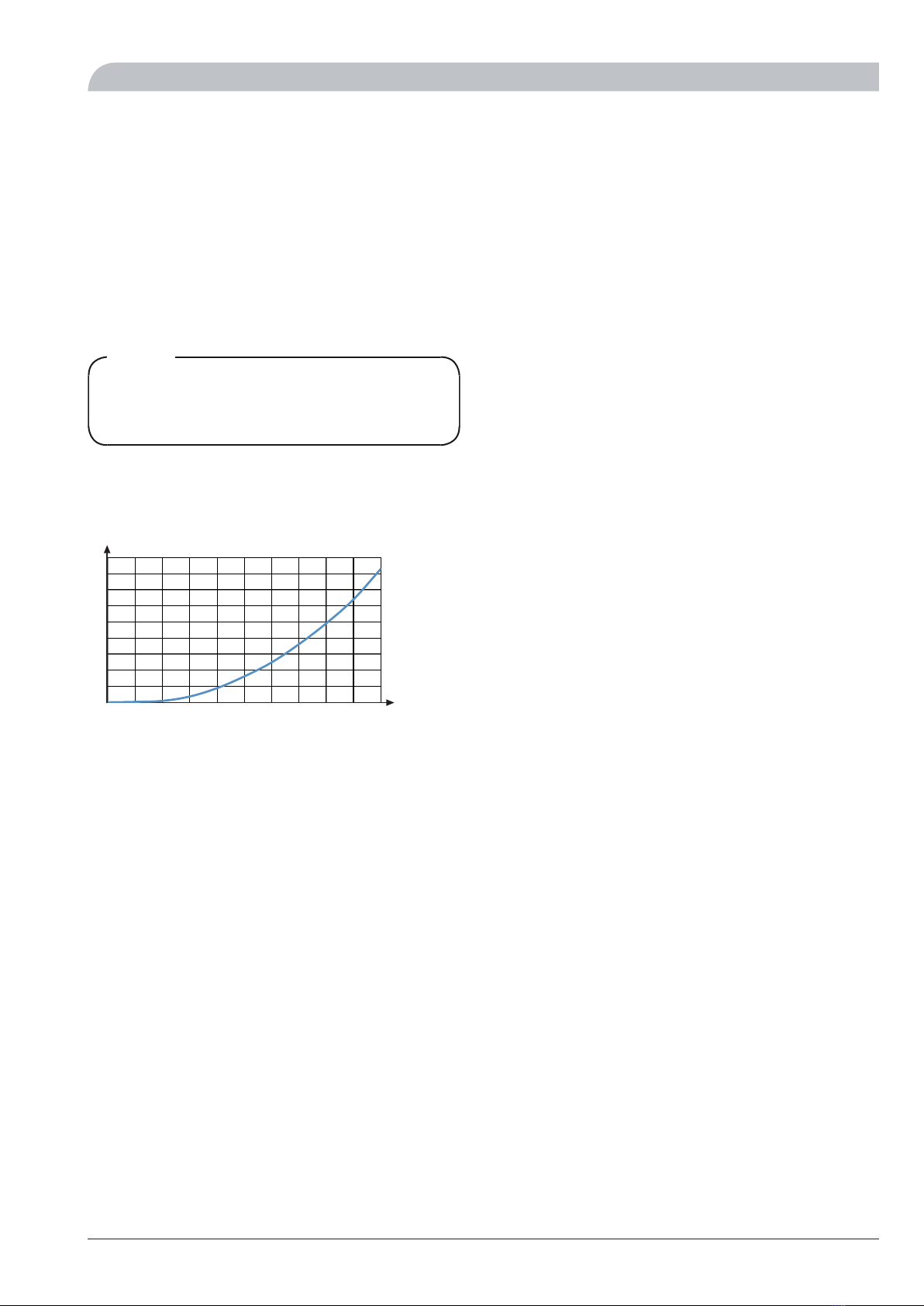

Pressure drop diagram ELK 42
0000100080003000200010 4000 5000 6000 7000 9000
l/h
kPa
9
8
7
6
5
4
0
1
2
3
Flow
7ELK 42
For the Installer
Pipe installation

Electrical installation
ELK 42 must be installed via a circuit breaker with a minim-
um breaking gap of 3 mm.
NOTE
Electrical installation and service must be carried out
under the supervision of a qualified electrician. Elec-
trical installation and wiring must be carried out in
accordance with the stipulations in force.
NOTE
Reset the overheat protection, it may have tripped
during transport.
Power supply
The cable for power supply must be selected for the de-
sired power and connected to terminal block 9.
NOTE
In the event of any servicing all electrical supplies
must be checked and disconnected. The immersion
heater can be supplied with voltage from connected
heat pump.
ELK 428
For the Installer
Electrical installation

Service
Draining
The system is most easily drained by installing a drainage
valve at the lowest point on the pipe installation. Draining
through such a valve leaves a small amount of water in
the electric heater, which must therefore be drained
through the drain connection (71).
NOTE
Switch off the electric heater before emptying.
9ELK 42
Miscellaneous
Service

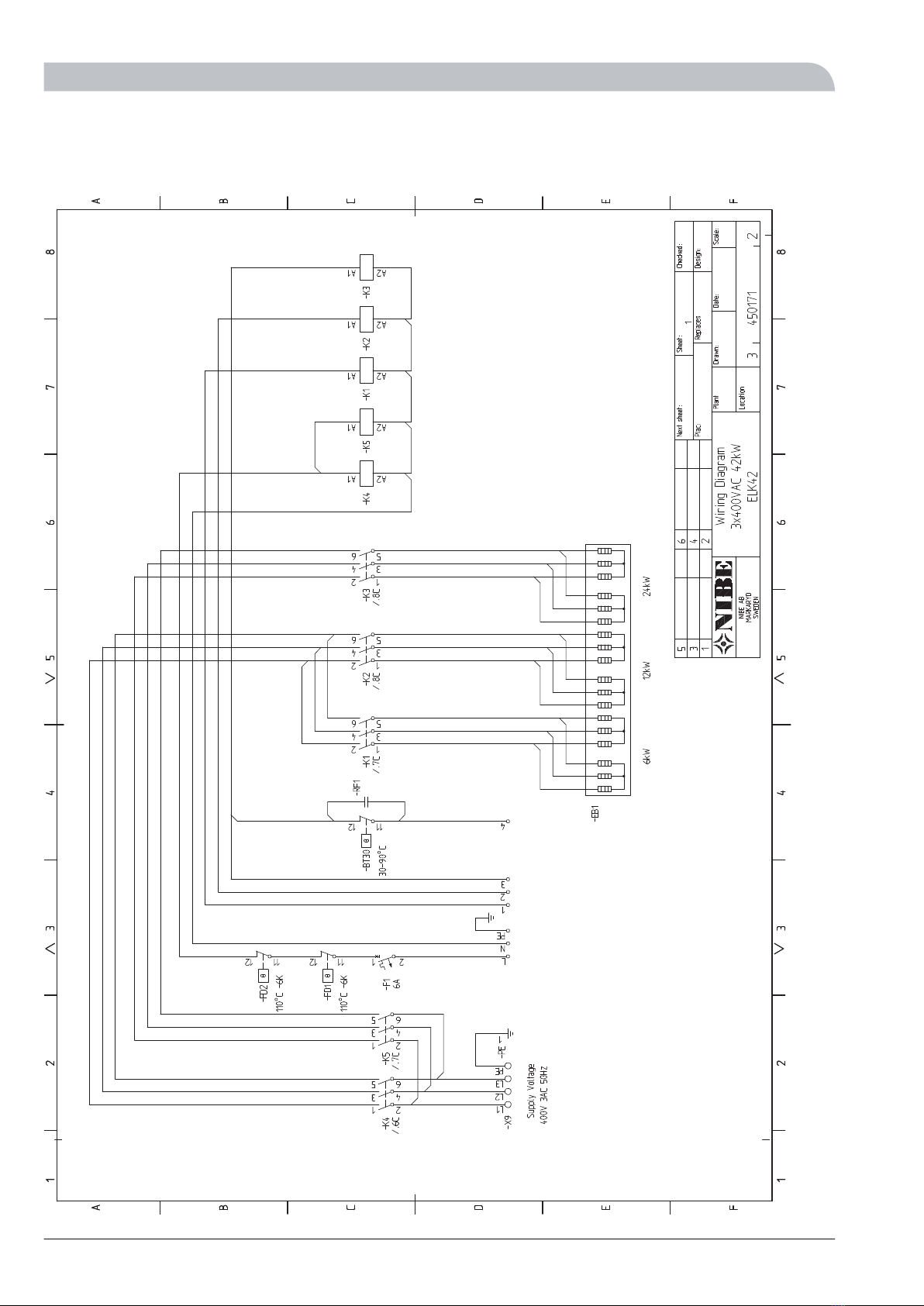

Electrical circuit diagram
ELK 42
ELK 4210
Miscellaneous
Electrical circuit diagram

Technical specifications
Dimensions
710
350210
85
350
75 100
405
11ELK 42
Miscellaneous
Technical specifications

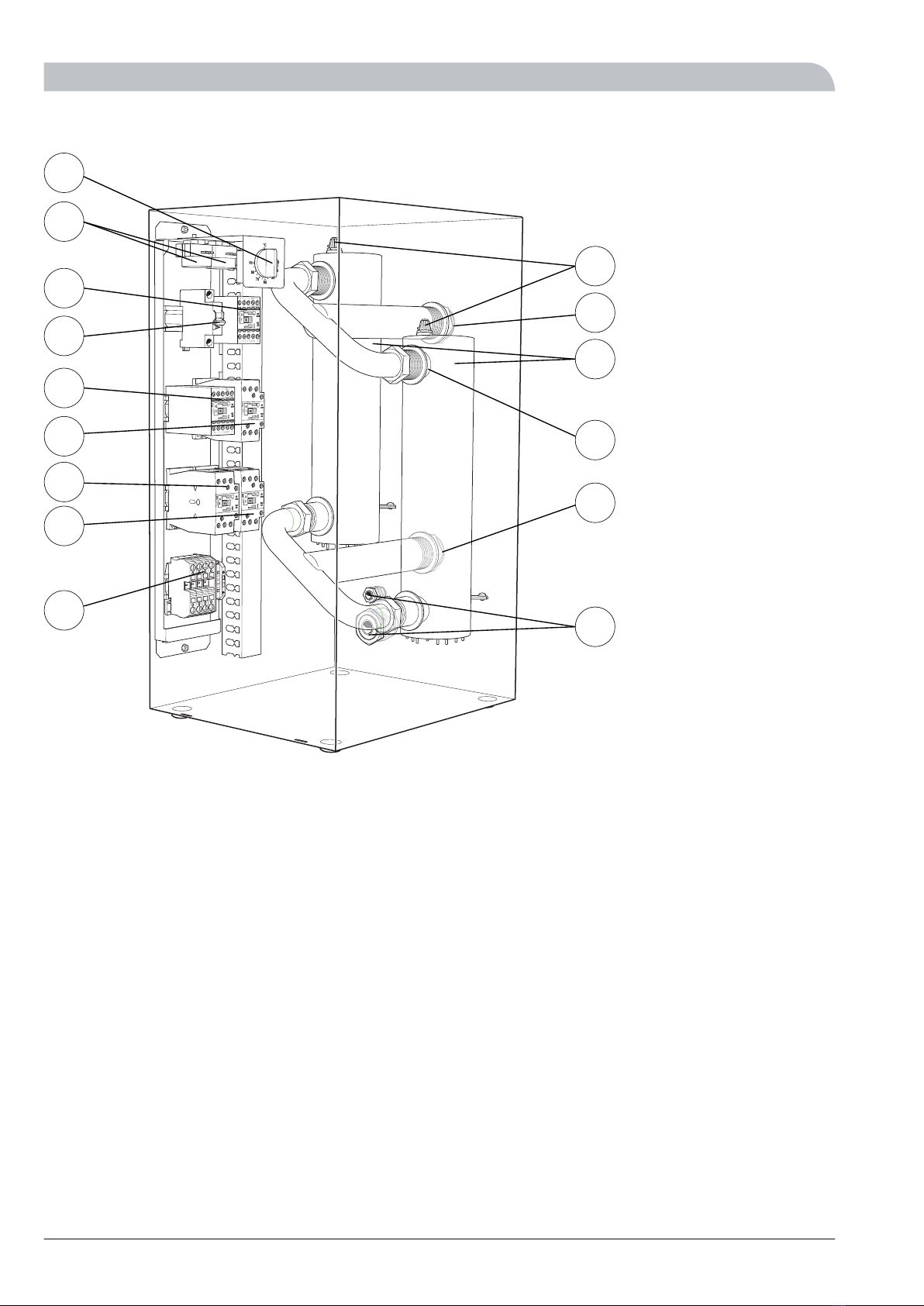

Component positions
LEK
35
6
10
7
11
12
9
81
1
6
71
78
70
13
14
List of components
Immersion heater (-R1)1
Overheat protection (-B1)6
Miniature circuit-breaker7
Terminal block (-X9)9
Contactor (-K1)10
Contactor (-K2)11
Contactor (-K3)12
Contactor (-K4)13
Contactor (-K5)14
Emergency mode thermostat (-B2)35
Connection, supply line, G 4070
Connection, return line, G 4071
Cable grommet78
Venting81
Serial number plate95
ELK 4212
Miscellaneous
Technical specifications

Technical specifications
IP 44
560mmHeight
240mmWidth
135mmDepth
30kgWeight
10.0litreVolume
400 V 3AC 50HzSupply voltage
42kWOutput immersion heater
63ARecommended fuse rating
immersion heater
IP 44Enclosure class
0.7/7MPa/barMax permitted pressure in the
boiler
1800l/hMin flow
5400l/hMax flow
SIS 2333 EN 1.4301Material immersion heater
SIS 2333 EN 1.4301Material tube
067 075Part No.
13ELK 42
Miscellaneous
Technical specifications

231253
PL
NL
FI
DK
DE
CZ
NIBE Energy Systems OY, Juurakkotie 3, 01510 Vantaa
3C Broom Business Park, Bridge Way, Chesterfield S41 9QG
Puh: 09-274 697 0 Fax: [phone] E-mail: [email protected] www.nibe.fi
FR AIT France, 10 rue des Moines, 67500 Haguenau
Tel : [phone] Fax : [phone] E-mail: [email protected] www.nibe.fr
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOK
Tel: [phone] Fax: [phone] E-mail: [e-mail] www.biawar.com.pl
RU © "EVAN" 17, per. Boynovskiy, Nizhny Novgorod
Tel./fax [phone] E-mail: [email protected] www.nibe-evan.ru
NIBE Energietechniek B.V., Postbus 634, NL 4900 AP Oosterhout
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibenl.nl
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 Videbæk
Tel: [phone] Fax: [phone] E-mail: [email protected] www.volundvt.dk
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 Celle
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.de
CH NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 Flurlingen
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.ch
AT KNV Energietechnik GmbH, Gahberggasse 11, 4861 Schörfling
Tel: [phone] Fax: [phone] E-mail: [email protected] www.knv.at
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.eu
GB NIBE Energy Systems Ltd,
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.co.uk
NO ABK AS , Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 Oslo
Tel. sentralbord: [phone] E-mail: [email protected] www.nibeenergysystems.no
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad Jizerou
Tel: [phone] Fax: [phone] E-mail: [email protected] www.nibe.cz
